Bristan Prism User manual

AFTERCARE INSTRUCTIONS
Your fitting has a high quality finish and should be treated with care
to preserve the visible surfaces.All surface finishes will wear if not
cleaned correctly, the only safe way to clean your mixer is to wipe
with a soft damp cloth. Stains can be removed using washing up
liquid. All bath cleaning powders and liquids will damage the surface
of your fitting even the non-scratch cleaners.
GUARANTEE
All products are manufactured to the highest standards and a 5 year
guarantee covers any defect in manufacture. As gold and special
effect finishes are softer than chromium plate, special care must be
taken when cleaning; a 3 year guarantee covers these finishes.
NOTE: The 5-year guarantee on the valves is invalidated if damaged
by any waterborne debris.
In the interests of continuous product development Bristan reserve
the right to alter specification as necessary.
PRODUCT CODE: PM BASNW C / SAT / ST
TELEPHONE HELPLINE: 0844 701 6273
Bristan Group Ltd
Birch Coppice Business Park
Dordon
Tamworth
Staffordshire
B78 1SG
UK
A Masco Company
Web Site: www.bristan.com
Telephone: [phone]
Facsimile: 0844 701 6275
Email: [email protected]
(F
I PM BASNW)
(D3
)
(S
T
)
Prism Basin Mixer
(Without Waste)
Fitting Instructions
& Contents List
Please keep these instructions for future reference
and for the request of spare parts.
For latest prices and delivery to your door visit MyTub Ltd 0845 303 8383 www.mytub.co.uk

1
2
3
4
5
6
7
9
8
10
12 11
WATER PRESSURE
This mixer is suitable for use at all supply pressures. However for
optimum use both the hot and cold supplies should be reasonably
balanced. If the fitting is installed at low pressure (tank fed), then the
minimum distance from the outlet of the nozzle to the underside of
the cold tank should be 1.8 metres to ensure adequate performance.
This mixer should be installed in compliance with Water Regulations.
Where the supplies are unbalanced, i.e. hot water from the cylinder
tank / cold from the mains, approved check valves must be fitted in
the supply pipes.For further details contact your Local Water
Authority.

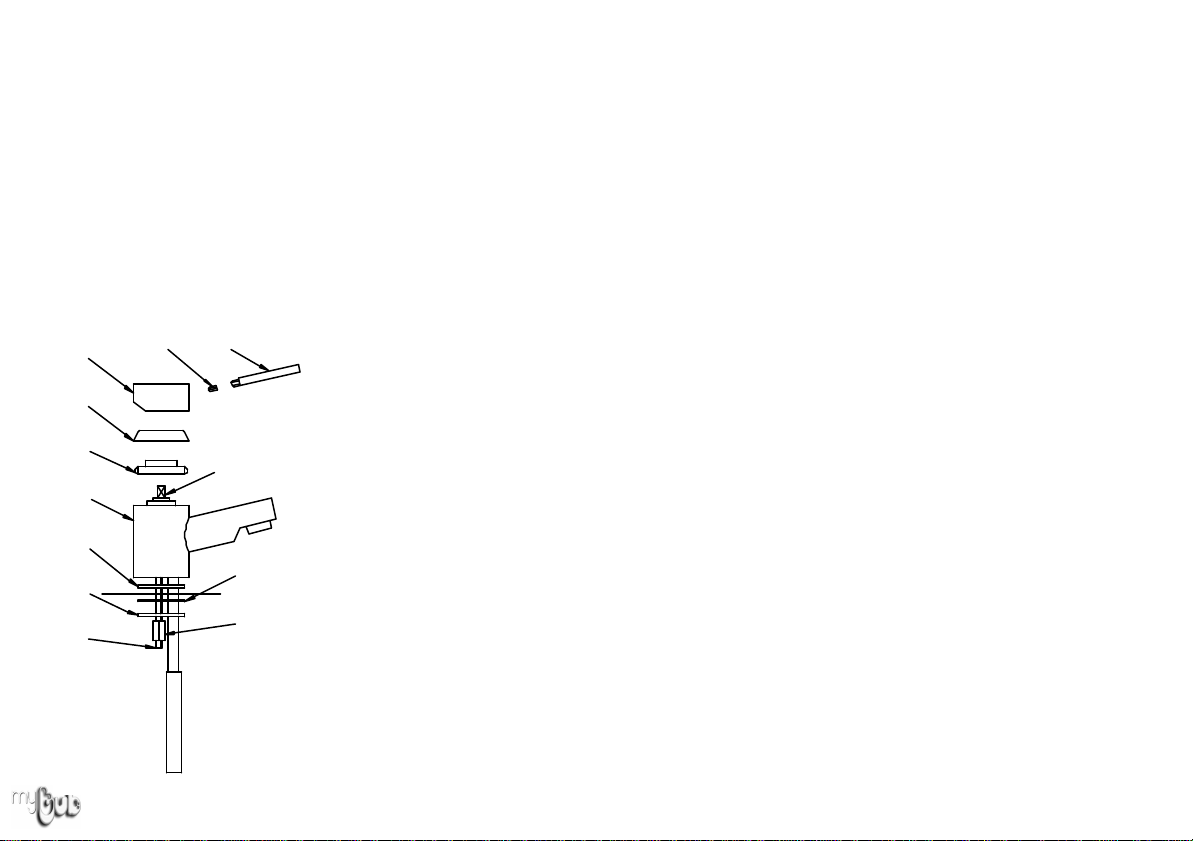

CONTENTS
1. Head (x1)
2. Shroud (x1)
3. Retaining Nut (x1)
4. Mixer Body (x1)
5. Full Rubber Washer (x1)
6. Metal Washer (x1)
7. Threaded Piece (x1)
8. Nut (x1)
9. Rubber ‘C’ Washer (x1)
10. Cartridge (x1)
11. Head Lever (x1)
12. Grub Screw (x1)
INSTALLATION
1. Identify all components and check for completeness, particularly
before arranging fitting.
2. Fit the mixer body (4) to the basin using the 'C' plate fixing kit (6
& 9). The full rubber washer (5) goes between the fitting and
the basin, and the 'C' shaped rubber (9) and metal washer (6)
on the underside of the basin. Use the threaded Piece (7) and
nut (8) to secure to basin.
3. Fit the tail pipes to the fitting and connect the hot and cold
supplies.
4. Fully open the mixer in the mid position, letting it run for a few
minutes to check all joints and connections for leaks.
5. See over the page for aftercare instructions.
MAINTENANCE
If the fitting begins to drip:
1. Turn off the water supply.
2. Unscrew head lever (11), loosen grub screw (12) with 2.5mm
hexagon key and pull off head (1).
3. Remove cartridge (10).
4. Carefully clean seating, rubber washer and ceramic disc.
5. Replace cartridge and head and turn on the water supply.
6. Contact our helpline if problem persists.
Please Note: In the unlikely event you find a part missing please
contact our customer Service Help line on 0844 701 6273 for
immediate dispatchof part.
