Bristan SQR KIT01 BLK D2 Wiring diagram

Installation Instructions
& User Guide
Please leave these instructions
with the end user
Pack Contents
Maximum Static Pressure: 10.0 bar
Max: 5.0 bar
Prior to Installation
Twist the
button
to release
the lock.
Adjust to the
necessary
height and
return to
the straight
position
to lock.
Spares
Safety Goggles
Drill
Cross Head
Screwdriver
Electronic Detector
Operation Dimensions (mm)
Dynamic Water Pressure
Specifications
Inlet Connections
Tools Required
All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular
maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements of The Water Supply (Water Fittings) Regulations
(Northern Ireland) 2009 and The Water Supply (Water Fittings) (Scotland) Byelaws 2014. For full Installation Requirements & Notes
(IRN) please visit www.wrasapprovals.co.uk/approvals-directory
Full access must be made available for future maintenance/servicing purposes. This product must not be modified in any way as this will
invalidate the guarantee.
Before drilling into walls, check that there are no hidden electrical wires, cables or water supply pipes.
This can be checked with the aid of an electronic detector. If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
Min: 0.2 bar
SQR KIT01 BLK (D2)
x1
x2
x2
End Caps
Single
Function
Handset
Riser
Brackets
Wall
Outlet
Cone
to
Nut
Hose
Slider
Riser
Rail
Screw Pack
x1
x1
x1
x1
x1
Spirit Level
1/2” BSP
Pencil
7.5mm
To replace any
spare parts for
your shower, why
not scan the
QR Code or visit
www.bristan.com
and search for
your product.
0
1.0
2.0
5.0
4.0
3.0
Pressure
BAR
65
240
700
130
690
Adjustable
Spanner

Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.
Installation Instructions
and User Guide
Adjustable Riser Kits

2Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have
designed these products with your enjoyment in mind. To ensure that they work to
their full potential, they need to be fitted correctly. These fitting instructions have
been created to give you all of the information you need and, if you need any further
help, please do not hesitate to give us a call on 0330 026 6273.
Contents
• Important Safety Information 3
• Prior to Installation 4
• Installation - Riser with Moulded Brackets 5-6
• Installation - Brackets with Fixing Plates 6-7
• Installation - Shrouded Brackets 8
• Installation - Wall Outlets 9
• General Cleaning 9
• Troubleshooting 10
• Notes 11

All products manufactured and supplied by Bristan are safe to use provided that
they are installed, operated and receive regular maintenance in
accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements
of the Water Supply (Water Fittings) Regulations 1999 and current by-laws.
For full Installation Requirements & Notes (IRN) please visit
www.wrasapprovals.co.uk/approvals-directory
This product must not be modified in any way as this will invalidate the guarantee.
Full access must be made available for future maintenance/servicing purposes.
Before drilling into walls, check that there are no hidden electrical wires, cables or
water supply pipes. This can be checked with the aid of an electronic detector.
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
If in doubt, contact a registered plumber or your
Local Water Authority or the Secretary of the
Institute of Plumbing, address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: [phone]
3
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Important Safety Information

4Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Prior to Installation
The installation images are for illustrative purposes only, and your product may
slightly dier in installation, depending on specification. Please refer to your specific
shower kit contents page for specification information.
These kits are designed to be used in conjunction with Bristan showers. We cannot
guarantee compatability or adequate performance when used with other showers.
This shower kit must be installed in compliance with current water regulations.
If you have any doubts about the water regulation requirements contact your local
water services provider or use the services of a professional plumber.

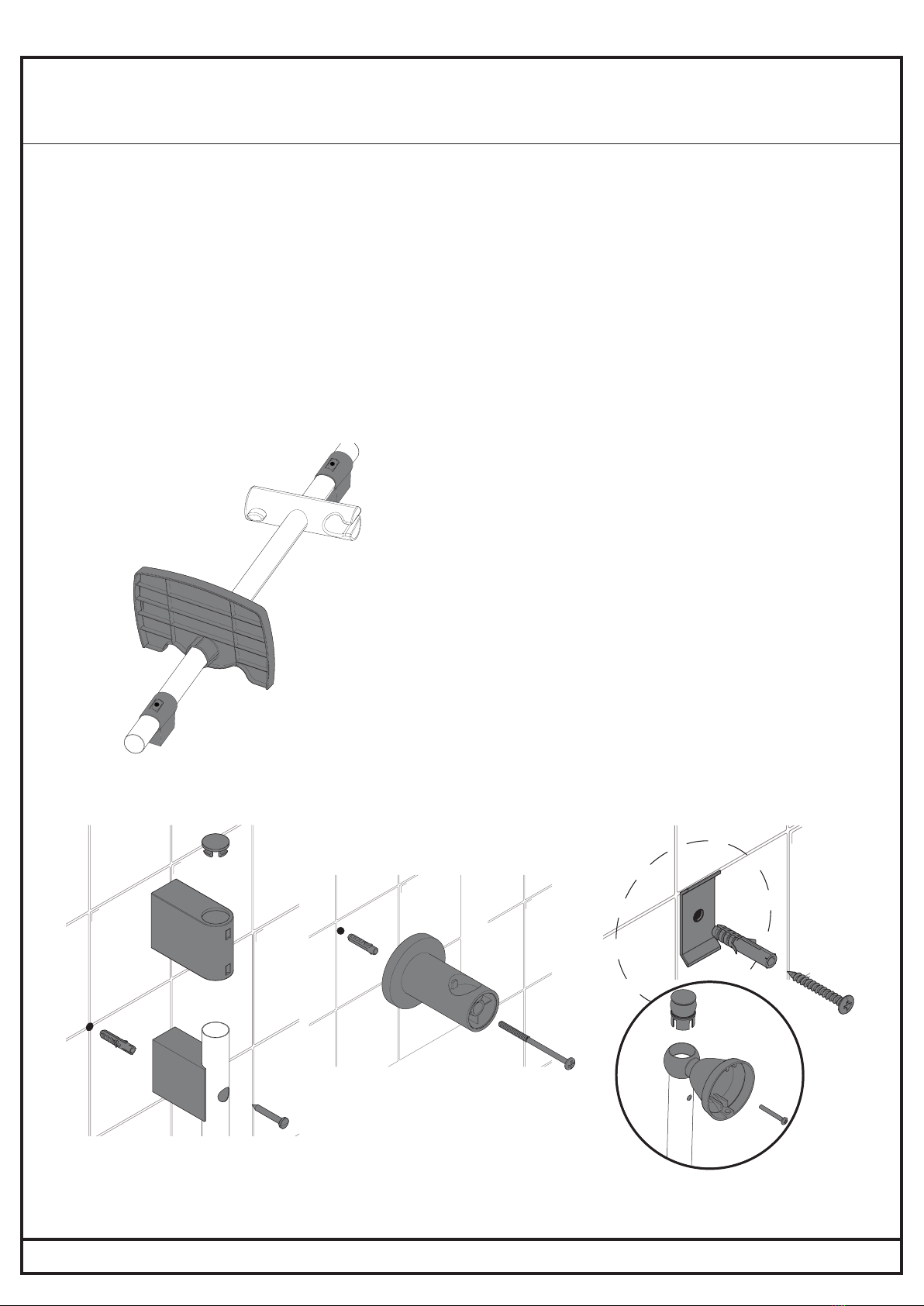

Check to see which type of
brackets your adjustable riser has. This
information will be needed to follow the
correct installation steps.
Some of our adjustable riser kits have
adjustable brackets to help cover existing
fixing holes. Check to see if your brackets
have a hole that goes all the way
through the bracket.
You will also need to check that the riser
rail has holes/notches in the rail. These
holes/notches signify a fixed point where
the bracket will need to be.
Bracket Types:
Shrouded Bracket Moulded Bracket Fixing Plate Bracket

5
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

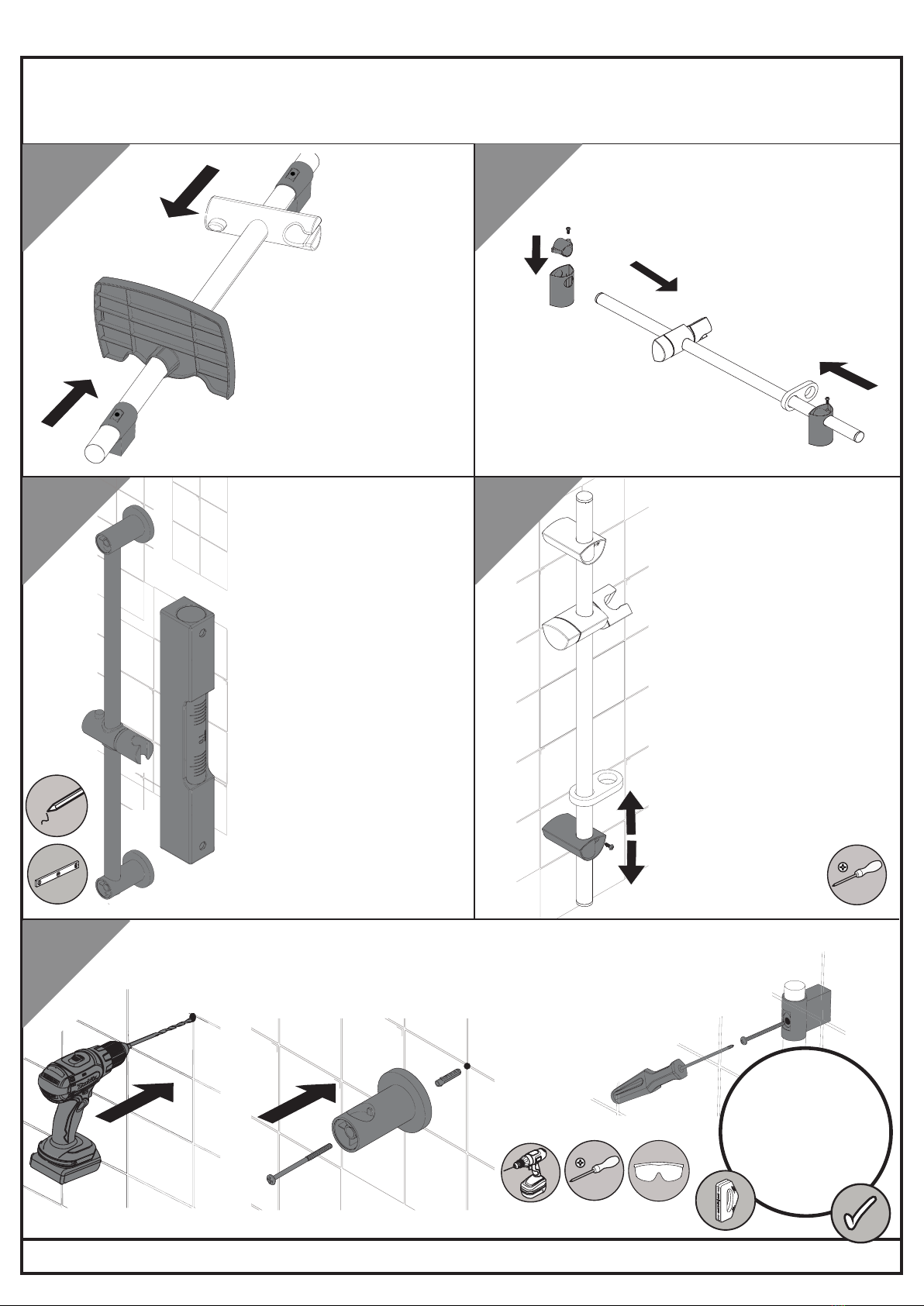

Installation - Riser with Moulded Brackets
3
1a 1b
Assemble the
riser ensuring the
slider, hose retainer
(if supplied)
and soap dish
(if supplied) is
in place.
2a 2b
Mark and drill the screw holes. Secure the bottom bracket to the wall.
Check for a notch/hole in the riser rail; fixings may have to go through
the hole to secure the bracket or it may have to be orientated
to fit in a certain position.
Using a spirit level
to ensure the riser is
positioned correctly
and perpendicular
to the wall, use the
assembled riser to
mark the desired
position of the
brackets and wall
fixings. Make sure to
accommodate for
all user heights.
REMEMBER
Check for
hidden pipes and
cables before
drilling!
Secure using the fixings
supplied if necessary.
If your brackets come with internal
fixings, make sure that the internal
fixings inside the bracket are in place
when attaching to the riser rail.
If your kit brackets are
adjustable, slide the
bottom bracket to the
desired position to
cover existing holes.
If internal fixings are
used in the brackets,
you may need to
loosen the fixings and
re-tighten once in the
desired position.

6Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation - Riser with Moulded Brackets

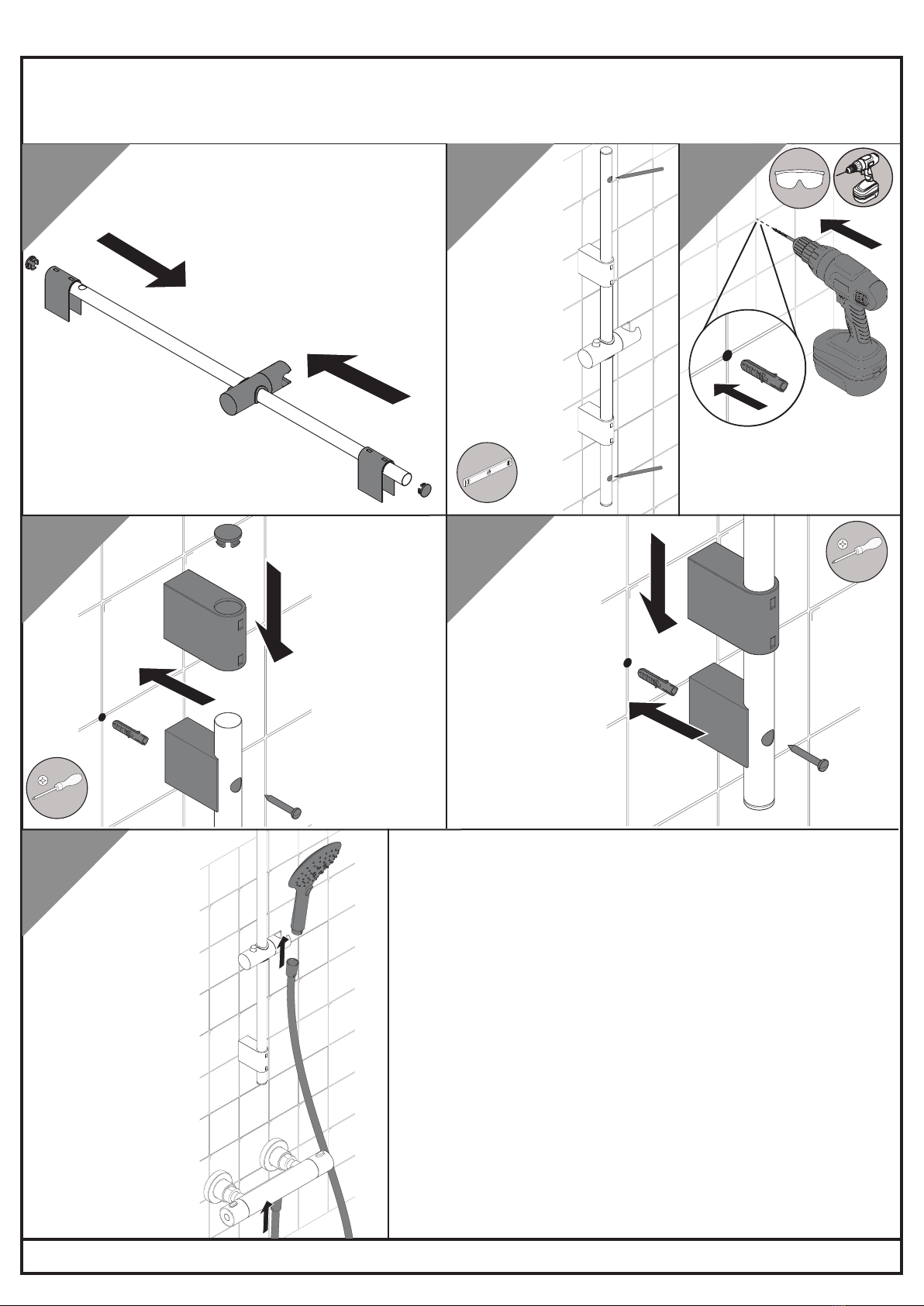

Installation - Brackets with Fixing Plates
Assemble the riser ensuring the slider,
hose retainer (if supplied) and
soap dish (if supplied) are in place.
If necessary, secure the brackets to the
riser rail using the supplied fixings.
Position the riser rail, taking into account
user heights and that the hose can reach the
shower outlet with the handset in the holder.
Check the rail is straight and mark
the bracket positions.
12a
456
Place the
caps on
to the
riser rail.
Place or slide the riser
and top bracket into
the bottom bracket.
Secure the riser rail to
the wall using the
fixings supplied. Connect
the hose and
handset to
your shower,
ensuring
the washers
are in place
(if supplied).
If a hose
retainer or
soap dish
is supplied,
make sure the
hose is fed
through it.

7
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation - Brackets with Fixing Plates
To Adjust
Slider
Connect the
hose and
handset to your
shower, ensuring the
washers are in place
(if supplied). If a hose
retainer or soap dish is
supplied, make sure the
hose is fed through it.
6
Attach the riser
to the fixing
plates and
secure using the
fixings supplied.
If necessary,
place the caps
on to the
riser rail.
5
Secure the fixing plates to the
wall using the fixings supplied.
Use the wall plugs if necessary for
your wall type. If you are fitting the
riser to a partition wall or a wall of
particularly soft friable substrate,
you will need appropriate fixings
for the wall type. If necessary,
slide the bracket shrouds
back on to the fixing plates.
Remove the
fixing plates by
unscrewing the
fixings or sliding
from the fixing
brackets.
Mark the
fixing holes in
each bracket
position and drill.
2b 3
4
REMEMBER
Check for
hidden pipes and
cables before
drilling!
If your kit brackets are
adjustable, loosen the
fixings to slide the
bottom bracket to the
desired position.
Re-tighten once in the
desired position.
Check the rail is
straight and mark
the bracket positions.
Check the
orientation of the
fixing plates.
Install as they come
out of the brackets.

8Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation - Shrouded Brackets
5
3
2
Repeat Step 4
and secure the
bottom bracket
into place.
1
4
6
Slide the slider, bracket covers
and caps on to the riser rail.
Ensure the
riser rail is
straight and
mark the
fixing hole
positions on
the wall.
Drill the marked holes.
Insert wall plugs
if necessary.
Line up the
wall bracket
and riser
rail with the
centre of the
fixing hole.
Screw into
place and
cover with
the bracket
cover and
cap.
Connect
the hose and
handset to
your shower,
ensuring
the washers
are in place
(if supplied).
If a hose
retainer or
soap dish
is supplied,
make sure the
hose is fed
through it.

9
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation - Wall Outlets
General Cleaning
Bristan products are made from
premium materials, with hand polished,
PVD, EPD or electroplated finishes.
Your product should be regularly
cleaned with warm water, a mild
pH-neutral liquid soap, and polished
with a soft cloth. Any residues from
soap, toothpaste, shampoos and
shower gels can cause blemishes
if not rinsed o straight after use.
Household bleaches and cleaners
contain harsh chemicals and may
damage the surface finish. Avoid using
abrasive cloths, scouring pads, scrub
sponges, steel wool or anything similar.
Some surfaces such as nickel and
pewter may be aected by the dye
found in some cloths, so it is also
important to avoid hanging cloths
on surfaces.
Your Bristan shower
head may have rub-clean
nozzles for easy cleaning.
Simply rub your fingers across
the rubber spray jets regularly
before you turn the shower
on to remove any
scale or debris.
Choose the location for the wall outlet
and create a 25-30mm hole in the wall.
Ensure your hose has enough reach
from that position to reach.
Finish the wall surface.
Fit the wall outlet, ensuring
the washers are fitted either
side of the wall. Connect the
plumbing to the outlet.
With rear access Without rear access
Plumb the copper pipework to the desired
location. Screw the wall outlet into
the 1/2” female connection, using a suitable
thread sealant and ensuring the rubber
seal is fitted to the back of the wall outlet.

10 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Troubleshooting
Symptom Cause(s) Remedy
No flow or
low flow
rate
Partially closed isolation valve. Open isolation valve.
Head of water is below the minimum
distance required.
Refer to your specific product’s
Contents Page for the minimum
working pressure/distance required.
Inlet filter in the shower valve is blocked Refer to the shower fitting instructions
for Maintenance steps.
Hot or cold water being drawn o
elsewhere causing pressure changes
or instantaneous boiler temperature
changes.
Do not use other water outlets when
using the taps.
Airlock or partial blockage in the supply
pipework or hoses.
Flush through pipework to ensure
removal of debris and any airlocks.
Shower hose is kinked,
causing a blockage.
Un-kink the shower hose and check for
any damage, Replace if necessary.
Water supply failure
Investigate water supply. Check your
plumbing and heating systems for any
faults.
Water
drip-
ping from
shower kit
This is normal for a short time after
using the shower.
This is caused by residual water tension,
the build up of water in the shower kit.
If water continues to drip,
possibly due to the ceramic disc valves/
cartridge
Refer to the Maintenance section of
your shower instructions to replace the
valves/cartridge.

11
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Notes

At Bristan, we want to make things as easy as possible for our customers. That’s why we oer solid
guarantees on all our products, eective from the date of purchase, to give you peace of mind.
To start your free guarantee simply scan the QR code and register your product.
Alternatively visit www.bristan.com/register.
For any other queries, please call our Customer Service on 0330 026 6273 where our expert team
of advisors will be able to oer you any help and advice.
For full guarantee terms and conditions visit www.bristan.com/service-centre/guarantees.
Bristan Group Ltd.
UK: Bristan Group, B78 1SG.
EU: Masco Europe S.à.r.l.
14 Rue Strachen
6933 Mensdorf
Luxembourg
Customer Service: [phone]
Web: www.bristan.com
Email: [e-mail]
A Masco Company
Issue: D1
Part Number: FI Adj Kits
