Britax Steelcraft STROLL LITE LX5012 Series User manual

IMPORTANT: KEEP THIS
BOOKLET IN A SAFE PLACE
FOR FUTURE REFERENCE
Series LX5012
GLIDE LITETM
ULTRA LIGHTWEIGHT STROLLER

STROLLER SECTION
STROLLER WARNINGS & IMPORTANT NOTES
MANUAL HANDLING TECHNIQUES & PARTS LIST
STROLLER ASSEMBLY
OPENING THE STROLLER FRAME
ATTACHING & REMOVING THE REAR WHEELS
ATTACHING & REMOVING THE FRONT WHEELS
USING THE SHOULDER HARNESS PADS
STROLLER OPERATION
USING THE CANOPY
USING THE BRAKES
USING THE FRONT WHEEL SWIVEL LOCK
ADJUSTING THE BACKREST
SECURING YOUR CHILD HARNESS
ADJUSTING THE HARNESS
OPENING THE HARNESS
ADJUSTING THE SHOULDER HARNESS HEIGHT
USING THE TETHER STRAP
USING THE STROLLER
FOLDING THE STROLLER
CARE & MAINTENANCE
GENERAL MAINTENANCE & REPAIR
CLEANING
WARRANTY
MAKING A WARRANTY CLAIM
AUSTRALIAN CONSUMER LAW
SAFE-N-SOUND
®
WARRANTY
INTERNATIONAL WARRANTY
NOTES
4
8
11
23
18
10
12
24
16
20
6
10
12
24
15
19
11
13
24
25
16
21
14
17
INDEX

4Instructions for Assembly, Operation and Maintenance
TO AVOID INJURY OR DEATH ALWAYS APPLY THE BRAKES
WHENEVER THE STROLLER IS STATIONARY.
• DO NOT LEAVE CHILDREN UNATTENDED.
• SECURE THE CHILD IN THE HARNESS AT ALL TIMES.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF
YOU ADJUST THE STROLLER.
• DO NOT USE ANY ACCESSORIES OTHER THAN THOSE APPROVED
FOR USE WITH THIS STROLLER BY BRITAX.
• IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE
WITH THIS STROLLER.
• THE MAXIMUM WEIGHT OF THE CHILD USING THIS STROLLER IS
NOT TO EXCEED 20KG.
FOR IMPORTANT NOTES AND WARNINGS ON ACCESSORIES
REFER TO THEIR INDIVIDUAL SECTIONS IN THIS BOOK OR THE
INSTRUCTION MANUAL INCLUDED WITH THE INDIVIDUAL PRODUCTS.
THE MAXIMUM WEIGHT VARIES FOR EACH ACCESSORY.
Always follow the manufactures instructions.
Read all instructions carefully before assembly and use of this stroller.
The correct use and maintenance of this product is essential.
WARNINGS

Instructions for Assembly, Operation and Maintenance 5
THIS CAUTION SYMBOL IS SHOWN AT
CERTAIN STEPS IN THIS INSTRUCTION
MANUAL TO HIGHLIGHT THE DANGER
OF BEING INJURED BY MOVING PARTS.
• Use great care when using the stroller on stairs, escalators, travelators
or other moving surfaces.
• It is recommended to remove the child from the stroller before going up
or down stairs or escalators.
• Do not allow children to stand on the seat.
• Do not hang bags unless they are supplied or goods from the handle as this
could cause the stroller to tip over.
• Do not leave the stroller and its accessories near an open fire or exposed flame.
• Do not place more than 6kg in the basket.
IMPORTANT NOTES
IMPORTANT NOTES

6Instructions for Assembly, Operation and Maintenance
MANUAL HANDLING TECHNIQUES
THE SMART LIFTING TECHNIQUE
This technique can be used to pick up small light loads from low levels.
SIZE UP THE LOAD
• Assess the load (size, shape and weight).
• Assess whether the load needs to be moved;
• Where is it going to be placed, check that there are no obstructions;
• Assess whether mechanical or human assistance is required.
MOVE THE LOAD AS CLOSE TO THE BODY AS POSSIBLE
• A load is heavier to lift or carry if it is not close to the body.
• The whole hand should be used to ensure a firm grip.
ALWAYS BEND YOUR KNEES
• Maintain balance.
• Keep feet apart and in a comfortable position.
• Minimise lower back bending.
• Bend knees preferable at as large an angle as possible but not at a
right angle use a semi squat in preference to a full squat.
RAISE THE LOAD WITH YOUR LEGS
• Achieve the lift smoothly and without jerkiness.
• Maintain the normal curvature of the spine to allow the force of the
load to be distributed evenly from the spine to the pelvis.
TURN YOUR FEET IN THE DIRECTION THAT YOU WANT TO
MOVE THE LOAD
• Avoid unnecessary bending, twisting and reaching.
• Change direction by turning your feet and not your back.
• To set the load down, squat down, keep your head up and
• Let your legs do the work.
Remember to ‘THINK TALL’ chest lifted, shoulders relaxed,
chin tucked in and head level.

Instructions for Assembly, Operation and Maintenance 7
PARTS LIST
1x Stroller Frame & Basket
2x Front Wheels
2x Rear Wheels

8Instructions for Assembly, Operation and Maintenance
IMPORTANT NOTES
PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES.
• Release the storage latch with due care and open the frame.
• When opening the stroller, be aware of the danger of being injured by moving parts and
locking devices during the process. Keep all hands and limbs clear of these parts.
• There is potential for fingers or parts of the body to injured when the stroller is being
unfolded, due care should be exercised.
• Keep children clear of the stroller when unfolding the stroller.
• Open the stroller slowly and be careful where you place your hands. Keeping your hands
on the handle is the best way to unfold the stroller.
OPENING THE STROLLER FRAME
AMake sure the carry strap is out of the
way and hangs freely before opening the
stroller frame.
BRelease on the frame lock and open the
frame.
STROLLER ASSEMBLY
A B

Instructions for Assembly, Operation and Maintenance 9
CLICK
Fig.1
Fig.2
Fig.3
COpen the frame by lifting the handle.
ETo assist the opening, push down the
back of the basket with your foot while
pulling the handle upwards until frame is
locked.
DContinue to pull the handle upwards.
FTo ensure that the stroller frame is locked
correctly there are green and red indicators
on both sides as shown. The stroller is
correctly locked when only green is visible
at the top of the plastic housing as figure 1.
Push down the handle to make sure the
stroller frame is fully opened and locked.
If not please repeat the steps D and E.
STROLLER ASSEMBLY
C
E
D
F

10 Instructions for Assembly, Operation and Maintenance
STROLLER ASSEMBLY
ATTACHING OR REMOVING THE REAR WHEELS

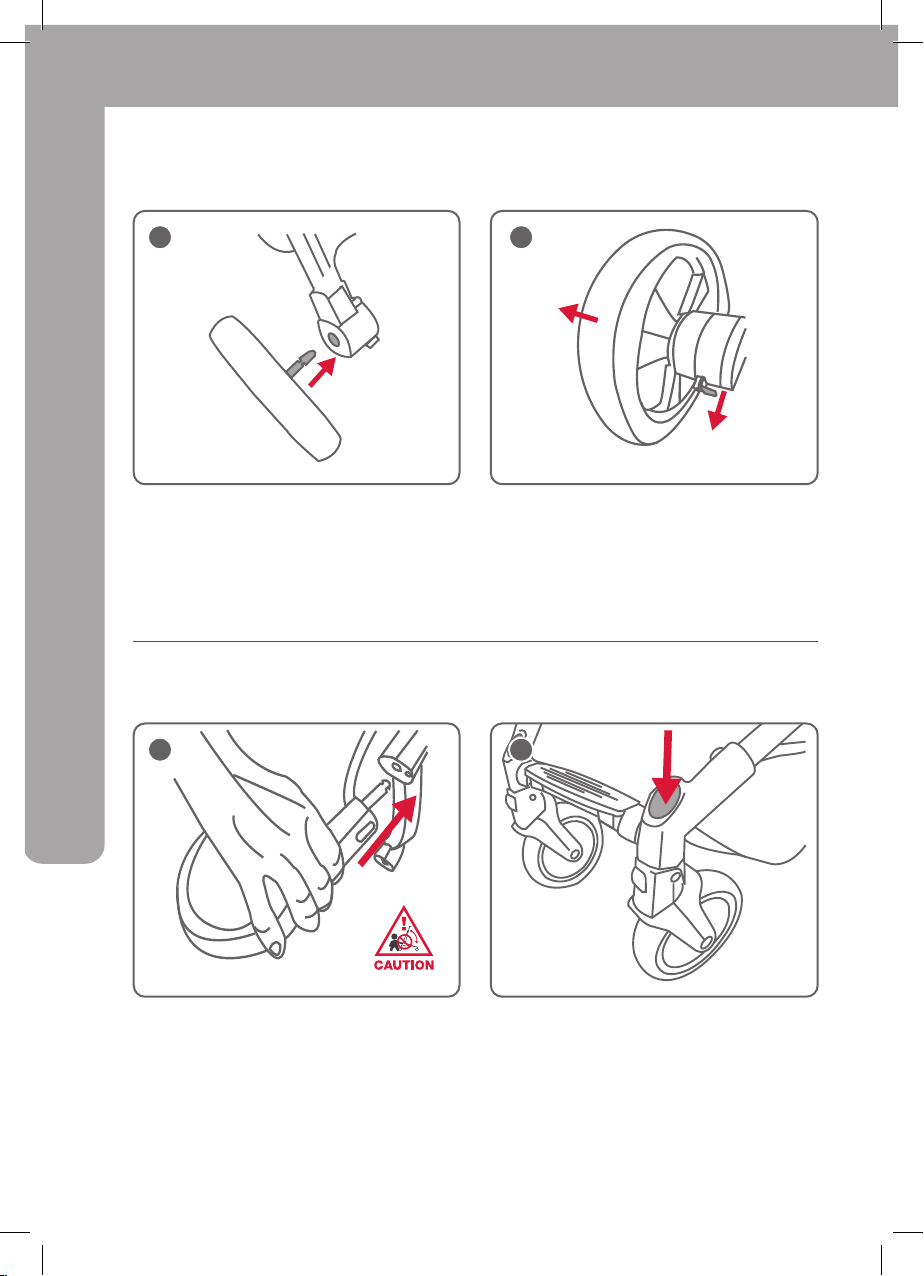

ATo attach the real wheels, insert each
wheel axle into rear wheel housing and push
in until locks. Pull on the wheel to ensure it
is locked.
BTo remove the rear wheels, pull the metal
latch downwards on the underneath of the
rear wheel housing and then pull the
wheel out.
ATTACHING OR REMOVING THE FRONT WHEELS
ATo attach the front wheels, insert each
wheel into wheel housing and push in until
locks. Pull on the wheel to ensure it is locked.
BTo remove the front wheels, press the
quick release button on the top of the front
leg mouldings.
A B
A B

Instructions for Assembly, Operation and Maintenance 11
STROLLER OPERATION
USING THE SHOULDER HARNESS PADS
IMPORTANT NOTE
Ensure that the shoulder straps are fitted through the appropriate harness slots to suit
your child’s seated shoulder height.
ASlide the shoulder harness pads
onto the shoulder harness straps
and adjust to the position which fits
comfortably on the child.
A
USING THE CANOPY
IMPORTANT NOTE
The sun is very strong. DO NOT LEAVE YOUR CHILD EXPOSED TO THE SUN.
The canopy or hood on this product will not give your child total protection from
the harmful rays of the sun.
ATo adjust the canopy, open by
pulling forward, or close by pushing
the canopy backward.
A

12 Instructions for Assembly, Operation and Maintenance
USING THE BRAKES
STROLLER OPERATION
CLICK
CLICK
ATo engage the brake, step on the red
brake pedal until you hear a ‘click’. Ensure
the brake is engaged.
BTo disengage the brake, push the red
brake pedal up until you hear a ‘click’.
ATo lock the front wheels into the fixed
position, press the swivel lock up on both
wheels until they lock into position.
BTo allow the wheels to swivel, push the
swivel wheel lock down on both wheels until
they swivel freely.
USING THE FRONT WHEEL SWIVEL LOCK
PLEASE NOTE
Always lock the swivel wheels when using the stroller on rough surfaces as this will minimise
wheel wobble. Position (wheels under frame).
A B
A B
ALWAYS APPLY THE BRAKES WHEN THE STROLLER IS STATIONARY.

Instructions for Assembly, Operation and Maintenance 13
ADJUSTING THE BACKREST
STROLLER OPERATION
PULL
PULLPULLPULL
1
2
PUSH
LIFT
ATo raise the backrest, support the
backrest with one hand and pull the strap
until designed position.
BTo lower the backrest, push the button
and pull the lever then slowly lower the
backrest.
A B
• THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR USE WITH CHILDREN
LESS THAN 6 MONTHS OLD.
• THE LOWEST RECLINE POSITION SHOULD BE USED TO TRANSPORT
BABIES. THE BACKREST CAN BE ADJUSTED TO A MORE UPRIGHT
POSITION AS THE CHILD GROWS OLDER AND IS ABLE TO SUPPORT
IT’S HEAD WITHOUT ASSISTANCE.
PLEASE NOTE
If the child is sitting in the seat, support the backrest as it reclines.
If you have diculty adjusting the backrest you may need to remove the child from the
seat to allow you to raise or lower the backrest with ease.

14 Instructions for Assembly, Operation and Maintenance
STROLLER OPERATION
SECURING YOUR CHILD HARNESS
C
WAIST
STRAP
WAIST
STRAP
CROTCH STRAP
BUCKLE
HOUSING
BB
A A
A B A B
CROTCH STRAP
BUCKLE
HOUSING
SHOULDER
STRAP
SHOULDER
STRAP
WAIST
STRAP
WAIST
STRAP C

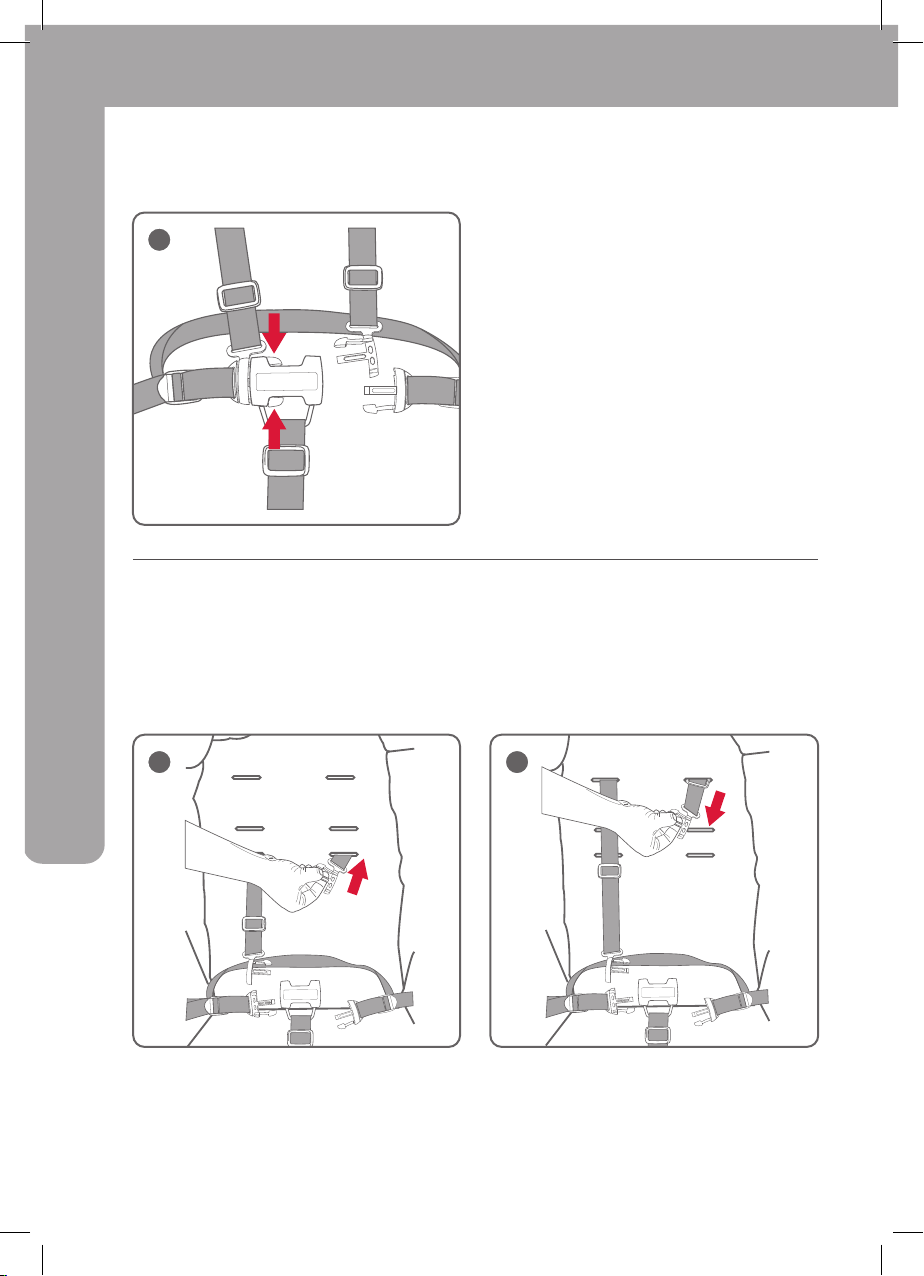

APosition the shoulder strap tongue (A) on
top of the waist buckle tongue (B) on both
sides.
BPush both buckle tongues (A + B) into the
buckle housing (C) until the buckle tongues
lock into position.
A B
• ENSURE YOUR CHILD IS SECURED WITH A CORRECTLY ADJUSTED HARNESS.
• THE ADJUSTED HARNESS SHOULD CLOSELY FIT THE CHILD.
• NEVER LEAVE THE HARNESS BUCKLED WHEN NOT FITTED TO A CHILD IN
THE STROLLER, BECAUSE THE HARNESS CAN FORM LOOPS WHICH MAY
POSE A STRANGULATION HAZARD.
• WHEN HARNESS IS NOT IN USE, DISCONNECT SHOULDER STRAPS FROM
THE WAIST STRAPS AND BUCKLE TO PREVENT STRANGULATION.
• A five point harness is provided to restrain your child.
• Buckle tongues separate for added safety.
• To reconnect buckle tongues and to secure the child in the harness please
follow the steps below carefully.
PLEASE NOTE
Each waist buckle tongue has a raised rib on one side and can only be locked into the buckle
assembly with the raised rib facing up. Ensure the harness straps are not twisted as they may
become uncomfortable for the child.
Always apply the brakes before placing child in stroller seat. Position the shoulder strap near
the child’s shoulder and position crotch strap between legs.
USE THE HARNESS AT ALL TIMES.

Instructions for Assembly, Operation and Maintenance 15
STROLLER OPERATION
3 BAR
SLIDER
3 BAR
SLIDER
3 BAR
SLIDER
WAIST
STRAP
CROTCH STRAP
4 BAR
SLIDER

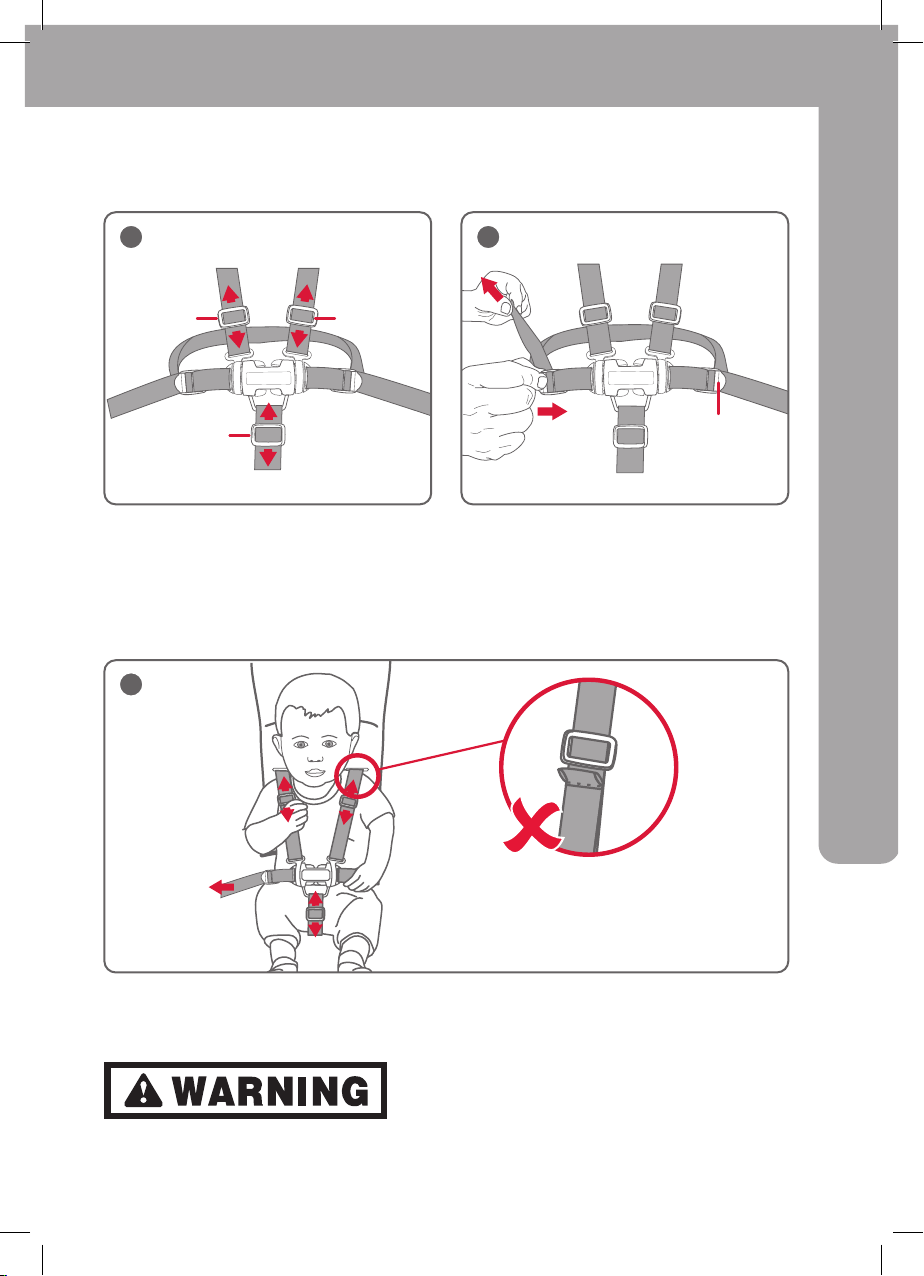

ATighten or loosen the shoulder straps and
crotch strap by sliding the 3 bar slider up or
down. The crotch strap should be adjusted
to a snug fit.
BTighten or loosen the waist straps, hold
and lift the 4 bar slider and pull the harness
strap to adjust to the desired fit. The waist
strap needs to fit firmly around the child.
ADJUSTING THE HARNESS
A B
CTo tighten or loosen the shoulder straps, slide the 3 bar slider up or down to adjust to the
desired fit. Always adjust the harness strap when changing the seating position of the child.
C
DO NOT SLIDE 3 BAR SLIDER OVER THE SEWN TAB ON SHOULDER HARNESS.

16 Instructions for Assembly, Operation and Maintenance
STROLLER OPERATION
OPENING THE HARNESS
ATo release the buckle, squeeze the top
and bottom buckle tongues together with
enough pressure so the buckle tongues can
release from the buckle housing.
ADJUSTING THE SHOULDER HARNESS HEIGHT
IMPORTANT NOTE
The harness can be adjusted to three dierent heights to accommodate the child.
The shoulder straps must be positioned near the child’s shoulders.
ATo change the shoulder harness height, push
the shoulder harness tongue out of the current
harness slot and through the back of the seat.
BSelect the appropriate shoulder harness
height and pull each shoulder harness
tongue through the harness slot.
A
A B

Instructions for Assembly, Operation and Maintenance 17
STROLLER OPERATION
USING THE TETHER STRAP
AA wrist tether strap is provided hand
through the tether strap loop whenever you
use the stroller. Only remove your hand from
the tether strap loop when the brakes have
been applied to the stroller wheels.
A
• THE STROLLER IS DESIGNED FOR USE ON FLAT OR GENTLY SLOPING
SURFACES, AND MAY BE UNSTABLE ON HIGHER SLOPING AND UNEVEN
SURFACES - USERS SHOULD BE AWARE OF THE POSSIBILITY OF THE
STROLLER ROLLING AWAY OR TIPPING OVER.
• NEVER LET GO OF THE STROLLER WHEN PARKED ON AN INCLINE OR
SLOPING SURFACE BECAUSE IT MAY SLIDE OR TIP OVER. ALWAYS PARK
ON A FLAT SURFACE AND APPLY THE BRAKES.
• ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS STATIONARY.
USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY.

18 Instructions for Assembly, Operation and Maintenance
USING THE STROLLER
PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES
IMPORTANT NOTES
• Always ensure you bend your knees where appropriate and take due care
when lifting the frame.
• With your hand through the wrist tether strap loop, push the stroller holding
the handle.
• The stroller can be steered in the desired direction - allowing the front wheels
to swivel will make this easier.
• The front wheels may wobble or oscillate when walking fast, locking the front
swivel wheels will stop this.
• The stroller can be taken up kerbs by either pressing down on the handles
and raising the front wheels or turning the stroller around and pulling the
stroller up the kerb.
• Caution is required when pushing the stroller on a steep slope as the stroller
may become unstable. Always hold the handle firmly.
• Do not run with the stroller.
• Whenever you stop, always apply the brakes before you leave the stroller.
• Do not hang bags or goods unless it is supplied from the handle. Use the
storage basket.
STROLLER OPERATION

Instructions for Assembly, Operation and Maintenance 19
FOLDING THE STROLLER
PLEASE REFER TO PAGE 6 FOR SMART LIFTING TECHNIQUES.
IMPORTANT NOTES
• Remove the child from the stroller before commencing any folding operation.
• Fold the stroller slowly and be careful where you place your hands.
• When folding the stroller, be aware of the danger of being injured by moving parts and
locking devices during the process. Keep all hands and limbs clear of these parts.
• There is potential for fingers or parts of the body to be injured when the stroller is being
folded, due care should be exercised.
• Keep children clear of the stroller during folding the stroller.
DLift the carry strap upward quickly to fold
the stroller.
EFolding lock will be automatically engaged
when the stroller is fully folded. Ensure the
lock is engaged completely.
AEngage the brake and fold
the canopy back. Empty out
the basket.
BSlide the button on the
top of the handle to the left
and squeeze the folding
lever underneath the handle.
CContinue holding the
lever and push the handle
forward until handle is
folded fully against the seat.
A
D
B
E
C
STROLLER OPERATION

20 Instructions for Assembly, Operation and Maintenance
CARE & MAINTENANCE
GENERAL MAINTENANCE & REPAIR
• To maintain the safety and longevity of the stroller, seek prompt repairs or
replacement for bent, torn, worn, or broken parts. Do not continue to use
the stroller if unsafe.
• All repairs should only be carried out by an authorised Safe-n-Sound
®
repairer. Only Safe-n-Sound
®
replacement parts should be used with the
stroller. It may be unsafe to use parts supplied from another manufacturer.
GENERAL TIPS
Do not store the stroller in your car for prolonged periods of time during
summer as it may lead to damage to some of the plastics components.
Do not leave the stroller in direct sunlight for extended periods of time, as
colours of some fabrics may fade, and tyres may deteriorate.
Do not fold or store the stroller if damp or wet, as fabric may develop mould
or mildew. Always store the stroller inside in a dry, well-ventilated area.
Do not place heavy objects on top of the stroller as it may alter the shape.
If there are compression marks on the tyres, use a domestic hair dryer to
gently warm (DO NOT OVERHEAT) the tyre and the compression marks should
slowly disappear.
Should you have any further
questions on care & maintenance
of the stroller, please contact our
Consumer Service Team at:
[email protected]
