Britax Steelcraft Zapo User manual

ZAPO
LAYBACK STROLLER
www.britax.com.au
Series SY66A
IMPORTANT: KEEP THIS BOOKLET IN A SAFE PLACE FOR FUTURE REFERENCE.

02
ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS.
READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE
OF THIS STROLLER.
THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS
ESSENTIAL.
• USE GREAT CARE WHEN USING THE STROLLER ON STAIRS,
ESCALATORS,TRAVELATORS OR OTHER MOVING SURFACES.
• IT IS RECOMMENDED TO REMOVE THE CHILD FROM THE STROLLER
BEFORE GOING UP OR DOWN STAIRS OR ESCALATORS.
• DO NOT LIFT THE STROLLER BY THE ARM BAR BECAUSE IT MAY
DISENGAGE.
• DO NOT ALLOW CHILDREN TO STAND ON THE SEAT.
• DO NOT HANG BAGS OR GOODS FROM THE HANDLE AS THIS
COULD CAUSE THE STROLLER TO TIP OVER.
• DO NOT LEAVE THE STROLLER AND ITS ACCESSORIES NEAR AN
OPEN FIRE OR EXPOSED FLAME.
• DO NOT PLACE MORE THAN 4KG IN THE BASKET, OR 1KG IN THE
CANOPY POCKET (IF SUPPLIED).
IMPORTANT NOTES:
IMPORTANT NOTES

03
WARNINGS: TO AVOID INJURY OR DEATH:
ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS
STATIONARY.
• DO NOT LEAVE CHILDREN UNATTENDED.
• SECURE THE CHILD IN THE HARNESS AT ALL TIMES.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU
ADJUST THE STROLLER.
• DO NOT USE ANY ACCESSORIES OTHER THAN THOSE APPROVED
FOR USE WITH THIS STROLLER BY BRITAX.
• IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE WITH
THIS STROLLER.
• THE MAXIMUM WEIGHT OF THE CHILD USING THIS STROLLER IS
NOT TO EXCEED 20KG.
This CAUTION Symbol is shown at certain steps in
this Instruction Manual to highlight the danger
of being injured by moving parts.
CAUTION
FOR IMPORTANT NOTES AND WARNINGS ON ACCESSORIES -
REFER TO THEIR INDIVIDUAL SECTIONS IN THIS BOOK.
THE MAXIMUM WEIGHT VARIES FOR EACH ACCESSORY.
WARNINGS

04
The SMART lifting technique
This technique can be used to pick up small light loads from low levels.
Size up the Load
• Assess the load (size, shape and weight).
• Assess whether the load needs to be moved;
• Where is it going to be placed”Check that there are no obstructions;
• Assess whether mechanical or human assistance is required.
Move the Load as close to the body as possible
• A load is heavier to lift or carry if it is not close to the body.
• The whole hand should be used to ensure a firm grip.
Always bend your knees
• Maintain balance.
• Keep feet apart and in a comfortable position.
• Minimise lower back bending.
• Bend knees preferable at as large an angle as possible but not at a right
angle - use a semi squat in preference to a full squat.
Raise the load with your legs
• Achieve the lift smoothly and without jerkiness.
• Maintain the normal curvature of the spine to allow the force of the
load to be distributed evenly from the spine to the pelvis.
Turn your feet in the direction that you want to move the load.
• Avoid unnecessary bending, twisting and reaching.
• Change direction by turning your feet and not your back.
• To set the load down, squat down, keep your head up and let your legs
do the work.
Remember to ‘THINK TALL’ chest lifted, shoulders relaxed, chin
tucked in and head level.
MANUAL HANDLING TECHNIQUES

05

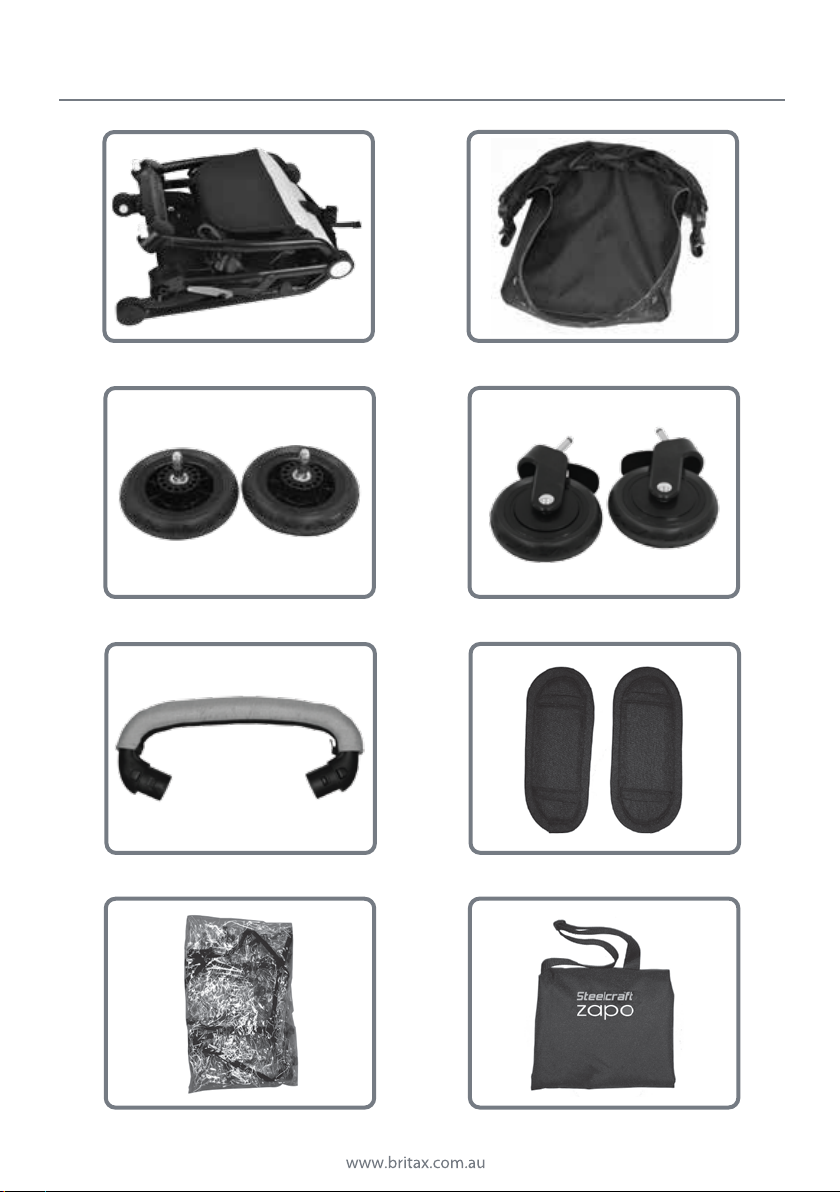

A1 x Stroller Frame, Seat & Basket B1 x Canopy
C2 x Rear Wheels D2 x Front Wheels
E 1 x Arm Bar F1 x set of Shoulder Pads
G1 x Rain Cover H1 x Travel Bag
PARTS LIST

06
IMPORTANT NOTES:
• RELEASE THE STORAGE LATCH WITH DUE CARE AND OPEN THE
FRAME.
• WHEN OPENING THE STROLLER, BE AWARE OF THE DANGER OF
BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING
THE PROCESS. KEEP ALL HANDS AND LIMBS CLEAR OF THESE
PARTS.
• THERE IS POTENTIAL FOR FINGERS OR PARTS OF THE BODY TO BE
INJURED WHEN THE STROLLER IS BEING UNFOLDED, DUE CARE
SHOULD BE EXERCISED.
• KEEP CHILDREN CLEAR OF THE STROLLER WHEN UNFOLDING THE
STROLLER.
• OPEN THE STROLLER SLOWLY AND BE CAREFUL WHERE YOU PLACE
YOUR HANDS.
PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES.
OPENING THE STROLLER FRAME
AStand the frame on its side. Hold the stroller with one hand and with
the other hand release the storage latch.
BWith each hand holding the front and rear leg frames continue to
open the frame until the stroller frame is completely upright.You
should hear a ‘click’ which indicates the frame is securely locked.
CThe handle is folded down flat against the backrest. Raise the handle to
the upright position by pressing in the adjuster buttons on the inside
of each handle moulding at the same time and lifting the handle
upwards until it makes a ‘click’ and locks into position.
See Page 7 for photos of each of the above steps.
STROLLER ASSEMBLY
OPENING THE STROLLER FRAME

07
STROLLER ASSEMBLY
OPENING THE STROLLER FRAME
A B
B B
C
click
click
click
press
click

08
STROLLER ASSEMBLY
WHEN A CHILD IS IN THE STROLLER IT IS RECOMMENDED THAT THE ARM
BAR IS ATTACHED TO THE STROLLER AT ALL TIMES.
AInsert the arm bar mouldings into the sockets on each side of the
stroller frame and push down on the arm bar until a‘click’ is heard
which indicates the arm bar has locked into the sockets. Pull up on
the arm bar to ensure that it is securely locked into the sockets
BTo assist with putting a child in the stroller you can release the arm bar
on one side. Press the grey button on the side of the arm bar moulding
and pull the arm bar up and out of the socket. Rotate the arm bar clear
of the stroller. Reattach the arm bar after fastening the child in the
harness.
CTo remove the arm bar, press the grey button on each side of the arm
bar moulding and pull the arm bar up and out of the socket.
IMPORTANT NOTE:
ATTACHING AND REMOVING THE ARM BAR
A A
click
click
See Page 9 for photos of steps B & C.

09
STROLLER ASSEMBLY
BB
B
press
C
press
C
ATTACHING AND REMOVING THE ARM BAR

STROLLER ASSEMBLY
10
ATTACHING THE CANOPY
The sun is very strong. DO NOT LEAVE YOUR CHILD EXPOSED TO THE
SUN.The canopy or hood on this product will not give your child
total protection from the harmful rays of the sun.
IMPORTANT NOTE:

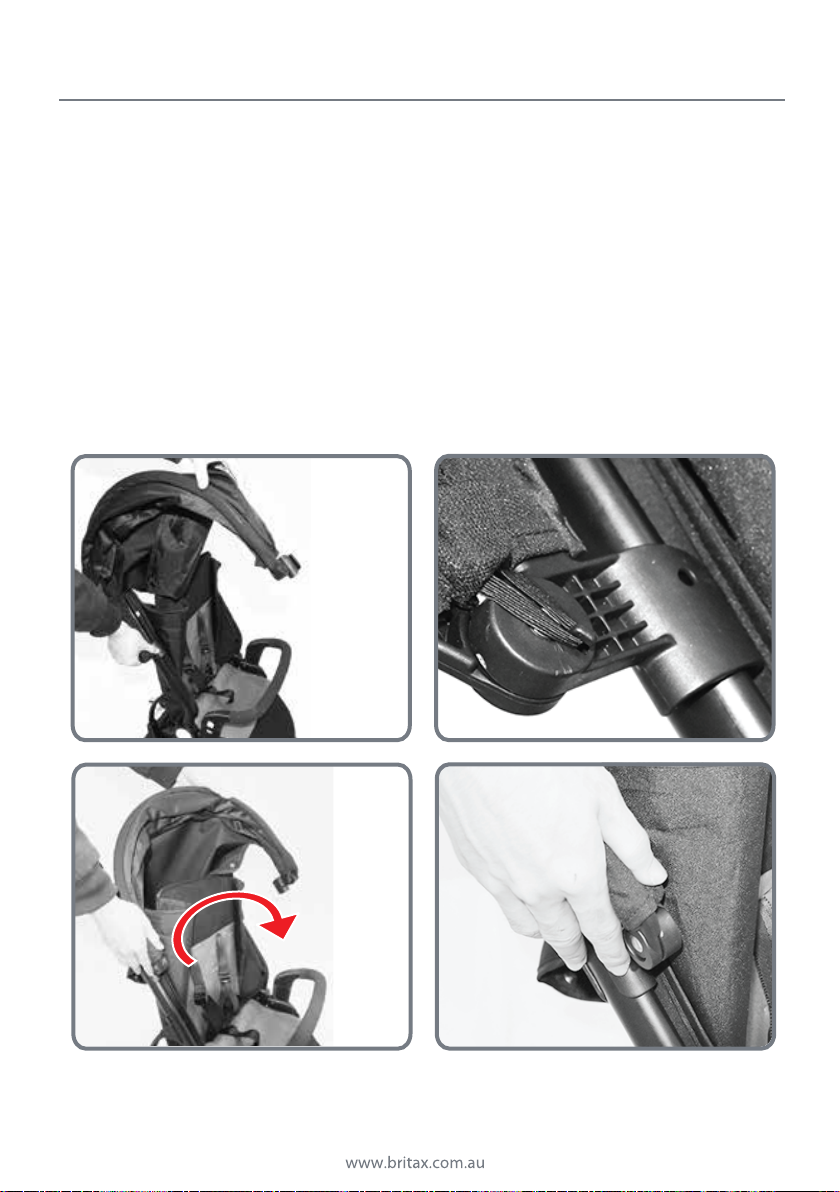

APosition the canopy side on to the stroller frame & place the canopy
bracket on the stroller frame as shown.
BRotate the canopy so the bracket clasp fastens to the stroller frame.
A A
B B

11
STROLLER ASSEMBLY
ATTACHING THE CANOPY

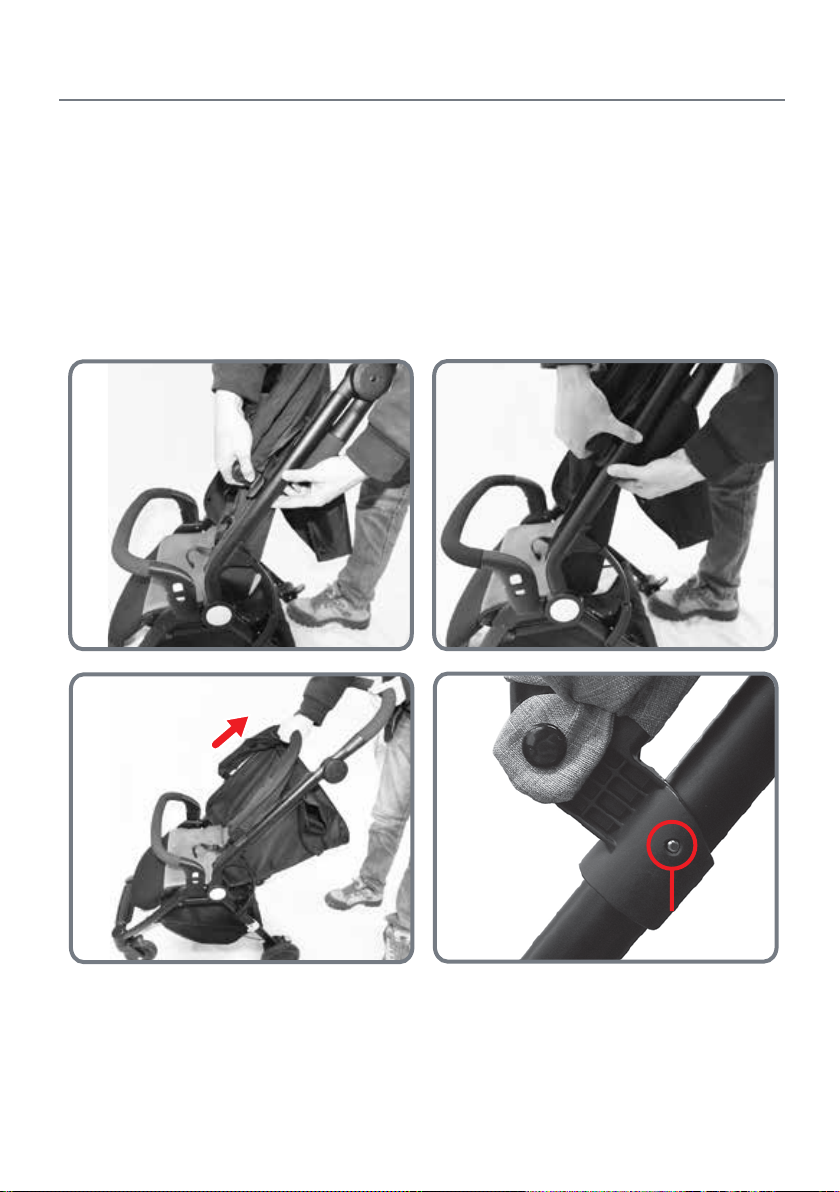

C Attach the canopy to the other side of the stroller frame by pushing
the canopy bracket onto the stroller frame until the bracket clasp
fastens onto the frame.
D Pull the canopy up the stroller frame so the canopy brackets connect
with the locking pins on the inside of the stroller frame.
C C
D D Locking pin

12
STROLLER ASSEMBLY
click
ATTACHING THE CANOPY

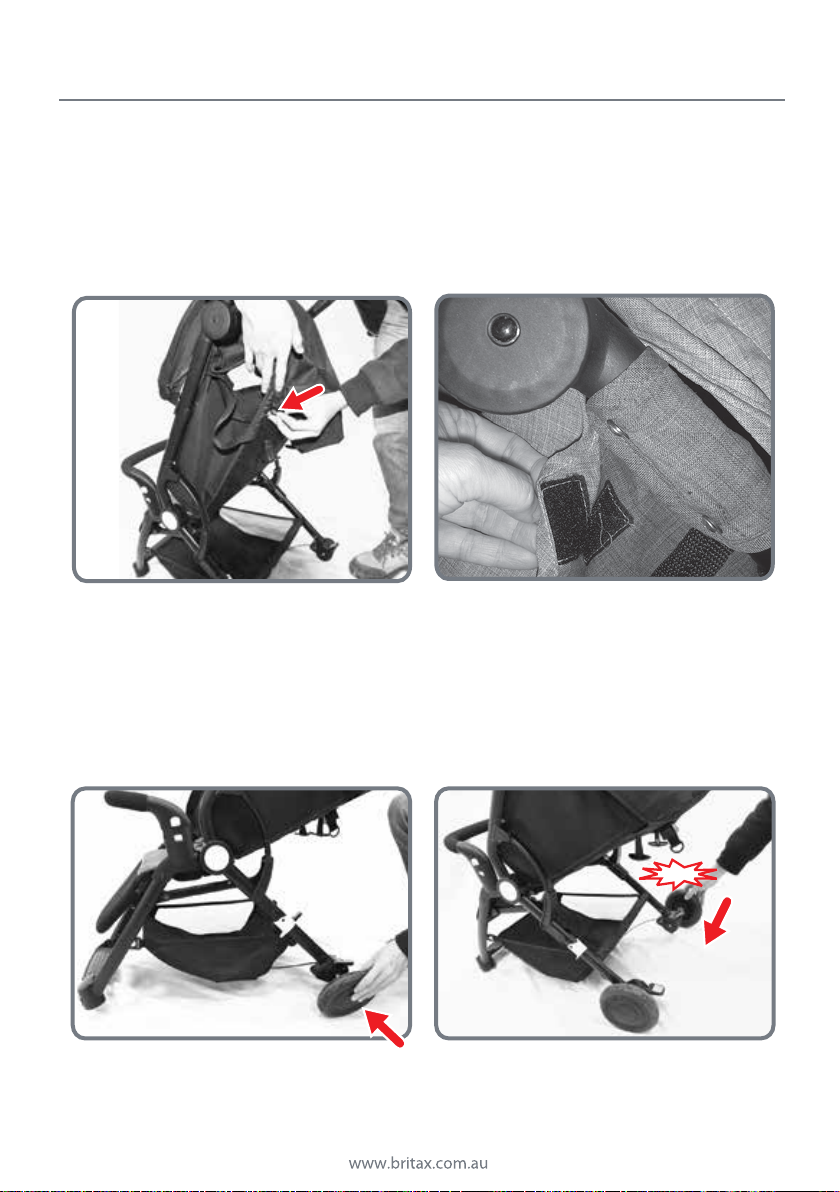

ELocate the snap fasteners on the edge of the canopy back flap and
press each fastener to the snap fasteners on the backrest. Secure each
side of the canopy back flap to the side of the stroller with the hook
and loop tabs.
EE

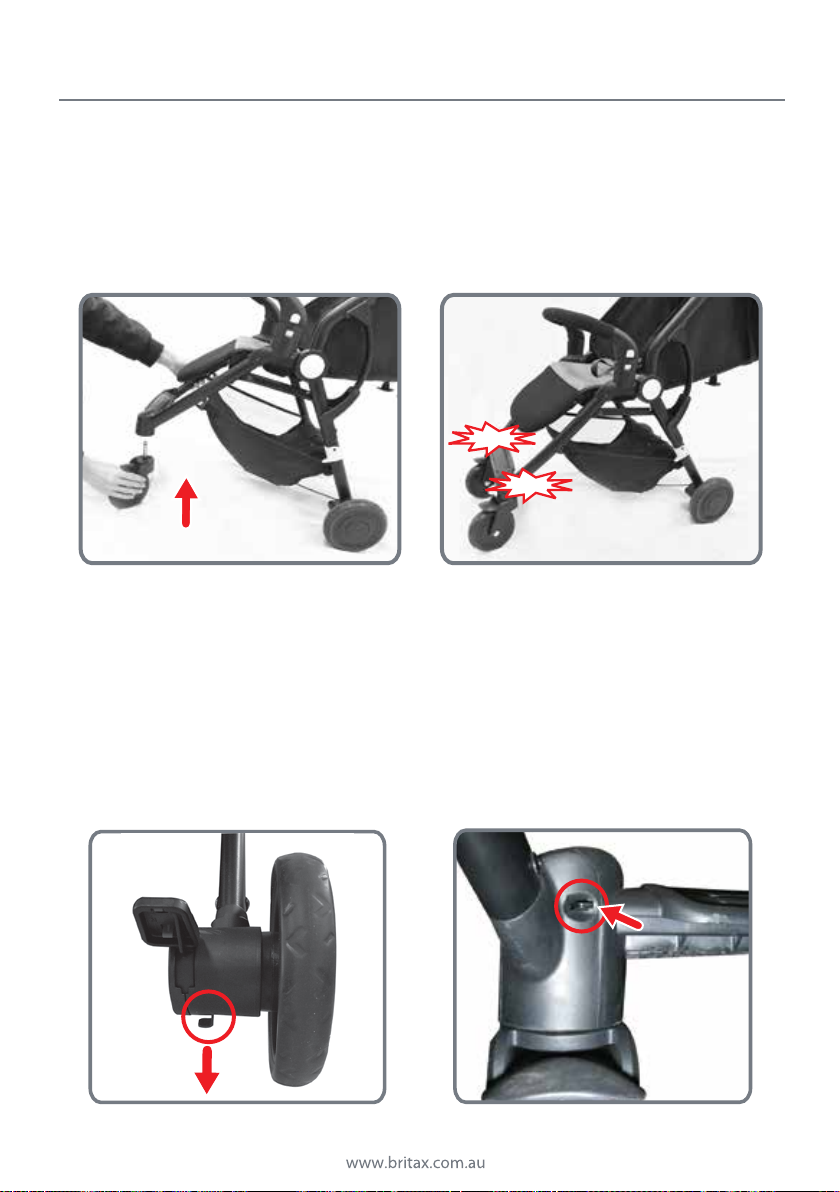

ATTACHING THE REAR & FRONT WHEELS
A To attach the rear wheels, insert each wheel axle into the moulding
and push in until locked.You should hear a ‘click’ which indicates the
wheel has locked in. Pull on each wheel to make sure it is engaged.
Repeat the process if not locked in.

13
STROLLER ASSEMBLY
click
click
BTo attach the front swivel wheel assembly, insert the swivel wheel
assembly and push it into the wheel moulding until you hear a ‘click’
which indicates the wheel is locked in. Pull on each wheel to make
sure it is engaged. Repeat the process if not locked in.
ATTACHING THE REAR & FRONT WHEELS
REMOVING THE REAR & FRONT WHEELS
A To remove the rear wheels, pull the black metal latch downwards on
the underneath of each brake moulding to release the wheels, and
then pull the wheels off.
BTo remove the front swivel wheel assembly, locate and press in the
black metal tab behind the wheel moulding and pull the wheels out
of the moulding.
A B

14
STROLLER ASSEMBLY
IMPORTANT NOTE:
ENSURE THE RAIN COVER IS KEPT AWAY FROM THE CHILD’S FACE.
REFIT THE RAIN COVER IF REQUIRED TO ENSURE YOUR CHILD IS
SAFE.
A Pull the rain cover over extended canopy and push the back flap of
rain cover through the handle opening.
B To secure the rain cover, attach the hook and loop on the sides of
the rain cover & then attach the hook and loop strips on the front of
the rain cover around the footrest.

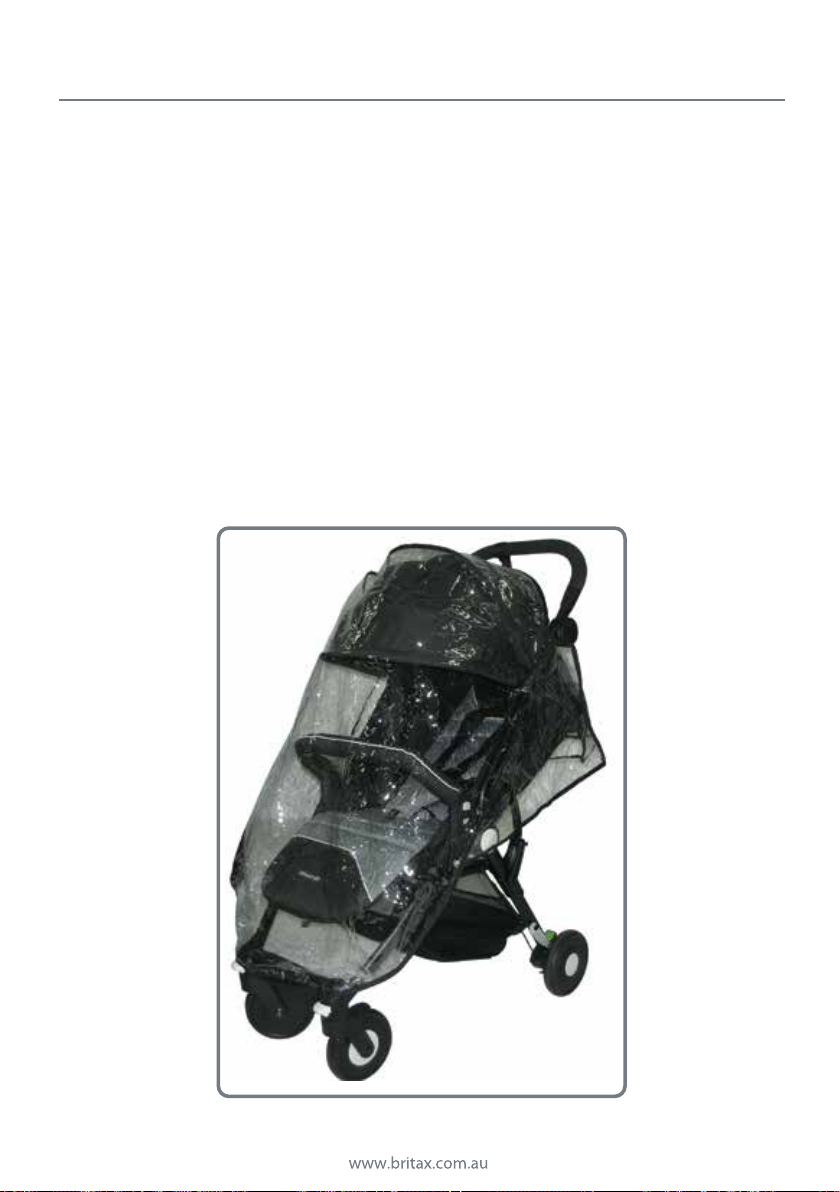

ATTACHING THE RAIN COVER

15
STROLLER OPERATION
WARNING: ALWAYS APPLY THE BRAKES WHEN THE
STROLLER IS STATIONARY.

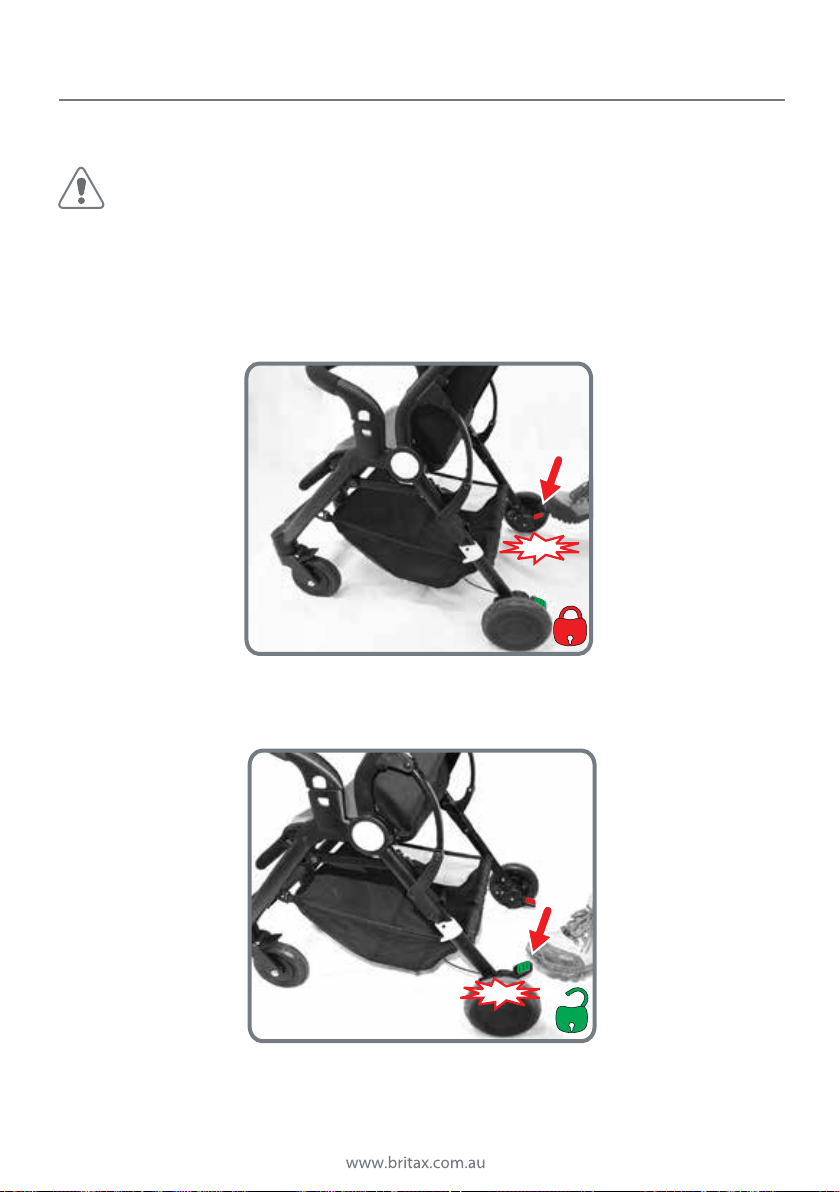

USING THE BRAKES
ATo lock the rear wheels, press the red brake lever down until you hear
a ‘click’. Push the stroller back and forth to confirm the wheels are
locked. If not locked, repeat this step.
BTo unlock the rear wheels, press the green brake lever down until you
hear a ‘click’.
A
B
A
click
click

16
STROLLER OPERATION
USING THE SWIVEL WHEELS
PLEASE NOTE: Always lock the swivel wheels when using the stroller
on rough surfaces as this will minimise wheel wobble.
The swivel wheels should only be locked when the wheels are in the
trailing position (wheels under frame).
ATo lock the front wheels into the fixed position, press the swivel lock
down until you hear a ‘click’.
BTo allow the wheels to swivel, push the swivel wheel lock up until you
hear a ‘click’.
click
click

17
STROLLER OPERATION
WARNINGS:
• THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR USE WITH
CHILDREN LESS THAN 6 MONTHS OLD.
• THE LOWEST RECLINE POSITION SHOULD BE USED TO TRANSPORT
BABIES.THE BACKREST CAN BE ADJUSTED TO A MORE UPRIGHT
POSITION AS THE CHILD GROWS OLDER AND IS ABLE TO SUPPORT
ITS HEAD WITHOUT ASSISTANCE.
PLEASE NOTE: If the child is sitting in the seat, support the backrest
as it reclines. If you have difficulty adjusting the backrest you may
need to remove the child from the seat to allow you to raise or lower
the backrest with ease.

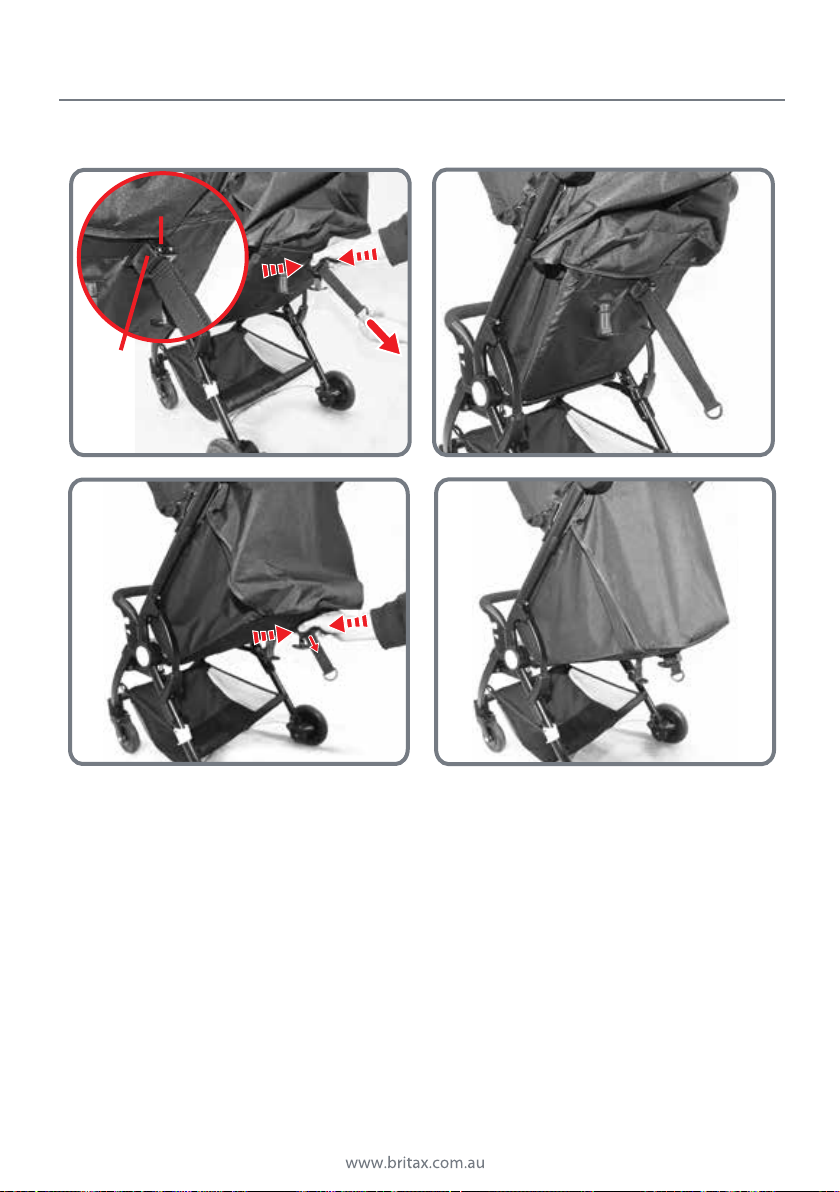

A To adjust the backrest, fold the canopy back flap up over the handle to
gain access to the adjuster straps.
BTo raise the backrest, hold the plastic ring at the end of the adjuster
strap, press in the release levers on each side of the recline adjuster
and pull the strap downwards until you reach the desired position.
CTo lower the backrest, press in the release levers on each side of the
recline adjuster and pull down on the recline adjuster to lower the
backrest to the desired position.
ADJUSTING THE BACKREST
See Page 18 for photos of each of the above steps.

18
STROLLER OPERATION
C C
Release
lever
B B
Recline
adjuster
ADJUSTING THE BACKREST

19
STROLLER OPERATION
IMPORTANT NOTES:
• THE LEG REST FEATURE IS PROVIDED FOR YOUR CHILD'S
COMFORT.
• THE LEG REST IS NOT DESIGNED TO SUPPORT EXTRA WEIGHT.
• DO NOT ALLOW CHILDREN TO STAND OR SIT ON THE LEG REST.
IT WILL DISENGAGE IF EXTRA WEIGHT IS APPLIED.
• IF LEG REST DISENGAGES SIMPLY LIFT UP AGAIN TO RESET LEG
REST.

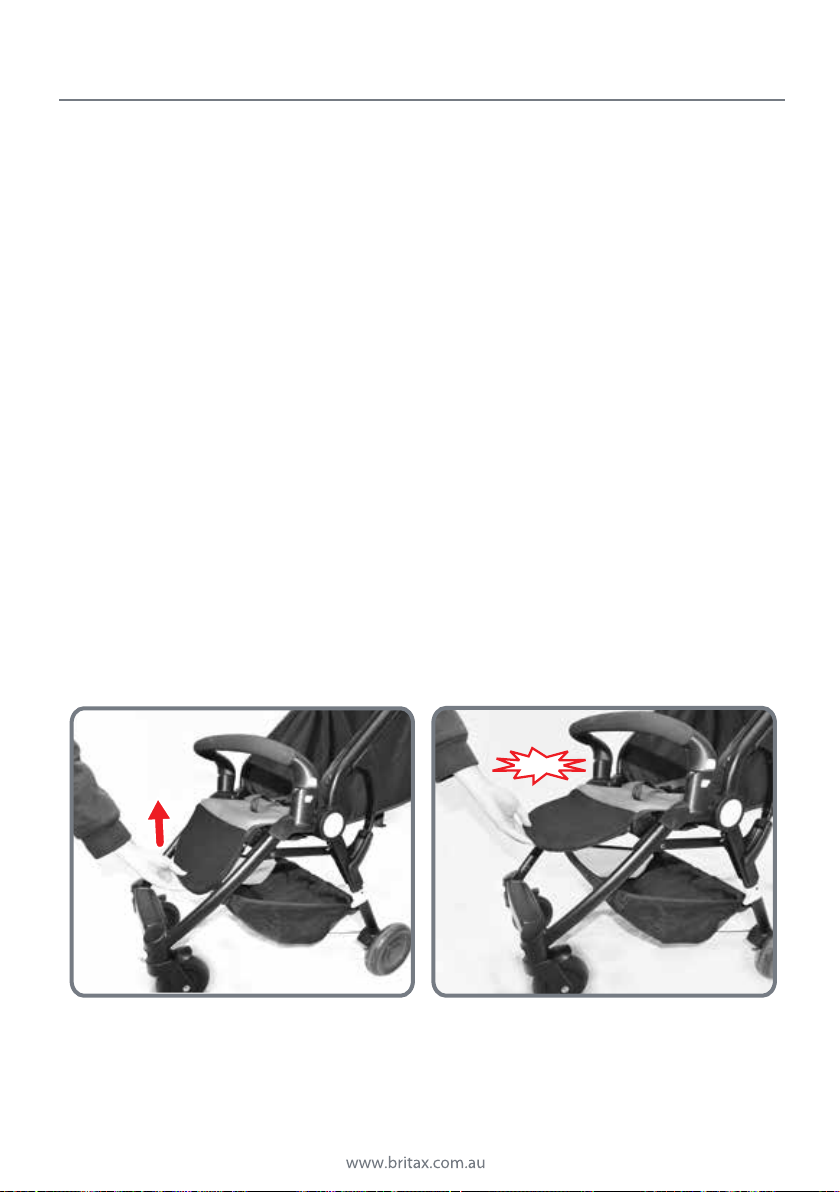

ADJUSTING THE LEG REST
PLEASE NOTE: There are three leg rest positions.
ATo raise the leg rest to a higher position, lift the leg rest until you reach
the desired height. As you reach each leg rest position you will hear a
‘click’. Push down lightly on the leg rest to ensure it is locked into place.
BTo lower the leg rest, lift the leg rest up towards the arm bar until you
hear a ‘click’ which indicates the leg rest lock has released.You can now
lower the leg rest down.
A A
click

20
STROLLER OPERATION
ADJUSTING THE LEG REST
A B
B
12 1
2
click
