Brother HL-5130 User manual

Brother Laser Printer
PARTS REFERENCE LIST
MODEL:
HL-5130/5140/5150D/5170DN
5150DLT/5170DNLT
Read this list thoroughly before maintenance work.
Keep this list in a convenient place for quick and easy reference at all times.
December 2003
PL-PRN067

NOTE FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol ( PCB No. etc )
< Example >
REF.NO. CODE Q’TY DESCRIPTION SYMBOL REMARK
Revision No.: marked on the main printed circuit board.
B48K056
2. Design-changed parts :
If the parts are changed, any one of the following symbols is indicated in the REMARKS column.
CNG(cng) : The part is changed to a new part.
ADD(add) : The part is newly added.
DEL(del) : The part is deleted.
Symbol in capital letters indicates that the change is the latest one in the page.
3. The original of this list was made based on the information available in December 2003.
4. Parts are subject to change in design without prior notice.
(1) (4)
(3)
(2)
Circuit board No.

CONTENTS
1. FRAME L/ DRIVE UNIT........................................................................1
2. FRAME R UNIT .................................................................................... 1
3. FRAME UNIT........................................................................................ 3
4. LASER UNIT ........................................................................................ 3
5. PAPER FEEDER..................................................................................5
6. MP UNIT (HL-5150D/5170DN ONLY) ..................................................5
7. DX (HL-5150D/5170DN ONLY)............................................................7
8. PAPER TRAY.......................................................................................9
9. FIXING UNIT.......................................................................................11
10. COVERS / LABELS............................................................................ 13
11. MAIN PCB.......................................................................................... 15
12. ENGINE PCB...................................................................................... 17
13. LOW-VOTAGE POWER SUPPLY PCB.............................................17
14. HIGH-VOLTAGE POWER SUPPLY PCB..........................................19
15. ACCESSORIES.................................................................................. 19
16. PACKING MATERIALS...................................................................... 21
17. PERIODICAL MAINTENANCE PARTS ............................................. 21
18. AC CORDS......................................................................................... 23

1. FRAME L/ DRIVE UNIT
REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK
1 LM2495001 1 MAIN FRAME L UNIT 30 E
1 LM2434001 1 MAIN FRAME L UNIT 40 E
1 LM2490001 1 MAIN FRAME L UNIT 50D E
1 LM2488001 1 MAIN FRAME L UNIT 70DN E
1-1 LM2440001 1 MAIN MOTOR ASSY ZL2E
1-2 LJ7386001 1 F/R SOLENOID ASSY
1-3 LJ7391001 1 P/R SOLENOID ASSY
1-4 LJ5014001 1 SOLENOID RELEASE SPRING P/R
1-5 LJ9166001 1 TONER LED PCB UNIT ASSY ZL2 B512156
1-6 LJ7403001 2 RUBBER FOOT
1-7 LG3218001 1 DOCUMENT COVER SENSOR
1-8 LJ7784001 1 SENSOR CLIP
1-9 LJ7377001 1 DEVELOP JOINT
1-10 LJ7376001 1 JOINT SPRING
1-11 UH3044000 1 GEAR, 40/54Y
1-12 UL6569000 2 GEAR 17 PLANETARY
1-13 UL8977001 1 GEAR 45 ARM F/R
1-14 LM2444001 1 GEAR 20 CENTER F/R
1-15 LJ7375001 1 DEV DRIVE GEAR ZL2 ADD
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-010
2. FRAME R UNIT
REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK
1 LM2733001 1 MAIN FRAME R UNIT E chg
1-1 LJ9612001 1 TONER SENSOR PCB UNIT ZL2 B512187
1-2 LJ7403001 2 RUBBER FOOT
1-3 LM2731001 1 TE FILM add
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-011
-1-

MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-010
1. FRAME L / DRIVE UNIT
2. FRAME R
- 2 -
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-011
1-1
1
1-6
1-6
1-7
1-8
1-5
1-2
1-3
1-4
1-9
1-10
1-15
1-11
1-12
1-14
1-13
1
1-2
1-2
1-1
1-3

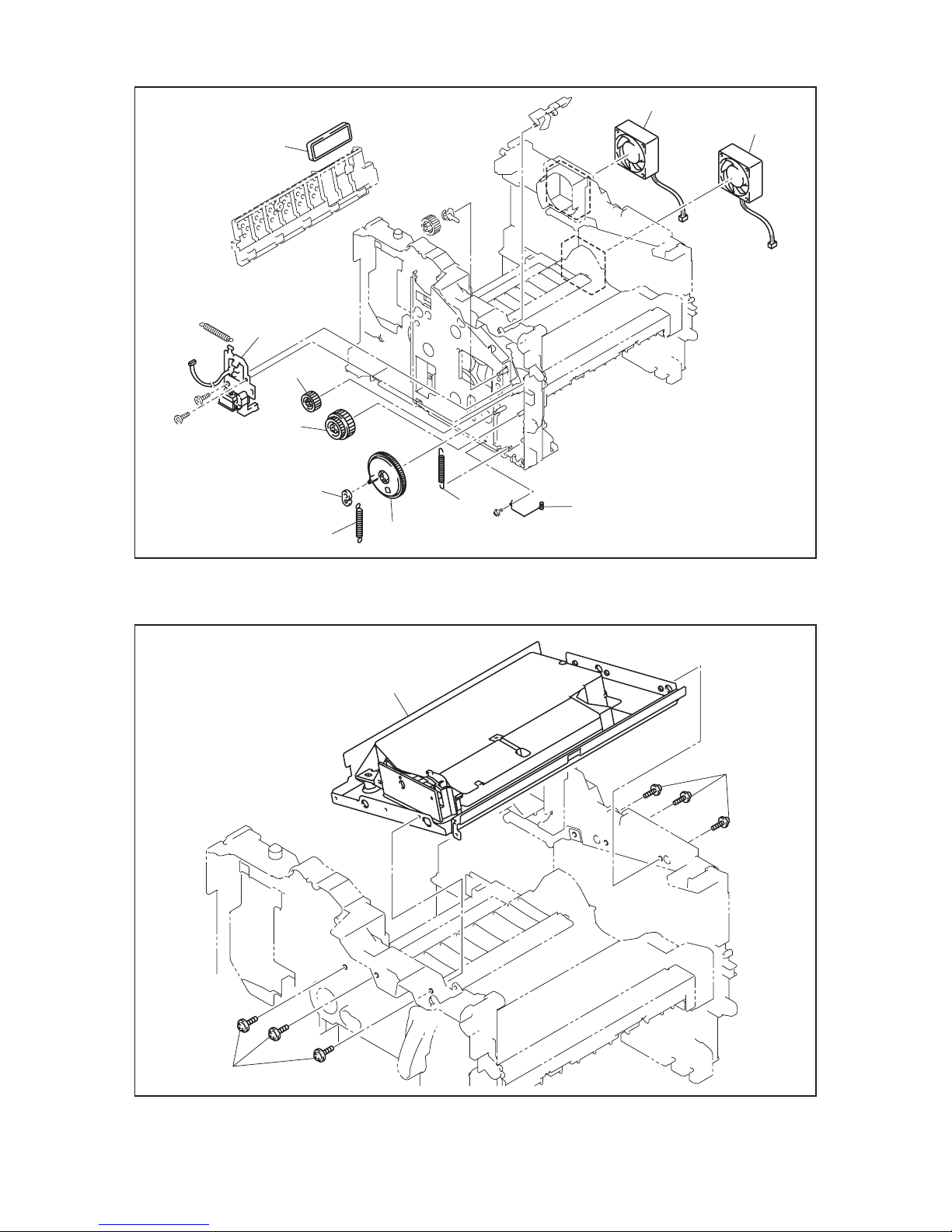

3. FRAME UNIT
REF.NO. CODE Q'TY DESCRIPTION REMARK
1 LJ7490001 1 GROUND SPRING
2 LM2445001 1 FILTER
3 LJ7496001 1 SPRING, EXTENSION P/R
4 LJ7501001 1 MIDDLE ROLLER GEAR
5 LJ7502001 1 IDLE GEAR 22
6 LJ7504001 1 GROUND WIRE
7 LM2473001 1 FAN MOTOR 60 UNIT LV
8 LM2474001 1 FAN MOTOR 60 UNIT
9 LJ7579001 1 MP SOLENOID HOLDER UNIT
10 LM2720001 1 SECTOR GEAR PR ASSY E
11 UH2378000 1 SPRING HOOK
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-012
4. LASER UNIT
REF.NO. CODE Q'TY DESCRIPTION REMARK
1 LM2835001 1 LASER UNIT (SP)
2 085310815 6 TAPTITE, BIND B M3X8
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-020
with white marking
CHG
ADD
ADD
- 3 -

3. FRAME UNIT
4. LASER UNIT
- 4 -
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-012
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-020
1
2
2
87
2
9
4
61
3
11
10
5

5. PAPER FEEDER
REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK
1 LJ7322001 1 REGIST FRONT ACTUATOR
2 LM2590001 1 REGIST FRONT ACTUATOR SPRING
3 LJ7324001 1 REGIST REAR ACTUATOR
4 LJ7325001 1 REGIST REAR ACTUATOR SPRING
5 LJ7703001 1 PAPER PICK-UP ROLLER ASSY ZL2
6 LM2601001 1 PE ACTUATOR ZL2 (HL-
5140/5150D/5170DN)
7 LJ9235001 1 CASSETTE SENSOR PCB ASSY ZL2 (HL-
5140/5150D/5170DN) B512095
8 LJ5155001 1 CA ACTUATOR (HL-5140/5150D/5170DN)
9 LJ5211001 1 PE SENSOR COVER (HL-
5140/5150D/5170DN)
10 LM2033001 1 FRONT CHUTE GUIDE ASSY ZL2
11 LM2032001 1 FRONT TRAY CHUTE ASSY ZL2
12 LJ5020001 1 BUSH L
13 LJ5021001 1 BUSH R
14 LJ7730001 2 ROLLER COLLAR ZL2
15 LU0508001 1 ROLLER 6 GUIDE/ ROLLER (SP) CHG
16 LJ7342001 1 FRONT CHUTE (HL-5130/5140) add
16 LM2558001 1 FRONT CHUTE (HL-
5150D/5170DN/5150DLT) add
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-040
6. MP UNIT (HL-5150D/5170DN ONLY)
REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK
1 LJ7551001 1 MP UNIT ASSY
1-1 LJ7555001 1 SEPARATION PLATE ASSY
1-2 LM2050001 1 PAPER PICK-UP ROLLER ASSY (SP)
1-3 LJ7571001 1 MP-PE ACTUATOR
1-4 LJ9222001 1 MP-PE SENSOR PCB ASSY ZL2 B512107
2 LJ7587001 1 MP TRAY ASSY
3 LM2313001 1 MP FRONT COVER ASSY ZL2E
3-1 LJ7800001 1 MP COVER RELEASE BUTTON add
4 LJ7589001 1 MP PAPER GUIDE ASSY
5 LJ7600001 1 DRIVE RELEASE LINK MP add
(HL-5150D/5170DN)
MODEL HL-5150D/5170DN/5150DLT/5170DNLT US 84U-Z73/Z74/Z76/Z77-041
- 5 -

MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-040
5. PAPER FEEDER
6. MP UNIT
- 6 -
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-041
1
3
3-1
2
4
1-2
1-3
1-4
1-1
5
10
11
612
13
14
15
16
8
79
3
41
2
5

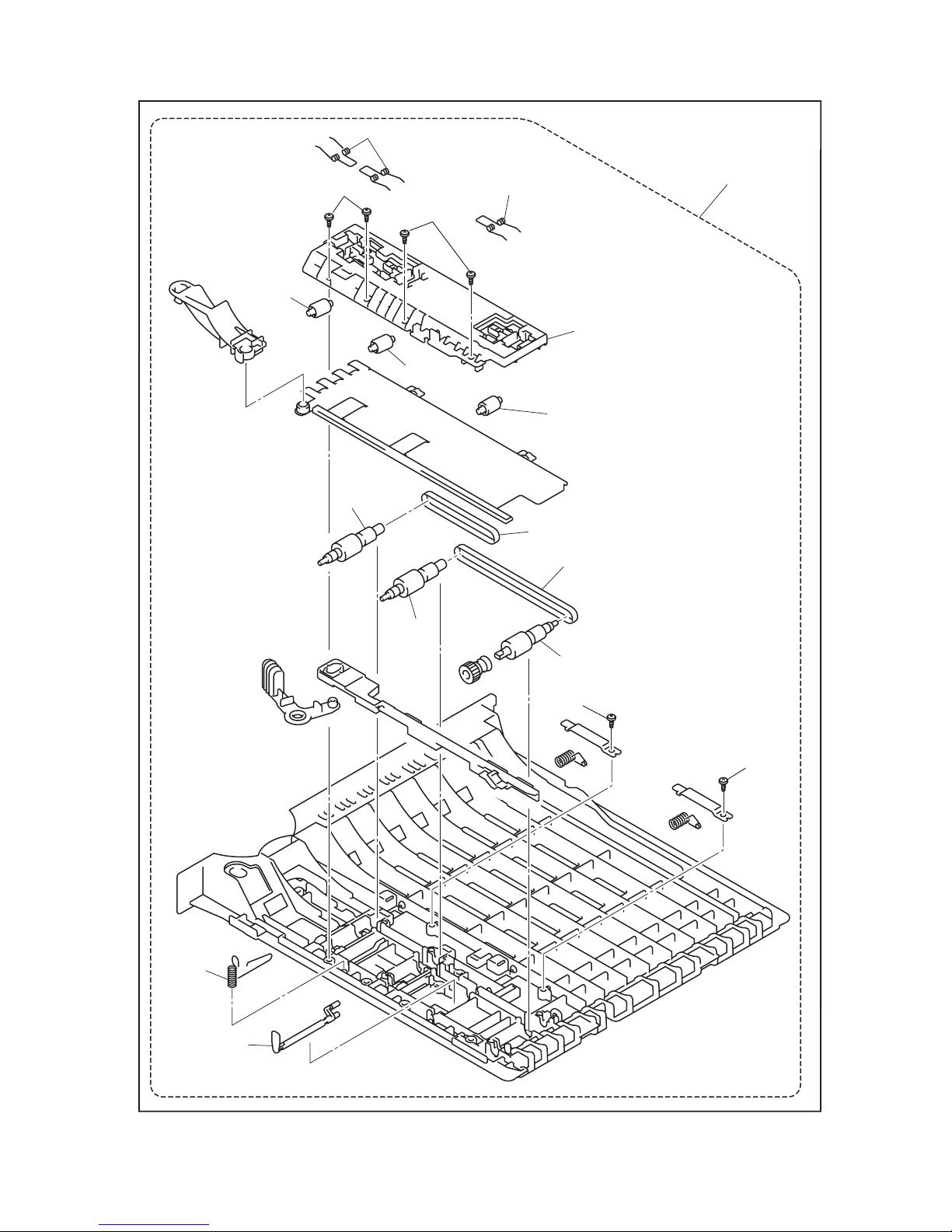

7. DX (HL-5150D/5170DN ONLY)
REF.NO. CODE Q'TY DESCRIPTION REMARK
1 LJ7661001 1 DX FEED ASSY
1-1 LJ7663001 2 SIDE REGIST ROLLER ZL2
1-2 LJ7664001 1 DX FEED ROLLER
1-3 LJ5015001 1 T-BELT (S)
1-4 LJ5240001 1 T-BELT (L)
1-5 LJ5248001 1 GUIDE ACTUATOR
1-6 LJ7669001 1 GROUND WIRE
1-7 LJ7670001 1 DX ROLLER HOLDER
1-8 LJ7671001 3 PRESSURE ROLLER
1-9 LJ7672001 3 PRESSURE ROLLER SPRING
1-10 085310816 6 TAPTITE, BIND B M3x8
MODEL HL-5150D/5170DN/5150DLT/5170DNLT US 84U-Z73/Z74/Z76/Z77-042
- 7 -

7. DX
-8 -
MODEL HL-5150D/5170DN/5150DLT/5170DNLT US 84U-Z73/Z74/Z76/Z77-042
1
1-9
1-9
1-7
1-8
1-8
1-8
1-4
1-6
1-5
1-2
1-1
1-1
1-3
1-10 1-10
1-10
1-10

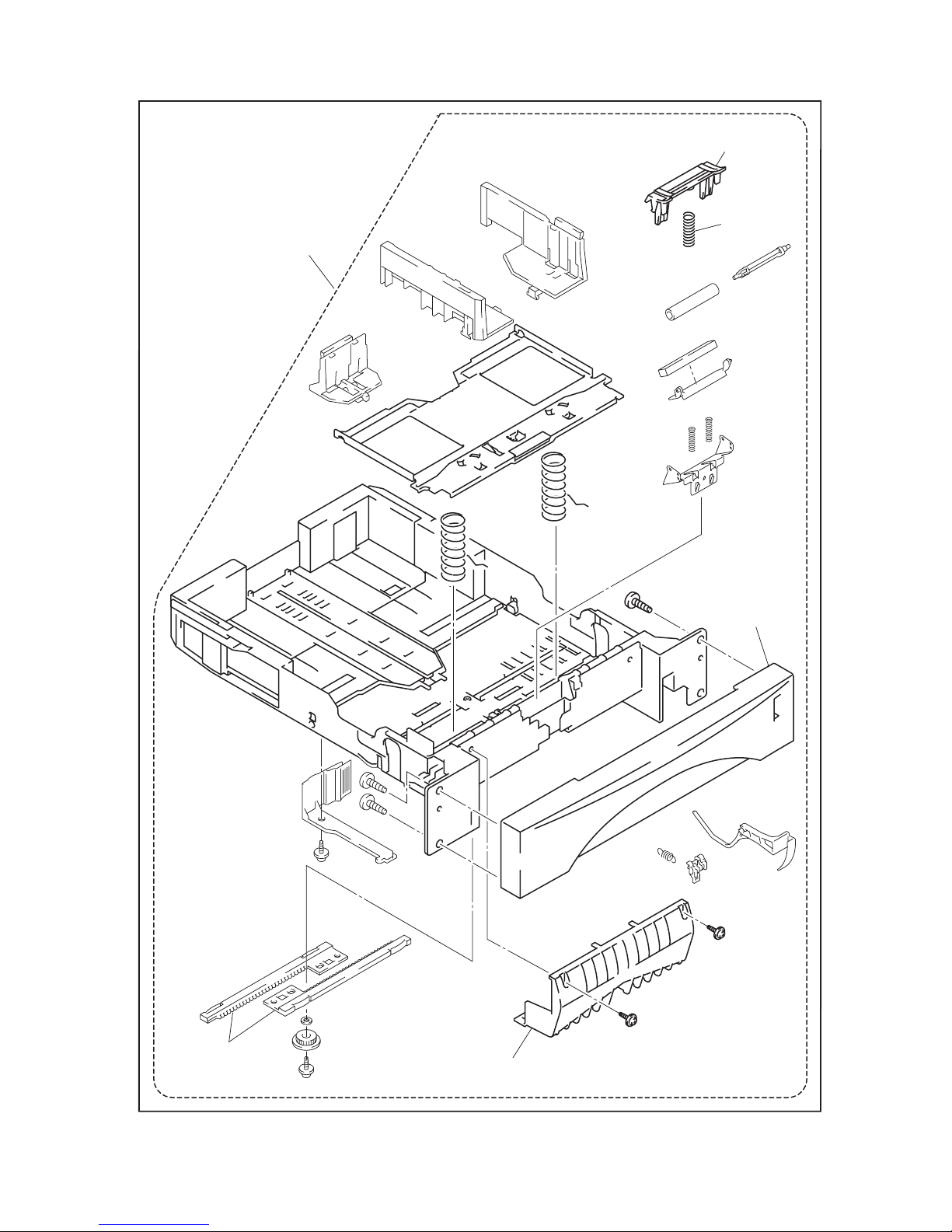

8. PAPER TRAY
REF.NO. CODE Q'TY DESCRIPTION REMARK
1 LJ7607001 1 PAPER TRAY ASSY ZL2 BRO 2
1-1 LJ7307001 1 PAD HOLDER ZL2
1-2 LJ5923001 1 SEPARATION PAD SPRING 350
1-3 LJ7315001 1 PAPER TRAY FRONT COVER
1-4 LJ7616001 1 PAPER TRAY COVER
1-5 LJ7608001 1 PAPER TRAY FRONT COVER LT
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-045
- 9 -

8. PAPER TRAY
- 10 -
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-045
1-3
1-5
1
1-4
1-1
1-2

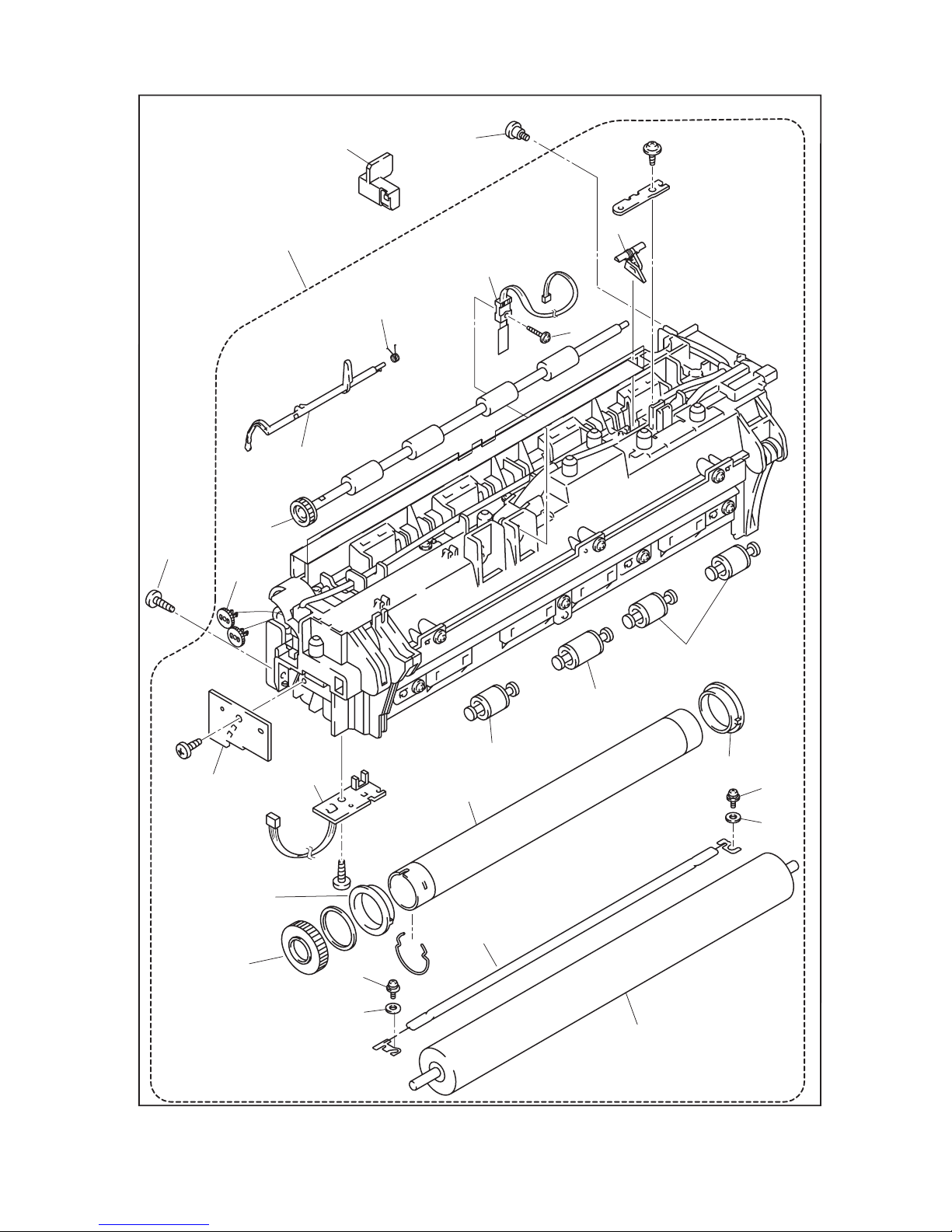

9. FIXING UNIT
REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK
1 LM2578001 1 FIXING UNIT, 230V(SP)
1 LM2579001 1 FIXING UNIT, 115V(SP)
1-1 LM2706001 1 HEAT ROLLER 25 2E
1-2 LJ7539001 1 HALOGEN LAMP, 230V
1-2 LJ7417001 1 HALOGEN LAMP, 115V
1-3 LJ7877001 4 SEPARATE CLAW ASSY C
1-4 LJ7419001 1 THERMISTOR ASSY
1-5 087311215 1 TAPTITE, CUP B M3X12
1-6 LJ7428001 3 CLEANER PINCH ROLLER ASSY S
1-7 LJ7432001 1 CLEANER PINCH ROLLER ASSY L
1-8 LM2477001 1 PRESSURE ROLLER 25
1-9 LJ9174001 1 THERMISTOR RELAY PCB ASSY ZL2 B512161
1-10 LJ5289001 1 PAPER EJECT ACTUATOR
1-11 LJ5066001 1 EJECT ACTUATOR SPRING
1-12 LJ9176001 1 EJECT SENSOR PCB ASSY ZL2 B512163
1-13 LJ7416001 1 HR GEAR 34
1-14 LJ7414001 2 HR BEARING 25
1-15 LM2254001 2 SCREW, PAN (S/P WASHER) M26x8
1-16 LM2255001 2 WASHER, PLAIN 26
1-17 LM2047001 2 IDLE GEAR 13
1-18 LJ4118001 1 EJECT ROLLER ASSY
2 085411216 1 TAPTITE, BIND B M4X12
3 LJ4740001 1 SHOULDER SCREW
4 LM2102001 1 FU LAMP ASSEMBLY JIG ASSY
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-050
- 11 -

9. FIXING UNIT
- 12 -
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-050
1-12 1-6
1-6
1-7
1-11
1-9
1-17
2
3
4
1-5
1-4
1-10
1-3
1-1
1-8
1-14
1-14
1-13
1-2
1
1-15
1-16
1-15
1-16
1-18

10. COVERS/ LABELS
REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK
1 LM2273001 1 TOP COVER ASSY ZL2E
1 LM6479001 1 TOP COVER RIB ASSY ZL2E * ADD
1-1 LJ7911001 2 CORRUGATION PINCH ROLLER R
1-2 LJ7912001 2 CORRUGATION PINCH ROLLER L
1-3 UL9123001 4 PINCH ROLLER HOLDER
2 LJ7451001 1 SW KEY A
3 LJ7452001 1 SW KEY B
4 087310815 3 TAPTITE, CUP B M3X8 chg
5 LM2713001 1 SIDE COVER R ASSY chg
6 LM2714001 1 SIDE COVER L ASSY chg
7 LM2724001 1 FRONT COVER ASSY ZL2E (HL-
5130/5140)
7-1 LJ7463001 1 FRONT COVER RELEASE BUTTON add
8 LJ7465001 1 REAR COVER R
8 LM2760001 1 REAR COVER R MOF (With MIN FIN logo) add
9 LJ7617001 1 REAR COVER R MP
10 LJ7466001 1 REAR COVER L
11 LJ7618001 1 REAR COVER L MP
12 LJ7610001 1 REAR COVER MP
13 LJ7613001 1 REAR COVER MP TRAY
14 LJ7467001 1 REAR COVER C
15 085411216 1 TAPTITE, BIND B M4X12
16 LJ7469001 1 OUTER CHUTE
17 LJ7699001 1 OUTER CHUTE DX ASSY
18 LM2715001 1 ACCESS COVER ASSY chg
19 LJ7895001 1 SUPPORT FLAP
20 LJ7896001 1 SUPPORT FLAP S
21 LJ7350001 1 BROTHER EMBLEM
22 LM2507001 1 MODEL PLATE 5130
22 LM2504001 1 MODEL PLATE 5140
22 LM2505001 1 MODEL PLATE 5150D
22 LM2506001 1 MODEL PLATE 5170DN
23 LJ9180001 1 PANEL PCB ASSY B512165
24 LJ0908001 1 LASER CAUTION LABEL B add
25 LJ7468001 1 LINK (HL-5130/5140) add
26 LM2978001 1 TOP COVER RIB ASSY (SP) ADD
27 LM6340001 1 TOP COVER RIB ASSY 2 (SP) ADD
* TOP COVER RIB ASSY ZL2E consists of TOP
COVER ASSY ZL2E, 9 pieces of TOP COVER RIB
ASSY (SP) and 2 pieces of TOP COVER RIB
ASSY 2 (SP)
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-060,061
- 13 -

10. COVERS/LABELS
- 14 -
MODEL HL-5130/5140/5150D/5170DN/5150DLT US 84U-Z71/Z72/Z73/Z74/Z76-060,061
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-060,061
19
20
22
12
1
13
17
16
18
6
11
14
15
10
4
23
4
9
85
7
7-1
2
327
26
4
25
1-2 1-1
1-3
21

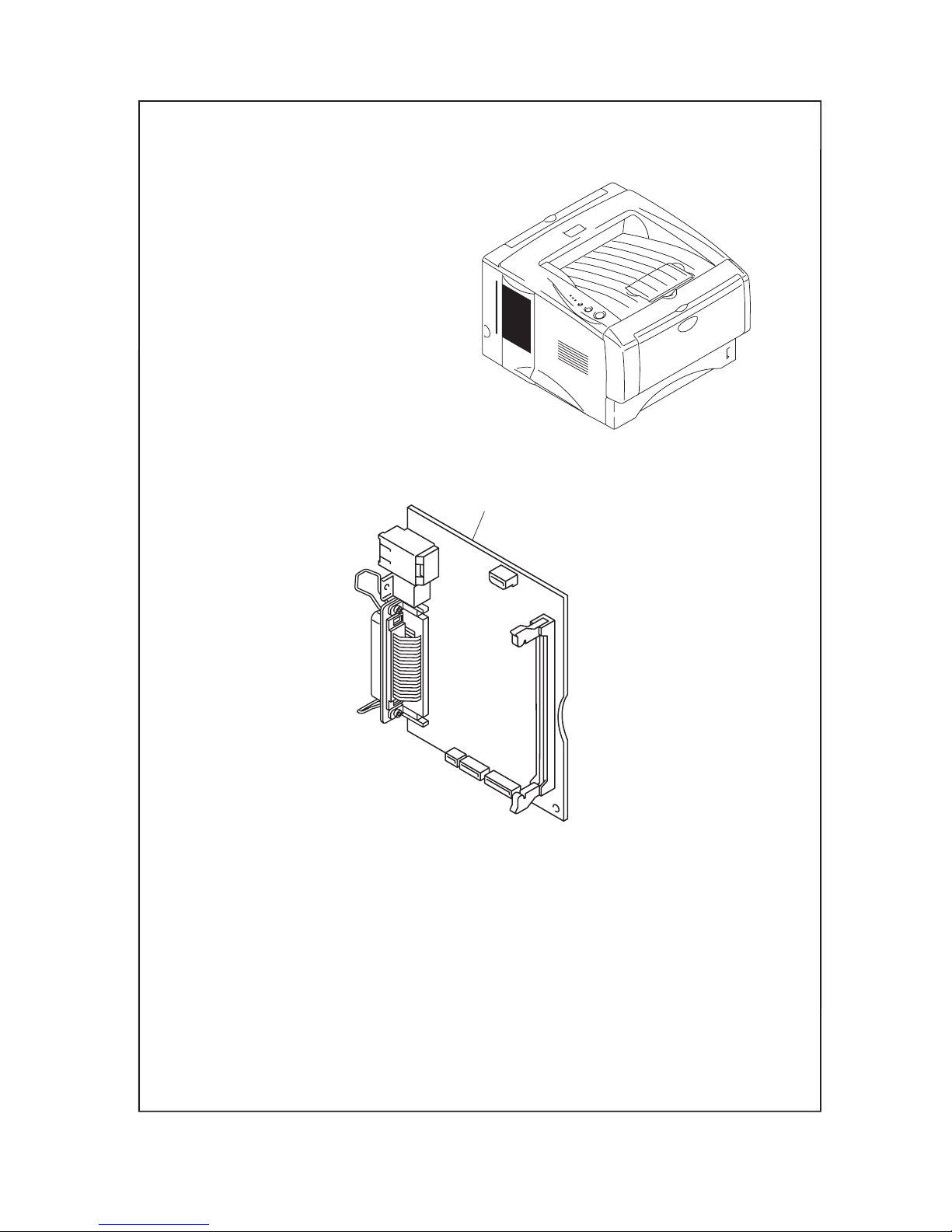

11. MAIN PCB
REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK
1 LJ9901001 1 MAIN PCB ASSY 5130 FLASH B512208 CHG
1 LJ9902001 1 MAIN PCB ASSY 5140 FLASH B512208 CHG
1 LJ9903001 1 MAIN PCB ASSY 5150D FLASH B512208 CHG
1 LJ9567001 1 MAIN PCB ASSY 5170DN FLASH B512185
1 LJ9904001 1 MAIN PCB ASSY 5150D KOR FLASH
(For HL-5150D KOR) B512208 CHG
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-101
- 15 -

11. MAIN PCB
- 16 -
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-101
1

12. ENGINE PCB
REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK
1 LJ9188001 1 ZL2 ENGINE PCB ASSY 1 (HL-5130) B512153
1 LJ9274001 1 ZL2 ENGINE PCB ASSY 3 (HL-
5150D/70DN) B512153
1 LG4404001 1 ZL2 ENGINE PCB ASSY 4 (HL-5140) B512153
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-151
13. LOW-VOLTAGE POWER SUPPLY PCB
REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK
1 LJ9620001 1 PS PCB UNIT 230V MPW5706
1 LJ9621001 1 PS PCB UNIT 115V MPW5806
2 085411216 1 TAPTITE, BIND B M4X12
3 LM2048001 1 SCREW, PAN (S/P WASHER) M3.5X6
MODEL HL-5130/5140/5150D/5170DN/5150DLT/5170DNLT US 84U-Z71/Z72/Z73/Z74/Z76/Z77-200
- 17 -
