Brune B500 User manual

READ AND SAVE THESE INSTRUCTIONS!

Prok-22117-DE, 4, en_US
Translation of the original operating manual
© Brune Luftbefeuchtung Proklima GmbH 2015
Brune Luftbefeuchtung Proklima GmbH
Schwarzacher Strasse 13
74858 Aglasterhausen, Germany
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Internet: www.brune.info
This manual was created by:
Kothes!
Technische Kommunikation GmbH & Co. KG
Internet: www.kothes.de
Evaporation Humidifier B500 Professional2

This manual facilitates safe and efficient use of the Evaporation
Humidifier B500 Professional. This manual is an integral part of the
humidifier and must be stored, readily accessible for the personnel,
in close proximity to the device.
This manual must be carefully read by the user prior to starting any
work. The prerequisite for safe working is to comply with all safety
and procedural instructions specified in this manual. The local acci-
dent prevention regulations and the general safety regulations for
the application area of the humidifier also apply.
The illustrations in this manual are intended for basic under-
standing and may deviate from the actual design.
The content of this manual is copyrighted. It may be used for pur-
poses of operating the device. Any further use is not permitted
without written permission of Brune Luftbefeuchtung Proklima
GmbH.
Address Brune
Brune Luftbefeuchtung Proklima GmbH
Schwarzacher Strasse 13
74858 Aglasterhausen, Germany
Phone [phone]
E-mail [email protected]
Information about this manual
Copyright
Customer service
Evaporation Humidifier B500 Professional 3

Table of contents
1 The Evaporation Humidifier B500 Professional............... 6
1.1 Complete overview....................................................... 6
1.2 Remote control............................................................. 8
1.3 Wireless sensor system................................................ 8
1.4 Control panel................................................................ 9
1.5 Functional description................................................. 10
2 Safety................................................................................. 11
2.1 Symbols in this manual............................................... 11
2.2 Intended use............................................................... 12

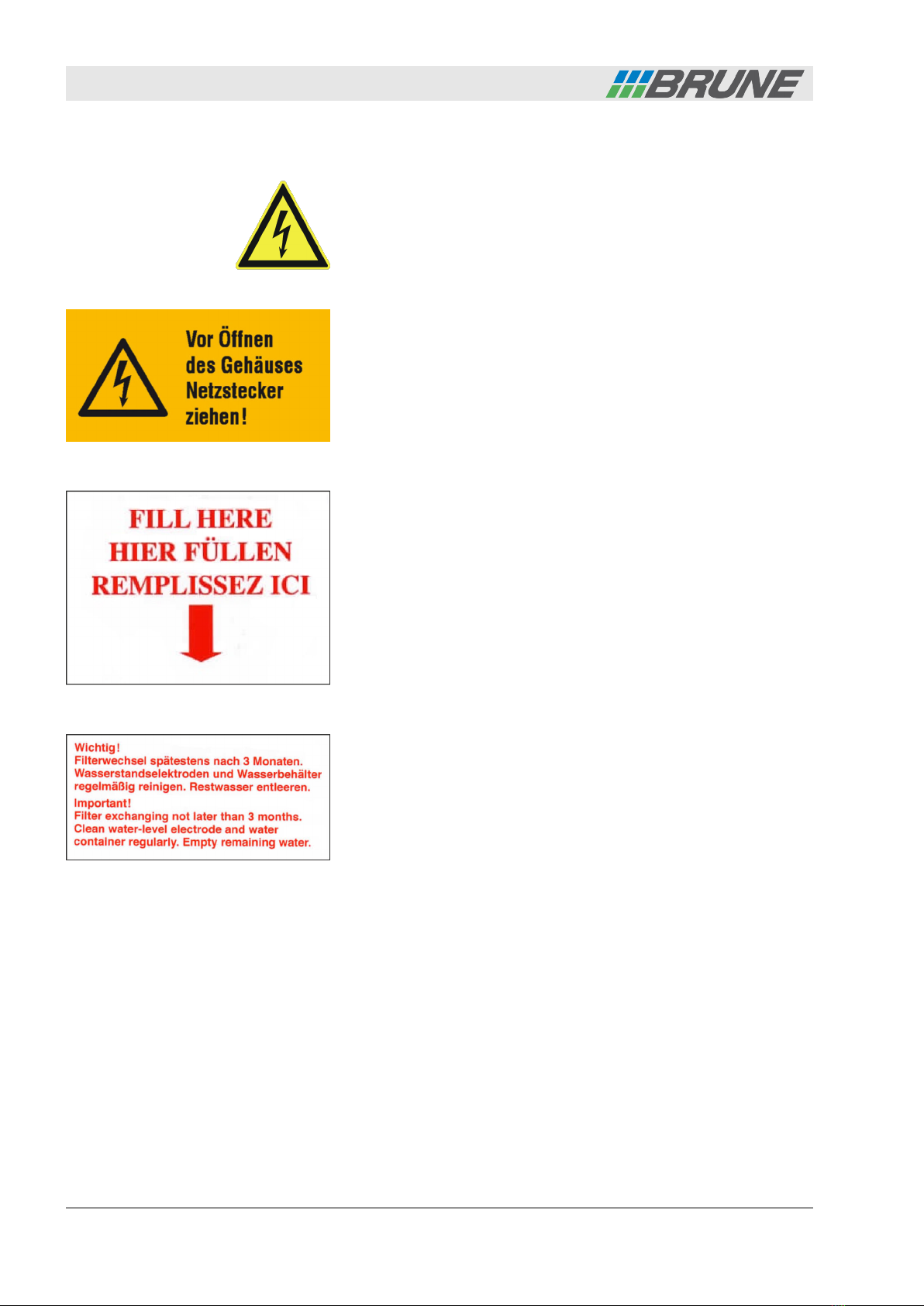

2.3 Symbols on the device................................................ 13
2.4 Safety and dangers..................................................... 14
2.5 Responsibilities of the operator.................................. 18
2.6 Personnel requirements.............................................. 19
2.7 Environmental protection............................................ 20
3 Transport and storage...................................................... 21
3.1 Safety instructions for transport and storage.............. 21
3.2 Symbols on the packaging.......................................... 21
3.3 Storage of packages................................................... 21
3.4 Inspection of delivery.................................................. 22
3.5 Storage when not in use............................................. 22
3.6 Transporting the humidifier......................................... 23
4 Start-up.............................................................................. 24
4.1 Safety instructions for the initial commissioning......... 24
4.2 Requirements at the installation location.................... 24
4.3 Commissioning the humidifier for the first time........... 24
4.4 Coding the wireless sensor system............................ 27
5 Operating the humidifier.................................................. 31
5.1 Indicators on the device.............................................. 31
5.2 Switching on and off................................................... 32
5.3 Filling the water tank................................................... 32
5.4 Setting the desired air humidity.................................. 34
5.5 Regulating the fan....................................................... 34
5.6 Changing the menu settings....................................... 35
6 Cleaning and servicing the humidifier............................ 38
6.1 Safety instructions for cleaning and servicing............. 38
6.2 Cleaning schedule...................................................... 39
6.3 Cleaning tasks............................................................ 40
6.3.1 Monthly cleaning...................................................... 40
6.3.2 Replacing the evaporation filter............................... 41
6.3.3 Cleaning the water tank........................................... 44
6.3.4 Decalcifying the device............................................ 45
7 Detecting and remedying malfunctions.......................... 49
7.1 Safety instructions for troubleshooting........................ 49
Table of contents
Evaporation Humidifier B500 Professional4

7.2 Malfunction indication................................................. 49
7.3 Error table................................................................... 51
7.4 Remedying errors....................................................... 53
7.4.1 Replacing the pump................................................. 53
7.4.2 Replacing the fan..................................................... 56
8 Accessories....................................................................... 59
8.1 Waterfresh.................................................................. 59
8.2 Automatic water supply............................................... 60
8.3 Automatic flushing device........................................... 61
8.4 Activated charcoal cleaning filter................................ 63
8.4.1 Overview.................................................................. 63
8.4.2 Replacing the activated charcoal cleaning filter....... 64
8.5 Air hood with flexible air hose..................................... 65
8.6 UV degermination system and lime transforming car-
tridge........................................................................... 65
8.6.1 Cleaning the UV degermination system and lime
transforming cartridge.............................................. 67
8.6.2 Replacing the UV lamp............................................ 70
8.7 Safety collecting basin................................................ 72
8.8 Safety water sensor.................................................... 73
8.9 External water sensor................................................. 73
8.10 Safety pressure hose................................................ 74
8.10.1 Overview................................................................ 74
8.10.2 Replacing the safety pressure hose...................... 74
9 Spare parts........................................................................ 76
10 Disposing of the humidifier............................................. 77
11 Technical data................................................................... 78
11.1 Dimensions and weight............................................. 78
11.2 Connection values.................................................... 78
11.3 Performance data..................................................... 78
11.4 Operating conditions................................................. 78
11.5 Emissions................................................................. 79
11.6 Type plate................................................................. 79
12 Index................................................................................... 80
Appendix............................................................................ 82
Table of contents
Evaporation Humidifier B500 Professional 5

1 The Evaporation Humidifier B500 Professional
1.1 Complete overview
Fig. 1: Evaporation Humidifier B500
1 Filling opening
2 Air outlet opening
3 Control panel
4 Air inlet opening
5 Water tank
6 Cover
The following chapters provide only the description of
the humidifier standard version. For the operation and
cleaning of the accessories, see Ä Chapter 8 “Acces-
sories” on page 59.
Accessories
The Evaporation Humidifier B500 Professional
Evaporation Humidifier B500 Professional6

Fig. 2: Scope of delivery
Item Quantity Name
Fig. 1 1 Evaporation Humidifier B500 Professional, incl. power plug
1 1 Wireless sensor system
2 2 AA batteries for wireless sensor system
3 1 Remote control
4 2 AAA batteries for remote control
5 1 Cleaning brush
1 Operation manual
Scope of delivery
The Evaporation Humidifier B500 Professional
Evaporation Humidifier B500 Professional 7

1.2 Remote control
Item Name Function
1[Humidity]
rocker switch
The target value for the air humidity can
be set using the [Humidity] rocker switch.
By pressing the "+" or "-" area several
times or continuously, the desired
humidity value can be increased or
decreased.
2[Fan] rocker
switch
By pressing the "+" or "-" area of the [Fan]
rocker switch, the fan speed can be
increased or decreased. In addition to the
automatic level, four other fan speed
levels are available.
3[Set] button Using the [Set] button, individual sub-
menus can be selected in programming
mode.
4[Flush] button By pressing the [Flush] button, the
flushing device is started (optional acces-
sory).
5[ON/OFF]
button
By pressing the [ON/OFF] button, the
humidifier is switched on or off.
6[Prog] button By pressing the [Prog] button, the pro-
gramming mode of the humidifier opens.
1.3 Wireless sensor system
The wireless sensor system controls the humidifier automatically. It
measures the current air humidity and, in intervals of three minutes
or in the event of a humidity change of more than 3%, sends the
value to the humidifier. The speed of the fan is then automatically
adjusted according to the set humidity target value.

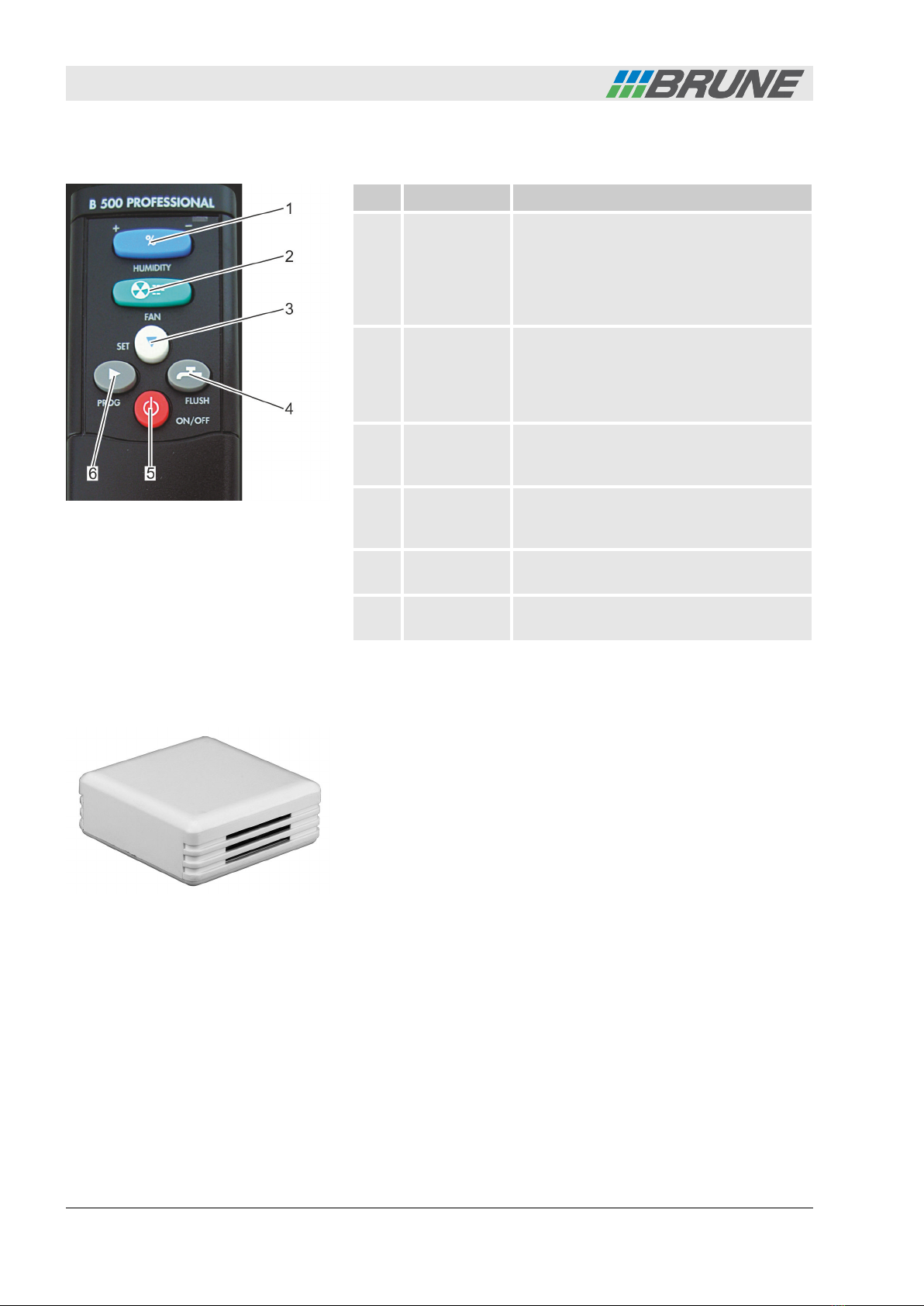

Fig. 3: Remote control
Fig. 4: Wireless sensor system
The Evaporation Humidifier B500 Professional
Evaporation Humidifier B500 Professional8

1.4 Control panel
The control panel provides information about the state of the
device. It provides information about the current water level, the
current air humidity value and any possible device malfunctions.
Fig. 5: Control panel
Item Name Function
1[Remote control receiver
sensor]
The receiver sensor receives and processes the radio signal of
the remote control.
2[Water level indicator] Lights up when the humidifier water tank is empty.
3[Filter replacement display] Lights up when the humidifier filter needs to be replaced
4[Water level indicator] Shows the level of the water tank in liters/gallons
5[Fan speed level indicator] Shows the speed level when the fan is in manual mode
6[Automatic fan indicator] Lights up when the fan is in automatic mode
7Display The following information is shown on the display:
nActual/target value of air humidity
nMenu codes in programming mode
nError codes during malfunctions
8[Malfunction indicator] Lights up when a malfunction of the humidifier is present. Here,
observe the error code on the display.
The Evaporation Humidifier B500 Professional
Evaporation Humidifier B500 Professional 9

1.5 Functional description

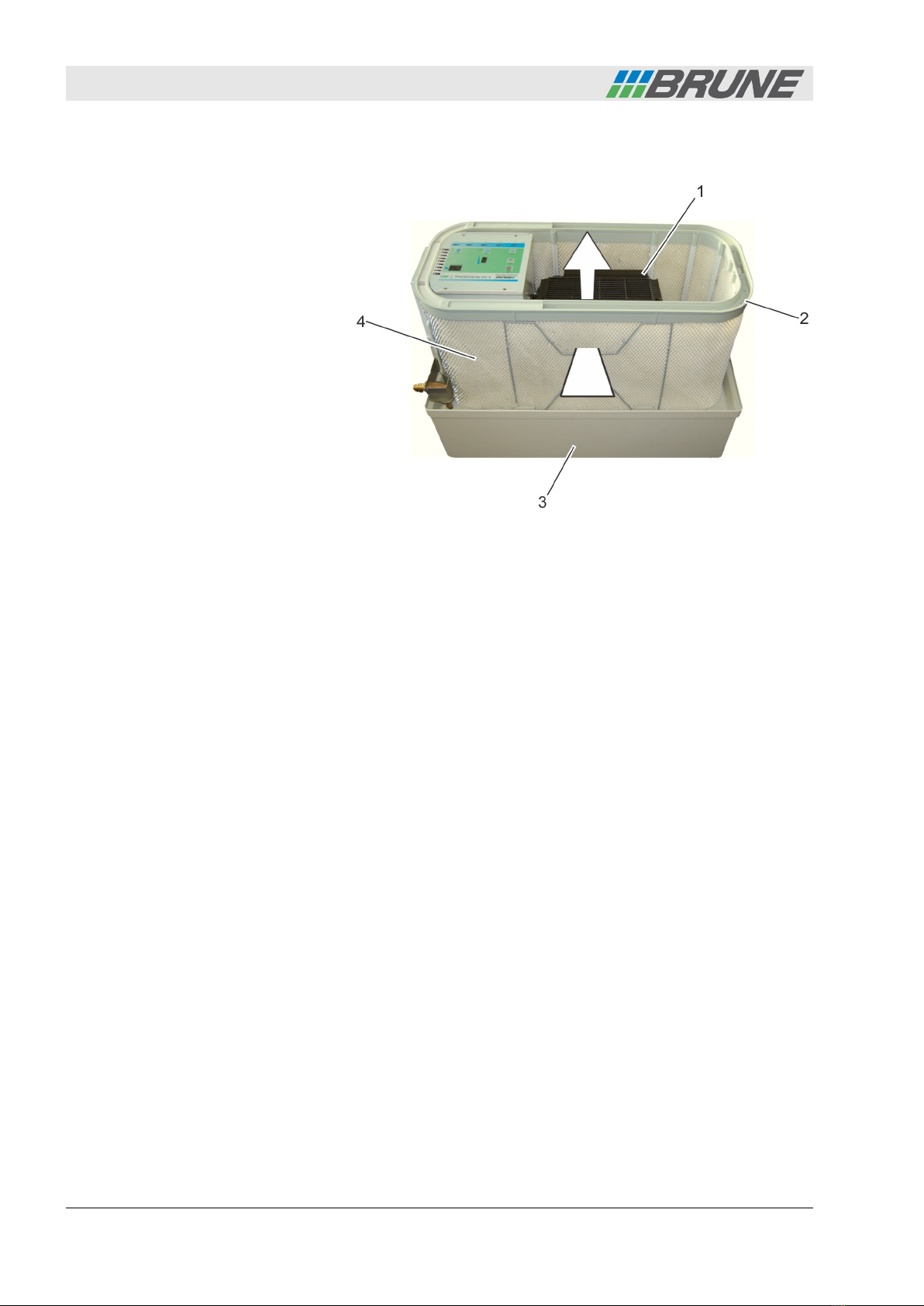

Fig. 6: Functional principle
The humidifier B500 operates based on the natural principle of
evaporation. A water pump continuously delivers water from the
water tank (Fig. 6/3) to the oval water channel (Fig. 6/2). The water
seeps through the drainage holes inside the channel and moistens
the evaporation filter (Fig. 6/4).
A fan (Fig. 6/1) inside the humidifier suctions the air in. The air
flows through the evaporator filter and is cleaned and humidified at
the same time. Then the humidified air is supplied through the air
outlet opening on the top and back into the room (Fig. 6/arrow).
The humidifier is filled manually via the filling opening at the top
face. The device can also be optionally connected to the local
water supply. In this case, the humidifier is automatically filled; no
manual filling is required (
Ä Chapter 8 “Accessories”
on page 59).
The Evaporation Humidifier B500 Professional
Evaporation Humidifier B500 Professional10

2 Safety
This section provides an overview of all important safety aspects to
protect persons and to ensure safe and trouble-free operation.
There are further task-related safety instructions in the sections
about the individual life phases.
2.1 Symbols in this manual
In this manual the safety instructions are identified by symbols. The
safety instructions are introduced by signal words that express the
extent of the hazard.
DANGER!
This combination of symbol and signal word indicates
a situation of immediate danger which, if not avoided,
will result in death or serious injury.
WARNING!
This combination of symbol and signal word indicates
a situation of possible danger which, if not avoided,
could result in death or serious injury.
CAUTION!
This combination of symbol and signal word indicates
a situation of possible danger which, if not avoided,
could result in minor or moderate injury.
NOTICE!
This combination of symbol and signal word indicates
a situation of possible danger which, if not avoided,
could result in damage to property and the environ-
ment.
Safety instructions may refer to specific, individual procedural
instructions. Such safety instructions are embedded in the proce-
dural instructions, so that they do not interrupt the flow of reading
when performing the action. The signal words described above are
used.
Safety instructions
Safety instructions in procedural
instructions
Safety
Evaporation Humidifier B500 Professional 11

Example:
1. Loosen the screw.
2.
CAUTION!
Risk of entrapment at cover plate!
Carefully close the cover plate.
3. Tighten the screw.
This symbol emphasizes useful tips and recommenda-
tions as well as information for efficient and trouble-
free operation.
The following labels emphasize procedural instructions, results,
lists, references and other elements used in this manual:
Label Explanation
Step-by-step procedural instructions
ðResults of the procedural steps
Reference to sections in this manual and to
applicable documentation
List without set sequence
[Button] Operating controls (e.g. buttons, switches),
display elements (e.g. indicator lamps)
2.2 Intended use
The Evaporation Humidifier B500 Professional is used exclu-
sively to humidify the room air in residential and professional
environments.
The observation of all the information in this manual is also part of
the intended use.
Any use other than intended use and any use going beyond this
use is considered improper use.
Tips and recommendations
Further labels
Safety
Evaporation Humidifier B500 Professional12

WARNING!
Danger from improper use!
Improper use of the Evaporation Humidifier B500 Pro-
fessional can lead to dangerous situations.
– Only fill the humidifier with normal tap water (max.
30 °C, 86 °F) or with treated water with at least 300
microsiemens. Never fill with distilled water.
– Do not use scented or flavoring substances.
– Never operate the humidifier with an empty water
tank.
– Never operate the device near open water
sources.
– Only operate the device on a stable and level sur-
face.
– Never expose the device to a source of excessive
heat.
– Never cover the device.
– Never put anything on the humidifier. This applies
in particular to electrical devices or containers that
are filled with liquid.
– Never place the device near furnishings that
absorb water (for example, curtains, wallpaper, or
carpets).
– Never operate the device in a potentially explosive
environment.
2.3 Symbols on the device
The following symbols and information signs are attached to the
device. They relate to the immediate surroundings in which they
are attached.
WARNING!
Danger when signage is not legible!
Over time, labels and signs can become dirty or other-
wise illegible, which means that risks cannot be
detected and the necessary operating instructions
cannot be followed. This may cause injury.
– Keep all safety signs, warning signs and operating
instructions in a legible condition.
– Replace damaged signs or labels immediately.
Safety
Evaporation Humidifier B500 Professional 13

Warning: Dangerous electrical voltage.
Always disconnect the power plug before beginning cleaning tasks
and troubleshooting.
This sign indicates the filling opening of the water tank. Only use
this opening to fill the water tank.
The sign at the filling opening provides important instructions for
cleaning and care of the humidifier. For detailed instructions on
cleaning and care of the humidifier, observe Ä Chapter
6 “Cleaning and servicing the humidifier” on page 38.
2.4 Safety and dangers
The humidifier has been designed according to the state of the art
and according to current safety requirements. However, residual
risks that require careful handling still exist. The residual risks and
the resulting conduct and measures are listed below.
“Electrical voltage” sign
“Pull power plug” sign
“Fill here” sign
“Cleaning instructions” sign
Safety
Evaporation Humidifier B500 Professional14

DANGER!
Danger to life from electrical current!
Risk of imminent fatal injury from electric shock due to
contact with live parts. Damaged insulation or dam-
aged individual components can be dangerous to life.
– Only have qualified electricians perform work on
the electronic system.
– Switch off the humidifier immediately and initiate
repair, if the power cable is damaged.
– Damaged power cables may only be replaced by
the manufacturer or his customer service or a simi-
larly qualified person.
– Keep moisture away from energized parts. This
can lead to a short circuit.
– Never submerge the device in water.
– Never direct the outlet openings towards electrical
appliances or sockets.
– Always lay the power cable without coming in con-
tact with sources of heat, moisture, oil, sharp
objects, sharp edges etc.
– Always first disconnect the power plug prior to
cleaning or troubleshooting.
– Never touch the power plug with wet hands.
– When pulling the power plug never pull on the
cable but always the plug.
– Never pull the device using the cable.
Electrical current
Safety
Evaporation Humidifier B500 Professional 15

WARNING!
Risk of injury from improper handling of batteries!
Improper handling of batteries creates a risk that the
batteries may burst or that noxious liquid may leak
from the batteries. The liquid may cause burns in con-
tact with the skin or severe poisoning if swallowed, and
can cause blindness in contact with the eyes.
– Never try to charge the batteries.
– Never short-circuit the contacts (plus and minus
pole) of the battery.
– Never expose batteries to wetness or moisture
(rain, salt water, liquids). A moist or wet battery
may not be used under any circumstances.
– Never use or store batteries at locations with
potentially explosive atmosphere or where high
temperatures can occur.
– Never try to solder, to repair, to change shape, to
modify or to dismantle batteries.
– Always protect batteries from unauthorized access.
– To prevent fire, overheating, explosion or leakage
of fluid never expose the batteries to severe vibra-
tion, high weight loading or other harmful effects.
Leaking and spilled liquid can ignite.
– Do not swallow batteries. If swallowed accidentally,
get medical attention immediately.
– After eye contact with spilled liquid immediately
rinse the eye and also under the eyelid with clear
water for at least 15 minutes. For this, point the
mild water jet directly into the eye and do not rub.
Get immediate medical help.
– Avoid skin contact with spilled liquid. In case of
accidental skin contact wash affected area with
plenty of soap and water.
WARNING!
Risk of injury for children!
Children are unaware of the dangers related to using
the humidifier. This could lead to severe injuries.
– Batteries and other small items could be swal-
lowed. Insert the batteries immediately after
receiving the humidifier or store them out of the
reach of children.
– Packaging material may not be used for playing.
There is an acute danger of suffocation. Packaging
materials must be immediately disposed of or
stored out of the reach of children.
– Always supervise children to ensure that they do
not play with the device, or use the device as a
climbing aid.
Batteries
Children
Safety
Evaporation Humidifier B500 Professional16

WARNING!
Health hazard due to inadequate cleaning!
Bacteria and germs can be released when cleaning is
not carried out adequately.
– Replace the evaporator filter at the latest after four
months. Reduce the time interval accordingly in
case of severe contamination of the ambient air.
– Always comply with the intervals for cleaning
described in Ä Chapter 6.2 “Cleaning schedule”
on page 39.
– Every 3-4 weeks, completely drain the water tank
and refill the water tank again.
WARNING!
Health hazard due to air humidity that is too high
Overly humidified air favors the formation of mildew
and harmful germs.
– Do not exceed the recommended value of 50 ‒
60% air humidity in living quarters.
– To prevent damage to health, persons with
asthma, respiratory diseases or lung problems
should consult a physician before using the
humidifier.
– In the event of breathing difficulties that may be
related to the use of the humidifier, stop using the
humidifier immediately and consult a doctor.
CAUTION!
Risk of injury from slipping in water puddles!
Slipping in water puddles on the floor can cause falls.
This could lead to injuries.
– Place the humidifier on a horizontal surface.
– Immediately mop up water puddles using a cloth.
– Regularly check the safety collecting basin
(optional accessory) and empty it if required.
Inadequate cleaning
Air humidity that is too high
Water puddles
Safety
Evaporation Humidifier B500 Professional 17

CAUTION!
Risk of injury by tripping over the power cable!
Risk of tripping exists if the power cable is not laid
properly. This can lead to falls and injuries.
– Lay the power cable in a manner that there is no
risk of tripping.
NOTICE!
Risk of property damage due to incorrect place-
ment of the humidifier!
If the humidifier is operated on floors that are not mois-
ture-resistant, the floor may be damaged.
– Only set up the humidifier on moisture-resistant
flooring.
– Use a safety collecting basin ( Ä Chapter
8.7 “Safety collecting basin” on page 72) to pro-
tect from leaking water.
– Never place the device near furnishings that
absorb water (for example, curtains, wallpaper, or
carpets).
2.5 Responsibilities of the operator
The operator is the person who operates the humidifier for indus-
trial or commercial purposes, or provides a third party with the use/
application and bears the legal product responsibility during opera-
tion for the protection of the user, personnel, or third parties. If the
humidifier is used for commercial or industrial purposes, the fol-
lowing operator obligations must be observed.
If the device is used for commercial purposes, the operator is sub-
ject to work safety regulations.
In addition to the safety instructions in this manual, the valid safety,
accident prevention and environmental protection regulations must
be adhered to for the application area of the humidifier.
In particular, the following applies:
nThe operator must clearly define and regulate responsibilities
for installation, operation, troubleshooting, and cleaning.
nThe operator must ensure that all persons who handle the
device have read and understood this manual.
nThe operator must provide the personnel with the necessary
protective gear and instruct that wearing the required protective
gear is mandatory.
nThe operator must ensure that the cleaning intervals described
in this manual are observed.
Tripping
Incorrect choice of location
Operator
Obligations of the operator
Safety
Evaporation Humidifier B500 Professional18

2.6 Personnel requirements
WARNING!
Risk of injury due to insufficient qualifications of
the staff!
Work on the humidifier carried out by unqualified per-
sons may result in hazards that could cause serious
injuries and significant property damage.
– Have all tasks and work performed by qualified
personnel.
– Always keep unauthorized persons, especially chil-
dren, away from the device.
In this manual, the qualifications listed below for the personnel for
the various areas of activity are used:
Licensed electrician
The licensed electrician is, due to his/her many years of knowledge
and experience and knowledge of the relevant standards and regu-
lations, able to work on electrical equipment and to independently
recognize and avoid possible hazards.
He/she must furthermore provide proof of his/her professional qual-
ification, attesting to the ability to carry out work on electrical equip-
ment.
The licensed electrician must comply with the applicable legal reg-
ulations on accident prevention.
Licensed plumber
The licensed plumber is trained and certified and knows the stan-
dards and regulations for the specific task area in which he/she
operates.
The licensed plumber can, due to sufficient technical training and
experience, perform work on all sanitary equipment, and identify
and avoid potential hazards.
He/she must furthermore provide proof of his/her professional qual-
ifications that certify his/her capacity to carry out work on sanitary
equipment.
Manufacturer
Certain work may only be performed by specialized staff of the
manufacturer. Other personnel are not authorized to perform such
work. To perform the required work, please contact our customer
service.
Operator
The operator uses and operates the device within the limits of
intended use.
Safety
Evaporation Humidifier B500 Professional 19

If the humidifier is used in a commercial or industrial environment,
the operator has to be briefed and trained by the owner about his
tasks and potential hazards in case of improper conduct. Tasks
that go beyond the handling during normal operation may only be
executed by the operator if they are listed in this operating manual
and when explicitly entrusted by the owner.
This device may be operated by children aged 8 and up, as well as
by persons with reduced physical, sensory or mental capabilities,
or by persons lacking knowledge or experience, provided that they
are supervised or informed about safe use of the device and the
dangers that could arise from use of the device. Children may not
play with the device. Children may not carry out cleaning proce-
dures and user maintenance without supervision.
2.7 Environmental protection
NOTICE!
Danger to the environment due to improper han-
dling of environmentally hazardous substances!
Incorrect handling of environmentally hazardous sub-
stances, in particular incorrect disposal, can cause
considerable damage to the environment.
– Always observe the information listed below for
handling and disposing of environmentally haz-
ardous substances.
– If environmentally hazardous substances enter the
environment by accident, immediately take appro-
priate measures. When in doubt, inform the com-
petent local authority about the damage and ask
about the appropriate measures to take.
The following environmentally hazardous substances are
used:
Batteries contain toxic heavy metals. They are subject to special
refuse treatment and must be deposited at municipal collection
points or be disposed of by a specialist company.
Batteries
Safety
Evaporation Humidifier B500 Professional20
