Brune B 280 User manual

Brune B 280
Evaporative humidifier
Operating manual
Read the instructions prior to performing any task!

Prok-25960-DE, 1, en_GB
Translation of the original operating manual
© Brune Luftbefeuchtung Proklima GmbH 2015
Brune
Luftbefeuchtung Proklima GmbH
Schwarzacher Straße 13
74858 Aglasterhausen
Germany
Telephone: [phone]
Fax: [phone]
email: [email protected]
Internet: www.brune.info
Brune B 280 Evaporative humidifier2

Read these instructions carefully before operating the Brune B 280
evaporative humidifier. The non-observance of these instructions
may lead to injuries, or damage to the humidifier and the arrange-
ment of the installation location.
Store the instructions carefully and accessibly in the vicinity of the
unit. If you pass on the humidifier to a third party, make sure that
the instructions accompany it.
Illustrations in these instructions are provided for basic under-
standing and could differ from the actual version.
The basic prerequisite for safe working is compliance with all
stated safety and handling instructions.
In order to start up the humidifier, a connection to the mains power
supply and a fill up of the water container is required ( Ä Chapter
3.3 ‘Starting up the humidifier’ on page 17).
The optional connection of the humidifier to the water network
must be carried out by a qualified sanitary engineer.
To guarantee optimal operation, the evaporator filter and cleaning
filter must be changed regularly. To prevent the occurrence of con-
ditions favourable towards the formation of germs, a regular water
change and cleaning of the water container and inner walls of the
unit are necessary (
Ä Chapter 4 ‘Cleaning and care’
on page 24).
The following accessories for the Brune B 280evaporative humidi-
fier are available from Brune Luftbefeuchtung Proklima GmbH:
nPressure hose with Aquastop
nSafety collection basin
nWaterfresh
nDescaler
nCleaning filter
nEvaporator filter
nUV lamp
nRemote sensor system
The content of these instructions is protected by copyright. Its use
is permitted within the framework of the use of the unit. Any use
exceeding this purpose is not permitted without written permission
from Brune Luftbefeuchtung Proklima GmbH.
Use and storage of the instructions
Information on start-up
Information on cleaning and care
Accessories
Copyright protection
Brune B 280 Evaporative humidifier 3

Address Brune
Luftbefeuchtung Proklima GmbH
Schwarzacher Straße 13
74858 Aglasterhausen
Germany
Phone [phone]
E-mail [email protected]
Customer service
Brune B 280 Evaporative humidifier4

Table of contents
1 Product description............................................................................................................................. 6
1.1 Overview of the humidifier...................................................................................................... 6
1.2 Control and display elements................................................................................................. 7
1.3 Technical data........................................................................................................................ 8
2 Safety.................................................................................................................................................. 10
2.1 Symbols in these instructions............................................................................................... 10
2.2 Intended use......................................................................................................................... 10
2.3 Dangers resulting from the humidifier.................................................................................. 11
2.4 Environmental protection...................................................................................................... 14
3 Transport and start-up...................................................................................................................... 15
3.1 Transport and set-up............................................................................................................ 15
3.2 Preparing the humidifier for operation.................................................................................. 16
3.3 Starting up the humidifier..................................................................................................... 17
3.4 Starting up the remote sensor system (optional accessories).............................................. 19
3.5 Coding the humidifier........................................................................................................... 22
4 Cleaning and care.............................................................................................................................. 24
4.1 Maintenance table................................................................................................................ 24
4.2 Opening and closing the front.............................................................................................. 24
4.3 Changing the water and cleaning the tank........................................................................... 28
4.4 Changing the evaporator filter.............................................................................................. 29
4.5 Changing the cleaning filter.................................................................................................. 32
4.6 Changing the UV lamp (optional accessories)..................................................................... 33
5 Rectifying problems.......................................................................................................................... 37
6 Disposing........................................................................................................................................... 38
7 Index................................................................................................................................................... 39
Table of contents
Brune B 280 Evaporative humidifier 5

1 Product description
1.1 Overview of the humidifier
Fig. 1: Overview of the humidifier
1 Ventilation flaps
2 Control panel
3 Ventilation flaps
4 Filling flap
5 Ventilation flaps
6 Outlet grille locking clip
7 Outlet grille
8 Water container
9 Fill-level control
10 Recessed grip
11 Intake grille
12 Connecting socket for mains power supply
13 Water connection solenoid valve
14 Rear wall of the housing
The humidifier works according to the principle of evaporation. The
interior evaporator drum turns within the water container, thus
taking up humidity. A fan sucks in room air and humidified air is
returned to the room. The air flows through the cleaning filter and
the evaporator filter. The cleaned and humidified air is blown back
into the room. A UV lamp inside the unit should reduce contamina-
tion.
Function
Product description
Overview of the humidifier
Brune B 280 Evaporative humidifier6

1.2 Control and display elements

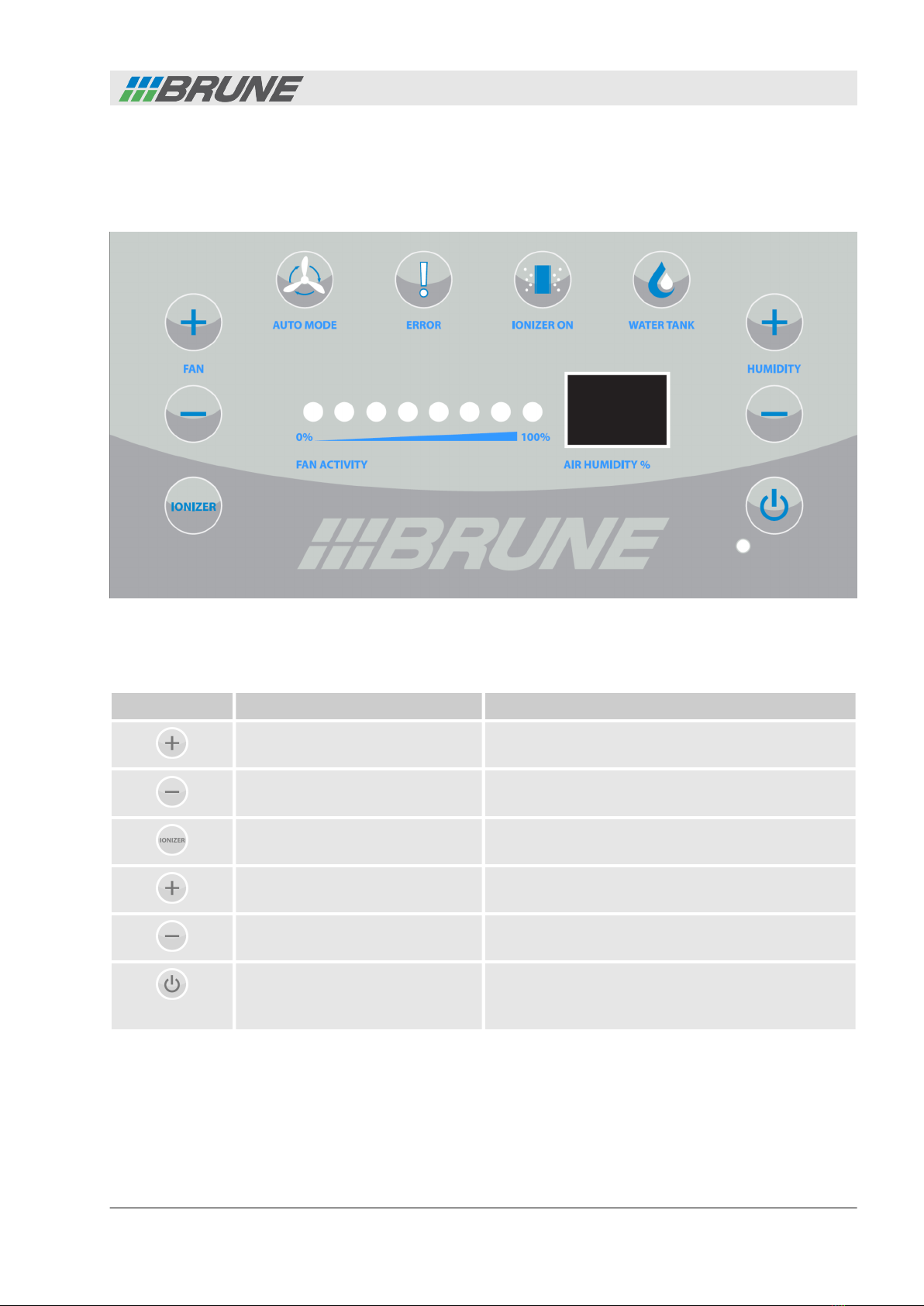

Fig. 2: Control panel
Symbol Description Operation
FAN + nIncrease fan speed.
FAN - nDecrease fan speed.
nLowest level: switch on automatic mode.
IONIZER nSwitch ionisation on/off.
HUMIDITY + nIncrease the target value of the relative humidity.
HUMIDITY - nDecrease the target value of the relative
humidity.
STANDBY nSwitch on humidifier.
nSwitch to standby mode.
In standby mode, the LED lights up red.
Operation
Control elements
Product description
Control and display elements
Brune B 280 Evaporative humidifier 7

Symbol Description Display
AUTO MODE nRed: automatic mode is running
Ä ‘Automatic
fan mode’ on page 18.
ERROR nRed: an error has occurred
Ä ‘Fault table’
on page 37.
IONIZER ON nRed: ionisation function is running
Ä ‘Switching
ionisation on/off’ on page 19.
WATER TANK nRed: tank empty. Fill up with water
Ä on page 16.
nGreen: tank full. Stop filling.
nOff: fill level sufficient for operation.
FAN ACTIVITY nCurrent speed level of the fan
Ä ‘Setting the fan
speed’ on page 18.
AIR HUMIDITY % nCurrent value of the relative humidity.
AIR HUMIDITY % with button
HUMIDITY - or HUMIDITY -
pressed
nSet target value of the relative humidity.
AIR HUMIDITY % with simulta-
neous illumination of the ERROR
display
nError number Ä ‘Fault table’ on page 37
1.3 Technical data
Data Value Unit
Weight 14 kg
Width 645 mm
Height 665 mm
Depth 295 mm
Tank volume 25 l
Mains connection 100 – 240 V
Mains frequency 50/60 Hz
Power consumption 45 W
DC input, voltage 24 V
DC input, current 2.5 A
Maximum hydraulic pressure with con-
nection to water pipe
8 bar
Airflow max. 500 m³/h
Display elements
Product description
Technical data
Brune B 280 Evaporative humidifier8

Data Value Unit
Evaporation performance max. 1.2 l/h
Noise level 32 – 44 dB(A)
Data Value Unit
Temperature 10 – 40 °C
Relative humidity 15 – 80 %
Operating conditions
Product description
Technical data
Brune B 280 Evaporative humidifier 9

2 Safety
2.1 Symbols in these instructions
Safety instructions are marked with symbols in these instructions.
The safety instructions are introduced by signal words which
express the extent of the danger.
DANGER!
This combination of symbol and signal word indicates
an immediately-dangerous situation which will cause
death or severe injuries if not avoided.
DANGER!
Danger to life from electric current!
This combination of symbol and signal word indicates
an immediately-dangerous situation which will cause
death or severe injuries from electric current if not
avoided.
WARNING!
This combination of symbol and signal word indicates
a possibly-dangerous situation which could cause
death or severe injuries if not avoided.
NOTICE!
This combination of symbol and signal word indicates
a possibly-dangerous situation which could cause
material and environmental damage if not avoided.
2.2 Intended use
The evaporative humidifier B 280 serves exclusively to humidify
and clean room air.
Intended use also includes adherence to all the stipulations of
these instructions.
Any application in excess of the intended use or other use is
deemed as non-intended use.
Safety information
Safety
Intended use
Brune B 280 Evaporative humidifier10

WARNING!
Danger from non-intended use!
Non-intended use of the evaporative humidifier B 280
may lead to dangerous situations or damage to the
unit and fixtures.
nOnly fill up the humidifier with normal tap water (max. 30 °C) or
with treated water.
nDo not add any essential oils or other flammable liquids.
nDo not use scented or aromatic substances.
nNever cover the unit.
nNever place objects on the humidifier. This is particularly the
case for electrical equipment or containers filled with liquids.
nDo not climb or sit on the unit.
nDo not transport objects with the unit.
nDo not use the humidifier in rooms with air containing dust,
microbes or chemicals.
2.3 Dangers resulting from the humidifier
The humidifier is state-of-the-art and designed in accordance with
current safety regulations. However, residual dangers that require
careful negotiation still remain. In the following section, the residual
risks and the resulting behaviour and measures are listed.
DANGER!
Danger to life from electric current!
Electric shock from touching voltage-carrying parts of
the power supply poses an immediate danger to life.
Damage to the insulation or individual components can
endanger life.
nKeep damp away from voltage-carrying parts. This could other-
wise lead to a short circuit.
nAlways pull out the mains plug before cleaning work and fault
rectification.
nNever immerse the unit in water.
nNever point the outlet port towards electrical equipment or
sockets.
nNever touch the mains plug with damp hands. When pulling out
the mains plug, always do so by the plug and never by the
cable.
nAlways locate the mains cable in such a way that it cannot
come into contact with heat sources, dampness, oil, sharp
objects, sharp corners etc.
Non-intended use
Electric current
Safety
Dangers resulting from the humidifier
Brune B 280 Evaporative humidifier 11

WARNING!
Danger for particular groups of person and chil-
dren!
This unit is not intended for use by persons (including
children) with restricted physical, sensory or mental
capacities or who lack the relevant experience and/or
knowledge.
nSupervise children to ensure that they do not play with the unit.
nPackaging material must not be used to play with. There is a
danger of suffocation.
nKeep batteries away from children.
WARNING!
Danger to health from insufficient cleaning!
Bacteria and germs may be released due to insuffi-
cient cleaning.
nReplace the evaporator filter after three months at the latest.
nAlways adhere to the time intervals described in
Ä Chapter
4 ‘Cleaning and care’ on page 24 for cleaning, filter changes
and water changes.
nIn the case of severe contamination of the room air and the
water, shorten the maintenance intervals accordingly.
WARNING!
Danger to health from excessive humidification!
Excessively humidified air favours the formation of
mould and health-damaging germs.
nNever exceed the recommended value of 50 ‒ 60 % air
humidity in living spaces.
nTo prevent health damage, persons with asthma, respiratory
diseases or lung infections should consult a doctor before
using the humidifier.
nDo not place the unit in the vicinity of objects that absorb water,
such as curtains, wall-paper and carpet.
Particular groups of person and
children
Insufficient cleaning
Excessive humidification
Safety
Dangers resulting from the humidifier
Brune B 280 Evaporative humidifier12

WARNING!
Danger of injury from mercury in UV lamps!
During improper transport, operation or lifting, mercury
can escape from the UV lamp. Contact with mercury
can lead to severe poisoning, skin irritation and eye
damage.
nAlways lift UV lamps containing mercury carefully.
WARNING!
Danger of injury from UV light!
UV light irritates and damages the eyes and can cause
skin irritations.
nPull out the mains plug before changing the UV lamp.
nDo not look at the switched on UV lamp.
nIn the case of dazzling, sedate the eyes by covering them with
a broad, opaque bandage and take the injured person to an
eye clinic.
WARNING!
Danger of injury from incorrect handling of bat-
teries!
If batteries are handled incorrectly, there is a danger of
the batteries exploding or health-damaging liquids
escaping from the batteries. The liquid can cause
burns to the skin if it comes into contact with skin,
severe poisoning if swallowed and blinding if it comes
into contact with eyes.
nNever attempt to charge the batteries.
nNever short-circuit the contacts (positive and negative termi-
nals) of the battery.
nNever expose the batteries to moisture or dampness (rain, salt-
water, liquids). A damp or wet battery must not be used under
any circumstances.
nNever use or store batteries in areas in which potentially explo-
sive atmospheres prevail or high temperatures could occur.
nNever attempt to solder, repair, adapt, disassemble or change
the shape of batteries.
nAlways keep batteries away from unauthorised persons.
nTo avoid fire, overheating, explosion or the leakage of liquids,
never expose batteries to severe shaking, high weight loads or
other harmful effects. Leaking fluids can ignite.
UV lamp
Batteries
Safety
Dangers resulting from the humidifier
Brune B 280 Evaporative humidifier 13

nAfter eye contact with leaked liquid, rinse the eye immediately
with clear water for 15 minutes, including beneath the eyelid. In
doing so, aim a mild water jet directly into the eye and do not
rub it. Seek medical help immediately.
nAvoid skin contact with leaking liquid. In the event of accidental
skin contact, rinse the affected area of skin with water and
soap.
NOTICE!
Danger of material damage from the incorrect
placement of the humidifier!
nOnly locate the humidifier on even, sufficiently strong, mois-
ture-resistant ground.
nDo not place the unit in the vicinity of objects that absorb water
(e.g. curtains, wall-paper, carpet).
2.4 Environmental protection
NOTICE!
Danger to the environment from improper handling
of environmentally hazardous materials!
Serious environmental damage could result from the
incorrect handling of materials, particularly improper
disposal.
nAlways observe the information listed below on the handling of
environmentally hazardous materials and their disposal.
The following environmentally hazardous materials are used:
Batteries contain poisonous heavy metals. They are subject to spe-
cial waste treatment and must be handed over to communal collec-
tion points or disposed of by a specialist company.
UV lamps are hazardous waste and due to their mercury content,
they must not be disposed of with regular waste. Disposal must be
carried out by a certified waste disposal company.
Unsuitable installation location
Batteries
UV lamps
Safety
Environmental protection
Brune B 280 Evaporative humidifier14

3 Transport and start-up
3.1 Transport and set-up
nOnly locate the humidifier on even, sufficiently strong, mois-
ture-resistant ground.
nEnsure that the circulation of air is guaranteed. The air inlet
and air outlet must not be covered.
nThe distance to other objects in the must be at least 10 cm to
the side and at least 20 cm above.
nTo ensure optimal function, the unit can be located close to a
heat source. However, the temperature influence must not
exceed 50 °C.
A safety collection basin must be used on water-sensitive ground.
NOTICE!
Danger of material damage from tipping the
humidifier!
If the humidifier is moved, there is a danger of the unit
tipping. This can lead to material damage to the unit or
the ground.
nWhenever possible, move the humidifier along its longitudinal
axis (Fig. 3).
nAlways empty the water container before changing location.
The humidifier has four castors on the underside. To change the
location of the unit, it can be pushed or pulled.
WARNING!
Danger while lifting the humidifier!
nAlways empty the water container before changing location.
nOnly lift up the humidifier while working as a pair.
Installation location
Moving the humidifier
Fig. 3: Moving the humidifier
Lifting the humidifier
Transport and start-up
Transport and set-up
Brune B 280 Evaporative humidifier 15

3.2 Preparing the humidifier for operation
1. Check the power supply and mains plug for damage.
Damaged mains cable!
If the mains cable of this unit is damaged, it must
be replaced by a particular connecting cable!
–This is available from the manufacturer or the
customer service department.
2. Connect the power supply to the connecting socket (Fig. 4/1)
on the humidifier.
3. Insert the mains plug.
1. Open the filling flap (Fig. 5).
2. Fill up with water until the WATER TANK display lights up
green.
3. Close the filling flap.
NOTICE!
Danger of material damage from over-filling the
humidifier!
There is a threat of the water container overflowing if
the WATER TANK display lights up green and filling
continues.
The water container can also be filled with Waterfresh to reduce
the build-up of germs and algae and calcifications. Observe the
information provided on the packaging of Waterfresh regarding
dosage, use and disposal.
Waterfresh can be obtained from our customer service department
(
Ä ‘Customer service’ on page 4).
Order numbers:
n1l bottle: 9020
n5l canister: 9022
Power supply
Fig. 4: Connecting to the power
supply
Filling the water container
Fig. 5: Filling the water container
Waterfresh (optional)
Transport and start-up
Preparing the humidifier for operation
Brune B 280 Evaporative humidifier16

NOTICE!
Environmental damage from biocides!
Biocides contained in the Waterfresh are harmful to
the environment in large quantities.
nUse biocides carefully.
nObtain information on environmentally-friendly disposal from
the local authority or a special certified waste disposal com-
pany.
nAlways read the labelling and product information before use.
As an alternative to filling up the water container manually, the
humidifier can be connected to the water network. Have the
humidifier connected via the solenoid valve on the rear by a quali-
fied sanitary engineer.
In order to reduce the risk of material damage, the following safety
equipment is recommended:
nSafety collection basin
nPressure hose with Aquastop
3.3 Starting up the humidifier
Press the STANDBY button.
ðThe humidifier is switched on.
Press the STANDBY button.
ðThe humidifier is on standby. In standby mode, the LED
lights up red.
To safely switch off the humidifier for maintenance or an extended
standstill:
Pull out the plug.
ðThe humidifier is switched off.
WARNING!
Danger to health from excessive humidification!
Excessively humidified air favours the formation of
mould and health-damaging germs.
Water connection (optional)
Additional safety equipment
Switching on the humidifier
Standby
Switching off
Excessive humidification
Transport and start-up
Starting up the humidifier
Brune B 280 Evaporative humidifier 17

nNever exceed the recommended value of 50 ‒ 60 % air
humidity in living spaces.
The target value of the relative humidity can be set within the range
of 30 % to 90 %.
Set the relative humidity to the desired target value with the
HUMIDITY and HUMIDITY buttons.
ðThe AIR HUMIDITY % display shows the selected
value.
The air mass flow and with it, the humidifier performance can be
set via the fan speed, for example: in large rooms, select a higher
speed level.
Set the desired speed level of the fan via the FAN and
FAN buttons.
ðThe FAN ACTIVITY display shows the selected
speed level.
The humidifier runs at the selected fan level until the
selected target value of relative humidity is reached.
In automatic mode, the humidifier regulates the fan speed automat-
ically according to the performance requirement until the desired
value of relative humidity has been reached.
1. Select the target value of the relative humidity with the
HUMIDITY and HUMIDITY buttons.
2. Press and hold the FAN button until the AUTO MODE
display lights up.
ðAutomatic mode is switched on.
To switch on the button lock, press the HUMIDITY and
HUMIDITY buttons simultaneously until the display flashes
once.
ðThe button lock is activated.
To switch off the button lock, press the HUMIDITY and
HUMIDITY buttons simultaneously until the display flashes
once.
ðThe button lock is deactivated.
Setting the relative humidity
Setting the fan speed
Automatic fan mode
Switching the button lock on/off
Transport and start-up
Starting up the humidifier
Brune B 280 Evaporative humidifier18

Ionisation cleans the room air. Ions occur naturally as positively or
negatively charged particles. The ion concentration and the ratio
between positively and negatively charged ions are decisive for the
air quality. Polluted air in living and work area is low in negatively
charged ions. Through ionisation, negatively charged ions are
emitted which combine with dust particles to form so-called clus-
ters and are withheld in the filter.
To turn on ionisation, press the IONIZER button.
ðIonisation is switched on. The IONIZER ON display
illuminates.
To turn off ionisation, press the IONIZER button.
ðIonisation is switched off. The IONIZER ON display
goes out.

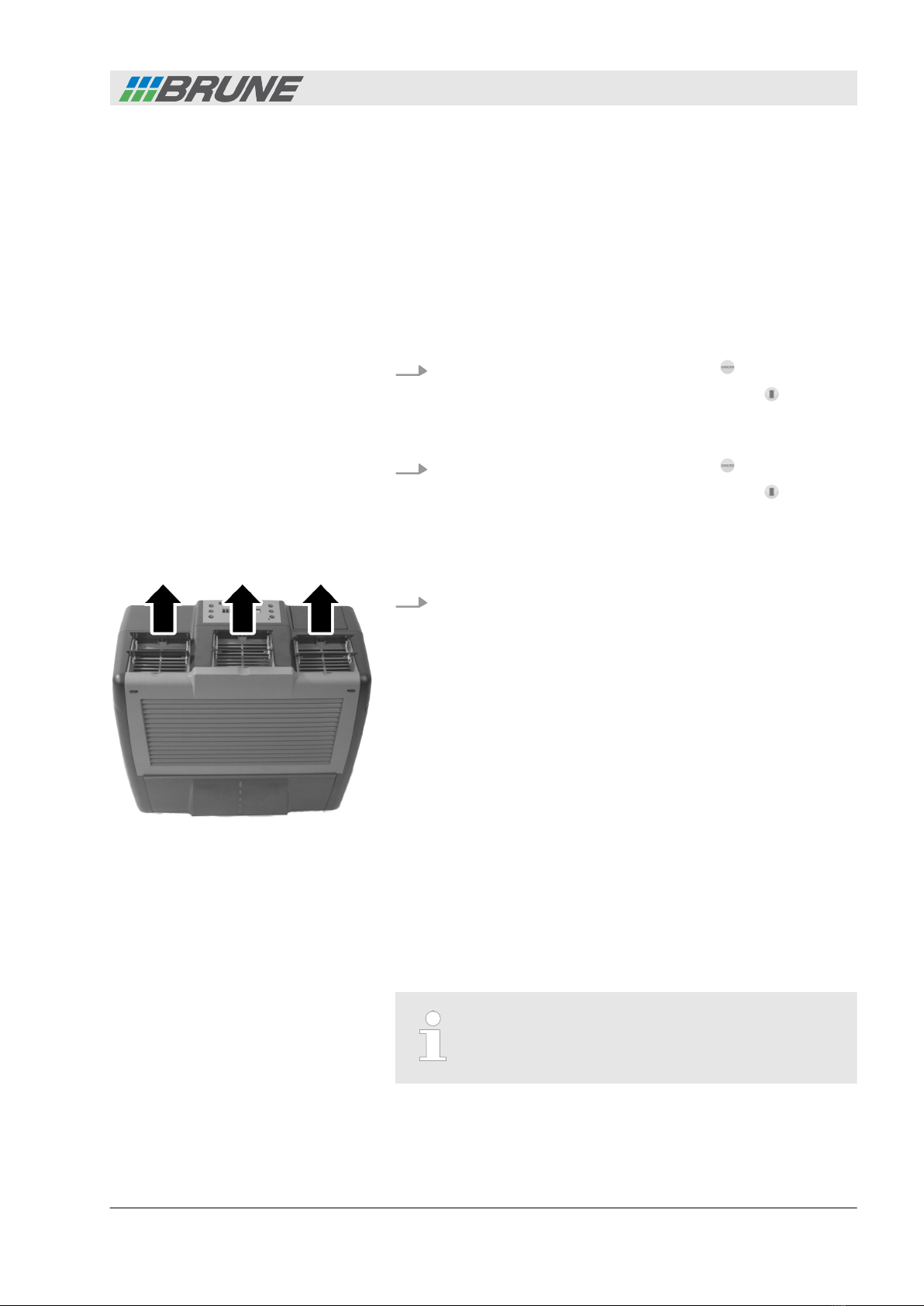

To enable improved distribution of the humidified air in the
room, open the ventilation flaps on the upper surface of the
unit (Fig. 6).
The function of the humidifier is also guaranteed with the ventila-
tion flaps closed.
3.4 Starting up the remote sensor system (optional accessories)
The remote sensor system measures the relative humidity in the
room and transmits this via radio to the humidifier. This enables a
more exact measurement than by measuring with the sensors
installed in the unit, with which deviating measurement results may
occur due to dampness within the unit.
Start up of the remote sensor system is recommended
if precise control of the humidity is required.
Switching ionisation on/off
Ventilation flaps
Fig. 6: Opening the ventilation flaps
Measuring the humidity
Transport and start-up
Starting up the remote sensor system (optional accessories)
Brune B 280 Evaporative humidifier 19

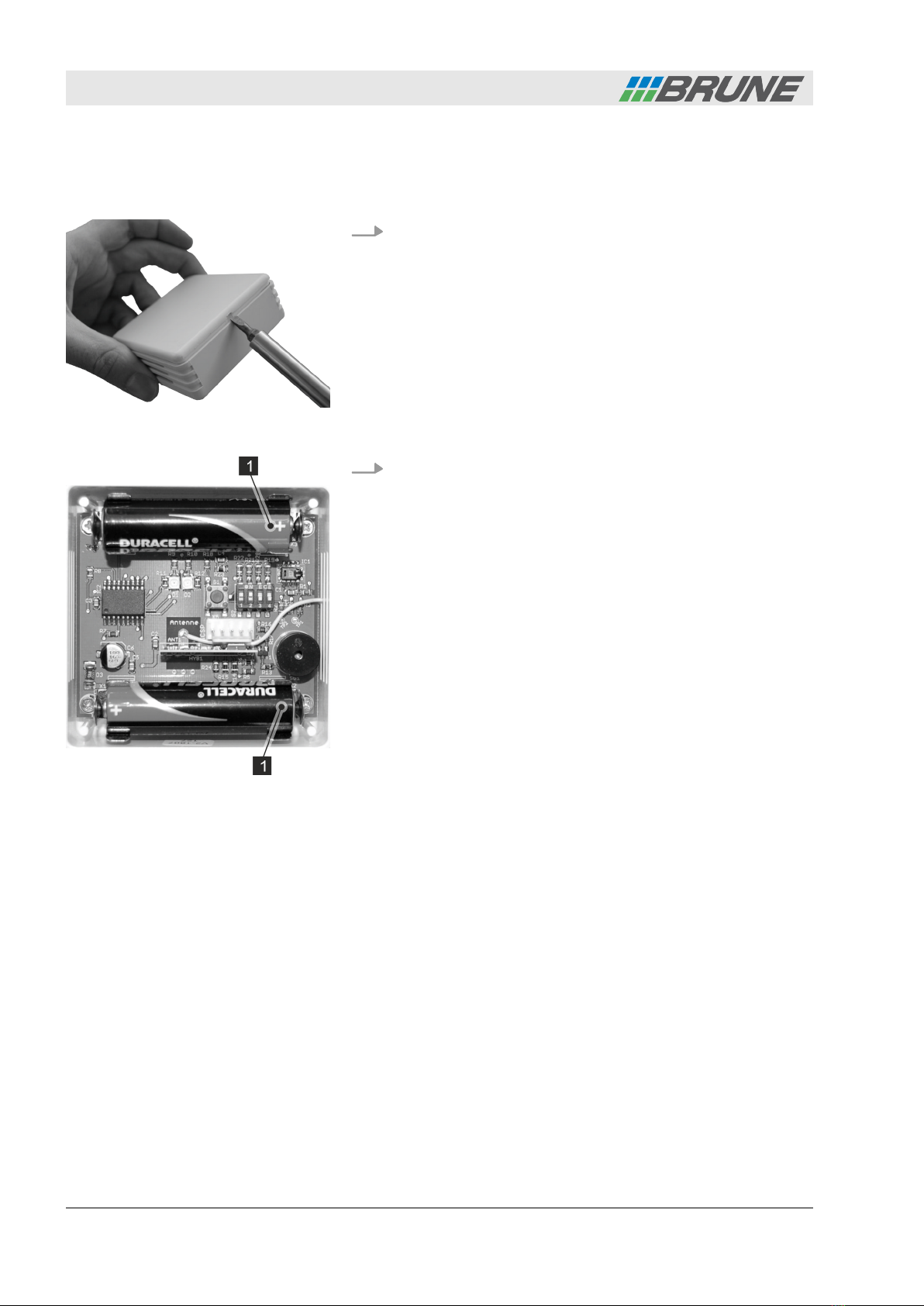

1. Carefully lift up and remove the cover of the remote sensor
system with a small screwdriver (Fig. 7).
2. Insert the supplied 1.5 V AA batteries as illustrated (Fig. 8/1).
The plus and minus poles are marked on both the circuit
board and the battery. The batteries are inserted correctly if
these markings correspond.
Starting up the remote sensor
system
Fig. 7: Opening the cover
Fig. 8: Replacing the batteries
Transport and start-up
Starting up the remote sensor system (optional accessories)
Brune B 280 Evaporative humidifier20
