Bruno The regal cub 35 3 wheel FWD User manual
1780 EXECUTIVE DR., P.O., BOX 84
OCONOMOWOC, WI 53066
(262) 567-4990
AX: (262) 567-4341
TECHNICAL SERVICE (INSTALLATION, & WARRANTY ASSISTANCE): 1-800-882-8768
APPLICATIONS, CUSTOMER SERVICE & SALES:
1-800-882-8183
BOTH TOLL REE NUMBERS ARE GOOD THROUGHOUT THE U.S. AND CANADA
TOLLFREE
TOLLFREE
OPERATORS MANUAL
DEALER :
MAN-CUB-3
REVISED 01-02-2001
*ILLUSTRATION SHOWS REGAL CUB WITH
DELUXE SEAT AND FRONT BUMPER OPTIONS
TM
THE REGAL CUB 35 3 WHEEL FWD
© 2000 BRUNO INDEPENDENT LIVING AIDS, INC.
2
© 2000 BRUNO INDEPENDENT LIVING AIDS, INC.
3
TABLE OF CONTENTS
COVER.............................................................................................................................. 1
TABLE OF CONTENTS.................................................................................................... 3

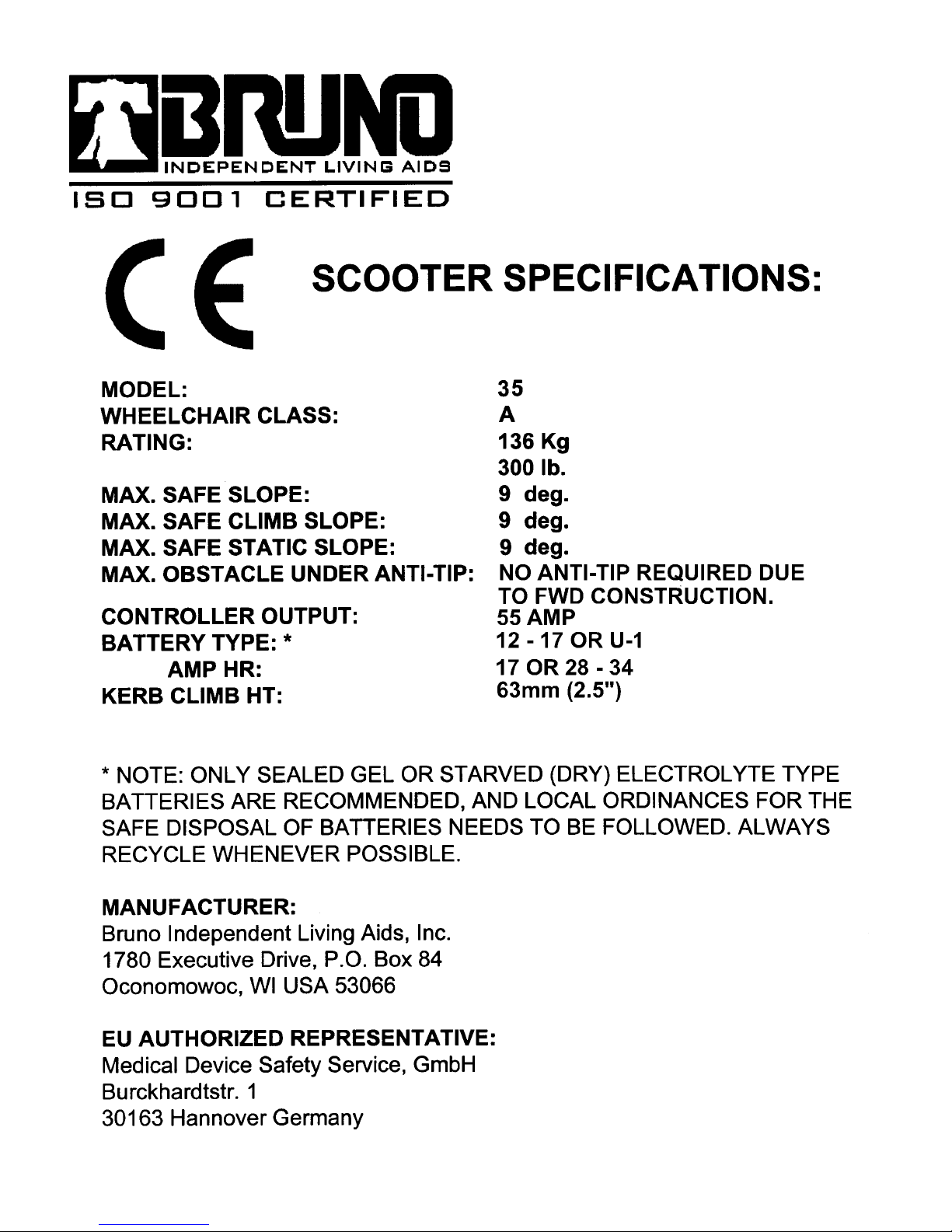

CE SPECIFICATIONS....................................................................................................... 4
PREFACE.......................................................................................................................... 5
IMPORTANT SAFETY TIPS.......................................................................................6 - 9
SEAT ADJUSTMENT
SEAT POST.......................................................................................10

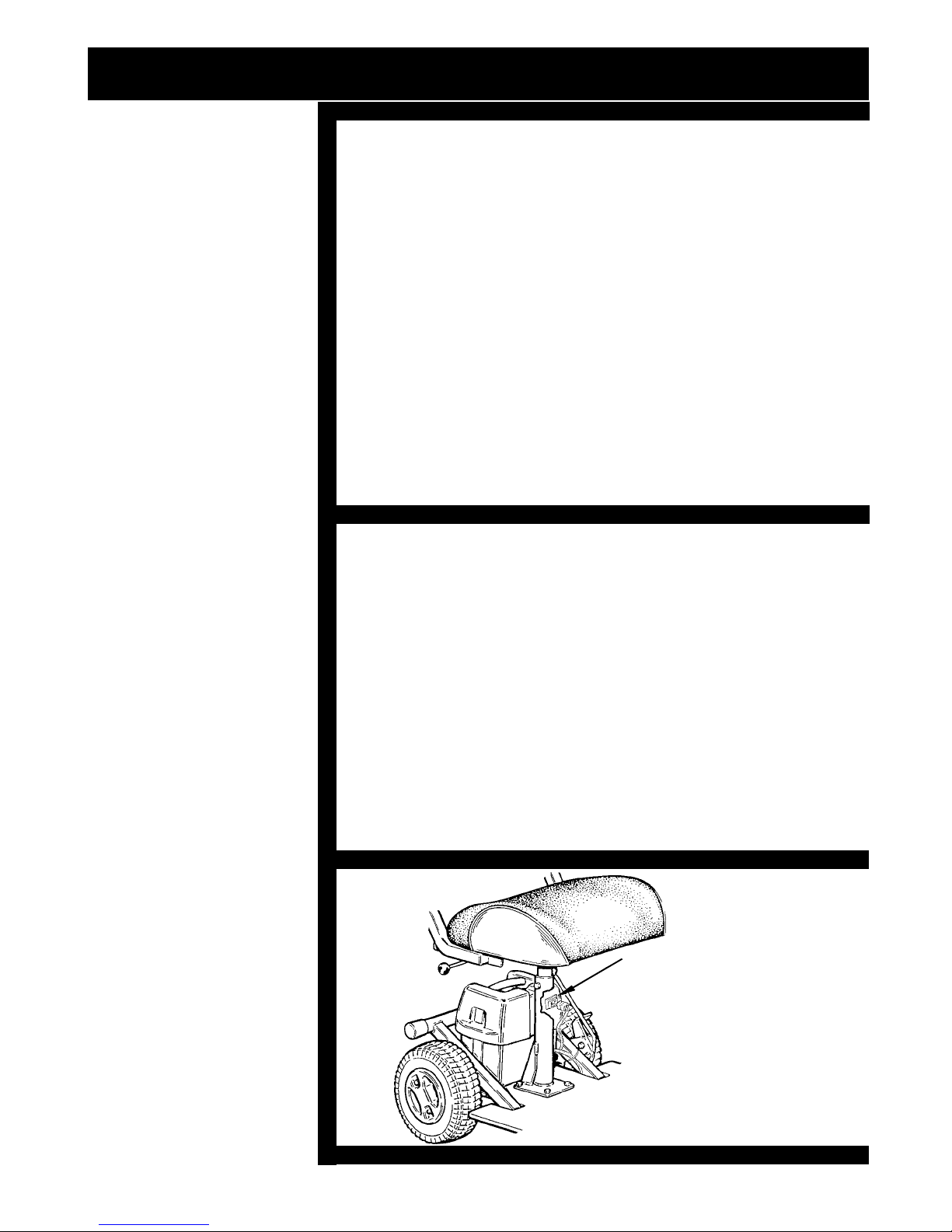

SEAT SWIVEL...................................................................................11

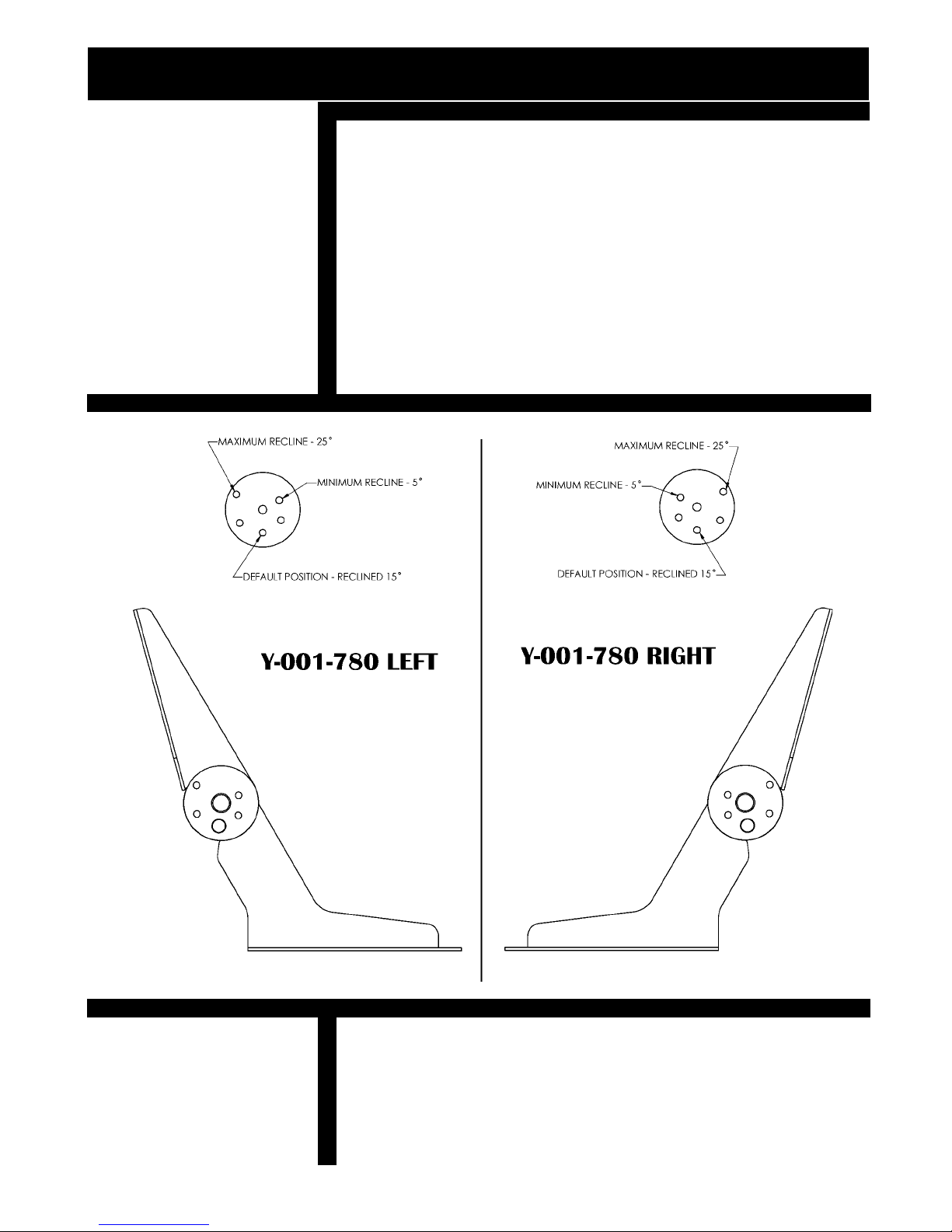

DELUXE SEAT ANGLE ADJUSTMENT............................................11
FLIP-UP ARMRESTS........................................................................ 11
BAC REST HEIGHT ADJUSTMENT................................................12
SEAT CUSHION DEPTH ADJUSTMENT..........................................12
MULTIPLE LEVER POSITIONING.................................................... 13
DELUXE SEAT PLATE INSTALLATION........................................... 14

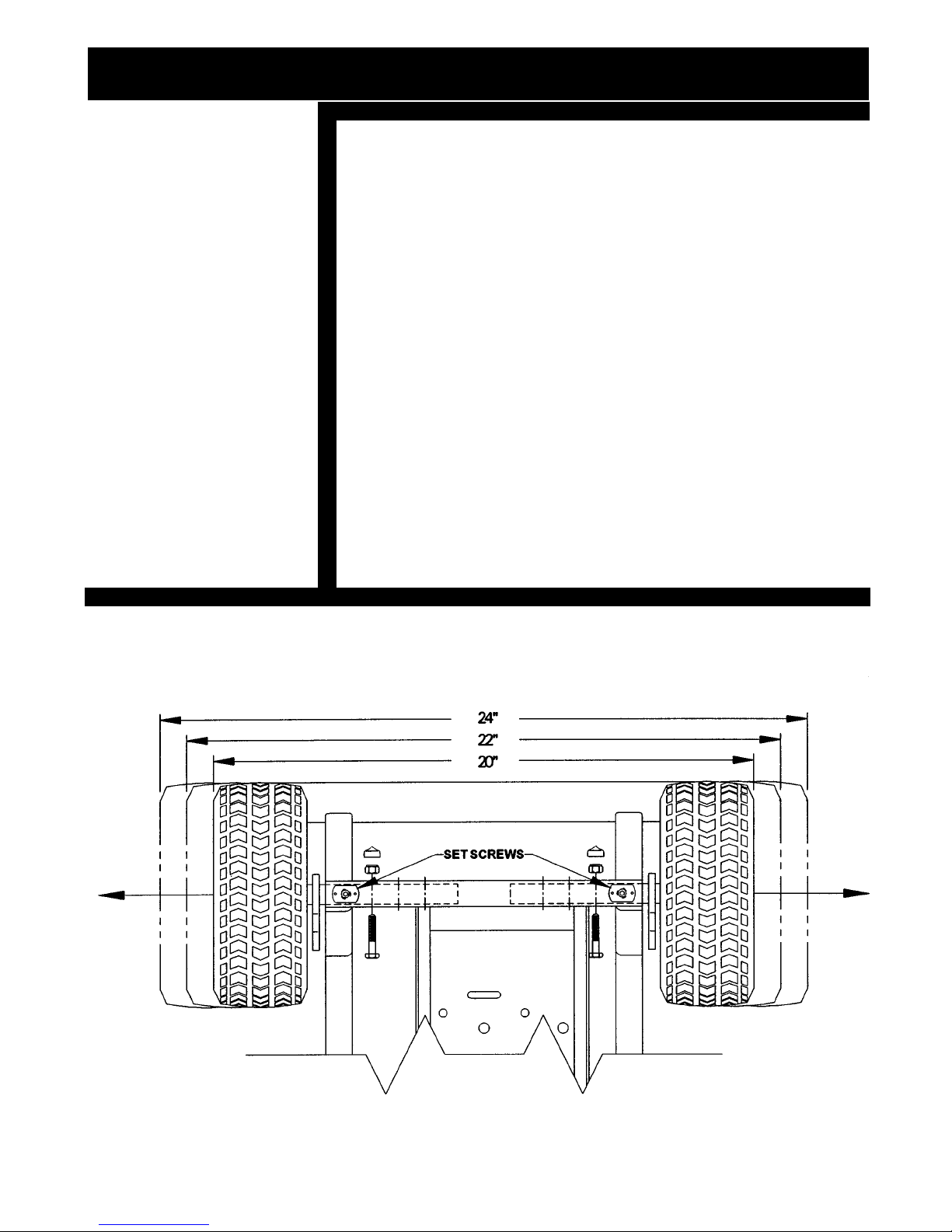

WHEEL ADJUSTMENT.....................................................................................................15

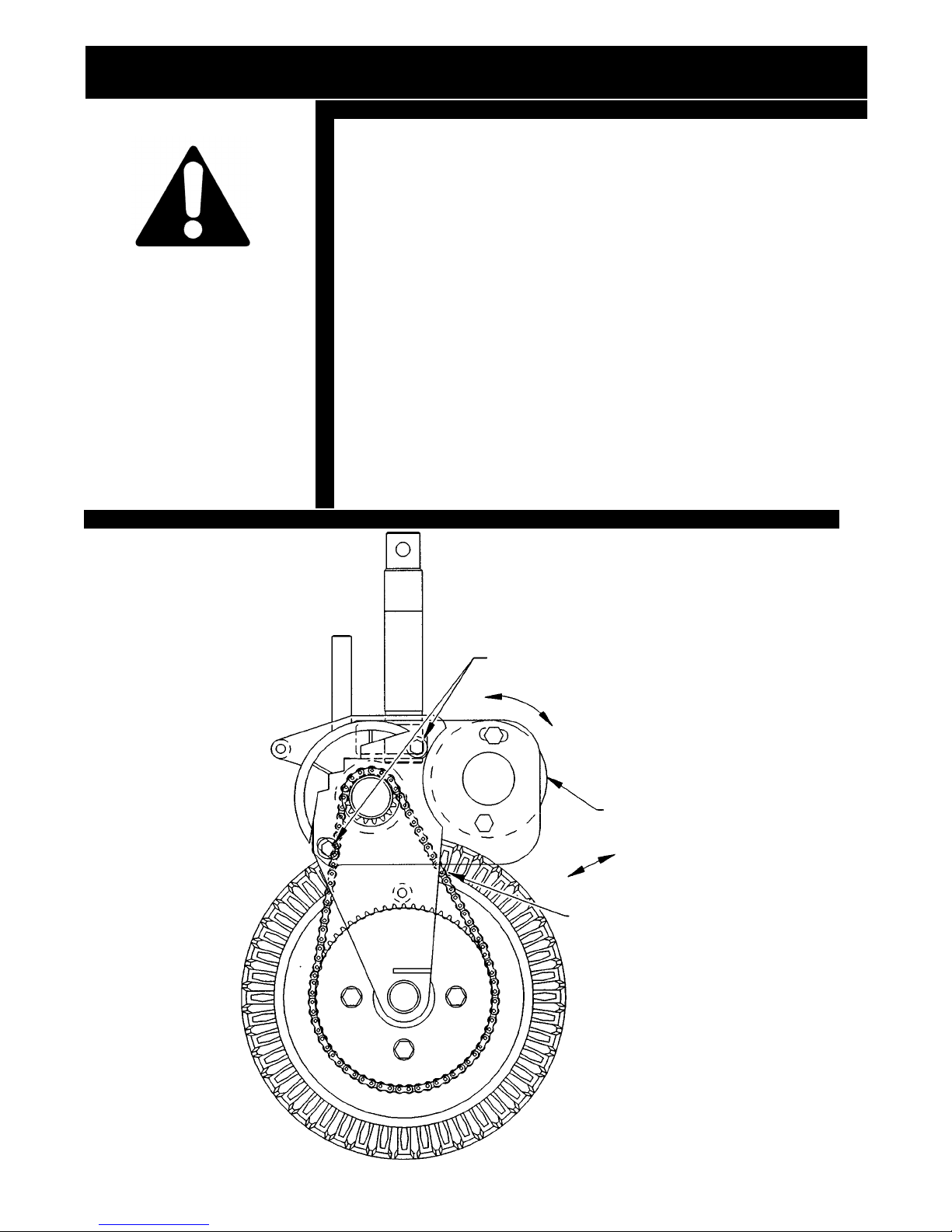

ADJUSTING TENSION IN CHAIN.....................................................................................16
BATTERY INFORMATION........................................................................................17 - 20
OPERATION TILLER ADJUSTMENT..................................................................... 21
TILLER OPERATION........................................................................ 22

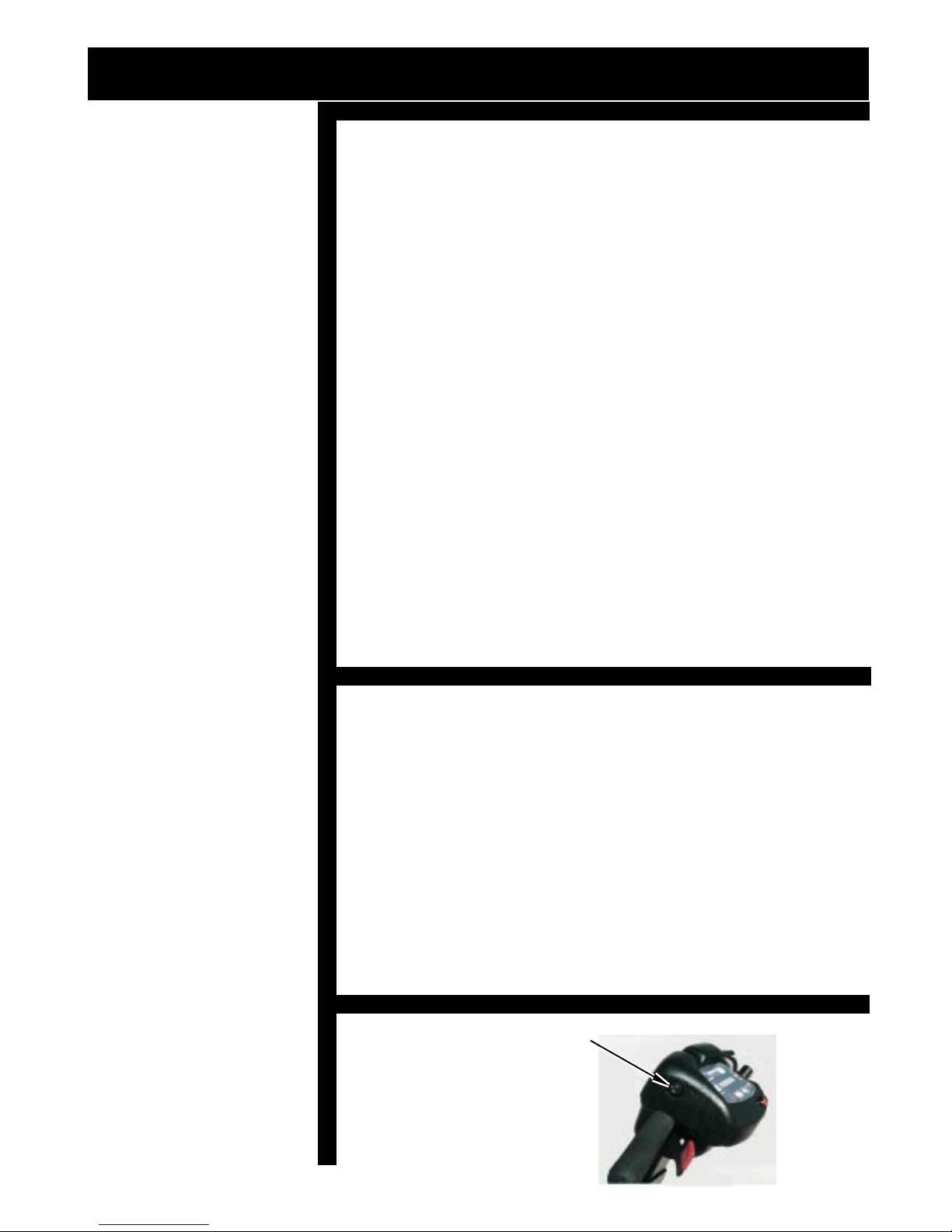

SPEED LIMITER SWITCH ADJUSTMENT....................................... 23
BOARDING YOUR SCOOTER......................................................... 24
BRA ING.......................................................................................... 24
BATTERY CONDITION..................................................................... 25
FILLING TIRES WITH AIR................................................................ 25
MAXIMUM RECOMMENDED INCLINE.............................................26
MANUAL REAR WHEEL BRAKE.................................................................................... 27
TRANSPORTING YOUR REGAL CUB............................................................................ 28
SWITCHING THUMB CONTROL DIRECTION................................................................. 29
SCOOTER MAINTENANCE.............................................................................................. 30
AVAILABLE OPTIONS..............................................................................................31 - 40
SCHEMATIC DIAGRAM.................................................................................................... 41
EMI AND RFI INFORMATION...................................................................................42 - 44
TROUBLESHOOTING.............................................................................................45 & 46
LOWER TILLER ASSEMBLY............................................................................................47
UPPER TILLER ASSEMBLY.............................................................................................48
COMPLETE TILLER ASSEMBLY.....................................................................................49
UPPER DELTA TILLER ASSEMBLY................................................................................50
COMPLETE DELTA TILLER ASSEMBLY........................................................................ 51
EXPLODED VIEW............................................................................................................. 52
EXPLODED VIEW............................................................................................................. 53
17" / 20" / 22" UPHOLSTERED ARMREST ASSEMBLIES............................................. 54
LEFT RIGHT SEAT HINGE ASSEMBLY.......................................................................55
SEAT OPTIONS................................................................................................................ 56
SEAT OPTIONS.................................................................................................................57
EXPLODED VIEW (CUB OPTIONS).................................................................................58
EXPLODED VIEW (CUB POWER SEAT)......................................................................... 60
PARTS LISTING (CUB POWER SEAT)............................................................................61
LIMITED WARRANTY....................................................................................................... 62
© 2001 BRUNO INDEPENDENT LIVING AIDS, INC.
4
PREFACE
Thank you for purchasing a new REGAL CUB 35 by Bruno. We are confident your new
REGAL CUB will open many doors for mobility and independence.
This manual is designed to instruct you in the proper care and use of your scooter and to
answer questions frequently asked by our customers. Please read all sections of this
manual so that you will be able to safely use your REGAL CUB'S many features and un-
derstand how to care for it in a way which will promote years of economical, reliable
service.
REVISED 01-02-2000
© 2001 BRUNO INDEPENDENT LIVING AIDS, INC.
5
© 2001 BRUNO INDEPENDENT LIVING AIDS, INC.
6SAFETY SAFE OPERATING PROCEDURE
FOR YOUR SAFETY AND TO AVOID POSSIBLE DAMAGE
TO YOUR REGAL CUB, IT IS EXTREMELY IMPORTANT TO
OBSERVE THE FOLLOWING RULES.
DO
1. Lock the (optional) 360 degrees seat swivel plate
when operating your REGAL CUB. NOTE: The
standard 90 degree swi el plate has an automatic
locking mechanism.
2. Pull ey Jack to "off" position before getting on and
off your vehicle.
3. Come to a complete stop before attempting reverse
direction.
4. Approach curbs, bumps, and other obstructions
very slowly.
5. Drive slowly and have an assistant help you during
the initial training period.
CAUTION:
DO NOT OPERATE
YOUR SCOOTER
WHEN PARKING
BRAKE IS OFF
© 2001 BRUNO INDEPENDENT LIVING AIDS, INC.
7
6. For additional stability, keep the seating height adjusted
at the lowest comfortable position. Have the rear wheels
extended to widest position for your traveling conditions.
7. When traveling outside, have rear wheels in widest
setting. This greatly increases your stability.
8. Always disconnect the batteries before servicing your
REGAL CUB.
9. Notice what type of surface you are riding on (i.e. Is the
grass wet?) and adjust speed accordingly.
10. When stopping on an incline use the manual parking
brake located on the left or right side near the rear wheel.
Push the lever forward until the brake is engaged.
ON
OFF
SAFETY
© 2001 BRUNO INDEPENDENT LIVING AIDS, INC.
8

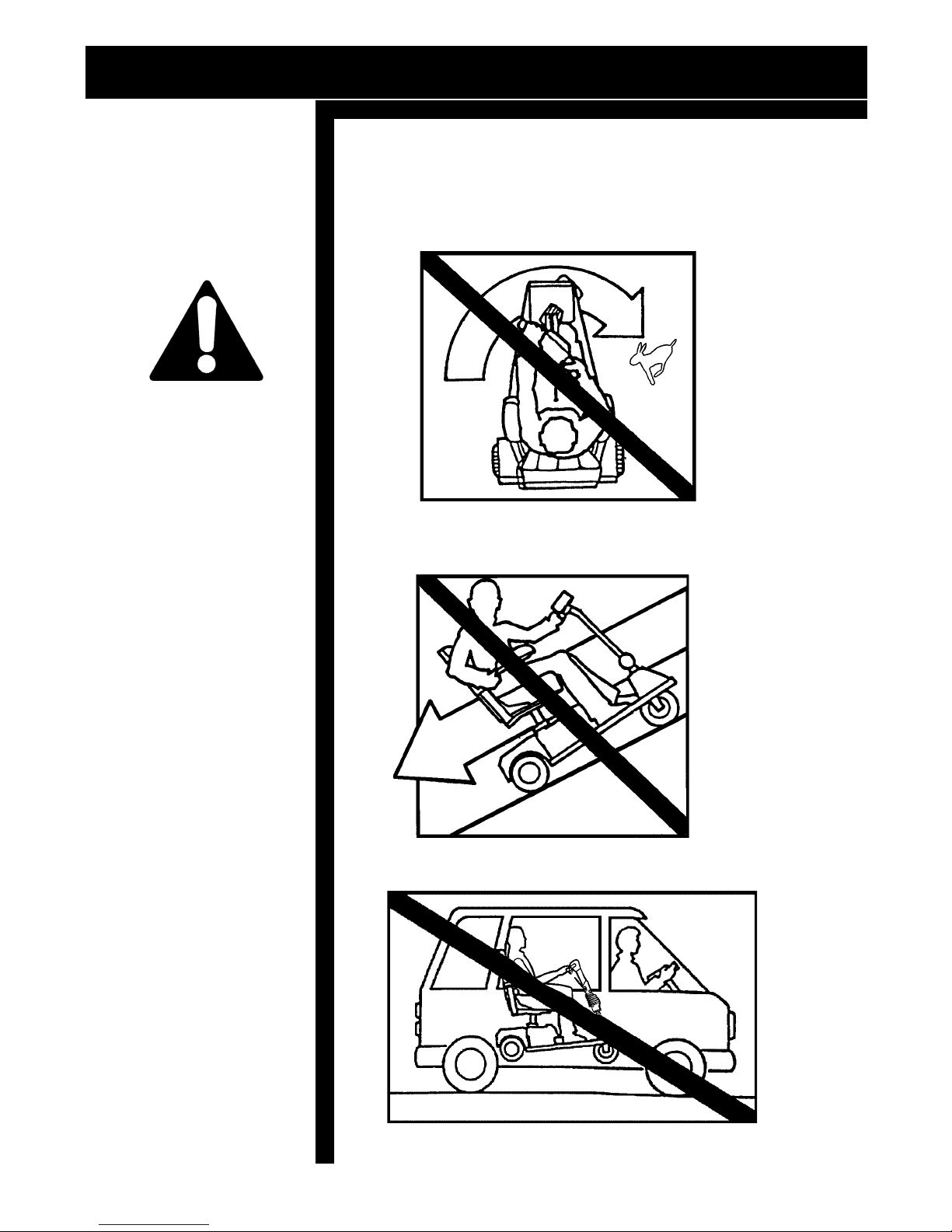

DO NOT
1. Do not make sharp turns at high speeds as it could
result in tipping.
2. Do not back down inclines as it may result in
overturning.
3. Do not sit on the REGAL CUB in a moving vehicle.
SAFE OPERATING PROCEDURE
CAUTION:
CLEAN YOUR
REGAL CUB WITH A
DAMP CLOTH OR
SPONGE. DO NOT
USE ABRASIVE
CLEANERS WHICH
WILL DAMAGE THE
FINISH. DO NOT
ATTEMPT TO "HOSE
IT OFF" OR CLEAN
IT WITH STEAM OR
A HIGH PRESSURE
WASHER AS THIS
MAY CAUSE SERI-
OUS ELECTRICAL
MALFUNCTION.
SAFETY
© 2001 BRUNO INDEPENDENT LIVING AIDS, INC.
9
4. Do not travel crosswise on an incline as you may tip
over.
5. Do not turn abruptly when traveling up or down an
incline as it may cause tipping.
6. Do not allow anyone to ride with you on your
REGAL CUB.
7. Do not operate your REGAL CUB near stairs, steps,
curbs or terraces where you might inadvertently
drop a wheel off the edge of a step.
SAFE OPERATING PROCEDURE
SAFETY
CAUTION:
ALWAYS REMOVE
THE KEY SO THE
POWER IS "OFF"
BEFORE MOUNTING
OR DISMOUNTING
THE SCOOTER,
ESPECIALLY ON AN
INCLINE.
CAUTION:
DO NOT RIDE
SCOOTER
BAREFOOT
© 2001 BRUNO INDEPENDENT LIVING AIDS, INC.
10

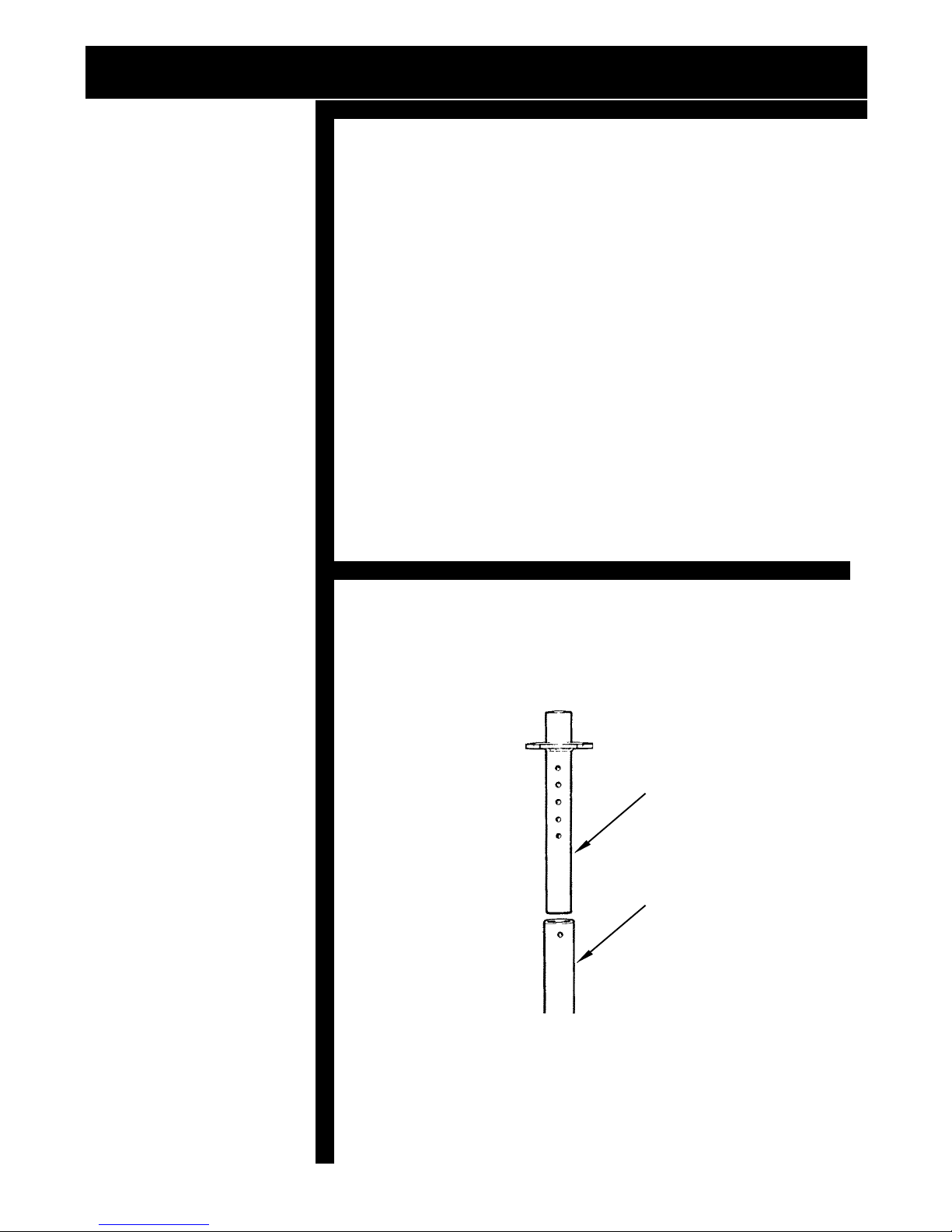

SEAT HEIGHT ADJUSTMENT
SEAT ADJUSTMENT
Your REGAL CUB seat has several adjustments for
comfort and safety.
Five holes are provided in the seat post to allow five seat
height adjustments.
To adjust seat height:
1. Lift the Seat off the Seat post.
2. Remove the 3/8-16 x 2.5" hex head cap screw from
the seat post.
3. Raise or lower the seat post, as desired, and replace
the bolt. CAUTION: Do not over tighten the bolt as
this will distort the Seat post and outer Seat post
tube. Note: The dealer should make this adjustment
at the time of purchase.
HINT:
IF YOU ARE
ADJUSTING OR
REMOVING YOUR
SEAT POST
FREQUENTLY - THE
OPTIONAL QUICK
RELEASE PIN WOULD
BE OF GREAT
ASSISTANCE. FIGURE 1
INNER SEAT POST
OUTER SEAT POST
SEAT HEIGHT ADJUSTMENT
