Bruno ELECTRA-RIDE SRE-1540 User manual

SRE-1540
ELECTRA-RIDE™
STAIRWAY
ELEVATOR
MAN-1540 UL-1
REVISED 06-18-2004
1780 EXECUTIVE DR., P.O., BOX 84, OCONOMOWOC, WI 53066 USA
TEL.: [phone] FAX: [phone]
Toll free number valid throughout the U.S. and Canada
Bruno invites your calls at: 1-800-882-8183
Technical Service email: [email protected] Technical Service fax: [phone]
DEALER:
INSTALLATION MANUAL
www.bruno.com

© 2004,1996 BRUNO INDEPENDENT LIVING AIDS, INC.® SRE-1540 UL 06-18-2004
2
IMPORTANT NOTES
The warranty for the SRE-1540
ELECTRA-RIDE™ Stairway Elevator
is rendered
null and void
if the unit is installed by
anyone other than an authorized Bruno dealer.
This stairway elevator is intended
for indoor use only
in a heated, enclosed location
above 35° F (2° C).
Electra-Ride™ is a trademark of Bruno Independent Living Aids, Inc.®.

© 2004,1996 BRUNO INDEPENDENT LIVING AIDS, INC.®
3
SRE-1540 UL 06-18-2004
IMPORTANT NOTES......................................................................................... 2
INTRODUCTION................................................................................................ 5
REGULATORY INFORMATION........................................................................ 6
SPECIFICATIONS............................................................................................. 7
CARTON CONTENTS....................................................................................... 8
OVERVIEW........................................................................................................ 9-10
INSTALLATION ................................................................................................ 11-45
Tools Necessary for Installation......................................... 11
Bumper Bracket Installation............................................... 12
Fitting the Rail.................................................................... 12

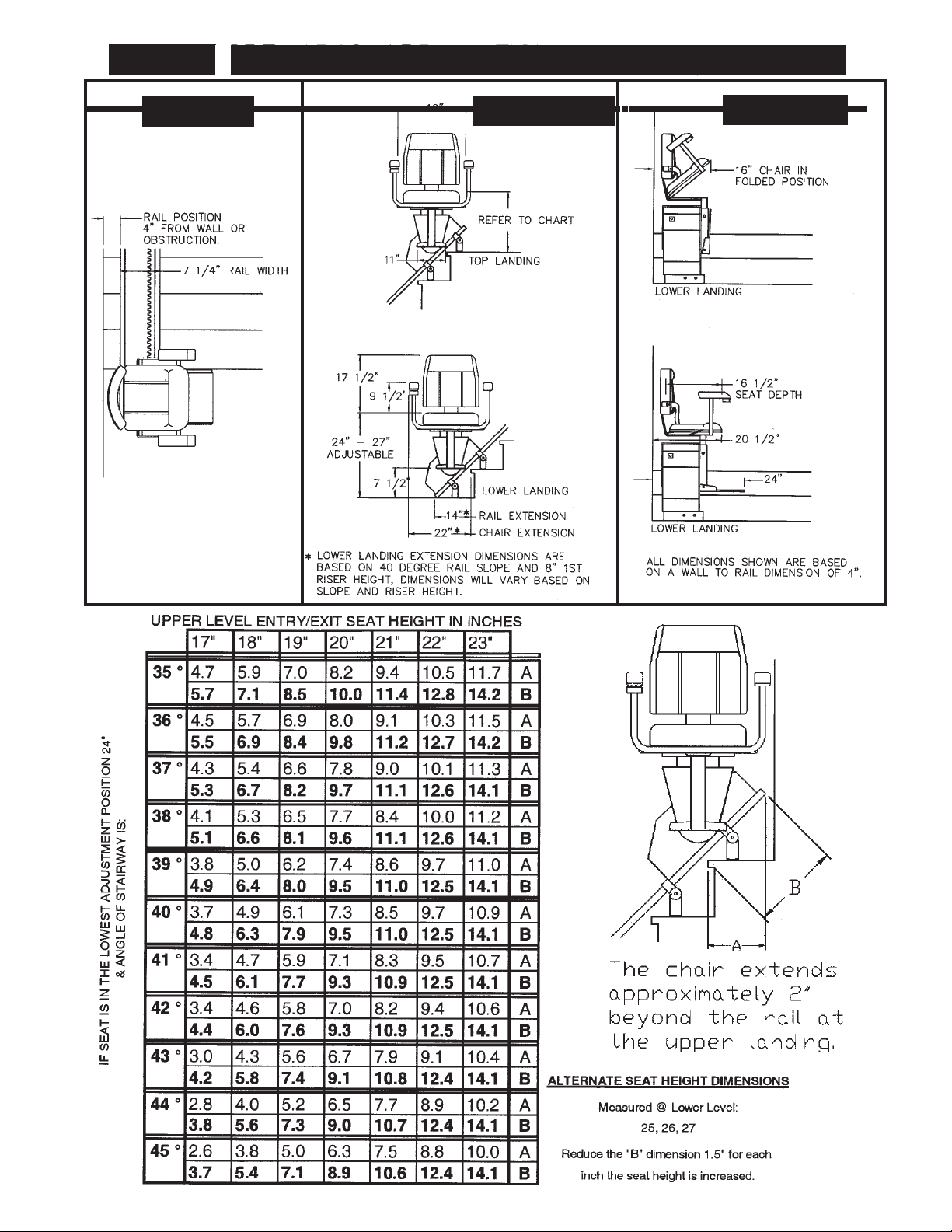

Application Guide............................................................... 13-14
Cutting the Rail................................................................... 15
Rail Joint Assembly............................................................ 16
Positioning Foot Clamp Assemblies................................... 17-18
Mount the Carriage on the Upper Rail................................ 19
Adjust the Carriage Angle................................................... 19
Seat, Footrest and Arm Assemblies................................... 20-22
Final Limit Switch and Ramp Actuation.............................. 23-24
Trial Run............................................................................. 25
Call/Send Transmitter/IR/Residential.................................. 26-30
Circuit Board Diagnostics - Residential............................... 31-32
Conversion to Right-Hand Installation - Residential............ 33
Call/Send Transmitter/RF/Commercial............................... 34
Circuit Board Diagnostics - Commercial............................. 35-36
Conversion to Right-Hand Installation - Commercial.......... 37
Testing the Call/Send Transmitters.................................... 38
Upper Bumper Bracket....................................................... 39
Lubrication.......................................................................... 39
Charger Mounting and Leads............................................. 40-41
Speed Adjustment.............................................................. 43
Mounting the Call/Send Antenna (Commercial Units)........ 44
Overspeed.......................................................................... 45
ELECTRICAL..................................................................................................... 46-47
Circuit Breaker.................................................................... 46
Fuse................................................................................... 46-47
Battery Charger LED's And Fuse....................................... 47
LONG-TERM STORAGE................................................................................... 48
YEARLY MAINTENANCE OPERATIONS......................................................... 49
TROUBLESHOOTING....................................................................................... 50-51
HARDWARE ..................................................................................................... 52-56
WIRING SCHEMATICS..................................................................................... 57-58
EXPLODED VIEW AND BILL OF MATERIALS................................................ 59-74
LIMITED WARRANTY....................................................................................... 75
TABLE OF CONTENTS

© 2004,1996 BRUNO INDEPENDENT LIVING AIDS, INC.® SRE-1540 UL 06-18-2004
4

© 2004,1996 BRUNO INDEPENDENT LIVING AIDS, INC.®
5
SRE-1540 UL 06-18-2004
Thank you for purchasing an SRE-1540 Electra-Ride™ Stairway Elevator. Be sure to
check carton contents for shipping damage as soon as they are received. Also, check the
carton contents against the packing list before leaving the shop to install product on site.
Report any discrepancies to Bruno Independent Living Aids immediately.
Reading through the installation manual before installing this unit will enable you to install
the elevator more quickly and will help you avoid the frustration of getting to the job site only
to discover that you are missing a critical tool or piece of equipment.
NOTE:
MATERIAL DATA SAFETY SHEET(S) ON
MATERIALS USED ON THIS UNIT CAN BE
REQUESTED THROUGH OUR TECHNICAL SERVICE
DEPARTMENT
INTRODUCTION

© 2004,1996 BRUNO INDEPENDENT LIVING AIDS, INC.® SRE-1540 UL 06-18-2004
6
FCC REGULATIONS
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the of the following
measures:
• Reorient or relocate receiving antenna.
• Increase separation between equipment and receiver.
• Consult your dealer or an experienced radio/TV technician.
REGULATORY INFORMATION

© 2004,1996 BRUNO INDEPENDENT LIVING AIDS, INC.®
7
SRE-1540 UL 06-18-2004
SPECIFICATIONS
SRE-1540 ELECTRA-RIDE™
Weight Capacity: 350 lbs. (159 kg)
Variable Speed: 0 to 38 feet per minute (0 to12 m/mn)
Power Source : two (2) 12-volt sealed, maintenance-free batteries
with 24-volt continuous-duty charger
Motor: 24 VDC, 2-pole, 1.02 hp
Drive: self-locking gearbox, rack and pinion drive
Control: constant pressure (armrest and two remotes)
Brake: self-locking worm gear
Maximum Incline: 45 degrees
Rail: steel channel with integral drive gear rack
Seat Swivel: 0, 45, and 90 degrees, both directions, at top
and at bottom of rail
Power Supply: 24 VDC battery charger powered by 120V wall outlet

© 2004,1996 BRUNO INDEPENDENT LIVING AIDS, INC.® SRE-1540 UL 06-18-2004
8
PACKING LIST
The SRE-1540 is shipped in 5 cartons. Check the contents of the
cartons to be sure you have all of the components before beginning
an installation.
Check the carton contents for shipping damage upon receipt.
Damage claims must be filed by the dealer, not the manufacturer.
Bruno Independent Living Aids cannot be responsible for shipping
damage.
CARTON 1
[ ] 1 COMPLETE CARRIAGE ASSEMBLY
CARTON 2
[ ] 1 Tube
WHITE LITHIUM GREASE (16' RAIL)
[ ] 1 FINAL LIMIT SWITCH RAMP ASSEMBLY
[ ] 1 BATTERY CHARGER
[ ] 2 BUMPER ASSEMBLIES
SRE-K-1553 BUMPER ASSEMBLY PARTS KIT
[ ] 4 M8 EXT. TOOTH WASHER
[ ] 4 M8 X 1.25 X 20mm LG. HEX HD. CAP SCREW
[ ] 4 M8 X 1.25 METRIC HEX NUT (PLATED)
[ ] 4 VELCRO STRIPS (2.5" EA.)
[ ] 10 11" LG WIRE TIES
[ ] 32 SHEET METAL SCREWS (M 6.3 X 50 MM)(16' RAIL);
40 FOR (20' RAIL)
[ ] CLAMP SETS:
• 9 (16' RAIL) • 11 (20' RAIL) • 13 (24' RAIL)
• TBD** (CUSTOM RAIL)
**DEPENDS UPON RAIL LENGTH
SRE-K-1501 ELECTRICAL PARTS KIT
[ ] 1 CHARGER HOOKUP WIRE HARNESS
[ ] 1 FUSE (MDL3.5A TIME-DELAY)
CARTON 3
[ ] 1 SEAT ASSEMBLY
[ ] 1 FOOTREST ASSEMBLY
[ ] 1 ANTENNA
[ ] 2 CALL/SEND TRANSMITTERS
[ ] 2 MOUNTING PLATES, CALL/SEND TRANSMITTERS
CALL/SEND HARDWARE KIT
[ ] 1 SRE-K-0055 STANDARD CALL/SEND KIT
---OR---
[ ] 1 SRE-K-0055A COMMERCIAL CALL/SEND KIT
CARTON 4
[ ] 1 EA. RAIL SECTION ***
CARTON 5
[ ] 1 EA. RAIL SECTION ***
[ ] 1 EA. JOINT PLATE
SRE-K-1502 HARDWARE KIT (JOINT PLATE)
[ ] 8 EA. M6 X 16 FLAT HEAD SCREWS
[ ] 8 EA. M6 HEX NUTS
SEPARATE CARTON
CHECK CARTON
CONTENTS FOR
SHIPPING DAMAGE
IMMEDIATELY UPON
RECEIPT
*MSDS (Material Safety
Data Sheet) available
from Bruno upon
request. Contact
Service
Department
***NOTE:
Rail sections must have
matching numbers
stamped on the
sections.
CARTON CONTENTS
[ ] UPON REQUEST CLAMPS, ADJUSTABLE, 9 LBS. EA.

© 2004,1996 BRUNO INDEPENDENT LIVING AIDS, INC.®
9
SRE-1540 UL 06-18-2004
INSTALLATION
OVERVIEW OF INSTALLATION
Installation of the SRE-1540 Electra-Ride™ Stairway Elevator consists of the following:
* Determine whether the elevator should be a left- or right-side installation. "Left" or "right"
installation is determined by the side of the stairway on which the rail is installed (viewed
from the bottom of the stairs). THE GEAR RACK WILL BE TOWARD THE CENTER OF
THE STAIRS. Unless specified otherwise, Bruno stairway elevators are set up for
left-side installation when shipped, but can easily be converted to right-side installation.
Instructions for converting the unit for right-hand installation are included later in this manual.
* Identify and locate lower rail section and bumper bracket assembly.

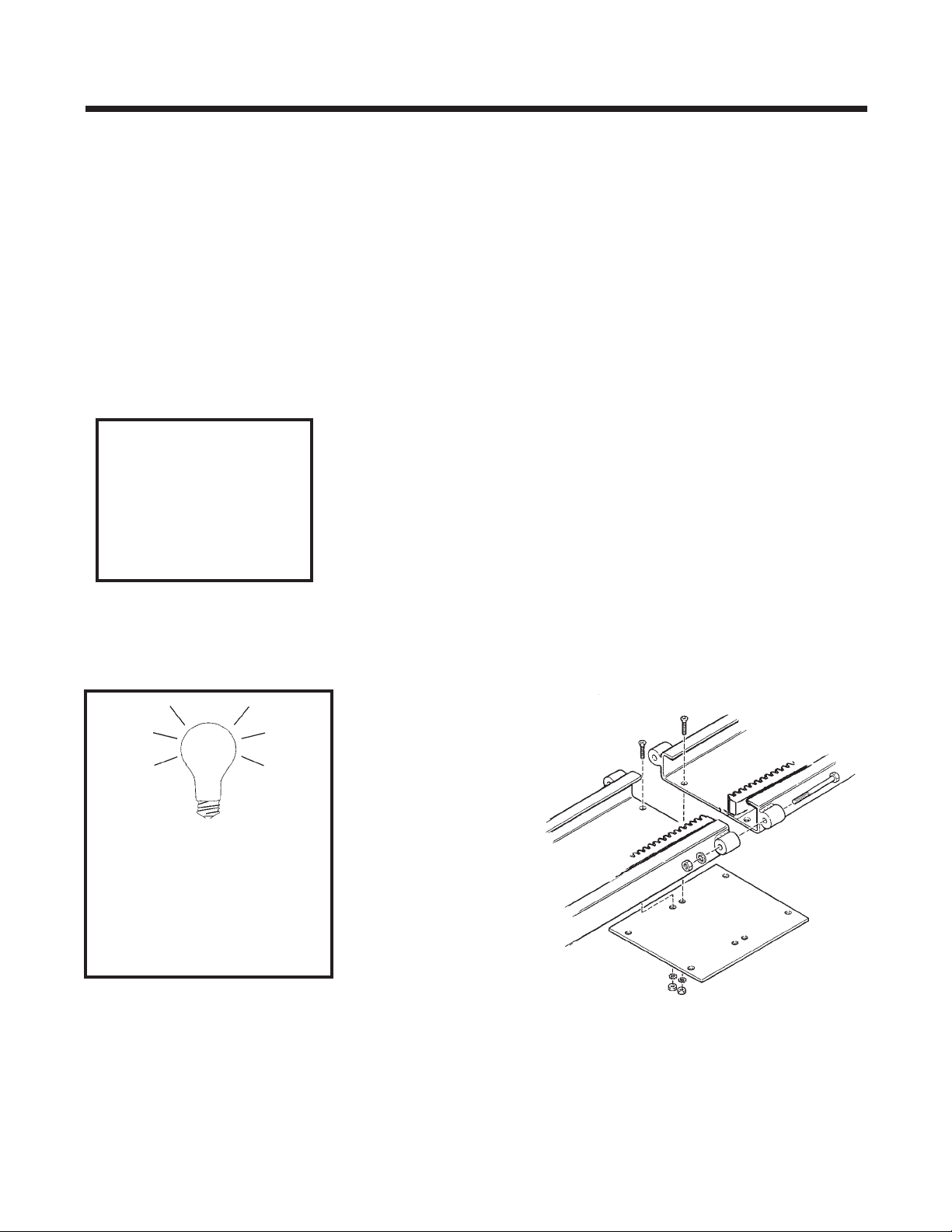

* Assemble and tighten the rail joint. CAUTION: RAILS CANNOT BE MIXED.
CHECK ID NUMBERS STAMPED AT ENDS OF RAILS.
* Determine the correct length for the rail (using Steps 2 and 4 from the APPLICATION
GUIDE), and cut the rail.

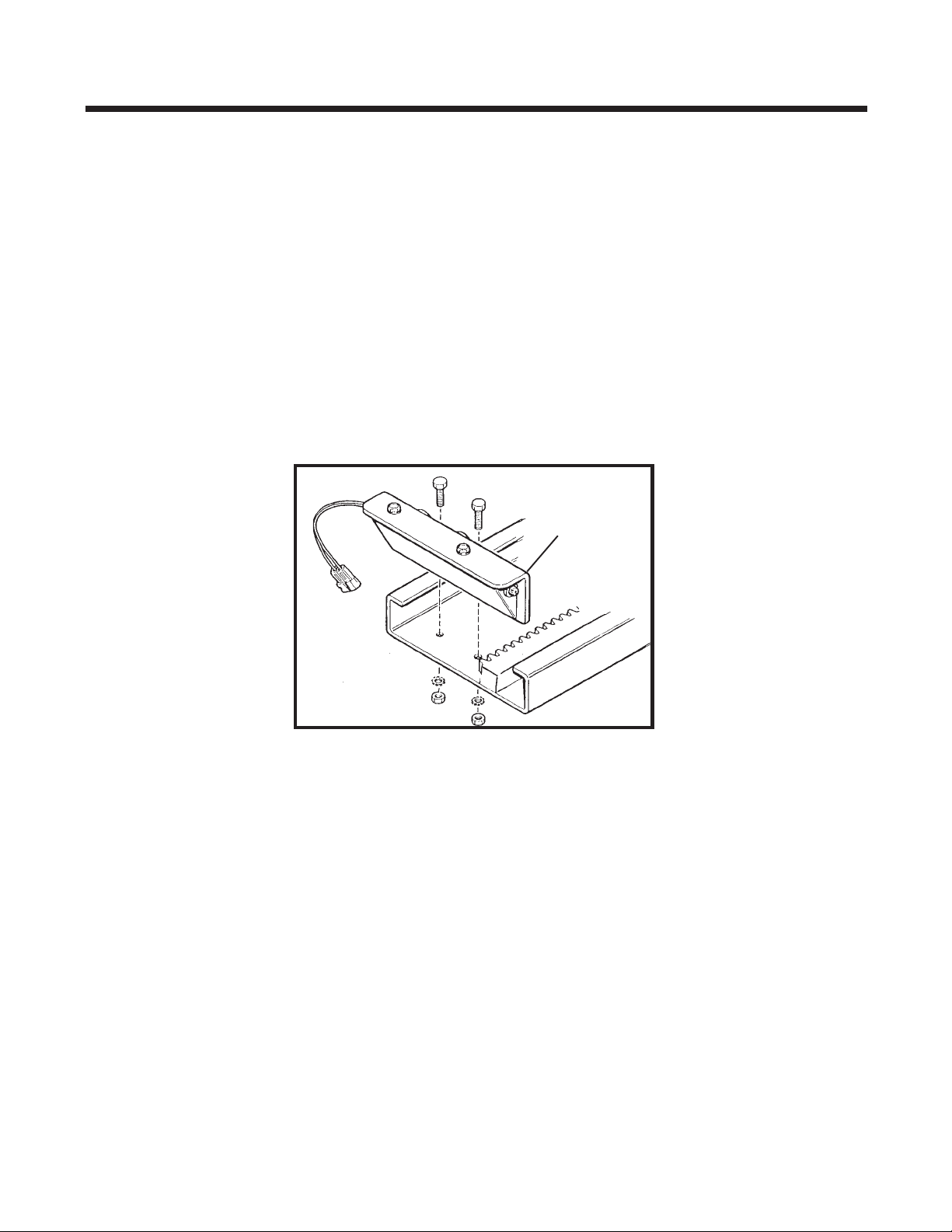

* Install lower bumper assembly.
* Position rail on left or right side of stairway using rail clamp assemblies.
* Install the call/send antenna.
* Manually mount the carriage on the upper rail.

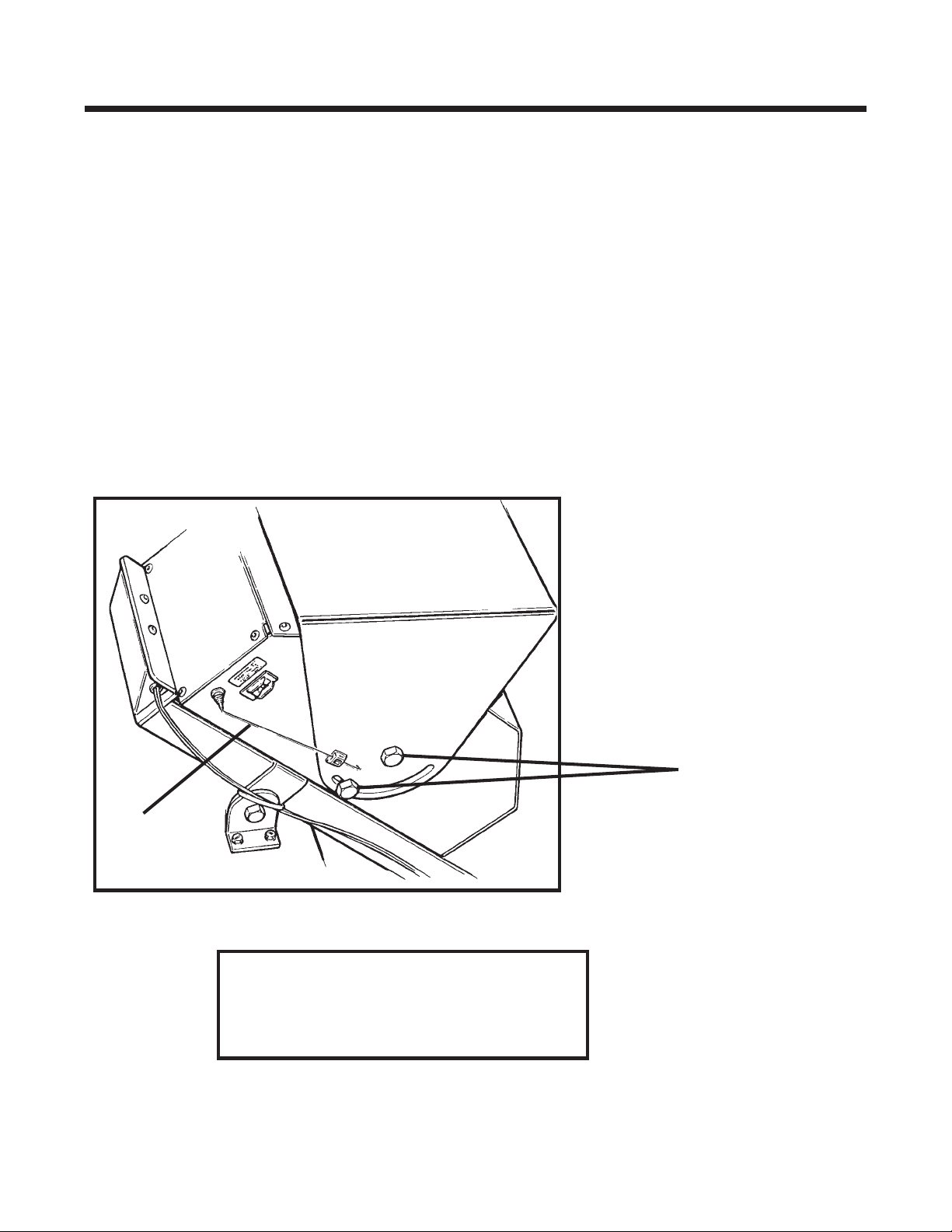

* Adjust the carriage angle by loosening the four angle
adjustment bolts.

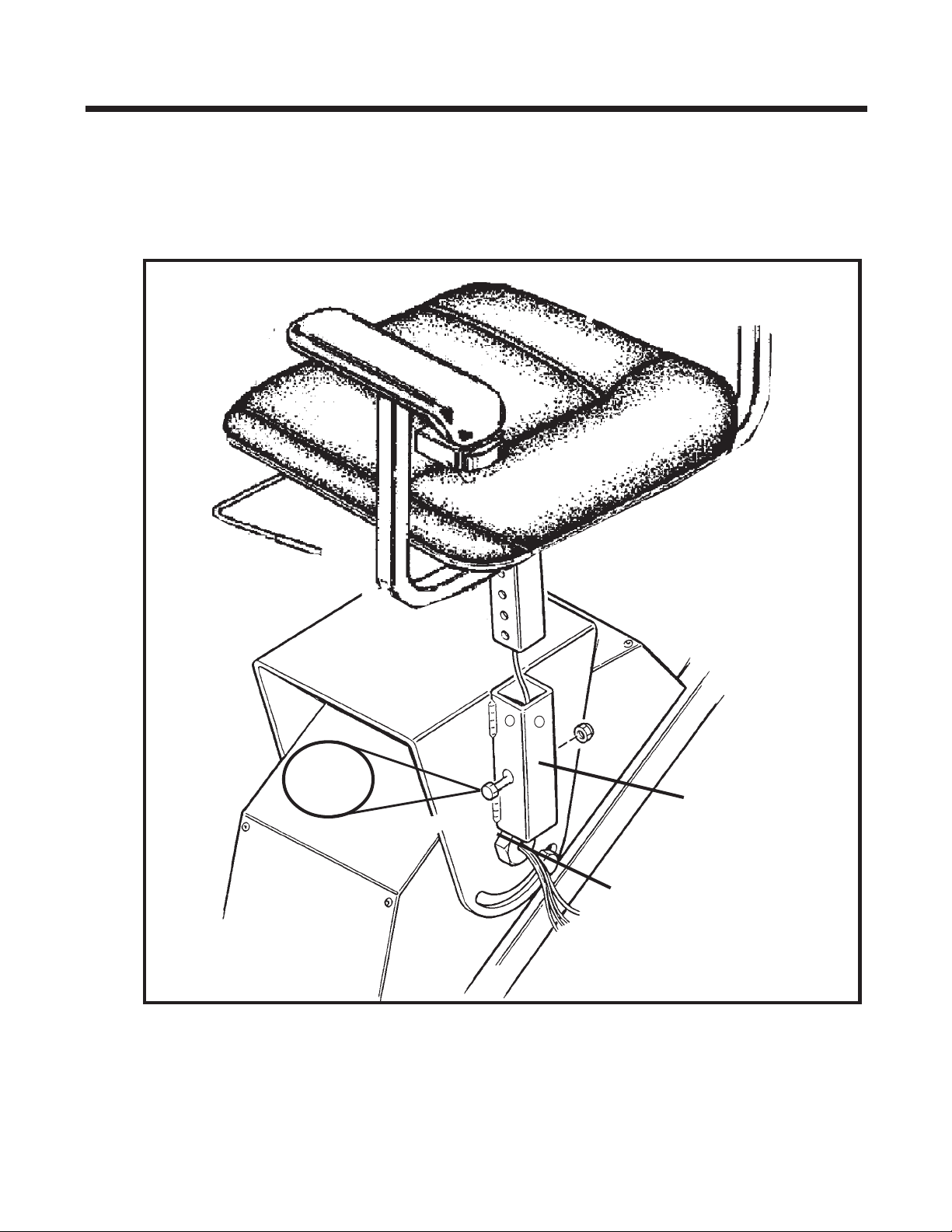

* Install seat assembly and make electrical connections.
* Secure the footrest.
* When installing a right-side SRE-1540, follow instructions for reversing operation.
* Remove one motor cover (right-side installation only). Reverse the motor leads and set
the two switches to reverse the direction of the SRE-1540.
* Perform a trial run of the SRE-1540 to determine final location of rail.
OVERVIEW
OVERVIEW

© 2004,1996 BRUNO INDEPENDENT LIVING AIDS, INC.® SRE-1540 UL 06-18-2004
10
OVERVIEW OF INSTALLATION
* Determine the appropriate location for the remaining mounting clamps and
brackets for attaching the rail to the stairs then loosely assemble the clamps
and brackets to the rail.
INSTALLATION
OVERVIEW (CON'T.)
* Adjust and tighten the rail clamps and mounting brackets.
* Anchor the mounting brackets to the stairs.
* Locate and drill holes for the top bumper bracket.
* Install the top bumper bracket.
* Determine where the charger will be positioned, and install rail wire lead accordingly.
* Position battery charger at upper or lower landing.
* Route wire to household outlet.
* Mount remote call/send transmitters.
* Test unit for proper operation.
* Train customer in safe and convenient operation of the stairway elevator.
REMEMBER:
No installation is complete until the customer has been trained to use the stairway
elevator smoothly and safely. After demonstrating correct operation, have the customer
operate the unit several times while you are available to answer questions.
BE SURE THE CUSTOMER UNDERSTANDS ALL SAFETY ASPECTS OF USING
THE STAIRWAY ELEVATOR.
Patience and thoroughness in this phase of the installation are often rewarded with
repeat business and customer referrals.
OVERVIEW
