Busch-Jaeger Busch-Infoline 1531 U User manual

1473
-1-8179 │ Rev. 01 │ 17.12.2012
Operating Instructions
Busch
-Infoline®
Pos: 2 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Titelbl ätter/Infoline/ Titelblatt - 1531-1538 @ 25\mod_1341 324694333_15.docx @ 221575 @ @ 1

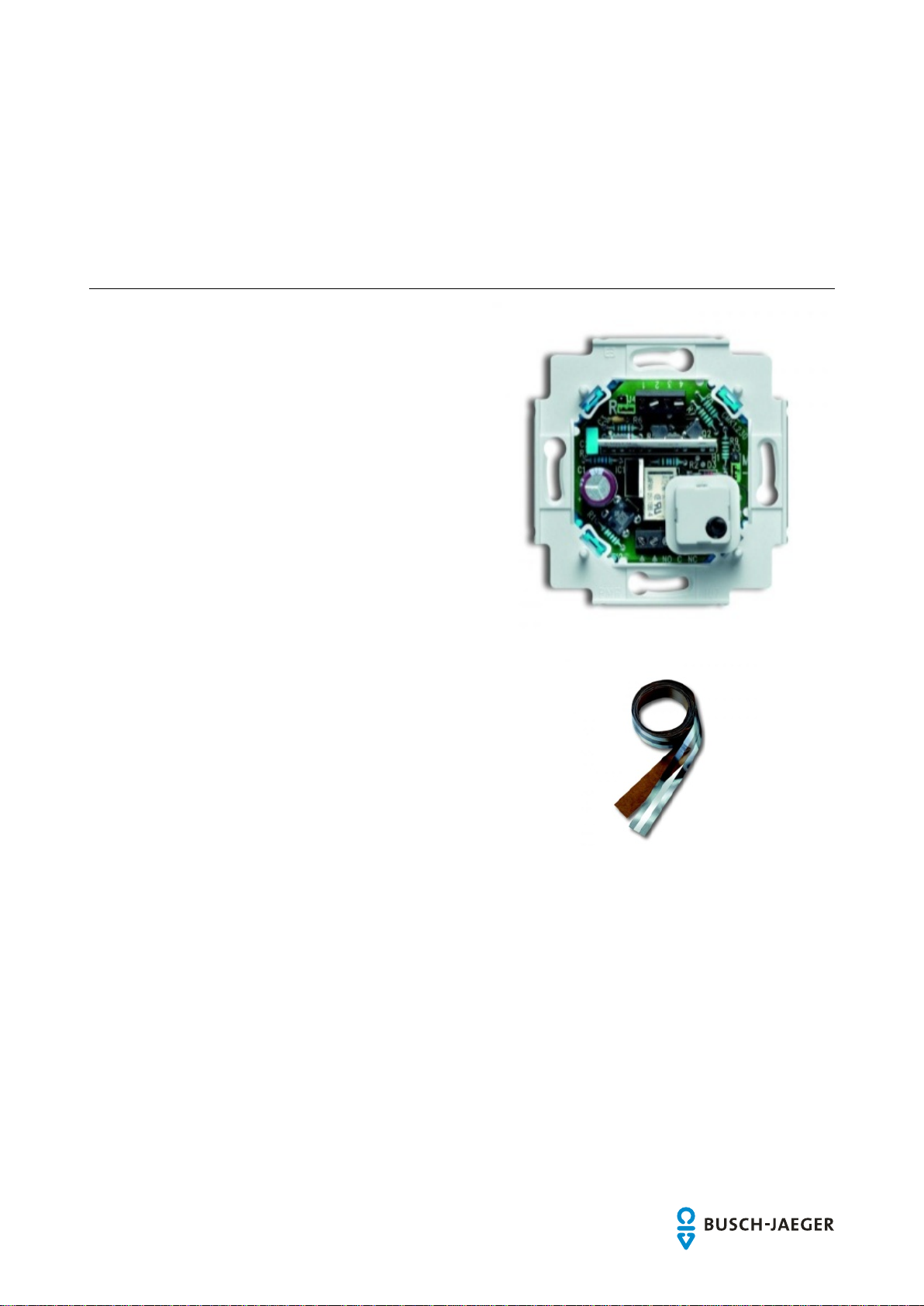

1531 U
Busch moisture alarm insert
1538/02
Sensor strip
=== Ende der Liste für Textmarke Co ver ===

Operating Instructions
Busch-Infoline®
Operating Instructions | 1473-1-8179
— 2 —
Pos: 4 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Inhaltsver zeichnis (--> Für alle Dokume nte <--)/Inhaltsverzeic hnis @ 19\mod_1320649044386_ 15.docx @ 109653 @ @1
1Safety.......................................................................................................................................................................3
2Intended use............................................................................................................................................................3
3Environment.............................................................................................................................................................3
4Operation.................................................................................................................................................................4
5Technical data..........................................................................................................................................................4
5.1 Moisture alarm insert...............................................................................................................................4
5.2 Sensor strip.............................................................................................................................................4
6Setup and function...................................................................................................................................................5
6.1 Features of function and equipment........................................................................................................5
6.1.1 Moisture alarm insert...............................................................................................................................5
6.1.2 Sensor strip.............................................................................................................................................5
6.2 Possible combinations ............................................................................................................................6
7Installation and electrical connection .......................................................................................................................7
7.1 Requirements for the electrician .............................................................................................................7
7.2 Electrical connection...............................................................................................................................8
7.3 Mounting the device insert......................................................................................................................9
7.4 Installing and connecting the sensor strip...............................................................................................9
7.5 Setting alarm behaviour with jumper.....................................................................................................10
7.6 Adjusting the reset mode with jumpers .................................................................................................10
=== Ende der Liste für Textmarke TOC ===

Operating Instructions
Busch-Infoline®
Safety
Operating Instructions | 1473-1-8179
— 3 —
Pos: 6 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Überschr iften (--> Für alle Doku mente <--)/1. Ebene/S - T/Sic herheit @ 18\mod_130261279179 0_15.docx @ 103357 @ 1 @ 1
1 Safety
Pos: 7 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Sicher heitshinweise und Hinweise ( --> Für alle Dokumente <--)/W arnhinweise/Sicherheit - 230 V @ 18\mod_13026068 16750_15.docx @ 103308 @ @ 1
Warning
Electric voltage!
Risk of death and fire due to electrical voltage of 230 V.
– Work on the 230V supply system may only be performed by authorised electricians!
– Disconnect the mains power supply prior to installation and/or disassembly!
Pos: 8 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Überschr iften (--> Für alle Doku mente <--)/1. Ebene/A - F/Besti mmungsgemäßer Gebrauch @ 18\mod_1 302763321316_15.doc x@ 1034 83 @ 1 @ 1
2 Intended use
Pos: 9 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Bestimmungsge mäßer Gebrauch (--> Für alle Dokument e <--)/Busch-Dimmer/Besti mmungsgemäßer Gebrauc h @ 23\mod_1335350449857_1 5.docx @ 208763 @ @ 1
The device is to be used exclusively with the components that are supplied and licensed as described in chapter
"Setup and function".
Pos: 10 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 1. Ebene/U - Z/ Umwel t @ 18\mod_130261415 8967_15.docx @ 103383 @ 1 @ 1
3 Environment
Pos: 11 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Sicher heitshinweise und Hinweise ( --> Für alle Dokumente <--)/Hinweis e - Umwelt /Hin weis - Umwe lt - Hinweis Elektroger äte @ 18\mod_1302763973 434_15.docx @ 103500 @ @1
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic waste.
– The device contains valuable raw materials which can be recycled. Therefore, dispose of the
device at the appropriate collecting depot.
Pos: 12 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Sicher heitshinweise und Hinweise ( --> Für alle Dokumente <--)/Hinweis e - Umwelt /Hin weis - Umwe lt - Entsorgung Elektro geräte @ 20\mod_1325760695 972_15.docx @ 136583 @ @1
All packaging materials and devices bear the markings and test seals for proper disposal. Always dispose of the
packaging material and electric devices and their components via the authorized collecting depots and disposal
companies.
The products meet the legal requirements, in particular the laws governing electronic and electrical devices and
the REACH ordinance.
(EU Directive 2002/96/EC WEEE and 2002/95/EC RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006)
Pos: 13 /#Neustruktur #/Online-Dokumentation (+ KNX)/Steuermodule - On line-Dokumentatio n (--> Für alle Dokumente <--)/++++++++++++Seitenumbruch ++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Operation
Operating Instructions | 1473-1-8179
— 4 —
Pos: 14 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/1. Ebene/A - F/ Bedienung @ 11\mod_1279185541649_1 5.docx @ 83043 @ 1 @ 1
4 Operation
Pos: 15 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Bedienung/ Infoline/Bedienun g 1531-1538 @ 25\mod_134132471 8848_15.docx @ 221588 @ @1
Deactivating alarm messages
After having been triggered, the alarm is deactivated via the cancel button.
Detection
Detection is effected via a self-adhesive sensor strip.
Pos: 16 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/1. Ebene/S - T/Tec hnische Daten @ 11\mod_127918 5386320_15.doc x@ 83019 @ 2 @ 1
5 Technical data
Pos: 17 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/A - F/Feuchtigkeits alarm-Einsatz @ 26\mod_1341557219242 _15.docx @ 222797 @ 22 @ 1
5.1 Moisture alarm insert
Pos: 18 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Technisc he Daten/Infoline/ Technische Daten - 1531-1538 @ 25\mod_1341324 739910_15.doc x @ 221602 @ 2 @ 1
General
Nominal voltage 15 - 29 V AC / 18 - 35 V DC
Rated frequency 50/60 Hz
Nominal current 70 mA AC / 40 mA DC
Loop current 5 mA
Min. short-circuit / interruption duration 0.1 s
Protection class IP 20
Type of protection for device SELV
Operating temperature range 5 ... 40 °C
Switching contacts
Normally open contact 1 A, 30 VA / W, potential-bound
Changeover contact 42 V AC / 60 V DC, 30 VA / W, floating
Pos: 19 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/2. Ebene/S - T/Sensor band @ 26\mod_1341557315648_ 15.docx @ 222881 @ 2 @ 1
5.2 Sensor strip
Pos: 20 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Technisc he Daten/Infoline/Sen sorband - 1531-1538 @ 26\mod_134155735 6179_15.docx @ 222895 @ 2 @ 1
Switching contacts
Length 2 m
Dimensions (H x W x D) 0.15 mm x 15 mm x 2 mm
Pos: 21 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Setup and function
Operating Instructions | 1473-1-8179
— 5 —
Pos: 22 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 1. Ebene/A - F/Aufbau und Funktion @ 11\mod_1279185 435352_15.doc x@ 83027 @ 1 @ 1
6 Setup and function
Pos: 23 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/A - F/Funktions- und Auss tattungsmerkmale @ 23\mod_1 336557630140_15.d ocx @ 209136 @ 31 @ 1
6.1 Features of function and equipment
Pos: 24 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 3. Ebene/A - F/Feuchtigkeits alarm-Einsatz @ 26\mod_1341557661041 _15.docx @ 222909 @ 33 @ 1
6.1.1 Moisture alarm insert
Pos: 25 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Aufbau und Funk tion/Infoline/F unktionen - 1531-1538 @ 25\mod_13413 24761957_15.docx @ 221616 @ 3 @ 1
Monitoring insert for monitoring of undesired water leakages in kitchen or basements.
Used for detecting conductive liquids.
Note
The detection is effected via the separately purchasable sensor strip 1538/02.
An alarm message is signalled by the flashing cancel button, the floating change-over contact and the alarm
output (clamps 3 and 4).
Pos: 26 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 3. Ebene/S - T/Sensorband @ 26\mod_1 341557694055_15.doc x@ 22292 3 @ 3@ 1
6.1.2 Sensor strip
Pos: 27 /#Neustruktur #/Online-Dokumentation (+K NX)/Aufbau und Funktion/I nfoline/Funktione n - Sensorband 1538 @ 26\mod_13415 57720226_15.docx @ 222937 @ 3 @ 1
Accessories for Busch moisture alarm insert 1531 U. For detecting conductive liquids. The connection to the
control line is a soldered connection.
Pos: 28 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Setup and function
Operating Instructions | 1473-1-8179
— 6 —
Pos: 29 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/G - L/Kombina tionsmöglichkeiten @ 19\mod_1320312 769153_15.doc x@ 109520 @ 2 @ 1
6.2 Possible combinations
Pos: 30 /#Neustruktur #/Online-Dokumentation(+ KNX)/Kombinationsmögli chkeiten/Infolin e/Kombinations möglichkeiten - 1531-1538 @ 25\mod_134 1324780941_15.doc x@ 22163 0 @ 2 @ 1
Busch moisture alarm
insert
1531 U
1538/02
X
1518 U
X
1539 U
X
1563 U-12
X
1561 U
X
1564 U-1X
X
1566 U
X
1571 CN-21X
X
Pos: 31 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Installation and electrical
connection
Operating Instructions | 1473-1-8179
— 7 —
Pos: 32 /#Neustruktur #/Online-Dokumentation (+K NX)/Überschrif ten( --> Für alle Dokumente <--)/1. Ebene/M - O/Montage und e lektrischer Ansc hluss@ 23\m od_1336477157864_15.d ocx @ 209033 @ 1 @ 1
7 Installation and electrical connection
Pos: 33 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Sicher heitshinweise und Hinweise ( --> Für alle Dokumente <--)/W arnhinweise/Sicher heit - Niederspannungs- und 230 V-Lei tungen @ 23\mod_133655886820 1_15.docx @ 209164 @ 1 @ 1
Warning
Electric voltage!
Risk of death due to electrical voltage of 230 V during short-circuit in the low-voltage line.
– Low-voltage and 230 V lines must not be installed together in a flush-mounted socket!
Pos: 34 /#Neustruktur #/Online-Dokumentation (+K NX)/Sicherheitshin weise und Hinweise (--> Für alle Dokumente <--) /Warnhinweise/Sic herheit - Fachkenntnisse @ 23\m od_1336559183027_15. docx @ 209179 @ 2 @ 1
7.1 Requirements for the electrician
Warning
Electric voltage!
Install the device only if you have the necessary electrical engineering knowledge and experience.
• Incorrect installation endangers your life and that of the user of the electrical system.
• Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation are as follows:
• Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect from power;
2. Secure against being re-connected;
3. Ensure there is no voltage;
4. Connect to earth and short-circuit;
5. Cover or barricade adjacent live parts.
• Use suitable personal protective clothing.
• Use only suitable tools and measuring devices.
• Check the supply network type (TN system, IT system, TT system) to secure the following
power supply conditions (classic connection to ground, protective earthing, necessary
additional measures, etc.).
Pos: 35 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ 2 @ 1

Operating Instructions
Busch-Infoline®
Installation and electrical
connection
Operating Instructions | 1473-1-8179
— 8 —
Pos: 36 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/A - F/Elektrischer Anschlus s @ 21\mod_1328177051724_15. docx @ 138042 @ 2 @ 1
7.2 Electrical connection
Pos: 37 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Anschluss/ Infoline/Anschl uss - 1531-1538 @ 25\mod_1341324800926_ 15.docx @ 221644 @ 2 @ 1

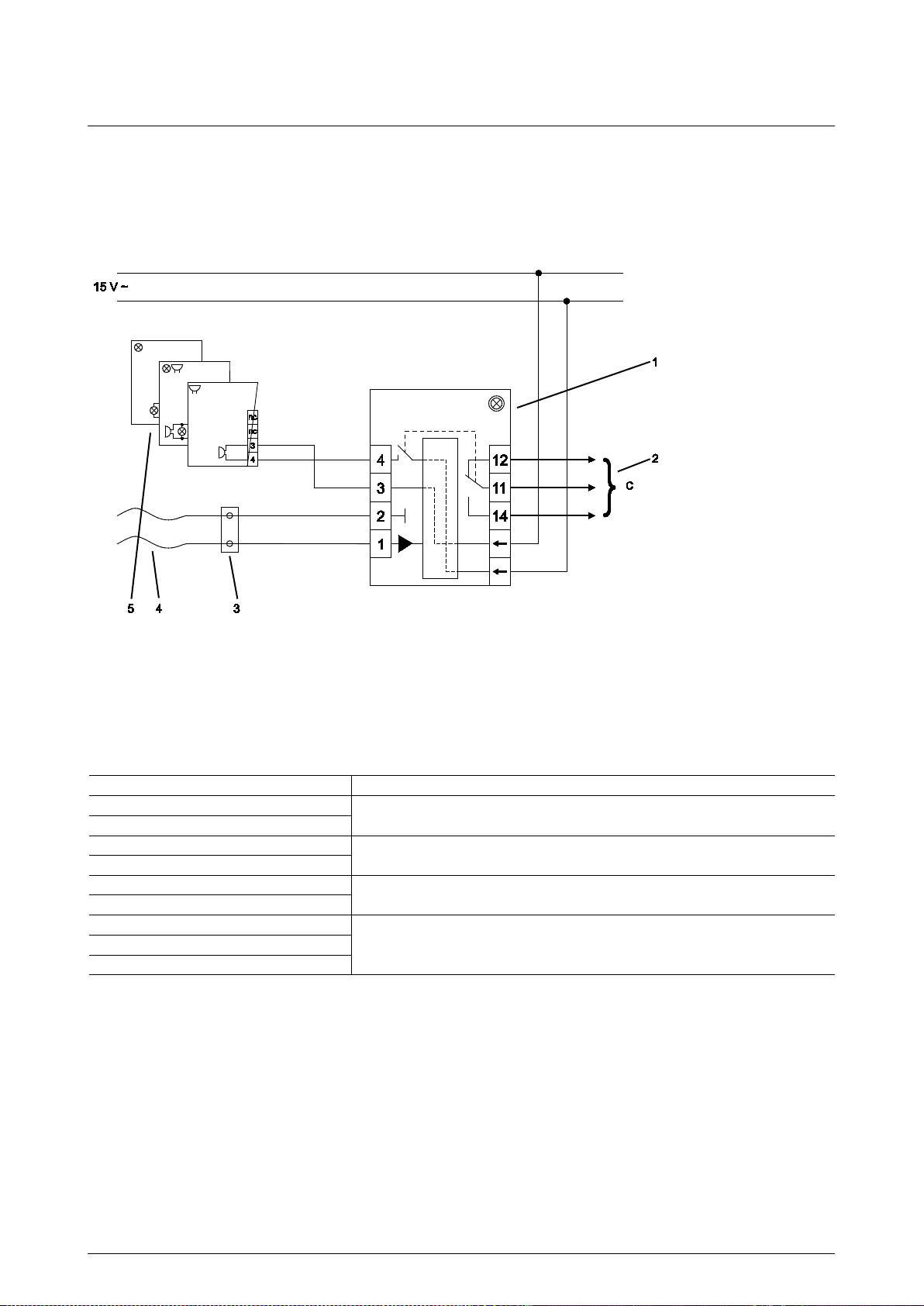

Connection diagram
Fig. 1: Circuit diagram for Busch-Leakage guard insert
1Busch-Leakage guard insert | 2Floating change-over contact | 3Soldered- / clamped connection | 4Sensor strip |
5signal generator
Terminal assignment
Busch-Leakage guard insert 1531 U
Terminal designation Assignment
<- 15 V AC, ±10%, 50 / 60 Hz
<-
4 Signal generator, potential-bound
3
2 Sensor strip
1
12
Floating change-over contact11
14
Pos: 38 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Installation and electrical
connection
Operating Instructions | 1473-1-8179
— 9 —
Pos: 39 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/M - O/Montage des Geräteei nsatzes @ 25\mod_134140138 1988_15.docx @ 222339 @ 2 @ 1
7.3 Mounting the device insert
Pos: 40 /#Neustruktur #/Online-Dokumentation (+ KNX)/Montage/Infoline/ Montage -Geräte Einsätze 153 1-1538 @ 25\mod_13413248212 54_15.docx @ 221658 @ 2 @ 1
1. Mount the device in a flush-mounted box according to DIN 049073-1.
2. Fix the device in the flush-mounted box with screws.
3. Mount the elements of the cover plate in the sequence shown in the illustration.

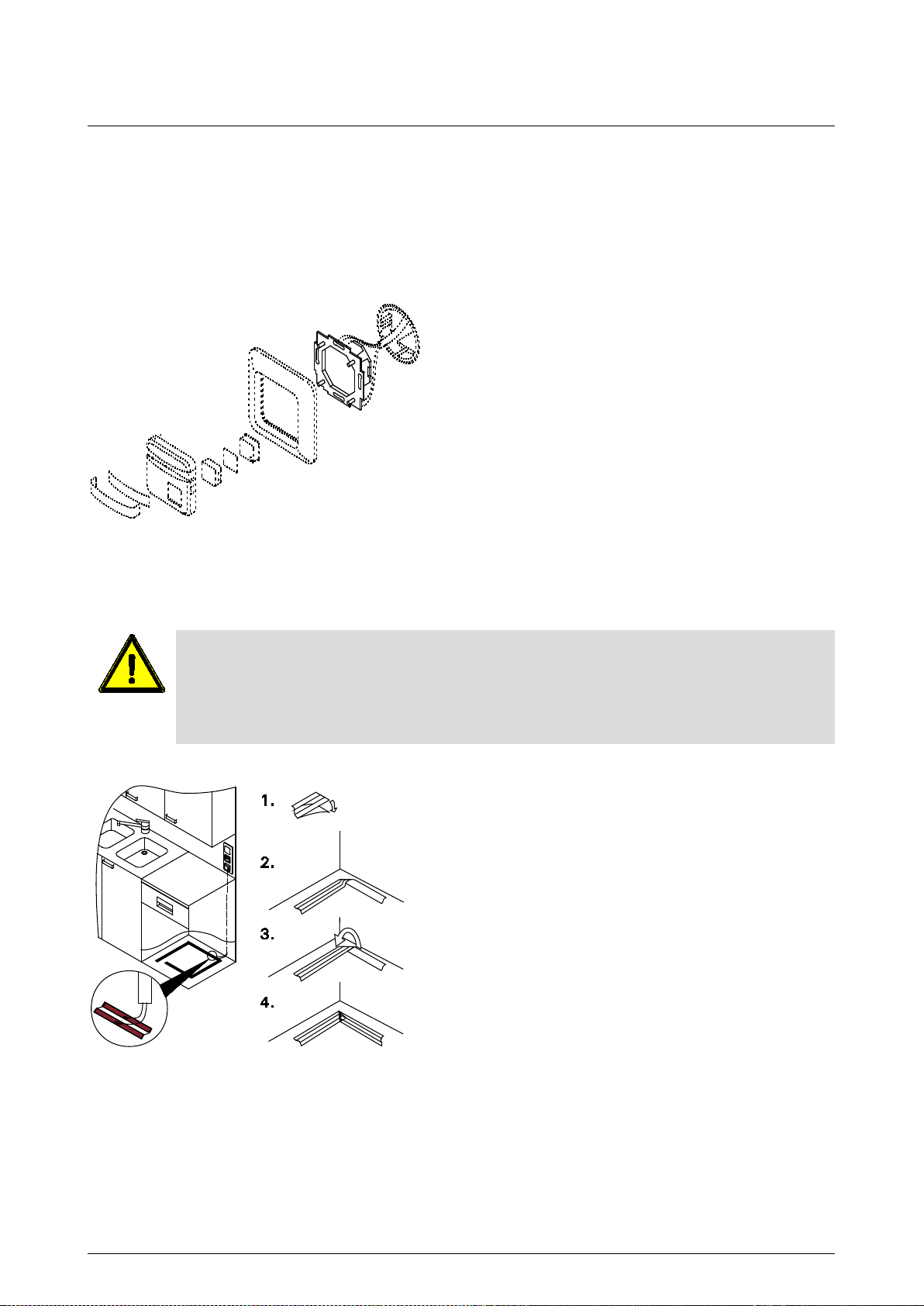

Fig. 2: Overview of installation
Pos: 41 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/U - Z/Verleg ung und Anschluss des Sensorba ndes @ 26\mod_1341562365208_ 15.docx @ 222951 @ 2 @ 1
7.4 Installing and connecting the sensor strip
Pos: 42 /#Neustruktur #/Online-Dokumentation (+K NX)/Montage/Infoline/ Verlegung und Anschlu ss des Sensorbandes 1538 @ 26\mod_13 41562482648_15.doc x @ 222979@ 2 @ 1
Caution
No faultless function if mounted incorrectly!
The device will not function.
- The strip must never be interrupted when laying the sensor strip around corners.
- Follow installation steps 1 to 4 and fold the sensor strip according to the illustration.
Fig. 3: Installing the sensor strip
Pos: 43 /#Neustruktur #/Online-Dokumentation (+K NX)/Steuermodule - On line-Dokumentatio n (--> Für alle Dokumente <--)/++++++++++++Seitenumbruch ++++++++++++@ 9\mod_12688 98668093_0.docx @ 52149 @ 2 @ 1

Operating Instructions
Busch-Infoline®
Installation and electrical
connection
Operating Instructions | 1473-1-8179
— 10 —
Pos: 44 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/A - F/Alarmverhalten mit Stec kbrücke einstellen @ 25\mod_1 341307557695_15.doc x@ 2210 23 @ 2 @ 1
7.5 Setting alarm behaviour with jumper
Pos: 45 /#Neustruktur #/Online-Dokumentation (+K NX)/Montage/Infoline/ Alarmverhalten 15 31-1538 @ 25\mod_1341324839722_ 15.docx @ 221672 @ 22 @ 1

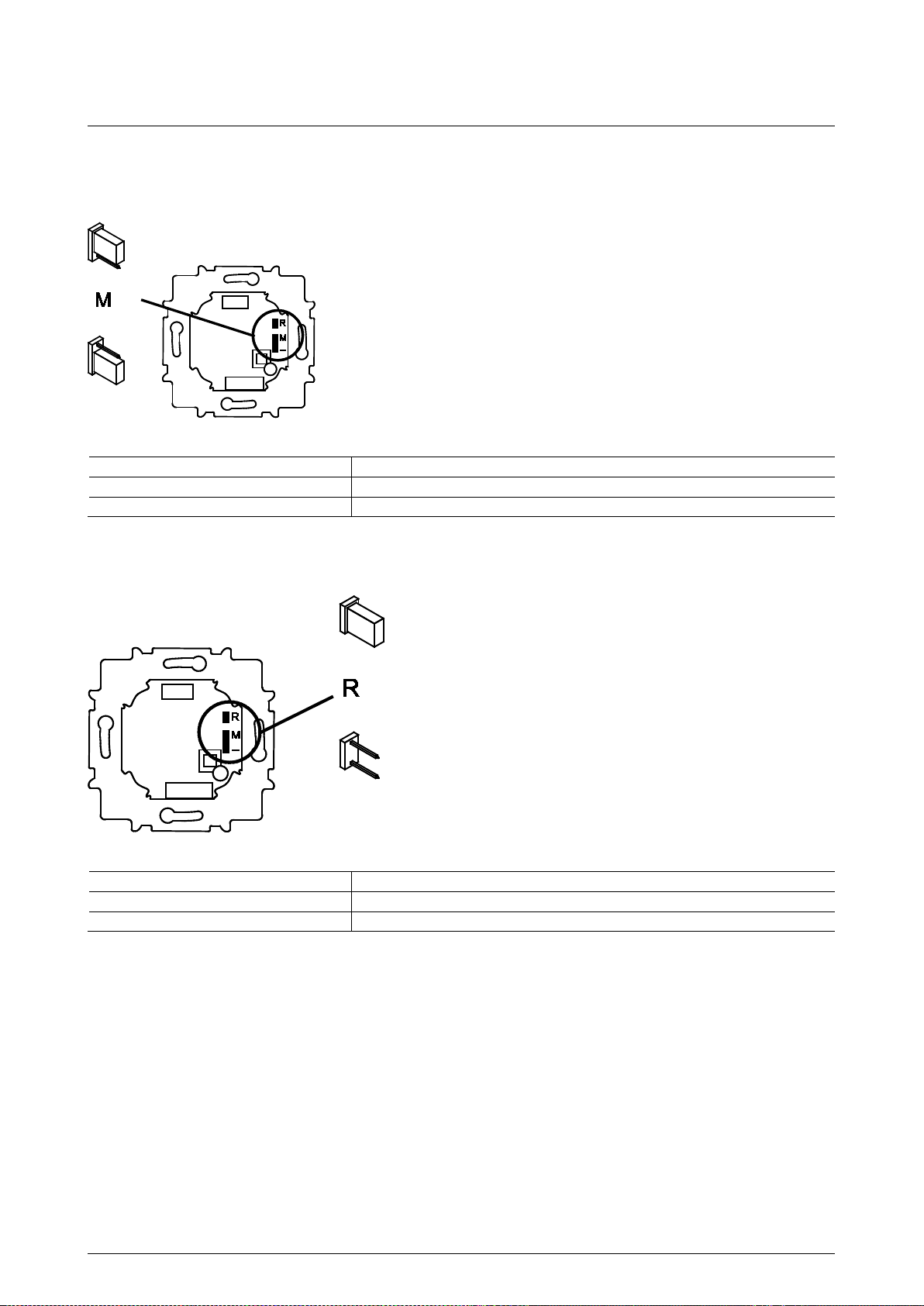

Fig. 4: Busch moisture alarm insert 1531 U
Position Alarm behaviour
Jumper top With storage of the alarm status
Jumper bottom Without storage of the alarm status
Pos: 46 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/P - R/Rücksetzmodus mit S teckbrücken einstelle n @ 26\mod_1341562748726_ 15.docx @ 222994 @ 2 @ 1
7.6 Adjusting the reset mode with jumpers
Pos: 47 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Montage/I nfoline/Rücksetz modus 1531-1538 @ 26\mod_134156281 6256_15.docx @ 223007 @ 2 @ 1
Fig. 5: Busch-Leakage guard insert 1531 U
Position
Reset mode
Plug-in jumper inserted Indirect reset
Plug-in jumper not inserted Direct reset
Indirect reset
– Plug-in jumper R removed
– Outputs 3, 4, 11, 12, and 14 are enabled immediately after the reset button is pressed: the alarm message
disappears immediately.
Direct reset
– Plug-in jumper R inserted
– Outputs 3, 4, 11, 12, and 14 are not released after the reset button is pressed until the moisture has been
removed from the sensor: the alarm message does not disappear until the damage is remedied.
=== Ende der Liste für Textmarke Con tent ===

Operating Instructions
Busch-Infoline®
1473-1-8179 | Rev. 01 | 17.12.2012
Pos: 49 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Rückseite n (--> Für alle Dokumente <--)/Rückseit e - Busch-Jaeger - Allgemein (201 3-01-03 09:23:43) @ 28\mod_13470097799 95_15.doc x @ 232282 @ 2 @ 1
A member of the ABB Group
Busch-Jaeger Elektro GmbH
PO box
58505 Lüdenscheid
Freisenbergstraße 2
58513 Lüdenscheid
Germany
www.BUSCH-JAEGER.com
[e-mail]
Central sales service:
Phone: [phone]
Fax: [phone]
Notice
We reserve the right to at all times make
technical changes as well as changes to the
contents of this document without prior notice.
The detailed specifications agreed to at the time
of ordering apply to all orders. ABB accepts no
responsibility for possible errors or
incompleteness in this document.
We reserve all rights to this document and the
topics and illustrations contained therein. The
document and its contents, or extracts thereof,
must not be reproduced, transmitted or reused by
third parties without prior written consent by ABB.
Copyright© 2012 Busch-Jaeger Elektro GmbH
All rights reserved
=== Ende der Liste für Textmarke Bac kcover ===
