BVN BB Series User manual

USER’S MANUAL &
CERTIFICATE OF WARRANTY
Products with BVN brand are manufactured in production facilities with
ISO 9001: 2015 Quality Management System certificate.
AC LOW PRESSURE CENTRIFUGAL FANS
BB-BK
160 I
200 I
250 I
300 I
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 14

12
NAME
ADDRESS
PHONE / FAX
COMPANY
REPRESENTATIVE’S
SIGNATURE/SEAL
ADI SOYADI
ADRESi
TELEFONU
TYPE
BRAND
MODEL
LABEL AND SERIAL NO
DELIVERY DATE&PLACE
MAX.REPAIR PERIOD
WARRANTY PERIOD
FAN
BVN
BB / BK
20 WORK-DAY
2 YEARS
NAME
ADDRESS
PHONE / FAX
INVOICE DATE&NUMBER
DATE/SIGNATURE/SEAL
MANUFACTURER’S / IMPORTER’S
PRODUCT’S
SELLER’S
MÜŞTERiNiN
BAHÇIVAN ELEKTRİK MOTOR SAN. TİC. LTD.ŞTİ.
Ömerli Mah. Hadımköy-İstanbul Cad.No: 147
Arnavutköy/İSTANBUL
0212 771 48 48 / 0212 771 48 42
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 15

13
USER’S MANUAL
CERTIFICATE OF WARRANTY

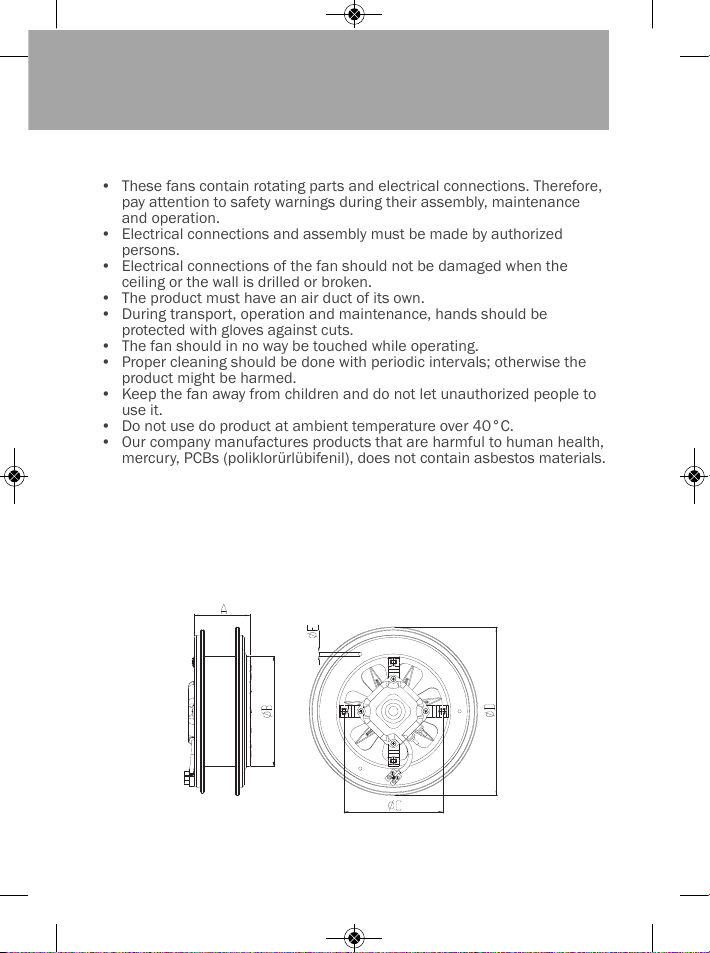

• These fans contain rotating parts and electrical connections. Therefore,
pay attention to safety warnings during their assembly, maintenance
and operation.
• Electrical connections and assembly must be made by authorized
persons.
• Electrical connections of the fan should not be damaged when the
ceiling or the wall is drilled or broken.
• The product must have an air duct of its own.
• During transport, operation and maintenance, hands should be
protected with gloves against cuts.
• The fan should in no way be touched while operating.
• Proper cleaning should be done with periodic intervals; otherwise the
product might be harmed.
• Keep the fan away from children and do not let unauthorized people to
use it.
• Do not use do product at ambient temperature over 40°C.
• Our company manufactures products that are harmful to human health,
mercury, PCBs (poliklorürlübifenil), does not contain asbestos materials.
SAFETY WARNINGS
&
TECHNICAL FEATURES
IP 44 I CLASS CL B
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 16

14
Products supplied on the markings or accompanying other printed documents
according to the standards of the declared value obtained in the laboratory
values. These values may depending on operational and environmental
conditions of the product.
TYPE A (± 2) B C D E
BB 160
BB 200
BB 250
BB 300
82 162 148 236 5
82 202 178 282 5
82 248 234 332 5
82 298 284 380 5
TYPE A (± 2) B C D E
BK 160
BK 200
BK 250
BK 300
100 162 148 236 5
100 202 178 282 5
100 248 234 332 5
100 298 284 380 5
VOLTAGE FREQUENCY POWER CURRENT SPEED AIR FLOW SOUND PRESSURE PROTECTION CLASS INSULATION CLASS
230 50 25 0,15 1450 450 40 44 B
230 50 28 0,15 1250 780 42 44 B
230 50 48 0,33 1450 890 46 44 B
230 50 50 0,33 1350 1150 50 44 B
BB-BK 160
BB-BK 200
BB-BK 250
BB-BK 300
TYPE V Hz W (A) D/dak m3/h dB(A) IP CL
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 17

15
USER’S MANUAL
CERTIFICATE OF WARRANTY
&

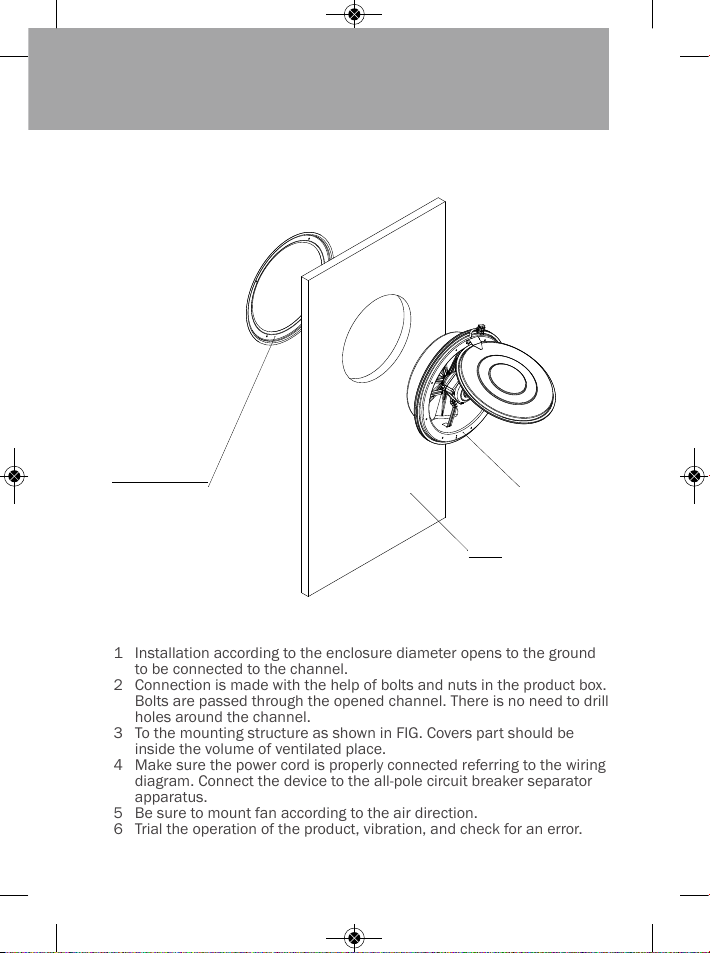

ASSEMBL
1 Installation according to the enclosure diameter opens to the ground
to be connected to the channel.
2 Connection is made with the help of bolts and nuts in the product box.
Bolts are passed through the opened channel. There is no need to drill
holes around the channel.
3 To the mounting structure as shown in FIG. Covers part should be
inside the volume of ventilated place.
4 Make sure the power cord is properly connected referring to the wiring
diagram. Connect the device to the all-pole circuit breaker separator
apparatus.
5 Be sure to mount fan according to the air direction.
6 Trial the operation of the product, vibration, and check for an error.





BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 18

16
• Products should be installed only by authorized persons.
• Installation of the product to be specified in the Project location to the
wall or floor must be securely mounted. If mounted on the wall,it should
mounted with bracket or with clamps.
• Fan blades to be above 2,3 m from the floormust be installed.
• Fan can not be installed out side the window or wall.
• Open the gas pipeoro the fuel-burning devices inside of the room to
avoid there flux of gas is necessary to take pre-measures.
It is recommended that gloves be worn in the assembly of products.
• The product must be connected to input and output channels.
• Electrical cords definitely turn off the power before connecting.
•When mounting brackets and mounts all the connections are made cor-
rectly to carry the weight of the product, make sure you have the strength.
• Even if the product off the main power supply is switched off when
connecting equipments make sure that.
• Before mounting the electrical connection indicated on the product
information (voltage, power, frequency, etc..) In the place of assembly
are in keeping with that note.
• There is noob struction on the air flow way.
• Interms of safety ground terminal located on the terminal must be
connected to earth certainly building.
• Motor thermal and overload relay make sure they are connected properly.
• If the thermal opens circuit during in any problems (while the product is not
working) it must be reset from the system network and activated again.
• Product wiring, electrical connections must be as in the diagram.
• Contact separation in all poles along with a switch that must be
connected to fixed wiring installations in accordance with the rules.
• If the product will be used in a dusty and oily working environment, it
must be used with a filter.
CONNECTION
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 19

17
USER’S MANUAL
CERTIFICATE OF WARRANTY
&
USAGE
BB-BK series Axial fans, kitchens, bathrooms and offices and workplaces
food odors, cigarette smoke, unpleasant odors and pollution is used to eject.
Easily mounted on the window and the wall. BK series can prevent air flow
thanks to lid. bk contact with outside air as long as they use fans are widely
used in commercial and residential areas for ventilation. Offering practical
and affordable solution to small areas of the ventilation requirements of
these fans provide quiet operation.
Expected life of the products is 10 years.
When using your product for the first time;
•Before connecting electric cables, you must not forget to cut the power
supply. Be sure that electrical connections of the product are established
correctly and safely.
• Be sure that safety equipment is connected correctly.
• Properly establish earthing connections.
•Be sure that the cable and electric connection box are closed correctly
and do not admit water leakage.
• Air exit direction should be in the direction indicated with the label on the
body. There shall not be any obstacles in the air flow route.
• The wings should rotate in the correct direction.
• While the product is operating, there shall not be any vibration or internal
rubbing or hitting voice due to the rotation of the fan or the suction fan.
• Power supply, current and frequency values shall comply with the product
label.
• If any electricity warning device turns on, electric connection should im-
mediately be cut from the main power supply. Before starting the product,
all the installation should be controlled again carefully.
• If any problem occurs, please consult authorized persons.
In case of any defect after you have started using the product continuously,
the type of defect should be determined. In order to remove the defect, the
technical service must be contacted. You must not try to fix the problem
yourself.
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 20

18
DEFECTS AND HOW TO FIX THEM
CLEANING, MAINTENANCE and TRANSPORT
In order to protect your product from being damage during transport;
• The product has been packaged according to normal transport
conditions. In order to avoid possible damage, it should always be
carried in its original package.
•The product shall be kept in its own package in a vibration-free, dust-free
environment away from abrasive orchemical material until it isdelivered
to its placeof assembly. Do not accept the products which are not in their
original package or which were opened before being delivered to you.
• The products should be stocked into the vehicle in a way to stay
motionless in case of any turn over or fall down.
• While heavy products are being carried, use appropriate lifters to protect
products or the people carrying the products.
• All necessary measures should be taken in orderto prevent damages
arising from sudden and careless lifting and putting down.
TOO MUCH SOUND
(NOISE)
THE DEVICE IS
NOT WORKING
THE DEVICE IS
ROTATING SLOWLY
ROTOR IMBALANCE
MOTOR IS DAMAGED
CONDENSATOR
IS NOT WORKING
FAULTY SPEED
ADJUSTMENT CONNECTION
FAULTY CONNECTION
CHANGE THE ROTOR
CHANGE THE MOTOR
CHANGE THE
CONDENSATOR
CHECK THE INSTALLATION
(ASSEMBLY)
CHECK THE ELECTRICAL
CONNECTION
ABNORMAL
SITUATION POSSIBLE CAUSE HOW TO FIX
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 21

19
USER’S MANUAL
CERTIFICATE OF WARRANTY
&
• The products should be carried one by one carefully. They shall not be
thrown or carried carelessly from hand to hand.
After taking the product out of it s package;
• The delivered product should be checked.
• The product must be checked for damage during transport. If there is
any lost or damaged part, it should immediately be informed to the
transporter or our firm verbally or by writing.
• Do not hold the product on its connection box or electric cables. Abstain
from applications which will damage the wings or the protective cage
while carrying.
Periodic cleaning and maintenanceof the product;
• Before cleaning or maintenance, even if the product is turned off, be
sure that electric connection has been cut from the main power supply.
• All electrical equipment should be regularly controlled, connections
should be checked and damaged or worn-out cables and equipment
should be replaced.
•Periodic maintenance should be carried out at least once every six months
or more frequently, depending on its frequency of use. Maintenance and
cleaning of the product should be carried out by qualified staff.
• Check the product regularly. In order to prevent dirt or accumulations in
the wing, motor or grill, carry out the maintenance according to the oper-
ating conditions of the product. Otherwise, the expected life of your
product can be substantially shortened or serious damage can occur.
• While cleaning the product, pay attention to protecting the balance on
the wing and the turbine.
•Bolts which might become loose during maintenance should be checked.
• Inappropriate parts should be immediately replaced.
• The product should not be cleaned with inflammable or combustible
cleaners; it should be cleaned with a wet cloth.
• The product should in no way be exposed to water or pressure water.
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 22

20
WARRANTY and SERVICE
Dear customer,
We believe that providing good service is as important as providing good
products for you. You can contact our Sales Representatives by calling us
or obtain the most suitable service for you by contacting our Authorized
Dealers.
We recommend you to follow the advices below.
1. When you buy a product, have your Authorized Dealer approve the
Warranty Dee
2. Use your product according to the user’s manual.
The warranty provided by BVN does not cover the damages arising
out of using the product under conditions other than its normal
conditions of use. The following conditions are also not included
in the warranty:
1. Damages and defects arising out of faulty usage,
2. Damages and defects which occur while loading, unloading or
carrying the product after it has been delivered,
3. Damages and defects arising due to low or high voltage, faulty
electrical installation and using the product at a different voltage
than the one written on its label,
4. Damages and defects due to fire, earthquake, lightning strike, etc.
5. Damages occurring due to using the product under conditions not
conforming to the issues stated in the user’s manual.
The above-mentioned damages are fixed on payment.
Assembly and transport of the product is not included in the product price.
The responsibility of approving the warranty deed and submitting it to the
customer belongs to the seller, dealer, agency or representative from which
the customer has purchased the product.
Since the invoice will be taken as reference if a misunderstanding occurs
about the warranty period, the user must keep the invoice and a copy of it
together with the Warranty Deed.
If the warranty deed is altered, the original serial number on the product is
removed or altered; the warranty deed will become invalid.
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 23

21
USER’S MANUAL
CERTIFICATE OF WARRANTY
&
WARRANTY TERMS AND CONDITIONS
1The warranty period is 2(TWO) YEARS from the date of delivery.
2The product including all its components is under the warranty of our
company.
3In case of defects within the warranty period ,the period spent in repairing
is added to the warranty period.The repairing period is maximum 20 days.
This period starts from the date of delivery of the product to the services cen-
tre or in case of absence of service centre to the seller, the agency the rep-
resentative ,the importer or the manufacturer of the product respectively.In
case the defect is not repaired within 10 work-days ,the importer or the man-
ufacturer is entitled to supply another product with similar features until the
repair is completed.The warranty period of the replaced product is limited
with the warranty period of the product which is purchased.
4In case the product has material ,workmanship and manufacturing defects during
warranty period, the product will be repaired free of charge and expenses of
any sort including labor, the value of the parts replaced or any our charges.
5The consumer may request for replacement of product free of charge, refund
of payment or price reductions in the rate of defects
-In case the product permanently dysfunctions due to repeating of the same
defect for more than twice or more than twice or more than four different
times within the warranty period
-In case the maximum period for repairing is exceeded
-In case it is determined by a written report that the defect cannot be
removed by the seller ,agency, representative, importer or manufacturer of
the product respectively in case of absence of service centres.
6The present warranty does not cover damages resulting from use of product
against the instructions in the manual.
7General Administration of Protection of Consumer Rights and Competition in the
Ministry of Industry and Commerce may be applied for problems regarding the
warranty certificate.
8In accordance with issues of consumer complaints and objections on the ap-
plication ,consumers can appeal the consumer courts and arbitral committee.
9In case of the goods are found to be defective when consumers
a. Sold by declaring that it is ready to give back there turn from the contract,
b. Sold goods are held defective ratiod is count that request according to the
sales price,
c. Unless require an excessive charges including all costs borne by the seller
that request a free repair of the goods which has been sold.
d. If possible, ask for the replacement of free from defects in stead of goods sold
Consumer can use one of the elective rights. Seller's preferred consumer
is obliged to ful fill this demand.
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 24

www.bvnair.com
T. [phone] F. [phone]
[e-mail] / [email protected]
BB_BKklavuz2021.qxp_Layout 1 15.01.2021 16:30 Page 1
