AIR-EAGLE®XLT
900 MHz RF Transmitter
MODEL 441-10100-120I-AC
DESCRIPTION
The AIR-EAGLE XLT TX Is an R.F. transmitter capable of sending a
single 120VAC input command to an Air-Eagle XLT Receiver located
up to 2500 feet away. Any number of transmitters and receivers can be
combined to create a medium range radio frequency system that
operates hazardous or hard-to-reach electrical apparatus from safe,
convenient locations. Seven user-selectable frequencies allow multiple
systems to operate simultaneously in the same area without
interference.
APPROVALS
United States (FCC)
MCQ-XB900HP
Canada (IC)
1846A-XB900HP
INSTALLATION
DISCONNECT AC Power from all equipment before installation.
1. Mount the AIR-EAGLE XLT TRANSMITTER in a convenient location.
2. Install wiring to input terminal strip
3. Make desired channel code, repeater mode and frequency
selections using instructions on page 2.
4. Install antenna onto connector located on the top on the enclosure.
5. Connect AC power to the proper terminals in your control circuit.
TERMINAL STRIP WIRING
TER 3
VOLTAGE INPUT
TER 2
RELAY OUTPUT
TER 1
AC/DC POWER INPUT
1
120VAC N
1
Not Used
1
100-250 VAC
2
120VAC H
2
Not Used
2
100-250 VAC
3
Not Used
3
Ground
GENERAL OPERATION
When 120VAC appears onthe input the unit transmits to energize relay 1
(or another relay as selected by the channel code transmitted) in any
receiver within transmit range. The signal transmits continuously as long
as thevoltageis present and ceases when voltage is removed.
Dimensions (with mounting plate) 7.07L x 3.57W x 1.62H
CONTROLS AND INDICATORS
Power –LED1
Illuminates green when unit is powered
TX –LED2
Illuminates red when unit is transmitting
Relay –LED3
Not used on this model
RF1
RF module that sends data to the remote
receiver
SEL1
Seven dip switches for selecting options and
network frequency
TER3
120VAC input
TER2
Relay output
TER1
Power Input

AIR-EAGLE®XLT
900 MHz RF Transmitter
MODEL 441-10100-120I-AC
CHANNEL CODE, REPEATER MODE &
FREQUENCY SET-UP
The unit is shipped from the factory with all SEL1 switches in the open
positions. By default, it is transmitting Channel #1 code, the command
transmitted will not be repeated by the receivers, and it is operating on
Frequency #1. If you wish to transmit a different channel code, set the unit
to transmit a repeating packet, and/or change the frequency, follow the
instructions on the table below.
1) Remove power from unit
2) Remove top cover.
3) Select desired channel code and/or frequency using table below.
4) Reattach cover and apply power.
5) Programming is now complete.
CHANNEL SELECTION SET-UP
SEL1 (SW1-3)
Channel
Code To Be
Transmitted
SW1
SW2
SW3
1 (default)
OPEN
OPEN
OPEN
2
CLOSED
OPEN
OPEN
3
OPEN
CLOSED
OPEN
4
CLOSED
CLOSED
OPEN
5
OPEN
OPEN
CLOSED
6
CLOSED
OPEN
CLOSED
7
OPEN
CLOSED
CLOSED
8
CLOSED
CLOSED
CLOSED
REPEATER MODE
SEL1
SWITCH
NUMBER
OPEN
CLOSED
SW4
Repeater Mode OFF (default)
Repeater Mode ON
FREQUENCY SET-UP
SEL1
(SW5-7)
Network
Frequency
SW5
SW6
SW7
1 (default)
OPEN
OPEN
OPEN
2
CLOSED
OPEN
OPEN
3
OPEN
CLOSED
OPEN
4
CLOSED
CLOSED
OPEN
5
OPEN
OPEN
CLOSED
6
CLOSED
OPEN
CLOSED
7
OPEN
CLOSED
CLOSED
SPECIFICATIONS
AC Input
100-250VAC, 5 W, 50/60 Hz
Transmitter Frequency
900 MHz Spread Spectrum
RF Output Power
250 mW
Transmit Range
Approximately 2500 Feet
Transmit Data
120VAC Input
Transmitter Channels
7 Independent Network Frequencies
Antenna Connection
TNC Female Connector
Operating Temperature
-40oF to +185oF
Enclosure
Polycarbonate NEMA 4, 12, 13 –IP66
Weight
Approx 2 lbs.

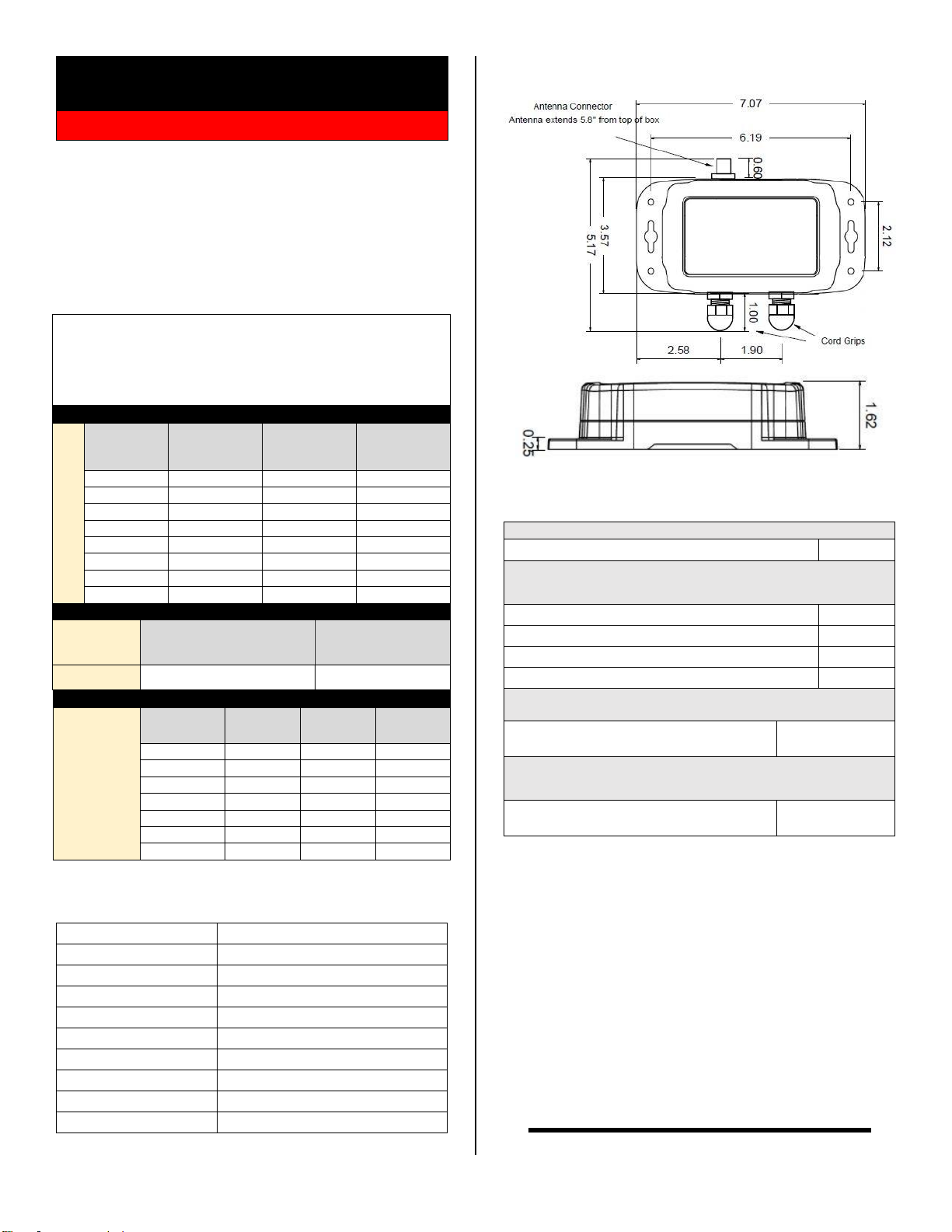

DIMENSIONS
ACCESSORIES
Standard Antenna (Included):
900MHz TNC “Rubber Duck” Antenna
49-1103
High Gain Antennas –
Used to help achieve max range in both non line of sight and line
of sight applications. - Contact BWI Eagle for recommendations
900MHz Thru-Hole Mount Omni Directional Antenna
49-2101
900MHz Magnet Mount Omni Directional Antenna
49-2102
900MHz Omni Directional Antenna
49-3101
900MHz Yagi Antenna
49-3102
High Quality Coax Cables –
Used to connect external high gain antennas to control unit
Flex Coax Cable w/Connectors –Available
in 5’,15’,25’,30’,40’,60’,80’,100’ Lengths
49-4000-XX
(XX = # of Feet)
Bulkhead Extensions –
Used to provide an external antenna connection when mounting
control unit inside another enclosure
TNC Male to TNC Bulkhead Cable Assembly
- Available in 2’, 4’, 7’ Lengths
49-5004-X-ISO
(X = # of Feet)
