Bwt Ws series Manual

Fitting and operating instructions EN

WS Range: WS355

WS455

WS555

WS655

WS755

WT WS Range /09-2012 © B

WT UK Limited

Changes of technical details are reserved

Important notice: Always keep the fitting and operating instructions

close at hand to avoid any mistakes and before carrying out any work

on the device, you should read the fitting and operating instructions

carefully and follow them. While our data sheets and brochures should

provide advice to the best of our knowledge, the content thereof is not

legally binding.

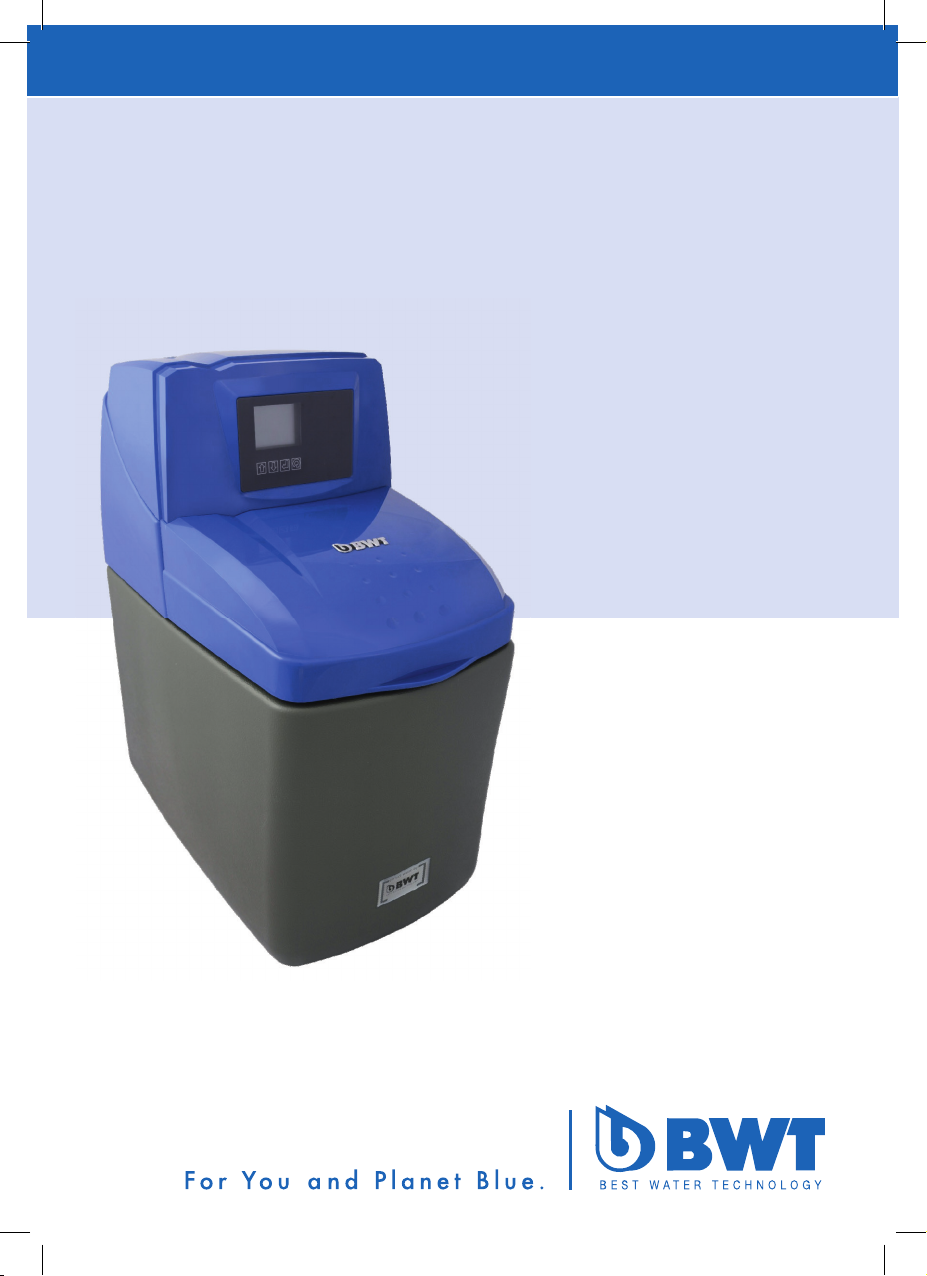

BWT WS Range

Water Softener

WSINST 20pp A5 Seot 2017.indd 1 08/09/2017 08:43

Correct application

This appliance is intended for

domestic use only, and any other use is

not supported by the manufacturer and

could be dangerous. BWT UK Limited

cannot be held liable for damage

resulting from the incorrect or improper

use of this water softener.

Operation

This appliance can be used by children

aged from 8 years and above and

persons with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if they have

been given supervision or instruction

concerning use of the appliance in a safe

way and understand the hazards

involved.

Safety with children

Children must not play with the appliance

and any contents therein at anytime.

Extended periods of non-use

If the property is to be left unattended for

any length of time e.g. holidays, the

water softener should be bypassed/

isolated from the mains water supply by

reversing the 3 valve positions as shown

in the installation diagram in this manual.

After prolonged periods of non-use,

ensure inlet and outlet valves are open

and bypass valve is closed, and start a

manual regeneration as described in Part

Two of this manual.

Protect from high & low temperatures

Important - do not install the water

softener where it, or its connections

(including the drain overflow lines), will

be subject to temperatures under 5ºC or

above 40ºC.

Electrical safety

Only use the transformer /plug supplied.

Before use, ensure that the connection

data on the data plate (voltage and

frequency) match that of the mains

electricity supply. If in any doubt, consult

a qualified electrician.

Maintenance

The unit must be isolated from the

electricity supply during installation,

maintenance and repair work. Your water

softener will benefit from regular service -

please see welcome pack or call BWT on

01494 838 100 for details.

Cleaning

Please wipe clean with a damp cloth.

Do not use solvent based or abrasive

cleaning agents as they may cause

damage to the high gloss finish.

This water softener complies with all

relevant local and national safety

requirements. Improper use will

invalidate your manufacturers

warranty and could lead to injury

and material damage.

To help avoid the risk of accidents

and unnecessary damage to this

unit, please read these instructions

carefully before installation and use.

Please keep these instructions in a

safe place and ensure they are

passed on to any future user of the

unit.

Page

Introduction 4

Features and Benefits 4

PART ONE

Overview of the water softening process

6-7

Installation and operating considerations

Typical Installation layout

PART TWO

9-11

Installing your water softener

Programming procedure 12-14

PART THREE

Troubleshooting guide 15-16

Specification table 17

Warranty 18

CONTENTS

WSINST 20pp A5 Seot 2017.indd 2 08/09/2017 08:43

Correct application

This appliance is intended for

domestic use only, and any other use is

not supported by the manufacturer and

could be dangerous. BWT UK Limited

cannot be held liable for damage

resulting from the incorrect or improper

use of this water softener.

Operation

This appliance can be used by children

aged from 8 years and above and

persons with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if they have

been given supervision or instruction

concerning use of the appliance in a safe

way and understand the hazards

involved.

Safety with children

Children must not play with the appliance

and any contents therein at anytime.

Extended periods of non-use

If the property is to be left unattended for

any length of time e.g. holidays, the

water softener should be bypassed/

isolated from the mains water supply by

reversing the 3 valve positions as shown

in the installation diagram in this manual.

After prolonged periods of non-use,

ensure inlet and outlet valves are open

and bypass valve is closed, and start a

manual regeneration as described in Part

Two of this manual.

Protect from high & low temperatures

Important - do not install the water

softener where it, or its connections

(including the drain overflow lines), will

be subject to temperatures under 5ºC or

above 40ºC.

Electrical safety

Only use the transformer /plug supplied.

Before use, ensure that the connection

data on the data plate (voltage and

frequency) match that of the mains

electricity supply. If in any doubt, consult

a qualified electrician.

Maintenance

The unit must be isolated from the

electricity supply during installation,

maintenance and repair work. Your water

softener will benefit from regular service -

please see welcome pack or call BWT on

01494 838 100 for details.

Cleaning

Please wipe clean with a damp cloth.

Do not use solvent based or abrasive

cleaning agents as they may cause

damage to the high gloss finish.

This water softener complies with all

relevant local and national safety

requirements. Improper use will

invalidate your manufacturers

warranty and could lead to injury

and material damage.

To help avoid the risk of accidents

and unnecessary damage to this

unit, please read these instructions

carefully before installation and use.

Please keep these instructions in a

safe place and ensure they are

passed on to any future user of the

unit.

Page

Introduction 4

Features and Benefits 4

PART ONE

Overview of the water softening process

6-7

Installation and operating considerations

Typical Installation layout

PART TWO

9-11

Installing your water softener

Programming procedure 12-14

PART THREE

Troubleshooting guide 15-16

Specification table 17

Warranty 18

CONTENTS

WSINST 20pp A5 Seot 2017.indd 3 08/09/2017 08:43

P RA T ENO

WHAT IS A WATER SOFTENER?

A water softener works by passing hard

water through a cylinder containing ion

exchange resin.

The resin consists of tiny beads that attract

and retain the hardness minerals, allowing

the now softened water into your

household water supply.

Resin

Brine

Hard water Soft water

Water inlet To drain

Brine

pick up

Rinse

water

to drain

Hard water

SOFTENING CYCLE

REGENERATION CYLCE

RINSING CYCLE

Periodically, these resin beads are

automatically cleaned and regenerated by

rinsing with a small amount of brine, (a salt

solution).

The brine, with the accumulated hardness

is then flushed away to the drain.

All this takes place automatically. All that

remains for you to do is occasionally top

up the water softener with salt.

PART ONE

OVERVIEW OF THE WATER SOFTENING PROCESS

On the following pages we provide full installation and operating instructions.

You may find this booklet easier to follow if you first take a few minutes to familiarise

yourself with the basic principles of the water softening process and benefits of the

"Millennium" valve.

INTRODUCTION

At the heart of your BWT WS Range Water Softener is the Millennium valve controlled

by the BWT “Advanced Memory Electronic Control System” (AMECS). AMECS is

manufactured and tested to meet the latest EU standard for performance, safety and

testing of water softeners. The protocol used in the system design is based on the

extensive experience of BWT in the UK.

"Rotary valve means less moving parts for greater reliability.

"Flow rates suitable for use on conventional and modern plumbing systems.

"Custom backlit easy read display.

"At a glance, "capacity remaining indicator" helping to provide a continuous supply of

softened water.

"Memory back-up facility allows the AMECS to restore all key settings held in its

memory after a temporary power supply failure (for up to 72 hours).

"Low salt alarm.

"Low voltage control system.

"High capacity resin for generous amounts of softened water between regenerations.

"Proportional brining technology reduces water and salt usage for maximum efficiency.

FEATURES AND BENEFITS

Thank you for choosing a BWT WS Range Water Softener.

WSINST 20pp A5 Seot 2017.indd 4 08/09/2017 08:43

P RA T ENO

WHAT IS A WATER SOFTENER?

A water softener works by passing hard

water through a cylinder containing ion

exchange resin.

The resin consists of tiny beads that attract

and retain the hardness minerals, allowing

the now softened water into your

household water supply.

Resin

Brine

Hard water Soft water

Water inlet To drain

Brine

pick up

Rinse

water

to drain

Hard water

SOFTENING CYCLE

REGENERATION CYLCE

RINSING CYCLE

Periodically, these resin beads are

automatically cleaned and regenerated by

rinsing with a small amount of brine, (a salt

solution).

The brine, with the accumulated hardness

is then flushed away to the drain.

All this takes place automatically. All that

remains for you to do is occasionally top

up the water softener with salt.

PART ONE

OVERVIEW OF THE WATER SOFTENING PROCESS

On the following pages we provide full installation and operating instructions.

You may find this booklet easier to follow if you first take a few minutes to familiarise

yourself with the basic principles of the water softening process and benefits of the

"Millennium" valve.

INTRODUCTION

At the heart of your BWT WS Range Water Softener is the Millennium valve controlled

by the BWT “Advanced Memory Electronic Control System” (AMECS). AMECS is

manufactured and tested to meet the latest EU standard for performance, safety and

testing of water softeners. The protocol used in the system design is based on the

extensive experience of BWT in the UK.

"Rotary valve means less moving parts for greater reliability.

"Flow rates suitable for use on conventional and modern plumbing systems.

"Custom backlit easy read display.

"At a glance, "capacity remaining indicator" helping to provide a continuous supply of

softened water.

"Memory back-up facility allows the AMECS to restore all key settings held in its

memory after a temporary power supply failure (for up to 72 hours).

"Low salt alarm.

"Low voltage control system.

"High capacity resin for generous amounts of softened water between regenerations.

"Proportional brining technology reduces water and salt usage for maximum efficiency.

FEATURES AND BENEFITS

Thank you for choosing a BWT WS Range Water Softener.

WSINST 20pp A5 Seot 2017.indd 5 08/09/2017 08:43

There are several types of plumbing systems in common use:

a) Static Head

These systems are fitted with storage tanks. The water softener can be installed using the

standard 15mm or 22mm installation kit supplied with your water softener.

b) Systems using combination boilers (15mm)

For these systems, we recommend that your water softener be “hard plumbed” using

copper tubes or flexible high flow braided hoses.

c) Unvented fully pressurised systems (22mm)

As for combination boilers above.

The water softener should be installed within a container with no less than 100 litre

capacity, to which there should be connected an overflow pipe of no less than 20mm

diameter. The overflow should be connected at the bottom of the container and not less

than 150mm below the height of any electrical components mounted on the water

softener. It is recommended that an anti-vacuum valve be fitted to the inlet pipework

supplying the water softener.

3. Loft installation

If you are planning to install the water softener above ground level e.g. In the loft,

the following instructions should be strictly adhered to.

4. Plumbing systems

5. Backflow prevention device

Your water softener installation must include at least one drinking water tap that is not

fed by the water softener.

It is recommended that individuals on a low sodium diet should follow the Department of

Health's advice that water from a domestic water softener should not be used for

drinking or cooking. Softened water contains a small amount of sodium. It has been

calculated that 1 pint of softened water contains a similar amount of sodium as two slices

of white bread or ¼ pint of milk.

Water that is used for mixing powdered milk for babies must only be taken from an un-

softened mains tap as some powdered milks and softened water both contain sodium for

which young babies have a limited tolerance.

6. Drinking water

P RA T ENO

When fitted to the supply feeding a single dwelling, a check valve complying with BS6282

Part 1 must be fitted on the cold water feed prior to the installation. All other types of

installation require the fitting of a double check valve.

1. Before you begin

The installation of your new water softener is relatively straightforward. However, we

would recommend that either a qualified plumber or a person with relevant plumbing

experience carries out the installation.

Before embarking on the installation, please ensure you have familiarised yourself with

both these instructions and the components required to complete the installation.

2. Positioning the water softener

Please measure your water softener to ensure that it will fit into the area in which you are

placing the unit. PLEASE remember to include additional space for connecting pipe work

in your calculations along with the regular access that is needed for topping the unit up

with salt and future service.

Where possible, the distance of both the incoming water supply and nearest drain should

be kept to a minimum. Two metres is an ideal distance, however, longer distances are

permissible, dependant on the incoming water pressure.

Please remember the weight of your new water softener will considerably increase once

installed and filled with salt. Therefore, please ensure your chosen location is strong

enough to support an approximate total weight of 50 Kg.

Your new water softener has been designed to operate efficiently and effectively with an

incoming water pressure of between 1.7 to 5 BAR. If your water supply is likely to fall

outside these limits, then we would recommend that a booster pump or pressure-

limiting valve should be fitted respectively.

PLEASE NOTE: UK Water Regulation guidelines on the installation of water softeners indicate that a minimum of one tap

is left as a source of untreated water / drinking water within the home. It is also recommended that any garden taps should

also be left untreated.

If the property is to be left unattended for any length of time e.g. holidays, the water softener should be bypassed /

isolated from the mains water supply by reversing the 3 valve positions as shown in the installation diagram on page 8.

After prolonged periods of non-use, ensure inlet and outlet valves are open and bypass valve is closed and start a manual

regeneration as described on page 14.

Important - do not install the water softener where it, or its connections (including the

drain overflow lines) will be subject to temperatures under 5ºC or above 40ºC.

INSTALLATION AND

OPERATING CONSIDERATIONS

PART ONE

INSTALLATION AND

OPERATING CONSIDERATIONS

WSINST 20pp A5 Seot 2017.indd 6 08/09/2017 08:43

There are several types of plumbing systems in common use:

a) Static Head

These systems are fitted with storage tanks. The water softener can be installed using the

standard 15mm or 22mm installation kit supplied with your water softener.

b) Systems using combination boilers (15mm)

For these systems, we recommend that your water softener be “hard plumbed” using

copper tubes or flexible high flow braided hoses.

c) Unvented fully pressurised systems (22mm)

As for combination boilers above.

The water softener should be installed within a container with no less than 100 litre

capacity, to which there should be connected an overflow pipe of no less than 20mm

diameter. The overflow should be connected at the bottom of the container and not less

than 150mm below the height of any electrical components mounted on the water

softener. It is recommended that an anti-vacuum valve be fitted to the inlet pipework

supplying the water softener.

3. Loft installation

If you are planning to install the water softener above ground level e.g. In the loft,

the following instructions should be strictly adhered to.

4. Plumbing systems

5. Backflow prevention device

Your water softener installation must include at least one drinking water tap that is not

fed by the water softener.

It is recommended that individuals on a low sodium diet should follow the Department of

Health's advice that water from a domestic water softener should not be used for

drinking or cooking. Softened water contains a small amount of sodium. It has been

calculated that 1 pint of softened water contains a similar amount of sodium as two slices

of white bread or ¼ pint of milk.

Water that is used for mixing powdered milk for babies must only be taken from an un-

softened mains tap as some powdered milks and softened water both contain sodium for

which young babies have a limited tolerance.

6. Drinking water

P RA T ENO

When fitted to the supply feeding a single dwelling, a check valve complying with BS6282

Part 1 must be fitted on the cold water feed prior to the installation. All other types of

installation require the fitting of a double check valve.

1. Before you begin

The installation of your new water softener is relatively straightforward. However, we

would recommend that either a qualified plumber or a person with relevant plumbing

experience carries out the installation.

Before embarking on the installation, please ensure you have familiarised yourself with

both these instructions and the components required to complete the installation.

2. Positioning the water softener

Please measure your water softener to ensure that it will fit into the area in which you are

placing the unit. PLEASE remember to include additional space for connecting pipe work

in your calculations along with the regular access that is needed for topping the unit up

with salt and future service.

Where possible, the distance of both the incoming water supply and nearest drain should

be kept to a minimum. Two metres is an ideal distance, however, longer distances are

permissible, dependant on the incoming water pressure.

Please remember the weight of your new water softener will considerably increase once

installed and filled with salt. Therefore, please ensure your chosen location is strong

enough to support an approximate total weight of 50 Kg.

Your new water softener has been designed to operate efficiently and effectively with an

incoming water pressure of between 1.7 to 5 BAR. If your water supply is likely to fall

outside these limits, then we would recommend that a booster pump or pressure-

limiting valve should be fitted respectively.

PLEASE NOTE: UK Water Regulation guidelines on the installation of water softeners indicate that a minimum of one tap

is left as a source of untreated water / drinking water within the home. It is also recommended that any garden taps should

also be left untreated.

If the property is to be left unattended for any length of time e.g. holidays, the water softener should be bypassed /

isolated from the mains water supply by reversing the 3 valve positions as shown in the installation diagram on page 8.

After prolonged periods of non-use, ensure inlet and outlet valves are open and bypass valve is closed and start a manual

regeneration as described on page 14.

Important - do not install the water softener where it, or its connections (including the

drain overflow lines) will be subject to temperatures under 5ºC or above 40ºC.

INSTALLATION AND

OPERATING CONSIDERATIONS

PART ONE

INSTALLATION AND

OPERATING CONSIDERATIONS

WSINST 20pp A5 Seot 2017.indd 7 08/09/2017 08:43

It is very important to establish the water pressure before installing the water softener. If

the water pressure is low, then the water softener may not operate effectively. If it is too

high, then components inside the unit may be damaged.

Water pressure should be tested with a gauge at the kitchen tap or outside tap.

It should be noted that water pressure can increase at periods of low water usage e.g.

overnight. If, therefore, the daytime pressure exceeds 5 BAR or if you are unsure

about pressure, then a pressure-limiting valve should be fitted.

Where the pressure is less than 1.7 BAR, a booster pump may be required.

PART TWO

INSTALLING YOUR WATER SOFTENER

2. Inlet and outlet connections

1. Positioning the water softener

With the bypass valve open and the inlet / outlet valves closed, the unit can be connected

to the plumbing system. Arrows on the inlet and outlet piping from the valve will confirm

the direction of flow.

Connections can be made with either conventional copper tube and fittings or the flexible

hoses supplied. Ensure hoses are not kinked as this may restrict flow.

3. Drain connection

Push the flexible drain hose onto the barbed connector (drain) as shown on page 8 and

secure with the clip provided. Run the drain hose to a stand pipe or to a drain. The air

gap needs to be at least 20mm . Softened water will have no adverse effect on a septic

tank. You can extend the drain up to 9m if you have sufficient pressure (greater than 3

BAR). The drain hose must not be kinked or restricted in any way as this will cause an

overflow from the brine cabinet.

Frost protection

If the drain hose or connecting pipework is likely to be subject to temperatures below 0 C,

it must be protected to prevent freezing. Failure to observe this precaution could lead to

the water softener overflowing.

Raising the drain hose

If you have a water pressure of 3 BAR or more, you can raise the drain to a maximum of

3 metres above the valve head.

P RA T OWT

It is very important to establish the water pressure before installing the water softener. If

the water pressure is low, then the water softener may not operate effectively. If it is too

high, then components inside the unit may be damaged.

Water pressure should be tested with a gauge at the kitchen tap or outside tap.

It should be noted that water pressure can increase at periods of low water usage e.g.

overnight. If, therefore, the daytime pressure exceeds 5 BAR or if you are unsure

about pressure, then a pressure-limiting valve should be fitted.

Where the pressure is less than 1.7 BAR, a booster pump may be required.

PART TWO

INSTALLING YOUR WATER SOFTENER

2. Inlet and outlet connections

1. Positioning the water softener

With the bypass valve open and the inlet / outlet valves closed, the unit can be connected

to the plumbing system. Arrows on the inlet and outlet piping from the valve will confirm

the direction of flow.

Connections can be made with either conventional copper tube and fittings or the flexible

hoses supplied, ensure hoses are not kinked as this may restrict flow.

3. Drain connection

Push the flexible drain hose onto the barbed connector (Drain) as shown on page 6 and

secure with the clip provided. Run the drain hose to a stand pipe or to a drain. The air

gap needs to be at least 20mm . Softened water will have no adverse effect on a septic

tank. You can extend the drain up to 9m if you have sufficient pressure (greater than 3

BAR). The drain hose must not be kinked or restricted in any way as this will cause an

overflow from the brine cabinet.

Frost protection

If the drain hose or connecting pipework is likely to be subject to temperatures below 0 C,

it must be protected to prevent freezing. Failure to observe this precaution could lead to

the water softener overflowing.

Raising the drain hose

If you have a water pressure of 3 BAR or more, you can raise the drain to a maximum of

3 metres above the valve head.

PART TWO

Outlet from

softener

Inlet to

softener

Outlet valve

shown open Inlet valve

shown open

By-pass valve

shown closed

Inlet from

mains

Non-return

valve

To rising

main

Use reducing bush

for 15mm pipework

Key to the diagram

A. Non return valve

B. Pressure reducing valve (where required)

C. Inlet valve

D. By-pass valve

E. Outlet valve

PART ONE

Mains stop valve

Drinking

water

Drain hose

Overflow*

Valve Head

Brine

Cabinet

Inlet Outlet

Rising Main

* The overflow must discharge to a place that is visible outside the building.

TYPICAL INSTALLATION LAYOUT

WSINST 20pp A5 Seot 2017.indd 8 08/09/2017 08:43

It is very important to establish the water pressure before installing the water softener. If

the water pressure is low, then the water softener may not operate effectively. If it is too

high, then components inside the unit may be damaged.

Water pressure should be tested with a gauge at the kitchen tap or outside tap.

It should be noted that water pressure can increase at periods of low water usage e.g.

overnight. If, therefore, the daytime pressure exceeds 5 BAR or if you are unsure

about pressure, then a pressure-limiting valve should be fitted.

Where the pressure is less than 1.7 BAR, a booster pump may be required.

PART TWO

INSTALLING YOUR WATER SOFTENER

2. Inlet and outlet connections

1. Positioning the water softener

With the bypass valve open and the inlet / outlet valves closed, the unit can be connected

to the plumbing system. Arrows on the inlet and outlet piping from the valve will confirm

the direction of flow.

Connections can be made with either conventional copper tube and fittings or the flexible

hoses supplied. Ensure hoses are not kinked as this may restrict flow.

3. Drain connection

Push the flexible drain hose onto the barbed connector (drain) as shown on page 8 and

secure with the clip provided. Run the drain hose to a stand pipe or to a drain. The air

gap needs to be at least 20mm . Softened water will have no adverse effect on a septic

tank. You can extend the drain up to 9m if you have sufficient pressure (greater than 3

BAR). The drain hose must not be kinked or restricted in any way as this will cause an

overflow from the brine cabinet.

Frost protection

If the drain hose or connecting pipework is likely to be subject to temperatures below 0 C,

it must be protected to prevent freezing. Failure to observe this precaution could lead to

the water softener overflowing.

Raising the drain hose

If you have a water pressure of 3 BAR or more, you can raise the drain to a maximum of

3 metres above the valve head.

P RA T OWT

It is very important to establish the water pressure before installing the water softener. If

the water pressure is low, then the water softener may not operate effectively. If it is too

high, then components inside the unit may be damaged.

Water pressure should be tested with a gauge at the kitchen tap or outside tap.

It should be noted that water pressure can increase at periods of low water usage e.g.

overnight. If, therefore, the daytime pressure exceeds 5 BAR or if you are unsure

about pressure, then a pressure-limiting valve should be fitted.

Where the pressure is less than 1.7 BAR, a booster pump may be required.

PART TWO

INSTALLING YOUR WATER SOFTENER

2. Inlet and outlet connections

1. Positioning the water softener

With the bypass valve open and the inlet / outlet valves closed, the unit can be connected

to the plumbing system. Arrows on the inlet and outlet piping from the valve will confirm

the direction of flow.

Connections can be made with either conventional copper tube and fittings or the flexible

hoses supplied, ensure hoses are not kinked as this may restrict flow.

3. Drain connection

Push the flexible drain hose onto the barbed connector (Drain) as shown on page 6 and

secure with the clip provided. Run the drain hose to a stand pipe or to a drain. The air

gap needs to be at least 20mm . Softened water will have no adverse effect on a septic

tank. You can extend the drain up to 9m if you have sufficient pressure (greater than 3

BAR). The drain hose must not be kinked or restricted in any way as this will cause an

overflow from the brine cabinet.

Frost protection

If the drain hose or connecting pipework is likely to be subject to temperatures below 0 C,

it must be protected to prevent freezing. Failure to observe this precaution could lead to

the water softener overflowing.

Raising the drain hose

If you have a water pressure of 3 BAR or more, you can raise the drain to a maximum of

3 metres above the valve head.

PART TWO

Outlet from

softener

Inlet to

softener

Outlet valve

shown open Inlet valve

shown open

By-pass valve

shown closed

Inlet from

mains

Non-return

valve

To rising

main

Use reducing bush

for 15mm pipework

Key to the diagram

A. Non return valve

B. Pressure reducing valve (where required)

C. Inlet valve

D. By-pass valve

E. Outlet valve

PART ONE

Mains stop valve

Drinking

water

Drain hose

Overflow*

Valve Head

Brine

Cabinet

Inlet Outlet

Rising Main

* The overflow must discharge to a place that is visible outside the building.

TYPICAL INSTALLATION LAYOUT

WSINST 20pp A5 Seot 2017.indd 9 08/09/2017 08:43

0:00

Lift off this cover and connect the

jack plug of the power lead to the

control box behind the front panel

9. Switching on for the first time

"Check that the inlet / outlet hoses or couplings are properly connected i.e. inlet-to-inlet,

outlet-to-outlet.

"The by-pass arrangement should be in the open position i.e. the inlet and outlet valves

closed, by-pass valve open. Mains stop valve open.

"Check that the brine cabinet contains salt.

"Check that the water softener is connected to the drain and the overflow pipe is

connected. The drain and overflow must not be linked to each other.

8. Testing for the water hardness in your area

Water hardness can vary from one location to another. To determine the hardness of the

water feeding your water softener (un-softened supply), use the hardness test kit supplied.

"Fill the test bottle .

"Add the tablets to the solution one tablet at a time.

"Shake the bottle in between and keep adding tablets to the water until the solution turns

from wine red to blue, record the number of tablets as you go.

"Using the data table supplied with your kit, match up the number of tablets with the

hardness. You will need this figure when programming your water softener in the next

section of this manual.

supplied to the fill line with water from a hard water tap

P RA T

TWO

"Gently open the inlet valve so that water flows into the resin vessel.

"Switch on the power, you will hear the valve move quietly into the start position. When

the positioning process has been completed (which can take up to 10 minutes), you

will hear the movement stop. The valve has now reached its start position in

preparation for the programming procedure.

"Close the by-pass valve.

"Gently open the outlet valve.

"Check for leaks, take corrective action to stop leaks if required.

"Your water softener is now on line and you may start the valve programming procedure

set out in the next section of this manual.

Now place the water softener salt in the brine cabinet. Use care cubes (tablet salt)

Note: Tablet salt or block salt can be used for the WS455 and WS555 models, depending

on preference.

nly, this is available from your local BWT stockist.

Rigid plastic 3/4" overflow pipe (not supplied with the softener) should be connected to

the push fit elbow at the rear of the cabinet (see page 8). Run the pipe downhill to the

outside of the building. Take care that the overflow does not discharge where damage

could occur.

If the water softener is fitted in a cellar or basement, the overflow can be run to a

storage tank. Do not elevate the overflow hose. Do not use jointing cement on the fitting.

4. Overflow connections

5. Electrical connections

For added safety, peace of mind and ease of installation, your water softener is powered

by low voltage via a plug in transformer. This transformer must be connected to a

switched socket. Plug the transformer into the socket with the switch in the OFF position.

7. Blending control

6. Filling the brine cabinet, salt usage and the salt alarm

All machines are factory set to produce

water that is soft. If you prefer water which

is less soft, turn the blending knob on the

left side of the valve anti-clockwise until

the water meets your requirements.

Notes on salt usage

Your water softener will only perform effectively if there is salt in the brine cabinet during

the regeneration process. It is therefore essential that the salt level does not fall lower

than 150mm in depth when measured from the base of the brine cabinet.

Note: The softener requires no priming. Do not add water to the brine tank.

During regeneration, salt will not enter your water system as the salt used in the

regeneration process is rinsed safely away to drain.

Your water softener is equipped with a low salt reminder, this monitors your water usage

and sounds an audible alarm whilst displaying the word “SALt”, as a reminder to check

the salt level. To reset the salt alarm, fill the brine tank with salt and press the key

twice.

PART TWO

WSINST 20pp A5 Seot 2017.indd 10 08/09/2017 08:43

0:00

Lift off this cover and connect the

jack plug of the power lead to the

control box behind the front panel

9. Switching on for the first time

"Check that the inlet / outlet hoses or couplings are properly connected i.e. inlet-to-inlet,

outlet-to-outlet.

"The by-pass arrangement should be in the open position i.e. the inlet and outlet valves

closed, by-pass valve open. Mains stop valve open.

"Check that the brine cabinet contains salt.

"Check that the water softener is connected to the drain and the overflow pipe is

connected. The drain and overflow must not be linked to each other.

8. Testing for the water hardness in your area

Water hardness can vary from one location to another. To determine the hardness of the

water feeding your water softener (un-softened supply), use the hardness test kit supplied.

"Fill the test bottle .

"Add the tablets to the solution one tablet at a time.

"Shake the bottle in between and keep adding tablets to the water until the solution turns

from wine red to blue, record the number of tablets as you go.

"Using the data table supplied with your kit, match up the number of tablets with the

hardness. You will need this figure when programming your water softener in the next

section of this manual.

supplied to the fill line with water from a hard water tap

P RA T

TWO

"Gently open the inlet valve so that water flows into the resin vessel.

"Switch on the power, you will hear the valve move quietly into the start position. When

the positioning process has been completed (which can take up to 10 minutes), you

will hear the movement stop. The valve has now reached its start position in

preparation for the programming procedure.

"Close the by-pass valve.

"Gently open the outlet valve.

"Check for leaks, take corrective action to stop leaks if required.

"Your water softener is now on line and you may start the valve programming procedure

set out in the next section of this manual.

Now place the water softener salt in the brine cabinet. Use care cubes (tablet salt)

Note: Tablet salt or block salt can be used for the WS455 and WS555 models, depending

on preference.

nly, this is available from your local BWT stockist.

Rigid plastic 3/4" overflow pipe (not supplied with the softener) should be connected to

the push fit elbow at the rear of the cabinet (see page 8). Run the pipe downhill to the

outside of the building. Take care that the overflow does not discharge where damage

could occur.

If the water softener is fitted in a cellar or basement, the overflow can be run to a

storage tank. Do not elevate the overflow hose. Do not use jointing cement on the fitting.

4. Overflow connections

5. Electrical connections

For added safety, peace of mind and ease of installation, your water softener is powered

by low voltage via a plug in transformer. This transformer must be connected to a

switched socket. Plug the transformer into the socket with the switch in the OFF position.

7. Blending control

6. Filling the brine cabinet, salt usage and the salt alarm

All machines are factory set to produce

water that is soft. If you prefer water which

is less soft, turn the blending knob on the

left side of the valve anti-clockwise until

the water meets your requirements.

Notes on salt usage

Your water softener will only perform effectively if there is salt in the brine cabinet during

the regeneration process. It is therefore essential that the salt level does not fall lower

than 150mm in depth when measured from the base of the brine cabinet.

Note: The softener requires no priming. Do not add water to the brine tank.

During regeneration, salt will not enter your water system as the salt used in the

regeneration process is rinsed safely away to drain.

Your water softener is equipped with a low salt reminder, this monitors your water usage

and sounds an audible alarm whilst displaying the word “SALt”, as a reminder to check

the salt level. To reset the salt alarm, fill the brine tank with salt and press the key

twice.

PART TWO

WSINST 20pp A5 Seot 2017.indd 11 08/09/2017 08:43

5. Charge Bar

Having set the display on the control panel, you will notice that during normal operation,

there is a charge bar running along the bottom of the display. This charge bar shows the

percentage of water softener capacity remaining since the last regeneration. Immediately

following a regeneration, the charge bar returns to 100%.

6. Resetting the display during normal operation.

If the time is to be adjusted during normal operation, press any key to illuminate the

display, press the

keys will alter the time as described on page12.

key once. The display will flash and indicate present time. Using the

7. Power loss

The AMECS system will maintain the individual programming parameters of the water

softener for up to 72 hours.

If the power cut lasts longer than 72 hours, the control will flash "0:00" when power is

returned to the control. The unit will continue to keep time from the moment power is

restored. In this situation, the time of day will need to be reset.

P RA T EERHT

8. Flow indicator

During normal operation, a flow indicator will flash on the display at a rate of one litre per

pulse when water is passing through the softener.

9. Cleaning

Your water softener may be cleaned using a damp cloth and a mild detergent. Do not use

bleaches, solvents or spirits as they may damage the surfaces.

4. Setting the Type of Salt. (See Fig4) “For WS455 and WS555 models only

To operate effectively, your water softener must be set to the type of salt that you intend to

use in the system. Block salt (BS) and care cubes (CC) are suitable. Use the

keys to select the type of salt used.

Pressing the button will return the display to the Normal Operation mode.

Programming is now complete and now further adjustments of the water softener is

required.

Remember to check the salt and water level in the brine cabinet weekly.

Set

00:00

Time

1. SETTING THE TIME OF DAY (see Fig1)

The first two digits (00) of the display will flash, prompting the installer to set the time.

The time is adjusted by using the keys. Pressing the key enters the hours.

The minutes are set by using the keys

Pressing the key once enters the minutes and moves the display into the Set

Hardness mode.

Set

00:00

Time

2. SETTING THE WATER HARDNESS (see Fig2)

The display default is 300 (typical hardness level) which indicates a setting suitable for

hard water with a value of 300 parts per million of hardness minerals. Use the

keys to adjust the setting to match that of the one you obtained / identified earlier. See

page 11 for details.

Pressing the set key once enters the hardness and moves the display to Set

Recharge Time Mode.

Hardness

Set

300

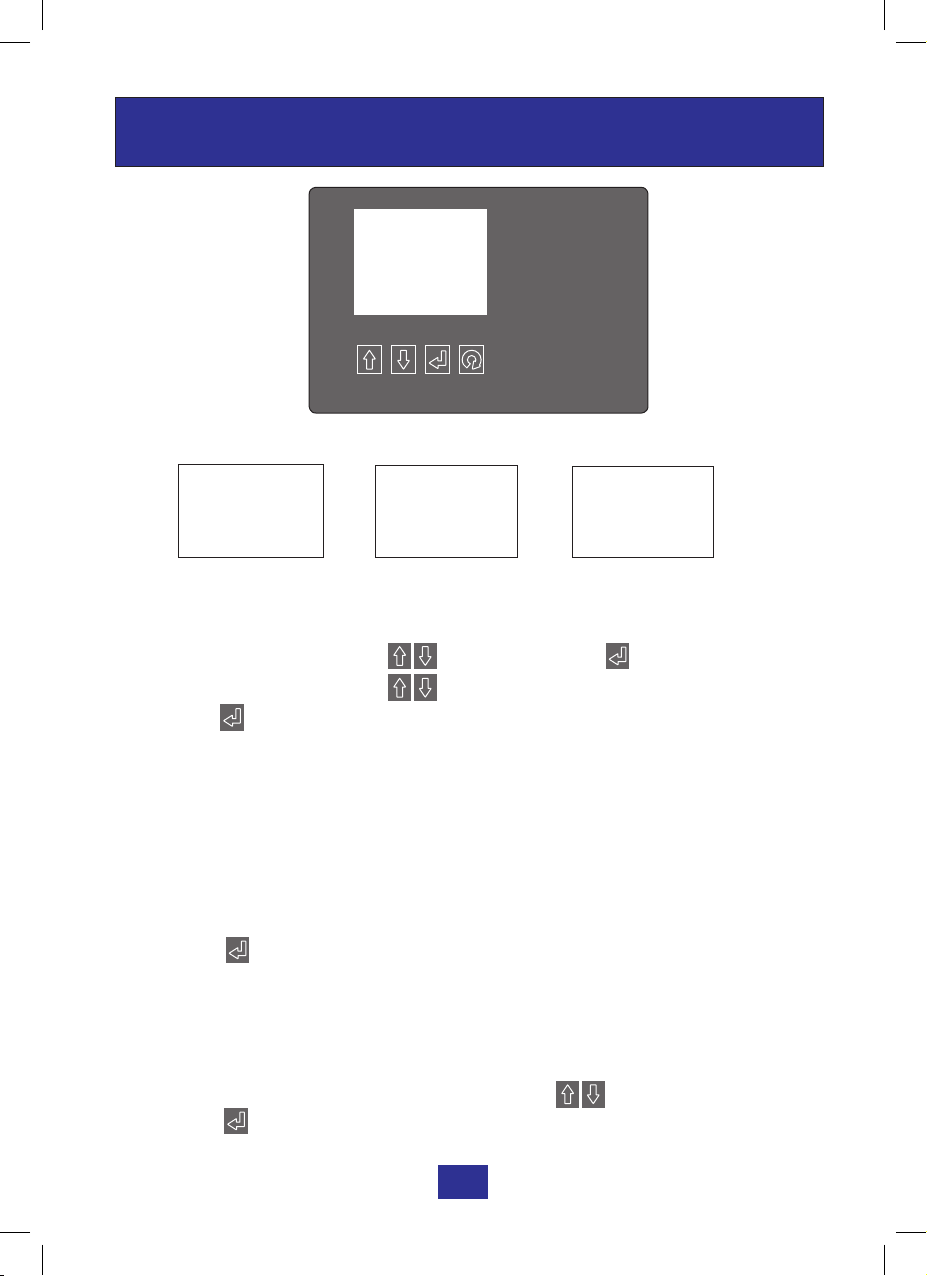

PROGRAMMING PROCEDURE

PART TWO

Set

02:00

RECHARGE Time

Fig1 Fig2 Fig3

3. SETTING THE RECHARGE TIME (see Fig3)

To operate effectively, your water softener needs to regenerate periodically (dependent

on the hardness of the supply and amount of water used). The default time of day when

this is to occur is 2.00am. To alter this setting, use the keys.

Pressing the key once enters the recharge time and returns the display to Normal

Operation Mode and no further adjustment of the water softener is required.

WSINST 20pp A5 Seot 2017.indd 12 08/09/2017 08:43

5. Charge Bar

Having set the display on the control panel, you will notice that during normal operation,

there is a charge bar running along the bottom of the display. This charge bar shows the

percentage of water softener capacity remaining since the last regeneration. Immediately

following a regeneration, the charge bar returns to 100%.

6. Resetting the display during normal operation.

If the time is to be adjusted during normal operation, press any key to illuminate the

display, press the

keys will alter the time as described on page12.

key once. The display will flash and indicate present time. Using the

7. Power loss

The AMECS system will maintain the individual programming parameters of the water

softener for up to 72 hours.

If the power cut lasts longer than 72 hours, the control will flash "0:00" when power is

returned to the control. The unit will continue to keep time from the moment power is

restored. In this situation, the time of day will need to be reset.

P RA T EERHT

8. Flow indicator

During normal operation, a flow indicator will flash on the display at a rate of one litre per

pulse when water is passing through the softener.

9. Cleaning

Your water softener may be cleaned using a damp cloth and a mild detergent. Do not use

bleaches, solvents or spirits as they may damage the surfaces.

4. Setting the Type of Salt. (See Fig4) *For WS455 and WS555 models only

To operate effectively, your water softener must be set to the type of salt that you intend to

use in the system. Block salt (BS) and care cubes (CC) are suitable. Use the

keys to select the type of salt used.

Pressing the button will return the display to the Normal Operation mode.

Programming is now complete and now further adjustments of the water softener is

required.

Remember to check the salt and water level in the brine cabinet weekly.

Set

00:00

Time

1. SETTING THE TIME OF DAY (see Fig1)

The first two digits (00) of the display will flash, prompting the installer to set the time.

The time is adjusted by using the keys. Pressing the key enters the hours.

The minutes are set by using the keys

Pressing the key once enters the minutes and moves the display into the Set

Hardness mode.

Set

00:00

Time

2. SETTING THE WATER HARDNESS (see Fig2)

The display default is 300 (typical hardness level) which indicates a setting suitable for

hard water with a value of 300 parts per million of hardness minerals. Use the

keys to adjust the setting to match that of the one you obtained / identified earlier. See

page 11 for details.

Pressing the set key once enters the hardness and moves the display to Set

Recharge Time Mode.

Hardness

Set

300

PROGRAMMING PROCEDURE

PART TWO

Set

02:00

RECHARGE Time

Fig1 Fig2 Fig3

3. SETTING THE RECHARGE TIME (see Fig3)

To operate effectively, your water softener needs to regenerate periodically (dependent

on the hardness of the supply and amount of water used). The default time of day when

this is to occur is 2.00am. To alter this setting, use the keys.

Pressing the key once enters the recharge time and returns the display to Normal

Operation Mode and no further adjustment of the water softener is required.

WSINST 20pp A5 Seot 2017.indd 13 08/09/2017 08:43

CHEC KLIST SO LUT IO N Page Section

PROBLEM: WATER STILL REMAINS HARD

Is there a minimum of

150m m of salt in the brine

cabinet?

Fill the brine cabinet with salt. 10 6

Is the power on? Switch the power on and check

connections.

10-11 5

Is the softener online? Close the by-pass valve and open

the inlet and outlet valves.

11 9

Is the hardness setting

correct?

Reset the hardness if required. 12 2

PROBLEM: WATER LEVEL IN BRINE CABINET REACHES OVERFLOW

Is the line pressure within

the specification of the

water softener?

Connect a pressure gauge to a

water outlet and check the pressure

is between 1.7 - 5.0 bar.

9 1

Pressure falls outside of

the water softener

specification.

Fit a pressure reducing valve or

booster pump as required.

9 1

Is there flow through the

drain line?

Check the drain line is not kinked,

blocked or frozen.

9 3

Has there been a power

Interruption?

Check that the power is on and the

connections are secure.

10 5

PART THREE

TROUBLESHOOTING GUIDE

IF YOUR WATER SOFTENER IS NOT PERFORMING AS IT SHOULD, PLEASE RUN

THROUGH THE CHECK LIST BELOW

Note: If any overflow situation occurs or if any of the above requires action reduce the

water level by half, initiate a regeneration by pressing and holding the manual

regeneration key for more than six seconds.

P RA T EERHT

10. Manual regeneration ( )

Under normal operating conditions, your water softener will regenerate automatically and

you should not normally have to regenerate the unit manually. If, however, a manual

regeneration is required, then follow the procedure set out below.

1. Press any key to illuminate the display.

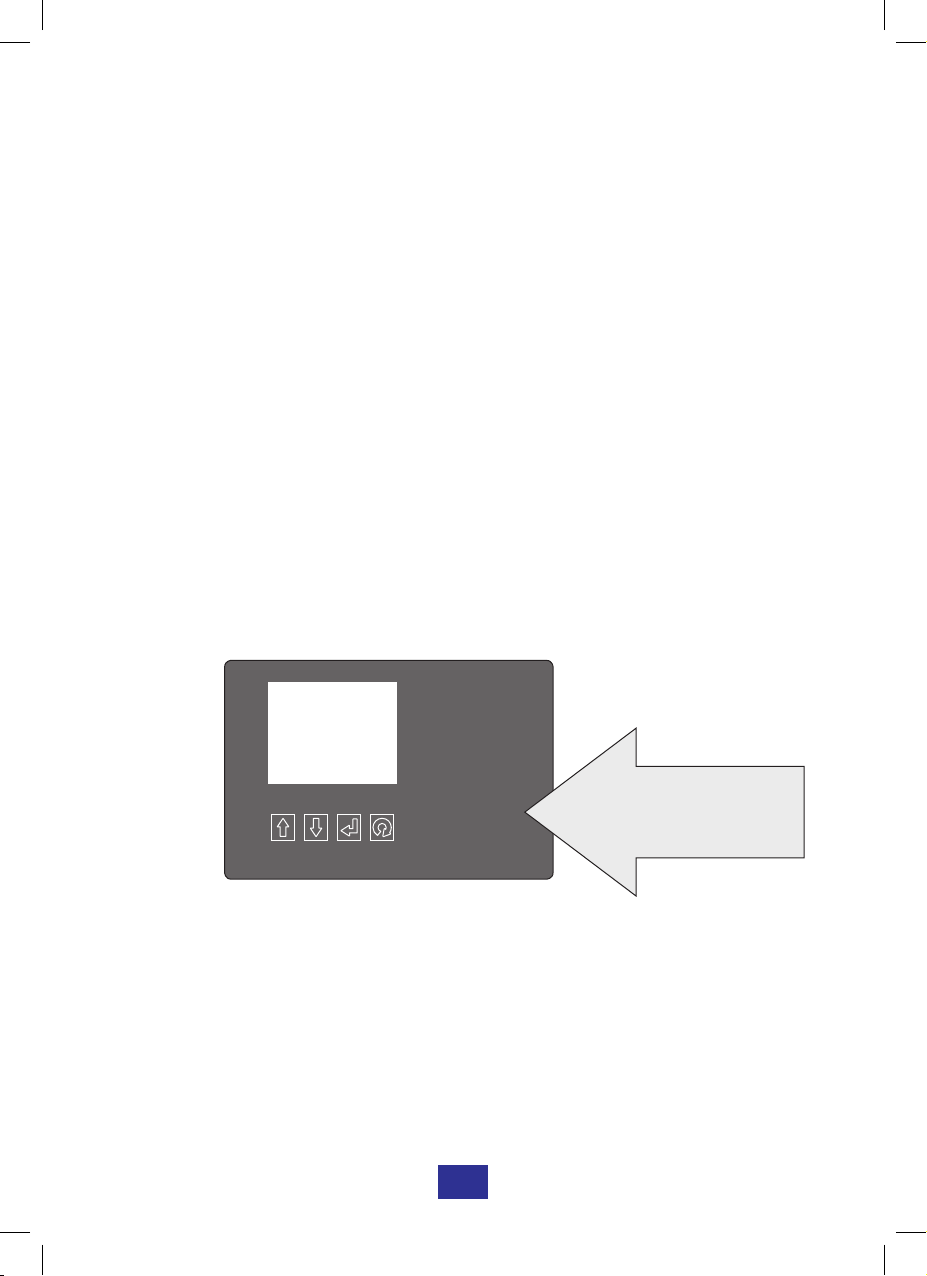

2. Momentarily pressing the button (symbol underneath the display and furthest to

the right) will illuminate Recharge Tonight on the display and perform a regeneration at

2.00a.m. regardless of the remaining water softener capacity.

3. If the button is subsequently pressed, this will clear the Recharge Tonight indicator

from the display and cancel the Recharge Tonight feature.

4. If the is pressed down for approximately six seconds, the controller will flash the

Recharge display and immediately commence the regeneration cycle which cannot be

cancelled once started.

PART EERHT

11. Salt usage

As your water softener

uses a proportional brining system, more frequent regenerations do not necessarily

mean high water / salt usage.

12. Increase in number of residents

Sudden changes in your water usage should not affect your water softeners

performance. If, however, the number of guests staying with you increases, you will

notice that the water usage patterns will alter. This may cause your water softener to

regenerate more often than normal. As the water usage returns to its normal level, the

number of regenerations will also return to normal.

Your water softener is controlled by a microprocessor which constantly monitors water

usage. The system will build up a history of your water requirements and calculate the

most economical regeneration pattern. This will ensure a constant supply of softened

water whilst maintaining high levels of water and salt efficiency.

13. Cabinet Water Level

During normal operation, the water level inside the water softener cabinet will rise and

fall as required by the regeneration process. If the water softener is used within the

specified operational parameters, the water level should not reach the overflow

connection. If, however an overflow situation occurs, please refer to the troubleshooting

section on page 15 to diagnose the problem.

Following any overflow situation, reduce the water level by half and initiate a manual

regeneration as described above.

Note: Check the water level weekly and following any unplanned event, e.g. power

failure.

WSINST 20pp A5 Seot 2017.indd 14 08/09/2017 08:43

CHEC KLIST SO LUT IO N Page Section

PROBLEM: WATER STILL REMAINS HARD

Is there a minimum of

150m m of salt in the brine

cabinet?

Fill the brine cabinet with salt. 10 6

Is the power on? Switch the power on and check

connections.

10-11 -

Is the softener online? Close the by-pass valve and open

the inlet and outlet valves.

11 9

Is the hardness setting

correct?

Reset the hardness if required. 12 2

PROBLEM: WATER LEVEL IN BRINE CABINET REACHES OVERFLOW

Is the line pressure within

the specification of the

water softener?

Connect a pressure gauge to a

water outlet and check the pressure

is between 1.7 - 5.0 bar.

9 1

Pressure falls outside of

the water softener

specification.

Fit a pressure reducing valve or

booster pump as required.

9 1

Is there flow through the

drain line?

Check the drain line is not kinked,

blocked or frozen.

9 3

Has there been a power

interruption?

Check that the power is on and the

connections are secure.

10 5

PART THREE

TROUBLESHOOTING GUIDE

IF YOUR WATER SOFTENER IS NOT PERFORMING AS IT SHOULD, PLEASE RUN

THROUGH THE CHECK LIST BELOW

Note: If any overflow situation occurs or if any of the above requires action reduce the

water level by half, initiate a regeneration by pressing and holding the manual

regeneration key for more than six seconds.

P RA T EERHT

10. Manual regeneration ( )

Under normal operating conditions, your water softener will regenerate automatically and

you should not normally have to regenerate the unit manually. If, however, a manual

regeneration is required, then follow the procedure set out below.

1. Press any key to illuminate the display.

2. Momentarily pressing the button (symbol underneath the display and furthest to

the right) will illuminate Recharge Tonight on the display and perform a regeneration at

2.00a.m. regardless of the remaining water softener capacity.

3. If the button is subsequently pressed, this will clear the Recharge Tonight indicator

from the display and cancel the Recharge Tonight feature.

4. If the is pressed down for approximately six seconds, the controller will flash the

Recharge display and immediately commence the regeneration cycle which cannot be

cancelled once started.

PART EERHT

11. Salt usage

As your water softener

uses a proportional brining system, more frequent regenerations do not necessarily

mean high water / salt usage.

12. Increase in number of residents

Sudden changes in your water usage should not affect your water softeners

performance. If, however, the number of guests staying with you increases, you will

notice that the water usage patterns will alter. This may cause your water softener to

regenerate more often than normal. As the water usage returns to its normal level, the

number of regenerations will also return to normal.

Your water softener is controlled by a microprocessor which constantly monitors water

usage. The system will build up a history of your water requirements and calculate the

most economical regeneration pattern. This will ensure a constant supply of softened

water whilst maintaining high levels of water and salt efficiency.

13. Cabinet Water Level

During normal operation, the water level inside the water softener cabinet will rise and

fall as required by the regeneration process. If the water softener is used within the

specified operational parameters, the water level should not reach the overflow

connection. If, however an overflow situation occurs, please refer to the troubleshooting

section on page 15 to diagnose the problem.

Following any overflow situation, reduce the water level by half and initiate a manual

regeneration as described above.

Note: Check the water level weekly and following any unplanned event, e.g. power

failure.

WSINST 20pp A5 Seot 2017.indd 15 08/09/2017 08:43

P RA T EERHT

Notes

* Flow rates are from 10 and up to a peak of 50 litres / min. At flow rates under 10 litres /

min, the hardness may not be effectively removed from the water. If peak flow rates are

sustained for longer than 10 minutes, the softener capacity may be reduced resulting in

hard water breakthrough.

**The proportional brining control system calculates the exact amount of water and salt

required to regenerate the water softener. The amounts used will vary depending on water

usage patterns.

SPECIFICATION TABLE

Model WS355 WS455 WS555 WS655 WS755

Size 14 Litre 10 Litre 14 Litre 20 Litre 25 Litre

Height (mm) 602 532 602 804 804

Width (mm) 270 270 270 270 270

Depth (mm) 480 480 480 480 480

Unit weight Kg (empty) 22 18 22 27 32

Unit weight Kg (in service) 50 40 50 61 66

Maximum peak flow rate L/min* (hi-flo) 30 (50) 50 50 30 (50) 30 (50)

Maximum continuous flow rate L/min (hi-flo) 25 (30) 30 30 25 (30) 25 (30)

Basic flow rate (flow @ 1 bar pressure loss) 26 24 26 28 28

Minimum flow rate L/min* (hi-flo) 10 (10) 10 (10) 10 (10) 10 (10) 10 (10)

Min/Max salt usage per regeneration Kg** 1.2-2.4 0.3-1.2 0.6-2.0 0.9-2.5 1.2-3.0

Water used per regeneration litres** <80 <75 <80 <125 <145

Maximum pressure (bar) 5.0 5.0 5.0 5.0 5.0

Minimum pressure (bar) 1.7 1.7 1.7 1.7 1.7

Maximum water temperature °C 49 49 49 49 49

Minimum water temperature °C 5 5 5 5 5

Primary voltage a.c. (transformer) 220 220 220 220 220

Secondary voltage d.c. (controller) 12 12 12 12 12

Inlet / outlet connections (BSP) ¾” ¾” ¾” ¾” ¾”

Drain connection (tube) ½” ½” ½” ½” ½”

Salt storage Capacity – Block/ Tablet (Kg) n/a /20 n/a /24 n/a /248 /15 8 / 19

Maximum Softened Water Capacity (Litres) 2500 1667 2500 3333 4167

PART EERHT

Note. If the home position is not detected within 10 minutes, the main display will show

an Err 1 message to indicate a controller error and an audible alarm will sound. The

error condition can only be cleared by removing and re-applying the power.

IF PROBLEM PERSISTS, PLEASE CALL YOUR BWT STOCKIST OR CONTACT

OUR TECHNICAL HELP DESK ON 01494 838 100.

CHECKLIST SOLUTION Page Section

PROBLEM: NO WATER

Is the mains stop valve

open?

Open the mains stop valve. 11 9

Are the inlet and outlet

valves of the water softener

open?

Open the inlet and outlet valves to

the water softener.

11 9

PROBLEM: WATER RUNS FROM THE DRAIN CONSTANTLY

Is the unit in recharge

mode?

If yes, this is normal, wait until the

recharge is complete.

There should be no flow to drain in

the service position. Isolate the

softener and call for service.

11 9

PROBLEM: EXCESSIVE SALT USAGE

Check the hardness

setting.

Reduce the hardness if incorrect. 11-12 8

PROBLEM: ELECTRONIC DISPLAY

The display shows error

code "Err 1", audible alarm

sounds, (see note below).

Check all the connections are

secure. Turn the power off for 10

seconds then turn back on, allow

the system to reset.

10 5

The display shows error

code "SALt", and an

audible alarm sound.

The low salt alarm is active. Fill the

brine cabinet with salt. Pressing the

SET key will reset the salt alarm to

full capacity of salt.

10 6

Is the digital display blank? Check the power is turned on and

all the connections are secure.

10 5

PROBLEM: UNIT REGENERATES AT THE WRONG TIME

Is the present time correct?

Is the regeneration time

correct?

Reset the present time.

Reset the regeneration time.

WSINST 20pp A5 Seot 2017.indd 16 08/09/2017 08:43

P RA T EERHT

Notes

* Flow rates are from 10 and up to a peak of 50 litres / min. At flow rates under 10 litres /

min, the hardness may not be effectively removed from the water. If peak flow rates are

sustained for longer than 10 minutes, the softener capacity may be reduced resulting in

hard water breakthrough.

**The proportional brining control system calculates the exact amount of water and salt

required to regenerate the water softener. The amounts used will vary depending on water

usage patterns.

SPECIFICATION TABLE

Model WS355 WS455 WS555 WS655 WS755

Size 14 Litre 10 Litre 14 Litre 20 Litre 25 Litre

Height (mm) 602 532 602 804 804

Width (mm) 270 270 270 270 270

Depth (mm) 480 480 480 480 480

Unit weight Kg (empty) 22 18 22 27 32

Unit weight Kg (in service) 50 40 50 61 66

Maximum peak flow rate L/min* (hi-flo) 30 (50) 50 50 30 (50) 30 (50)

Maximum continuous flow rate L/min (hi-flo) 25 (30) 30 30 25 (30) 25 (30)

Basic flow rate (flow @ 1 bar pressure loss) 26 24 26 28 28

Minimum flow rate L/min* (hi-flo) 10 (10) 10 (10) 10 (10) 10 (10) 10 (10)

Min/Max salt usage per regeneration Kg** 1.2-2.4 0.3-1.2 0.6-2.0 0.9-2.5 1.2-3.0

Water used per regeneration litres** <80 <75 <80 <125 <145

Maximum pressure (bar) 5.0 5.0 5.0 5.0 5.0

Minimum pressure (bar) 1.7 1.7 1.7 1.7 1.7

Maximum water temperature °C 49 49 49 49 49

Minimum water temperature °C 5 5 5 5 5

Primary voltage a.c. (transformer) 220 220 220 220 220

Secondary voltage d.c. (controller) 12 12 12 12 12

Inlet / outlet connections (BSP) ¾” ¾” ¾” ¾” ¾”

Drain connection (tube) ½” ½” ½” ½” ½”

Salt storage Capacity – Block/ Tablet (Kg) n/a /20 n/a /24 n/a /248 /15 8 / 19

Maximum Softened Water Capacity (Litres) 2500 1667 2500 3333 4167

PART EERHT

Note. If the home position is not detected within 10 minutes, the main display will show

an Err 1 message to indicate a controller error and an audible alarm will sound. The

error condition can only be cleared by removing and re-applying the power.

IF PROBLEM PERSISTS, PLEASE CALL YOUR BWT STOCKIST OR CONTACT

OUR TECHNICAL HELP DESK ON 01494 838 100.

CHECKLIST SOLUTION Page Section

PROBLEM: NO WATER

Is the mains stop valve

open?

Open the mains stop valve. 11 9

Are the inlet and outlet

valves of the water softener

open?

Open the inlet and outlet valves to

the water softener.

11 9

PROBLEM: WATER RUNS FROM THE DRAIN CONSTANTLY

Is the unit in recharge

mode?

If yes, this is normal, wait until the

recharge is complete.

There should be no flow to drain in

the service position. Isolate the

softener and call for service.

11 9

PROBLEM: EXCESSIVE SALT USAGE

Check the hardness

setting.

Reduce the hardness if incorrect. 11-12 8

PROBLEM: ELECTRONIC DISPLAY

The display shows error

code "Err 1", audible alarm

sounds, (see note below).

Check all the connections are

secure. Turn the power off for 10

seconds then turn back on, allow

the system to reset.

10 5

The display shows error

code "SALt", and an

audible alarm sound.

The low salt alarm is active. Fill the

brine cabinet with salt. Pressing the

SET key will reset the salt alarm to

full capacity of salt.

8 6

Is the digital display blank? Check the power is turned on and

all the connections are secure.

10 5

PROBLEM: UNIT REGENERATES AT THE WRONG TIME

Is the present time correct?

Is the regeneration time

correct?

Reset the present time.

Reset the regeneration time.

WSINST 20pp A5 Seot 2017.indd 17 08/09/2017 08:43

WATER SOFTENER WARRANTY

PART EERHT

Your new water softener has been designed to give you many years of satisfactory service and is

guaranteed against faulty materials and workmanship for a minimum period of 12 months from the

date of purchase. Under the provision of this the warranty agreement, the warranty liability is limited

to the repair or replacement cost of the unit only and is subject to the terms shown below.

NOTE: Some models may be supplied with an extended warranty period as standard

Conditions and Terms of the Warranty:

This warranty provides benefits, which are additional to, and do not affect, your legal rights. BWT will

replace or exchange any necessary parts to repair free of charge any domestic water softener

supplied by BWT or it’s agents, located within the United Kingdom*, which is shown to the satisfaction

of BWT to be defective due to faulty workmanship or materials within a minimum of 12 months from

the date of installation. If any domestic water softener has, in BWT’s opinion, been used for

commercial purposes, the period of cover will be reduced to 6 months.

What services and associated costs are not included?

Repairs due to breakdown caused by but not limited to:

Use of the unit for purposes for which it was not designed or intended.

Incorrect installation e.g. the failure to follow instructions or advice given by BWT or it’s representatives.

Any defect caused by malicious or willful action, negligence, misuse or third party interference.

Any defect or damage occasioned by fire, lightening, explosion, flood, storm, frost impact or other extraneous cause.

Consequential loss arising as a result of a defect occurring in the water softener or installation.

Any defect or damage arising as a result of failure in the public electricity supply.

Any damage to equipment other than the water softener caused as a result of hard water.

Any damage to fixtures and fittings other than the water softener caused as a result of softened water.

Any salt used or wasted as a result of a defect or damage to the water softener.

The repair costs for: -

Consumer replaceable items including but not limited to filters, batteries and light bulbs.

Associate items but not part of the unit, including but not limited to, pipe work and electrical connections.

The expense of a service call when the service engineer finds no fault.

Extended Warranties

In addition to the standard warranty, BWT can offer you the option to further extend this protection with one of

their unique warranty and service plans that provides the peace of mind offered by an extended warranty and the

practical benefits of a service plan.

For further details please see the literature supplied with your new water softener or phone 01494 838100.

* UK Mainland Only

WSINST 20pp A5 Seot 2017.indd 18 08/09/2017 08:43
