C-Dax GoldLine Series User manual

OWNER’S MANUAL
FOR THE
GOLDLINE
THREE POINT LINKAGE
SPRAYERS
C-Dax Ltd
PO Box 1010, 145 Harts Road
Tiritea, Palmerston North
Ph: 06 354 6060
Fax: 06 355 3199
E-Mail: sales@c-dax.co.nz
www.c-dax.co.nz

SAFETY PRECAUTIONS
GOLDLINE SPRAYERS
AN IMPORTANT MESSAGE FOR OWNERS & OPERATORS OF
C-Dax ATTACHMENTS/ACCESSORIES
Be warned of the dangers of loading your vehicle in excess of its carrying capacity.
It is important to understand that any loads or attachments whether fastened to or placed on a vehicle will
alter the stability or handling characteristics of that vehicle.
Spray tanks or other equipment must be filled only to a level where the gross weight is within the load limit of
the vehicle.
Safety is a primary concern in the design, manufacture, sale, and use of spray tanks and other equipment.
As manufacturers of spray tanks and other equipment we want to confirm to you, our customers, our concern
for safety. We take this opportunity to remind you about the simple, basic and common sense rules of safety
when using spray tanks and other equipment. Failure to follow these rules can result in severe injury or death
to operators and bystanders.
It is essential that everyone involved in the assembly, operation, transport, maintenance and storage of this
equipment be aware, concerned, prudent and properly trained in safety.
This also applies to equipment that is loaned or rented to someone who has not read the owner’s manual
and is not familiar with the operation of application equipment.
•NEVER EXCEED THE LOAD LIMIT CAPACITY OF THE TRACTOR OR OTHER VEHICLE.
•ALL TRACTOR AND TRAILED EQUIPMENT TYRES SHOULD BE INFLATED TO
MANUFACTURERS RECOMMENDED OPERATING PRESSURES.
•PLEASE NOTE THAT FILLING THE SPRAY TANK OR OTHER EQUIPMENT COMPLETELY AND
OR THE ATTACHMENT OF ADDITIONAL EQUIPMENT TO THE TRACTOR MAY EXCEED THE
TRACTOR’S MAXIMUM LOAD CAPACITY AND IT IS NOT RECOMMENDED TO EXCEED
MANUFACTURERS GUIDELINES
•CARGO SHOULD BE PROPERLY DISTRIBUTED AND SECURELY ATTACHED.
•REDUCE SPEED WHEN CARRYING CARGO OR PULLING A TRAILER OR TRAILED
APPLICATION EQUIPMENT AND ALLOW GREATER DISTANCE FOR BRAKING.
•NEVER ALLOW ANYONE TO RIDE ON YOUR SPRAYER OR OTHER EQUIPMENT.
•ALWAYS FOLLOW THE INSTRUCTIONS IN THE OWNER’S VEHICLE MANUAL FOR CARRYING
CARGO OR PULLING A TRAILER.
•PROPER MAINTENANCE IN LINE WITH MANUFACTURER’S RECOMMENDED MAINTENANCE
PROCEDURES IS ESSENTIAL.
•BEFORE APPLYING CHEMICALS, READ THE LABEL OF THE CHEMICAL MANUFACTURER OR
SUPPLIER FOR PERSONAL PROTECTIVE EQUIPMENT AND OPERATE AS RECOMMENDED.
THE SAFETY OF ALL CHEMICALS USED IN AGRICULTURE IS UNDER THE JURISDICTION OF A
GOVERNMENT AGENCY, IE N.Z. MINISTRY FOR THE ENVIRONMENT; USA ENVIRONMENTAL
PROTECTION AGENCY. FURTHER LOCAL GOVERNMENT OR STATE LAWS MAY APPLY.
WARNING
To reduce the chance of VEHICLE instability, it is recommended to exercise EXTREME care while
spraying on a slope or hillside.
WARNINGS, CAUTIONS & NOTES
Throughout this document, text has been highlighted as warnings, cautions and notes.
Warnings are mandatory instructions. Failure to comply with these instructions may result in injury or damage.
Cautions are advisory. Failure to comply may result in poor operation or premature failure.
Notes are to assist with convenient operation of the equipment.

3
SAFETY
Before attempting to install or operate the equipment, read and understand the manual thoroughly. Failure to
comply with this instruction constitutes improper use and will invalidate the warranty.
Before using your pesticide, STOP, Read The Label
Mixing pesticides is a most dangerous time as it involves handling the concentrated material. For toxic
compounds, use protective clothing such as overalls, hat, gloves, boots and respirator.
When using concentrated sprays, full protection is necessary.
When using diluted sprays, wear a hat, long-sleeved cotton overalls, and boots. If you use pesticides regularly, it
is a good idea to always wear a respirator to avoid cumulative effect.
Other protection may be required. Check the label. It may have specific directions for the particular chemical.
Protective clothing should be properly cared for. Rinse heavily contaminated clothes in the open before washing
in the laundry.
Wash and dry protective clothing every day, but keep them separate from other washing.
Respirators need special care. Clean your respirator after spraying. Use soapy water then rinse and allow drying
completely before storing in a clean plastic bag. Replace canisters in respirator after eight hours use.
WARNING/CAUTION
PTO shaft length may be need to be trimmed depending on tractor.
The shaft length should be determined with the linkages adjusted appropriately
for the sprayer/spreader (i.e. level).
Read PTO Shaft instructions (attached to shaft) before fitting/operating unit,
failure to do so could cause damage to the unit attached.
Always exercise caution when working around PTO shafts. Never work in the
vicinity of a PTO shaft that has its drive engaged.

4
C-Dax
GOLDLINE
3PL SPRAYERS
OWNERS MANUAL
(Pt.No 2400-6200 Issue 16, January 2021)
TABLE OF CONTENTS
2 Safety Precautions
4 Contents
5 Introduction
Description
Specifications
6 Optional Equipment
6 Warranty
7 Liability
8 Installation
Pre Delivery Check
Delivery
9 Theory of Operation
Calibrating your Pressure Nozzle Boom
10 Nozzle tips
11 Operation
12 Hand Gun Spraying
Boom Spraying
13 Filter
Maintenance
After Use
Routinely
Annually or End of Season
14 Trouble Shooting
Pump Features Imovilli M50
Simple Rules for Dismantling and Re-Assembling Imovilli Pumps
17 Parts Diagrams
26 Equipment Decontamination Procedures
CAUTION
When the unit is not attached to the tractor it should be placed on flat solid ground. In addition the LEG
EXTENSION supplied with the unit must be extended and locked in place. Failure to do this could result in the
unit tipping over!

5
INTRODUCTION
CONGRATULATIONS on the purchase of your new GoldLine Three Point Linkage Sprayer. You join the many
thousands of New Zealand and overseas farmers who have recognised the remarkable usefulness and
uniqueness of C-Dax sprayers.
DESCRIPTION
The C-Dax GoldLine range of three point linkage sprayers, includes models from 600 Litre to 1000 Litre effective
tank capacity. The frames are manufactured of sturdy steel construction, and have mounting positions for the full
range of C-Dax spray booms and accessories such as hose reels and foam markers. All models are finished in
galvanized coating. A high quality multi outlet pressure regulator is fitted as standard.
The tanks are moulded from tough, high quality translucent UV stabilised polyethylene with easy access lids and
basket filters. All models have large capacity suction filters with removable elements.
Models are compatible with a range of PTO driven diaphragm pumps from 39-120L/Min in either medium or high
pressure.
There are four models in the GoldLine three point linkage range:
o600L GoldLine
o800L GoldLine
o1000L GoldLine
o1200L GoldLine
SPECIFICATIONS
(Specifications subject to change without notice)
GoldLine 600L
Frame Three Point Linkage Galvanised steel
Tank Size 600 litre translucent UV stabilised polyethylene
Tank Vent Labyrinth lid valve
Filters Filling filter basket
In line suction filter
Shut off Valve Removable suction filter valve
Pump Imovilli PTO driven M35 - 39L/Min 580 psi
M50 - 49L/Min 580 psi
D82 - 79L/Min 290 psi
Pump Oil SAE 30 antifoam
Control Unit Imovilli CD10
Drive Six spline telescoping 16 HP drive shaft
Attachment System Rigid surface mounting
GoldLine 800L
Frame Three Point Linkage Galvanised steel
Tank Size 800 litre translucent UV stabilised polyethylene
Tank Vent Labyrinth lid valve
Filters Filling filter basket
In line suction filter
Shut off Valve Removable suction filter valve
Pump Imovilli PTO driven M50 - 49L/Min 580 psi
D82 - 79L/Min 290 psi
D123 - 120L/Min 290 psi
Pump Oil SAE 30 antifoam
Control Unit Imovilli CD10
CD7 (D123 only)
Drive Six spline telescoping 16 HP drive shaft
Attachment System Rigid surface mounting

6
GoldLine 1000L
Frame Three Point Linkage Galvanised steel with fold out step
Tank Size 1000 litre translucent UV stabilised polyethylene
Tank Vent Labyrinth lid valve
Filters Filling filter basket
In line suction filter
Shut off Valve Removable suction filter valve
Pump Imovilli PTO driven M50 - 49L/Min 580 psi
M73 - 70L/Min 725 psi
D82 - 79L/Min 290 psi
D123 - 120L/Min 290 psi
Pump Oil SAE 30 antifoam
Control Unit Imovilli CD10
CD7 (D123, D174 only)
Drive Six spline telescoping 16 HP drive shaft
Attachment System Rigid surface mounting
Chemical induction Venturi type with isolation (standard on 1000L model)
OPTIONAL EQUIPMENT
Fresh Water Rinse Kit To Suit CD10 Pt.No.8427-1815
Fresh Water Rinse Kit To Suit CD7 Pt.No.1052
Chemical Induction Kit To Suit CD10 Pt.No.8427-1805
Chemical Induction Kit To Suit CD7 Pt.No.1051
Single Foam Marker 50L GoldLine FM50S Pt.No.1049
Double Foam Marker 50L GoldLine FM50D Pt.No.1050
Step Kit (TO SUIT 800/1000L FRAMES) Pt.No.4500-4300
Hose Reel Kit 50M, with Hose & Gun HR50 Pt.No.1063
Hose Reel Kit 100M, with Hose & Gun HR100 Pt.No.1064
Hose Reel Kit 150M, with Hose & Gun HR150 Pt.No.1065
6M Superline Boom 6AT Pt.No.1043
8M GoldLine Boom 8GDL Pt.No.1046
10M GoldLine Boom 10GDL Pt.No.1047
10M i-Boom (Hydraulic standard) i-Boom10 Pt.No.1091
12M i-Boom (Hydraulic standard) i-Boom12 Pt.No.1087
Boom Suspension Kit Pt.No.1055
WARRANTY
1WARRANTY AND LIABILITY
Use of the equipment
1.1 You must satisfy yourself as to the suitability of the equipment for your intended use(s) of the
equipment.
Your relationship with the retailer
1.2 Where you consider you have a warranty claim (or any other claim) in relation to the equipment,
you must contact the retailer who sold you the equipment, not C-Dax directly. The retailer is
responsible for liaising with C-Dax in respect of your claim.
Warranty
1.3 C-Dax warrants to the original purchaser that the equipment is sold free from defects in materials
and workmanship for a period of 12 months from date of first retail sale (6 months from date of
first retail sale if the equipment is sold in the U.K.) subject to the terms set out below.
1.4 C-Dax will at its option repair or replace the defective equipment (or part of the equipment) or
notify the retailer of the equipment to refund the purchase price for such defective equipment to
you in the event of a breach of this warranty, subject to the terms set out below.

7
Liability
1.5 Except for the warranty set out in clause 1.2 above, all warranties and representations (including
those expressed or implied by law) in respect of the equipment or advice relating to the
equipment provided to you by C-Dax are excluded to the extent permitted by law.
1.6 Notwithstanding anything else in this manual, C-Dax’s maximum liability to you (in the event that
such liability exists) in respect of any breach of warranty, any matter set out in this manual, or
for defective equipment or advice relating to the equipment provided is limited at C-Dax’s option
to:
(a) repairing or replacing the equipment (or part of the equipment); or
(b) notifying the retailer of the equipment to refund the price for the equipment paid by you.
1.7 Notwithstanding anything else in this manual, in no event will C-Dax be liable, whether in
contract, tort (including negligence) or otherwise:
(a) where you have altered or modified the equipment, misused or misapplied the equipment,
or the equipment has been subjected to any unusual, excessive or non-recommended use,
service or handling (including as set out in this manual);
(b) where the equipment is not transported, stored, handled or used in accordance with any
directions given by C-Dax (or the retailer) to you (including as set out in this manual);
(c) where the equipment:
(i) has been subject to neglect, accident or hireage, or the damage arises from fair
wear and tear, battery damage or chemical attack;
(ii) has been built to a customer’s specifications; or
(iii) has been dismantled, repaired or serviced other than by an authorised service agent
of C-Dax;
(d) for loss or damage caused by any factors beyond C-Dax’s control; or
(e) for any loss of profit or revenue, or for any special, indirect, incidental or consequential
damage, loss or injury of any kind suffered by you.
1.8 Where C-Dax elects to repair or replace the equipment it will use reasonable endeavours to do so
as soon as practicable but will not be liable for any delay in doing so.
1.9 You agree that the transactions entered into between you and the retailer (and C-Dax) are for the
purposes of trade and that, having regard to all relevant circumstances of the transactions, it is
fair and reasonable that the provisions of the Consumer Guarantees Act 1993 (NZ) do not apply
to those transactions to the fullest extent permitted by law.

8
INSTALLATION
Pre Delivery Check
Remove shrink-wrap then check major components for missing or damaged parts (remove any contents from
inside tank before filling)
- Frame (with linkage pins and clips)
- Tank
- Lid
- Filter
- Pump (Hose tails tight)
- Control unit and stand (clamps and hose tail tight) Gauge mount tight
- Drive shaft
- Suction filter (bowl tight)
- Check spray pump oil level in pump sight glass (¼–¾)
- Check spray pump accumulator pressure (0-2 bar boom spraying, 2-6 bar handgun spraying)
- Put water in tank (50-100 litres)
- Ensure filter valve is open
- Check for leaks in plumbing
- Connect drive shaft to pump. NB Drive shaft length may need to be trimmed to suit client’s tractors
- If boom or hose reel is fitted, check mounting bolts for tightness
- Ensure control unit pressure control is wound fully out (CCW) and dump valve set to 0 (dump position)
- Run pump at 540 rpm
- Ensure fluid flows in return line to tank and that there are no leaks
- Turn lever on to I (pressure position)
- Set Control unit pressure to 3 bar (45 psi) (See operating section for further control unit instructions)
- Open valve to boom and allow fluid to flow until all air is expelled from spray line.
- Ensure all nozzles spray evenly and there are no leaks
- Shut off control unit valve and ensure all nozzles stop spraying and do not drip
Delivery
(Assuming above pre delivery check has been completed)
- Fit sprayer to tractor
- Put water in tank (50-100 litres)
- Ensure filter valve is open
- Check for leaks in plumbing
-Connect drive shaft to pump. NB Drive shaft length may need to be trimmed to suit client’s tractor(s).
Keep universals within specification. I.e. 15 Degree angle
- Adjust top linkage length to level sprayer at normal operating height
- Ensure control unit pressure control is wound fully out (CCW) and dump valve set to 0 (dump position)
- Run pump at 540 rpm
- Ensure fluid flows in return line to tank and that there are no leaks
- Turn lever on to I (pressure position)
- Set Control unit pressure to 3 bar (45 psi) (See operating section for further control unit instructions)
- Open valve to boom or other spraying device, and allow fluid to flow until all air is expelled from spray line
- Ensure all nozzles spray evenly and there are no leaks
- Shut off control unit valve and ensure all nozzles stop spraying and do not drip

9
THEORY OF OPERATION
Spray fluid is placed in the tank where it is drawn through a suction filter and pumped to a control valve. The
excess flow from the valve is returned to the tank via the bypass hose. Fluid at a nominal pressure is pumped to
the spray outlet via the spray hose.
If a boom is fitted, when the pressure in the spray lines reaches 0.7 Bar (10 psi), the diaphragm check valves at
each nozzle body open allowing fluid to reach the spray tips.
If a hose reel is fitted fluid will pressurise the reel until the spray gun is operated.
The control unit has a pressure adjustment valve to regulate the spraying pressure with a maximum pressure
relief valve.
When the dump valve on the control unit is operated, the pump output is allowed to return to the tank with
reduced restriction. The resulting drop in pressure allows the DCVs in the boom to close and spraying will stop.
The CD7C compensating control unit also has individually adjustable metered bypass outlets fitted to each
controller outlet to return the unused flow from each valve. This allows the operator to turn individual boom
sections on or off without affecting the spraying pressure.
The CD7V Volumetric control unit also has a pressure regulating proportional flow control valve, and individually
adjustable metered bypass outlets fitted to each controller outlet. This allows the operator to vary speed within the
pressure range and maintain a set flow to the spray boom as well as being able to turn individual boom sections
on or off without affecting the spraying pressure.
At the spray tip, fluid is atomized at the spraying pressure and the fluid is propelled toward the target at the tip
angle (80or 110nominally).
The spraying pressure controls droplet size.
Application rate is controlled by tip size, and vehicle speed.
CALIBRATING YOUR PRESSURE NOZZLE BOOM KIT
Metric Version (litres, metres, kph)
(*Standard nozzle spacing 0.5 metres)
You will need to calibrate your sprayer to ensure the accurate application of chemical or liquid fertilizer. If too
much chemical or liquid fertilizer is applied you will be wasting money! If too little is applied you may need to
repeat the spraying, which will be wasting your money and time!
Chemicals are expensive. Repeat calibration frequently during the seasons to avoid disappointment.
To calibrate your sprayer you will need:
a) Nozzle calibrator or an accurate measuring flask
b) Watch or clock with seconds, or a stopwatch
c) Tape-measure
d) Calculator
NOTE: “Chemical “ also refers to liquid fertilizers.
1. Measure time taken to travel 100m at the speed used for spraying
NOTE
Maximum Recommended Spraying Speed is 12 Kph.
2. Run Sprayer and record output from each nozzle (in mls) for the same time it took to travel 100m.
Calculate average flow per nozzle.
I.e. Add individual nozzle output and divide by number of nozzles.
NOTE
Check any nozzle tip that is out by ± 5%
Discard any nozzle tip that is out by ± 10%
3. Litres/ha = Average Nozzle output (ml/nozzle) x 100
500 nozzle spacing mm)
4. Chemical to add to tank
Litres of Chemical = Water in Tank (L) x Label chemical rate/ha
L/ha (application Rate)

10
HINT: If you want to spray one hectare, but a tank load covers two, then simply put in half the amount of
chemical and water in the tank. Similarly if you want to spray half a hectare and a tank load covers two, then
quarter the amount of chemical and water in the tank, and so on.
Select Tip Size
There are several size tips available depending on the type of spray pattern required and the amount of spray
fluid required to be applied. All spray tips supplied by C-Dax LTD conform to an international standard for tip size
and colour coding. Use the spray tip chart below to select the required tip size for your application:
Tip Ref Code
Pressure Bar
Flow L/min
6kph
8kph
10kph
12kph
14kph
16kph
18kph
110-SF-01
Orange
2.0
0.33
66
50
40
33
28
25
22
2.5
0.37
74
56
44
37
32
28
25
3.0
0.40
80
60
48
40
34
30
27
3.5
0.43
86
65
52
43
37
32
29
4.0
0.46
92
69
55
46
39
35
31
110-SF-015
Green
2.0
0.49
98
74
59
49
42
37
33
2.5
0.55
110
83
66
55
47
41
37
3.0
0.60
120
90
72
60
51
45
40
3.5
0.65
130
98
78
65
56
49
43
4.0
0.69
138
104
83
69
59
52
46
110-SF-02
Yellow
2.0
0.65
130
98
78
65
56
49
43
2.5
0.73
146
110
88
73
63
55
49
3.0
0.80
160
120
96
80
69
60
53
3.5
0.86
172
129
103
86
74
65
57
4.0
0.92
184
138
110
92
79
69
61
110-SF-03
Blue
2.0
0.98
196
147
118
98
84
74
65
2.5
1.10
220
165
132
110
94
83
73
3.0
1.20
240
180
144
120
103
90
80
3.5
1.30
260
195
156
130
111
98
87
4.0
1.39
278
209
167
139
119
104
93
110-SF-04
2.0
1.31
262
197
157
131
112
98
87
Red
2.5
1.46
292
219
175
146
125
110
97
3.0
1.60
320
240
192
160
137
120
107
3.5
1.73
346
260
208
173
148
130
115
4.0
1.85
370
278
222
185
159
139
123
110-SF-05
2.0
1.63
326
245
196
163
140
122
109
Brown
2.5
1.83
366
275
220
183
157
137
122
3.0
2.0
400
300
240
200
171
150
133
3.5
2.16
432
324
259
216
185
162
144
4.0
2.31
462
347
277
231
198
173
154
110-SF-06
2.0
1.96
392
294
235
196
168
147
131
Grey
2.5
2.20
440
330
264
220
189
165
147
3.0
2.40
480
360
288
240
206
180
160
3.5
2.60
520
390
312
260
223
195
173
4.0
2.80
560
420
336
280
240
210
187
110-SF-08
2.0
2.61
522
392
313
261
224
196
174
White
2.5
2.92
584
438
350
292
250
219
195
3.0
3.20
640
480
384
320
274
240
213
3.5
3.46
692
519
415
346
297
259
231
4.0
3.70
740
555
444
370
317
277
247

11
OPERATION
Hand Gun Spraying
- Add chemical mix into the tank at handgun spraying rates recommended on chemical container
- Ensure control unit pressure control knob is wound fully out (CCW) and dump valve set to 0 (dump
position)
- Run pump at 540 rpm
- Ensure fluid flows in return line to tank
- Turn dump valve lever on control unit to I (pressure position)
- Set Control unit pressure to required handgun setting.
WARNING
To prevent damage to pump and control unit, do not exceed recommended maximum rated pressure on the
spraying components.
-Open valve to hand gun, and allow fluid to flow until all air is expelled from spray line
- When spraying has finished, turn dump valve lever on control unit to 0 (dump position), and control unit
pressure control is wound fully out (CCW)
- Proceed with rinsing procedures
WARNING
To prevent premature failure of drive shaft, DO NOT use drive shaft for heavy-duty equipment. Drive Shaft is
rated 16hp only (conforming to ISO 5674).
WARNING
To prevent premature failure of driveshaft, DO NOT exceed 15angle above or below horizontal on drive shaft
during operation.
WARNING
To prevent premature failure of spray pump diaphragms, pump speed MUST BE set at 550 RPM during
operation.
NOTE
If you are using a Geoline Electric control unit, ensure all compensating valves are closed during handgun
operation. Take note of each valve’s position and return them to this position once hand gun spraying is
complete.
To prevent premature failure of spray pump diaphragms, pump speed MUST BE set at 550 RPM during
operation.
Boom Spraying
- Add chemical mix into the tank at pressure nozzle spraying rates recommended on chemical container
- Ensure control unit pressure control knob is wound fully out (CCW) and dump valve set to 0 (dump
position)
- Run pump at 540 rpm
- Ensure fluid flows in return line to tank
- Turn dump valve lever on control unit to I (pressure position)
- Set Control unit pressure to required pressure setting (nominally 1-4 Bar (15-60psi)).
WARNING
To prevent damage to pump and control unit, do not exceed recommended maximum rated pressure on the
spraying components.
CAUTION
To allow the spraying system to operate effectively, any spraying device should not exceed 2/3 of the maximum
flow of the spray pump.
Example: 2.5 L/min x 12 nozzles = 30 L/min. 30 litres is more than 2/3 the capacity of the M35 pump so an
M50 would be required, or the nozzle flow reduced.
-Open valve/s to boom, and allow fluid to flow until all air is expelled from spray lines
- When spraying has finished, turn dump valve lever on control unit to 0 (dump position), and control unit
pressure control is wound fully out (CCW)
- Proceed with rinsing procedures

12
CAUTION
To prevent premature damage to sprayer or spraying components, do not travel at excessive speeds while
spraying. Spraying speeds must be matched to ground conditions. If ground is uneven or rough, REDUCE
SPEED.
WARNING
To prevent premature failure of drive shaft, DO NOT use drive shaft for heavy-duty equipment. Drive Shaft is
rated 16hp only (conforming to ISO 5674).
WARNING
To prevent premature failure of drive shaft, DO NOT exceed 15angle above or below horizontal on drive shaft
during operation.
WARNING
To prevent premature failure of spray pump diaphragms, pump speed MUST BE set at 550 RPM during
operation.
Step

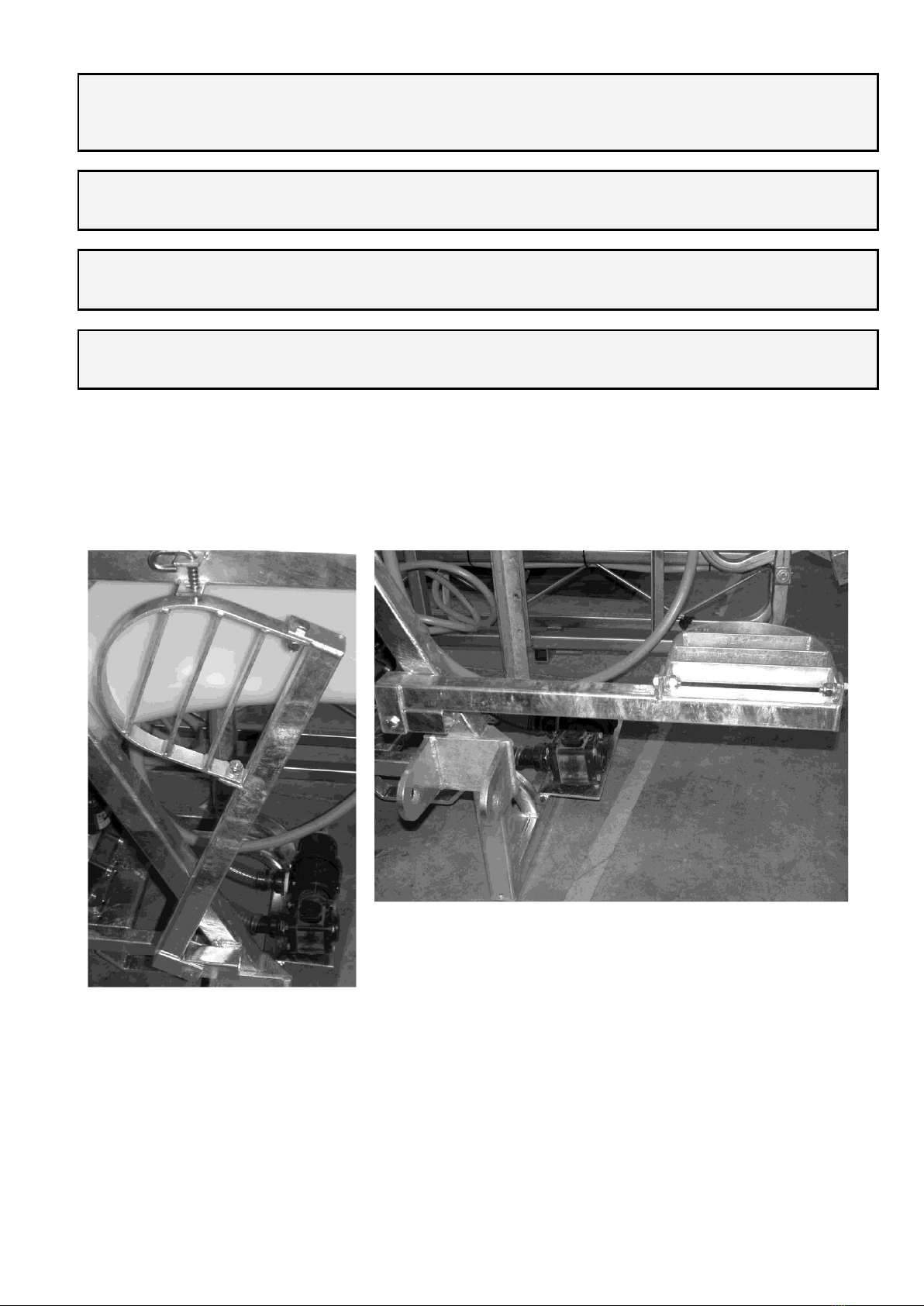

GoldLine 1000L models are fitted with a folding step as standard for access to lid and lid filter; this is also an
option for the 800L model.
To use the step, release the catch holding the step to the frame and lower down.
Fold down the footplate to provide an operating surface.
To fold away after use, raise the footplate and lift the step frame up until the catch locates into the hole in the side
of the footplate. Lock the catch closed by turning back against tank frame.

13

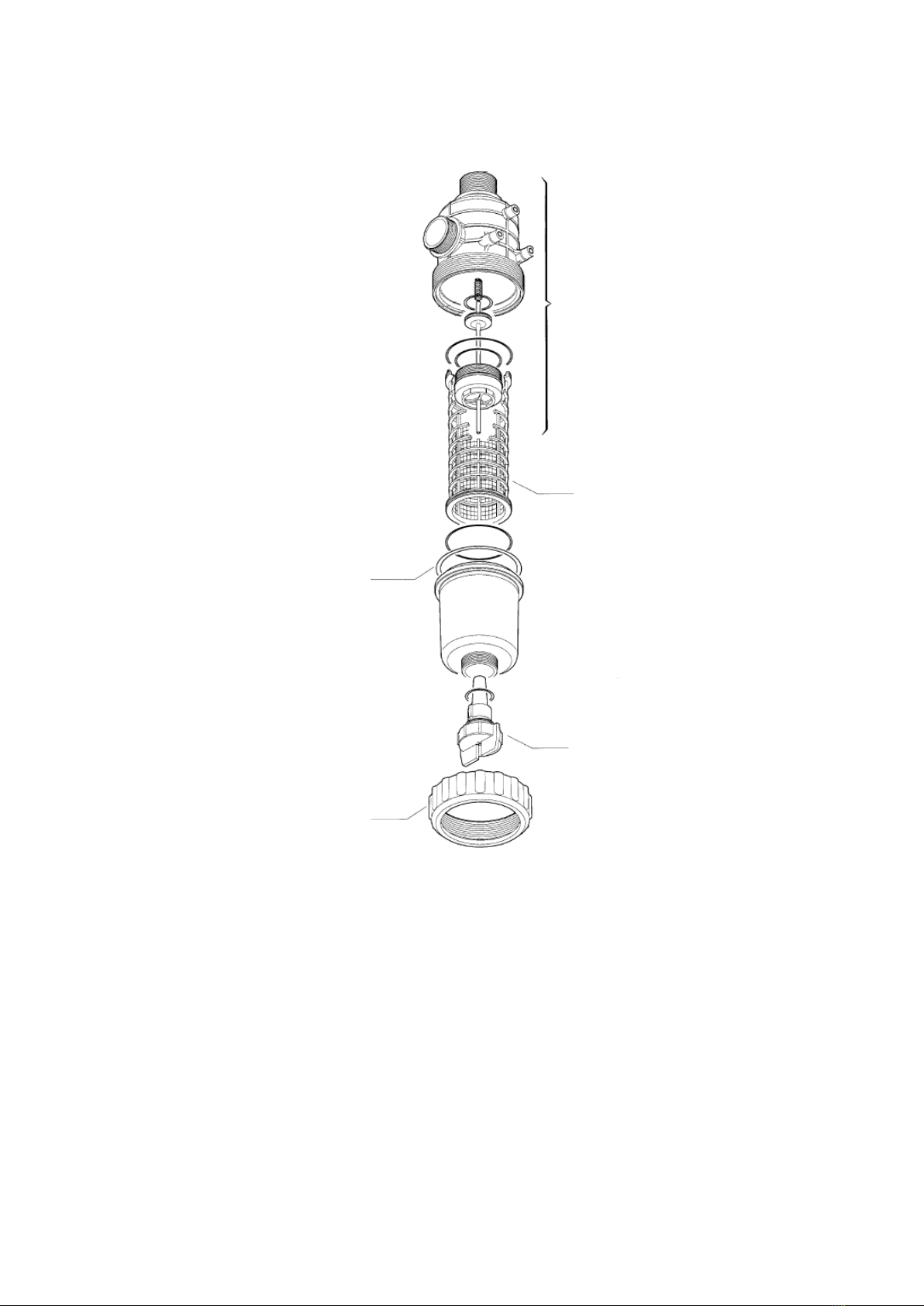

Filter
600, 800, & 1000L Models
The 600, 800, & 1000L Goldline models have a suction filter with built in isolation valve.
To isolate the filter for cleaning, push and turn the yellow handle 90on the base of the filter bowl to withdraw
valve to shut off tank flow and then remove filter bowl and element.
When filter bowl and element has been replaced, tighten bowl nut and refit shutoff valve to filter, push in and turn
90to lock in place.
MAINTENANCE
After Use
oAt the end of spraying, flush the system (using the tank rinsing system if fitted) three times with fresh
water. Finish with a final rinse using C-Dax Neutralise rinsing solution. Include the spraying device/s in
this operation.
oDrain tank using remote drain bung.
oRemove the strainer basket under the lid of the sprayer, rinse and refit.
oIsolate filter using gate valve or filter isolation bung.
oRemove the main filter element, clean and refit, ensuring that the filter bowl O-ring is in place, and the
bowl nut is tight. Replace element if damaged or unable to be cleaned.
oClean the outside of the sprayer to remove any spray residue.
oLubricate the control unit levers
oRemove and clean spray tips and nozzle filters on spray boom (if fitted).
oFully extend the extension legs after use to maintain stability.
Routinely
oCheck calibration of sprayer and boom (if fitted).
oLubricate any moving boom or accessory parts.
oLubricate drive shaft.
oCheck spray hoses for kinks or damage, replace if necessary.
oCheck pump accumulator pressure
oCheck the oil level and condition in the spray pump.
Annually or End of Season
oReplace oil in spray pump (or after 200 hours, which ever comes first). Use SAE 30 antifoam oil
oReplace nozzles on spray boom
oFlush tank sprayer completely. Only water to be left in the system.
600L, 800L, &
1000L Filter
Isolation Valve

14
WARNING
To prevent premature failure of spray pump, DO NOT leave water in the sprayer tank or pump when there is a
risk of frost.
oRemove filters and check. Reassemble filters.
oClean sprayer thoroughly and carefully. Apply CRC to all electrical connections.
oCheck pump for leaks and poor performance. If pump requires service have it done immediately. Any
delay may result in very costly repairs.
oUnscrew regulator pressure adjustment stem 5 to 10 turns.
oRemove all Booms and inspect check-valve diaphragms. Reassemble check-valve with collar –loosely
attached.
oOil boom hinges on Agriboom, Superline and GoldLine booms, and grease indexing plates.
oCheck hosing and wiring for kinks, cuts and chafing.
TROUBLE SHOOTING
PTO Driven Spray Units Pump Trouble Shooting
- If pressure has to be regularly adjusted, check for air leaks in suction lines (Filters without “o-ring etc).
DON’T FORGET TO ADJUST PRESSURE DOWN WHEN NEXT FILLING OR PUMP WILL BE
DAMAGED.
- Pump does not Prime –Check that the suction hose packing is in good condition, that there is no air
leaks in the suction hose and that the suction filter is not clogged.
- Irregular running of the pump –Clean valves of foreign particles and if necessary replace worn or
damaged valves.
- Pump runs but lacks pressure –This depends on the regulating valve sealing or from the obstruction of
the delivery valve by foreign particles or wear. Replace the regulating valve and clean and if necessary
replace the delivery valve.
- Irregular delivery of water –(vibration of delivery pipe and pressure gauge) –check the seal on the
suction hose and that the pressure of the air in the accumulator reaches the advised figure.
- Pump level leaks oil - Oil level too high. The leakage of oil mixed with water (whitish or thick) means the
breakage of a diaphragm. In this case, stop the pump immediately, empty and drain it completely, wash
inside with diesel oil to prevent oxidation of internal parts and replace diaphragm. After this operation it is
necessary to expel the air bubbles formed between the piston and the diaphragm.
Pump Features Imovilli M50
Points to note:
Accumulator Diaphragm
- Under the Red Dome
- Pressure = 40% operating pressure
- Evens out pulsing of pump outlet
End Diaphragms
- Bolts MUST BE KEPT TIGHT to prevent cracking of the housing. If they keep coming loose, check PTO
shaft balance.
- Diaphragm is fitted edge in and writing out. Cylinder heads must be tight.
- If fluid is outside the diaphragm the damage is probably a mechanical problem e.g. PTO speed too low or
failed or worn pistons rings (located under sleeve under end plate diaphragm).
- Hydraulic diaphragm pump –There is no contact between piston and diaphragm because cavity fills with
oil.
Cylinder Head (End Plate)
- Suction diaphragm reduces “hammering” in pump.
- Pump contains four valves (two each side)
- Valves on PTO side are inlet (cap uppermost)
- Valves on pressure side are outlet (spring uppermost)
- Valve housings have “O”-rings
- Check for wear on stainless steel surfaces
- Check for wear on springs
- If either worn, replace valve assembly

15
Simple Rules for Dismantling and Re-Assembling Imovilli Pumps
Point 1
Before completely dismantling the pump, check that the causes for irregular running or non-function are not
amongst those indicated in the maintenance and instructions booklet supplied with each pump.
Point 2
To substitute diaphragms or internal moving parts, dismantle in the following order:
A) Suction manifold(s) (according to the type of pump)
B) Heads
C) Diaphragms
D) Cylinders
E) Pump shaft and then all the moving parts
The exploded drawing in the instructions booklet and spare parts catalogue should be of assistance.
Point 3
Carefully wash all the components with diesel oil, blow clean with compressed air, and then inspect all the parts:
Diaphragms
By inspecting the diaphragm damage one can determine the type of problem.
If the diaphragm has a cut (on the oil side) of the same diameter as the piston, the pump has been running at a
speed of less than 250-300 rpm.
Whenever there is a diaphragm failure on the oil side, with a circular rupture corresponding to the size of the
piston, one should always check that the piston/cylinder are not scored or worn. Otherwise, if this is the case, the
new diaphragms would have a very short life since the oil will not remain between the piston and diaphragm and
the latter will work only mechanically (without hydraulic support).
If there is a circular or semi-circular cut on the centre/outside of the diaphragm on the liquid side, the pump has
worked under a vacuum due to: Blocked suction Equipment, - “soft “ suction tubes which flatten during operation,
- under dimensioned filter equipment, or a dirty filter.
All these result in too much oil gathering between the piston and the diaphragm, which causes the diaphragm to
literally burst.
Diaphragms can be damaged also if the client will not release pressure when stopping/starting the pump.
N.B. The use of particularly corrosive or concentrated products can also alter the diaphragm structure causing
swelling of the part in contact with the liquid and increasing the likelihood of failure.
Cylinders
These should have no lines from the oil supply holes outwards (flange). If they do they should be replaced.
Connecting Rods
There should be no excessive play between connecting rods/bearings and the connecting rods and their coupling
rings. To check this, position shaft in a vice and mount bearings, connecting rods and rings. The play should not
exceed 0,2-0,3mm.
Crank Shaft
The shaft should have no lines or wear on the part where the connecting rods work.
Shaft Seal Bearings
Premature and repeated impute shaft oil seal failure. If the seat and the shaft are not scored or worn and
tolerances are ok (if not pump will leak also when sitting) the only reason beside normal wear of the seal
(increased in dusty conditions) can be damage on the seal itself when placed into position. The keyway has very
sharp edges and much attention should be given to this operation. It is always advisable to protect the seal with a
thin pipe.
Bearings
The bearings should be rust-free and have no excessive play. Check that the rollers and balls in the bearings are
in perfect condition.

16
Pistons
Replace the piston skirt if it is lined, especially on a low-pressure pump, which has no piston rings. Check that
play on the piston pins is not excessive.
Piston Rings
On the pumps equipped with these rings check that they have no marks or breakages. If necessary, replace.
Check Valves
Carefully check the cage. If cracked or very worn on the fins, replace. The seats are suitable, even if worn,
provided that the working surface (where the cap beats) has no cuts or deformations. The same applies to the
valves. The springs should not be worn. It is preferable to change the whole valve assembly.
N.B. Excessive wear on the check valves on a pump which has only worked a few hours could be caused by
the pump running at a higher speed than the maximum allowed (550 rpm) or by the presence of sand or
other abrasive substances in the liquid pumped.
Pressure Accumulator
It is always advisable to check the wear on the lower accumulator diaphragm and replace it if necessary. Inflate
according to the working pressure as specified below:
Pump Pressure (bar) Air Pressure (bar)
0 –5 0 –2
5 –15 2 –6
15 –20 6 –8
When dismantling a pump, which has been working, it is advisable to replace the O-rings gaskets and seals in
general to avoid the risk of having to check everything again.
Point 4
To reassemble proceed as when dismantling but in reverse, bearing in mind the following:
A) All the shoulder rings should be mounted with the bevel in correspondence with the shaft shoulder.
B) On pumps with piston rings, these should be positioned on the piston with the gaskets diametrically
opposite
C) The cylinders should be re-mounted with at least 4 oil supply holes in the direction of the shaft rotation to
assist air drainage, checking that the piston ring joints are not on line with the cylinder holes.
D) The check valve must be positioned correctly. Looking at the suction manifold can help. The valve near
the suction manifold must allow the liquid to enter the head; consequently the delivery valves should be
mounted the other way up.
NOTE
If all valves are mounted (by mistake) in the suction direction the pump will explode on starting. If mounted in
the delivery direction, the pump will not be able to suck.
E) Before re-mounting the heads, make sure that the moving parts turn freely. If they are stiff or tight, check
the assembly of the moving parts to ensure that this has been carried out correctly. One can then
proceed with assembling the heads.
F) It is a good idea to remember that a plastic hammer can be useful in both dismantling and re-assembling
the pump, but is should always be used with care.
G) After Completing assembly, fill with oil to the maximum tank capacity.
DO NOT REPLACE STOPPER.
H) Expel Air as follows:
Turn the pump shaft slowly by hand keeping it inclined with respect to the transversal shaft. Bubbles of air
will rise to the surface in the oil tank and the level will fall. Keep the oil level topped up so that air does not
enter the pump. Continue for a few minutes until no more air bubbles are expelled from the tank. Top up
the oil level to between ¼ and ¾ of the sight glass, then replace the oil stopper.
I) To eliminate any further air trapped between the piston and the diaphragm, loosen the oil tank stopper,
run the pump at 200-300 rpm for a few minutes without pressure. Check the oil level again and after
screwing the stopper shut the pump can work normally.

17
Suction filter 1 ½” with shutoff valve
Part number #3400-8340
ORing-Imperial-
3/16"x3 3/4"-N70
Not Stocked
3400-4920
3400-5500
Not Available

18
HG2 Handgun
Part number #4000-3900
Item No
Part No
Description
Qty
18
6200-1640
Pipe-Fitting-Connector-Straight-10 Shank-Incl 1/2BSPF Fly Nut-Brass
1
17
4000-3920
Hand Gun-HG2-Bush-Threaded-Needle Shaft-Rear
1
16
4000-3916
Hand Gun-HG2-Bolt & Nut-Trigger
1
15
4000-3940
Hand Gun-HG2-Nut-Needle Shaft Adjust
3
14
4000-3954
Hand Gun-HG2-Trigger Assembly
1
13
4000-3922
Hand Gun-HG2-Connector-Hose to Gun-1/2BSPMx1/2BSPM
1
12
4000-3926
Hand Gun-HG2-Gasket-Washer-Swivel Connect-26x18x2-Rubber
1
11
4000-3932
Hand Gun-HG2-Lock-Trigger
1
10
4000-3948
Hand Gun-HG2-O'Ring-Nozzle Tip
1
9
4000-3938
Hand Gun-HG2-Nozzle-Tip-2.5mm
1
9
4000-3936
Hand Gun-HG2-Nozzle-Tip-2.0mm
1
9
4000-3934
Hand Gun-HG2-Nozzle-Tip-1.5mm
1
8
4000-3942
Hand Gun-HG2-Nut-Nozzle Tip Retaining
1
7
4000-3950
Hand Gun-HG2-Seal-Teflon
1
6
4000-3930
Hand Gun-HG2-Housing-Nozzle Adjusting
1
5
4000-3946
Hand Gun-HG2-O'Ring-Needle Shaft-Rear
1
4
4000-3952
Hand Gun-HG2-Shaft-Needle/Flow Adjusting-One Piece
1
3
4000-3924
Hand Gun-HG2-Gasket-Washer-Needle Shaft
1
2
4000-3944
Hand Gun-HG2-O'Ring-Needle Shaft
1
1
4000-3928
Hand Gun-HG2-Housing-Gun Body
1

19
CAUTION
To allow the spraying system to operate effectively, any spraying device should not exceed 2/3 of the maximum
flow of the spray pump.
Example: 2.5 L/min x 12 nozzles = 30 L/min. 30 litres is more than 2/3 the capacity of the M35 pump so an
M50 would be required, or the nozzle flow reduced.
M35 Pump
Part number #6800-7700
ITEM NO.
QTY.
e9 Part No
e9 description
1
1
5500-7090
ORing-Metric-3.1x54.4mm-N70
2
1
7400-4200
Rod-Imovilli-Connecting-M35
3
1
2300-4320
Diaphragm-Imovilli-Piston-M25;M35
4
1
6220-4360
Piston-Imovilli-Pump-M35
5
1
6100-4320
Pin-Imovilli-Piston-M35
6
1
1980-4000
Circlip-Imovilli-Gudgeon-M35
7
1
9100-4320
Washer-Imovilli-Chamferred-1750
8
1
4060-2050
Head-Imovilli-Cylinder-M35-LH
9
1
5450-4600
ORing-Imperial-3/32x11/16"-N70
10
1
6200-4230
Pipe-Fitting-Imovilli-Elbow-25 Shank-Swivel-25mm-Plastic
11
1
1600-4400
Cap-Imovilli-Oil Filler-M25;M35;M50;D82;D113
12
1
5400-3000
Oil Filler-Imovilli-M25;M35;M50
13
1
3040-0835
Fastener-Imovilli-Cap Head-Allen Screw-M8x35-Grade 8.8-ZP
14
1
9100-4320
Washer-Imovilli-Chamferred-1750
15
1
5500-2020
ORing-Metric-2.0x15mm-V75
16
1
8900-4340
Valve-Imovilli-Check-Complete-M25;M29;M35
17
1
5450-4580
ORing-Imperial-3/32"x3/4"-N70
18
1
5450-4620
ORing-Imperial-3/32"x1"-N70
19
1
3060-0830
Fastener-Imovilli-Set Screw-Hex-M8x30-8.8 Grade-ZP
20
1
4060-2050
Head-Imovilli-Cylinder-M35-LH
21
1
5450-4590
O'Ring-Imperial-3/32''x13/16''-N70
22
1
6200-4260
Pipe-Fitting-Imovilli-Nut-Swivel-1''-Plastic

20
M50 Pump
Part number #6800-7900
Item No.
QTY
Part No.
Description
1
1
9100-4310
Washer-Imovilli-Chamfered-M16
2
1
7800-4300
Seal-Imovilli-Oil-30x47x7-Nitrile
3
1
2250-4250
Cover-Imovilli-Bearing-M50,D82,D113,D123
4
2
1140-4300
Bearing-Imovilli-Big End-M50
5
2
2300-4330
Diaphragm-Imovilli-Piston-M30,M50,M73
6
2
9100-4330
Washer-Imovilli-Diaphragm to Piston-M30,M50,M73,M104,M135
7
4
9100-4360
Washer-Imovilli-Flat-M12
8
1
2010-4200
Clamp-Imovilli-Hose-Suction Damper-M30,M50
9
1
2300-4380
Diaphragm-Imovilli-Suction Damper-M50-41mm OD
10
1
2250-4400
Cover-Imovilli-Valve-Suction Damper Side-M30,M50
11
1
2250-4200
Cover-Imovilli-Bearing-M35,M50,D82,D123
12
8
3040-0830
Fastener-Imovilli-Cap Head-Allen Screw-M8x30-Grade 8.8-ZP
13
1
4060-1010
Head-Imovilli-Accumulator-M30,M50
14
1
5450-2200
ORing-Imperial-1/8"x1/4"-N70
15
1
2300-4220
Diaphragm-Imovilli-Accumulator-M50,M73,M104S,M135S
16
4
5450-4590
ORing-Imperial-3/32"x13/16"-N70
17
1
5500-2020
ORing-Metric-2.0x15mm-V75
18
1
5450-4640
ORing-Imperial-3/32"x1 3/16"-N70
19
1
2250-4450
Cover-Imovilli-Valve-Suction Side-M30,M50
20
1
6200-4240
Pipe-Fitting-Imovilli-Elbow-32 Shank-Swivel-33mm-Plastic
21
1
6200-4270
Pipe-Fitting-Imovilli-Nut-Swivel-1 1/4"-Plastic
22
6
3040-1030
Fastener-Imovilli-Cap Head-Allen Screw-M10x30-Grade 8.8-ZP
23
4
5450-4660
ORing-Imperial-3/32"x1 7/16"-N70
24
4
3700-3800
Gasket-Imovilli-Valve-M30,M50,M73,M104S,M135S
25
4
8900-4360
Valve-Imovilli-Check-M50,M73,M104S,M135S
26
4
8900-4350
Valve-Imovilli-Check-M30,M50,M73,M104,M135
27
2
4060-2010
Head-Imovilli-Cylinder-M30,M50,M73,M104S,M135
28
1
2300-4460
Diaphram-Imovilli-Incl Orings-Kit-M30,M50
29
1
1600-4400
Cap-Imovilli-Oil Filler-M25,M35,M50,D82,D113
30
1
5400-3000
Oil Filler-Imovilli-M25,M35,M50
31
2
9100-4320
Washer-Imovilli-Chamferred-1750
32
1
3040-0835
Fastener-Imovilli-Cap Head-Allen Screw-M8x35-Grade 8.8-ZP
33
1
7800-5580
Seal-Oil-35x47x7-Nitrile
34
1
7800-4300
Seal-Imovilli-Oil-30x47x7-Nitrile
35
2
2300-4290
Diaphragm-Imovilli-Piston-Desmopan-M30,M50,M73
This manual suits for next models
4
Table of contents
Other C-Dax Farm Equipment manuals
