C-Dax MagMaster 65 User manual

OWNER’S MANUAL
FOR THE
MAGNESIUM OXIDE SPREADERS
MAGMASTER
C-Dax Ltd
PO Box 1010, 145 Harts Road
Tiritea, Palmerston North
Ph:06 354 6060
Fax:06 355 3199
E-Mail: sales@c-dax.co.nz
www.c-dax.co.nz

2
SAFETY PRECAUTIONS
MAGMASTER 65/165
AN IMPORTANT MESSAGE FOR OWNERS & OPERATORS OF C-Dax
ATTACHMENTS/ACCESSORIES
Be warned of the dangers of loading your ATV or other vehicle in excess of its carrying capacity. It is
important to understand that any loads or attachments whether fastened to or placed on a vehicle or ATV will
alter the stability or handling characteristics of that vehicle or ATV.
Spray tanks or other equipment must be filled only to a level where the gross weight is within the load limit of
the ATV or other vehicle.
Safety is a primary concern in the design, manufacture, sale, and use of spray tanks and other equipment.
As manufacturers of spray tanks and other equipment we want to confirm to you, our customers, our
concern for safety. We take this opportunity to remind you about the simple, basic and common sense rules
of safety when using spray tanks and other equipment. Failure to follow these rules can result in severe
injury or death to operators and bystanders.
It is essential that everyone involved in the assembly, operation, transport, maintenance and storage of this
equipment be aware, concerned, prudent and properly trained in safety.
This also applies to equipment that is loaned or rented to someone who has not read the owner’s manual
and is not familiar with the operation of application equipment.
•NEVER EXCEED THE LOAD LIMIT CAPACITY OF THE ATV OR OTHER VEHICLE.
•ALL ATV AND TRAILED EQUIPMENT TYRES SHOULD BE INFLATED TO MANUFACTURERS
RECOMMENDED OPERATING PRESSURES.
•PLEASE NOTE THAT FILLING THE SPRAY TANK OR OTHER EQUIPMENT COMPLETELY AND OR
THE ATTACHMENT OF ADDITIONAL EQUIPMENT TO THE ATV MAY EXCEED THE ATV’S
MAXIMUM LOAD CAPACITY AND IT IS NOT RECOMMENDED TO EXCEED MANUFACTURERS
GUIDELINES
•CARGO SHOULD BE PROPERLY DISTRIBUTED AND SECURELY ATTACHED.
•REDUCE SPEED WHEN CARRYING CARGO OR PULLING A TRAILER OR TRAILED APPLICATION
EQUIPMENT AND ALLOW GREATER DISTANCE FOR BRAKING.
•NEVER ALLOW ANYONE TO RIDE ON YOUR SPRAYER OR OTHER EQUIPMENT.
•ALWAYS FOLLOW THE INSTRUCTIONS IN THE OWNER’S VEHICLE MANUAL FOR CARRYING
CARGO OR PULLING A TRAILER.
•PROPER MAINTENANCE IN LINE WITH MANUFACTURER’S RECOMMENDED MAINTENANCE
PROCEDURES IS ESSENTIAL.
•BEFORE APPLYING CHEMICALS, READ THE LABEL OF THE CHEMICAL MANUFACTURER OR
SUPPLIER FOR PERSONAL PROTECTIVE EQUIPMENT AND OPERATE AS RECOMMENDED.
•THE SAFETY OF ALL CHEMICALS USED IN AGRICULTURE IS UNDER THE JURISDICTION OF A
GOVERNMENT AGENCY, IE N.Z. MINISTRY FOR THE ENVIRONMENT; USA ENVIRONMENTAL
PROTECTION AGENCY. FURTHER LOCAL GOVERNMENT OR STATE LAWS MAY APPLY.

3
SAFETY PRECAUTIONS
Before attempting to install or operate the equipment, read and understand the manual thoroughly. Failure
to comply with this instruction constitutes improper use and will invalidate the warranty.
Throughout this manual there are highlighted text boxes containing warnings, cautions and notes.
Warnings are mandatory instructions to prevent serious injury or permanent damage.
Cautions are advisory instructions to ensure reliable operation of the equipment.
Notes are for convenient operation.
▪Do not overload your spreader. The maximum permissible payload is 40 Kg.
▪Never use dirty product or product with stones or lumps.
▪Ensure that your towing vehicle is adequate for the task. The maximum tare weight is 97 Kg.
▪Never allow anyone to ride on the spreader.
▪Keep the spreader in good condition. Cleanliness and maintenance are essential for safe and trouble
free operation.
▪Never leave product in the hopper or store the spreader without cleaning it.

4
C-Dax MAGMASTER
OWNER’S MANUAL
(Pt.No.2400-6600 Issue 14, August 2022)
TABLE OF CONTENTS
2 Safety Precautions
4 Table of Contents
5 Introduction
Description
Specifications
Order Information
6 Warranty
Liability
8Operation
Assembly
9 Calibration
10 Operating the Spreader
11 Maintenance
Before Use
After Each Use and Daily When in Use
Hints

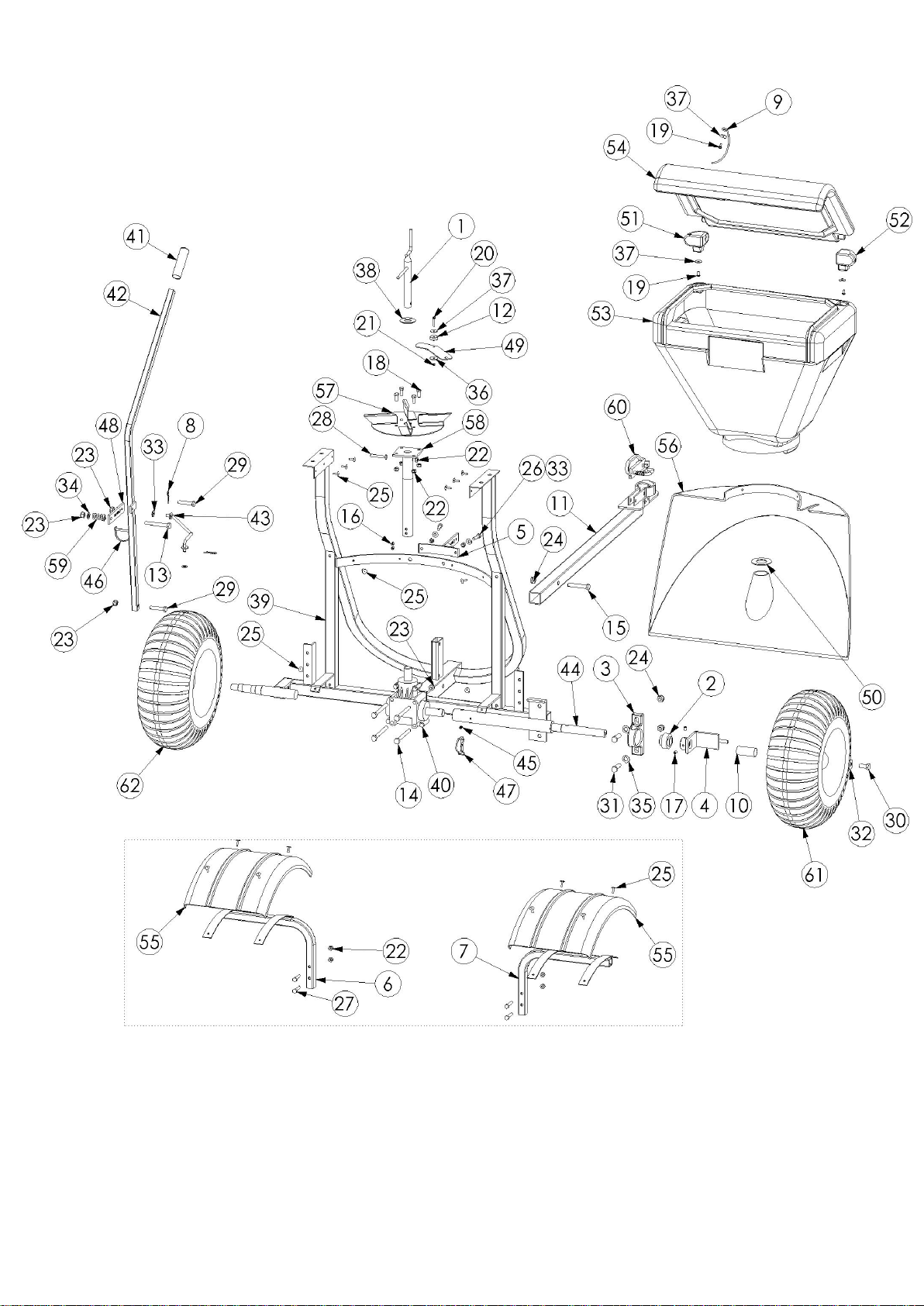

12 Exploded Parts Diagrams
WARNING
Magnesium Oxide will set hard if exposed to air, it is of utmost importance that the
spreader be cleaned of all product even if stored for a short time. Load the spreader only
with the amount required to be spread and clean all traces of product from the machine
after use.
Failure to do so will void warranty.

5
INTRODUCTION
Congratulations. You have just purchased an advanced spreader from C-Dax Ltd. C-Dax Ltd is committed to
providing you, the farmer, with quality applicating systems.
DESCRIPTION
The C-Dax MagMaster is a ground-driven spreader designed specifically for the application of powdered
Magnesium Oxide, available in 2 size options, 65L or 165L. The uniquely designed translucent non-corrosive
polyethylene hopper is specially profiled for good product flow, ease of filling and ensuring almost all product
is emptied. The distinctive polyethylene shroud guides powder away from the frame, shaft and gearbox
assembly. A high-quality stainless steel agitator and shutter ensure even flow of product to the spinner. A
unique spinner design ensures optimal spread of fine powders such as Magnesium Oxide. The heavy-duty
galvanised frame is fitted with turf tyres as standard equipment. The drive train uses high quality steel and a
double sealed self-aligning bearing and heavy-duty gearbox for maximum durability. While seated, the
operator has access to the control handle which controls the opening and closing of the shutter. The
supplied pin is placed through the axle shaft which engages the gearbox and this rotates the spinner.
Specifications
(Specifications subject to change without notice)
Dry Weight 57 Kg (65L)
75 Kg (165L)
Dimensions W1380mm, H1330mm, L1400mm (65L)
W1400mm, H1240mm, L1400mm (165L)
Capacity 65 litre (40Kg Magnesium Oxide)
165 litre (100Kg Magnesium Oxide)
Drive Ground driven (single wheel)
Wheels 18x750x8 4-Ply turf tread (tubeless)
Tyre pressure 12PSI (82Kpa)
Clutch Removable pin
Control Adjustable stop pin sets max output, control handle opens shutter
Agitator Mechanical arm, stainless steel
Spinner Stainless steel (65L)
Electro-Galv Steel (165L)
Hopper Non-corrosive polyethylene, designed for good product flow, ease of filling and
ensuring almost all product is emptied.
Hopper cover Polyethylene plastic (65L)
Vinyl soft cover (165L)
Frame Galvanised steel
Gearbox Heavy duty with double sealed bearings
Gearbox oil 300ml SAE30
Axle Bearings Sealed ball races
Axle grease General Purpose
Application Rate Up to 13g/m2(nominal, Magnesium Oxide @ 10 kph)
Spread width 65 litre - 3m (nominal, Magnesium Oxide @ 10 Kph)
165 litre –3m (nominal, Magnesium Oxide @ 10 Kph)
Towing speed 10 Kph (Maximum recommended)
NZ
Order Information
MagMaster 65 P/N 3002
MagMaster 165 P/N 3012

6
WARRANTY
1WARRANTY AND LIABILITY
Use of the equipment
1.1 You must satisfy yourself as to the suitability of the equipment for your intended use(s) of
the equipment.
Your relationship with the retailer
1.2 Where you consider you have a warranty claim (or any other claim) in relation to the
equipment, you must contact the retailer who sold you the equipment, not C-Dax directly.
The retailer is responsible for liaising with C-Dax in respect of your claim.
Warranty
1.3 C-Dax warrants to the original purchaser that the equipment is sold free from defects in
materials and workmanship for a period of 12 months from date of first retail sale (6 months
from date of first retail sale if the equipment is sold in the U.K.) subject to the terms set out
below.
1.4 C-Dax will at its option repair or replace the defective equipment (or part of the equipment)
or notify the retailer of the equipment to refund the purchase price for such defective
equipment to you in the event of a breach of this warranty, subject to the terms set out
below.
Liability
1.5 Except for the warranty set out in clause 1.2 above, all warranties and representations
(including those expressed or implied by law) in respect of the equipment or advice relating
to the equipment provided to you by C-Dax are excluded to the extent permitted by law.
1.6 Notwithstanding anything else in this manual, C-Dax’s maximum liability to you (in the event
that such liability exists) in respect of any breach of warranty, any matter set out in this
manual, or for defective equipment or advice relating to the equipment provided is limited at
C-Dax’s option to:
(a) repairing or replacing the equipment (or part of the equipment); or
(b) notifying the retailer of the equipment to refund the price for the equipment paid by
you.
1.7 Notwithstanding anything else in this manual, in no event will C-Dax be liable, whether in
contract, tort (including negligence) or otherwise:
(a) where you have altered or modified the equipment, misused or misapplied the
equipment, or the equipment has been subjected to any unusual, excessive or non-
recommended use, service or handling (including as set out in this manual);
(b) where the equipment is not transported, stored, handled or used in accordance with
any directions given by C-Dax (or the retailer) to you (including as set out in this
manual);
(c) where the equipment:
(i) has been subject to neglect, accident or hireage, or the damage arises from fair
wear and tear, battery damage or chemical attack;
(ii) has been built to a customer’s specifications; or

7
(iii) has been dismantled, repaired or serviced other than by an authorised service
agent of C-Dax;
(d) for loss or damage caused by any factors beyond C-Dax’s control; or
(e) for any loss of profit or revenue, or for any special, indirect, incidental or consequential
damage, loss or injury of any kind suffered by you.
1.8 Where C-Dax elects to repair or replace the equipment it will use reasonable endeavours to
do so as soon as practicable but will not be liable for any delay in doing so.
1.9 You agree that the transactions entered into between you and the retailer (and C-Dax) are
for the purposes of trade and that, having regard to all relevant circumstances of the
transactions, it is fair and reasonable that the provisions of the Consumer Guarantees Act
1993 (NZ) do not apply to those transactions to the fullest extent permitted by law.

8
OPERATION
The product to be spread is placed in the hopper. When the spreader is towed forward, the right hand wheel
drives through the pin clutch and gearbox to turn the spinner in a clockwise direction. When the control
handle is pulled forward, the shutter at the bottom of the hopper rotates to an open position. The size of the
opening is set by the adjustable stop pin, which locates into one of five pre-set positions.
An extension of the spinner boss is connected to a stainless steel agitator arm inside the bottom of the
hopper. This agitator ensures that product flows continuously out of the hopper to the spinning disk.
After calibration, fill the hopper to the required level and commence spreading. Do not overfill your hopper;
the maximum permissible payload is 40Kg. To prevent damage to product, disconnect the axle drive pin to
the gearbox until spreading is to be commenced.
To prevent the shutter from opening during travel to the paddock, move the adjustable stop pin to the rear-
most hole. This will lock the control handle in place and keep the shutter closed. See following diagram.

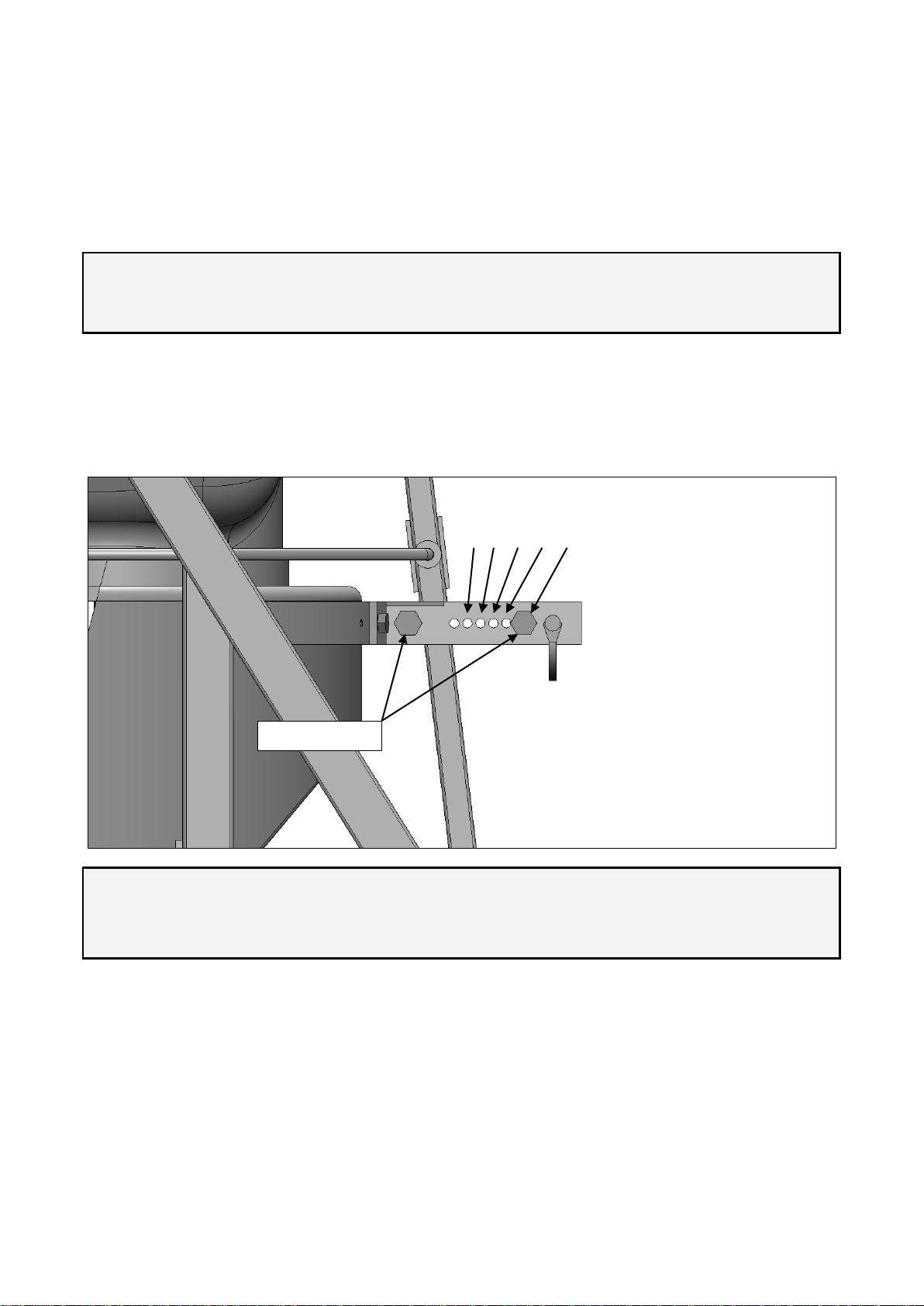

Adjustable stop pin shown in rear-most hole.
ASSEMBLY
1. Slide the drawbar into the frame and secure using 1 x M12x65 bolt
and Nyloc nut.
2. Slide the Control handle down between the 2 indicator brackets
and fit in place with 1x M10x50 bolt and Nyloc nut, fit 10mm
washer between the arm and the bracket welded to the main
frame.

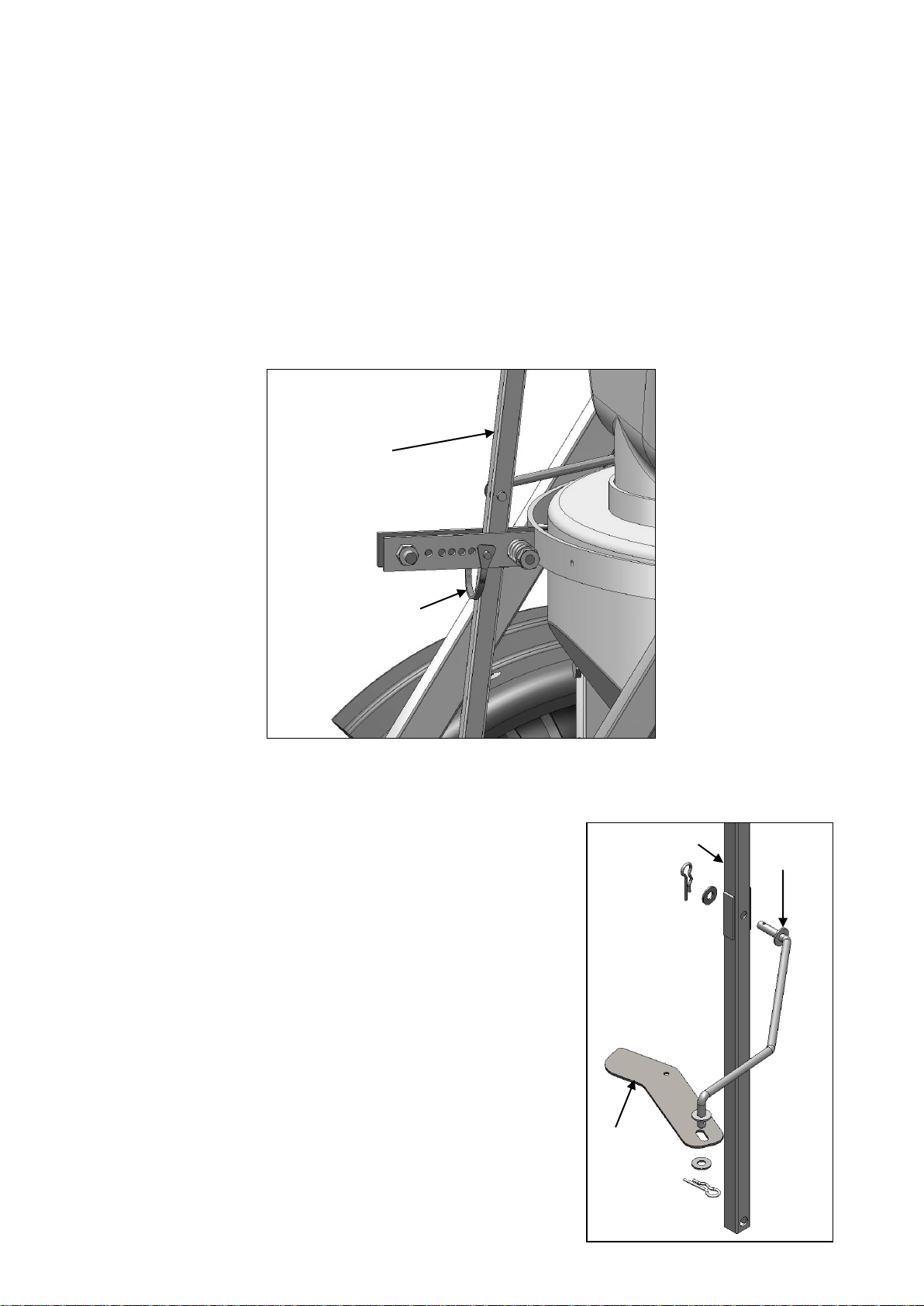

3. Find the shutter arm. Attach this arm to the control handle and
shutter as shown to the right.
NB: Keep area around the handle and indicator bracket clean and
lubricated after every use.
Adjustable stop pin
Control handle
Control handle
Shutter
Shutter
Arm

9
CALIBRATION
Magnesium Oxide powder is applied at a rate determined by the number of cows to be treated. When
spreading this product, calculate the weight of powder to be applied and apply this amount with the
adjustment stop pin in position 1-5. Use the table below to work out which setting is most appropriate.
Magmaster 65L Nominal application rates (grams/m2) for Magnesium Oxide spread at 10Kph
Adjustment Stop Pin
Application Rate (g/m2)
Low
1
1.6
2
2.7
3
3.8
4
8.2
High
5
12.6
Magmaster 165L Nominal application rates (grams/m2) for Magnesium Oxide spread at 10Kph
Adjustment Stop Pin
Application Rate (g/m2)
Low
1
0.6
2
1.5
3
2.5
4
4.5
High
5
8.2
NOTE
Because of variations in product characteristics, speedometer calibration and driving speed, the information
in the calibration guide should be regarded as a starting point only.

10
OPERATING THE SPREADER
When the spreader has been correctly calibrated, the hopper may be filled to the required level and
spreading commenced.
To reduce agitator damage to product and to ensure that product is not forced past the agitator shaft when
towing the spreader to the area to be treated, the drive to the gearbox should be disconnected by removing
the pin from the drive axle.
WARNING
To prevent damage to the spreader do not tow the spreader at speeds in
excess of 15 Kph during spreading or transit.
To prevent inadvertent operation of the shutter while the spreader is in transit it is recommended that the
adjustable stop pin be moved to the rear-most hole.
To prevent the shutter from vibrating closed when the spreader is operated over rough ground, the control
handle friction may be increased by tightening the two adjustment nuts at either end of the index plate.
WARNING
Due to the nature of Magnesium Oxide it is not recommended that the spreader be filled
with product if the spreader is to be towed a large distance to the paddock, as the product
will pack down and could potentially damage the agitator.
1
2
3
4
Notes:
*The un-numbered hole is used to
keep the handle closed during
transport.
*When operating at position 5, the
bolt acts as the stopper, stow the un-
used pin at the end (as shown)
5
Adjustment nuts

11
MAINTENANCE
WARNING
Magnesium Oxide will set hard if exposed to air, it is of utmost importance that the
spreader be cleaned of all product even if stored for a short time. Load the spreader only
with the amount required to be spread and clean all traces of product from the machine
after use.
Failure to do so will void warranty.
The following maintenance actions are mandatory for reliable use of the spreader.
Before Use
Check the tyre pressures and charge with air as required. The correct pressure is 12PSI (82Kpa).
Disengage the gearbox drive pin then turn the spinner by hand to ensure it is free to turn without
interference.
Check fasteners around the gearbox, shaft, mudguards and hopper for tightness.
Check the hopper to ensure that no debris is inside.
If the spreader has not been used for some time, grease the bearings (pay particular attention to the pin
clutch bearing).
Check the gearbox for leaks. If leaks are detected it will be necessary to drain and replenish the gearbox with
300ml of SAE 30 oil.
CAUTION
To replenish the gearbox of oil, the spreader may be inverted to place the filler plug uppermost. However, in
doing so extreme care must be taken to prevent damage to the spinner and deflectors.
After Each Use or Daily When In Use
Remove all traces of product from the spreader by brushing or washing. Pay particular attention to areas
where product has accumulated and built up. Remove by scraping if necessary taking care not to damage
the surface finish of the spreader or its components.
NOTE
Cleanliness of the Magmaster is of the upmost importance, all moving part must be kept clean and clear of
any build up of material, failure to do so could cause irreparable damage to the machine
If washing, do not direct high-pressure water onto the gearbox, axle or wheel bearing seals.
After washing, grease the bearings (three places) and apply water-displacing fluid such as WD 40 or LPS3 to
all metal parts.
Check for damaged or worn components and replace as required.
HINTS
When greasing the pin clutch bearing in the axle assembly, leave the pin in place. This will assist the grease
to fully enter the scroll in the axle and prevent the axle from being displaced if the bearing housing should be
over pressurised with grease.
If the drive axle is removed from the axle housing for any reason care must be taken to ensure that both the
axle scroll and bronze bush are clean and free of debris before reassembly.
To remove the agitator from the hopper, remove the bolt, which attaches the agitator shaft to the spinner
flange assembly then withdraw the agitator from inside the hopper. When ordering replacement parts always
quote the spreader model and the part number of the required part.

12
EXPLODED DIAGRAM
Magmaster 65

13
PARTS LIST
Magmaster 65
Item
No.
QTY.
e9 part no
e9 description
1
1
1036-8230
Agitator-Spreader-Magmaster-SS
2
1
1140-1200
Bearing-Ball-Pillow Block-Drive Axle-Spreaders
3
1
1140-4000
Bearing-Housing-Pillow Block-Drive Axle-Spreaders
4
1
1300-4100
Bracket-Drive-130L/MAG/165L-Spreaders-ZP
5
1
1300-4550
Bracket-Handle Position-Index-RH-MM65-ZP
6
1
1300-6800
Bracket-Mudguard-CDIT300/400/MM165-LH-GL
7
1
1300-6801
Bracket-Mudguard-CDIT300/400/MM165-RH-GL
8
2
2050-7300
Clip-R Type-Pin-2.5MM-ZP
9
1
2230-1100
Cord-Arrestor-Hinged Spreader Lid
10
1
2250-1000
Cover-Axle Shaft-55mm Long-Spreader 130L/165L/Magmaster-SS
11
1
2550-1300
Drawbar-Magmaster 65-GL
12
1
2700-0750
Fabricated-Plastic-Round-OD 25x9mm Long-Drilled-UHMWPE
13
1
2840-1080
Fastener-Bolt&Nut-Hex-8.8 Grade-M10x80-ZP
14
4
2840-1110
Fastener-Bolt&Nut-Hex-8.8 Grade-M10x110-ZP
15
1
2840-1265
Fastener-Bolt&Nut-Hex-8.8 Grade-M12x65-ZP
16
2
3010-0810
Fastener-Grub Screw-Socket Head-M8x10-Stainless
17
2
3010-5200
Fastener-Grub Screw-Socket Head-3/8x3/8-Stainless
18
4
3075-0820
Fastener-Set-Screw-Hex-304 Grade-M8x20-Stainless
19
3
3090-0512
Fastener-Machine-Screw-Pan-M5x12-Phillips-Stainless
20
1
3090-0530
Fastener-Machine-Screw-Pan-M5x30-Phillips-Stainless
21
1
3130-0105
Fastener-Nut-Nyloc-M5-Stainless
22
11
3170-0008
Fastener-Nut-Nyloc-M8-ZP
23
7
3170-0010
Fastener-Nut-Nyloc-M10-ZP
24
3
3170-0012
Fastener-Nut-Nyloc-M12-ZP
25
18
3240-0018
Fastener-Rivet-Blind-Truss Head-3/16x18mm-Aluminium
26
2
3290-0830
Fastener-Set Screw-Hex-8.8 Grade-M8x30-ZP
27
4
3290-0840
Fastener-Set Screw-Hex-8.8 Grade-M8x40-ZP
28
1
3290-0850
Fastener-Set Screw-Hex-8.8 Grade-M8x50-ZP
29
2
3290-1050
Fastener-Set Screw-Hex-8.8 Grade-M10x50-ZP
30
1
3290-1225
Fastener-Set Screw-Hex-8.8 Grade-M12x25-ZP
31
2
3290-1240
Fastener-Set Screw-Hex-8.8 Grade-M12x40-ZP
32
1
3310-5012
Fastener-Washer-Flat-Heavy-M12x32x3-Galv
33
4
3310-6008
Fastener-Washer-Flat-M8-ZP
34
1
3310-6010
Fastener-Washer-Flat-M10-ZP
35
2
3310-6012
Fastener-Washer-Flat-M12-ZP
36
1
3310-9104
Fastener-Washer-Flat-3/16"x1"-ZP
37
4
3310-9210
Fastener-Washer-Flat-3/16"x7/8"x1.5-Grade 304-Stainless
38
1
3310-9750
Fastener-Washer-Flat-23.5x2"x1.5-Grade 316-Stainless
39
1
3500-5800
Frame-Spreader-Magmaster-GL
40
1
3800-2000
Gearbox-Ferroni-RV12-2-6-Ratio 1 to 3.25
41
1
3865-3800
Grip-Handle-7/8"-PVC-Black-Plastic
42
1
4050-1300
Handle-Magmaster 65-ZP
43
1
5050-7920
Linkage-Shutter-Magmaster 65-ZP
44
1
5200-6700
Machined-Axle-Gearbox Drive-Magmaster-Black
45
1
5270-0003
Nipple-Grease-Straight-Short-M6-ZP
46
1
6100-4820
Pin-Locking-6x50mm-ZP

14
47
1
6100-4840
Pin-Locking-8x45mm-Snapon Pipe-ZPG
48
1
6500-4201
Profiled-Index-Plate-MAG/130L/165L Spreader-ZP
49
1
6500-7800
Profiled-Shutter-Magmaster-Spreader-Stainless
50
1
6500-9000
Profiled-Washer-Spinner Shaft-34.9x67x2mm-Stainless 304
51
1
7500-2000
Rota-Hinge-LH-SM70/75
52
1
7500-2010
Rota-Hinge-RH-SM70/75
53
1
7500-2180
Rota-Hopper-Spreader-Magmaster -Yellow-MDPE
54
1
7500-2520
Rota-Lid-Hopper-SM70/75L
55
2
7500-2590
Rota-Mudguard-Blue-MDPE-1/4 Circle
56
1
7500-2700
Rota-Shroud-Spreader Magmaster-Yellow-MDPE
57
1
8200-5000
Spinner-Magmaster 65-SS
58
1
8200-5100
Spinner-Mount-Magmaster 65-ZP
59
1
8250-1800
Spring-Compression-Crinkle Plate-ZP
60
1
8800-3800
Tow-Coupling-Handle-Double Ended-1 78 x 50mm-ZP
61
1
9200-8610
Wheel-Turf-DRILLED-DRIVE-18x750x8-Tubeless
62
1
9200-8600
Wheel-Turf-Bearing-18x750x8-Tubeless

15
EXPLODED PARTS DIAGRAM
Magmaster 165

16
PARTS LIST
Magmaster 165
Item
No.
QTY.
e9 part no
e9 description
1
1
1036-8223
Agitator-Spreader-165L/Magmaster 165-SS
2
2
1110-2308
Ball-End-Internal Thread-M8-Zinc Plated
3
1
1140-1200
Bearing-Ball-Pillow Block-Drive Axle-Spreaders
4
1
1140-4000
Bearing-Housing-Pillow Block-Drive Axle-Spreaders
5
1
1300-4100
Bracket-Drive-130L/MAG/165L-Spreaders-ZP
6
1
1300-6800
Bracket-Mudguard-CDIT300/400/MM165-LH-GL
7
1
1300-6801
Bracket-Mudguard-CDIT300/400/MM165-RH-GL
8
2
1455-8800
Button-Ute Cover-Bungy Cord Retain-Black-Plastic
9
1
2250-1000
Cover-Axle Shaft-Spreader 130L/165L/Magmaster-PVC
10
1
2250-4150
Cover-Hopper-Silver Fabric-Spreader130/165
11
1
2550-8203
Drawbar-Spreader 165L/Magmaster 165-GL
12
4
2810-0860
Fastener-Bolt&Nut-Hex-304 Grade-M8x60-Stainless
13
2
2840-1065
Fastener-Bolt&Nut-Hex-8.8 Grade-M10x65-ZP
14
1
2840-1080
Fastener-Bolt&Nut-Hex-8.8 Grade-M10x80-ZP
15
4
2840-1110
Fastener-Bolt&Nut-Hex-8.8 Grade-M10x110-ZP
16
2
3010-0810
Fastener-Grub Screw-Socket Head-M8x10-Stainless
17
2
3010-5200
Fastener-Grub Screw-Socket Head-3/8x3/8-Stainless
18
8
3075-0616
Fastener-Set-Screw-Hex-304 Grade-M6x16-Stainless
19
4
3075-0820
Fastener-Set-Screw-Hex-304 Grade-M8x20-Stainless
20
2
3090-0200
Fastener-Machine-Screw-3/16"x1"-Slot-Stainless
21
3
3110-0512
Fastener-Machine-Screw-Pan-M5x12-Pozi-ZP
22
8
3130-0106
Fastener-Nut-Nyloc-M6-Stainless Steel
23
4
3130-0108
Fastener-Nut-Nyloc-M8-Stainless Steel
24
2
3160-5101
Fastener-Nut-Nyloc-3/16 UNC-Stainless
25
11
3170-0008
Fastener-Nut-Nyloc-M8-ZP
26
9
3170-0010
Fastener-Nut-Nyloc-M10-ZP
27
2
3170-0012
Fastener-Nut-Nyloc-M12-ZP
28
2
3180-0008
Fastener-Nut-Plain-M8-ZP
29
16
3240-0018
Fastener-Rivet-Blind-Truss Head-3/16x18mm-Aluminium
30
1
3250-0008
Fastener-Rod-Threaded-4.6 Grade-M8-ZP
31
2
3270-8012
Fastener-Self Tap-Screw-CSK-8Gx1/2"-Pozi-Stainless
32
4
3290-0840
Fastener-Set Screw-Hex-8.8 Grade-M8x40-ZP
33
1
3290-0850
Fastener-Set Screw-Hex-8.8 Grade-M8x50-ZP
34
1
3290-1040
Fastener-Set Screw-Hex-8.8 Grade-M10x40-ZP
35
1
3290-1050
Fastener-Set Screw-Hex-8.8 Grade-M10x50-ZP
36
1
3290-1225
Fastener-Set Screw-Hex-8.8 Grade-M12x25-ZP
37
2
3290-1240
Fastener-Set Screw-Hex-8.8 Grade-M12x40-ZP
38
4
3310-2809
Fastener-Washer-Flat-M8x22x1.5-Grade 316-Stainless
39
1
3310-5012
Fastener-Washer-Flat-Heavy-M12x32x3-Galv
40
3
3310-6010
Fastener-Washer-Flat-M10-ZP
41
2
3310-6012
Fastener-Washer-Flat-M12-ZP
42
6
3310-9200
Fastener-Washer-Flat-3/16"x1/2"x1.5-Grade 304-Stainless
43
1
3310-9750
Fastener-Washer-Flat-23.5x2"x1.5-Grade 304-Stainless
44
1
3500-5305
Frame-Spreader-MM/In-Ex 165L-GL
45
1
3800-2000
Gearbox-Ferroni-RV12-2-6-Ratio 1 to 3.25
46
1
3865-3800
Grip-Handle-7/8"-PVC-Black-Plastic

17
47
1
4050-8105
Handle-Spreader 165L/Mag 165-ZP
48
1
5200-6700
Machined-Axle-Gearbox Drive-Magmaster-Black
49
1
5245-4010
Mount-Hopper Cover-Spreader 130L/165L/Magmaster 165-AL
50
1
5270-0003
Nipple-Grease-Straight-Short-M6-ZP
51
1
6100-4820
Pin-Locking-6x50mm-ZP
52
1
6100-4840
Pin-Locking-8x45mm-Snapon Pipe-ZPG
53
2
6250-8620
Plug-Tube End-Square-1 1/2"x1 1/2"-Black-Plastic
54
1
6500-4201
Profiled-Index-Plate-MAG/130L/165L Spreader-ZP
55
1
6500-7770
Profiled-Shutter-CDIT300/400
56
1
7500-2185
Rota-Hopper-Spreader-Magmaster 165L-Yellow-MDPE
57
2
7500-2590
Rota-Mudguard-Blue-MDPE-1/4 Circle
58
1
7500-2705
Rota-Shroud-Spreader Magmaster 165L-Yellow-MDPE
59
1
7500-2830
Rota-Spout-Spreader-CDIT400GT-Yellow-MDPE
60
1
8200-2105
Disc-Spinner-Base-Flat-C-Dax 300/400/1300-Spreader-Stainless
61
1
8200-5305
Spinner-Mount-Spreader 165L/Magmaster 165-ZP
62
1
8250-1800
Spring-Compression-Crinkle Plate-ZP
63
1
8800-3800
Tow-Coupling-Handle-Double Ended-1 7/8" x 50mm-ZP
64
4
8910-8005
Vane-Spinner-Magmaster 165L-SS
65
1
9200-8610
Wheel-Turf-DRILLED-DRIVE-18x750x8-Tubeless
66
1
9200-8600
Wheel-Turf-Bearing-18x750x8-Tubeless
This manual suits for next models
3
Table of contents
Other C-Dax Farm Equipment manuals
Popular Farm Equipment manuals by other brands

AMAZONEN-Werke
AMAZONEN-Werke Catros 5500 Quick manual

Headsight
Headsight AGCO 3300 CORN installation manual

Unverferth
Unverferth CROSS-FOLD ROLLING HARROW 1245 manual

Vaderstad
Vaderstad Rapid RD 300-400S quick start

Art's-Way Manufacturing
Art's-Way Manufacturing 6812 quick start guide

Crary
Crary Air Reel owner's manual
