1 Introduction
1.1 Instructions
Important information and instructions in this documentation are designated as follows:
Danger!
Draws attention to an exceptionally great, imminent danger to your health or life due to hazardous
voltages.
!
Danger!
Draws attention to a danger with high risk which, if not avoided, may result in death or serious injury.
!
Warning!
Draws attention to a danger with medium risk which, if not avoided, may result in death or serious injury.
!
Caution!
Draws attention to a danger with low risk which, if not avoided, may result in minor or moderate injury.
!
Attention!
Draws attention to potential risks of property damage or loss of quality.
i
Note!
Advice to make work routine easier or on important steps to be carried out.



Environment!
Gives you tips on protecting the environment.
Handling instruction
Reference to section, position, illustration number or document.
Option(accessories,peripheralequipment,specialttings).
Time Information in the display.
1.2 Intended Use
• The device is manufactured in accordance with the current technological status and the recognized safety rules.
However, danger to the life and limb of the user or third parties and/or damage to the device and other tangible
assets can arise during use.
• The device may only be used for its intended purpose and if it is in perfect working order, and it must be used with
regard to safety and dangers as stated in the operating manual.
• The device applicator mounted on a cab printer of the Hermes+ series is intended exclusively for applying suitable
materials that have been approved by the manufacturer. Any other use or use going beyond this shall be regarded
as improper use. The manufacturer/supplier shall not be liable for damage resulting from unauthorized use; the
user shall bear the risk alone.
• Usage for the intended purpose also includes complying with the operating manual, including the manufacturer‘s
maintenancerecommendationsandspecications.
i
Note!
The complete documentation can currently be found in the Internet.
1.3 Safety Instruction
!
Attention!
Initiation,adjustmentsandchangingofpartsisonlyforqualiedservicepersonalonly.
Initiation/ Service Manual Applicators
!
Warning!
This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.

5
1 Introduction
• Before mounting the delivered components disconnect the printer from the power supply and close the shutoff
valve at the applicator.
• Only connect the device to other devices which have a protective low voltage.
• Switch off all affected devices (computer, printer, accessories) before connecting or disconnecting.
• In operation, moving parts are easily accessible.
This applies especially for the zone, where the pad is moved between the starting and the labeling position.
During operation do not reach into that zone and keep long hair, loose clothes, and jewelry distant. Before any
manipulations in those areas, close the shutoff valve.
• The device may only be used in a dry environment, do not expose it to moisture (sprays of water, mists, etc.).
• Do not use the device in an explosive atmosphere.
• Do not use the device close to high-voltage power lines.
• Perform only those actions described in this operating manual.
Work going beyond this may only be performed by trained personnel or service technicians.
• Unauthorized interference with electronic modules or their software can cause malfunctions.
• Otherunauthorizedworkonormodicationstothedevicecanalsoendangeroperationalsafety.
• Alwayshaveserviceworkdoneinaqualiedworkshop,wherethepersonnelhavethetechnicalknowledgeand
tools required to do the necessary work.
• There are various warning stickers on the device. They draw your attention to dangers. Warning stickers must
therefore not be removed, as then you and other people cannot be aware of dangers and may be injured.
1.4 Safety Marking
2
1
2
2

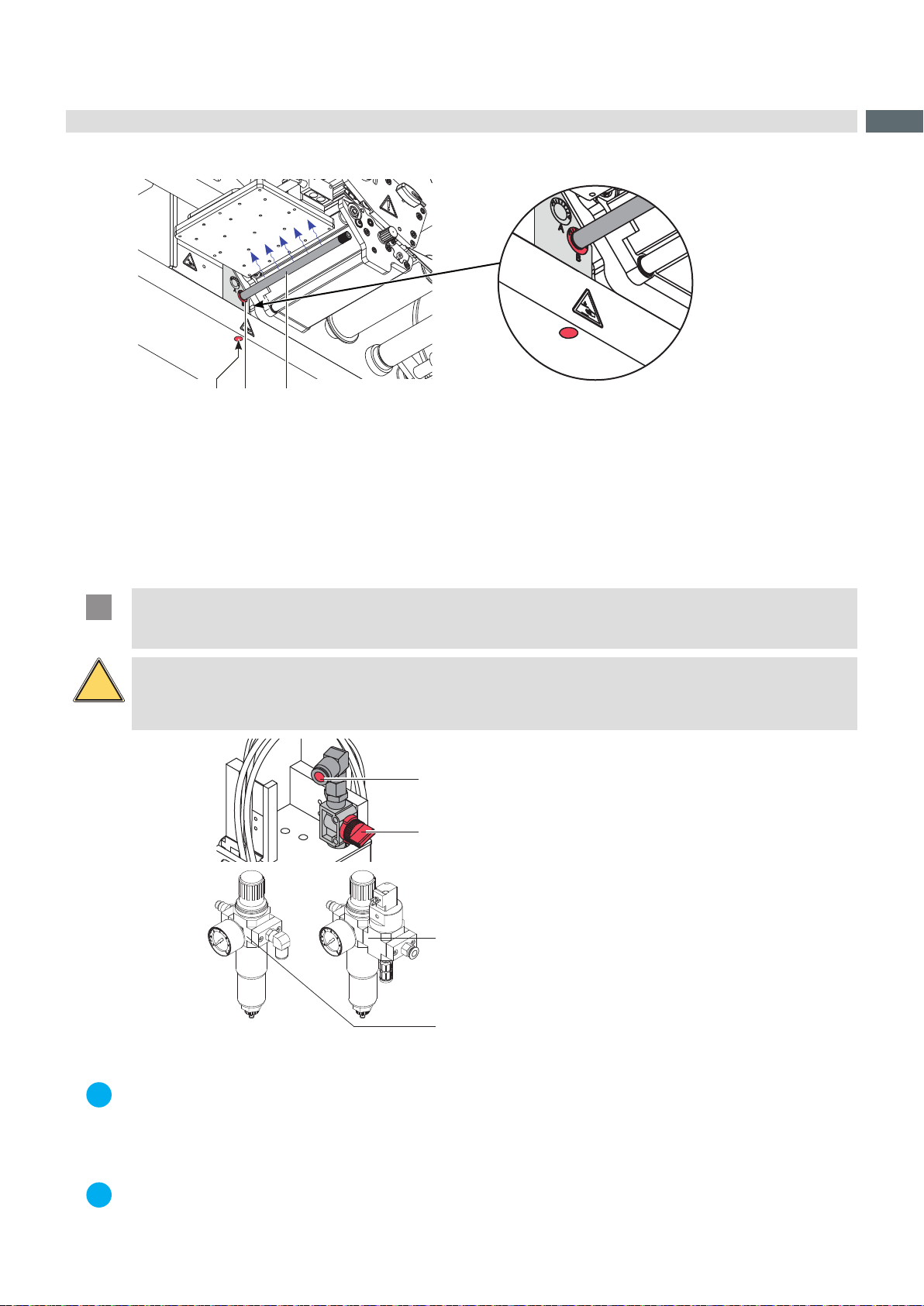

1: Risk of injuries by moving
parts!
2: Danger of crushing to hand
andngersbythemoving
pad!
Fig. 1 Safety marking
!
Attention!
Never remove or cover safety markings!
Replace it in case of damage!
1.5 Environment



Obsolete devices contain valuable recyclable materials that should be sent for recycling.
Send to suitable collection points, separately from residual waste.
The modular construction of the print module enables it to be easily disassembled into its component parts.
Send the parts for recycling.

6 6
2 Product Description
2.1 Important Features
• The supporting air and the vacuum as well as the speed of the cylinder are adjustable. That way the applicator
can be adapted to different label materials and sizes.
• To avoid contamination within the vacuum channels they are cleaned by air pressure impulse at the end of each
application.
• For operation in a system the I/O interface of the printer can be used.
2.2 Technical Data
Label transfer mode Tamp pad Spring loaded tamp pad Blow pad
3014/16 L/R 1100 3014/16 L/R 3100 3014/16 L/R 2100
Label width in mm for Hermes+425 - 114 80 - 114 25 - 114
for Hermes+625 - 174 80 - 174 -
Label height in mm 25 - 250 80 - 250 25 - 100
Compressed air pressure 0.45 MPa (4.5 bar)
Sound pressure level under 74 dB(A)
Product during
labeling xed ¢¢¢
in motion ¢¢¢
Labeling onto the
product from the top ¢¢¢
sideways ¢¢¢
from the front ¢¢¢
from the back ¢¢¢
Product height variabele ¢¢¢
Length of swing lever2) mm 200/300/400 200/300/400 200/300/400
Swing angle 0-90° 0-90° 0-90°
Cycle time about frequency/min.1) 15 15 15
Table 1 Technical Data
1) Determined with 100 mm lever length / label height / print speed 100 mm/sec.
2) Length of swing lever: achievable labeling position of 90° (bottom edge of label) below the Hermes+ground.

7
2.3 Overview
ort air
vacuum
14
15
5
9
11
4
y
x
z
1
2
3
10
12
7
8
13
6

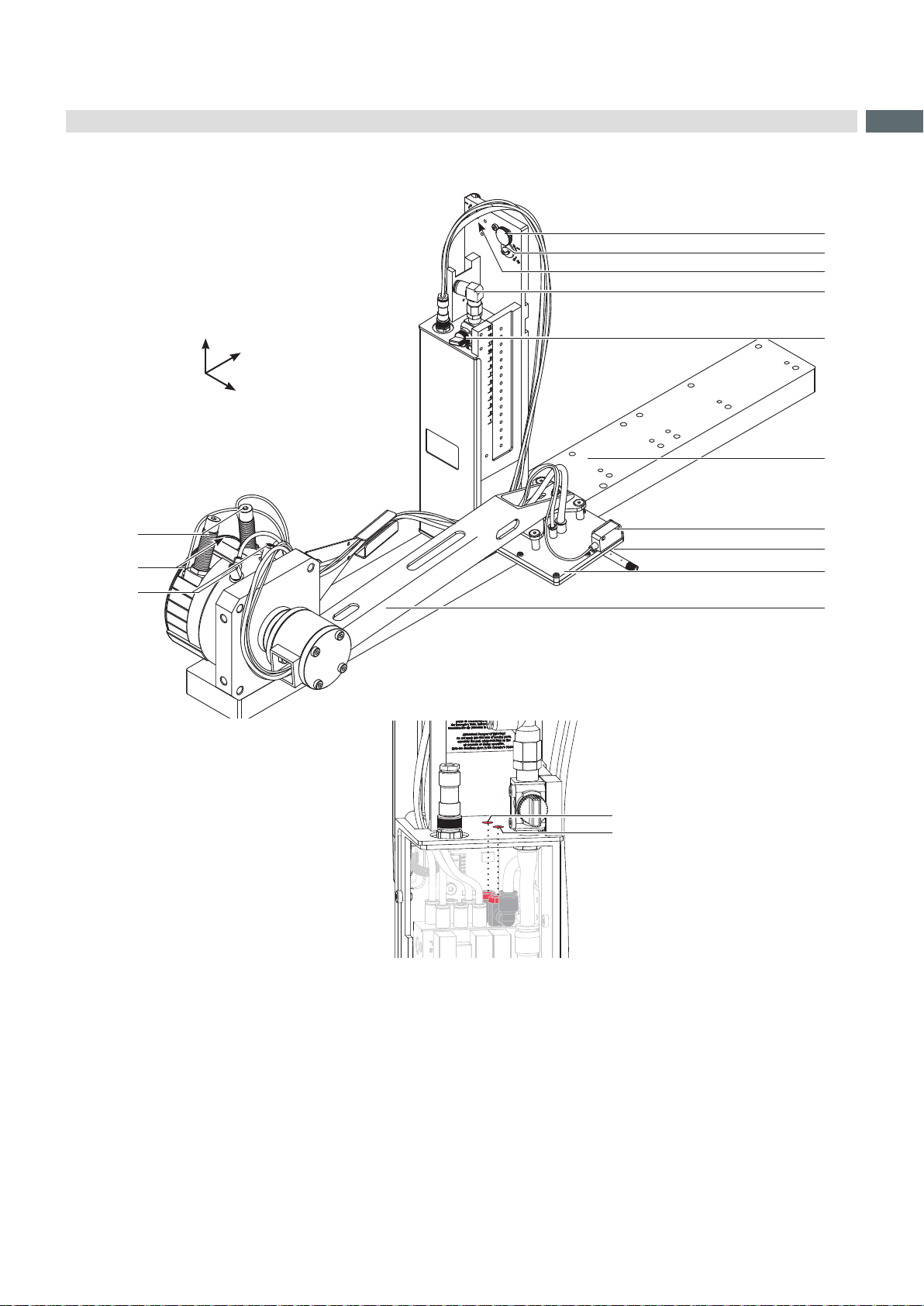

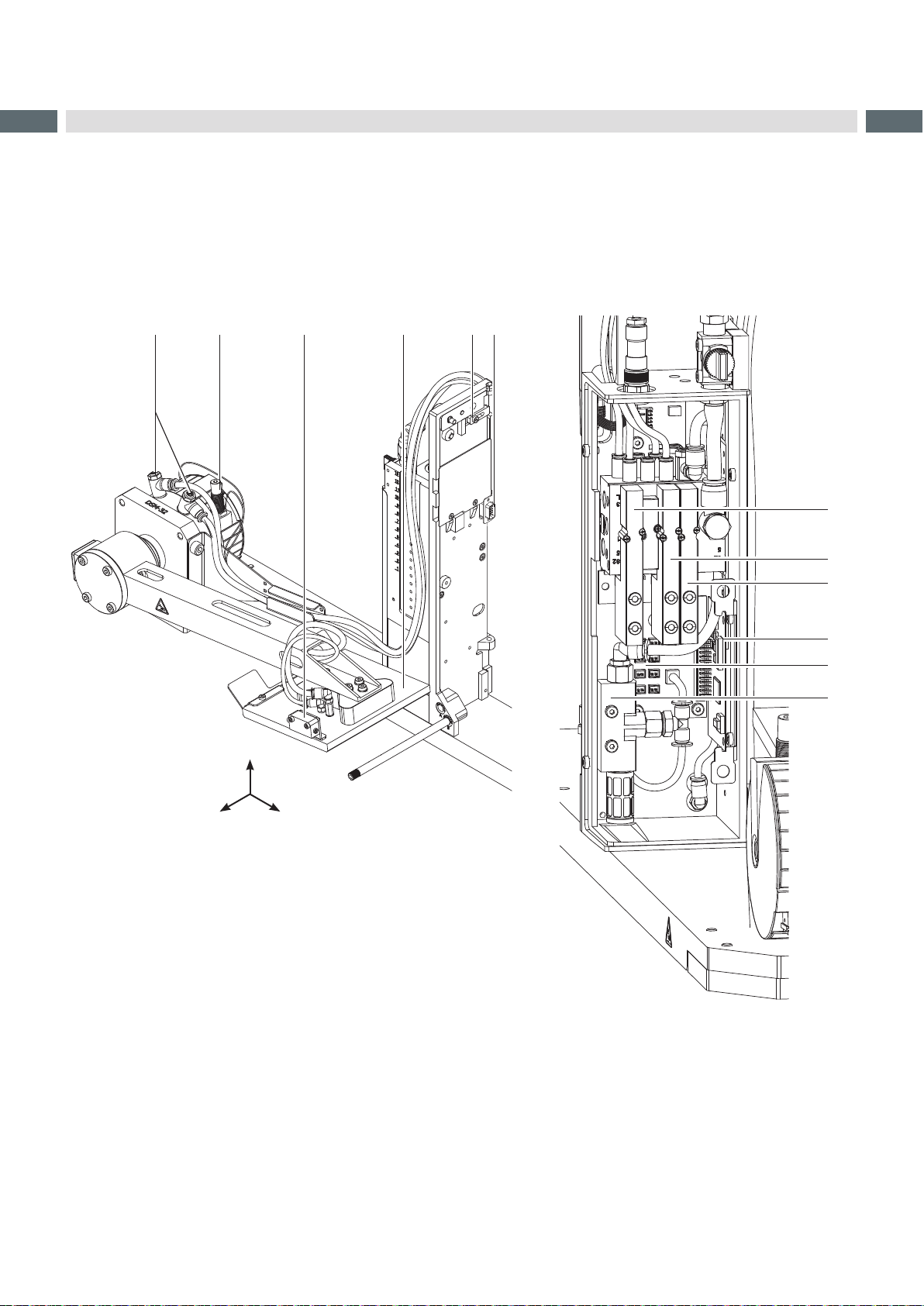

Fig. 2 Overview front side
1 Setting screw - stopper for the swing movement
2 Sensors - End position of the swing cylinder

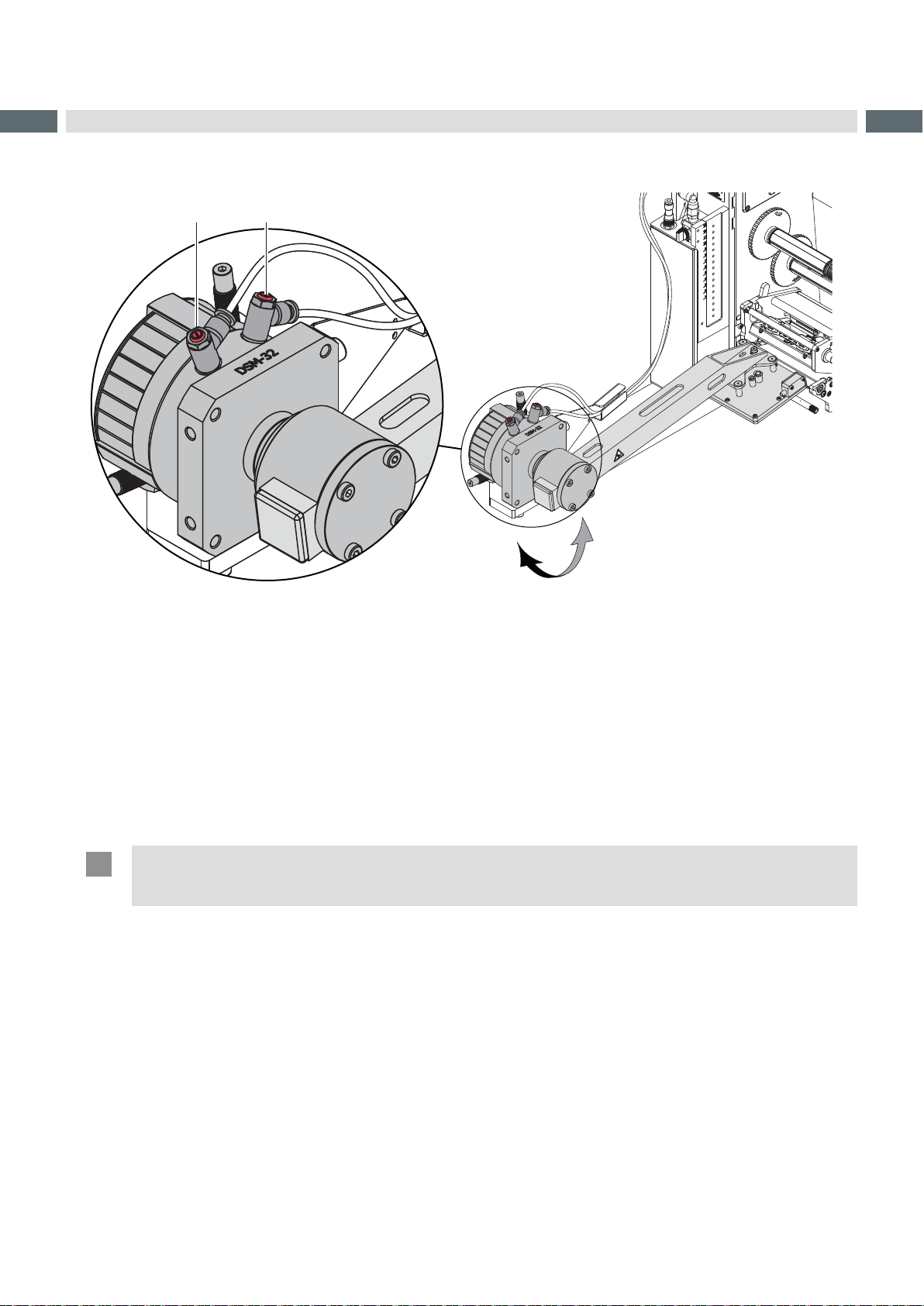

3 Throttle valves - Speed of the swing cylinder
4 Knurled screw for attaching the applicator to the printer
5 Setting screw to adjust the angle between applicator and
printer in X/Y-layer
6 Setting screw to adjust the angle between applicator and
printer in Z/X-layer
7 Compressed air connector
8 Shutoff valve
9 Base plate - Printer/Applicator
10 Sensor - Product detecting
11 Blow tube for supporting air
12 Pad - customized
13 Swing lever
14 Support air throttle valve
15 Vacuum throttle valve
Throttle valves Vacuum/Support air
2 Product Description

8 8
3 1 10 16 1712
yx
z
18
19
20
21
23
22

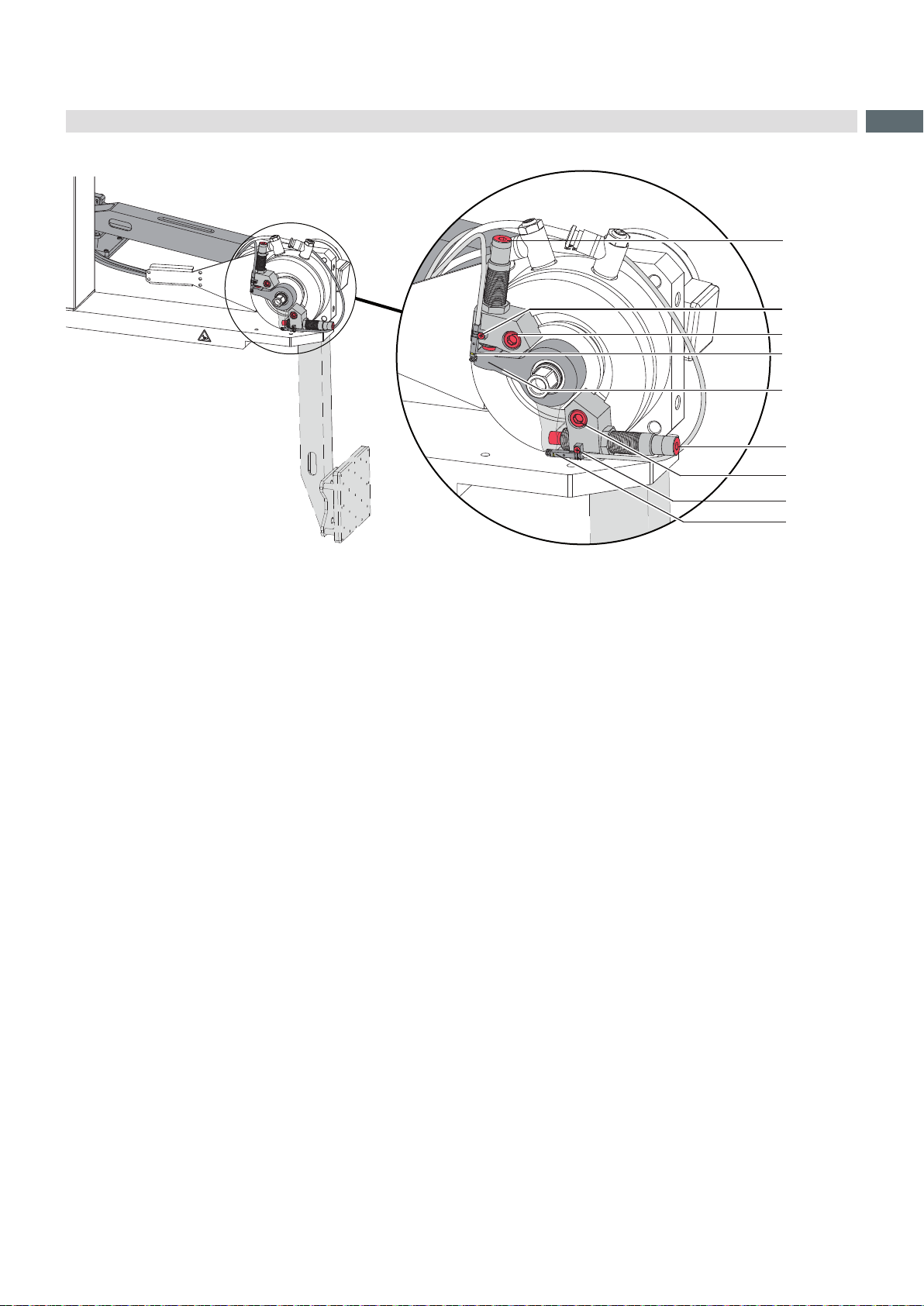

Fig. 3 Overview rear side Fig. 4 Overview control elements
1 Setting screw - Limitation of the swing movement
3 Throttle valves - speed of the swing cylinder
10 Sensor - Product detecting
12 Pad (customized)
16 Locking - Applicator
16 Interface to the printer
17 Valve swing cylinder
18 Valve blow air
19 Valve Vacuum and support air
20 PCB applicator control
21 PCB applicator interface
22 Vacuum generator
2 Product Description
Valves and control

9
2 Product Description
2.4 Contents of Delivery
2
3
1
4

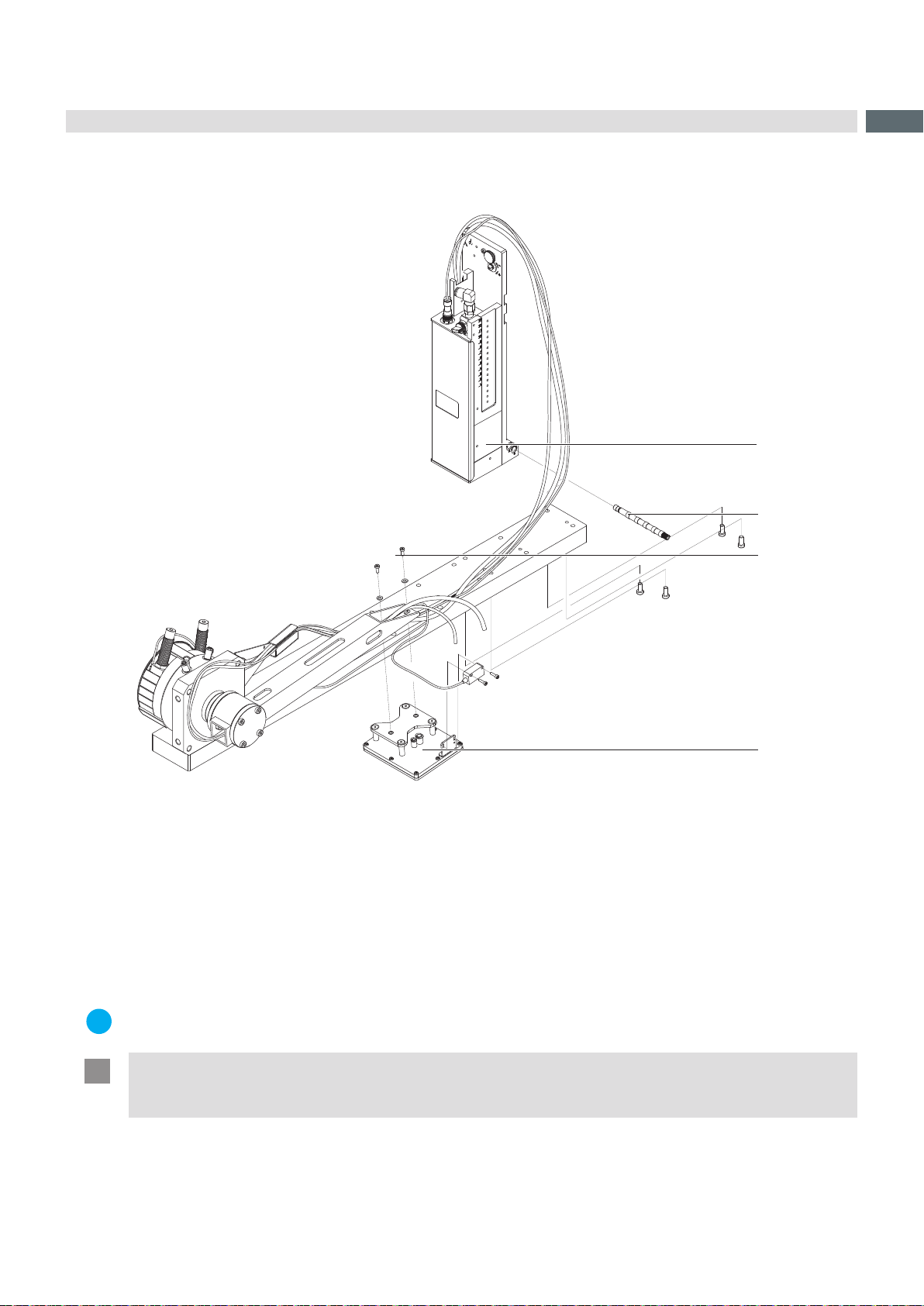

Fig. 5 Contents of delivery
- Applicator (1)
- Blow tube - customized (2)
- Screws - included the pad assembly (3)
- Pad - customized (4)
- Documentation
i
Note!
Please keep the original packaging in case the applicator must be returned.
!
Attention!
The device and printing materials will be damaged by moisture and wetness.
Set up label printer with applicator only in dry locations protected from splash water.

10 10
3 Operation
3.1 Standard Operation
Check all external connections.
Load the material. Ensure that the locking system is locked "Operator's Manual" of the printer.
Open the shutoff valve.
!
Attention!
Ensure that the pad is not covered by a label when switching on the printer-applicator system.
Otherwise the vacuum sensor may be calibrated faultily.
Switch on the printer.
i
Note!
If the pad is not in the start position when the printer is switched on an error message appears on the
display.
Press button pause at the printer.
The applicator will move into the start position and is ready for work.
Press the button feed at the printer.
A synchronization feed is released. The processed labels have to be removed manually. After a few seconds the
printer carries out a short backfeed to position the front edge of the next label at the printing line
i
Note!
This synchronizing also has to be carried out when the print job has been interrupted with the cancel key.
Synchronizing is not necessary when the print head was not lifted between print jobs. This also applies if
the printer was powered off between print jobs.
Start a print job
Start the labeling process via PLC interface.
Error messages during labeling process are shown in the display of the printer 4 Error Messages.
3.2 Cleaning
!
Attention!
Never use solvent and abrasive.
1
Clean the outside surfaces with multi purpose cleaner.
In regularly function it is possible that accrue dust
particles and label splits. Remove that by a soft brush or/
and a vacuum cleaner.
Especially at slide foil (1) it is possible that fouling deposit.
To receive an ideal takeover and handling of the label it
is necessary to clean the surface of slide foil at regular
intervals
Fig. 6 Cleaning pad with slide foil
