CAME BKV1500P User manual

CAME.COM/UK
BKV1500P
kit
Complete kit for a sliding gate weighing
up to 1500kg / max. width 20m
QUICK SETUP GUIDE
TO BE READ IN CONJUNCTION WITH THE FULL INSTRUCTION MANUAL

CONTENTS
AF43S
Radio Frequency Card
BKV15AGE
Motor with built-in ZN8
control panel
BKV1500P: KIT CONTENTS
x2
DIR20
Pair of Photocells
top-a433n
Tuned Antenna
topd4rks
Rolling code Transmitter
RGSM001S
Gateway Module
RSE
Connection Card
SIM
May be preinstalled in
RGSM001S
1Kit Contents
2Safety Instructions
3Typical Gate Setup
4Geometry
5Manual Release Instructions
6Wiring Diagram
7Pre-installed SIM Card
8Initial Power On
9Commissioning the RGSM
10 Commissioning via App
11 Commissioning via Panel
12 Safety Options
13 Replacing the SIM Card
14 Optional Accessories

2SAFETY INSTRUCTIONS
When correctly installed in compliance to installation instructions and adhering to all
current electrical, mechanical and manufacturer regulations, your automation system
will provide a high degree of safety and problem free operation.
Please take note of the following warnings that must be followed in order to
prevent accidents during your gate operation:
• Do not allow children to play near the gate.
• Keep all remote control operating devices out of the reach of children.
• Do not pass through the gate whilst in operation. Wait until they are fully open before passing through.
• Do not stop unnecessarily when passing through the gate.
• Keep feet away from the bottom of the gate during operation.
• Do not operate the gate by remote control unless they are in view.
• Do not attempt to block or interfere with the gate movement during operation.
• Under no circumstances should you attempt to modify the gate automation system.
• Ensure that your gate is serviced at 3 to 12 month intervals (dependent on number of openings) by your installation/
maintenance company.
• Report any signs of malfunction to your installation/maintenance company immediately.
• In the case of malfunction, isolate the power supply, release any additional locking mechanism, manually open the
gate (see manual release instruction booklet) and call your installation/maintenance company.
• If you are in any doubt regarding the operation of your gate, call your installation/maintenance company.

3 TYPICAL GATE SETUP
PHOTOCELLS
• The photocells are used in pairs, one transmitter and one receiver.
• They should be installed between 500-600mm from the ground, facing each other.
• Power for the photocells is taken from the control panel 24v AC.
• The maximum range of the photocell should always be observed.
When the photocell beam is broken, the control panel can be programmed on how to react.
Please see ‘Safety’ section for more information.
1
9
7
8
2
5
3
4
6
OUTSIDE OF GATES
INSIDE OF GATES
10
11
12
8
1BKV Motor 5Selector Keypad (optional) 9Photocell column (optional accessory)
2Limit switch fins 6Photocells (on outside of gate posts) 10 Slide guides
3Reception Antenna 72nd set of Photocells (optional) 11 Rack
4Flashing Light (optional) 8Mechanical End Stop (not supplied) 12 Sensitive safety-edge
CONTROL PANEL
• The control panel is integral to the motor and is accessed by removing the outer cover.
• The control panel is protected by a board-protection cover which will need to be removed for initial wiring.
Only a competent service provider should open the enclosure
and adjust the settings.

4 GEOMETRY
Max Leaf Length (m) Max Leaf Weight (kg)
20 1500
Preliminary checks
gate GEOMETRY
Tick
1. Ensure that all surfaces are perfectly level (Do not install on slopes)
2. Foundation frame dug out
3. Set up the corrugated tubes needed for the wiring coming out of the junction pit.
4. Use Ø 40 mm corrugated tubes to connect the gearmotor to the accessories
5. Prepare a Ø 20 mm tube to run the release cord through A.
6. Use Ø 40 mm corrugated tubes to connect the gearmotor to the accessories
The number of tubes depends on the type of system and the accessories that are going to be tted
INSTALLATION
Please refer to the full manual for installing the motor, rack and setting travel end points
1-2mm. The rack and pinion should mesh.
Do not allow the rack to rest on the pinion.
The gate motor must be installed parallel to the gate.
p. 8- Manual FA01443-EN
180 220
400
.xam21
412
59
220
260
1 ÷ 2

5 MANUAL RELEASE
To manually release the gates:
1. To disengage the motor,
insert the key into the lock
A. Unlocking the door will
automatically isolate the
power.
2. With the power safely isolated
it is safe to proceed with the
manual release.
3. To re-engage, ensure the gate
is closed. Now close the door
on the motor Band turn the
key to the locked position.
Remove the key.
4. Attempt to manually open the
gate to ensure the system is
fully engaged.
The BKV sliding gate operator has a manual release system found behind a locked
compartment on the front of the motor.
Basic Maintenance: Hints & Tips
• If a ground track is fitted, ensure the track is always
clear of debris.
• Lubricate manual release compartment and key
mechanism.
• Manually release the gates at least once per month.
ALWAYS isolate the power supply as
instructed by your installer (even in a
power cut).
Release any additional locking
device fitted to the gate (eg. electric
lock etc).
a
B

6 wiring diagram
ZN8
Control Panel
TOP-A433N
Antenna
Cable/length
RG58
Max. 5m
+ -
10 2 TX C NC TX 2
RX TX
DIR
Photocells
Cable/length
RX 4 Core 0.5mm Flex
TX 4 Core 0.5mm Flex
1m - 30m
Mains Supply
230 V AC
Cable/length
1m - 20m = 3 Core 1.5mm Flex
20m - 30m = 3 Core 2.5mm Flex
AF43S
Plug-in
1 2 3P 7 10 TS 2 CX CY
M N
FC FA F + E -
L N
AGNDBA BS1 GND
10 11 E 5Z4 C
RSE
Set RSE jumper
to OFF
RGSM001S
Gateway Module
Cable/length
Max 3m power
10 2 A B GND

TITLE7pre-installed sim card
The pre-installed SIM card is an IOT/M2M multi SIM complete with 480MB data allowance and 3 year life term.
Under average usage of 3-4 gate manoeuvres per day, the data should last approximately 3 years.
In case you use up the 480MB data volume before the end of the 3-year term, you can easily add another 480MB data
volume by making a top-up, details of which can be found here:
www.cameconnect.co.uk/gsmmodule
Due to situations outside of our control, CAME cannot guarantee signal strength or availability and therefore will not be
held liable for lack of service.
came automation
internet
came cloud
setup app
for the installer
GET IT ON
App Store
GET IT ON
automation app
for the end user
GET IT ON
App Store
GET IT ON
System Frequency Approx. Movements Est. SIM Life Based on Usage
Occasional Usage Approx. 5 gate manoeuvres per
week
4-7 Years*
Average Usage** Approx. 3-4 gate manoeuvres
per day
3-4 Years
High Usage Approx. 5+ gate manoeuvres per
day, multiple scenarios running
1-3 Years
* SIM will expire after 3-4 years. (CAME guarantees 3 years with some tolerance for shelf life consideration)
** We anticipate SIM provided will have sufficient data for Average Usage (as shown above) lasting approx. 3 years

TITLE
7pre-installed sim card
The pre-installed SIM card is an IOT/M2M multi SIM complete with 480MB data allowance and 3 year life term.
Under average usage of 3-4 gate manoeuvres per day, the data should last approximately 3 years.
In case you use up the 480MB data volume before the end of the 3-year term, you can easily add another 480MB data
volume by making a top-up, details of which can be found here:
www.cameconnect.co.uk/gsmmodule
Due to situations outside of our control, CAME cannot guarantee signal strength or availability and therefore will not be
held liable for lack of service.
came automation
internet
came cloud
setup app
for the installer
GET IT ON
App Store
GET IT ON
automation app
for the end user
GET IT ON
App Store
GET IT ON
System Frequency Approx. Movements Est. SIM Life Based on Usage
Occasional Usage Approx. 5 gate manoeuvres per
week
4-7 Years*
Average Usage** Approx. 3-4 gate manoeuvres
per day
3-4 Years
High Usage Approx. 5+ gate manoeuvres per
day, multiple scenarios running
1-3 Years
* SIM will expire after 3-4 years. (CAME guarantees 3 years with some tolerance for shelf life consideration)
** We anticipate SIM provided will have sufficient data for Average Usage (as shown above) lasting approx. 3 years
8initial power ON
OUT1OUT2
Keycode
123456789ABCDE F
MATR
54051 6
300mAE GSM – 900 33dBm
DCS – 1800 30dBm
869.5MHz 14dBm
24V
CONNECT
123 4
GND
A
N
T
10+
2
COM
IN2
COM
IN1
B
A
–
1A 30V
RGSM001S
1 2
1GSM LED (Blue)
After a few seconds the LED will flash 1x/sec indicating the RGSM001S is registered on a GSM network.
2POWER LED (Green)
The LED will flash 5x/sec indicating the RGSM001S is not yet configured on the Connect platform
Power on the control board.
The display will read
Installer Tip
If the RGSM001S is located
in a concealed area and a low
GSM signal observed a 2m
extension cable and bracket is
available to purchase.
This then allows the aerial to
be located in a more suitable
position. Part No:
806SA-0050

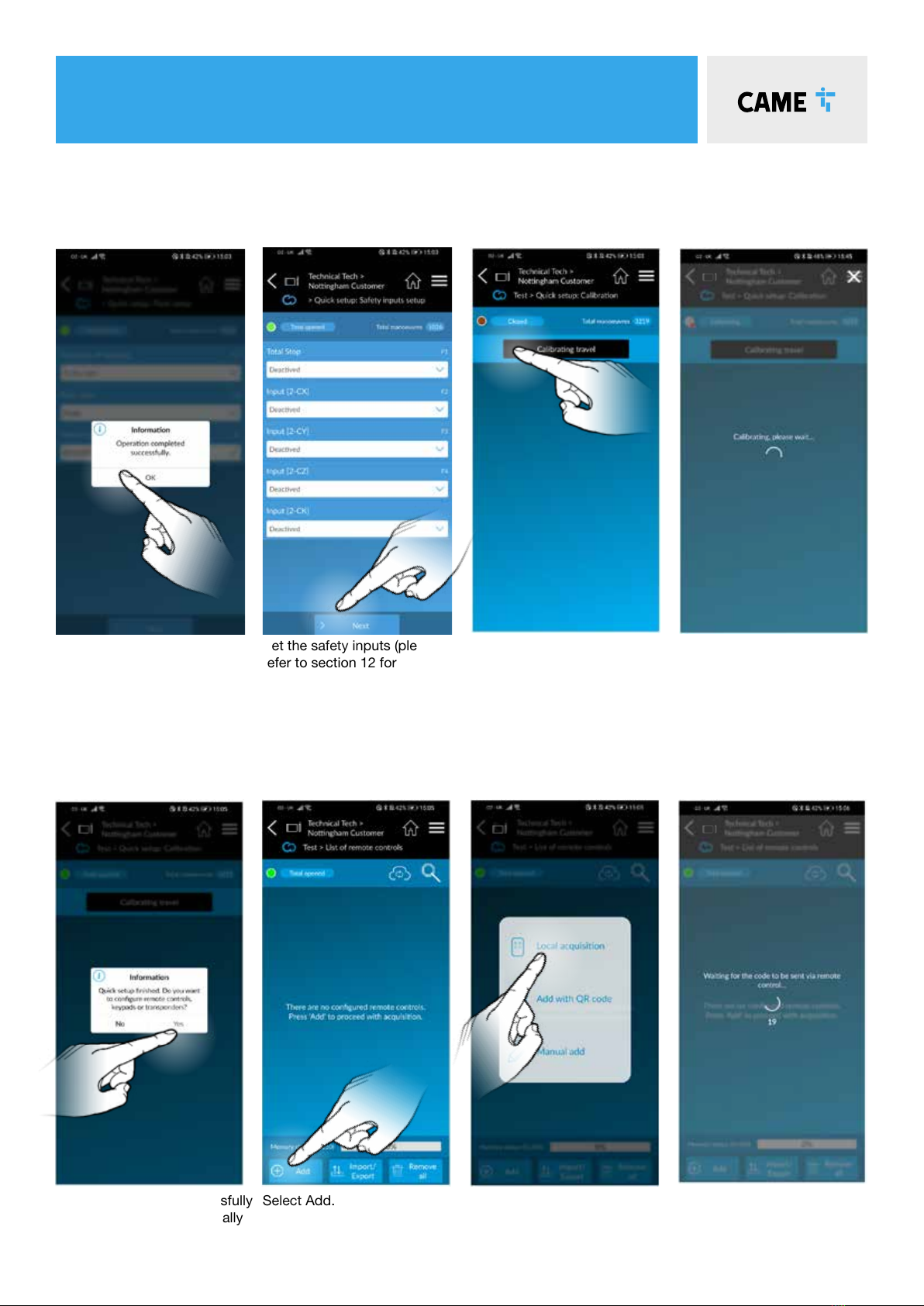

TITLE9 commissioning the rgsm
3.1 Open the App and log in
using your technician details
as registered.
3.2 Select “CAME Connect
connection”.
3.3 Select “Site
management”.
3.4 Fill in a site “Name” and
“Description” and then press
“Add”.
2.1 Select “Register as
technician”.
2.2 Fill in your details and
then “Confirm”.You will
receive an email containing
your log in information
and request to confirm the
account. Should the email not
arrive, please check your junk
folder.
download the
connect setup app
adding the rgsm gateway
to your technician account
technician
connect setup app
1
3
2
If you have an existing account, please move to step 3.
Important!
The installation must be carried out
by skilled and qualified personnel
Mr Wilson, Sills Road, DE74 2US
Mr Wilson, Sills Road, DE74 2US
1.1
GET IT ON
App Store
GET IT ON
Installer Tip
The Name and Description entered
here, can be used to identify the
site location.
Name: Mr Wilson, Sills Rd, DE74 2US
Description: Mr Wilson, Sills Rd,
DE74 2US
This shows in the Installers
Setup App, under the site
management list.
