Canon i475D Series User manual

BUBBLE JET PRINTER
Quick Start Guide
Table of Contents
Preface 1
Shipping Materials 1
Introduction 1
Setting Up 2
Preparing the Printer 2
Connecting the Printer to the Computer 3
Installing the Print Head 4
Loading Paper 7
Installing the Printer Driver 8
Aligning the Print Head 14
Basic Operations 20
Printing with Windows 20
Printing with Macintosh 22
Print Head Maintenance 24
Appendix 25
Notes on Handling the USB Interface (for Windows Users) 25
For Further Details... 25
Specifications 26
QA7-2844-V01 XX2003XX ©CANON INC.2003 PRINTED IN VIETNAM
QA7-2844-V01
BE

Exif Print
This printer supports Exif 2.2 (also called “Exif Print”).
Exif Print is a standard for enhancing the communication between digital cameras and printers. By
connecting to an Exif Print-compliant digital camera, the camera’s image data at the time of shooting is
used and optimized, yielding extremely high quality prints.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions from a digital
apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,”
ICES-003 of the Industry Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils
numériques de Classe B prescrites dans la norme sur le matériel brouilleur NMB-003 d'Industrie
Canada intitulée « Appareils numériques ».
International ENERGY STAR®Program
As an ENERGY STAR®Partner, Canon Inc. has determined that this product meets the ENERGY
STAR guidelines for efficiency.
The International ENERGY STAR®Office Equipment Program is a global program
that promotes energy saving through the use of computer and other office equipment.
The program backs the development and dissemination of products with functions
that effectively reduce energy consumption. It is an open system in which business
can participate voluntarily. The targeted products are office equipment such as com-
puters, monitors, printers, faxes and copiers.
Their standards and logos are uniform among participating nations.
Power Requirements
Never use a power supply voltage other than that supplied in the country of purchase. Using the incor-
rect voltage could cause a fire or electric shock. The correct power supply voltages and frequencies are
as follows:
AC 100-127 V, 50/60 Hz
AC 220-240 V, 50/60 Hz
Printer Model: K10223 (i475D)

1
Preface
Shipping Materials
Thank you for purchasing a Canon Bubble Jet Printer.
Check that all the following items are in the box. If anything is missing or is damaged, contact your Canon
Authorized Dealer or Sales Representative.
 Printer
 Setup Software & User’s Guide CD-ROM
 Quick Start Guide
 Print Head
 2 Ink Tanks
* A USB cable should be purchased separately according to your computer. For details on cable
specifications, refer to page 3.
Introduction
For information about printing when you connect a PictBridge-compliant digital camera, refer to Direct
Printing for PictBridge-compliant Digital Cameras
.
This Quick Start Guide uses the following symbols to indicate important information. Always observe the
instructions indicated by these symbols.
Instructions that, if ignored, could result in death or serious personal injury caused by incorrect
operation of the equipment. These must be observed for safe operation.
Instructions that, if ignored, could result in personal injury or material damage caused by incorrect
operation of the equipment. These must be observed for safe operation.
Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to avoid
personal injury or damage to the printer.
Trademark Notices
•Canon
®
is a registered trademark of Canon Inc.
• BJ is a trademark of Canon Inc.
•Microsoft
®
and Windows
®
are registered trademarks of Microsoft Corporation in the U.S. and other
countries.
• Apple, Mac, Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries.
• CompactFlash is a trademark of SanDisk Corporation.
• MEMORY STICK is a trademark of Sony Corporation.
• SmartMedia™ is a trademark of Toshiba Corporation.
• Microdrive is a trademark of International Business Machines Corporation.
Copyright ©2003 CANON INC.
All rights reserved. No part of this publication may be transmitted or copied in any form whatsoever
without the express written permission.

2
Setting Up
1 Preparing the Printer
1
11
1 Place the printer on a flat surface.
2
22
2 Remove the tape from the printer as
shown.
The tape position is subject to change.
3
33
3 Attach the paper rest to the sheet
feeder.
4
44
4 Pull out the output tray.

3
2 Connecting the Printer to the Computer
Use a USB cable.
Recommended: Canon or other computer manufacturer cable, up to 5 meters in length.
Follow the steps below to install the printer driver
correctly.
1
11
1 Ensure that the printer and the
computer are switched off.
2
22
2 Connect the cable.
• If your computer has an earth connection, make sure that this is attached.
• If you do not intend to use the printer for a long period of time, unplug the power cord from the
power outlet after turning off the printer.
If the Add New Hardware Wizard or Found New Hardware Wizard
screen appears when carrying out the following operations, click
Cancel and turn off the computer.

4
3 Installing the Print Head
• Never attempt to plug the power cord into the power outlet or unplug the power cord when your
hands are wet.
• Never damage, modify, stretch, or excessively bend or twist the power cord. Do not place heavy
objects on the power cord.
• Never use any power supply other than the standard power supply available in the country of
purchase. Using the incorrect voltage and frequency could cause a fire or electric shock.
• Always push the plug all the way into the power outlet.


Installing the Print Head
1
11
1 Plug the printer in.
2
22
2 Turn on the printer. Do NOT turn on the
computer yet.
The POWER lamp flashes and the printer begins to
operate. Wait until the POWER lamp remains fully lit.
3
33
3 Open the output tray.
4
44
4 Open the front cover.
The print head holder moves to the center.
ON
output tray
print head holder

5
5
55
5 Raise the lock lever.
Do not touch internal parts other than the lock lever.
6
66
6 Remove the protective cap from the
print head.
7
77
7 Place the print head in the holder.
8
88
8 Lock the print head into place by
lowering the lever.
Do not touch the lock lever once the print head has been
installed.
• Do not touch the print
head nozzles or
electrical contacts.
• Do not attempt to
reattach the protective
cap once it has been
removed.
l
oc
kl
ever
electrical
contacts
print head
nozzles
pr
i
nt
h
ea
d

6



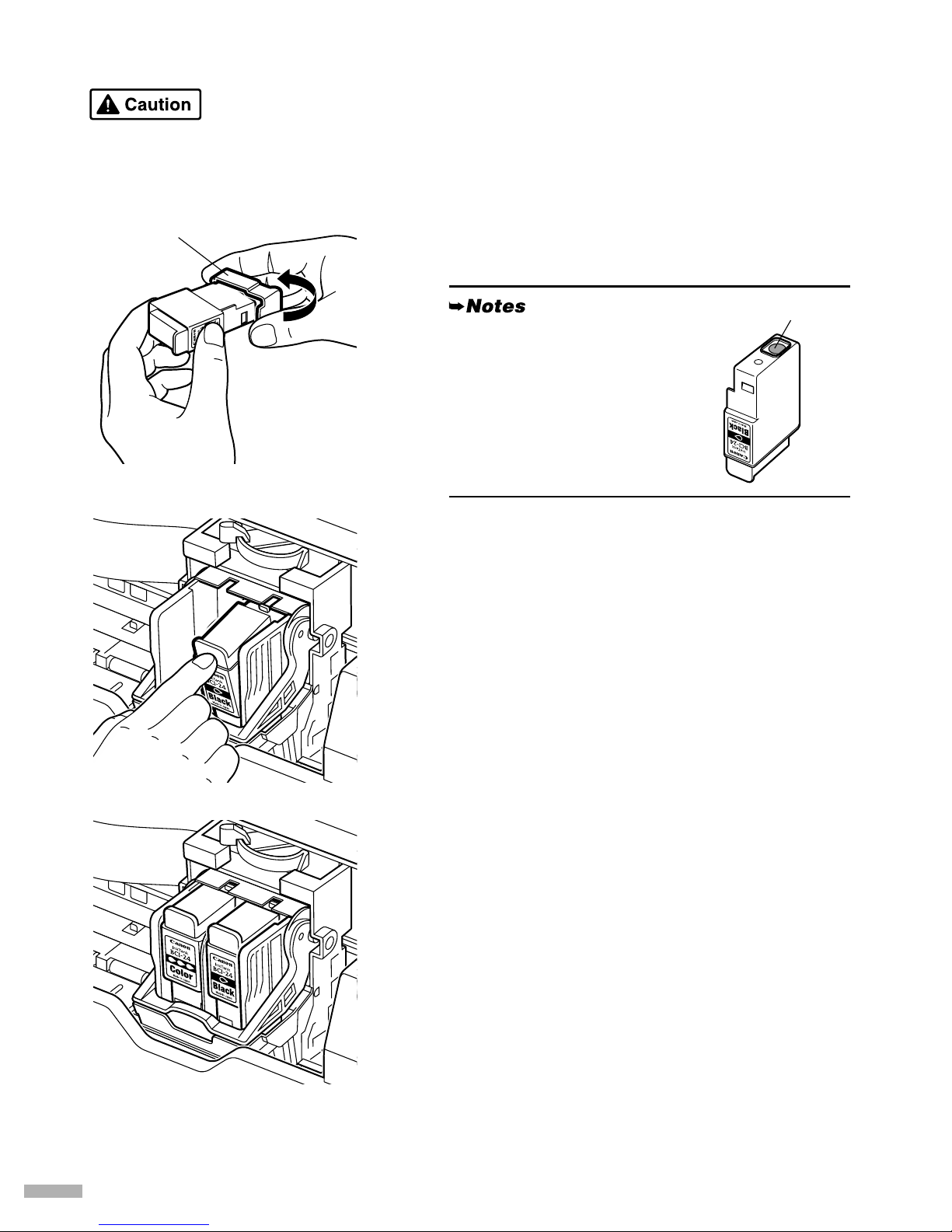

Installing the Ink Tanks
• For safety reasons, store ink tanks out of the reach of small children.
• Do not drop or shake ink tanks as this may cause the ink to leak out and stain your clothes and hands.
1
11
1 Take out the black ink tank.
2
22
2 Hold the ink tank as shown in the
diagram and remove the protective cap.
3
33
3 Insert the black ink tank into the right-
hand slot.
4
44
4 Press the tab until it clicks into place.
5
55
5 Use the same procedure to install the
color ink tank in the left-hand slot.
6
66
6 Close the front cover.
Wait until the POWER lamp remains fully lit (about 60
seconds).
• Do not touch the ink port.
• Do not attempt to reattach the
protective cap once it has
been removed.
protective cap
ink port

7

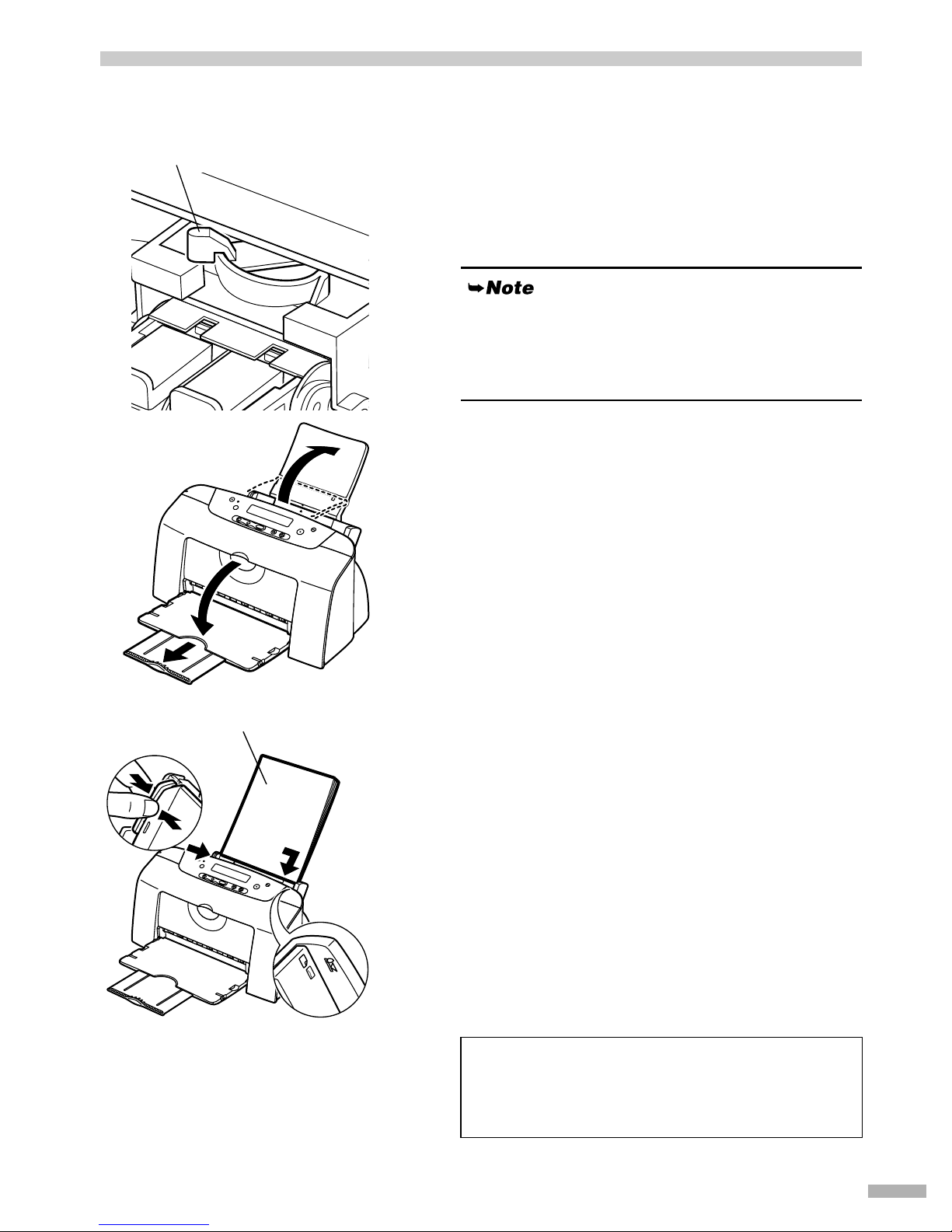

4 Loading Paper


Loading A4 (Letter) Size Plain Paper
1
11
1 Open the front cover.
2
22
2 Move the paper thickness lever at the
top of the print head holder to the left
position. Close the front cover.
3
33
3 Pull out the paper rest and the output
tray as shown.
4
44
4 To avoid paper jams, fan the stack to
remove static cling, then align the edges
of the stack by tapping it on a flat
surface.
5
55
5 Load the paper, aligning it with the right
side of the sheet feeder.
You can load a maximum of 100 sheets of plain paper.
Do not exceed this limit.
6
66
6 Press the paper guide and slide it
against the left side of the stack of
paper.
Set the paper thickness lever to the left when using
plain paper, to the right when using thick paper.
Refer to the User’s Guide for information on loading
envelopes and other media.
You now need to install the printer driver:
Windows: Go to page 8
Mac OS X: Go to page 11
paper thickness lever
print side

8
5 Installing the Printer Driver


Installing the Printer Driver – Windows
1
11
1 Ensure that the printer and computer
are switched off.
2
22
2 Turn on the computer and start
Windows. If any applications
automatically run, quit them.
Disable any virus detection programs.
Do NOT turn the printer on at this stage.
If you are printing with only Direct Print, skip this chapter and go to “Aligning the Print Head” on
page 14.
• Do not disconnect the cable or remove the CD-ROM during the installation. The driver cannot be
correctly installed.
• The screens below refer to Windows XP installation. Screen may differ depending on the operating
system you are using.
• When installing the printer driver in Windows XP or Windows 2000, log on to the system as a
member of the Administrators group.
• The Setup Software & User’s Guide CD-ROM contains the application software. If you want to
install the application software, click Install on step 7. Internet Explorer 4.0 or later must be
installed for Easy-PhotoPrint.
If the following screen appears automatically, click Cancel and follow steps 1 to 8 to install the printer
driver.
Special Notes for Windows 98 or Windows Me USB Users
Click Cancel to quit the screen and turn off the printer. Next, remove and replace the USB cable
connected to your computer.
OFF

9
3
33
3 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
4
44
4 Follow the instructions displayed on
screen. When the screen shown on the
left is displayed, click Install.
5
55
5 When the screen shown on the left
appears, turn the printer on.
If the printer is recognized, the printer driver will be
automatically installed.
• If the CD-ROM does not run automatically, click
Start and select My Computer, and then double-
click the CD-ROM icon. For non-XP Windows
users, double-click My Computer in the
Windows screen, and the CD-ROM icon.
• If the language selection screen appears, select a
language, then click
Next .
If the connection is not recognized, refer to the
section “Notes on Handling the USB Interface (for
Windows Users)” on page 25.
ON

10
6
66

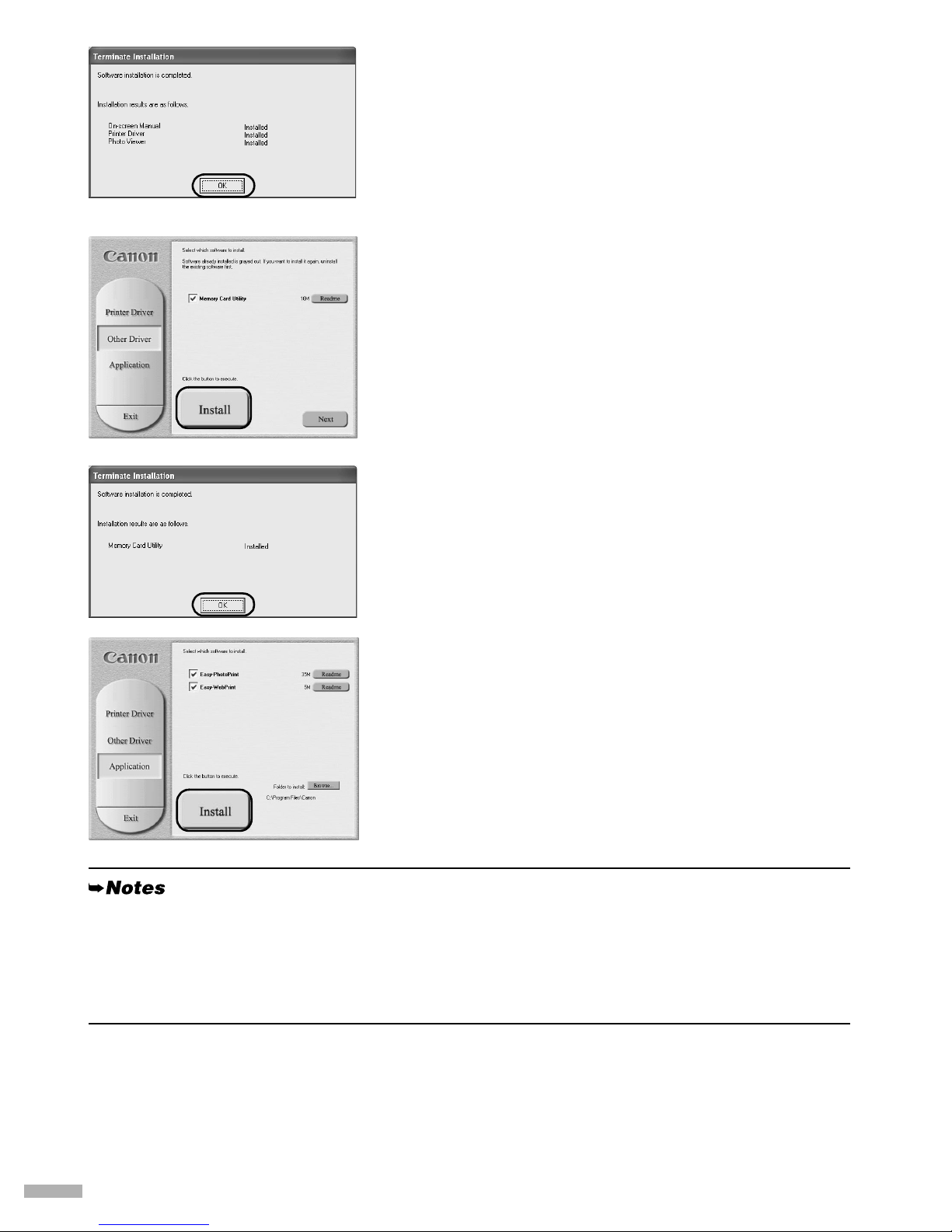

6 Click OK.
Before you use the printer, you must carry out print head
alignment on page 14.
7
77
7 Click Install to install the memory card
utility.
8
88
8 Click OK.
9
99
9 If you want to install the application
software, click Install.
Follow the instructions on screen to install the
application software. When the message “Software
installation is completed.” is displayed, click
OK .
10
1010
10 Click Exit.
• The User’s Guide is also installed when you install the printer driver. To view the User’s Guide,
double-click the User’s Guide short-cut icon on the desk top.
• If a message prompting you to restart the computer
is displayed , click Ye s .
• For further information of applications and how to start them, refer to “Applications Included in the
CD-ROM Package” on page 26.

11



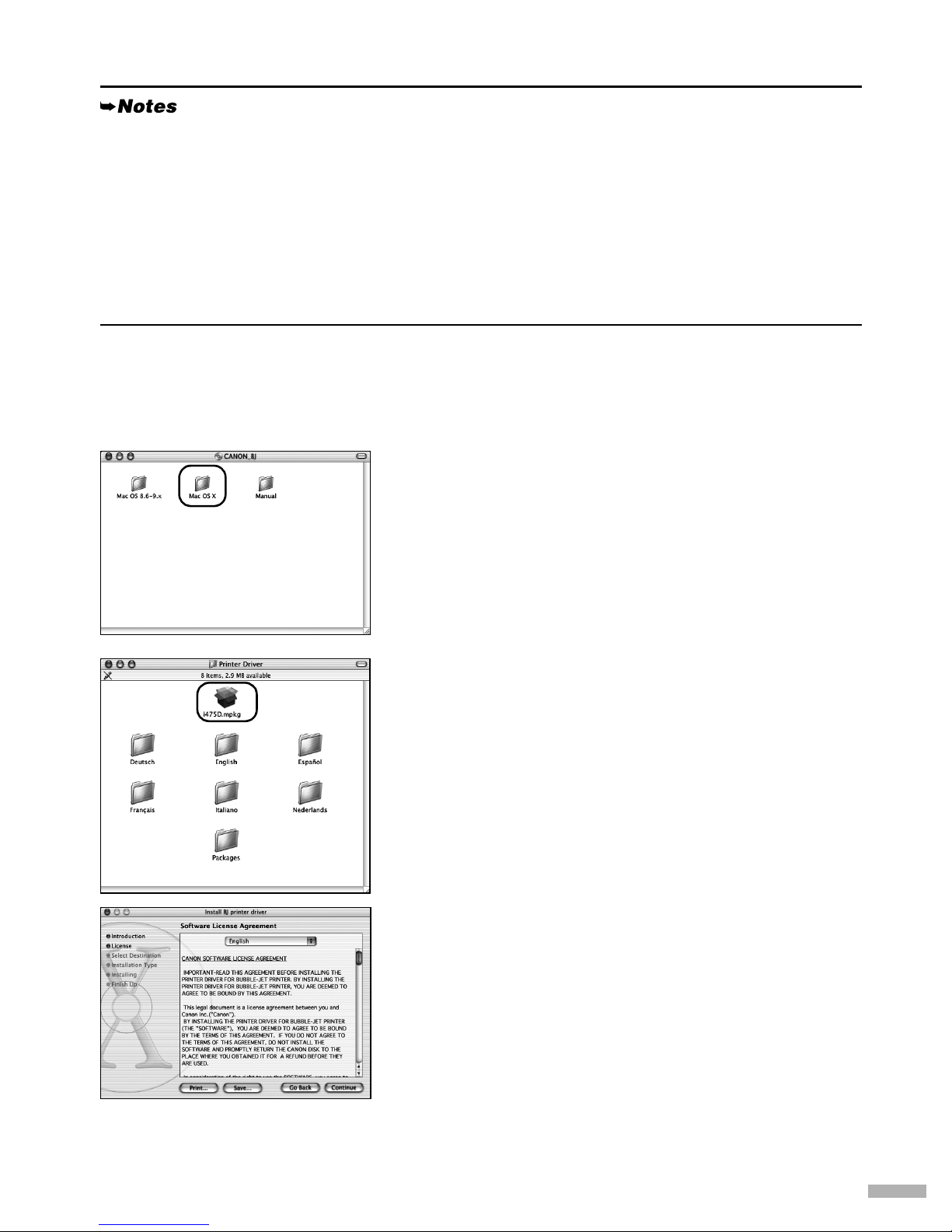

Installing the Printer Driver – Macintosh
1
11
1 Turn on the Mac.
2
22
2 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
3
33
3 Double-click the Mac OS X folder, and
then double-click the Printer Driver
folder.
4
44
4 Double-click i475D.mpkg.
5
55
5 Enter an administrator name and a
password, then click OK.
6
66
6 Click Continue.
7
77
7 Read the License Agreement and click
Continue, then click Agree.
• Do not remove or insert the USB cable during installation, as this may result in the computer or
printer not operating normally.
• Before installing the driver, disable all virus detection programs and automatically loading
programs or remove them from your system folder.
• The Setup Software & User’s Guide CD-ROM contains the application software, Easy-PhotoPrint,
to import and print image data. If you want to install Easy-PhotoPrint, double-click the application
folder, the Easy-PhotoPrint folder, and Installer.
• For Mac OS 8.6-9.x users, refer to the Printer Driver Guide for Mac OS 9 for instructions on how to
install the printer driver.

12
8
88
8 Select a destination to where you want
to install the printer driver, and click
Continue.
9
99
9 Click Install.
10
1010
10 A message asking for your confirmation
to restart your computer is displayed on
the screen. Read the message, then
click Continue Installation.
Software installation will start.
11
1111
11 Software installation is complete.
Restart your computer.
12
1212
12 Double click the Memory Card Utility
folder of the Mac OS X folder.
13
1313
13 Double click BJUtility.mpkg.
14
1414
14 Enter an administrator name and a
password, then click OK.
15
1515
15 Click Continue.
16
1616
16 Read the License Agreement and click
Continue, then click Agree.

13
17
1717
17 Select a destination to where you want
to install the memory card utility, and
click Continue.
18
1818
18 Click Install.
19
1919
19 A message asking for your confirmation
to restart your computer is displayed on
the screen. Read the message, then
click Continue Installation.
Software installation will start.
20
2020
20 Software installation is complete.
Restart your computer.
Before you use the printer, you must carry out print head
alignment on page 16.

14
6 Aligning the Print Head
This operation must be carried out when using the printer for the first time. Aligning the print head positions
allows you to print without shifts in the color registration.


Aligning the Print Head – Windows
1
11
1 Click Start and select Control Panel,
Printers and Other Hardware, and
then Printers and Faxes.
2
22
2 Click the icon for your printer.
3
33
3 Open the File menu and select:
• Windows XP/Windows 2000 →
[Printing Preferences...]
• Windows Me/Windows 98 →[Properties]
to open the setting screen.
4
44
4 Click the Maintenance tab, and click
Print Head Alignment.
5
55
5 Check that paper is loaded in the printer
and click OK. If a message warning you
not to perform other operations is
displayed, click OK.
It takes about 60 seconds to start printing.
For non-XP Windows users, click Start, then select
Settings,Printers.

15
6
66
6 After the pattern is printed, click Yes.
If the pattern is not printed successfully, open the front
cover and ensure that the ink tanks are correctly
installed.
7
77
7 Look at the print-out. From the patterns
in Column A, select the most even, least
irregular pattern and enter the number.
8
88
8 In the same way, one by one, select the
most even patterns printed with the
least irregularities from each of
Columns B to K, enter their numbers,
and click OK.
If it is difficult to pick the best pattern on Column H,
pick the setting that produces the least noticeable vertical
white stripes.
9
99
9 Click OK.
This completes the printer setup. The printer is now
ready to use.
Less noticeable
white stripes
More noticeable
white stripes

16


Aligning the Print Head – Macintosh
1
11
1 Open the BJ Printer Utility dialog box.
(1) Double-click the hard disk icon where the printer
driver was installed, the
Applications folder, and the
Utilities folder.
(2) Double-click the
Print Center icon.
(3) Select
i475D from the Name list and click
Configure .
(4) Select
i475D from the Product list and click Select .
2
22
2 Print the pattern.
(1) Select Test Print from the pop-up menu.
(2) Click
Print Head Alignment .
3
33
3 Check that paper is loaded in the printer
and click OK.
It takes about 60 seconds to start printing.
If the pattern is not printed successfully, open the front
cover and ensure that the ink tanks are correctly
installed.
4
44
4 Look at the print-out. From the patterns
in Column A, select the most even, least
irregular pattern and enter the number.
For Mac OS 8.6-9.x users, refer to the Printer Driver Guide for Mac OS 9 for instructions on how to
align the print head.

17
5
55
5 In the same way, one by one, select the
most even patterns printed with the
least irregularities from each of
Columns B to K, enter their numbers
and click Send.
If it is difficult to pick the best pattern on Column H,
pick the setting that produces the least noticeable vertical
white stripes.
6
66
6 Click Quit.
This completes the printer setup.
The printer is now ready to use.
Less noticeable
white stripes
More noticeable
white stripes

18


Aligning the Print Head – Operation Panel
1
11
1 Press the Maintenance button.
2
22
2 Press three times to display 04 on
the LCD.
3
33
3 Press the OK button.
The pattern is printed.
4
44
4 Observe the printed patterns and check
the pattern in which vertical stripes are
least noticeable.
If the patterns in column “H” are not uniform, select the
pattern in which white stripes are least noticeable.
5
55
5 Using (cursor buttons), display
the pattern number (+7 to –3) of the
checked patterns in column A.
Less noticeable
white stripes
More noticeable
white stripes
