Canon SELPHY CP780 User manual

Canon
SELPHY (P780
COMPACT PHOTO PRI NTER
Printer User Guide
,
ENGLISH
•Make sure you read this guide before using the pnnter.
•Store
thts guide safely so that you can use it in the future I
'" 111111111111
CDI-E394

Share Your Memories with SELPHY
Compact, Stylish, Powerful!
Save your precious moments with SELPHY.

What You Can Do with Your SELPHY
Necessary Preparations to Use SELPHY _pp 8
12
Compatible Memory Cards and Images That Can Be Printed _13
Print aSingle Image p14
PrintAll Images p16
Various Prints _
Print Images from aComputer _
pp. '8 20
pp 21 25
INDEX
Package Contents 4Printing from Your Computer
21
Ink and Paper (Sold Separately) 4Printing From Your Digital Camera
__
Read This First 5Printing Images Using Camera Specified
Conventions Used in this Guide
~ Sellings (DPOF Print)
Getting Familiar with SELPHY 6SELPHY Settings
28
For Your Safety 7Using the Battery Pack
29
Setting Up SELPHY 8Printing From Your Mobile Phone 30
Getting Started 9Troubleshooting
11
Setting the Display Language
12
Handling Precautions 33
Printing Images
13
Specifications
34
Printing aVariety of Images
18

Package Contents J
-----"
Check ,f the following ,terns are mcluded in your printer package, using the 0check boxes. If anyth,ng
,s m,ss,ng, contact the retailer where you purchased the pnnter.
oSELPHY Pnnter Unit
oPaper Cassette
(Postcard Size)
oPrinter User Guide (This Guide)
oCompact PowerAdapter
CA-CP200W
oPaper Cassette
(Card Size)"
oWarranty Card
o
oPower Cord
oCD-ROM.
COMPACT PHOTO PRINTER
Solution D,sk
• Card sae paper cassette may not be supplied depending on region.
Ink and Paper (Sold Separately)
--
Before using the printer, be sure to purchase aColor Ink cassette/Paper Set separately.
Color Ink Cassette/Paper Set
Number of
Necessary Paper Cassette
Product Name Paper Size Possible Prints
Color 'nk GassettelPaper set KP-36IP 36
(Postcard)
Color Ink GassettelPaper
set KP-72IN
Postcard SiZe 72 Paper Gassette pcp·CPJOO
(Photo Paper) (Induded
WIth SElPHY)
Color Ink CassettelPaper
set KP-l08IN 108
(Photo Paper)
Color Ink CassetteIPaper Set KC·36IP 36
Color Ink GassellelLabel
sel KG-181F
18
(Full-page labels) Card SIZe
PaperGassette PCC-CPJOO'
Color Ink Gassette!Labei set KG-181l
18
(lHabei sheets)
Color Ink GassettelPaper sel KW-241P Wide Size
24 Paper Gassette PCW-CP100··
0' Some accessones may not be available depending on the region. Please purchase separately.
oJ Please purchase the paper cassette in addition to the dedicated Color InkIPaper Sel
4

Read This First }
-----------_/
..-I Warning Against Copyright Infringement
The images printed With this product should be intended for personal use. Do not print images
that infringe upon copyright laws without the prior permission
of the copyright holder.
..-I Warranty Limitations
This product's warranty IS only effective in the country of sale. If aproblem arises while the
printer
IS In use abroad, please retum it to the country of sale before proceeding with awarranty
claim to aCanon Customer Support Help Desk.
Conventions Used in this Guide
•This printer will be referred to as "SELPHY" or "prinler".
•The various types
of memory cards that can be used in this prinler are collectively referred to as
-memory cards",
•Icons are used in the text 10 represent SELPHY's buttons.
•Language that displays on the screen appears inside
[J (square brackels).
•Buttons are represented by the following icons:
+-,Q, (Pnnt button)
•(UP/COPIES +(add)
""tton)
b
~ (Right ""tton)
c"'"".
+
lACK ..... ,
D(BACKI (Bael< bulton)
OK (OK button)
'" (DownI- (remove) button)
... (Left button)
ON ......
~cr
D(MENU) (Menu bulton)
<!> (Power bulton)
• <D :Things you should be careful about.
• , : Supplemental information.
• : Reference
pages.· •stands for page number.
•This chapter assumes all functions are at their default settings.
5

Getting Familiar with SELPHY
-~~-------
Learn more about the parts names and displays on the screen In thiS section.
Components Guide
Memory Card Slots ---
Paper Cassette
Compartment
Paper Cassette
Compartment
Cover
ltlff--- Col", Ink Cassette Lock
""".--- Color Ink Cassette 5101
"","'--::"e.---Color Ink Cassette Cover
USB TermInal (Of
Computer ConnectJon
-f---DC IN (Power InP<Jt) Terminal
USB Terminal for :--~c=~:",::::~~:<:::~~§ijl§J~CJ~q
Camera Connection
Battery Cover
~
(Air vents are behind -- .. ~
the battery cover)
Paper Ejec1ion Slot ----.....:~,J
00 Start printing.
L Go back one screen,
cancel printing
Specify number of COPteS, select settmg Items
.~~~~~~ SWItch images.
~ change settlngs
"':'"
Saeen (LCD Mon,t",)
DiSplay ImageS. settings
screens, or error messages
Tum the power on or off. ----,
Display the menu screen. __ ~_O
Set the selected Item
Information Displayed on the Screen
Total number of prints
(Number of sheets required)
;;;;;;--1·5,~t- Currently used memof')' card slot
[O::!':'l+- Paper onentabOn
Pnnt Settlllgs
Gl 6Ofde .. ,Page Layout. Date,
Correct Red-Eye.
My Colors.
~ Image OptimIZe. (Settings that are
~ not available are grayed out)
iii
File Number r====1t~'J~~2-_"':'l-_~~=18
Installed color ink cassette type
(Postcard SiZe IS used In thIS example.)
Number of copies of the displayed image
6

For Your Safety
•Before using SELPHY, please ensure that you read this "For Your Safety" section. Always ensure
that SELPHY is operated correctly.
•The safety precautions noted
on the following pages are intended to prevent injuries to yourself and
other persons, or damage to the equipment.
•
Be sure to also check the guides included with any separately sold accessories you use.
~ WARNING Denotes the possibility of serious injury or death.
~ CAUTION Denotes the possibility of injury.
CAUTION Denotes the possibility ofdamage to the equipment.
I • "
This Printer
•Do not attempt to disassemble or alter any part of the equipment in away that Is not
expressly described In this guide.
•
To avoid the risk of Injury, do not touch the interior of the printer If it has been dropped or
otherwise damaged.
•Stop operating the
printer Immediately If It emits smoke. astrange smell, or otherwise
behaves abnormally.
•Do
not use organic solvents such as alcohol, benzine, or thinner to clean the equipment.
•Do
not allow liquids or foreign objects to enter the printer.
This could result
in electrical shock or fire.
Should this occur, immediately tum the printer's power offand unplug it.
•Use only recommended power sources.
Using other power sources could result in electrical shock or fire.
•Do
not touch this printer or the power plug during thunderstorms.
This could result
in electrical shock or fire. Immediately stop using the equipment and distance
yourself from
it.
Power (Compact Power Adapter)
•Store this equipment out of the reach of children and infants.
Mistakenly putting the power cord around achild's neck could result
in asphyxiation.
•Use only recommended
power sources.
•Do
not cut, damage, alter or place heavy Items on the power cord.
•Unplug the power cord periodically and wipe away any
dust and dirt that has collected on
the plug, the exterior
of the power outlet, and the surrounding area with a dry cloth.
•Do not handle the power
cords with wet hands.
This could result
in electrical shock or fire.
Other Warnings
•Do not play the supplied CD.ROM(s) In any CD player that does not support data CD·ROMs.
Playing the CD-ROM(s)
in an audio CD player (music player) could damage the speakers. It is also
possible
to suffer hearing loss from listening with headphones to the loud sounds of aCD-ROM
played
on amusic CD player.
7

•
Do not stick any part of your hand into the printer interior.
This could lead
to Injury or damage the printer
00 not use the power cord for any other equipment except this printer. use it beyond its
rated capacity or voltage, or leave the plug partially Inserted Into apower outlet
ThIs could result In electncal shock or fire
Avoid using, placing or storing the printerin the following places.
-Places subject to strong sunlight.
-Places subject to temperatures above 40' C(104' F).
-Humid or dusty areas.
Electrical shock or heating could resull
in burn. injury or fire. Heat may cause deforma~on of the
printer's casing .
•Do
not allow metallic pins to touch or allow dust to collect on the powerplug.
This could result in electrical shock, fire, malfunction or other damage.
CAUTION
Unplug the power cord from the power outlet when you are not using the printer.
•Do not use the compact power adapter if it Is covered by clothing.
If connected for along period, this could result
in overhea~ng. deforma~on of the caSing or fire
Setting Up SELPHY
•Place SELPHY on aslable and even surface,
such as a table. Never place it on an unstable or
1IIled surface.
•Keep SELPHY alleast 1 m
(3 ft.) from deVices
emitting electromagnetic waves or strong
magne~c fields
Make sure there
IS alleast 10 em (4 in.) of free
space around SELPHY
Make sure there
IS free space of at least the
length
of the paper behind SELPHY (Dunng
pnnting the paper will pass
In and out.)
In.)
!---10 em (4 in.)
or more
,a
•
•,
D@
'-
I8
I--J
10 em (4
~
(J( more
Length of the paper or more
CD
,Never
place SELPHY close to motors or other devices that generate strong electromagnetic fields
This may damage or cause the pnnter to malfunction.
00 not place near television or radIo. This may cause the printer to malfunction.
The LCD monitor may be covered with a thin plastic film for protection against scratches dunng
shipment. If so, remove the film before using SELPHY.
8

Getting Started

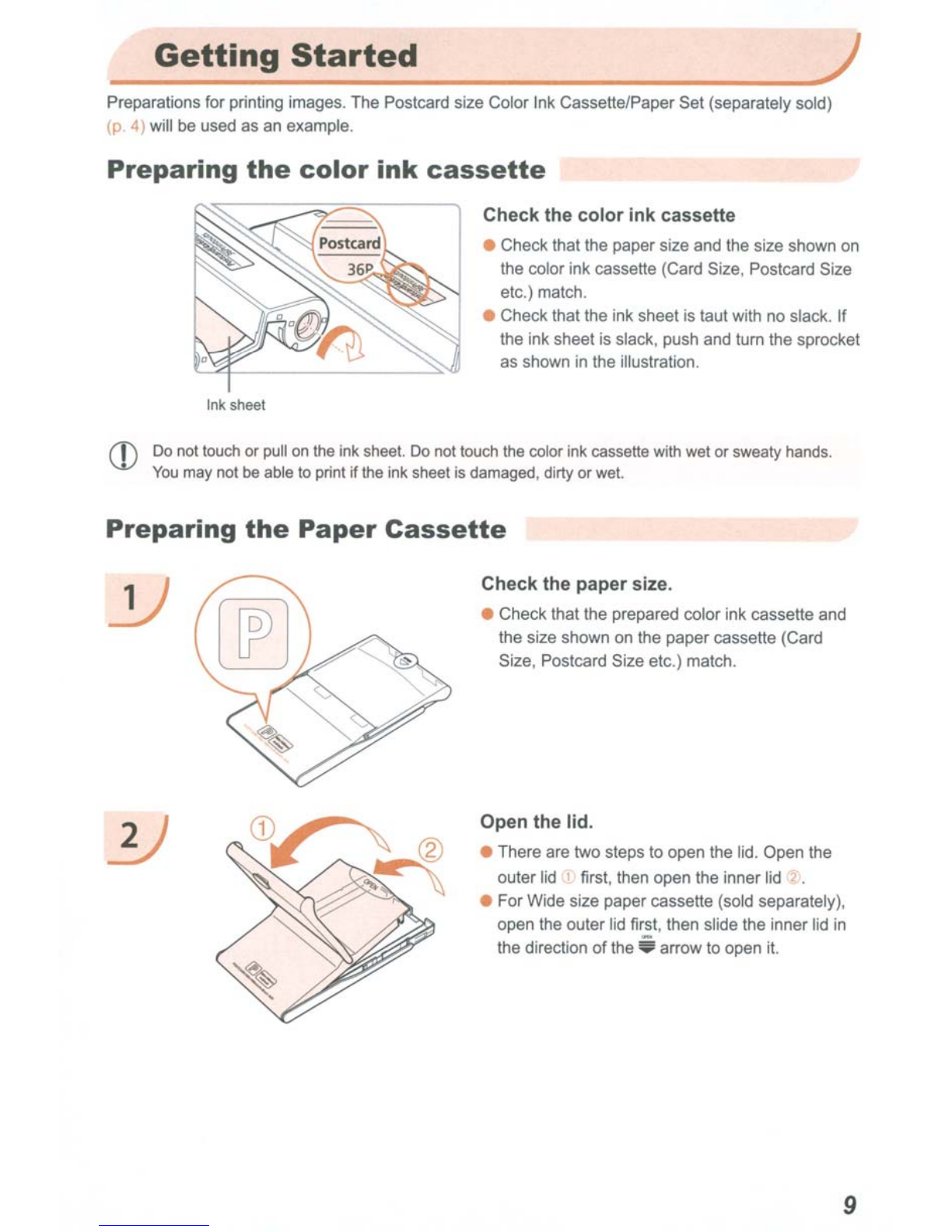

Preparations for printing images. The Postcard size Color Ink Cassette/Paper Set (separately sold)
p4) will
be used as an example.
Preparing the color ink cassette
Check the color ink cassette
•Check that the paper size and the size shown on
the color ink cassette (Card Size, Postcard Size
etc.) match.
•Check that the ink sheet
is taut with no slack. If
the ink sheet is slack, push and tum the sprocket
as shown in the illustration.
CD
Ink sheet
Do not touch or pull on the ink sheet. Do not touch the color ink cassette with wet or sweaty hands.
You may not be able to print if the ink sheet is damaged, dirty or wet.
Preparing the Paper Cassette
Check the paper size.
•Check that the prepared color Ink cassette and
the size shown on the paper cassette (Card
Size, Postcard Size etc.) match.
Open the lid.
•There are two steps to open the lid. Open the
outer lid first, then open the inner lid .
•ForWide size paper cassette (sold separately),
open the outer lid
fi':;!t, then slide the inner lid in
the direction of the
l;l! arrow to open it.
9

Shiny side
3
Set the paper.
Set the paper into the paper cassette that you
prepared
In Step 1.
You can place up to 18 sheets in the paper
cassette (up to 12 for Wide size). Inserting 19
or more sheets (13 or more for Wide size) may
damage the printer or cause malfunction.
Hold the paperstack as shown
in the illustration,
with the shiny side facing up. Do not touch the
print side (shiny side) of the paper with your
fingers. Doing so may prevent you from making
clean prints.
When a protective sheet is present, remove it
and only set the paper stack into the cassette.
•When making postcard size prints that have a
section for pasting astamp. insert the
paper so
that the stamp section
is facing the Inner lid (as
shown
In the Illustration).
Close the lid.
•Close the inner lid until it clicks into place.
Leave the outer lid open during printing.
•ForWide size paper cassette (sold separately),
close the inner lid first, then slide the inner lid
until it clicks to the opposite direction of the.
arrow.
CD
10
Always use the paper specific to SElPHY CP series printers included in the genuine Canon
brand Color Ink Cassette/Paper Sets. Use only dedicated paper. RegUlar printing paper, regular
postcards, or paper specified for use in SElPHY ES series printers cannot be used .
•Never
do the following, as it may lead to failure or cause the printer to malfunction:
- mistakenly reversing the paper (the shiny side is the print side)
- bending or separating the paper at the perforations
- using label sheets that have begun to peel or label sheets with portions peeled back
- Writing on a sheet before printing
- printing on already printed paper
~ reusing a spent color Ink casseUe
Do not touch the springs of the paper cassette.
If the springs are bent ordeformed, paper will not feed correctly Into SELPHY.
• Do not touch the print surface (shiny side). scratch it or touch
the paper with wet hands. Prints will not be desirable if the print
surface becomes dirty or wet.
Spring

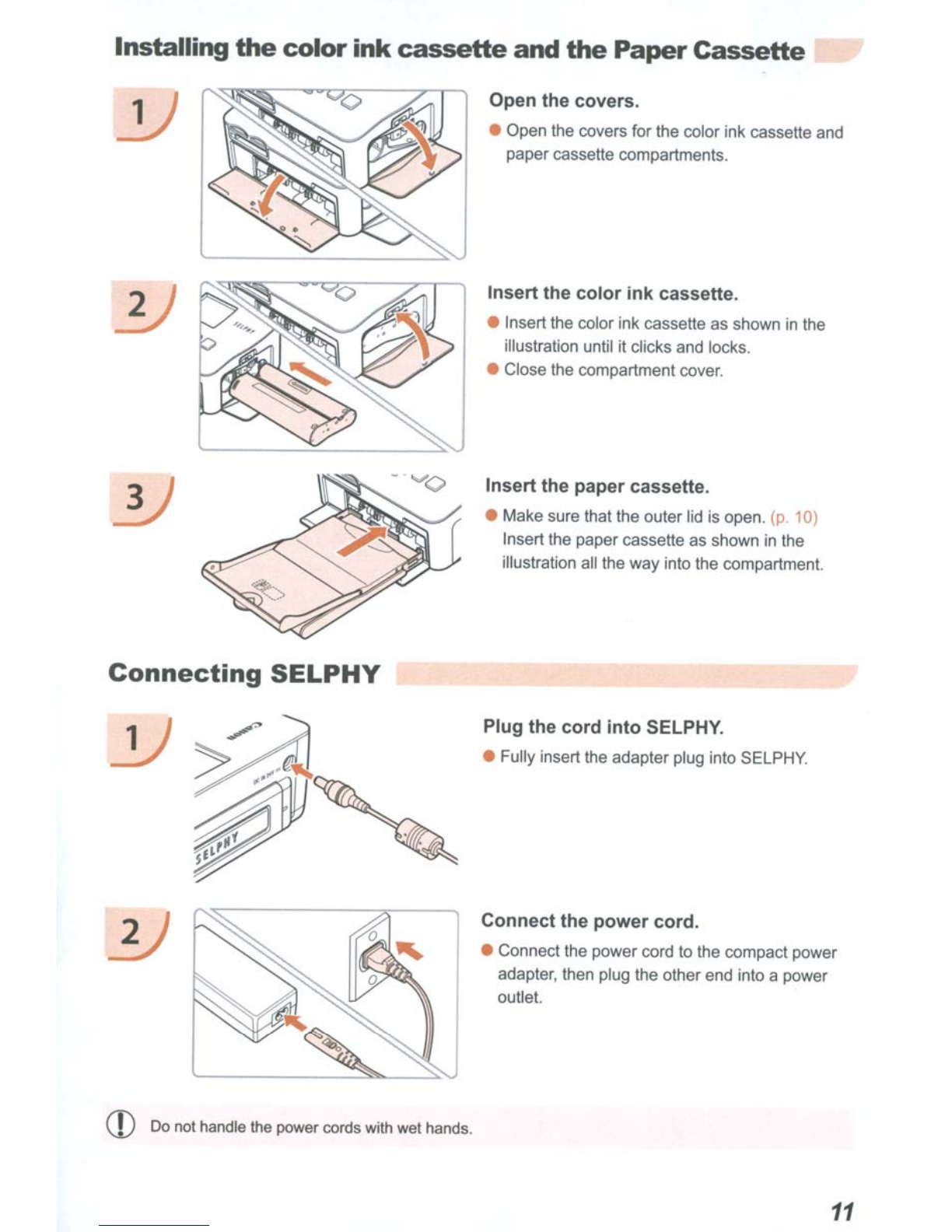

Installing the color ink cassette and the PaperCassette
- ""0
Open the covers.
•Open the covers for the color ink cassette and
papercassette compartments.
Insert the color ink cassette.
•Insert the color ink cassette as shown in the
illustration until it clicks and locks.
•Close the compartment cover.
Insert the paper cassette.
•Make sure that the outer lid is open. (p 101
Insert the paper cassette as shown in the
Illustration all the way into the compartment.
Connecting SELPHY
Plug the cord into SELPHY.
•Fully insert the adapter plug into SELPHY.
Connect the power cord.
•Connect the power cord to the compact power
adapter, then plug the other end into apower
outlet.
CD Do not handle the power cords with wet hands.
11

Setting the Display Language
You can change the language displayed In the LCD mOnitor menus and messages
Printer setup
Pr1nt settings
Pr1nt All 1lSI I
Display the setting screen.
•Press the OIMENU) button.
Press the
... or Tbuttons to select (Pnnter
Setup]. then press OK
e"" ..
•
"" ...., <=:)
00080
C)
Display the language setting screen.
•Press the ... or Tbuttons to select ILanguage].
•Press OK
OIC
Pr1ntar setup
DIlts Fo,..t
. ~
e"" ..
•
<=:)
0. 0
Espallol
Deutsch
Fr~
ltalUno
Select alanguage.
•Press the'" , T , ... or ~ buttons to select a
language, then press OK
Pressing the O(BACK) button twice will restore
the Image display screen.
.At.
12

Printing Images }
----------_/
You can print images on amemory card when it is inserted into SELPHY.
Compatible Memory Cards
Memofy Card Slots
(SELPHY,"""""" can!
slots)
Memory Cards That Can be
Used Without an Adapter Memory Cards That Require an Adapter (commen:lally available)
DO
CF/microdrive • CompactFlash Card
• MiCtOdnve
• xD-Picture Card"
• Memory Slick
• Memory Slick PRO
• Memory Slick Duo
• Memory Stick PRO Duo
• Memcxy Stick micro
• microSD card
•
miaoSDHC Card
• MMCmlcro Card
• MMCplus Card
• HC MMCplus Card
• MMCmobile Card
• RS-MMC card"'
~s .. -
IJ.:",J I:EI
• so Memory Card
• mimSD card
• SDHC Memory card
•
mimSDHC card
• MulbMedlaCard
MS/MSDuD
lOelE]
SD/mln,SD/MMC'
RS-MMC
'1 Purchase the CompaetFlash Card Adapter for xD-Picture Card ., Reduced-Size MulllMediaCard
CD
•For memory cards requiring an adapter, be sure to first insert the memory card into the adapter
before inserting the adapter into the appropriate card slot. If you insert the memory card into
a card slot without using an adapter, you may not be able to remove the memory card from
SELPHY .
•
Use a memory card formatted in the device used for taking the images. Amemory card formatted
In the computer may not be recognized.
Refer to the user guide included with your memory card and adapter for handling instructions.
Images that Can Be Printed
The following image types can be printed with SELPHY.
•JPEG type data confonming to the Exll standard.
, Irregularfy sized images, or images that have been edited on a computer may not display or print
property.
13

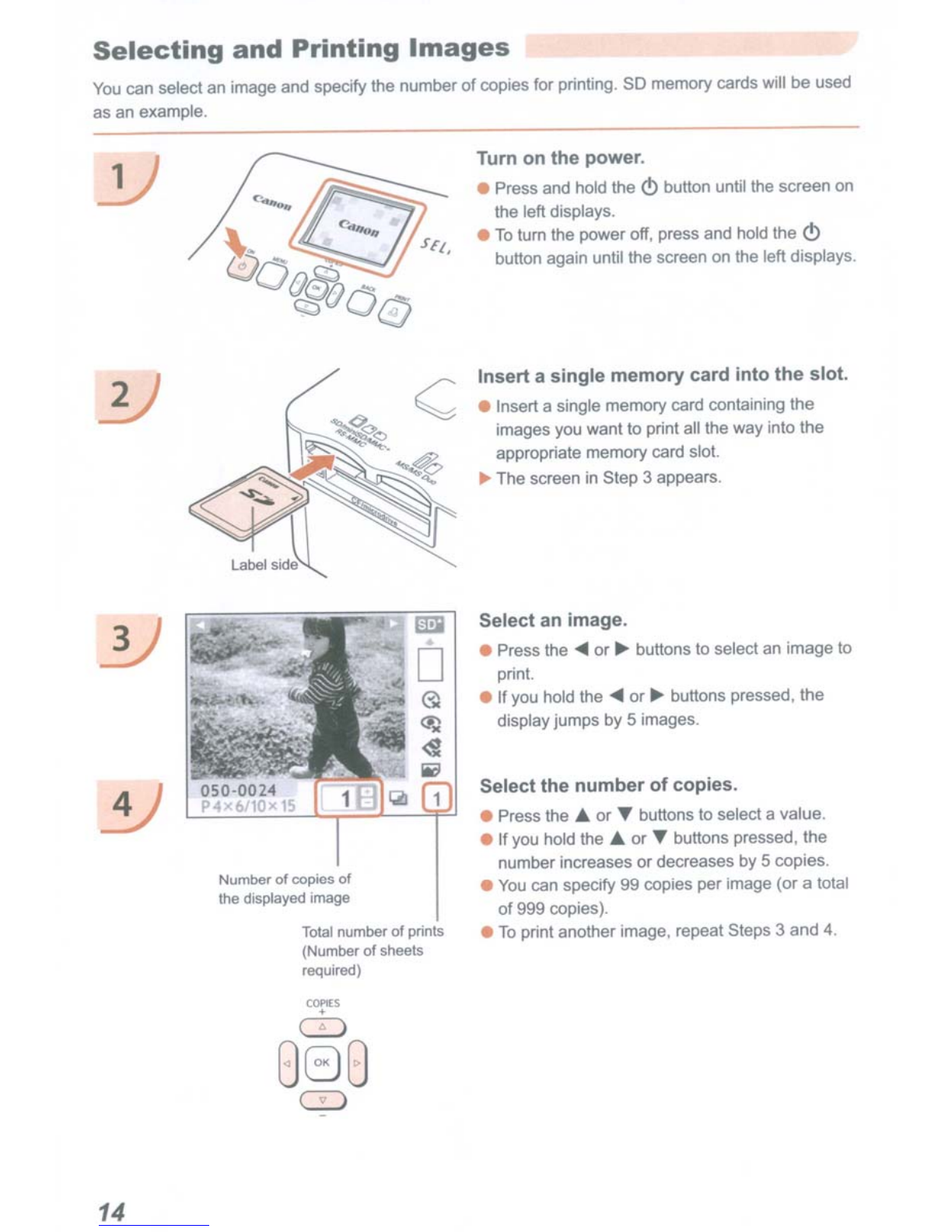

Selecting and Printing Images
You can select an image and specfy the number ofcopies for printing. SO memory cards wlll be used
as an example.
14
Number of cc>pJes of
the displayed Image
Total number of prints
(Number of sheets
required)
COP'(5
•
c=:>
080
c=:>
Turn on the power.
Press and hold the <!> button until the screen on
the left displays.
•
To tum the power off, press and hold the <!>
button again until the screen on the left displays.
Insert a single memory card into the slot.
•Insert asingle memory card containing the
images you want to print all the way into the
appropriate memory card slot.
~ The screen in Step 3appears
Select an image.
•Press the ... or ~ buttons to select an image to
pnnt.
•If
you hold the ... or ~ buttons pressed. the
display jumps by 5images.
Select the number of copies.
•Press the •or Tbuttons to select avalue
•Ifyou hold the •or Tbuttons pressed, the
number increases or decreases by 5 copies.
• You can speclfy 99 copies per image (or atotal
of 999 copies).
•
To pnnt another Image. repeat Steps 3and 4.

- .... 0
c .....
+
c=> 1lA'" ....,
08000
c=>
Print.
•Press the ~ butlon to start printing.
•During printing, the paperwill pass in and out
from the back
of SELPHY several times. Do not
touch the paper until printing has finished and
the printed sheet collects on the print output tray
(on top
of the paper cassetle).
•Do not let 19
or more printed sheets (13 or more
for Wide size) collect on the print output tray.
•
To cancel printing, press the O(BACK) butlon.
Insert the paper.
•When the paper is depleted, remove the paper
cassetle from SELPHY.
•Refill new paper, and reinsert the paper cassetle
Into SELPHY 1
'.
Change the color ink cassette.
•When the color ink is depleted, open the color
ink cassetle compartment cover and move the
lock as shown in the illustration. The color ink
cassetle will
be ejected.
•Insert anew color ink cassetle
11.
CD
Never pull out the paper cassette, open the color ink cassette cover or remove the memory card
during printing or directly after tuming on the printer. This may cause the printer to malfunction.
When the total number of oopies
displayed image
Will print once.
is set to 0 and you press the ,g. butlon, the currenUy
15

Printing All Images
You can pnnt all Images on amemory card at once
C() ....
•
""... c=:>
00080
c=:>
Display the menu.
Press the O(MENU) button
2
Print Setting-
~
Display the setting screen.
•Press the '" or Tbuttons to select IPnntAll
Images). then press OK
<Sl Off
4ll Off
« Off
oI-up
ii/On
4
16
COP<S
•
C)
080
c=:>
Total number of pnnts
(Number of sheets required)
Number of copies
COP<S
•
c=:>
080
c=:>
... ,
•
c=:> OACJ( .. '"
08000
C)
Select the number of copies.
•Press the'" or Tbuttons to set the number of
copies.
• You can specify 99 copies per image (or atotal
of 999 copies).
Print.
Press the ~ button to start prinbng
•
To cancel pnntlng. press the O(BACK) button.

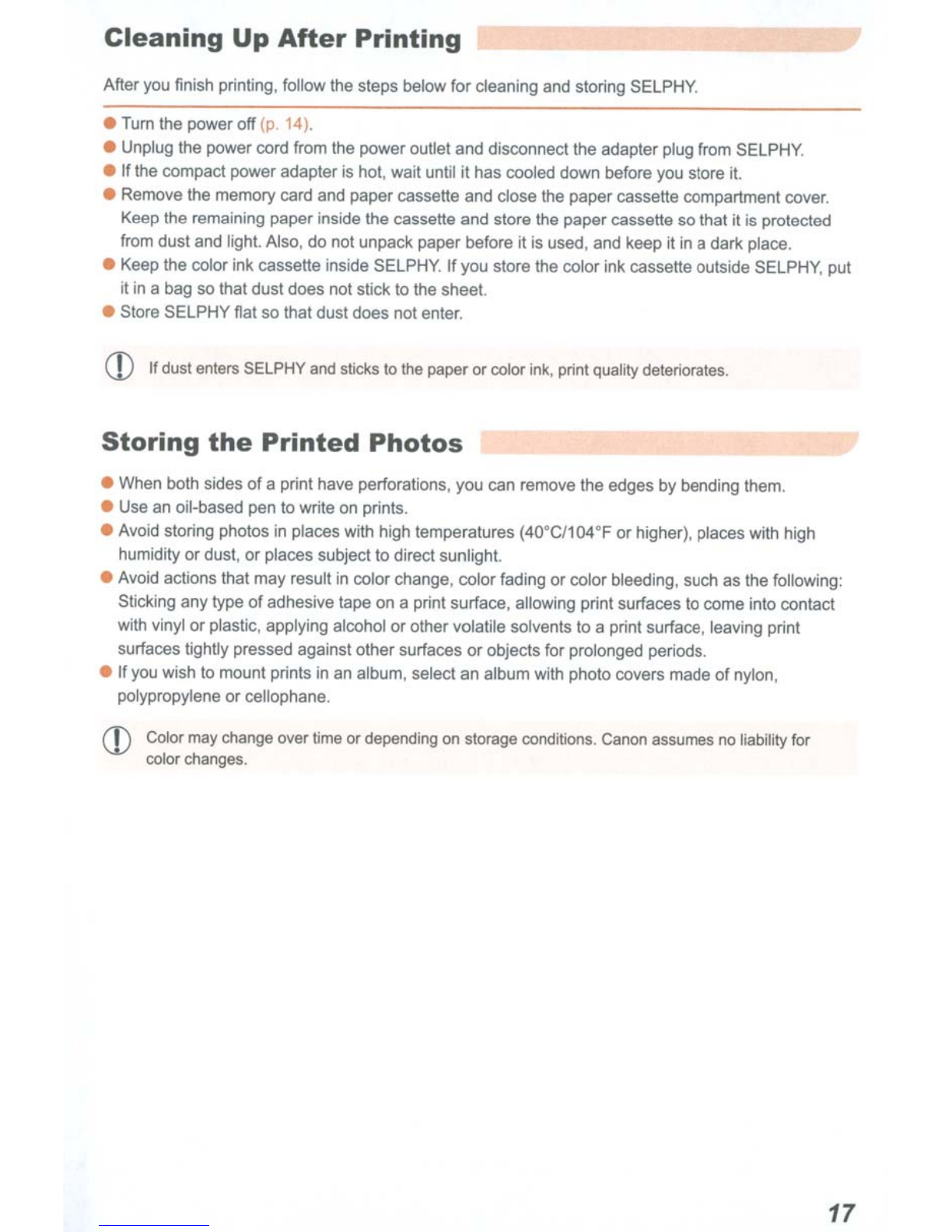

Cleaning Up After Printing
Afteryou finish prinling, follow the steps below for deaning and storing SELPHY.
•Tum the power off
(p 14.
•Unplug the power cord from the poweroullet and disconnect the adapter plug from SELPHY.
•
If the compact power adapter is hot, wait unUi it has cooled down before you store It.
•Remove the memory card and paper cassette and dose the paper cassette compartment cover.
Keep the remaining paper inside the cassette and store the paper cassette so that it
IS protected
from dust and light. Also,
do not unpack paper before It is used, and keep it in adark place.
•Keep the color ink cassette inside SELPHY. If you store the color ink cassette outside SELPHY, put
it in abag so that dust does not stick to the sheet.
•Store SELPHY flat so that dust does not enter.
CD Ifdust enters SELPHY and sticks 10 the paper orcolor ink, prinl quality deteriorates.
Storing the Printed Photos
•When both sides of aprint have perforations, you can remove the edges by bending them.
•Use an oil-based pen to write on prints.
•
AVOid stonng photos In places with high temperatures (40·C/104·F or higher), places with high
humidity or dust,
or places subject to direct sunlight.
•Avoid actions that may result in color change, color fading
or color bleeding, such as the following:
Slicking any type
of adhesive tape on aprint surface, allowing print surfaces to come into contact
with vinyl
or plastic, applying alcohoi or other volatile solvents to aprinl surface, leaving print
surfaces tightly pressed against other surfaces
or objects for prolonged periods.
•
If you wish to mount prints in an album, selecl an album with photo covers made of nylon,
polypropylene
or cellophane.
CD Color may change over time or depending on storage conditions. Canon assumes no liability for
color changes.
17

Printing a Variety of Images
You can use various pnnting features, such as Imprinting the shooting date or adjusting the color of
an Image. You even do not need to repeat the settings for each Image because once the settings are
made, they are applied for all Images.
Inserting the Date
You can pnnt images WIth the shootIng date shOWIng on the lower nght. Since the date pnnted will be
the date the image was recorded by the camera, It cannot be changed on SELPHY
2
3•
Pr!nt: All Tell
Print Setting.
Printer Setup
"':'"
C)
080
C)
Print Settingl
O.t. ......
•
-_ ....
Display the menu.
•Press the O(MENU) button.
Display the setting screen.
Press the ... or ?buttons to select [Print
Settings], then press OK.
Setting [DateJ
to [OnJ.
Press the ... or ?buttons to select [DateJ•
Press the • or ~ bunons 10 seleCt (On]
Pressing the O(BACK) button twice
WIll restore
the Image display screen.
Select an Image and print
The printed Image
WIll show the shooting date
on the lower nght
.
C)
088
c:>
05/05/2009
18
You can change the ordering for the date in [Date Fonnel] in (Pnnter Selup]
•Depending
on the layout •imprinting the date may not be poSSible Select (Info Display] and
sello [On]. Checl< the pnnt settings that are now displayed

Various Functions
In addition to the date ,mpnnt feature. SELPHY has a vanety of other functions
'Default setllng
Correcting Red Eyes and Printing (Correct Red-Eye)
Correct ,mages WIth red-eye.
)( 0ff'1 On
Red-eye may not be automatically detected or optimally corrected when faces appear extremely
small, large, dark or bright in relation to the overall Image, with races turned to the side or at a
diagonal. or faces With a portion hidden.
Portions other than the eyes may be mistakenly corrected.
set (Correct Red-EyeJ to [OnJ only when pnnbng ImageS WIth red-eye.
If you set (page Layout) to IlrldexJ, red-eye will nol be corrected.
Changing the Color Tone and Printing (My Colors)
You can change the look of an image to sepia or black and white.
~VlVid
~ Neutral
Emphasizes the contrast and color
saturation for a vivid impression
Tones down the contrast and c:06or
saturation for neutral hues
~ POSItive Film
Intense, natural colors like those
obtained with positive film
Tones the image into S8p48
Black and white
JChoosing aLayout and Printing (Page Layout)
Set the number of ,mages that you want to pont
on one sheet. The number of ,mages that you
specified will
be pnnled in the layout set.
Setlhe layout to 8-up !IIII when using color Ink
cassette/label
sel KC-18IL (8-label sheet)
Print two Images on one sheet
Pont four trnag&S on one sheet
!11118-up
ldI'ndex
Pont eight images on one sheet
Pnnt as Index
The image position cannot be specified.
Depending on the layout, other sellings may be canceled Select (Info DisplayJ and set to (Onl.
Check the print settings that are now displayed
If you select [Print All Images] In [Index) , you can print all images on a memory card as an
index print.
19

J Getting the Best Results with Auto Correction (Image Optimize)
•Dark images will be adjusted to the proper
... bnghtness. At the same time, people's faces,
,and overall brightness will
be adjusted.
• Iiil OffI fijl On·
CD Some images may not be adjusted correctly.
J Printing With or Without Border (Borders)
•Set images to print with or without aborder.
• • Bordeness· I
~ Bordered
Setting Various Functions
Set the functions introduced in the ·Various Functions· section.
using the same operation.
I ~ You can set various functions
Print Settings
Printer
Setup
Print All Insges
Display the settings screen.
•Press the O(MENU) button.
•Press
the .. or .., buttons to select [Print
Settings), then press OK.
COPl£S
•
ON ""., <=:)
00080
C)
Oete
Pr int Settinge
Select the item and change the settings.
•Press the .. or .., buttons to select an item.
•Press
the'" or •buttons to change the
settings, then press
the O(BACK) button to make
the setting.
•Pressing the O(BACK) button again will restore
the image display screen.
""'"
•
C) IlACK PO""
08000
C)
20
