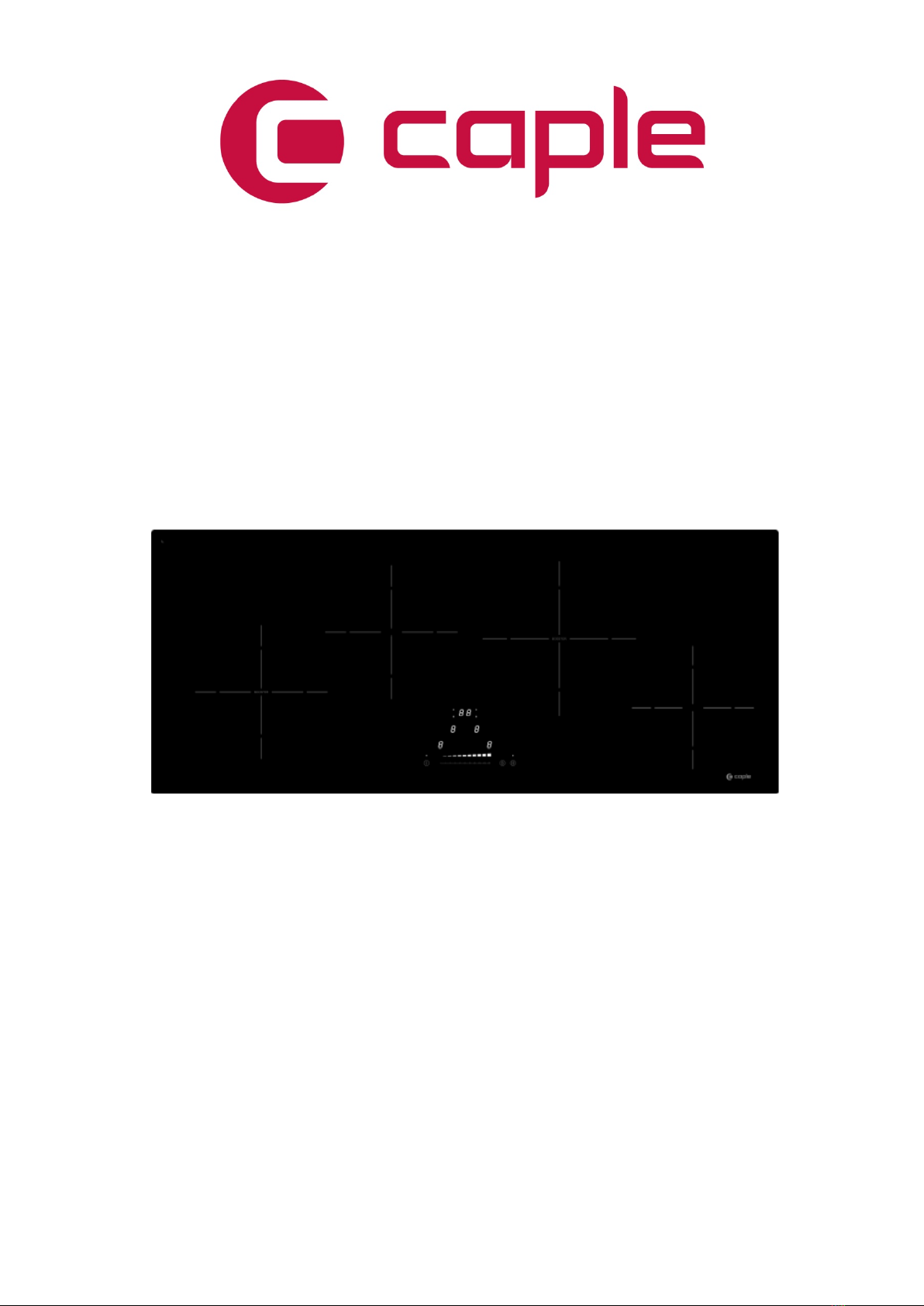

Caple C876I User manual

C876I
Caple Sense Induction Hob Ribbon
Technical Manual

C876I
Caple Sense Induction Hob Ribbon

C876I
Caple Sense Induction Hob Ribbon

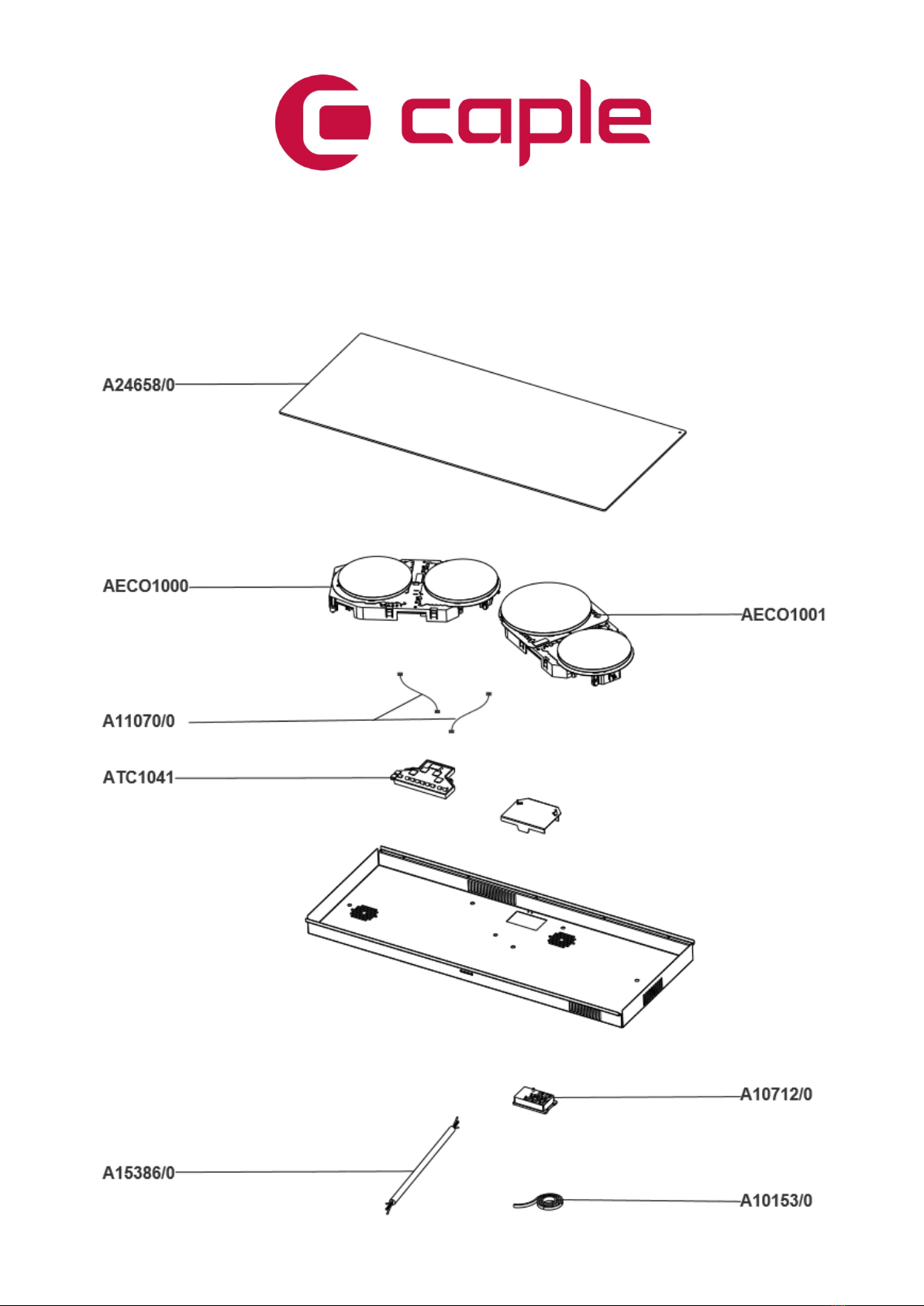

Part Number
Description
A24658/0
GLASS
AECO1000
INDUCTOR 160P/160 IPS
AECO1001
INDUCTOR 200P/160 NIPS
A11070/0
CABLE 4 WIRES FOR INDUCTOR
ATC1041
TOUCH CONRTOL PCB
A15386/0
POWER CORD
A10712/0
CONNECTION BOX
A10153/0
GASKET FOR WORKTOP

C876I
Service Manual
1. To detect the wrong breakdowns :
1-1 Connection to the electric network:
Control the tightening of the screws of the connection box
Control the section of the cables used (see manual of use)
Control if the earth wire (green/yellow) is connected
1+2 = phase
4 = neutral
3 = no connection
Earth = obligatory
Alimentation cable: advised with fasten terminal wires (see photograph).
Tightening of the screws: either with a cross screwdriver (PZ N°2), or with a
torx screwdriver (T20 footprint) according to the type of terminal block.
- The checking of the connection and tightening has to be made before any intervention
on the hob.
-A bad tightening can be at the origin of a breakdown
If a bridging is not made correctly or if a screw is badly tightened, there can be the
following symptoms:
- If the terminals 1 or 4 are wrong connected, the hob does not switch on (no
reaction) because the touch control is not supplied.
- If the terminal 2 is wrong connected, “E5” will appear on the right hand side
displays on the right side.
BRIDGE
EARTH
Torx screw terminal block
Philips screw terminal block
3
2
1
4
EARTH
BRIDGE

1-2 Installation:
Control the installation of the gasket under the glass.
If the glass is glued with silicone leave the glass in place and dismount the
steel case under the work plan.
Control the ventilation of the air coming in of the ventilators (minimum 2 cm of
space).
1-3 Quality of the pans:
Control if the pan is compatible with the heating by induction.
To check by using a „magnet“ that must remain hung on the bottom of the
pan or by putting a little water in the bottom of the pan and while making this
water heat in position „9“water must boil quickly.
The functioning of an induction generates certain sonority. This one depends
on the pans used.

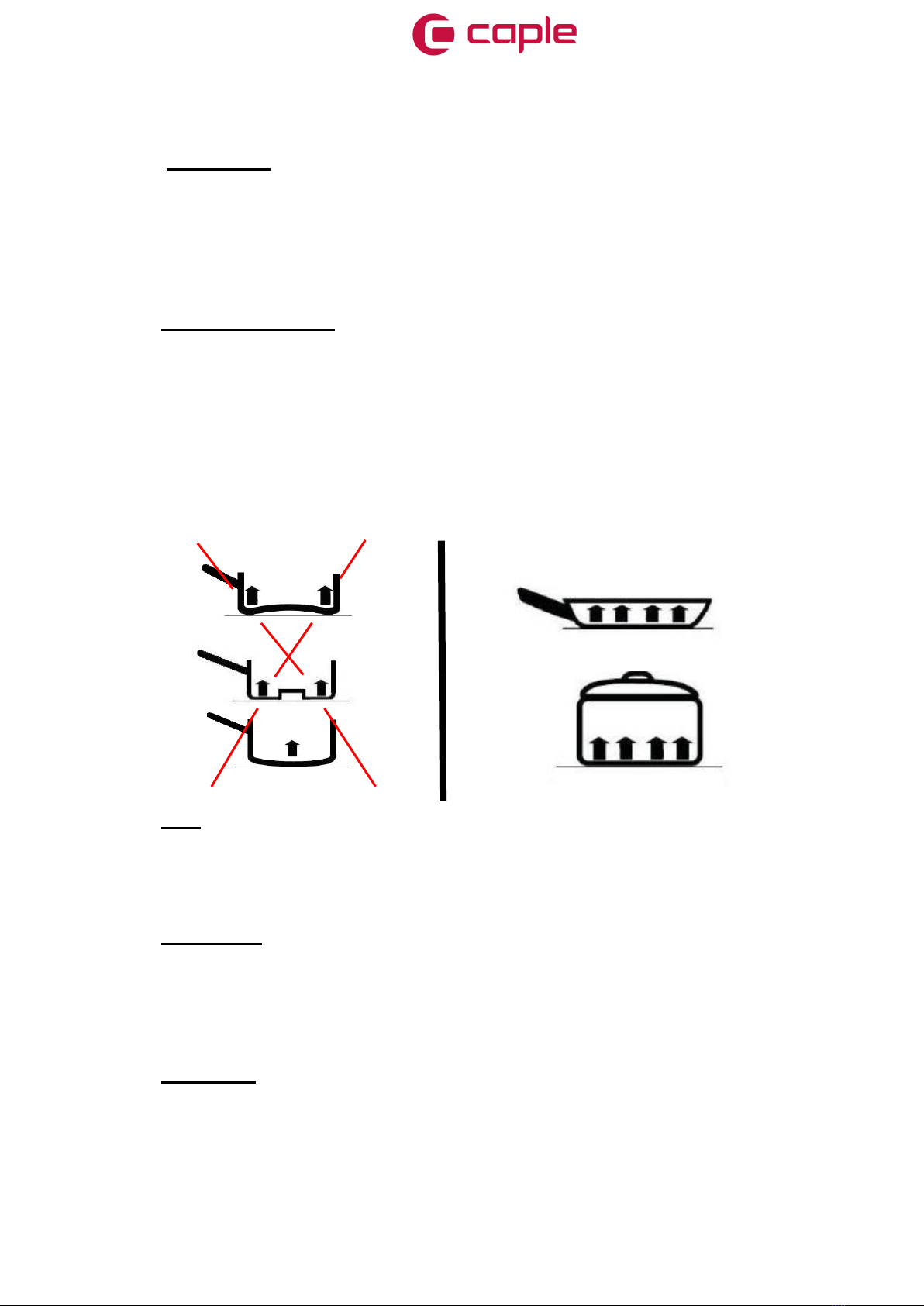

Use only pans with flat bottoms. Others risk damaging the hob.
BAD GOOD
1-4 Use:
To start the hob it is necessary to keep the key [0/I] pressed during 2 to 3
seconds.
During the first times of use, the cooking appliance will release a smell of „new“.
2-5 Ventilation:
The ventilation starts as soon as the heating zones reach a certain level of
temperature.
This ventilation goes on cooling the heating zones even after the stop of
cooking.
3-6 Securities:
In case of overflow, the hob stops as soon as 2 keys at least of the control panel
are covered with the liquid of overflow.
In case of overheating of the heating zones, an automatic and progressive
reduction of the power takes place.

2. To determine the breakdown according to the indications of the
control panel.
Display Designation Description
0 zero the heating zone is activated
1…9 level of power selection of the cooking level
U pan detection no pan or inadequate pan
E Error message electronic failure
H residual heat heating zone is hot
L locking the hob is protected

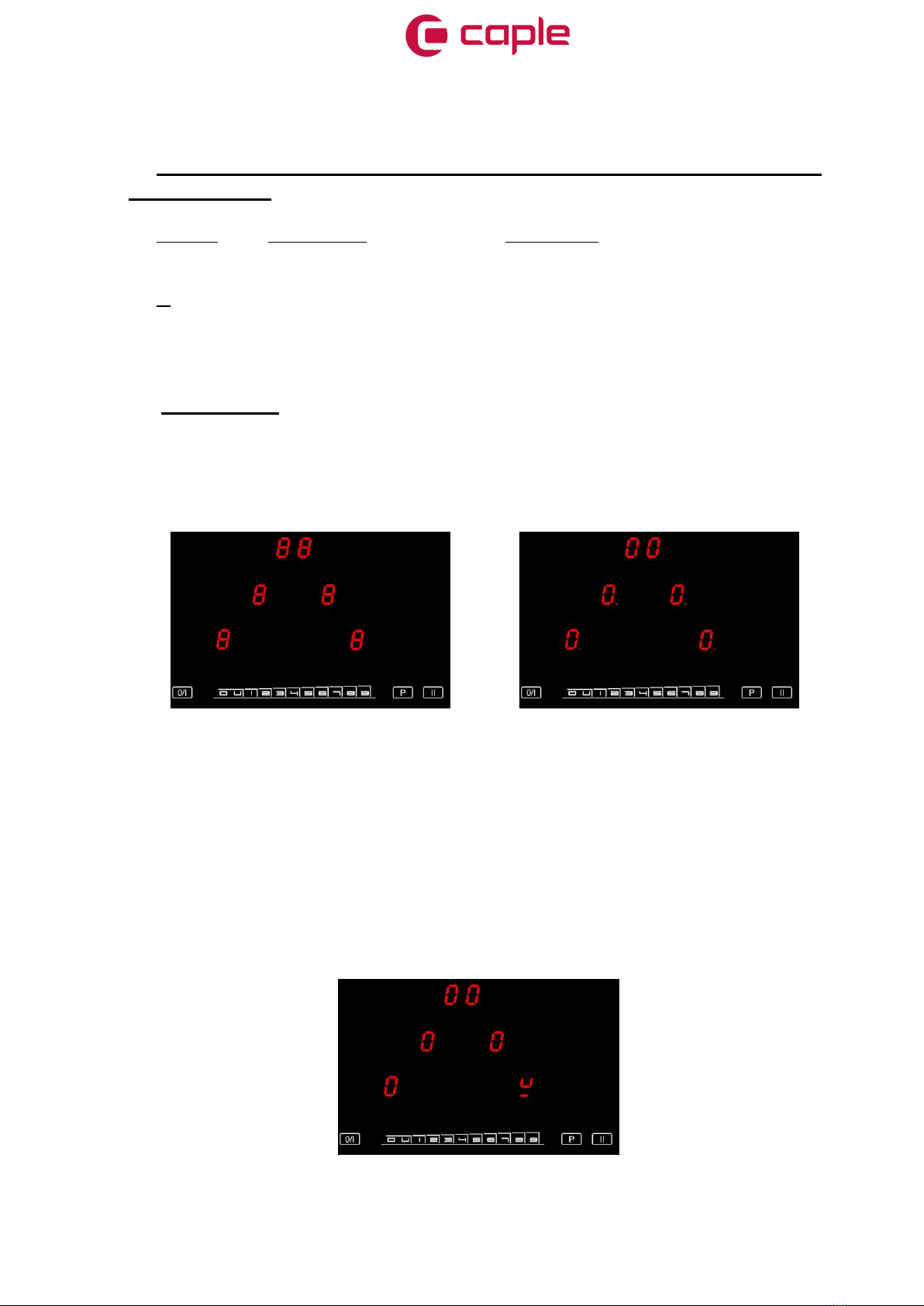

2-1 Fast starting:
With the connection of the hob to the electric network, four “8” are indicated and
then get off.
After that, press the key [0/I] (On/Off), « 0 » appears with a blinking point (3 or 4
according to the hob).
If no handling is made within 20 seconds, everything switches off.
Therefore, before the 20 seconds, press with your finger on the display of the
cooking zone to use (while having put before a pan with water, a pan which
external bottom has been wiped in order to avoid from any scratching of the
glass).
Then, either slip on the SLIDER to regulate gradually from 1 to 9, or press the
selected level for a direct access.
If no pan is put on the selected cooking zone, or if the pan is taken away during
the cooking, or if the pan is not adapted to induction, you will have the following
display:

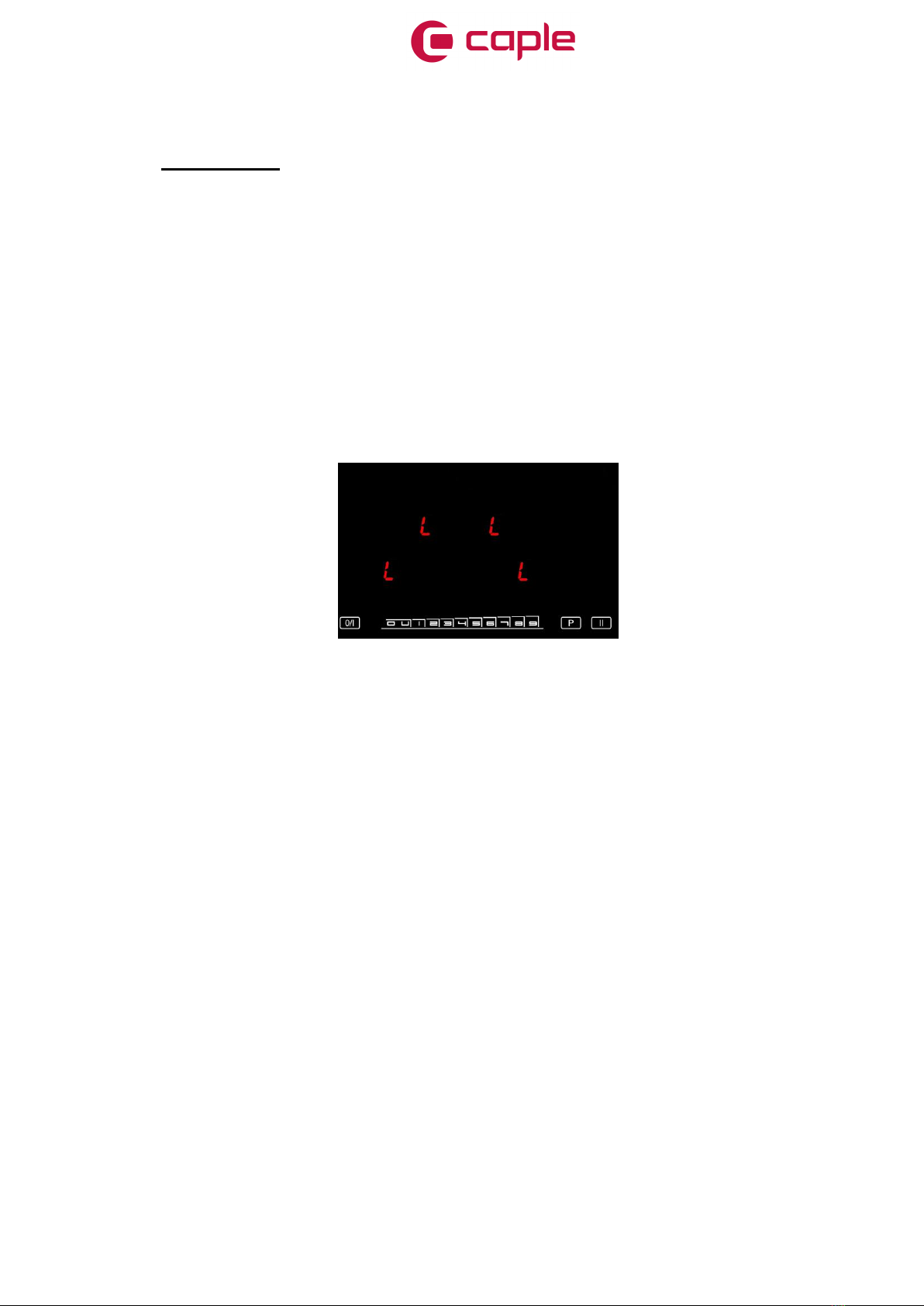

2-2 Locking « L »
To lock the hob:
Press the key [0/I] (On/Off).
Press at once simultaneously the key “P” and the display of the front right
cooking zone for 4 zones hobs and rear right cooking zone for 3 zones hobs.
Then press the key of the cooking zone again.
These 3 operations have to be done within maximum 9 seconds, or else it will be
necessary to start again by stopping the hob (key [0/I] (On/Off)).
Once these 3 operations done, the “L” appear on the hob (3 or 4 according to
the model) and after this they get off; the hob is so locked.
That corresponds to a main switch, nobody can start the hob anymore (children
security) and the hob can be cleaned without fear to put it in function.
To unlock the hob:
Press the key [0/I] (On/Off).
Press at once simultaneously the key « P » and the display of the front right
cooking zone for 4 zones hobs and rear right cooking zone for 3 zones hobs.
Then press the key « P ».
These 3 operations have to be done within maximum 9 seconds, or else it will be
necessary to start again by stopping the hob (key [0/I] (On/Off)).
Once these 3 operations done, the “L” disappear and the hob can be used
again.
Caution:
To cancel the security realized on the hob, it is imperative:
- Either to wait for 20 seconds so that the control lights switches off.
-Or to press the key [0/I] (On/Off) to stop the hob.
If a short circuit occurs after having been put in the security does not cancel the
locking.
The electronic keeps indeed this security in memory and at the moment of the
re-connexion, the “L” will appear while pressing the key [0/I] (On/Off).

ERROR CODE
Legend:
Visual Control
No appropriated measure
Measure with multimetre

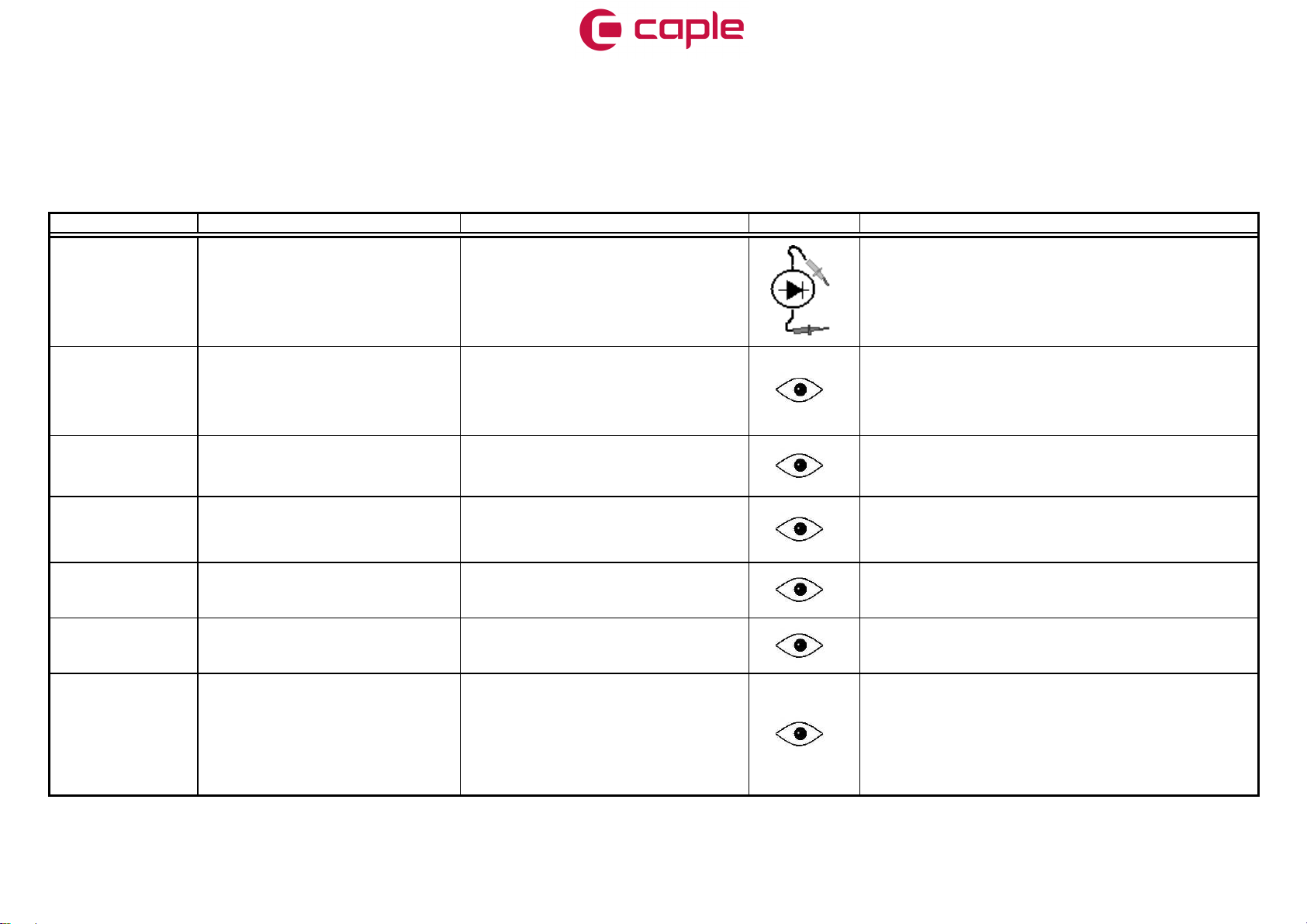

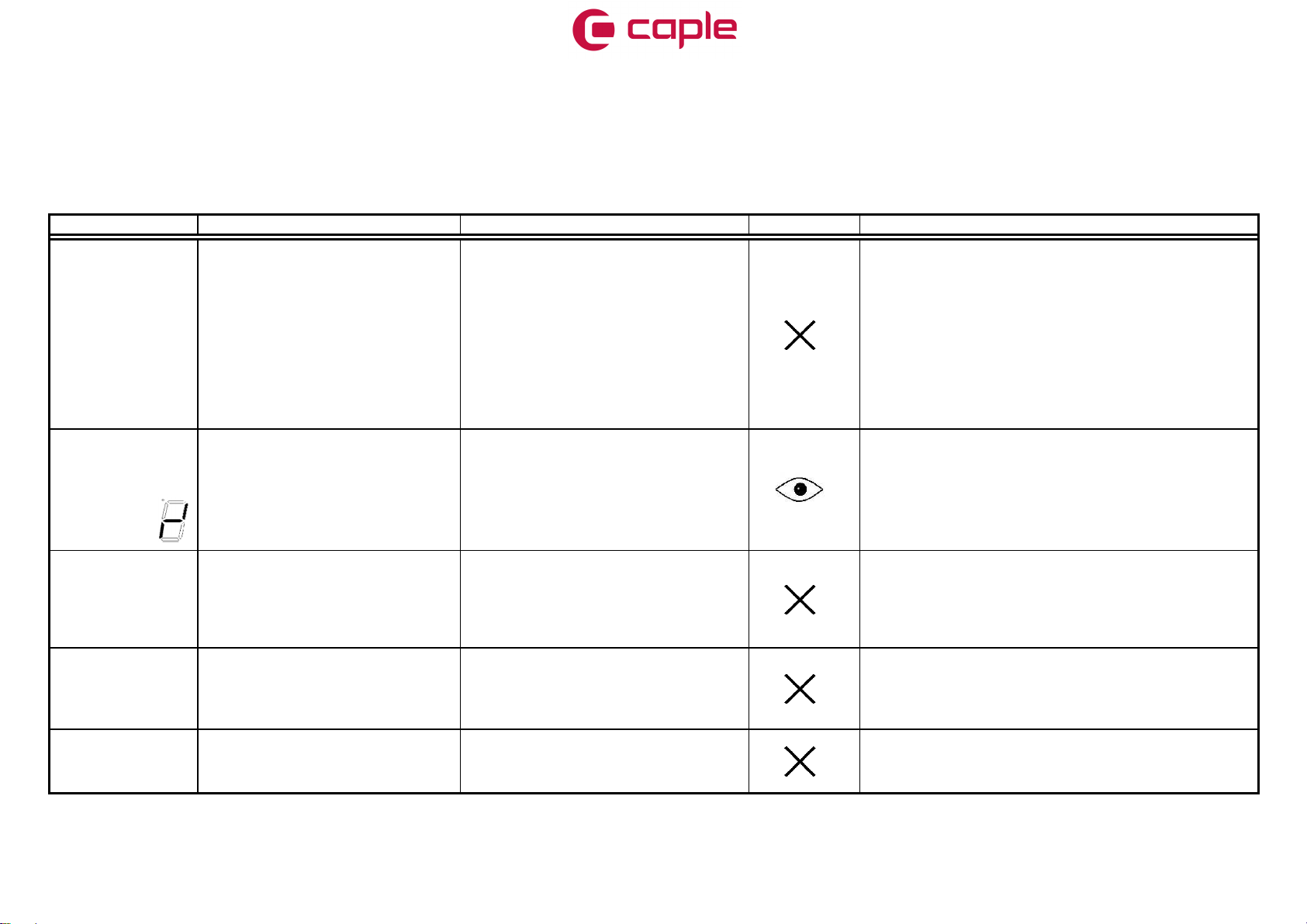

Error Code
Description
Potential Failure
Measure
What to do…
E blinking No error! IHE configurations have
been erased
You are in the configuration menu:
See description of the configuration
procedure
C No error! Cooking zone can be
Configured
You are in the configuration menu:
See description of the configuration
procedure
- No error!
Cooking zone is configured
You are in the configuration menu:
See description of the configuration
procedure
C blinking No error! Cooking zone can be
configured
You are in the configuration menu:
See description of the configuration
procedure

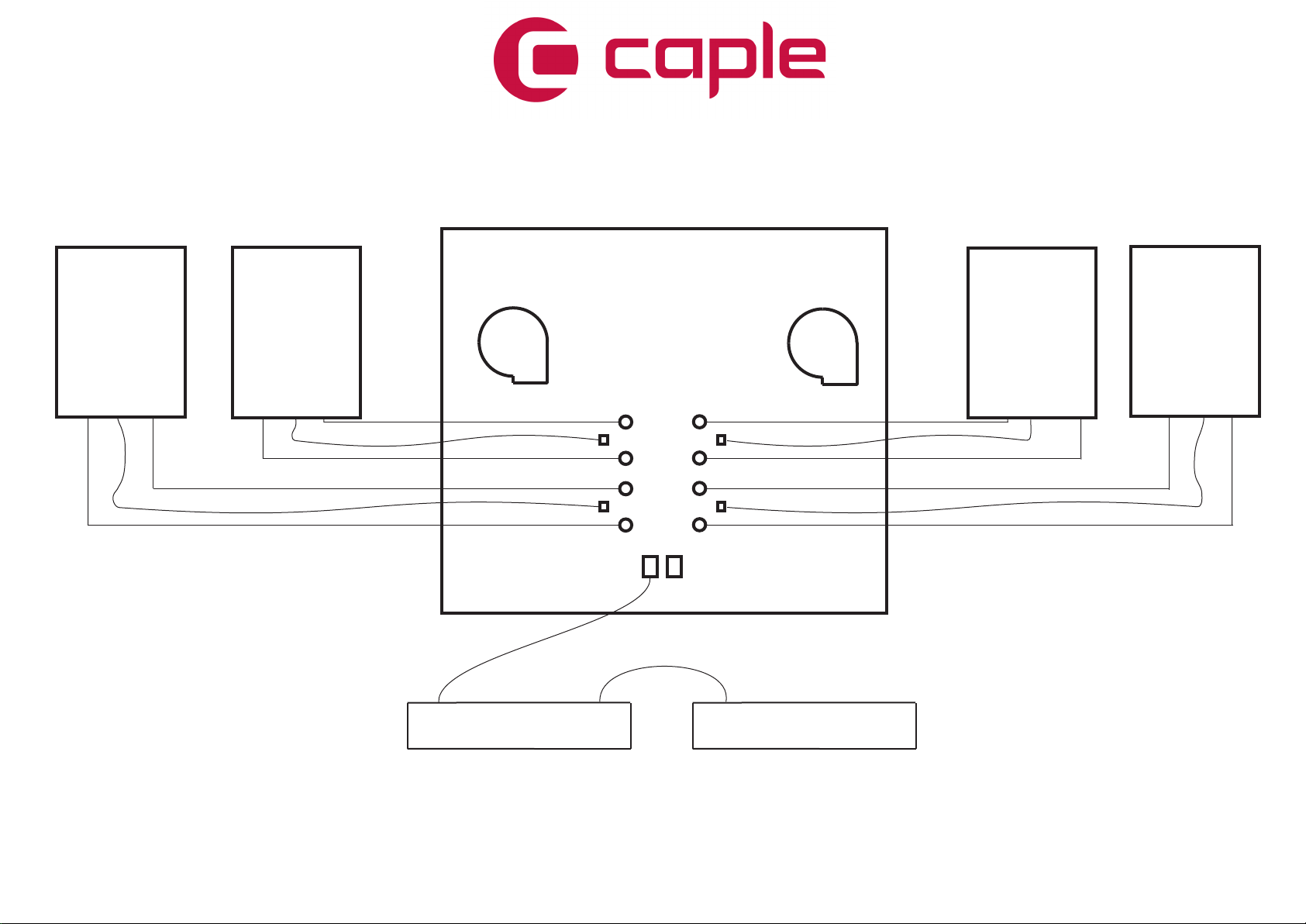

TC = Touch Control panel
Cable LIN = White Cable 0.25 mm2 (ex : connection between TC and Filter Board PCB).
IHE = Induction Heating Element

Error Code
Description
Potential Failure
Measure
What to do…
E 2
Temperature sensor
indicates overheat of
induction coil
IHE over temperature
Wrong algorithm calculated
over-temperature at coil
sensor PT-1000 (only for
cooking level 9)
Cooking zone has overheated
(maybe pot boiled without
food...)
A cool down is necessary Error is
disappearing when cooling down
Replace IHE with sensor if E2 reappears
after complete cooling down of cooktop.
E 3
Not adapted pan
or
Component failure
Some pans lose their magnetic
properties due to a overheat of
the bottom
The pan generates
interferences which disturb the
functioning of the induction.
Some bad pans may destroy
some electronic components.
Employment of suitable pan
⇨Replace the pan
Replace IHE
E 4
IHE is not configured
Communication failure
between TC and IHE
Component failure
Defective or missing Lin Bus
cable between CU and IHE
Missing voltage supplying of
the IHE
Failure on the IHE
Configure again, with the manual procedure
Check and/or change the Lin Bus cable
Check the voltage of the IHE
Replace the IHE
E 5 Communication failure
between TC and IHE
Defective Lin Bus cable
Absence of power supply
IHE not connected
Check the mains connection
Check and/or change Lin Bus cable
Replace the IHE

Error Code
Description
Potential Failure
Measure
What to do…
E 6 Network failure Frequency problem
Overvoltage
Check the frequency and voltage
Replace the IHE
E 7 Unknown error Compatibility problems
between IHE and TC Replace IHE or TC
E 8 Fan failure Fan or control electronics
defect Replace IHE
E 9 Temperature probe PT 1000 Temperature probe PT 1000 is
defective Replace IHE
E A Hardware failure Hardware failure Replace IHE
E C Configuration failure 2 cooking zones are connected
on the same key Configure again with the manual procedure
E H Fixed resistor recognition
If there is no temperature
change at the cook place after
activation of cooktop within 5
minutes, error display shows
message “E H“
Induction cooktop has to cool down

Error Code
Description
Potential Failure
Measure
What to do…
No display /
Function
Wrong connection
Error on Touch Control
Defect mains connection
Component part error on TC
Component part error on IHE
As soon as the hob is installed, please check
if it works properly. If you cannot turn on the
appliance, please double check the electrical
connections on both sides of the power cord.
A wrong connection that lasts more than 30
minutes will cause permanent damage that
is not covered by the warranty.
Check the mains connection
replace TC
replace IHE
Review or replacement of Lin Bus Cable

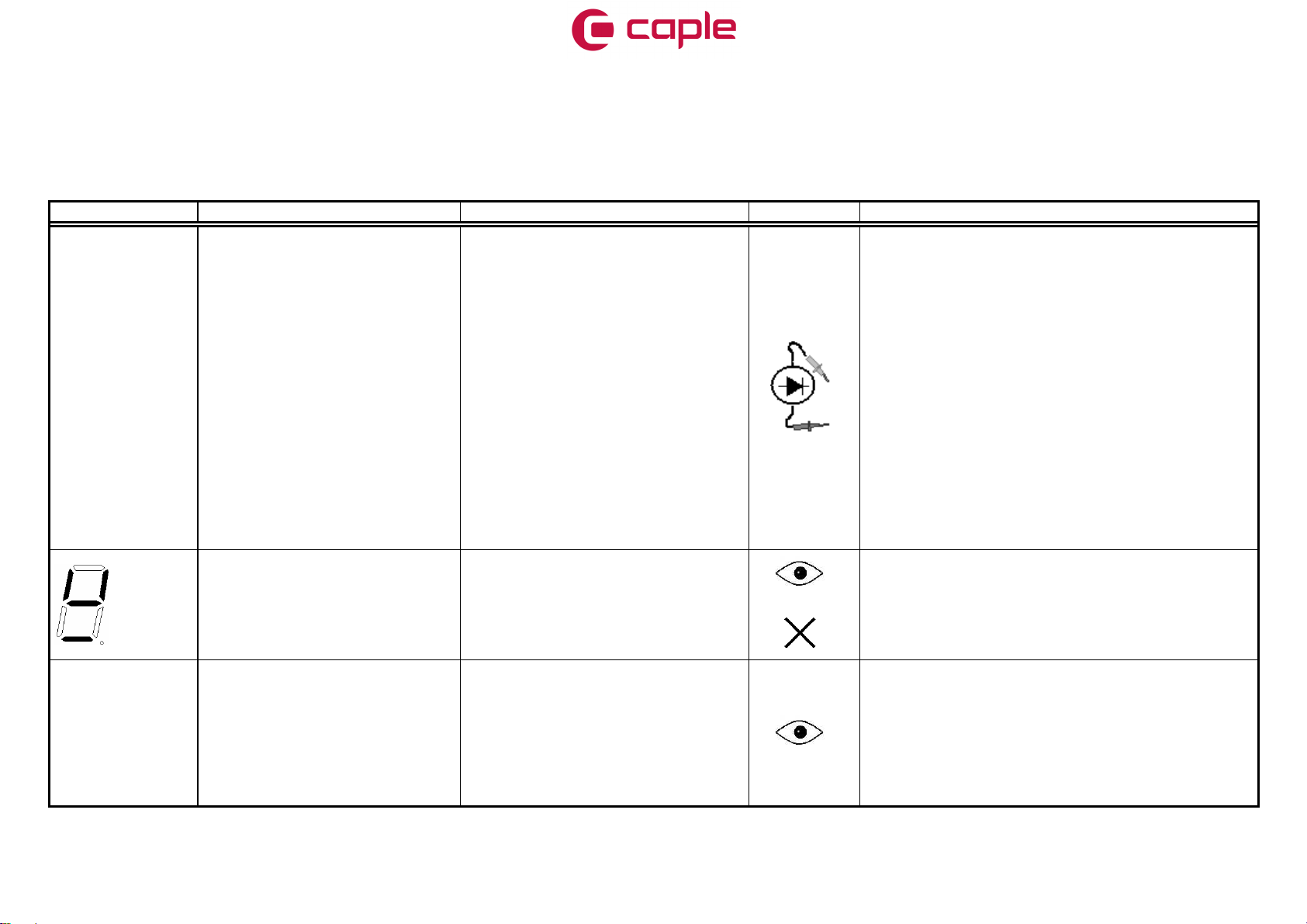

Incorrect pot detection Pan not adapted
Component failure on IHE
Use an adapted pan
Replace IHE
Cyclic bar
display
Er31
Er47
TC
Defective or missing Lin Bus
cable between CU and IHE
TC failure
Reconfigure the TC
Review or replacement of Lin Bus Cable
Replace TC

Error Code
Description
Potential Failure
Measure
What to do…
Er22
Key evaluation defect, Touch
Control switches off after
3,5-
7,5s.
Short circuit or interruption
around key evaluation Replace TC
Er 03 +
continuously
“sound”
Or symbol:
Continuous key activation,
Control switches off after
10s
Liquid or cookware on glass
above control Clean glass ceramics
Er 20
Flash error
Data not plausible
Programming options
wrong
Component part error on
Touch Control replace Touch Control
Cooking level
back to 0 Power level returns automatically to zero Component part error on IHE Replace IHE
L No mistake! Safety device for children
activates Desactivate the safety device for children (see instruction manual)

CONFIGURATION PROCEDURE
What to do when the symbol [ E 4 ] appears :
I) The hob must be reconfigured according to the following procedure :
Before you start the procedure :
- Make sure that there is no more pot on the hob.
-Use apan adapted to induction.
-Disconnect the appliance from the electrical network by removing the fuse or
turning the circuit breaker off
-Reconnectthe table to the electrical network.
-It is necessary to start the procedure within 2minutes after the connection of the
hob to the electrical network.
-Do not press the [O/I ]key.

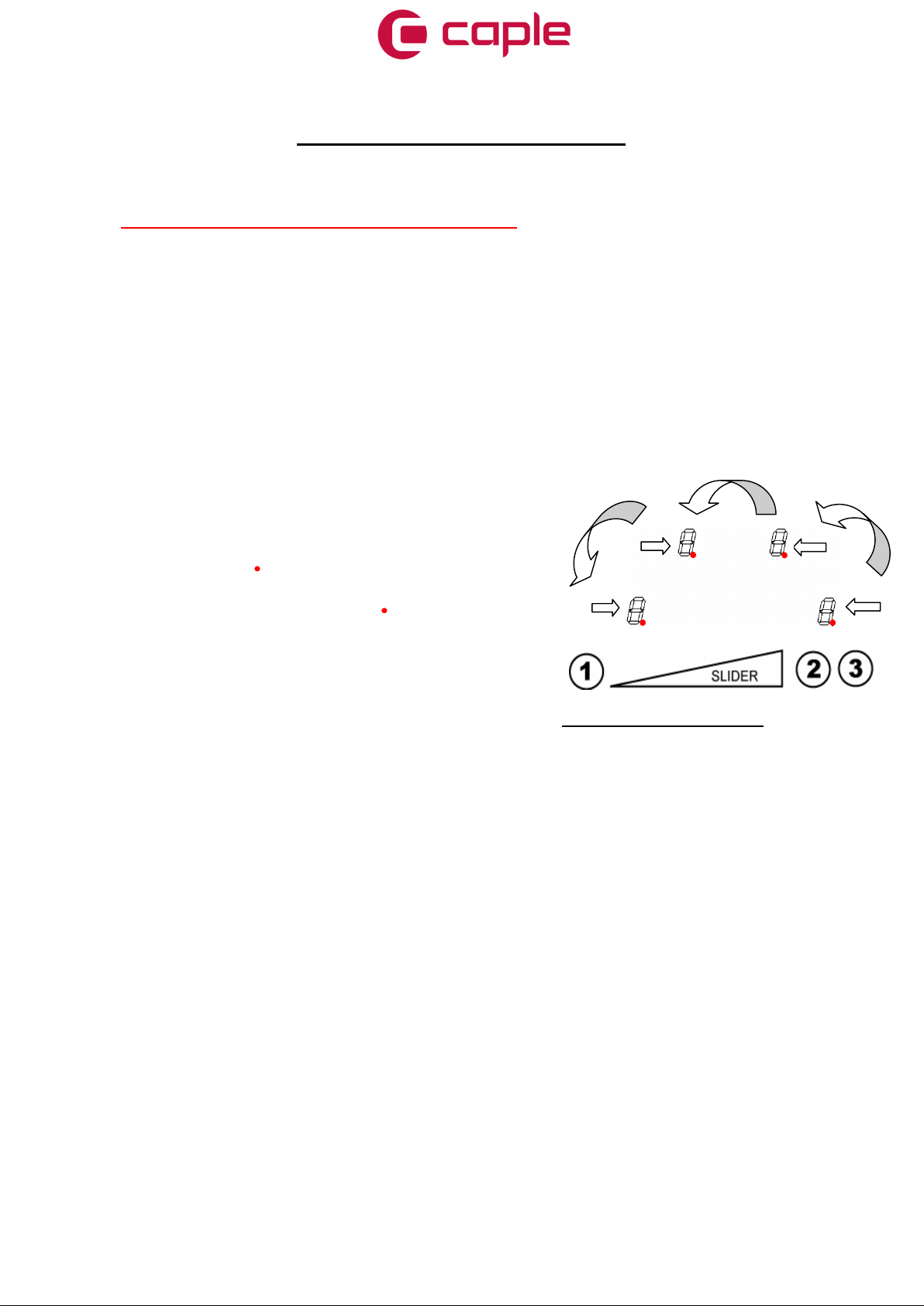

II)Cancellation of the existing configuration :
1) Press the key n°2 and hold down.
2) The symbol [ ] will appear on each display
3) With your other hand, press successively and
quickly (less than 2s) on each [ ] display.Begin
from the front right side and turn contrary clockwise
as described on the picture (a -> b -> c -> d)).
Adouble "beep" means an error occurred.
If so, start again from item 1).
4) Remove your fingers from the touch control, then push again on touch 1during few
seconds, until blinking [E]symbols appear.
5) Wait until [E]symbols stop blinking.
6) After few seconds, [ E ] are automatically transformed in [ C ]. The existing setup has
been cancelled.
Note: For induction hobs with 3 cooking zones, as the right front zone doesn’t exist in
this case, begin the procedure with the right rear zone (b).
III)How to reconfigure the hob ?
1) Take aferromagnetic pot with aminimum diameter of 16 cm
2) Select a cooking zone by pushing on the corresponding [ C ] display
3) Place the pot on the area to be set
4) Wait until the [C]display becomes a [ - ]. The selected cooking zone is now
configured.
5) Follow the same procedure for each cooking zone with a [ C ] display.
6) All the cooking zones are configured once all the displays are turned off.
Please use the same pot for the whole procedure.
Never put several pots together on the zones during the setup-process.
If [ E 4 ] displaying remains,please call the customer care
ad
cb

Heating zone
Left
Touch Control
Fan
Fan
Heating zone
Middle Left
Heating zone
Middle Right
Heating zone
Right
X26
X29
X27
X24
X25
X28
X22
X23
X18
X19
X20
X21
X32 X33
X1.4
WIRING DIAGRAM
Touch Control
X2.1 X1.4
