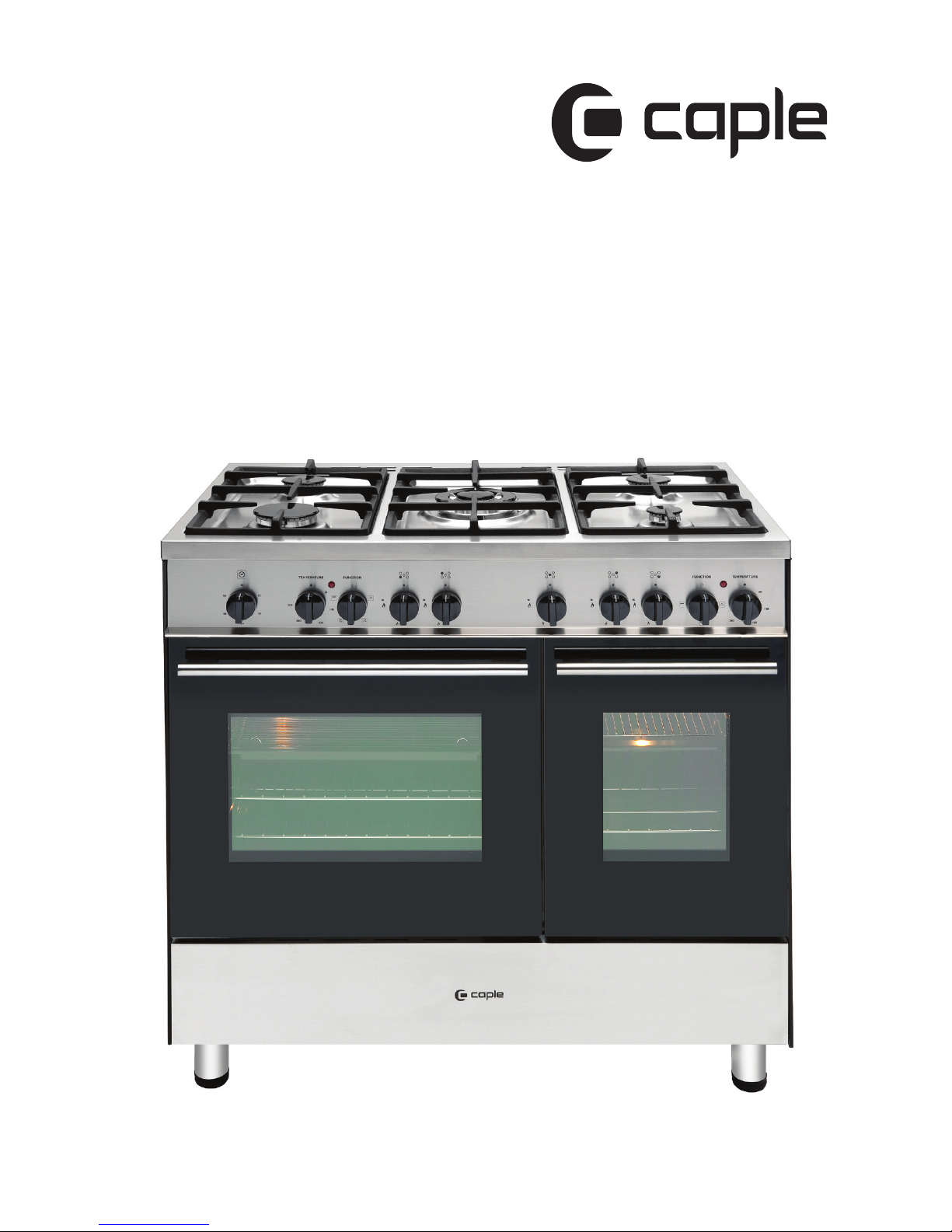

Caple CR 9208 User manual

Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk
Instruction manual for range cooker
Model code: CR 9208

2
Declaration of CE conformity
• This cooker has been designed, constructed and marketed in compliance with:
- Safety requirements of EU Directive “Gas” 2009/142/EC;
- Safety requirements of EU Directive “Low Voltage” 2006/95/EC;
- Protection requirements of EU Directive “EMC” 2004/108/EC;
- Requirements of EU Directive 93/68/EEC.
- Requirements of EU Directive 2011/65/EU.
For Product Service or Spare Parts
please check contact details at:
www.caple.co.uk
Important information for correct disposal of the product in
accordance with EC directive 2002/96/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority differentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative
consequences for the environment and health deriving from inappropriate
disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to
dispose of household appliances separately, the product is marked with
a crossed-out wheeled dustbin.
GB
Thank you for buying your new Caple cooker.
To ensure that you get the best results from your new Caple cooker, we strongly
suggest that you read this instruction manual thoroughly before use.
This manual contains installation advice, cleaning tips and a cooking guide, as well
as other important facts about your Caple cooker.
If treated with care, your Caple appliance should give you years of trouble-free
cooking.

3
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• After having unpacked the appliance, check to ensure that it is not
damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a profes-
sionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails, packing
straps, etc.) should not be left around within easy reach of children,
as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. Thislmmustberemovedbeforeusingtheap-
pliance.
• IMPORTANT: The use of suitable protective clothing/gloves is re-
commended when handling or cleaning of this appliance.
• Do not attempt to modify the technical characteristics of the applian-
ce as this may become dangerous to use. The manufacturer declines
all responsability for any inconvenience resulting from the inobser-
vance of this condition.
• CAUTION: this appIiance must only be installed in a permanently
ventilated room in compliance with the applicable regulations.
• Do not carry out cleaning or maintenance operations on the applian-
ce without having previously disconnected it from the electric power
supply.
• WARNING: Ensure that the appliance is switched off before repla-
cing the oven lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner because the moisture can get into the
appliance thus make it unsafe.

4
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or decide to
substitute another model), before disposing of it, it is recommended
that it be made inoperative in an appropriate manner in accordance
to health and environmental protection regulations, ensuring in par-
ticular that all potentially hazardous parts be made harmless, espe-
cially in relation to children who could play with unused appliances.
• The various components of the appliance are recyclable. Dispose of
them in accordance with the regulations in force in your country. If the
appliance is to be scrapped, remove the power cord.
• After use, ensure that the knobs are in the off position.
• Children less than 8 years of age shall be kept away unless conti-
nuously supervised.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given super-
vision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• The manufacturer declines all liability for injury to persons or damage
to property caused by incorrect or improper use of the appliance.
• WARNING: During use the appliance and its accessible parts beco-
me hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements (on the
hob and inside the oven).
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept away.
• Make sure that electrical cables connecting other appliances in the
proximity of the cooker cannot come into contact with the hob or be-
come entrapped in the oven door.
• WARNING: Unattended cooking on a hob with fat or oil can be dan-
gerous and may result in re. NEVER try to extinguish a re with
water, but switch of the appliance and then cover ame e.g. with a lid
or a re blanket.

5
• WARNING: Danger of re: do not store items on the cooking surfa-
ces.
• WARNING: When correctly installed, your product meets all safety
requirements laid down for this type of product category. However
special care should be taken around the rear or the underneath of
the appliance as these areas are not designed or intended to be tou-
ched and may contain sharp or rough edges, that may cause injury.
• FIRST USE OF THE OVEN - it is advised to follow these instructions:
– Furnish the interior of the oven as described at chapter “CLEA-
NING AND MAINTENANCE”.
– Switch on the empty oven on max to eliminate grease from the
heating elements.
– Disconnect the appliance from the electrical power supply, let the
oven cool down and clean the interior of the oven with a cloth soa-
ked in water and neutral detergent; then dry carefully.
• CAUTION: Do not use harsh abrasive cleaners or sharp metal scra-
pers to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
• Do not line the oven walls with aluminium foil. Do not place baking
trays or the drip tray on the base of the oven chamber.
• FIRE RISK! Do not store ammable material in the oven or in the
storage compartment.
• Always use oven gloves when removing the shelves and food trays
from the oven whilst hot.
• Do not hang towels, dishcloths or other items on the appliance or its
handle – as this could be a re hazard.
• Clean the oven regularly and do not allow fat or oils to build up in the
oven base or tray. Remove spillages as soon as they occur.
• Do not stand on the cooker or on the open oven door.
• Always stand back from the appliance when opening the oven door
to allow steam and hot air to escape before removing the food.
• SAFE FOOD HANDLING: Leave food in the oven for as short a time
as possible before and after cooking. This is to avoid contamination
by organisms which may cause food poisoning. Take particular care
during warmer weather.
• WARNING: Taking care NOT to lift the cooker by the door handle.

6
1 - Electrical Requirements
WARNING!
ELECTRICITY CAN BE EXTREMELY DANGEROUS.
THIS APPLIANCE MUST BE EARTHED.
For your safety please read the following information:
This appliance must be installed by a qualied technician according with the current local
regulations and in compliance with the manufacturer instructions.
The appliance must be connected to the electrical network verifying above all that the
voltage corresponds to the value indicated on the specifications plate and that the cables
section of the electrical plant can bear the load which is also indicated on the plate.
The cooker must be connected directly to the mains placing an omnipolar switch with
minimum opening between the contacts of 3 mm between the appliance and the mains.
The power supply cable must not touch the hot parts and must be positioned so that
it does not exceed 75°C at any point.
Once the cooker has been installed, the switch must always be accessible.
Before effecting any intervention on the electrical parts the appliance must be
disconnected from the network.
IMPORTANT: This cooker must be connected to a suitable double pole control
unit adjacent to the cooker.
NO DIVERSITY CAN BE APPLIED TO THIS CONTROL UNIT.

7
Electrical feeder cable
connection
To connect the feeder cable to the cooker
it is necessary to:
– Remove the screw that hold shield “A”
behind the cooker (fig. 1.2).
– Insert the feeder cable of the suitable
section (as described in the next
chapter) into the cable clamp “D”.
– Connect the phase and earth cables
to the terminal block “B” according to
the diagram in figure 1.3.
– Pull the feeder cable and block it with
cable clamp “D”.
– Re-mount shield “A”.
N.B. The earth conductor must be left
about 3 cm longer than the others.
Fig. 1.2
D
B
A
230 V
PEN
L1
(L2)
Fig. 1.3
PE
Electrical Installation - Wall box connection
FEEDER CABLE SECTION
type H05RR-F
230 V 3 x 2,5 mm2 (**)
(**) – Connection with wall box connection.
This appliance must be connected to a
double pole isolating switch (fig. 1.1) and
to the terminal block in the cooker (figs.
1.2, & 1.3) using the following guide:
FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 20 AMP FUSE
ON
Fig. 1.1
1) The wire which is coloured brown
must be connected to the terminal
marked L(Live), or coloured Red.
2) The wire which is coloured blue must
be connected to the terminal marked
N(Neutral), or coloured Black.
3) The wire which is coloured green
and yellow must be connected to
the terminal marked E(Earth)
or coloured Green.
IMPORTANT: These connections must
be carried out by a qualified electrical
engineer.

8
2 - Location
FOR THE INSTALLER
This cooker has class “2/1” overheating protection so that it can be installed next
to a cabinet.
The cooker must be installed by a qualified technician and in compliance with
local safety standards.
The appliance may be installed in a kitchen, kitchen/diner or a bed sitting room, but not
in a room or space containing a bath or a shower.
The appliance must not be installed in a bed-sitting room of less than 20 m3.
The appliance is designed and approved for domestic use only and should not be
installed in a commercial, semi commercial or communal environment.
Your product will not be guaranteed if installed in any of the above environments and
could affect any third party or public liability insurances you may have.

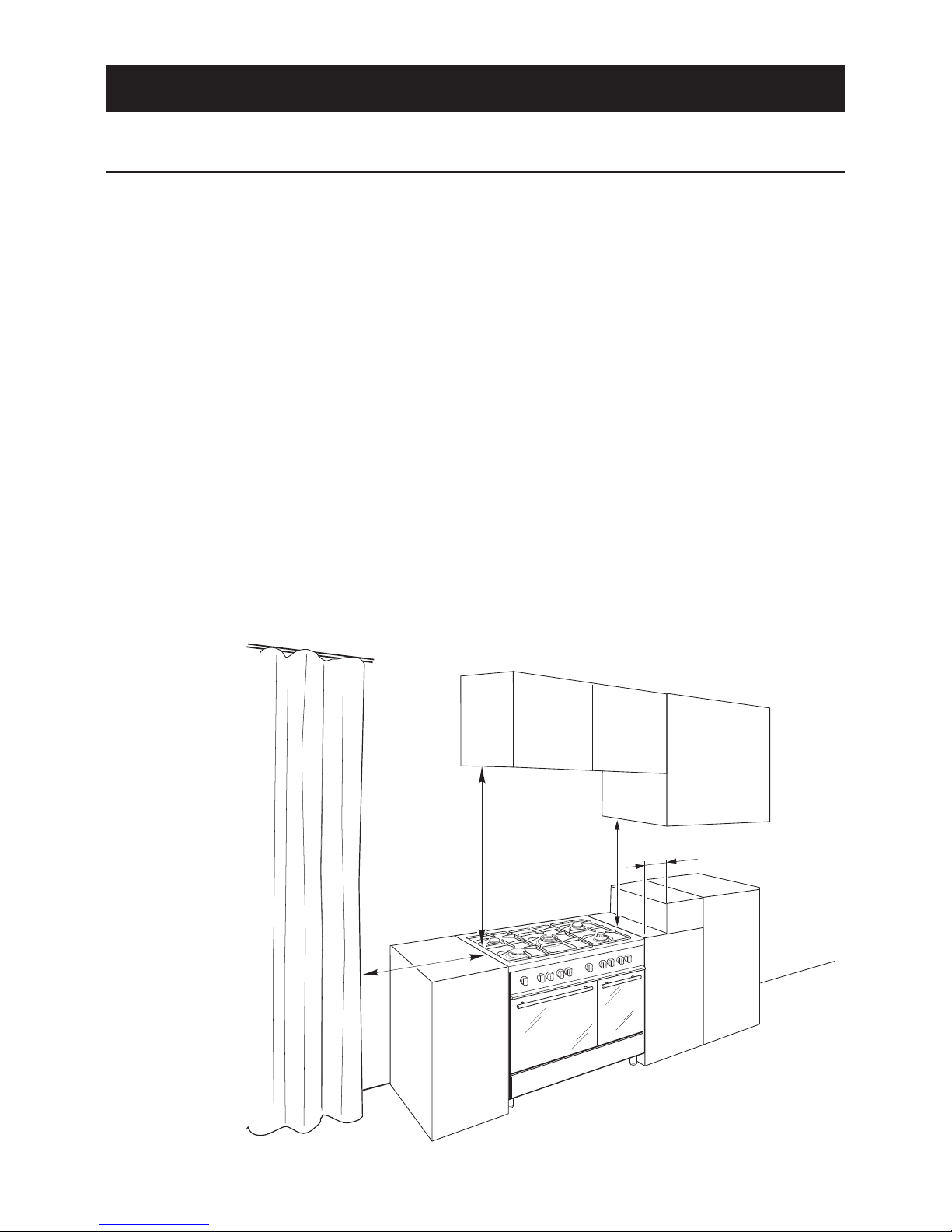

If the cooker is installed adjacent to furniture which is higher than the gas hob cooktop,
a gap of at least 200 mm must be left between the side of the cooker and the furniture.
The furniture walls adjacent to the cooker must be made of material resistant to heat.
The veneered synthetic material and the glue used must be resistant to a temperature
of 90°C in order to avoid ungluing or deformations.
Curtains must not be fitted immediatly behind appliance or within 500 mm of the sides.
It is essential that the cooker is positioned as stated in fig. 2.1.
Fig. 2.1
If the cooker
is located on
a pedestal it is
necessary to
provide safety
measures to
prevent falling
out.
650 mm
500 mm
450 mm
200 mm

9

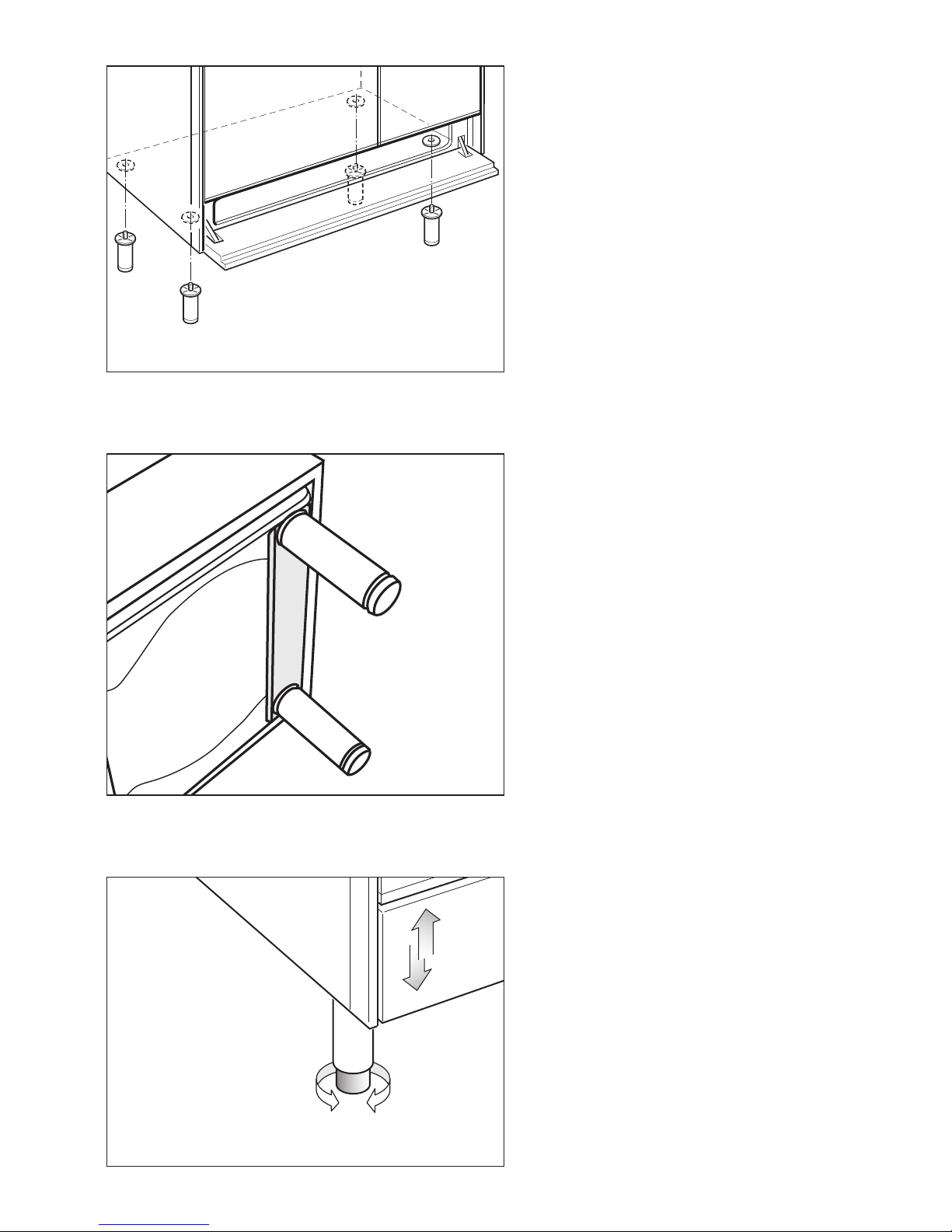

Fitting the adjustable feet
The adjustable feet must be fitted
to the base of the cooker before
use.
Rest the rear of the cooker on a
piece of the polystyrene packaging
exposing the base for the fitting of
the feet.
Fit the 4 legs by screwing them
tight into the support base as
shown in picture 2.3.
Levelling the cooker
The cooker may be levelled by
screwing the lower ends of the feet
IN or OUT (fig. 2.4).
Fig. 2.2
Fig. 2.3
Fig. 2.4

10
Fig. 2.5
Fig. 2.6
Fig. 2.7

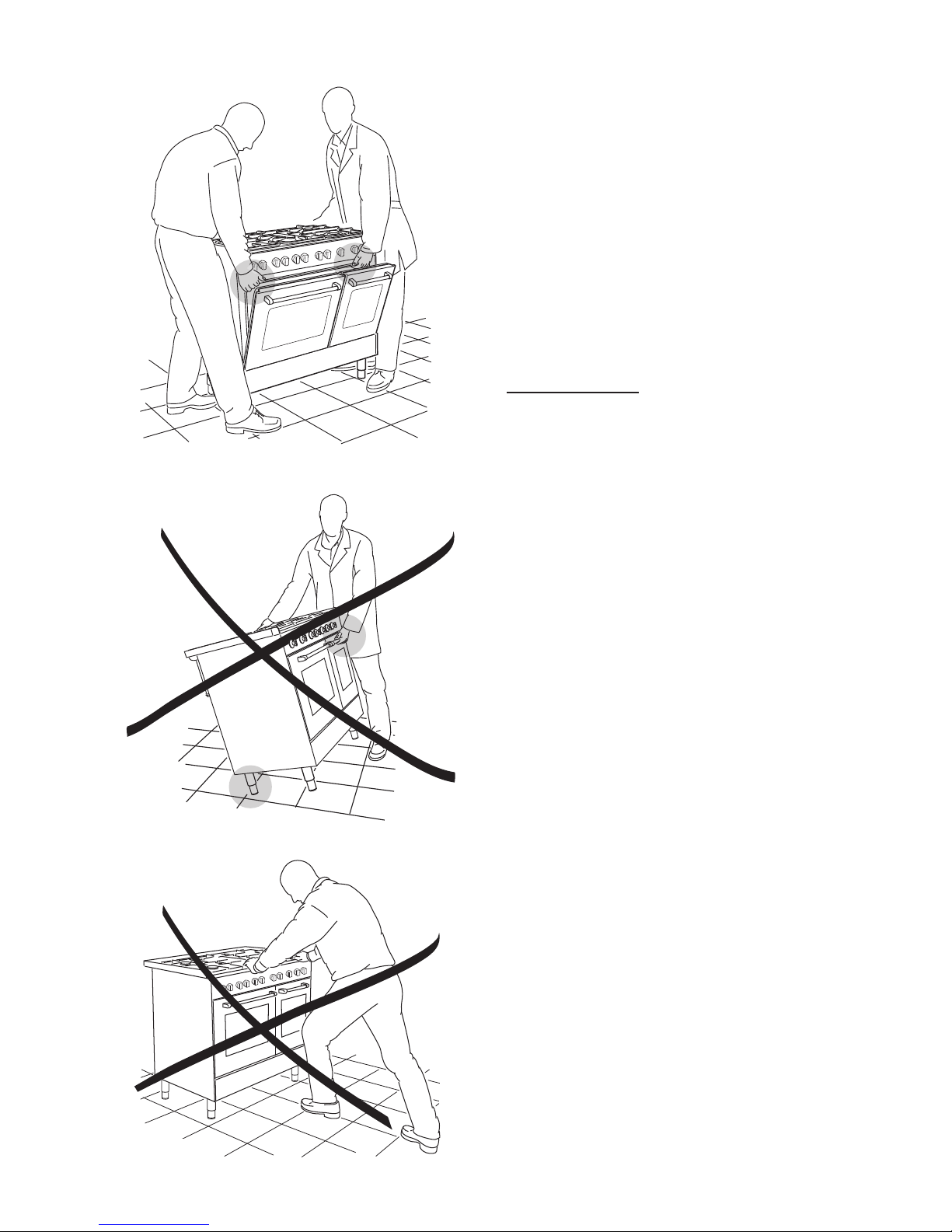

WARNING
When raising cooker to upright posi-
tion always ensure two people carry
out this manoeuvre to prevent dam-
age to the adjustable feet (fig. 2.5).
WARNING
Be carefull: do not lift the cooker by
the door handle when raising to the
upright position (fig. 2.6).
WARNING
When moving cooker to its final position
DO NOT DRAG (fig. 2.7).
Lift feet clear of floor (fig. 2.5).

11
Anti-tilt Bracket
Important!
Torestraintheapplianceandpreventittippingaccidentally,tabrackettoitsrear
toxitsecurelytothewall.
To t the anti-tilt bracket:
1. After you have located where the cooker is to be positioned, mark on the wall the place where the
two screws of the anti-tilt bracket have to be tted.
 Please follow the indications given in g. 2.8.
2. Drill two 8 mm diameter holes in the wall and insert the plastic plugs supplied.
Important!
Before drilling the holes, check that you will not damage any pipes or electrical wires.
3. Loosely attach the anti-tilt bracket with the two screws supplied.
4. Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can engage in
the slot on the cooker’s back, as shown in g. 2.8.
5. Tighten the screws attaching the anti-tilt bracket.
6. Push the cooker against the wall so that the anti-tilt bracket is fully inserted in the slot on the
cooker’s back.
Fig. 2.8

12
Provision for ventilation
– The appliance should be installed into a room or space with an air supply in
accordance with BS 5440-2: 2000.
– For rooms with a volume of less than 5 m3- permanent ventilation of 100 cm2free
area will be required.
– For rooms with a volume of between 5 m3and 10 m3a permanent ventilation of
50 cm2free area will be required unless the room has a door which opens directly to
the outside air in which case no permanent ventilation is required.
– For rooms with a volume greater than 10 m3- no permanent ventilation is required.
– NB. Regardless of room size, all rooms containing the appliance must have
direct access to the outside air via an openable window or equivalent.
– Where there are other fuel burning appliances in the same room, BS 5440-2:
2000 should be consulted to determine the correct amount of free area ventilation
requirements.
– The above requirements allow also for use of a gas oven and grill but if there are
other gas burning appliances in the same room, consult a qualified engineer.

13
3 - Gas installation
IMPORTANT NOTE
This appliance is supplied for use on NATURAL GAS or LPG (check the gas regulation
label attached on the appliance).
– Appliances supplied for use on NATURAL GAS: they are adjusted for this gas only
and cannot be used on any other gas (LPG) without modification. The appliances are
manufactured for conversion to LPG.
– Appliances supplied for use on LPG: they are adjusted for this gas only and cannot
be used on any other gas (NATURAL GAS) without modification. The appliances are
manufactured for conversion to NATURAL GAS.
If the NATURAL GAS/LPG conversion kit is not supplied with the appliance this kit can be
purchased by contacting the After-Sales Service.
Installation & service regulations (United Kingdom)
It is a legal requirement that all gas appliances are Installed & Serviced by a competent
person in accordance with the current editions of the following Standards & Regulations
or those regulations appropriate to the geographical region in which they are to be
installed:
– Gas Safety (Installation & Use) Regulations
– Building Regulations
– British Standards
– Regulations for Electrical Installation
Installation and service of any gas product must be made by a suitably qualified
person competent on the type of product being installed or serviced and holding a
valid certificate of competence for the work being carried out. Currently the proof of
competence is the Accredited Certification Scheme (ACS) or S/NVQ that has been
aligned to the ACS.
It is also a requirement that all businesses or self employed installers are members of a
class of person approved by the Health and Safety Executive.
Failure to install the appliance correctly could invalidate any manufacturers warranty and
lead to prosecution under the above quoted regulation.

14
The installation of the gas appliance to Natural Gas or LP Gas must be carried out by a
suitably qualied and registered person. Installers shall take due account of the provisions
of the relevant British Standards Code of Practice, the Gas Safety Regulations and
the Building Standards (Scotland)(Consolidation) Regulations issued by the Scottish
Development Department.
Installation to Natural Gas
Installation to Natural Gas must conform to the Code of Practice, etc.
The supply pressure for Natural Gas is 20 mbar.
The installation must conform to the relevant British Standards.
Installation to LP Gas
When operating on Butane gas a supply pressure of 28-30 mbar is required. When
using Propane gas a supply pressure of 37 mbar is required.
The installation must conform to the relevant British Standards.
Warning: Only a suitably qualified and registered person, also with technical knowledge
of electricity should install the appliance. He should observe the Regulations and Codes
of Practice governing such installation of gas appliances.
Note: It is recommended that the gas connection to the appliance is installed with a
flexible connecting tube made to BS5386.
Notes:
- Flexible hoses can be used where the sited ambient temperature of the hose
does not exceed 70°C. These hoses must be manufactured in accordance with
BS669 part 1 and be of the correct construction for the type of gas being used.
- Gas hoses designed for natural gas MUST NOT be used for supplying LPG gas
(LPG gas hoses can be identified by a either a red band or stripe on the rubber
outer coating of the hose).
The hose should not be crushed or trapped or be in contact with sharp or
abrasive edges.
Using a suitable leak detection fluid solution (e.g. Rocol) check each gas connection
one at a time by brushing the solution over the connection.
The presence of bubbles will indicate a leak.
If there is a leak, tighten the fitting and then recheck for leaks.
IMPORTANT!
Do not use a naked flame to test for leaks.
Gas connection

15
Gas connection
GB
Cat: II 2H3+

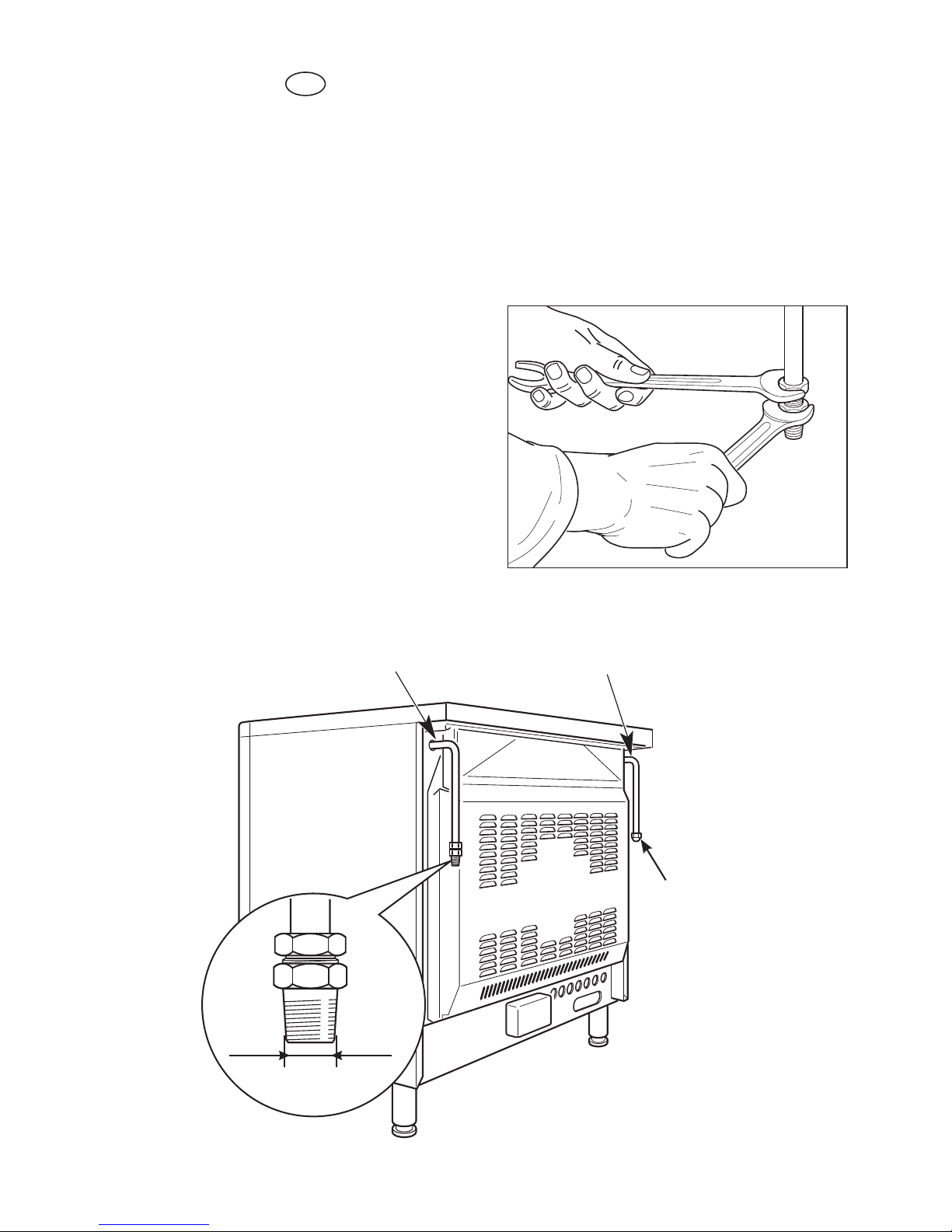

The gas supply must use the nearest gas inlet pipe which is located at the left or the
right hand side at the rear of the appliance (figs. 3.1, 3.3).
The hose should also be connected in such away that it does not touch the floor.
To screw the connecting tube operate with two spanners (fig. 3.2).
The unused end inlet pipe must be closed with the plug interposing the gasket.
After connecting to the mains, check that the coupling are correctly sealed, using
soapy solution, but never a flame.
Fig. 3.2
Fig. 3.1
Left gas
inlet pipe
Right gas
inlet pipe
1/2” BSP (male)
Plug

16

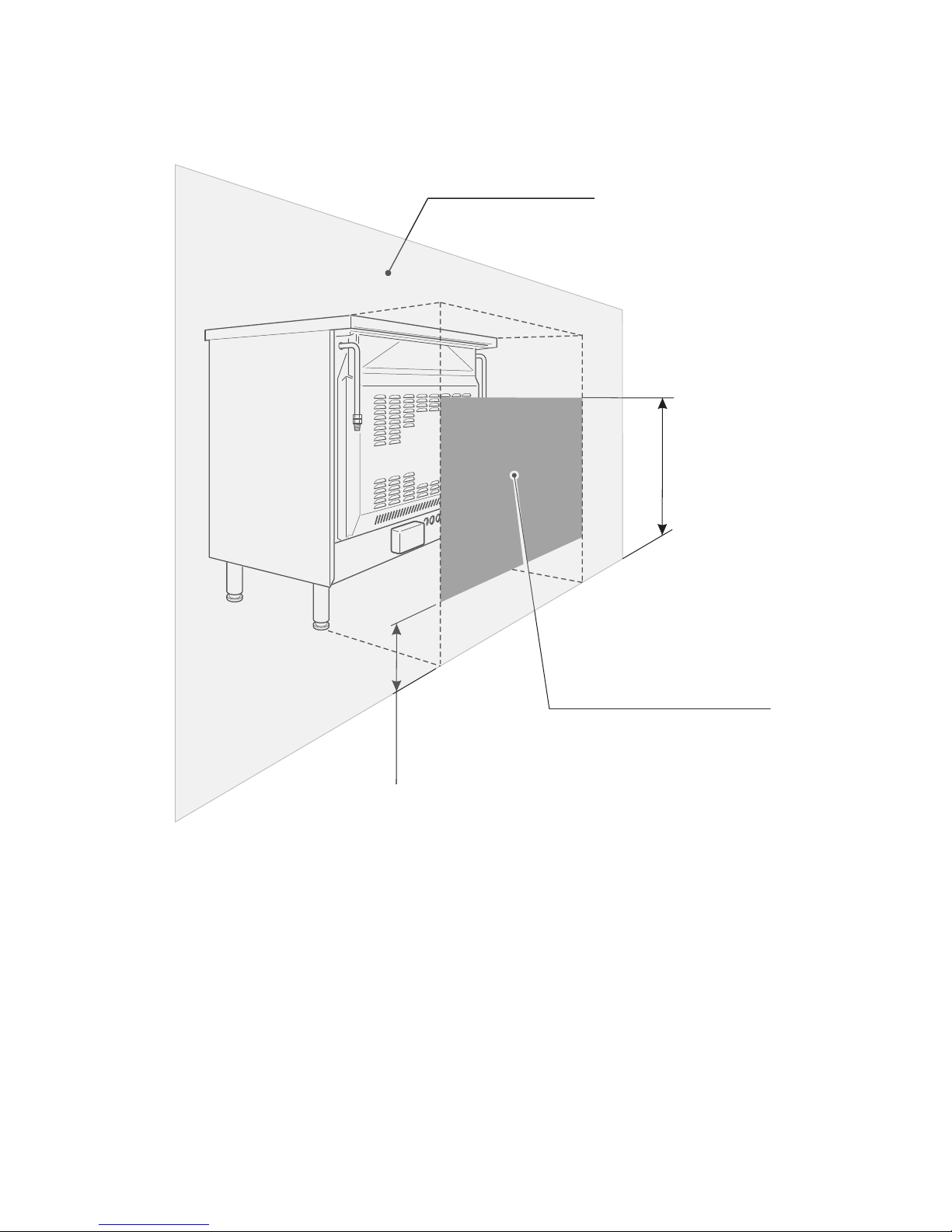

Important prescriptions for gas connection
700 mm
Rear wall
Suggested area for
gas mains connection
200 mm
Fig. 3.3

17
Conversion to Natural Gas or to LPG
Injectors replacement of top
burners
Every cooker is provided with a set of
injectors for the various types of gas.
Injectors not supplied can be obtained
from the After-Sales Service.
Select the injectors to be replaced accor-
ding to the table at page 18.
The nozzle diameters, expressed in hun-
dredths of a millimetre, are marked on
the body of each injector.
To replace the injectors proceed as fol-
lows:
– Remove the grids and extract the
burner bodies.
– Using a wrench, substitute the nozzle
injectors “J” (Figs. 3.4, 3.5) with those
most suitable for the kind of gas for
which it is to be used (see “Table for
the choice of the injectors”).
The burners are constructed in such
a way so as not to require the regula-
tion of the primary air.
J
Fig. 3.5
J
Fig. 3.4
Auxiliary, rapid
and Semi-rapid
burner
Triple-ring
burner
F
Fig. 3.6
Adjusting of the minimum of
the top burners
In the minimum position the flame must
have a length of about 4 mm and must
remain lit even with a quick turn from the
maximum position to that of minimum.
The flame adjustment is done in the fol-
lowing way:
– Turn on the burner
– Turn the tap to the MINIMUM position
– Take off the knob
– With a thin screwdriver turn the screw
“F”until adjustment is correct (fig. 3.6).
Normally for LPG, the regulation
screw is tightened up.

18
If the gas tap becomes stiff, it is necessary to dismount it accurately clean it with gasoline
and spread a bit of special grease resistant to high temperatures on it.
If the gas tap becomes stiff, it is necessary to dismount it accurately clean it with gasoline
and spread a bit of special grease resistant to high temperatures on it.
The operations must be executed by a qualified technician.
IMPORTANT
All interventioni regarding installation maintenance and conversion of the appli-
ance must be fulfilled with original factory parts.
The manufacturer declines any liability resulting from the non-compliance of this
obligation.
Lubrication of the gas taps
TABLE FOR THE CHOICE OF THE INJECTORS
GB
Cat: II 2H 3+ G30 28-30 mbar
G31 37 mbar
G 20
20 mbar
BURNERS
Nominal
Power
[Hs - kW]
Reduced
Power
[Hs - kW]
Ø injector
[1/100 mm]
Ø injector
[1/100 mm]
Auxiliary (A) 1,00 0,30 50 72 (X)
Semi-rapid (SR) 1,75 0,45 65 97 (Z)
Rapid (R) 3,00 0,75 85 115 (Y)
Triple ring (TR) 3,50 1,50 95 135 (T)
Air vent necessAry for gAs combustion
= (2 m3/h x kW)
BURNERS Air necessary for combustion [m3/h]
Auxiliary (A) 2,00
Semi-rapid (SR) 3,50
Rapid (R) 6,00
Triple ring (TR) 7,00

19
4 - Features and Technical Data

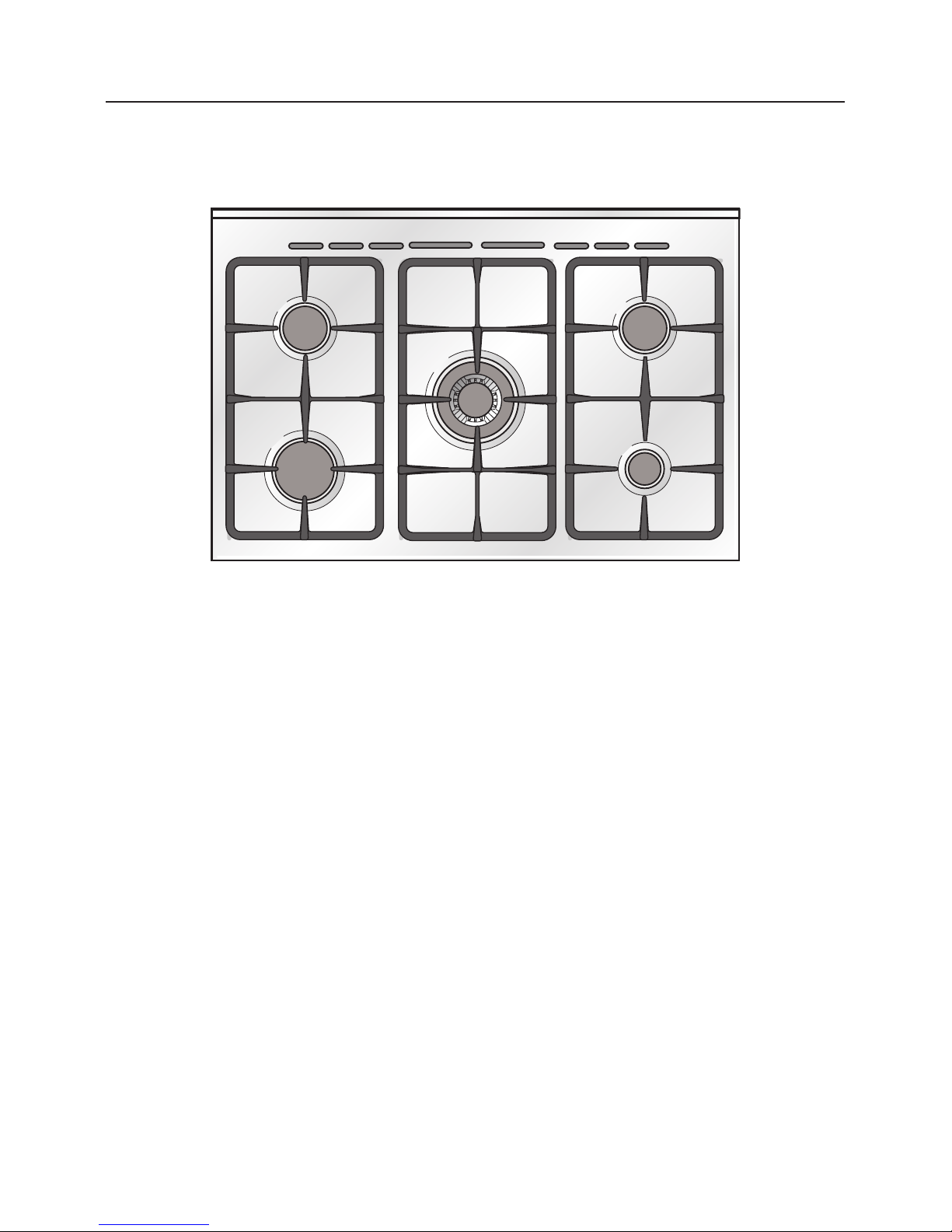

Cooking hob - (Fig. 4.1)
1. Auxiliary burner (A) 1,00 kW
2. Semi-rapid burner (SR) 1,75 kW
3. Rapid burner (R) 3,00 kW
4. Triple-ring burner (TR) 3,50 kW
Important Note:
The electric ignition is incorporated in the knobs.
The appliance has a safety valve system fitted, the flow of gas will be stopped if and
when the flame should accidentally go out.
Fig. 4.1
2
4
2
1
3

20
Control Panel
Please note: This appliance incorporates a safety cooling fan which you will hear
operating whenever the oven or grill are in use. This fan may continue to run for several
minutes after the appliance has been switched off.
This fan is to reduce the external temperature of the appliance and cool the internal
components.
Control panel - Controls description - (Fig. 4.2)
1. Minute counter (60 minutes)
2. Fan main oven thermostat knob (left oven)
3. Fan main oven switch knob (left oven)
4. Front left burner control knob
5. Rear left burner control knob
6. Central burner control knob
7. Rear right burner control knob
8. Front right burner control knob
9. Conventional oven switch knob (right oven)
10. Conventional oven thermostat knob (right oven)
Pilot lamps:
11. Main oven thermostat indicator light (left oven)
12. Conventional oven thermostat indicator light (right oven)
Fig. 4.2
1 2 4 5 7 8 9 10
3
11 12
6
