Caple CR 9227 User manual

Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk
Instruction manual for range cooker
Model code: CR 9227

2
Declaration of CE conformity
• This cooker has been designed, constructed and marketed in compliance with:
- Safety requirements of EU Directive “Low Voltage” 2006/95/EC;
- Protection requirements of EU Directive “EMC” 2004/108/EC;
- Requirements of EU Directive 93/68/EEC.
- Requirements of EU Directive 2011/65/EU.
Thank you for buying your new Caple cooker.
To ensure that you get the best results from your new Caple cooker, we strongly
suggest that you read this instruction manual thoroughly before use.
This manual contains installation advice, cleaning tips and a cooking guide, as well
as other important facts about your Caple cooker.
If treated with care, your Caple appliance should give you years of trouble-free
cooking.
For Product Service or Spare Parts
please check contact details at:
www.caple.co.uk
Important information for correct disposal of the product in
accordance with EC directive 2002/96/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority differentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative
consequences for the environment and health deriving from inappropriate
disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to
dispose of household appliances separately, the product is marked with
a crossed-out wheeled dustbin.

3
• After having unpacked the appliance, check to ensure that it is not
damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a profes-
sionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails, packing
straps, etc.) should not be left around within easy reach of children,
as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and alu-
minium parts. This lm must be removed before using the ap-
pliance.
• IMPORTANT: The use of suitable protective clothing/gloves is recom-
mended when handling or cleaning of this appliance.
• Do not attempt to modify the technical characteristics of the appliance
as this may become dangerous to use. The manufacturer declines all
responsability for any inconvenience resulting from the inobservance
of this condition.
• Do not operate your appliance by means of an external timer or sepa-
rate remote-control system.
• Do not carry out cleaning or maintenance operations on the applian-
ce without having previously disconnected it from the electric power
supply.
• WARNING: Ensure that the appliance is switched off before replacing
the oven lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner because the moisture can get into the
appliance thus make it unsafe.
Important sefety precautions and recommendations
IMPORTANT: This appliance is designed and manufactured
solelyforthecookingofdomestic(household)foodandis
notsuitableforanynondomesticapplicationandtherefore
should not be used in a commercial environment.
Theapplianceguaranteewillbevoidiftheapplianceisused
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.

4
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or decide to
substitute another model), before disposing of it, it is recommended
that it be made inoperative in an appropriate manner in accordance to
health and environmental protection regulations, ensuring in particular
that all potentially hazardous parts be made harmless, especially in
relation to children who could play with unused appliances.
• The various components of the appliance are recyclable. Dispose of
them in accordance with the regulations in force in your country. If the
appliance is to be scrapped, remove the power cord.
• After use, ensure that the knobs are in the off position.
• Children less than 8 years of age shall be kept away unless conti-
nuously supervised.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and under-
stand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
• The manufacturer declines all liability for injury to persons or damage
to property caused by incorrect or improper use of the appliance.
• WARNING: During use the appliance and its accessible parts become
hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements (on the
hob and inside the oven).
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept away.
• Make sure that electrical cables connecting other appliances in the
proximity of the cooker cannot come into contact with the hob or beco-
me entrapped in the oven door.
• WARNING: Unattended cooking on a hob with fat or oil can be dange-
rous and may result in re. NEVER try to extinguish a re with water,
• but switch of the appliance and then cover ame e.g. with a lid or a re
blanket.
• WARNING: Danger of re: do not store items on the cooking surfaces.

5
• Do not place or leave empty pans on the glass ceramic hob.
• Do not allow heavy or sharp objects to drop on the glass ceramic hob.
• Do not scratch the hob with sharp objects. Don’t use the hob as a
work surface.
• WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power sup-
ply to avoid the possibility of electric shock and call Customer Service.
• WARNING: When correctly installed, your product meets all safety
requirements laid down for this type of product category. However
special care should be taken around the rear or the underneath of the
appliance as these areas are not designed or intended to be touched
and may contain sharp or rough edges, that may cause injury.
• FIRST USE OF THE OVEN - it is advised to follow these instructions:
– Furnish the interior of the oven as described at chapter “CLEA-
NING AND MAINTENANCE”.
– Switch on the empty oven on max to eliminate grease from the
heating elements.
– Disconnect the appliance from the electrical power supply, let the
oven cool down and clean the interior of the oven with a cloth soa-
ked in water and neutral detergent; then dry carefully.
• CAUTION: Do not use harsh abrasive cleaners or sharp metal scra-
pers to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
• Do not line the oven walls with aluminium foil. Do not place baking
trays or the drip tray on the base of the oven chamber.
• FIRE RISK! Do not store ammable material in the oven or in the
storage compartment.
• Always use oven gloves when removing the shelves and food trays
from the oven whilst hot.
• Do not hang towels, dishcloths or other items on the appliance or its
handle – as this could be a re hazard.
• Clean the oven regularly and do not allow fat or oils to build up in the
oven base or tray. Remove spillages as soon as they occur.
• Do not stand on the cooker or on the open oven door.
• Always stand back from the appliance when opening the oven door to
allow steam and hot air to escape before removing the food.

6
• SAFE FOOD HANDLING: Leave food in the oven for as short a time
as possible before and after cooking. This is to avoid contamination
by organisms which may cause food poisoning. Take particular care
during warmer weather.
• WARNING: Taking care NOT to lift the cooker by the door handle.
• INDUCTION HOBS:
– Metallic objects such as knives, forks, spoons and lids should not
be placed on the hob surface since they can get hot.
– Do not use metallic kitchen utensils (e.g. ladles). It is preferable to
use plastic or wood kitchen utensils.
– Please use pans of recommended size (see minimum pan diame-
ter recommended). It is not advisable to use pans smaller than
the cooking zone. The pans have to be placed in the centre of the
cooking zone.
– Do not use defective pans or pans with a curved bottom.
– Please use suitable pans marked for induction cooking.
– Please keep your distance from the electromagnetic elds by stan-
ding 5-10 cm from the cooking zones. When possible use the rear
cooking zones.
– Magnetic objects (e.g. credit cards, oppy disks, memory cards)
and electronic instruments (e.g. computers) should not be placed
near the induction hob.
– The heating of magnetic tins is forbidden! Close tins may explode
by exceeding pressure while heating. There is a burning risk with
open tins as well, because the integrated temperature protection
can’t work well.
–IMPORTANT WARNING: The induction hob complies with Eu-
ropean Standards for domestic cooking appliances. Therefore it
should not interfere with other electronic units. Persons with car-
diac pacemakers or any other electrical implants must check with
their doctor if they can use an induction cooking system (and check
any possible interferences with the implants).

7
1 - Electrical Requirements
WARNING!
ELECTRICITY CAN BE EXTREMELY DANGEROUS.
THIS APPLIANCE MUST BE EARTHED.
Foryoursafetypleasereadthefollowinginformation:
This appliance must be installed by a qualied technician according with the current local
regulations and in compliance with the manufacturer instructions.
The appliance must be connected to the electrical network verifying above all that the
voltage corresponds to the value indicated on the specifications plate and that the cables
section of the electrical plant can bear the load which is also indicated on the plate.
The cooker must be connected directly to the mains placing an omnipolar switch with
minimum opening between the contacts of 3 mm between the appliance and the mains.
The power supply cable must not touch the hot parts and must be positioned so that
it does not exceed 75°C at any point.
Once the cooker has been installed, the switch must always be accessible.
The connection of the appliance to earth is mandatory.
Themanufacturerdeclinesallresponsabilityforanyinconvenienceresultingfrom
the inobservance of this condition.

8
Electrical Installation - Wall box connection
This appliance must be connected to a
double pole isolating switch (fig. 1.1) and
to the terminal block in the cooker (figs.
1.2, 1,3 & 1.4) using the following guide:
FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
Use an appropriate fuse suitable for
the appliance rating - see data plate.
ON
Fig. 1.1
1) The wire which is coloured brown
must be connected to the terminal
marked L(Live), or coloured Red.
2) The wire which is coloured blue
must be connected to the terminal
marked N (Neutral), or coloured
Black.
3) The wire which is coloured green
and yellow must be connected to
the terminal marked E(Earth)
or coloured Green.
IMPORTANT: These connections must
becarriedoutbyaqualifiedelectrical
engineer.
IMPORTANT: This cooker must be
connected to a suitable double pole
control unit adjacent to the cooker.
NO DIVERSITY CAN BE APPLIED TO
THIS CONTROL UNIT.
IMPORTANT:
This appliance must be earthed.

9
Connecting the feeder
cable
To connect the feeder cable to the cooker
it is necessary to:
– Remove the two screws that hold
shield Abehind the cooker.
– Open completely the cable clamp D.
– Insert the mains cable (type H05RR-F
or H05VV-F) of minimum 6 mm2sec-
tion into the cable clamp D.
– Connect the phase and earth cables
to terminal Baccording figure 1.3 and
1.4.
– Pull the feeder cable and block it with
the cable clamp D.
– Re-mount shield A.
N.B. The earth conductor must be left
about 3 cm longer than the others.
A
D
B
Fig. 1.2
PE
1 2 3 4 5
N (L2)
L1
230 V
Fig. 1.3
Feedeer cable section
“Type H05RR-F or H05VV-F”
230 V ~ 3 x 6 mm2(**)
(**)
– Connection with wall box connec-
tion.
– Diversity factor applied.
– A diversity factor may be applied to
the total loading of the cooker only
by a suitable qualified person.
2 3 4 51
230 V ~
N(L 2 )PE
L
1
Red
or
Brown
(Live)
Black
or
Blue
(Neutral)
Green
and
Yellow
(Earth)
Fig. 1.4
PE Earth
N Neutral
L Live

10
2 - Location
FOR THE INSTALLER
50 mm
650 mm
500 mm
450 mm
A
U
T
O
Fig. 2.1
– The appliance should be installed by a qualified electrician in compliance with the
laws in force in your country and in observation of the instructions supplied by the
manufacturer.
Failure to comply with this condition will render the guarantee invalid.
– Always disconnect the cooker from mains power supply before carrying out any
maintenance operations or repairs.
The cooker must be installed no less than 50 mm away from any side wall which exceed
the height of the cooktop.
If the cooker is located on a pedestal it is necessary to provide safety measures to
prevent falling out.
Fig. 2.2
Fitting the adjustable feet
The adjustable feet must be fitted to the
base of the cooker before use.
Rest the rear of the cooker on a piece
of the polystyrene packaging exposing
the base for the fitting of the feet.
Fit the 4 legs by screwing them tight
into the support base as shown in pic-
ture 2.2.
The appliance must
be housed in heat
resistant units.
The walls of the
unitsmustbecapa-
bleofresistingtem-
peratures of 75 °C
above room tem-
perature.
Do not install the
appliance near
inflammable materi-
als (eg. curtains).

11
Fig. 2.3
Fig. 2.4
Fig. 2.5 Fig. 2.6

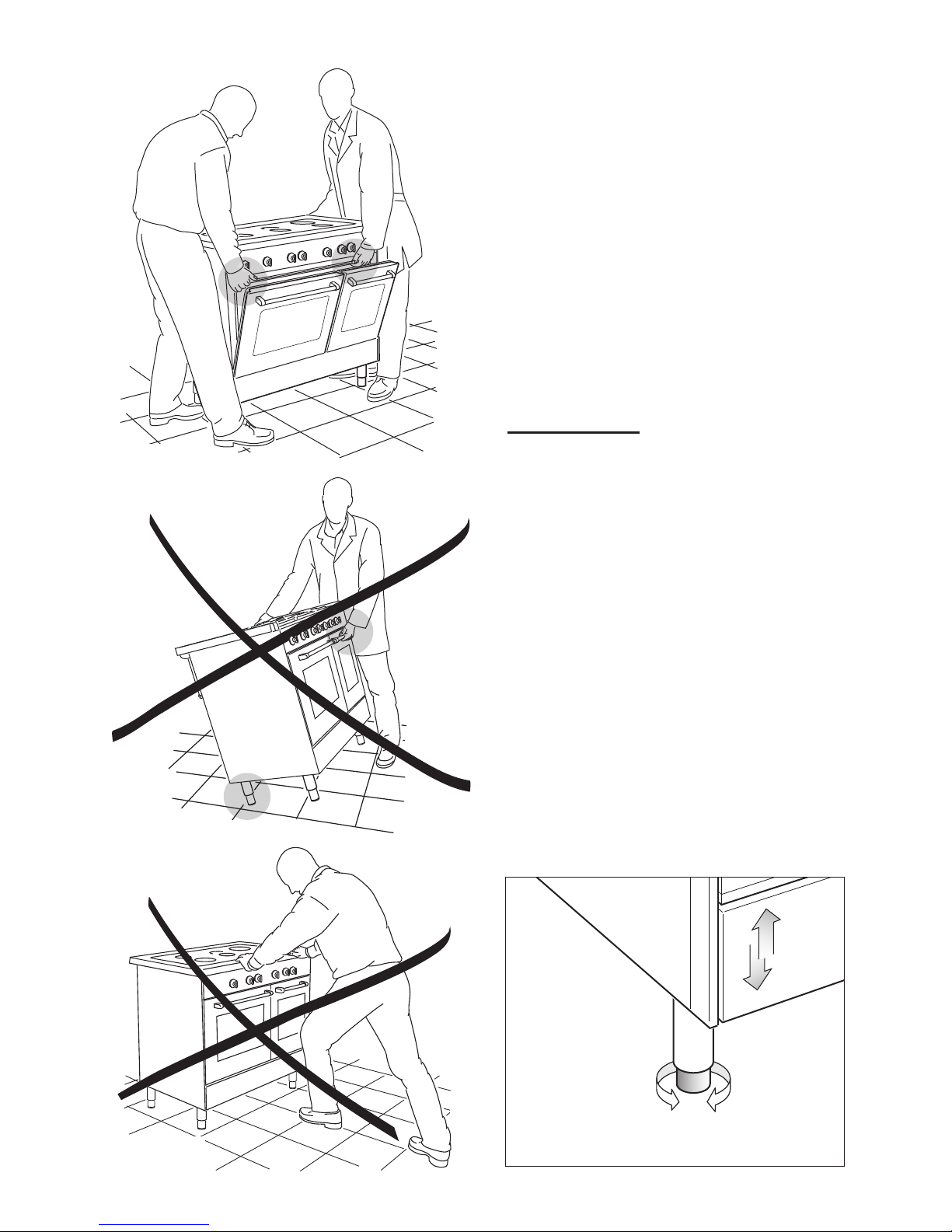

Moving the cooker
WARNING
When raising cooker to upright posi-
tion always ensure two people carry
out this manoeuvre to prevent dam-
age to the adjustable feet (fig.2.3).
WARNING
Be carefull: do not lift the cooker by
the door handle when raising to the
upright position (fig.2.4).
WARNING
When moving cooker to its final position
DO NOT DRAG (fig. 2.5).
Lift feet clear of floor (fig. 2.3).
Levelling the cooker
The cooker may be levelled by screwing
the lower ends of the feet IN or OUT
(fig. 2.6).

12
Anti-Tilt Bracket
Important!
Torestraintheapplianceandpreventittippingaccidentally,tabrackettoitsrear
toxitsecurelytothewall.
To t the anti-tilt bracket:
1. After you have located where the cooker is to be positioned, mark on the wall the place
where the two screws of the anti-tilt bracket have to be tted.
 Please follow the indications given in g. 2.7.
2. Drill two 8 mm diameter holes in the wall and insert the plastic plugs supplied.
Important!
Beforedrillingtheholes,checkthatyouwillnotdamageanypipesorelectrical
wires.
3. Loosely attach the anti-tilt bracket with the two screws supplied.
4. Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can
engage in the slot on the cooker’s back, as shown in g. 2.7.
5. Tighten the screws attaching the anti-tilt bracket.
6. Push the cooker against the wall so that the anti-tilt bracket is fully inserted in the slot
on the cooker’s back.
Fig. 2.7

13
3 - Features and Technical Data
2
1
34
6
5

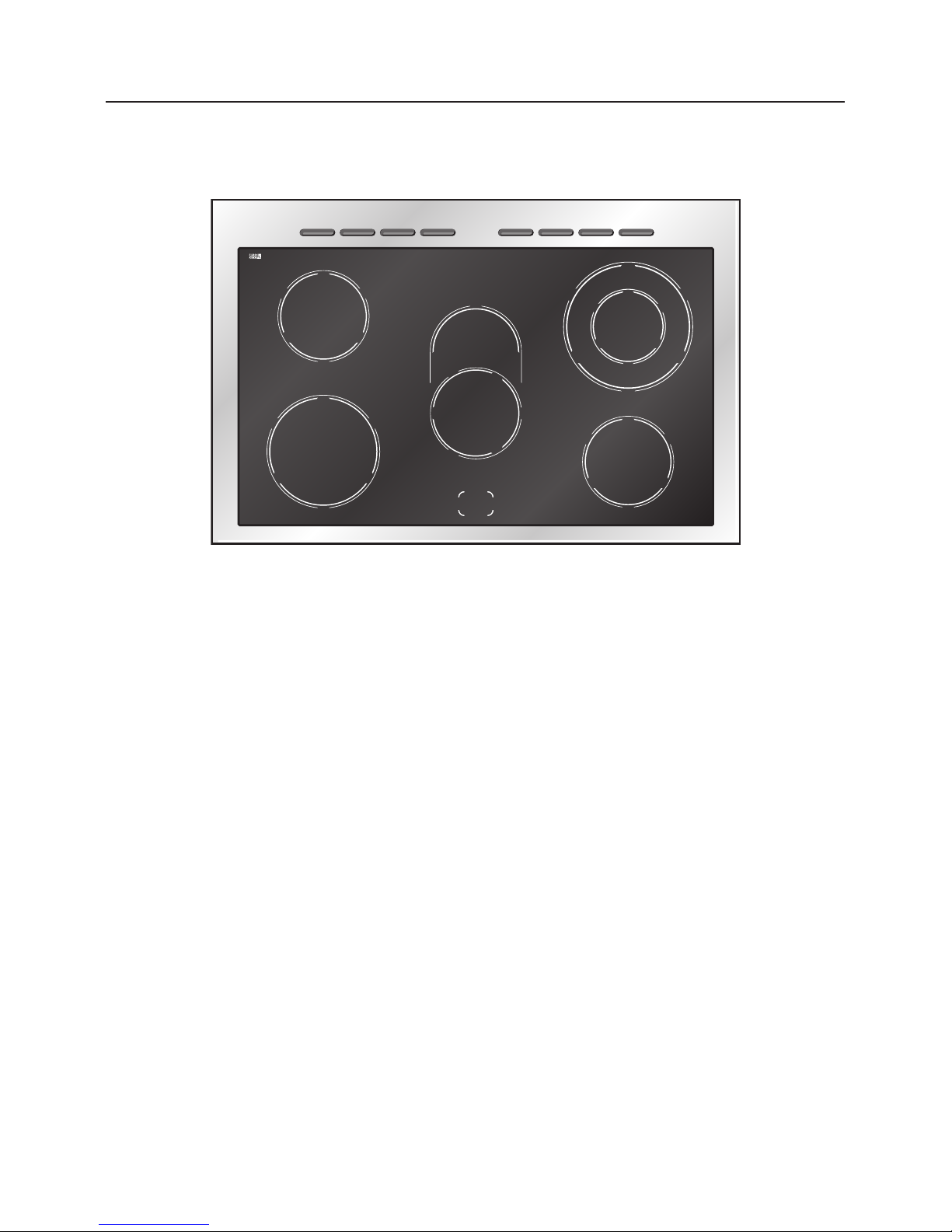

Vitroceramiccookinghob - (Fig. 3.1)
1. 3 circuit radiant cooking zone Ø 180 1700 W
2. 3 circuit radiant cooking zone Ø 145 1200 W
3. Oval cooking zone Ø 140 x 250 1800/1000 W
4. Double cooking zone Ø 210/120 2100/700 W
5. 3 circuit radiant cooking zone Ø 145 1200 W
6. Cooking zone residual heat indicators
NOTE
When the hob temperature is above 60 °C, the corresponding indicator light 6 (Fig. 3.1)
will come on to indicate that the hob is hot.
Attention:
Do not use the ceramic hob if the glass surface is broken or cracked in any
way. Please disconnect the appliance from the mains and contact the
After-Sales service.
Fig. 3.1

14
Control Panel
Fig. 3.2
F F
1 2 4 5 7 8 9 10
3
11 12
6
Please note: This appliance incorporates a safety cooling fan which you will hear
operating whenever the oven or grill are in use. This fan is to reduce the external
temperature of the appliance and cool the internal components.
Control panel - Controls description - (Fig. 3.2)
1. Clock and timer with “Touch-Control” keys (main oven only)
2. Multifunction main oven thermostat knob (left oven)
3. Multifunction main oven switch knob (left oven)
4. Front left
cooking zone control knob
5. Rear left
cooking zone control knob
6. Central
cooking zone control knob
7. Rear right
cooking zone control knob
8. Front right
cooking zone control knob
9. Conventional oven switch knob (right oven)
10. Conventional oven thermostat knob (right oven)
Pilot lamps:
11. Main oven thermostat indicator light (left oven)
12. Conventional oven thermostat indicator light (right oven)
13. Ceramic hob ON indicator light
13

15
How To Use the Cooking Hob
Fig. 3.4
The ceramic surface of the hob allows
a fast transmission of heat in the verti-
cal direction, from the heating elements
underneath the ceramic glass to the
pans set on it.
The heat does not spread in the hori-
zontal direction, so that the glass stays
“cool” at only a few centimeters from the
cooking plate.
The 5 cooking zones are shown by paint-
ed disks on the ceramic surface.
3 circuit radiant zones
Incorporating 3 heating elements
(fig. 3.4) you can control and light up all
together or separately by a 6 position
switch (fig. 3.3).
Reaches the working temperature in a
very short time.
IMPORTANT NOTE:
The heating elements incorporate a
thermolimiter that switches the element
ON/OFF during all the settings to pro-
tect the ceramic glass from overheating.
The use of incorrect pans and/or wrong
pan positioning will cause the tempera-
ture limiter to operate more frequently,
resulting in a reduction of cooking per-
formance.
Fig. 3.3

16

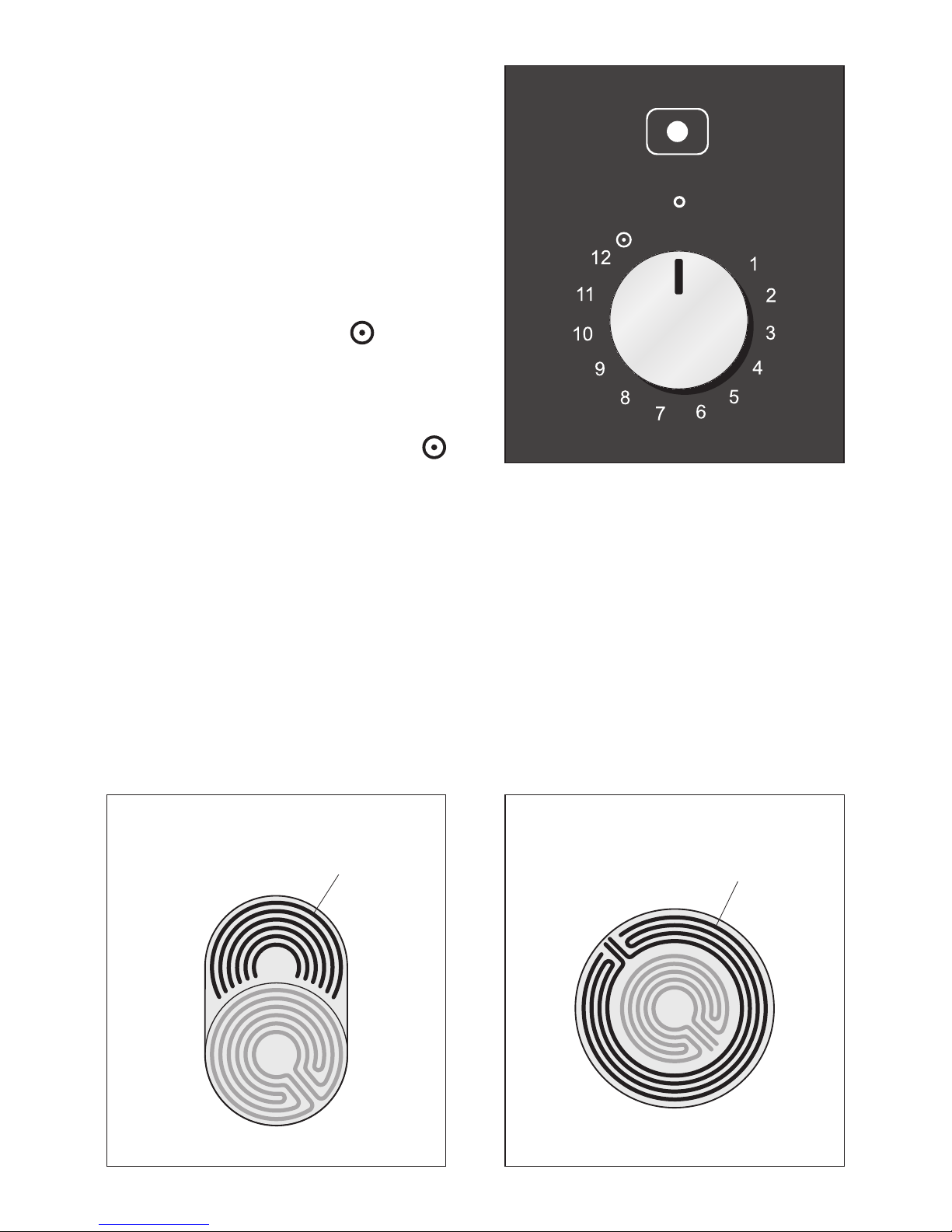

Double and oval radiant
zones
The heating element is formed of a coil
of resistant material which reaches the
working temperature quickly.
Operation of the cooking zone is con-
trolled by a continuous energy regulator
from 1 to 12 (maximum temperature)
(fig. 3.5).
To turn on both zones of the double
element, turn the double element knob
fully clockwise to the position .
To reduce the heat of the full double
element, turn its knob anticlockwise to
setting 12 or lower. Adjust the heat during
cooking as necessary.
Note: if you leave the knob at the
position, the full double element will
remain at the highest heat setting.
To returntousingonlytheinnerzone
ofthedoubleelement, rst turn the knob
to the o(off) position (you should feel a
click) and then clockwise to a setting from
1 to 12.
Fig. 3.7
Fig. 3.6
Second element Second element
Fig. 3.5

17

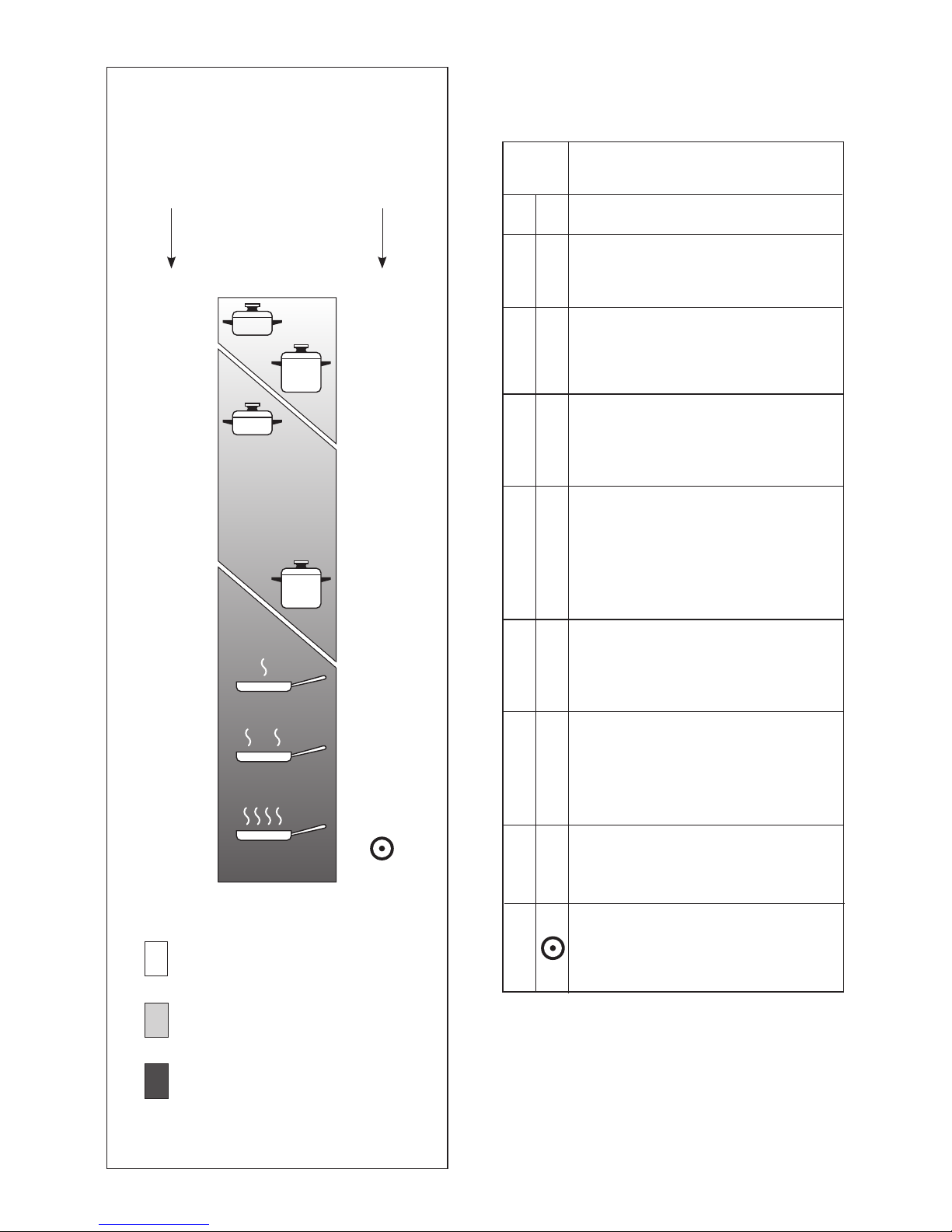

Type of cooking
Switched OFF
For melting operations
(butter, chocolate).
To keep food hot and to heat
small quantities of liquid
(sauces, eggs).
To heat bigger quantities; to
whip creams and sauces.
(vegetables, fruits, soups).
Slow boiling, i.e.: boiled
meats, spaghetti, soups,
continuous steam cooking
of roasts, stews, potatoes.
For every kind of frying,
cutlets, uncovered cooking,
i.e.: risotto.
Browning of meats, roasted
potatoes, fried fish, ome-
lettes, and for boiling large
quantities of water.
Fast frying, grilled steaks,
etc.
Switching on the second
element (Double and oval
radiant plate only)
0
Knob
setting
1
2
3
4
5
6
2
0
1
2
2
3
4
3
4
6
7
47
8
4
5
8
9
10
611
12
After a short period of use, experience
will teach you which setting is the right
one for your needs.
Cooking hints
Cooking plate
controlled by a 6
position switch
Cooking plate
controlled by a 12
position switch
1
2
3
4
5
6
Fig. 3.8
Heating
Cooking
Roasting-frying
1
2
3
4
5
6
7
8
9
10
11
12

18
Residual heat indicator
The hob also features 5 warning lights
which are connected to the correspond-
ing plates.
When the temperature of a cooking plate
is above 60 °C, the relevant warning light
will also light up to warn of heat on the
surface of the hob.
This light also stay on after the cooking
plate has been switched off to show that
the hob surface is still hot.
This residual heat will lasts for a long
time after the cooking plate has been
switched off.
During this time you should avoid
touching the hob  surface over the
cooking area.
Please pay special attention to ensure
that children are not allowed near
the hob.
The light will switch off automatically as
soon as the surface temperature of the
cooking plate falls below 60°C.
Caution!
The cooker becomes very hot
duringoperation.
Keep children well out of reach.
Fig. 3.9
DO NOT USE GLASSWARE ON CERAMIC HOBS.
DO NOT USE PANS WITH ROUGH CIRCULAR
MACHINED BASE.

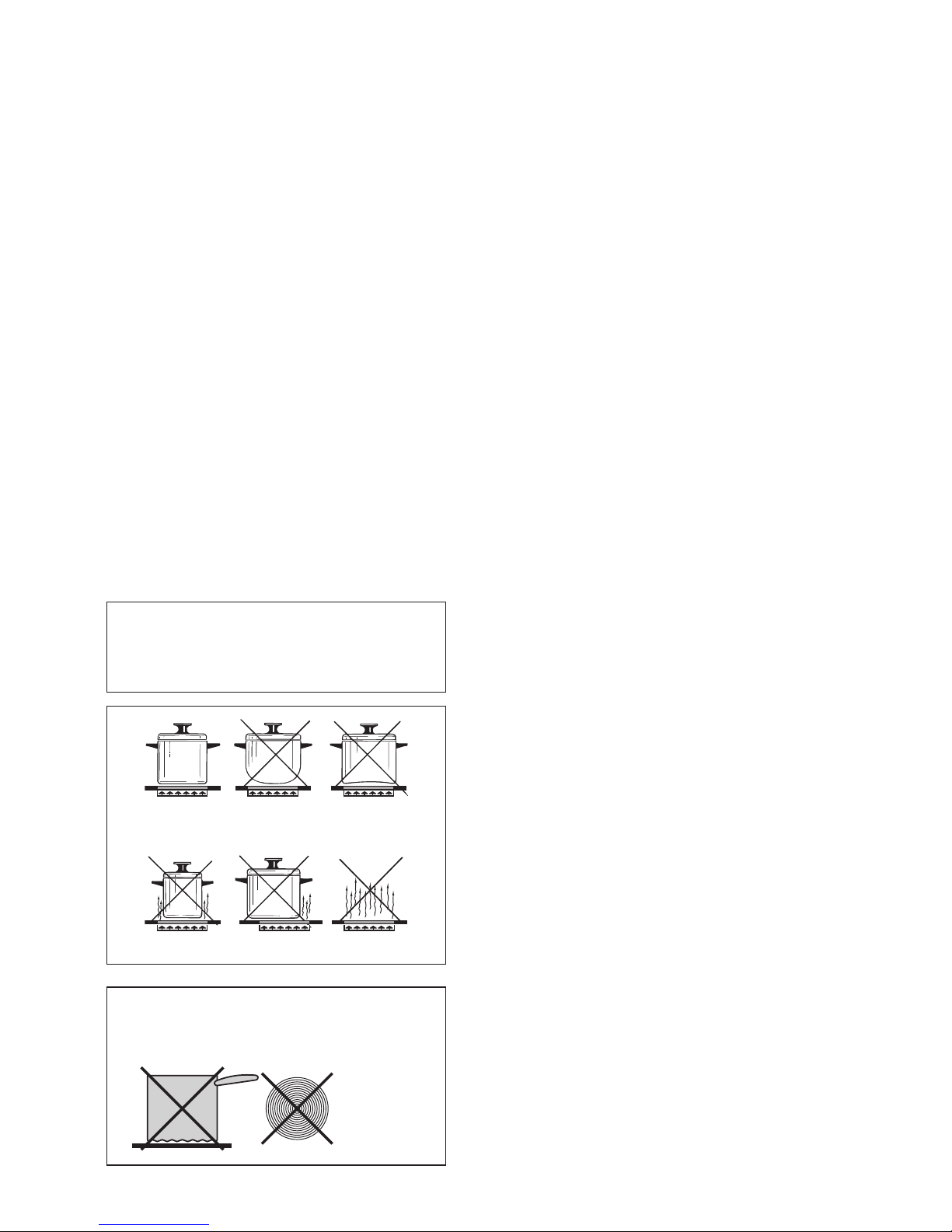

Cooking hints:
– To reduce the cooking time, you can
turn the control knob to the max when
you switch the plate on.
After a short time you can set the con-
trol knob to the position required for
cooking.
– You should only use pots and pans with
flat bases (pans with the test mark for
glass-ceramic hobs are available from
specialist shops).
The diameter of the pan should match
that of the cooking plate (or be slightly
bigger) to make the most of the energy.
– Since the cooking surface will stays hot
for a certain time after the plate has
been switched off, you can switch it off
5 or 10 minutes before the end of the
cooking.
The residual heat of the hob will com-
plete the cooking.
– To save electricity, use pan lids when-
ever possible.
– Never cook the food directly on the
glass ceramic hob, but in special pans
or containers.
– Do not scratch the cooktop with cut-
ting or sharp objects.
 Donotusetheglassceramicsurface
as a work surface.
DEEP FAT FRYING
For safety purposes when deep fat fry-
ing, do not fill the pan more than one
third full of oil.
DO NOT cover the pan with a lid and DO
NOT leave the pan unattended.
In the unfortunate event of a fire, leave
the pan where it is and turn off the con-
trol knobs.
Place a damp cloth or lid over the pan
to smother the flames. Leave the pan to
cool for at least 30minutes before mov-
ing the pan.
DO NOT USE WATER ON THE FIRE.

19
Fig. 3.10
Safety hints:
– Before you switch the hob on, make
sure you know which knob controls the
required cooking plate. We advise you
to set the pan over the cooking plate
before switching it on. Remove the pan
after you have switched the cooking
plate off.
– Do not use pots and pans with rough
bases (pay attention to cookware made
of cast-iron). Rough bases can damage
(scratch) the glass surface of the hob.
Make sure that the pan bottom of the
pan is dry and clean.
– Pots with aluminium bottoms may leave
silver streaks or spots on the hob.
– Do not leave wet or damp lids on the
hob.
– The glass-ceramic surface and pans
must be clean. Carefully remove any
food debris (especially containing
sugar), dirt etc. with the aid of a cleans-
ing agent.
– Pan handles should never stand out
beyond the kitchen worktop, as there
is a great danger of knocking the pan
over.
This will also ensure that children
cannot reach them.
– Donotusethehobiftheglasssur-
faceisbrokenorcrackedinanyway.
Please disconnect the hob from the
mains and contact the after-sales
service.
– Do not lean over the cooking plate when
in use.
– Do not lay cooking foil or plastic mate-
rials on the ceramic surface when it is
hot.
– Remember that the surface remains hot
for a long time (about 30 min.) after the
cooking plate has been switched off.
– Follow the cleaning instructions care-
fully.
Do not use the glass surface for
storage.
Cleaning the hob
Before you begin cleaning make sure
that the appliance is switched off.
Remove spillages and other types of
incrustations.
Dust or food particles can be removed
with a damp cloth.
If you use a detergent, please make
sure that it is not abrasive or scouring.
Abrasive or scouring powders can dam-
age the glass surface of the hob.
All traces of the cleaner must be removed
with a damp cloth.
Do not put articles on the hob which can
melt: i.e plastic, aluminium foil, sugar,
sugar syrup mixtures etc.
If any of these products items have melt-
ed on the ceramic surface, you should
remove it immediately (when the surface
is still hot) by using a scraper to avoid
any permanent damage to the surface
of the hob.
Avoid using a knife or other sharp
utensils since these can damage the
ceramic.
Do not use steel wool or an abrasive
sponge which could scratch the surface
permanently.
ATTENTION: MOST IMPORTANT!
If cleaning the glass ceramic hob
using a special scraper tool take
extra care to avoid damaging to the
sealattheedgesoftheglassceram-
ic surface.

20
4 - Clock and timer with “Touch-Control” keys
(left main oven only)
keys
and Touched simultaneously
(for more than 2 seconds):
• setting the clock;
• setting the timer volume (by
touching once, along with the
“” key);
• to cancel automatic cooking at
any time.
Function selection (touched for
more than 2 seconds):
• setting the clock (only after
first connection or after a
power failure);
• timer;
Illuminated symbols:
AUTO flashing - automatic cooking completed, oven in automatic position
but not set
AUTO steady illumination - oven set for automatic cooking, cooking still not
taking place
“ ” flashing - timer being set
“ ” steady illumination - timer in operation
“ ” steady illumination - oven set for manual cooking
“ ” and AUTO AUTO flashing - automatic cooking being set
“ ” and AUTO steady illumination - oven set for automatic cooking, cooking taking
place.
• automatic cooking “dur” (duration) - how long the food will take to cook (by
touching the “ ” key again);
• automatic cooking “End” - the time you would like the oven turns off (by
touching the “ ” key two more times);
Increases the number shown on the display
Decreases the number shown on the display
Fig. 4.1
