Caple CRG 902 SS User manual

Instruction Manual
Gas Cooker
with
Gas Oven
Model: CRG 902 SS
GB

2
The CE marking confirms that the appliance conforms to the following EU directives:
- safety requirements of EEC Directive “Gas” 90/396;
- safety requirements of EEC Directive “Low voltage” 73/23;
- protection requirements of EEC Directive “EMC” 89/336;
- requirements of EEC Directive 93/68.
Thank you for buying your new CAPLE cooker. To ensure that you get the best
results from your new CAPLE cooker, we strongly suggest that you read this instruc-
tion manual thoroughly before use. This manual contains installation advice, cleaning
tips and a cooking guide, as well as other important facts about your CAPLE cooker.
If treated with care, your CAPLE appliance should give you years of trouble-free
cooking.
For Spare Parts, Technical Advice
or Product Service call the
CAPLE HELPLINE on 0870 241 1142
(Answerphone outside office hours)

3
Safety Reminders
Instruction Book
This appliance should only be used for
it’s intended purpose as described in
these instructions.
Ensure that you fully understand these
instructions before operating this appli-
ance.
Space Requirements
Ensure that the specified ventilation
space around the appliance is not
obstructed.
Food Splashes
Always wipe clean the oven after use.
Food splashes can carry on cooking next
time and may become a fire hazard.
Hot Surfaces
It is important to remember that the sur-
faces of cooking appliances get hot dur-
ing use and retain the heat for some time
after switching off.
It is therefore advisable to keep small
children away from the appliance.
The Grill burner
Is exposed, so take great care when
placing food in the oven or removing it.
Use the grill pan handles or gloves.
DO NOT line the oven, grids, trays etc.
with aluminium foil as this could adverse-
ly affect the heating elements and it
could also damage the interior surfaces.
DO NOT place flammable materials in
the oven or in the storage compartment.
Faults
Do not continue to use this appliance if
it appears to be faulty.
After Use
After use, ensure that the hob knobs are
in position ●(off), and close the main
gas delivery valve or the gas cylinder
valve.
Switch the oven controls off.
Always switch off at the isolating switch
before cleaning the appliance, or
attempting any maintenance task, or
when not in use for long periods (when
on holiday).
CAPLE Service
To ensure the continued safe and effi-
cient operation of this appliance, we rec-
ommend that any servicing or repairs are
carried out only by an authorised CAPLE
SERVICE ENGINEER.

4
1 - Electrical Installation
A properly earthed three pin plug (fused
at 3 amps, to BS 1362 ASTA approved)
must be used.
As the colours of the wires in the mains
lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your plug,
proceed as follows.
The wire which is coloured GREEN &
YELLOW must be connected to the
terminal in the plug which is marked with
letter "E" or by the Earth symbol or
coloured GREEN & YELLOW.
The wire which is coloured BLUE must
be connected to the terminal which is
marked with the letter "N" or coloured
BLACK.
The wire which is coloured BROWN
must be connected to the terminal which
is marked with the letter "L" or coloured
RED.
For your safety please read the following information:
This appliance must be installed by a qualified technician according with the current
local regulations and in compliance with the manufacturer instructions.
This appliance is supplied with a moulded 13 amp three pin mains plug with a 3 amp
fuse fitted. Should the fuse require replacement, it must be replaced with a fuse rated
at 3 amp and approved by ASTA or BSI to BS 1362.
The plug contains a removable fuse cover that must be refitted when the fuse is
replaced. In the event of the fuse cover being lost or damaged, the plug must not be
used until a replacement cover has been obtained.
Replacement fuse covers can be purchased from your nearest electrical dealer and
must be the sarne colour as the original.
IF THE MOULDED MAINS PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN
YOUR HOME OR IS REMOVED FOR ANY OTHER REASON, THEN THE FUSE
SHOULD BE REMOVED AND THE CUT OFF PLUG DISPOSED OF SAFELY TO
PREVENT THE HAZARD OF ELECTRIC SHOCK.
THERE IS A DANGER OF ELECTRICAL SHOCK IF THE CUT OFF PLUG IS
INSERTED INTO ANY 13 AMP SOCKET OUTLET.

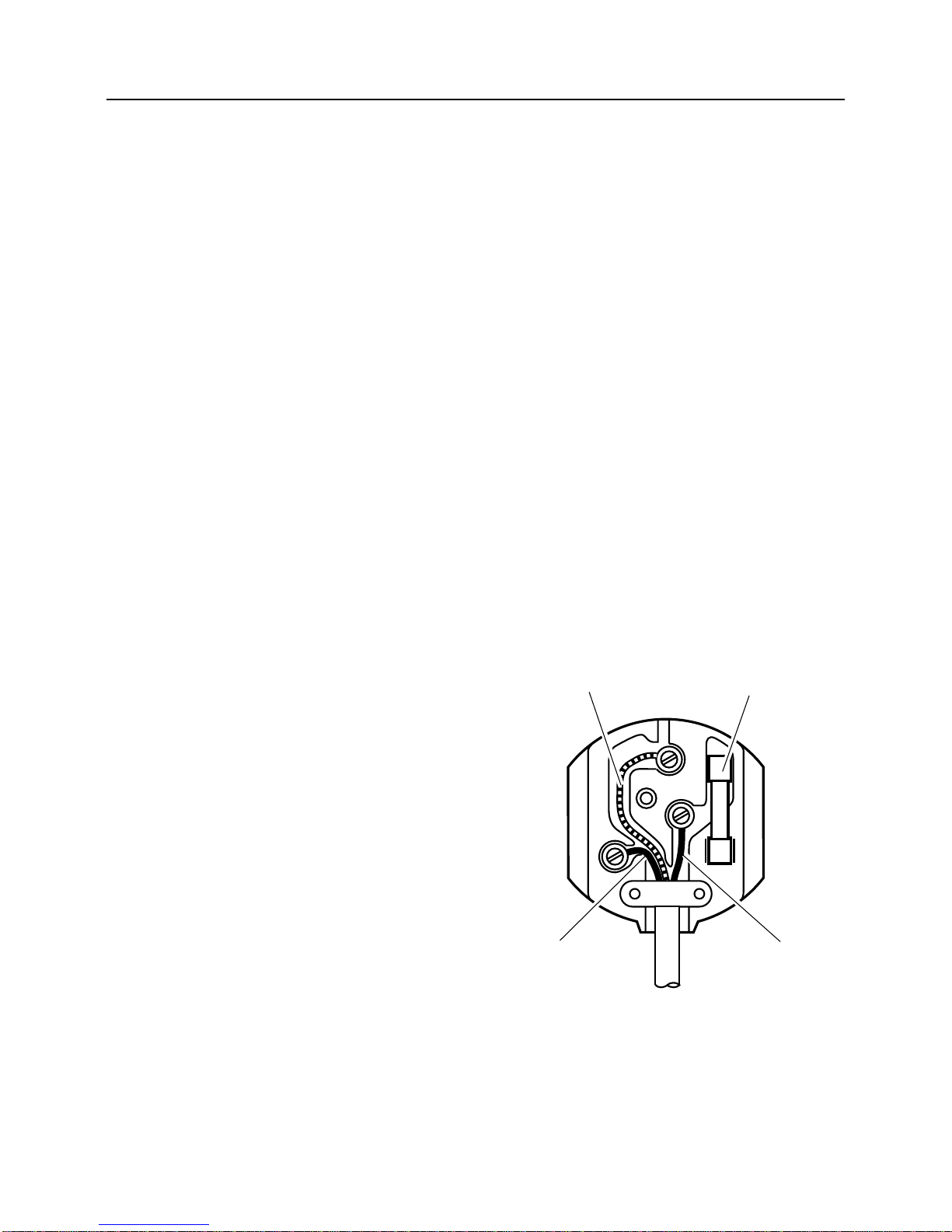

If a replacement plug is to be fitted, please observe the wiring code shown overleaf.
Warning! This appliance must be earthed
Green & Yellow
Earth 3 amp fuse
Blue Neutral Brown Live
Fig. 1.1
Replacing the supply cable
The supply cable must be replaced by a
cable of the same sort as that fitted to
the appliance.

450 mm
50 mm
500 mm
800 mm
Fig. 2.1

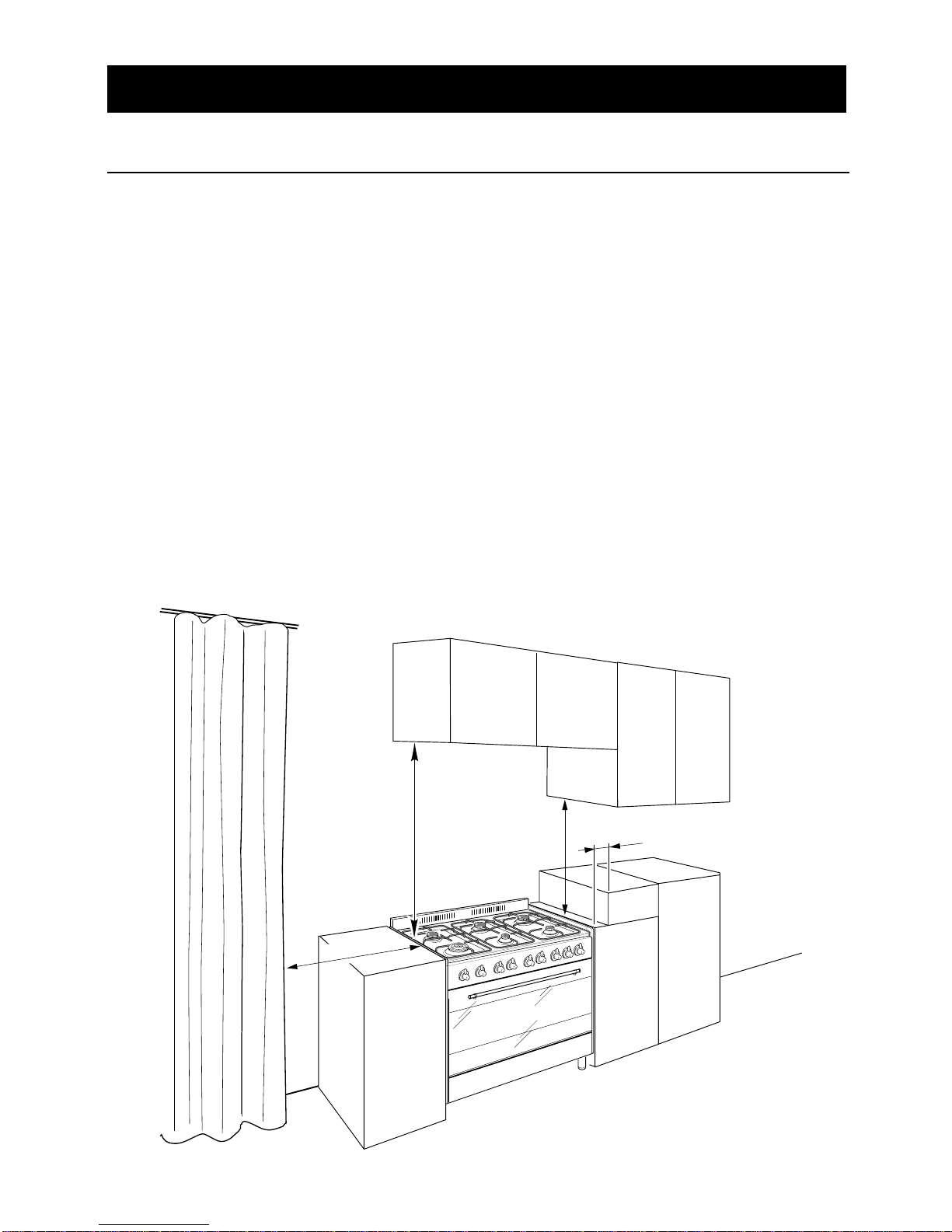

2 - Location
FOR THE INSTALLER
This cookers has class “2/1” overheating protection so that it can be installed
next to a cabinet.
If the cooker is installed adjacent to furniture which is higher than the gas hob cooktop,
a gap of at least 50 mm must be left between the side of the cooker and the furniture.
The furniture walls adjacent to the cooker must be made of material resistant to heat.
The veneered syntetical material and the glue used must be resistant to a tempera-
ture of 90°C in order to avoid ungluing or deformations.
The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room but not in
a room containing a bath or shower.
Curtains must not be fitted immediatly behind appliance or within 500 mm of the
sides.
It is essential that the cooker is positioned as stated below.
The cooker must be installed by a qualified technician and in compliance with
local safety standards.
5

S
D
B
C
Fig. 2.2

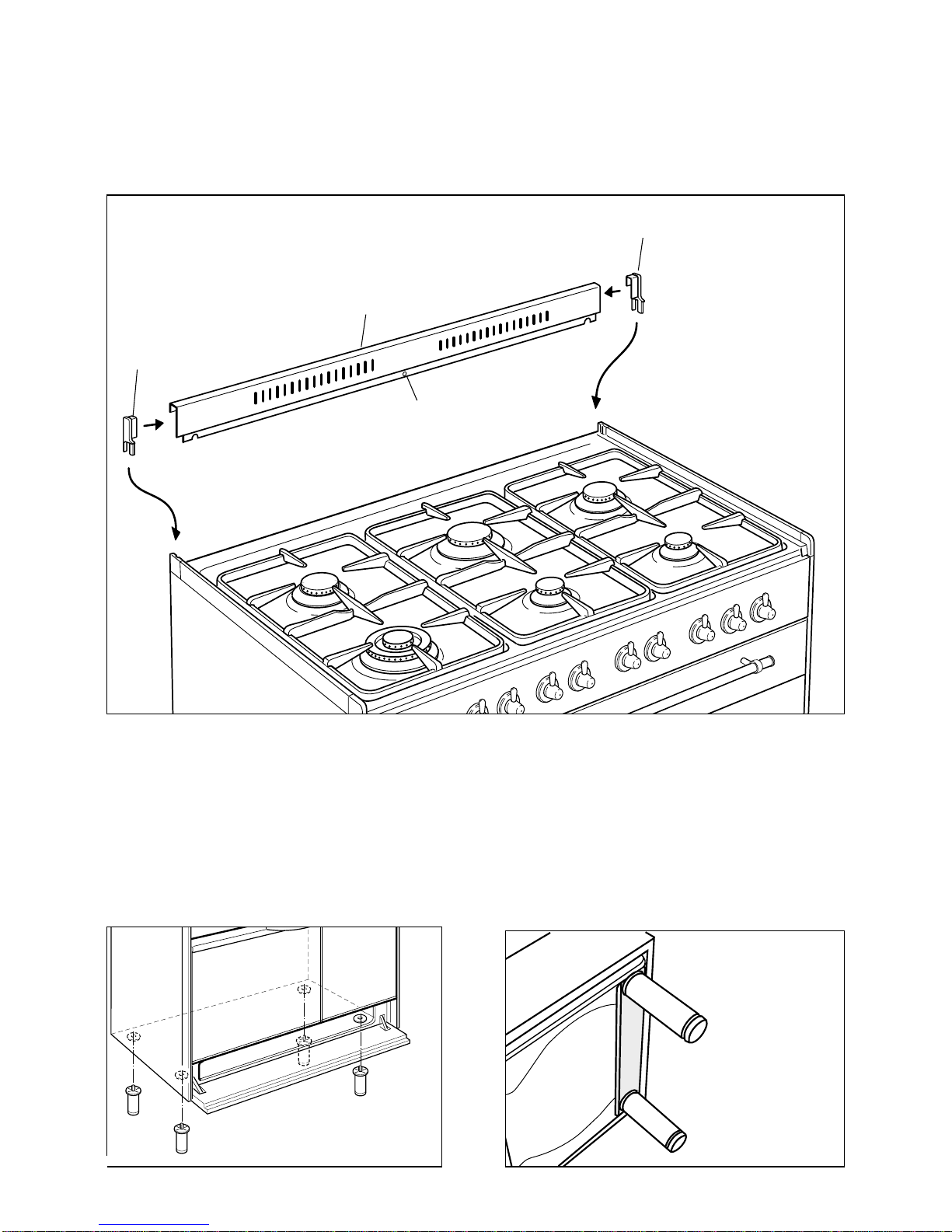

ASSEMBLING THE BACKGUARD
1. Insert the side supports S and D into the backguard B (see fig. 2.2)
2. Insert the backguard group into the support guides in the cooker
3. The backguard can be removed for cleaning or fixed with a screw through the hole
C.
Fig. 2.3
FITTING THE ADJUSTABLE FEET
The adjustable feet must be fitted to the base of the cooker before use.
Rest the rear of the cooker an a piece of the polystyrene packaging exposing the base
for the fitting of the feet.
Fit the 4 legs by screwing them tight into the support base as shown in picture 2.4.
Fig. 2.4
6

Fig. 2.5
Fig. 2.6
Fig. 2.7 Fig. 2.8
WARNING
When raising cooker to upright posi-
tion always ensure two people carry
out this manoeuvre to prevent dam-
age to the adjustable feet (fig. 2.5).
WARNING
Be carefull: do not lift the cooker by
the door handle when raising to the
upright position (fig. 2.6).
WARNING
When moving cooker to its final position
DO NOT DRAG (fig. 2.7).
Lift feet clear of floor (fig. 2.5).
LEVELLING THE COOKER
The cooker may be levelled by screwing
the lower ends of the feet IN or OUT
(fig. 2.8).
7

The room containing the cooker should have an air supply in accordance with BS.5540:
Part 2: 1989.
All rooms require an openable window or equivalent while some rooms require a per-
manent vent in addition to the openable window.
The cooker should not be installed in a bed-sitting room, of volume less than 21 m3.
Where a DOMESTIC COOKER is installed in a room or internal space, that room or
internal space shall be provided with a permanent opening which communicates directly
with outside air and is sized in accordance with table below. In domestic premises the
permanent opening shall be an air vent.
If there are other fuel burning appliances in the same room, BS.5540: Part 2: 1989
should be consulted to determine the requisite air vent requirements.
If the cooker is installed in a cellar or basement, it is advisable to provide an air vent
of effective area 100 cm2, irrespective of the room volume.
(❊)If the room or internal space containing these appliances has a door which opens
directly to outside, no permanent opening is required.
MINIMUM PERMANENT OPENING FREE AREA FOR FLUELESS APPLIANCE
5 m3to 10
m3
Openable
window or
equivalent also
required
Maximum
appliance
rated input
limit
Room volume
11 m3to
20 m3
> 20 m3 < 5 m3
Type of appliance
Domestic oven, hot-
plate, grill or any com-
bination thereof.
None 50 (❊)
cm2
Nil
cm2
Nil
cm2
100
cm2Yes
Provison for ventilation
8

3 - Gas connection
GAS INSTALLATION
IMPORTANT NOTE
This appliance is supplied for use on
NATURAL GAS only and cannot be used
on any other gas without modification.
This appliance is manufactured for
conversion to LPG if required and is
supplied with a conversion kit.
The cooker must be installed by a
qualified person in accordance with the
Gas Safety (Installation and Use)
(Amendment) Regulation 1990 and the
relevant building/l.E.E. Regulations.
The following British Standards should
be used as reference when installing this
appliance.
BS6172 1990, BS5440 part 2 1989 and
BS6891 1988.
Failure to install the appliance correctly
could invalidate any manufacturers
warranty and lead to prosecution under
the above quoted regulation.
In the UK C.O.R.G.I registered installers
are authorised to undertake the
installation and service work in
compliance with the above regulations.
GAS CONNECTION
The installation of the cooker to Natural
Gas or LP Gas must be carried out by
a qualified gas engineer. Installers shall
take due account of the provisions of the
relevant British Standards Code of
Practice, the Gas Safety Regulations
and the Building Standards (Scotland)
(Consolidation) Regulations issued by
the Scottish Development Department.
INSTALLATION TO NATURAL GAS
Installation to Natural Gas must conform
to the Code of Practice, etc. The supply
pressure for Natural Gas is 20 mbar.
INSTALLATION TO LP GAS
This appliance must only be connected
to LPG after an LPG conversion kit has
been fitted, (see pages from 11 to 17).
When operating on Butane gas a supply
pressure of 28-30 mbar is required.
When using Propane gas a supply
pressure of 37 mbar is required.
The installation must conform to the
relevant British Standards.
Warning: Only a qualified gas engineer,
also with technical knowledge of
electricity should install the cooker. He
should observe the Regulations and
Codes of Practice governing such
installation of gas cookers.
Note: It is recommended that the gas
connection to the cooker is installed with
a flexible connecting tube made to BS
5386.
9

GAS CONNECTION
The gas supply must be connected to
the gas inlet which is located at the left
or the right hand rear of the appliance
(fig. 3.1).
The pipe does not cross the cooker.
When screwing the connecting tube
operate with two spanners (fig. 3.2).
The unused end inlet pipe must be
closed with the plug, interposing the
gasket.
After connecting to the mains, check
that the coupling are correctly sealed,
using soapy solution, but never a
flame.
Fig. 3.2
Plug
Fig. 3.1
10

Fig. 3.4
M
J
A

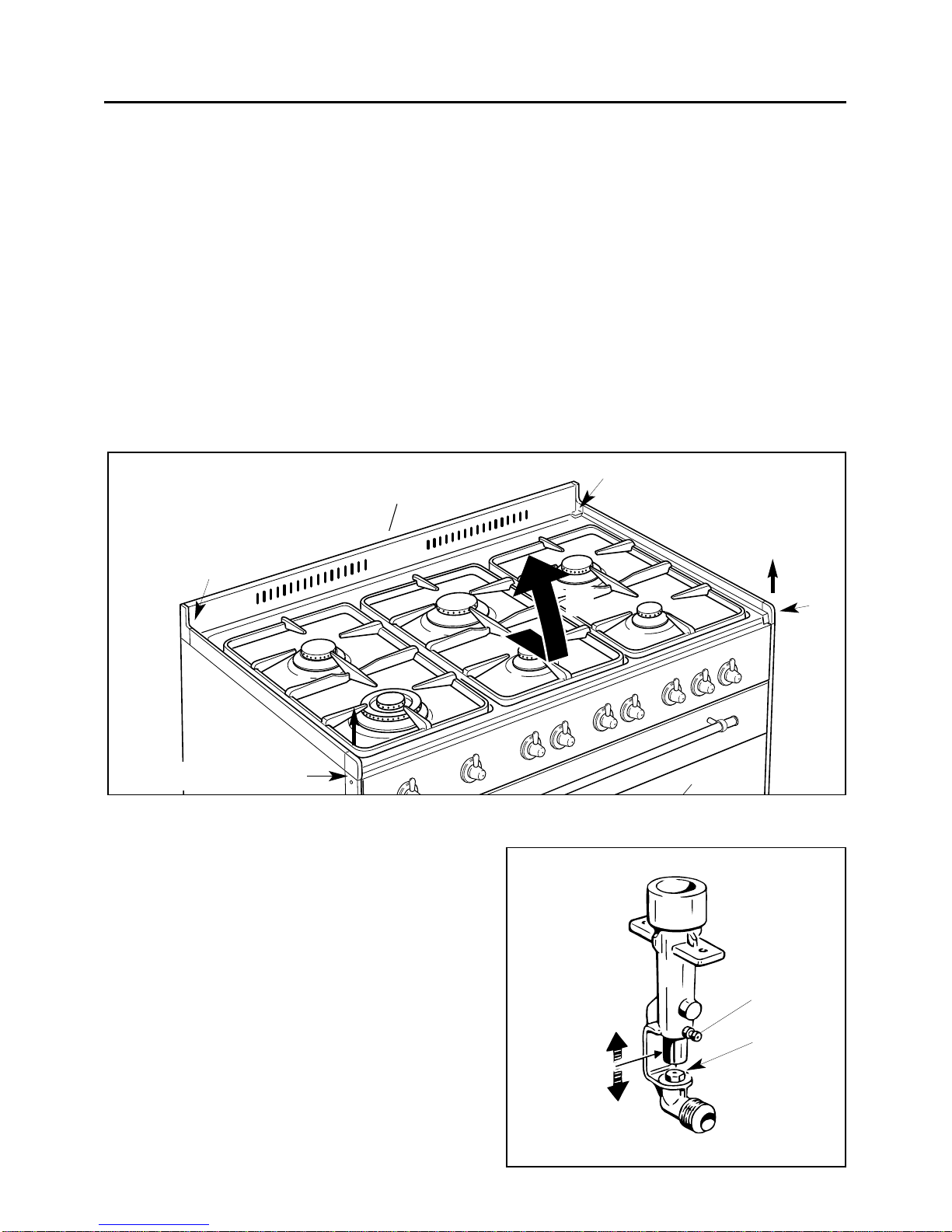

Adjusting of primary air
of the top burners
By operating the screw “M”, reset the air
adjuster “A” according to the instructions
see “TABLE FOR THE CHOICE OF THE
INJECTORS”, where the distance
between injector and air adjuster is rec-
ommended (in mm).
Before lowering the hob top, set the
burners on their sites and light them in
order to check whether the flames are
correct, as per the specifications given in
the next page. In case of uncorrect
flame, lift or lower the air adjuster.
Injectors replacement of top burners
To replace the injectors it is necessary to lift the hobtop and proceed as follows:
– Remove pan-supports and burners from the hobtop.
– Remove the backguard “E”.
– Unscrew the two screws “B” and remove the sockets (Fig. 3.3).
– Unscrew the two screws “C” and remove the two side trims and joints pulling upwards.
– Pull forwards the hobtop to release it, then lift following arrow “D” (Fig. 3.3)
– Hold the hobtop open by a support.
– Fully raise the adjusting air tube A (fig. 3.4) in order to easily reach the injector.
– By an angle 7 spanner, remove injector “J” from its housing and replace it with the
correct one depending on the kind of gas (see following table - page 13).
Each injector can be identified by the engraving of the hole diameter expressed in
hundredths of a millimetre.
Conversion to LPG
C
C
B
B
D
E
Fig. 3.3
11

Flame faulty in Flame correct Flame with excess
primary air primary air
long, yellow and trembling clear interior blue cone short and sharp
too blue interior cone
tending to detach
CAUSE
air regulating tube, correct distance air regulating tube,
too closed of the tube too open
Adjusting of the minimum of the top burners
Considering that in the minimum position the flame must have a length of about 4 mm
and must remain lit even with a brusque passage from the maximum position to that of
minimum.
The flame adjustment is done in the following way:
– Turn on the burner
– Turn the tap to the MINIMUM position
– Take off the knob
– With a small flat screwdriver turn the screw inside the tap rod to the correct regulation
(fig. 3.5).
Normally for LPG, tighten up the regulation screw.
Fig. 3.5
12

TABLE FOR THE CHOICE OF THE INJECTORS
Cat: II 2H3+
GB
13
INCREASE OF AIR NECESSARY FOR GAS COMBUSTION (2 m3/h x kW)
BURNERS Air necessary for combustion [m3/h]
Auxiliary (A) 2,00
Semi-rapid (SR) 3,80
Rapid (R2) 5,90
Double-ring 6,90
Oven 12,40
Grill 9,30
G 30 - 28-30 mbar G 20
BURNERS G31- 37 mbar 20 mbar
Auxiliary (A) 1,00 0,30 27 50 3 * 72 1 *
Semi-rapid (SR) 1,90 0,38 29 67 5,7 * 100 2 *
Rapid (R2) 2,95 0,60 39 83 fully open * 125 3 *
Double-ring 3,45 0,85 47 92 fully open * 135 5 *
Oven 6,20 1,30 58 120
8 * 180 1,5 *
Grill 4,65 - - 107 fully open * - 165 3 *
Nominal
Power
[kW]
Reduced
Power
[kW]
Ring opening
[mm]
Ø injector
[1/100 mm]
By-pass
[1/100 mm]
Ring opening
[mm]
Ø injector
[1/100 mm]
By-pass
[1/100 mm]
adjustable
*= Reference value

14
AB
Fig. 3.6
Fig. 3.7
Oven burner and grill burner replacement of injectors

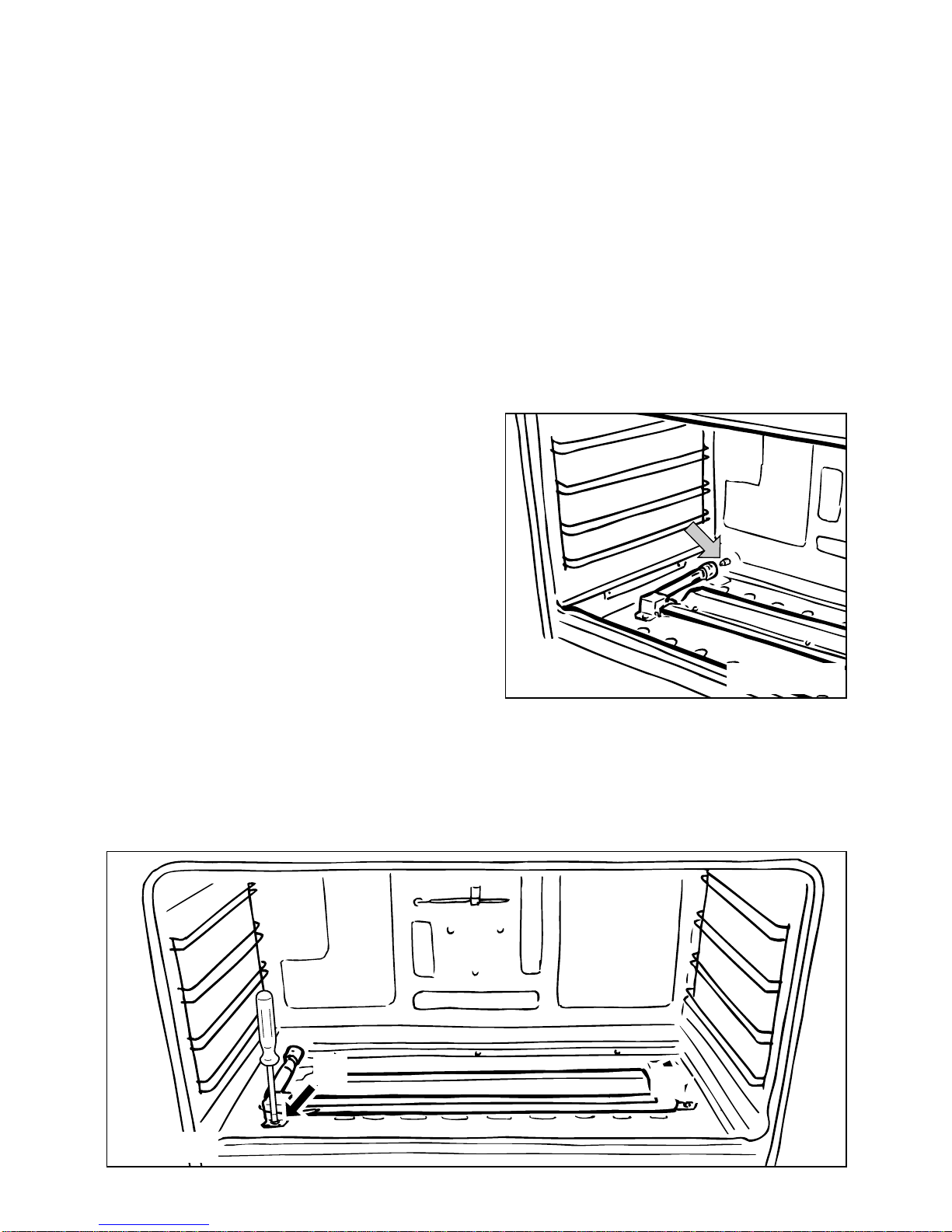

a) oven burner
– Lift and remove the lower panel inside the oven.
– Unscrew and remove the burner securing screw A (fig. 3.6).
– Slacken screw B (fig. 3.6).
– Withdraw the burner in the manner shown in figure 8.7, and rest it inside the oven.
Take care not to damage the wire to the ignition electrode and the safety valve probe.
– Using a 10 mm box spanner, unscrew the injector (indicated by the arrow in fig. 3.7)
and replace with a new injector selected in accordance with the “TABLE FOR THE
CHOICE OF THE INJECTORS”; then replace the burner repeating the above steps
in reverse order.

15
Fig. 3.9
Fig. 3.8
CD
b) grill burner
– Unscrew and remove the burner
securing screw ‘C’ (fig. 3.8).
– Slacken screw ‘D’ (fig. 3.8).
– Move the burner in the manner shown
in figure 8.9.
Take care not to damage the wire to
the ignition electrode and the safety
valve probe.
– Using a 10 mm box spanner, unscrew
the injector (indicated by the arrow in
fig. 3.9) and replace with a new
injector selected in accordance with
the “TABLE FOR THE CHOICE OF
THE INJECTORS”; then replace the
burner repeating the above steps in
reverse order.

16
Fig. 3.10
Fig. 3.11
Regulation of air supply to
oven and grill burners
Using a cross-head screwdriver, slacken
the screw securing the air flow
regulation collar (fig. 3.10 and 3.11) and
move the collar forward or backward to
increase or reduce the air aperture in
accordance with gas type and the
indications in the “TABLE FOR THE
CHOICE OF THE INJECTORS”.
Light the burner and check the flame.
Ring opening

17
Adjustment of the oven
burner minimum
To be effected only for the oven burner
(as the grill burner has an only fixed
input) operating on the thermostat as fol-
lows:
– Light the oven taking the knob to Max.
position.

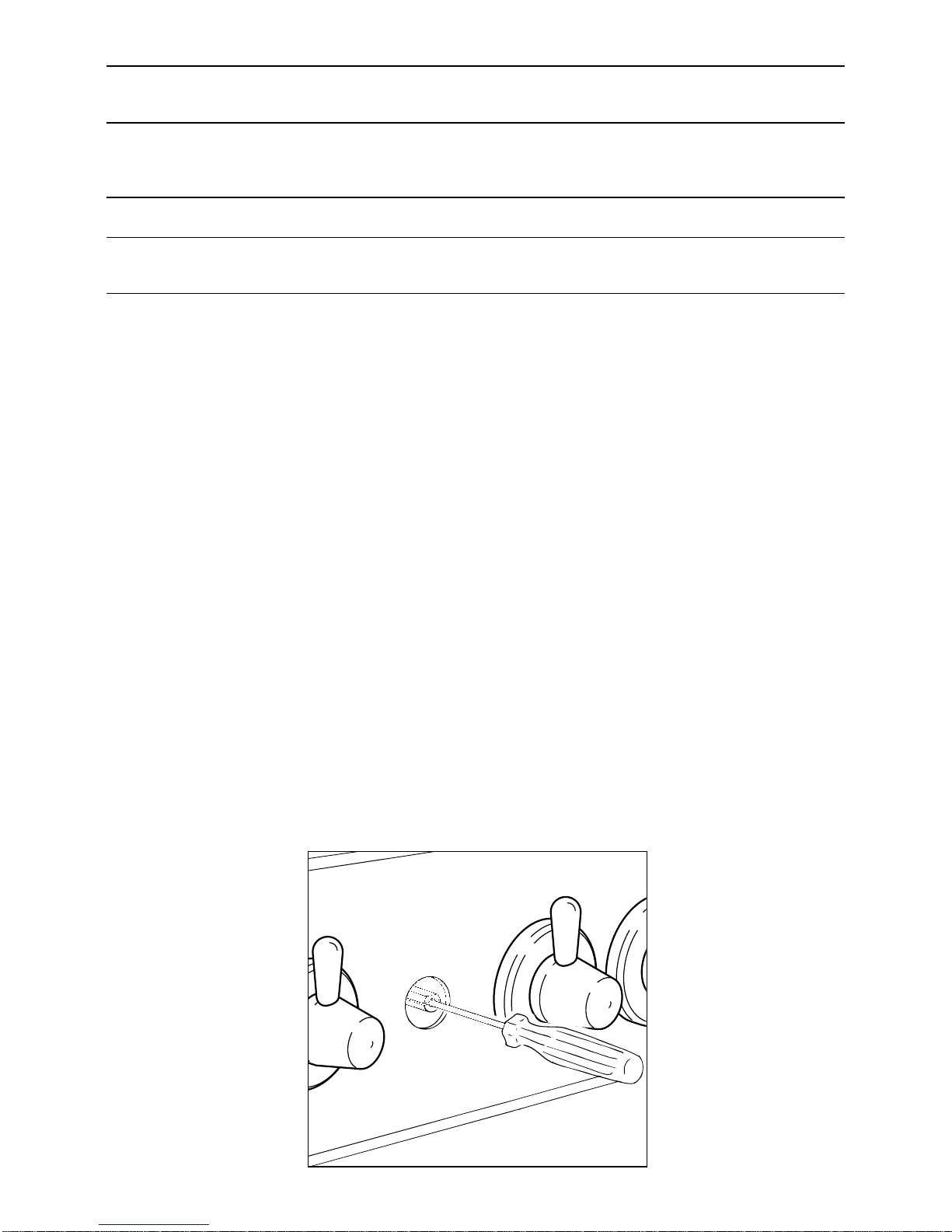

– remove the knob and by a thin screw-
driver (3 mm section - 100 mm long)
unscrew of about a half turn the screw
by-pass G, passing through the front
panel hole (fig. 3.12)
– fit the knob and let the oven heat for
10 minutes, then take the knob to
position 150 allowing the thermostat
to work under by-pass.
– after further removal of the knob, stop
slowly the screw by-pass G (being
careful not to turn the knob rod) until
the flame reaches 3-4 mm high.
N.B. For LPG the by-pass screw must
be fixed thoroughly.
G
Fig. 3.12
Flame correct
Flame faulty in
primary air
Flame with excess
primary air
If the gas tap becomes stiff, it is necessary to dismount it accurately clean it with
gasoline and spread a bit of special grease resistant to high temperatures on it.
The operations must be executed by a qualified technician.
Lubrication of the gas taps

18
4 - Features and Technical Data
Control panel - (Fig. 4.2)
1. Gas oven/gas grill control knob
2. Minute counter
3. Front left burner control knob
4. Rear left burner control knob
5. Front central burner control knob
6. Rear central burner control knob
7. Rear right burner control knob
8. Front right burner control knob
9. Rotisserie/oven light control knob
Fig. 4.1
23
4
5
6
1
Cooking hob - (Fig. 4.1)
1. Double-ring burner (PB) 3,45 kW
2. Semi-rapid burner (SR) 1,90 kW
3. Rapid burner (R2) 2,95 kW
4. Auxiliary burner (A) 1,00 kW
5. Semi-rapid burner (SR) 1,90 kW
6. Auxiliary burner (A) 1,00 kW
Fig. 4.2
1 2 34 56 789

19
How To Use the Hob Burners
Hob burners

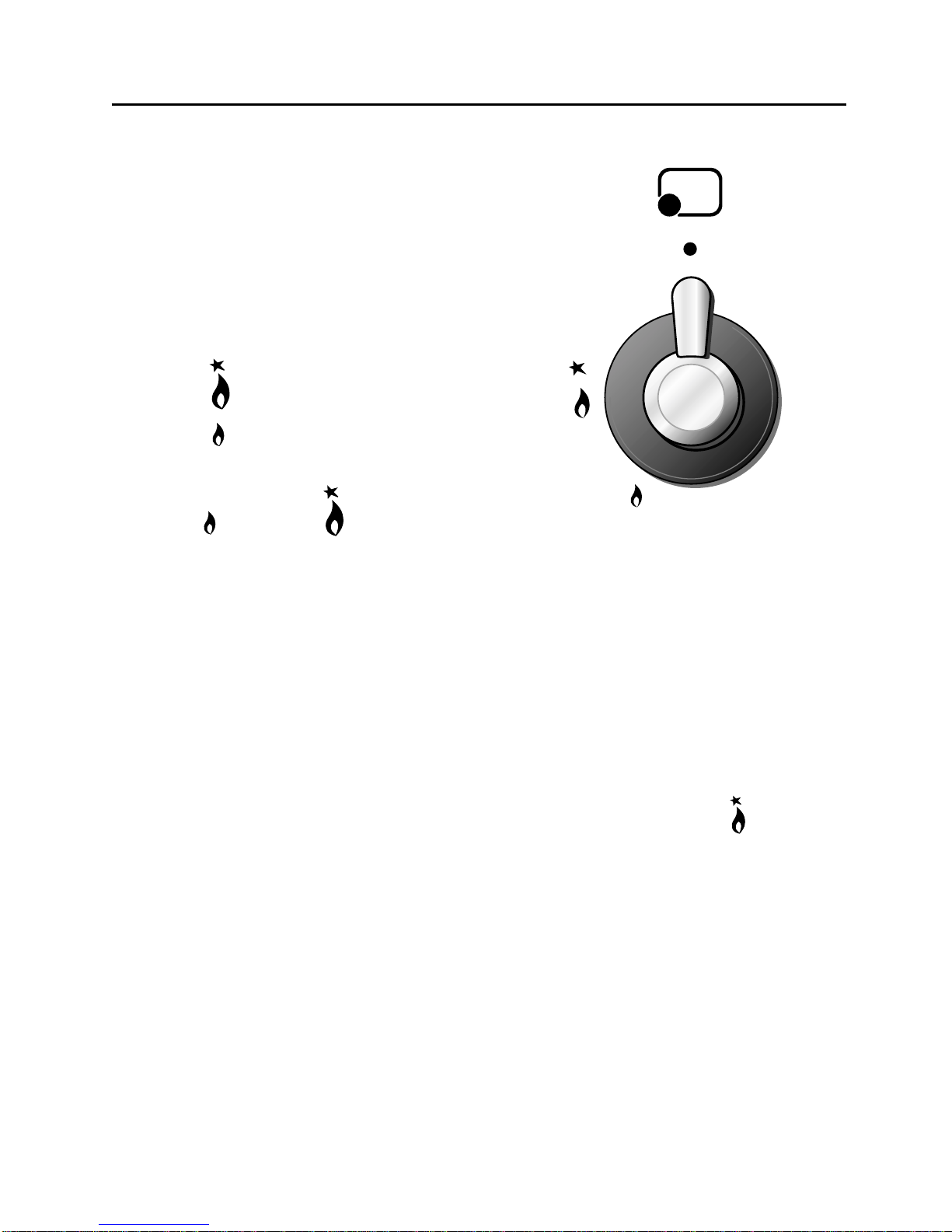

Each hob burner is controlled by a sep-
arate gas tap operated by a control knob
(fig. 4.3) which has 3 positions marked
on the control panel, these are:
– Symbol ●: tap closed (burner off)
– Symbol : High (maximum)
– Symbol : Low (minimum)
Push in and turn the knob anti-clockwise
to the selected position.
Low High
Lighting of the hob burners
To ignite the burner, the following instructions are to be pursued:
1) Lightly press and turn the knob anti-clockwise, and make the symbol printed on
the control panel to mach with the indicator on the knob (fig. 4.3).
2) Press the knob to operate the electric ignition; or, in case of power cut, approach a
flame to the burner.
3) Adjust the burner according to the power required.
To turn the burner off, fully rotate the knob clockwise to the off position: ●.
The maximum setting of the control tap is for boiling, the minimum setting is for slow
cooking and simmering.
All working positions must be chosen between the maximum and minimum setting, never
between the maximum setting and the “OFF” position.
Fig. 4.3
Electric ignition
The sparks generated by the electrodes close to the burners will ignite the chosen burn-
er. Whenever the lighting of the burners will result difficult due to peculiar conditions of
the gas features or supply, it is advised to repeat the ignition with the knob on “minimum”
position.

20
Choice of burner
Burners Pan diameter
Auxiliary 12 ÷ 16 cm
Semi-rapid 16 ÷ 22 cm
Rapid 20 ÷ 24 cm
Double-ring up to 30 cm
Wok max 36 cm
Fig. 4.4
The burner must be chosen according to the diameter of the pans and energy required.
Saucepans with handles which are excessively heavy, in relationship to the weight of
the pan, are safer as they are less likely to tip.
Pans which are positioned centrally on burners are more stable than those which are
offset.
It is far safer to position the pan handles in such a way that they cannot be accidentally
knocked.
When deep fat frying fill the pan only one third full of oil.
DO NOT cover the pan with a lid and DO NOT leave the pan unattended.
In the infortunate event of a fire, leave the pan where it is and turn off all controls.
Place a damp cloth or correct fitting lid over the pan to smother the flames.
DO NOT use water on the fire.
Leave the pan to cool for at least 30 minutes.
do not use pans with concave or convex bases
