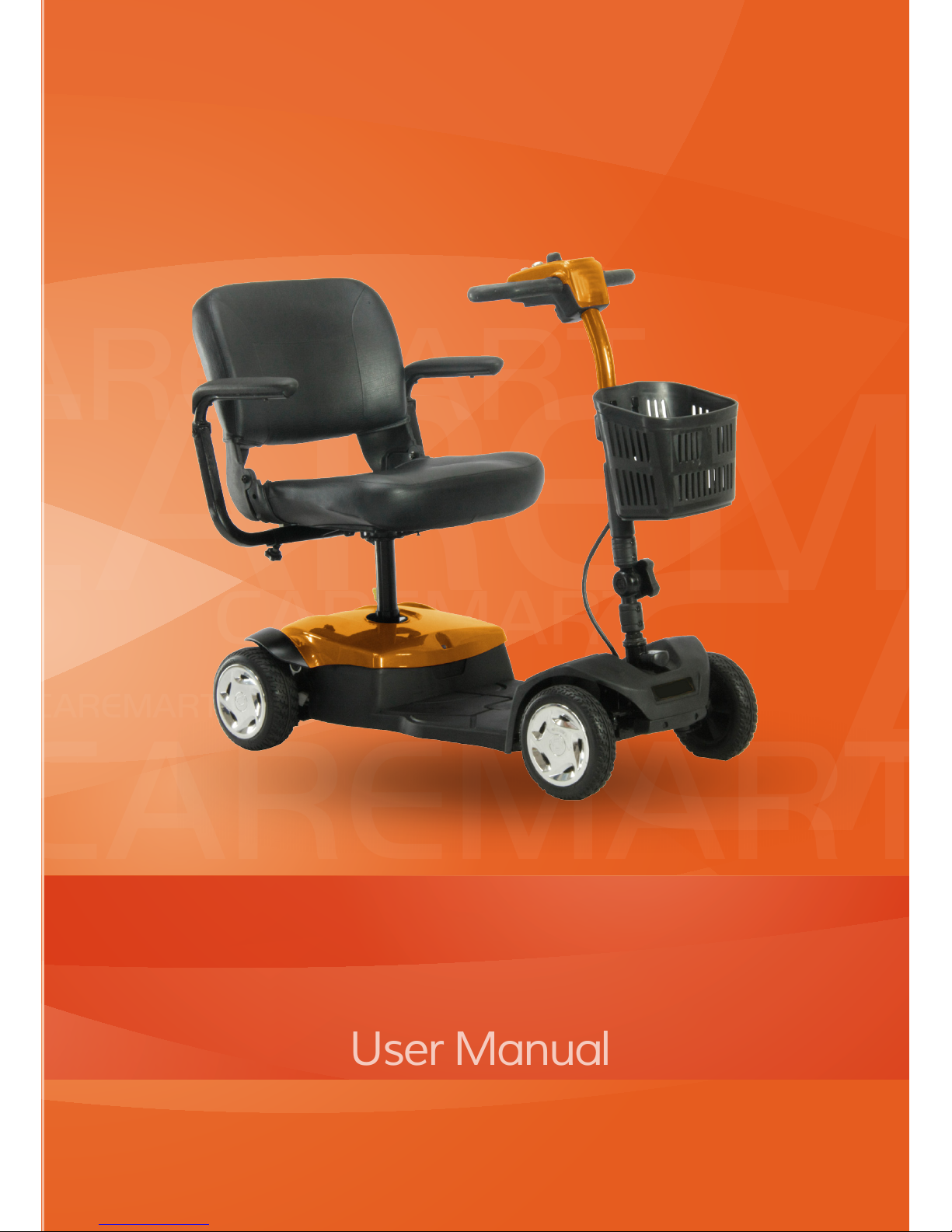

Caremart Travel & Me User manual

CAREMART
CAREMART
CAREMART
CAREMART
CAREMART
CAREMART
User Manual
Caremart Travel & Me

~ 1 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
YOU AND/OR YOUR ATTENDANT MUST READ AND FULLY UNDERSTAND
THIS MANUAL BEFORE USE.
General Information
You have just purchased a scooter from Van Os Medical UK Ltd. We want to thank
you for your confidence in our Caremart products. The scooter is a quality product.
The policy of Van Os Medical UK Ltd. is to continuously improve the quality and
reliability of our products. We reserve the right, therefore, without proper
notification, to alter this guide.
It is important that you read this manual carefully. The manual contains important
information on the safe use and maintenance of your manual scooter. We
recommend that you keep this manual, it is also your proof of warranty and it can
come in useful later.
The safety instructions in this guide are general guidelines that should be seen as
broad guidelines.
Your new scooter requires frequent maintenance much of which you can do yourself.
We want you to take your scooter once a year to be inspected by an expert.
Caution!
In this guide you will find informative notes and warnings. These are clearly
identified by the symbols and the appearance of the text.
 Tip
Information.
 Warning:
To avoid personal injury, follow the instructions.

~ 2 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
Enter the information from your authorized dealer:
Company : …………………………………………………………………
Address: …………………………………………………………………
…………………………………………………………………
Telephone number: …………………………………………………………………
Fax number: …………………………………………………………………
E-mail address: …………………………………………………………………
Website: …………………………………………………………………

~ 3 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
1 IDENTIFICATION ............................................................................................................ 4
2 GENERAL EXPLANATION OF YOUR SCOOTER ................................................................. 5
2.1 COMPONENTS OF YOUR SCOOTER ................................................................................................5
2.2 GENERAL EXPLANATION OF THE FUNCTION AND POSSIBILITIES OF YOUR SCOOTER .....................................5
3 SAFETY REGULATIONS................................................................................................... 6
3.1 GENERAL SAFETY REGULATIONS ...................................................................................................6
3.2 WARNINGS FOR SAFE USE ..........................................................................................................6
4 INSTRUCTIONS FOR USE ................................................................................................ 7
4.1 TILLER CONTROL PANEL..............................................................................................................8
4.2 GETTING ON AND OFF ...............................................................................................................9
4.3 BEFORE DRIVING ....................................................................................................................10
4.4 BASIC DRIVING ......................................................................................................................11
4.5 STEERING .............................................................................................................................11
4.6 CONTROL THROUGH TIGHT SPOTS...............................................................................................12
4.7 GOING UP AN INCLINE /DOWN A DECLINE ....................................................................................13
4.8 EMI /RFI............................................................................................................................15
5 INSTRUCTIONS FOR USE AND MOUNTING OPTIONS ................................................... 16
5.1 TECHNICAL INFORMATION ........................................................................................................16
5.2 ARMREST ADJUSTMENTS ..........................................................................................................17
5.3 SEAT ADJUSTMENTS ................................................................................................................18
5.4 DISASSEMBLY ........................................................................................................................19
5.6 ASSEMBLY ............................................................................................................................22
6 TRANSPORT OF YOUR SCOOTER.................................................................................. 23
7 CARE AND MAINTAINANCE ......................................................................................... 24
8 PROBLEM ANALYSIS AND SOLUTIONS ......................................................................... 25
9 WARRANTY................................................................................................................. 26
9.1 WARRANTY APPLICATION .........................................................................................................26
9.2 WARRANTY DEFINITION ...........................................................................................................26
10 GENERAL MAINTENANCE INSTRUCTIONS................................................................ 28

~ 4 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
6
7
1 IDENTIFICATION
Your Caremart Travel & Me scooter is equipped with a unique serial number. You can
find this number on the frame of your scooter. Below is an example of the frame
label on which you can find the identification number. Furthermore you will find the
explanation of the various data stored on the frame label listed below.
1. Model name The model name from your scooter.
2. Definition Description of the design of your scooter.
3. Warranty This is the warranty period. Chapter 9 describes
your warranty terms and conditions in more
detail.
4. Serial number The unique serial number. You will need this
number when making technical requests or if
warranty parts are required.
5. Maximum weight The largest occupant weight allowed for your
scooter.
6. Production date Production date of your scooter.
7. Type number This number indicates what type of scooter you
have, again this is always required when making
technical calls.
6
4
4
1
2
3
7
5

~ 5 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
2 GENERAL EXPLANATION OF YOUR SCOOTER
2.1 Components of your scooter
1
Backrest
8
Dashboard
2
Armrest
9
Handgrip
3
Star knob for width adjustment
armrest
10
Basket
4
Seat post
11
Tiller adjustment knob
5
Rear shroud
12
Front bumper
6
Rear wheel
13
Tiller locking mechanism
7
Foot deck
14
Front wheel
Your scooter is equipped with a number of elements and parts. You should know
these before continue reading this manual. Designs and specifications may change
without prior notice.
2.2 General explanation of the function and possibilities of your scooter
The Ca scooter is equipped with multifunction brakes and stable wheels which roll
easily. The scooter is especially developed so that it can be adjust to every individual
user. Your scooter is a medical equipment product and is not a standard consumer
product. You must follow this manual completely to ensure good, optimal and safe
use of your scooter.
7
8
9
10
11
6
5
4
3
2
1
12
13
14

~ 6 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
3 SAFETY REGULATIONS
Van Os Medical UK Ltd. specifically disclaims responsibility for any body injury or
property damage which may occur during any use which does not comply with laws or
ordinances. If used correctly, the Caremart Travel & Me is an utmost safe and stable
product, if the instructions for use as described in this manual are followed.
However, it is possible when the Caremart Travel & Me is not used correctly,
dangerous situations may occur.
3.1 General safety regulations
Protect your Caremart Travel & Me by checking it regularly. When a part of your
scooter is not functioning properly, a dangerous situation could occur.
 Warning:
You must keep your scooter in a good state to guarantee safe use.
3.2 Warnings for safe use
 Warnings:
Failure to follow all the instructions in this manual may result in damage to the
scooter or serious injury;
Always operate your scooter with thought, care and safety;
Do not drive into curbs;
Never connect anything to the wheels;
The maximum weight capacity has been indicated on your scooter frame label;
Unauthorized modification and or use of parts not supplied by Van Os Medical
UK Ltd. will invalidate the warranty of this scooter and may lead to injury to
the user and or damage to the scooter;
Before using your scooter, always check if the brakes are working perfectly;
Do not let children play with or on your scooter;
Do not use the scooter when the brakes are not working;
Do not turn your scooter suddenly at full speed;
All wheels must be in contact with the floor at all times during use. This will
ensure the scooter is properly balanced;
Do not use your scooter when it is damaged or has any malfunction;
Do not attempt to use your scooter on an escalator. Always use an elevator;
Do not carry passengers under any circumstances;
Do not mount or dismount your scooter unless the brake is engaged;
Always make sure that the key switch is set to “Off” before mounting or
dismounting your scooter;
Do not drive backwards with your scooter on an incline or across an uneven
surface;

~ 7 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
Always make sure the seat is locked forward before operating your scooter;
Always come to a full stop before changing direction from forward to reverse
or from reverse to forward;
Do not operate your scooter where you could not safely or legally walk;
Do not climb ramps or curbs that exceed your scooters capacity;
Always approach inclines straight on;
Always be aware of and careful near mechanical pinch points especially when
assembling and disassembling your scooter;
Never sit on your scooter when it is being transported;
Always fasten down your scooter securely with an approved tie-down system
while transporting your scooter;
Never operate your scooter if it is not functioning properly;
Always use caution when driving on soft or uneven surfaces such as grass and
gravel. Also use caution on decks where there is no railing;
Always cross streets at intersections and use crosswalks or the most direct
route, making sure that your path is clear and that you are visible to motor
traffic;
Never back up or down a step or curb;
Never drive your scooter up or down a step or curb that is higher than 4 cm;
Never drive your scooter over a gap greater than 7.5 cm;
Do not drive your scooter in icy of salted conditions;
Never drive on the roadway, except when you must cross the street;
Never operate your scooter while you are under the influence of alcohol;
Always check with your physician to determine if any of the medications you
are taking may affect your judgment and/or your ability to operate your
scooter. Also check with your physician concerning your physical ability to
operate a scooter.
4 INSTRUCTIONS FOR USE
Your Caremart Travel & Me scooter is a battery-operated personal mobility vehicle.
Please exercise caution and consideration when you are operating it. Driving your
scooter carefully and thoughtfully will help ensure your personal safety and the
safety of other people.

~ 8 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
4.1 Tiller control panel
Control panel:
Key switch
With the key switch you are able to turn your scooter on and off.
Put your key in the key switch and turn it 90ᵒclockwise to turn on the scooter;
Turn the key 90ᵒcounter clockwise to turn the scooter off.
 Tip
Always make certain that the key is removed from the key switch before
getting on or off your scooter or before lowering the tiller completely.
Speed button
The speed button allows you to preselect the maximum top speed of your
scooter;
Turn the button counterclockwise to operate your scooter at the lowest speed
level;
Turn the button clockwise to increase the operational speed of your scooter;
We recommend that you select a speed setting at which you feel comfortable,
safe, and in control of your scooter.
Forward / Reverse
To move forward push the lever on the right side;
To move backwards push the lever on the left side.
Horn
Speed button
Key switch
Lever for driving
forward
Battery indicator
Lever for driving
reverse

~ 9 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
Battery indicator
This meter shows the amount of voltage in your scooter’s batteries.
Green indicates a full charge on the batteries;
Yellow indicates caution and approximately a one-half charge of the batteries;
Red indicates that the batteries have less than one-half of a charge remaining.
Horn
Press this button to sound the horn.
Brakes and throttle lever
Whenever the speed engager lever is moved out of the neutral position, the
electromagnetic brake will automatically release and your scooter will move. When
the speed engager lever is released, it will return to the neutral position and the
scooter will decelerate and come to a complete stop. The parking brake will then
engage preventing further movement of your scooter.
4.2 Getting on and off
Before getting on your scooter:
Check to be certain that the power is turned off. This will eliminate the
possibility of accidentally activating the paddle controls and causing injury to
yourself or to others;
Check to be certain that your scooter’s brake handle is in the engaged position;
Flip up the armrests.
Getting on your scooter:
Position the seat for safe and easy mounting;
Return tiller to full upright position;
Carefully place one foot on the approximate center of the foot deck and seat
yourself comfortably and securely on the seat;
Fasten the seatbelt, if your scooter is so equipped;
Flip down the armrests.
Getting off your scooter:
Make certain that the power is turned off and the key is removed;
Return tiller to full upright position;
Flip up or remove the armrests;
Unfasten the seatbelt, if your scooter is equipped;
Carefully place one foot on the ground, transfer your weight to that leg, and
slowly come to a standing position;
Step away from the scooter.
 Warning:
When getting on or off your scooter, keep your weight toward the middle of
the deck. Putting most or all of your weight on the edge of the deck may cause
an unstable condition!

~ 10 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
4.3 Before driving
Freewheel lever
You can push the scooter if needed. Make sure the freewheel is in the push position.
This will disengage the motor brake.
The freewheel lever has two positions:
Drive as the freewheel is pulled back, photo 1;
Push position you have to move the lever forward. The freewheel lever is
now in the right position to push the scooter.
 Tip
For your first driving session, make certain that your scooter starts out on a
level surface and that you will continue driving on a level surface.
To get on your scooter:
Stand behind your scooter;
Place the scooter in Drive, photo 1;
Make certain that the seat is positioned for safe and easy use of your scooter;
Position yourself in the seat;
Use the seat rotate lever to position the seat so that it is locked in the fully
forward direction;
Fasten your seat belt, if your scooter is so equipped;
Place the key into the key switch;
Rotate the key to the on position.
Photo 1

~ 11 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
 Warning:
Pushing the scooter too quickly in freewheel (photo 1) will cause the motor to
act as a generator causing the scooter to become difficult to push;
Never set your scooter in freewheel mode when it is on an incline;
Never disengage the park brake while you are operating your scooter;
Always make certain that your scooter park brake is engaged before inserting
the key into the key switch and turning it to the on position.
4.4 Basic driving
Make certain that you are seated safely and properly on your scooter;
Turn the speed control dial fully counterclockwise to its slowest setting;
Insert the key into the key switch;
Turn the key clockwise to the “On” position;
Place your hand on the handgrips;
oIf you wish to drive forward, pull back on the right side of the throttle
control lever;
oIf you wish to drive in reverse, pull back the left side of the throttle control
lever;
Pull on the throttle control lever to gently accelerate your scooter;
Release the throttle control lever to allow your scooter to come gently to a full
stop;
Practice these two basic functions until you feel that you have control of your
scooter.
4.5 Steering
Place both hands on the handgrips of the tiller, turn the tiller to the right to
move to the right;
Turn the tiller to the left to go to the left;
Make certain to maintain sufficient clearance when turning your scooter so that
the rear wheels will clear any obstacle.
 Warning:
Turning your scooter too sharply at a too high speed will create a situation
where one of the rear wheels will leave the ground and the scooter will tip
over. Avoid this at any time by decelerating and steering a wide arc around
corners and obstacles.

~ 12 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
Steering in a tight spot
If you must steer in a tight spot, such as entering or leaving a doorway or when you
are turning around;
Bring your scooter to a full stop;
Set speed at the lowest setting;
Turn the tiller to the direction in which you wish to drive.
Steering in reverse
Please be extra careful when you are driving in reverse.
Use your right fingers to push the throttle control lever or use your left fingers
to pull back on the throttle control lever;
Turn the tiller to the left to drive in reverse to the left;
Turn the tiller to the right to drive in reverse to the right.
4.6 Control through tight spots
As you use your scooter to greatly increase your mobility, you will undoubtedly
encounter some obstacles that will require practice to manoeuvre smoothly and
safely. Below are some common obstacles that you may meet during the daily use of
your scooter. Listed with those obstacles are some driving tips that should help you
conquer those obstacles. Learn and follow those tips, and with surprising ease you
will soon be in control of your scooter as you manoeuvre it through doors, up and
down ramps, up and over curbs, through grass and gravel, and up and down inclines.
Ramps
When proceeding up any ramp, curb, or incline:
Lean forward in your seat to move your centre of gravity forward for maximum
stability and safety.
If the ramp has a switchback, good cornering ability is required:
Manoeuvre your scooter so that the front wheels take wide swings around the
corners of the ramp.
Doing this will allow your scooter's back wheels to follow a wide arc around the
corner, staying clear of obstacles.
If you must stop your scooter while driving up a ramp:
Starting up again simply requires that you apply gentle and steady forward
power pressure to the throttle control lever.
Accelerate gently after stopping on any incline.
Driving down a ramp
Keep your scooter’s speed control dial set fully counter clockwise at the slowest
speed setting.
If you must come to a stop, release the throttle control lever slowly and
smoothly.

~ 13 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
Curbs
Do not go up or down a curb that is higher than 4 cm;
Always use caution when descending any curb;
Approach the curb so that both back wheels of your scooter go over the curb at
the same time;
Never go down on curbs by traversing them. Doing this will cause the scooter to
tip over;
Go down a curb slowly to avoid a jarring bump. Use as little power as possible.
Grass and Gravel
Your scooter performs admirably on grass, gravel, and hills, but you must follow the
operational parameters presented in this manual, see chapter 3. If you are unsure
about any situation, avoid it.
Feel free to use your scooter on lawns or in park areas;
Avoid long or high grass, which may wrap around your scooter's axles;
Avoid loose gravel.
4.7 Going up an incline / down a decline
Driving on inclines
For maximum stability, lean forward in your scooters seat while
proceeding up ramps, inclines, curbs, or any low rise;
Drive with caution when attempting to drive up to any incline, even handicap
access ramps;
Always climb or descend an incline by driving straight up or straight down
the face of the slope;
Do not traverse or drive across the face of an incline in any direction;
Do not attempt to descend an incline that is covered with snow, ice, cut or
wet grass, leaves, or any other potentially hazardous material;
Do not back down an incline;
Try to keep your scooter moving when climbing an incline. If you do
come to a stop, restart and accelerate slowly and carefully.
Do not try to descend or climb a slope whose gradient is greater than
recommended.The recommended incline is 6°.
 Warning:
If, while you are driving down a slope, your scooter starts to move faster than
you feel is safe, release the throttle control lever and allow your scooter to
come to a stop. When you feel that you again have control of your scooter, push
the throttle control lever forward and continue safely down the remainder of
the slope.

~ 14 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
Driving down a decline
Lower speed setting;
Whenever it is safely possible, drive forward down any ramp, low rise, or
incline.
Caremart does not recommend that you drive your scooter in reverse down any
incline, ramp, curb, or low rise. Backing down any slope may create a very hazardous
situation.
If it is necessary to back down a slope follow one of two procedures.
 Tip
When using either of the following procedures to back down a slope, Caremart
strongly advises that you have the assistance of another person.
Procedure 1: Under power
Set the key switch to the “Off position”;
Dismount your scooter;
Set the key switch to the “On position”;
While standing next to your scooter, carefully operate the controls at the lowest
speed setting;
Slowly and carefully back your scooter down the incline;
Carefully remount your scooter and resume normal operation.
Procedure 2: Emergency (No power)
Set the key switch to the “Off position”;
Dismount your scooter;
Set the freewheel lever to “Disengaged”;
While standing next to the scooter, carefully manually maneuver it down the
slope;
When you have reached a level surface at the bottom of the slope, position the
freewheel lever in the engaged position;
See chapter 7 to restore power.
 Warning:
When your scooter is in freewheel mode, the park brake is released. The
weight of the scooter on a slope may cause you to lose control of the scooter.
If you do not feel capable of manually controlling your scooter down the slope,
request assistance or do not attempt to use this procedure.

~ 15 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
4.8 EMI / RFI
The rapid development of electronics, especially in the area of communications, has
saturated our environment with electromagnetic (radio) waves that are emitted by
television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios
(ham radios), wireless computer links, microwave transmitters, paging transmitters,
etc. These electromagnetic (EM) waves are invisible and increase in strength the
closer one gets to the source of transmission. When these energy waves act upon
electrical devices and cause them to malfunction or to function in an erratic or
uncontrolled manner, they are referred to as Electromagnetic Interference (EMI) of
Radio Frequency Interference (RFI).
EMI / RFI and your scooter
All electrically powered vehicles, including scooters are susceptible to
Electromagnetic Interference / Radio Frequency Interference (EMI / RFI). This
interference could result in abnormal, unintended movement of your scooter.
 Warning:
Unintended movement or brake release could cause an accident or injury.
The FDA has determined that each make and model of scooter can resist EMI/ RFI to
a certain level. The higher the lever of resistance, the greater the degree of
protection from EMI/ RFI –measured in volts per meter (V/m). The FDA has also
determined that current technology is capable of providing 20 V/m of resistance to
EMI/ RFI, which would provide useful protection against common sources of
interference. This product has been tested and has passed an immunity lever of 20
V/m.
EMI / RFI recommendations
Do not turn on or use hand-held personal electronic communication devices
such as cellular phones, walkie-talkies, and CB radios while your scooter is
turned on;
Be aware of any nearby transmitters (radio, television, microwave, etc.) on
your intended route and avoid operating your scooter close to any of those
transmitters;
Turn off the power if your scooter is going to be in a stationary position for any
length of time;
Be aware that adding accessories or components or modifying your scooter may
make it more susceptible to EMI/ RFI;
If unintended movement or park brake release occurs, turn your scooter off as
soon as it is safe to do so.
 Warning:
Turn off your scooter as soon as it is safely possible if unintended or
uncontrollable motion occurs or if unintended park brake release occurs.

~ 16 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
MAKING ADJUSTMENTS TO YOUR SCOOTER CAN CAUSE BIG RISKS FOR YOUR
SAFETY AND THE FUNCTION OF YOUR SCOOTER. ADJUSTMENTS MADE BY
YOURSELF ARE STRONGLY ADVISED AGAINST AND CARRIED OUT AT YOUR OWN
RISK.
5 INSTRUCTIONS FOR USE AND MOUNTING OPTIONS
5.1 Technical information
Caremart Travel & Me
Length 101 cm
Width 50 cm
Front wheels 8”
Rear wheels 8”
Ground clearance 4 cm
Turning range 97 cm
Maximum speed 7 km/h
Maximum range 12.5 km
Batteries 2 x 12AH
Weight complete 45,5 kg
Weight seat 9,5 kg
Weight batteries 7,5 lg
Maximum user weight 113 kg

~ 17 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
5.2 Armrest adjustments
Armrest width adjustment
To adjust the armrest width:
Loosen the star knob at the rear of the seat, photo 2;
Slide the armrest in or out to the desired width is reached;
Tighten star knob.
Flip-up the armrests
Place your hand at the end of the armrest, photo 3, an pull the armrest up, this will
easy transfer on and off your scooter.
Armrest angle adjustment
To increase the armrest angle, turn the armrest angle screw clockwise, photo 4. To
decrease the armrest angle, turn the armrest angle screw counter clockwise.
Photo 2
Photo 3
Photo 4

~ 18 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
5.3 Seat adjustments
Seat rotation lever
The seat swivel lever (under the seat) allows the seat to rotate in the seat 360ᵒand
the seat will be locked every 45º.
Pull up on the seat rotation lever up, photo 5 and rotate the seat to the desired
position;
Release the handle to lock the seat in the chosen position.
Backrest angle
The backrest swivel lever (at the front of the seat) allows you to set the backrest
angle:
Grab the backrest at the upper side, photo 6;
Move the backrest to the front or rear side until the desired angle is set;
 Tip
Fold down the backrest, photo 6 when you want to remove the seat of the
scooter or transporting the scooter.
Photo 5
Photo 6

~ 19 ~
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
© 2014 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen,
Nederland
Tel. [phone], Fax [phone], E-mail:
[e-mail], www.vanosmedical.com
5.4 Disassembly
This scooter can be separated into the following part, photo 7:
Front frame;
Rear frame with motor and transaxle;
Basket;
Battery pack with cables;
Rear shroud;
Seat with armrests.
Follow the procedures below to disassemble your scooter and transport it with care.
 Warning:
Remove the key from the key switch before you begin to disassemble your
scooter!
Photo 7
