Carrier 42TVAB010-O-I User manual

OWNER’S MANUAL
AIR CONDITIONER (SPLIT TYPE)
For general public use
Indoor unit
42TVAB010-O-I 42TVAB013-O-I 42TVAB018-O-I 42TVAB024-O-I
42TVAB010-P-I 42TVAB013-P-I 42TVAB018-P-I 42TVAB024-P-I
42TVAB010-G-I 42TVAB013-G-I 42TVAB018-G-I 42TVAB024-G-I
42TVAB010-W-I 42TVAB013-W-I 42TVAB018-W-I 42TVAB024-W-I
42TVAB010-B-I 42TVAB013-B-I 42TVAB018-B-I 42TVAB024-B-I
42TVAB028-O-I 42TVAB030-O-I 42TVAB033-O-I
42TVAB028-P-I 42TVAB030-P-I 42TVAB033-P-I
42TVAB028-G-I 42TVAB030-G-I 42TVAB033-G-I
42TVAB028-W-I 42TVAB030-W-I 42TVAB033-W-I
42TVAB028-B-I 42TVAB030-B-I 42TVAB033-B-I
Outdoor unit
38TVAB010, 013, 018, 024, 028, 030, 033-I
ENGLISH
ภาษาไทย
1126250230-00_S01_182x257_20p_S_p70_220207.indd 1 22/02/07 4:18:39 PM
1126250231
(Wireless LAN Connection Instruction)

Carrier In The Air
Please visit the application store on your device to download and install Carrier
In The Air application.

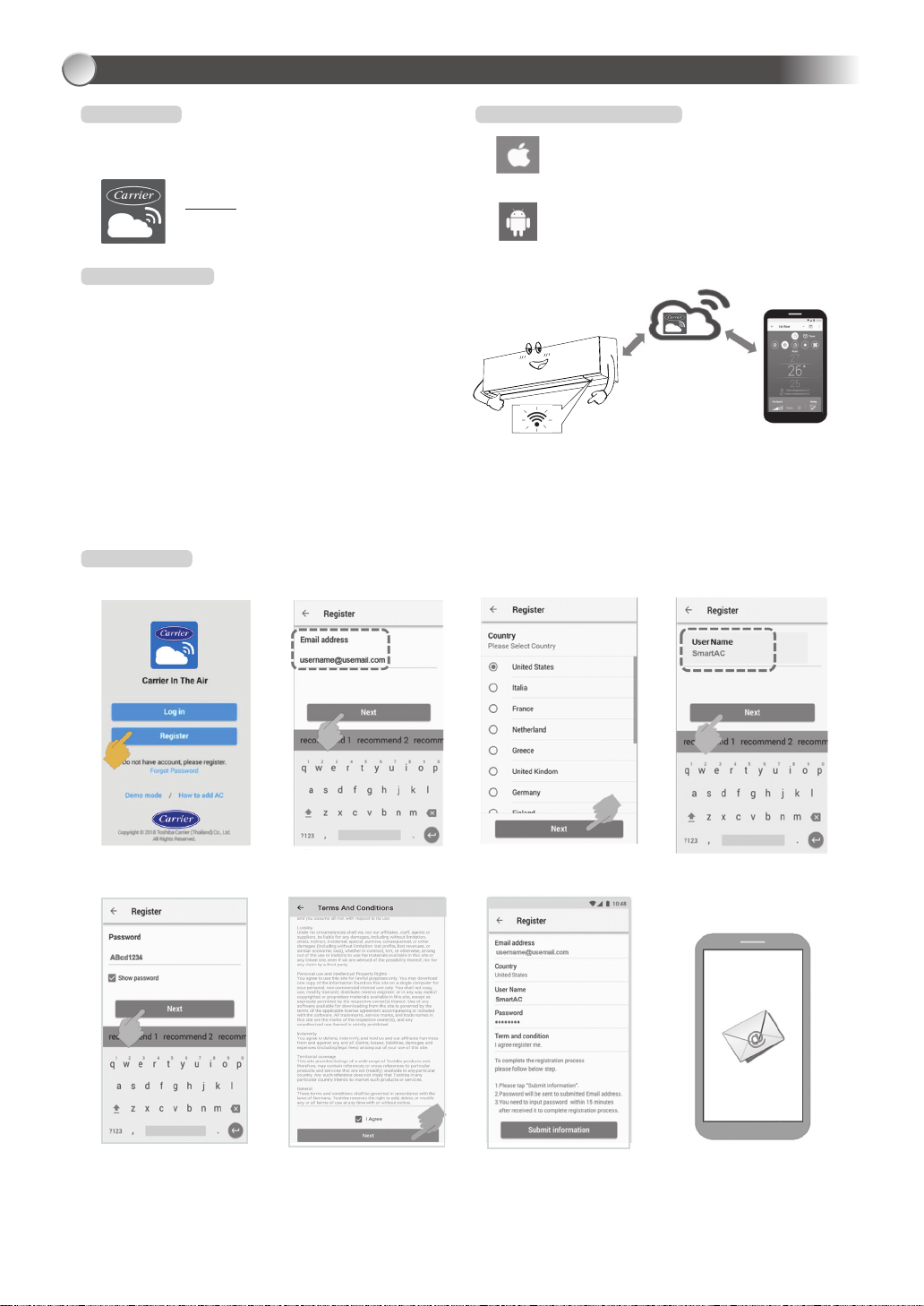

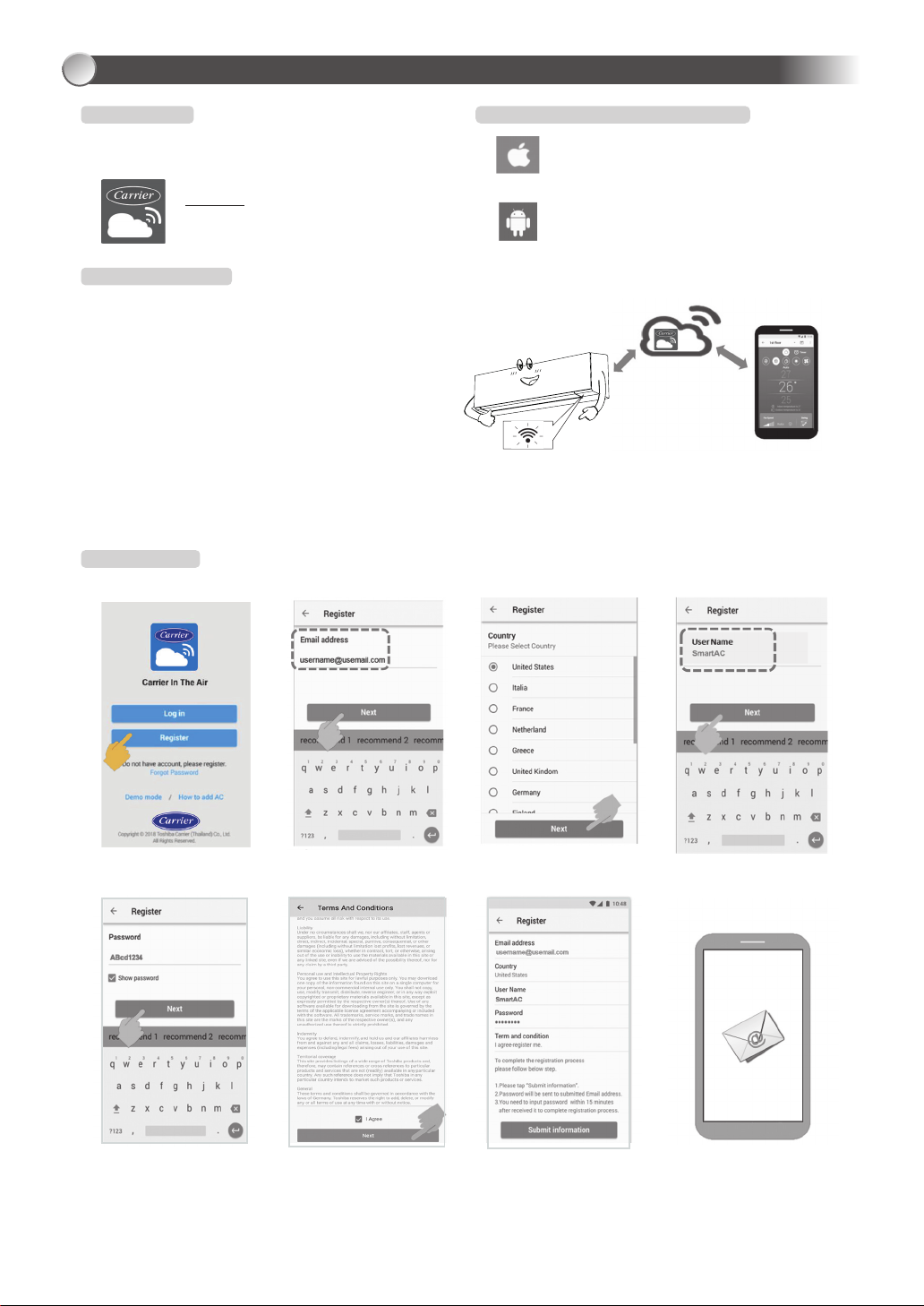

Register process
Open an application and follow register for User registration.
1Tab Register
5Enter password by 6-10
characters, combination of
alphabet and number
2Enter email address
6Check for term and condition
3Select country
7Confirm information
4Enter user name
8Information will be submitted
to email, click link to confirm
Application
Keyword : Carrier In The Air Android : Version 5.0 or later.
iOS : 9.0 or later.
About Carrier In The Air
1. Carrier In The Air can control AC operation by Smartphone or
tablet (mobile device) via internet connection.
2. Everywhere control, control software run on Cloud system and mobile
device can set and monitor AC operation via internet connection.
3.
Everyone can control, 1 Wireless adapter maximum 5 User
(use 1 email register).
4. Multi AC system control, 1 user can control 10 AC.
5. Group control.
5.1 Can create and control 3 groups of AC.
5.2 Can control max 10 AC per group.
Note:
1. Adapter can register only 1 email address, if register with new email, current email will be invalid.
2.1 email address can use for register 5 devices for control same AC.
Carrier In The Air application support
01_OM_1129850204_EN.indd 901_OM_1129850204_EN.indd 9 8/1/2564 BE 15:388/1/2564 BE 15:38

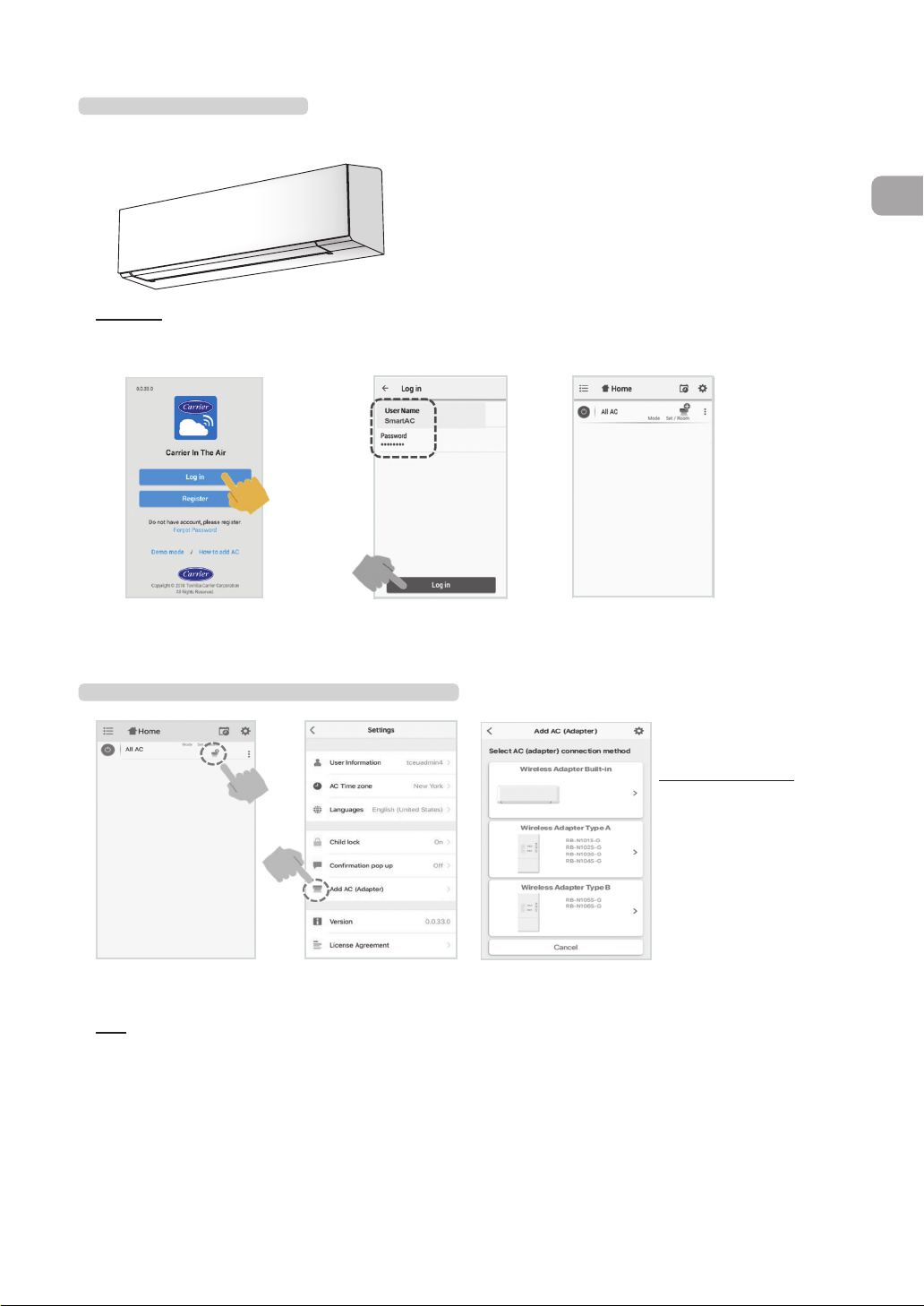

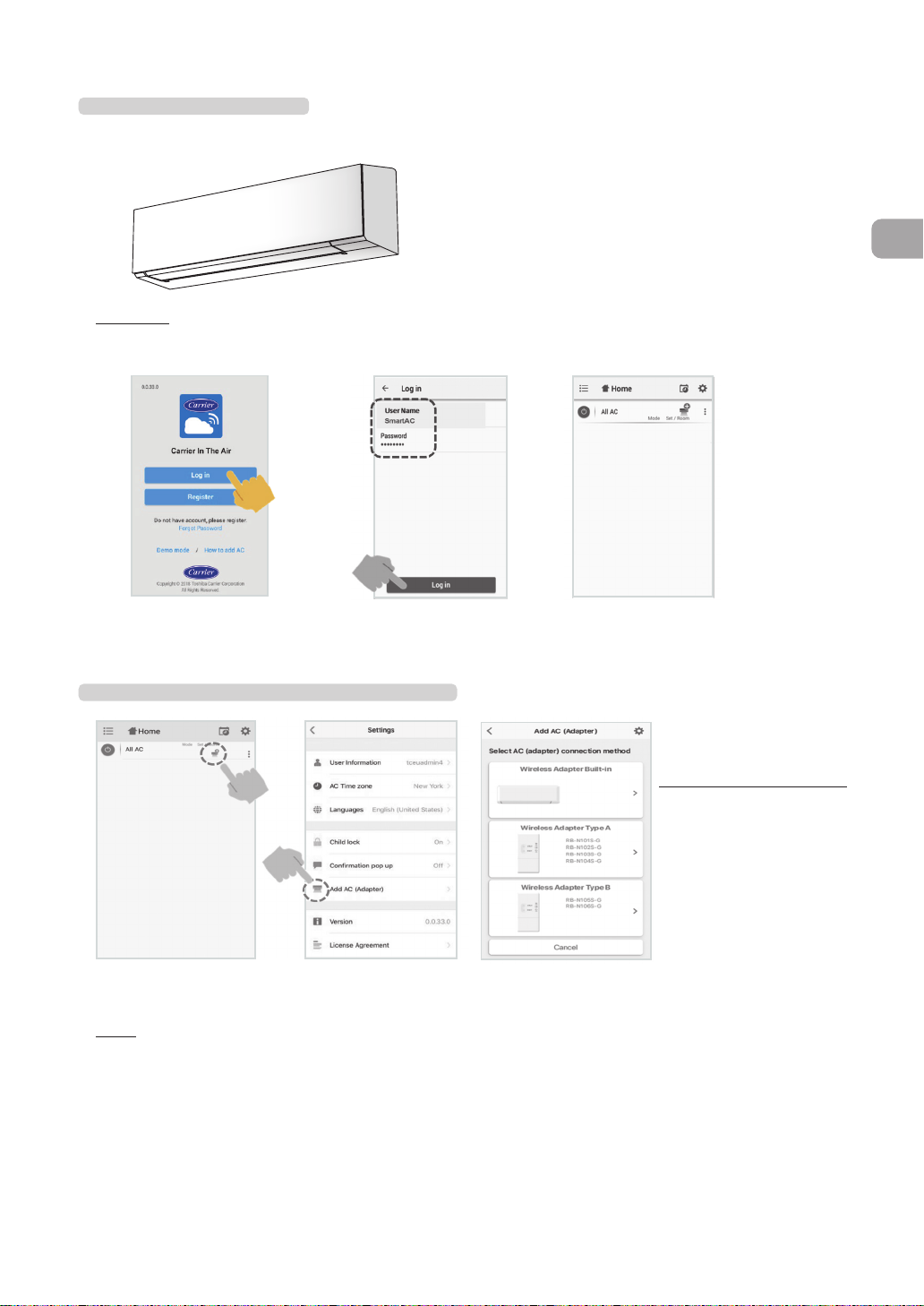

1 WIRELESS LAN CONNECTION

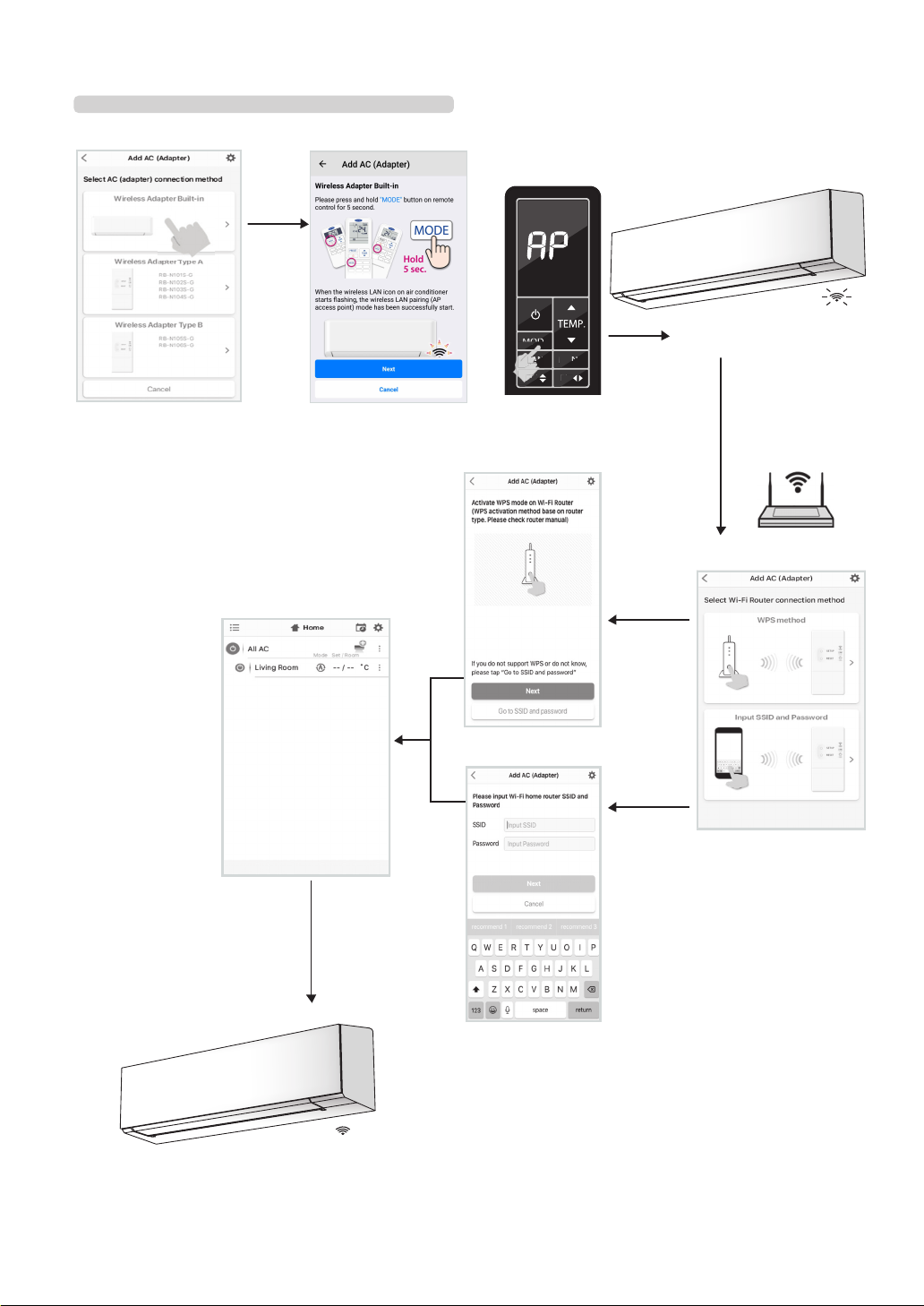

1Select “Add AC (Adapter)” from both display above. 2Select AC (adapter) connection method.
Wireless adapter Build-in
Active Wireless adapter by
remote controller and Auto login.
*Note
1.In case of Wi-Fi router change or Email for register change need to re-process for add Wireless adapter again
(Build in type : Press MODE button at Remote controller 5 seconds for active AP mode).
2.In case of change Wireless adapter to use with other A/C need to factory reset and re-process for add Wireless adapter again
(Build in type : Press MODE button at Remote controller 5 seconds and select “rb”).
Build-in type , Wireless adapter already install with unit.
2Open application and select Log in. 3Enter user name and
password.
4Login successful.
1Connect Wireless adapter to A/C and turn on power supply.
Login to Carrier In The Air application.
Add Wireless adapter for control by Carrier In The Air application.
EN
01_OM_1129850204_EN.indd 1001_OM_1129850204_EN.indd 10 8/1/2564 BE 15:388/1/2564 BE 15:38

Wi-Fi Router SSID
Wi-Fi Router Password
FIX
MODE
FAN MENU
FIX
FIX
MEN
MOD
X
OD
A
AN
FA
A
FIX
FIX
FIX
FI
FA
FA
FAN
A
MO
3AC (adapter) connect
Press and hold
MODE button 5 seconds
WPS mode
Manual input
Wireless LED mark will blink
when AP mode active
4Active Wireless adapter by Remote controller
5Connect with Home Wi-Fi Router
6A/C add finished
7Connect successfully
Wireless LED lamp stop blink.
Add Wireless adapter for control by Carrier In The Air application.
01_OM_1129850204_EN.indd 1101_OM_1129850204_EN.indd 11 8/1/2564 BE 15:388/1/2564 BE 15:38

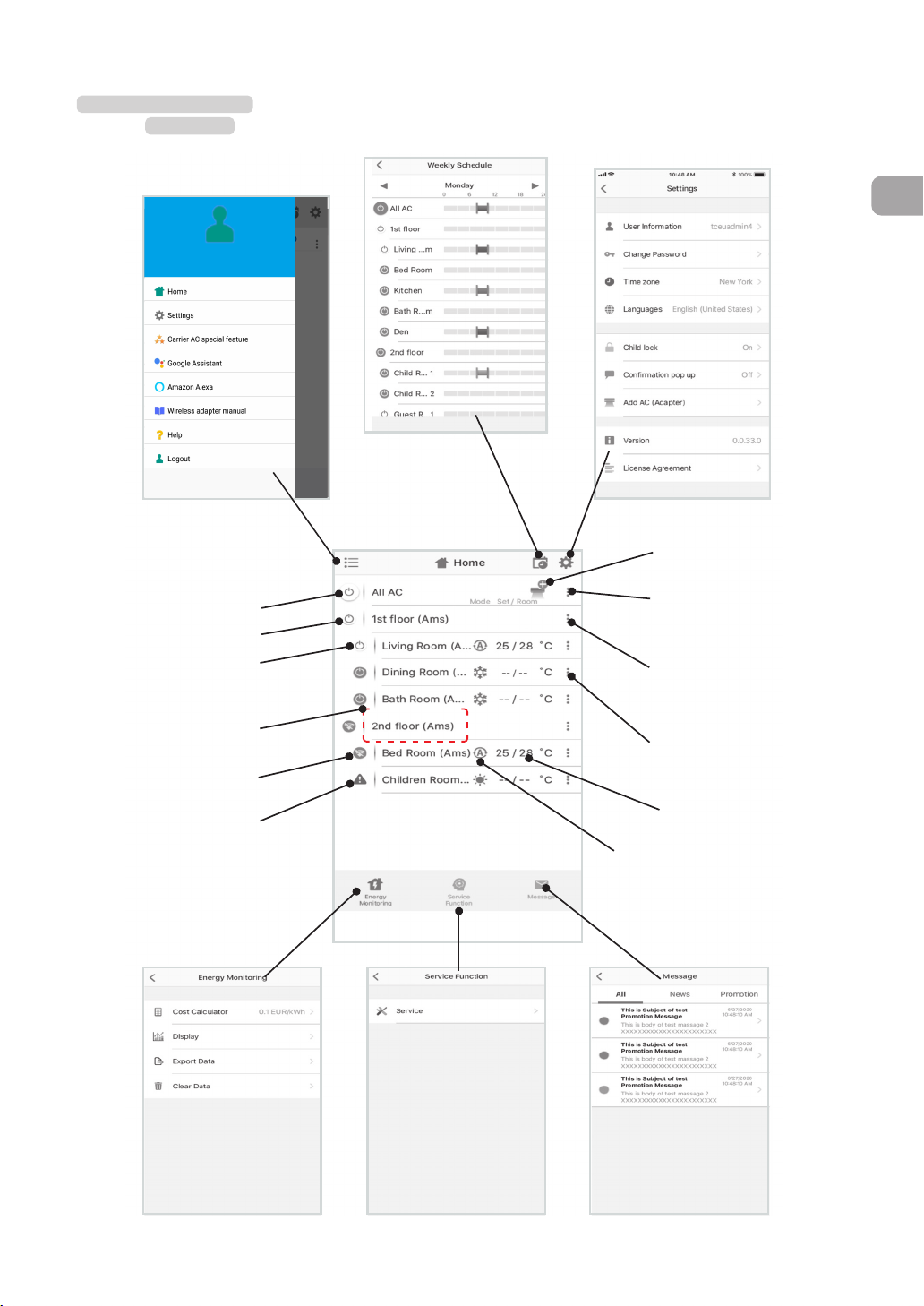

Menu
All AC On/Off
Group AC On/Off
Each AC On/Off
Group name
AC device is offline
Notification ERROR code
description (pop up)
Weekly schedule Setting
Sub menu all AC
·Add Group
·Delete Group
·Operation Setting
Add AC
Sub menu group
·Select AC
·Change group name
·Group operation Setting
Sub menu AC
·Operation Setting
·Change name
·Delete AC
Setting temperature /
Actual room temp
Current operation mode
of each AC
Carrier In The Air application

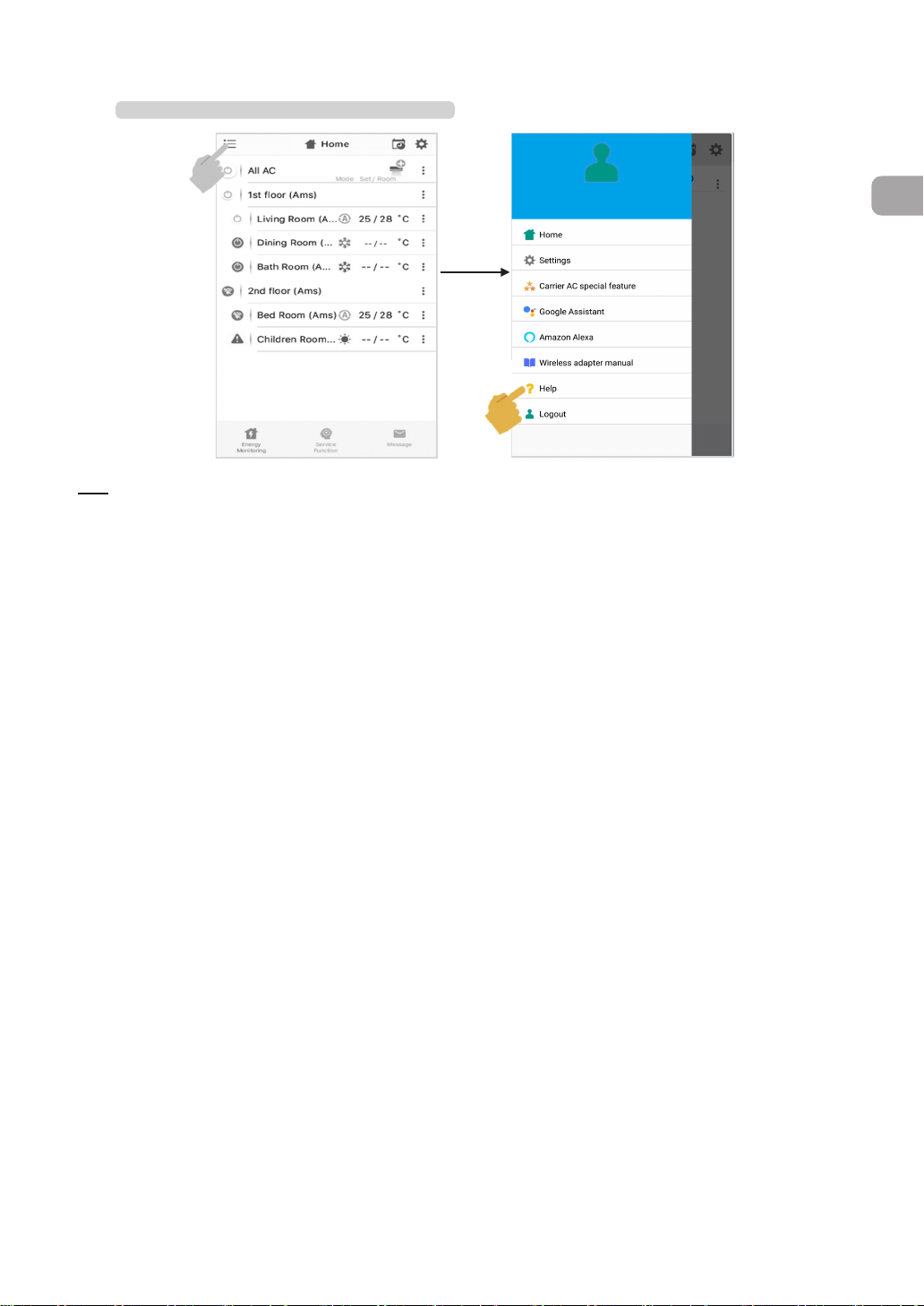

Home screen
EN
01_OM_1129850204_EN.indd 1201_OM_1129850204_EN.indd 12 8/1/2564 BE 15:388/1/2564 BE 15:38
Carrier In The Air special feature

Auto
Heat*
Cool
Fan only
Dry
Off
Enter operation mode of All AC
Enter operation mode of Group AC
Enter operation mode of each AC
Mode and Condition setting.
Mode select for Carrier In The Air application.
Provide for 5 operation modes
01_OM_1129850204_EN.indd 1301_OM_1129850204_EN.indd 13 8/1/2564 BE 15:388/1/2564 BE 15:38
* This "Heat mode" is only available
for Heat pump product.

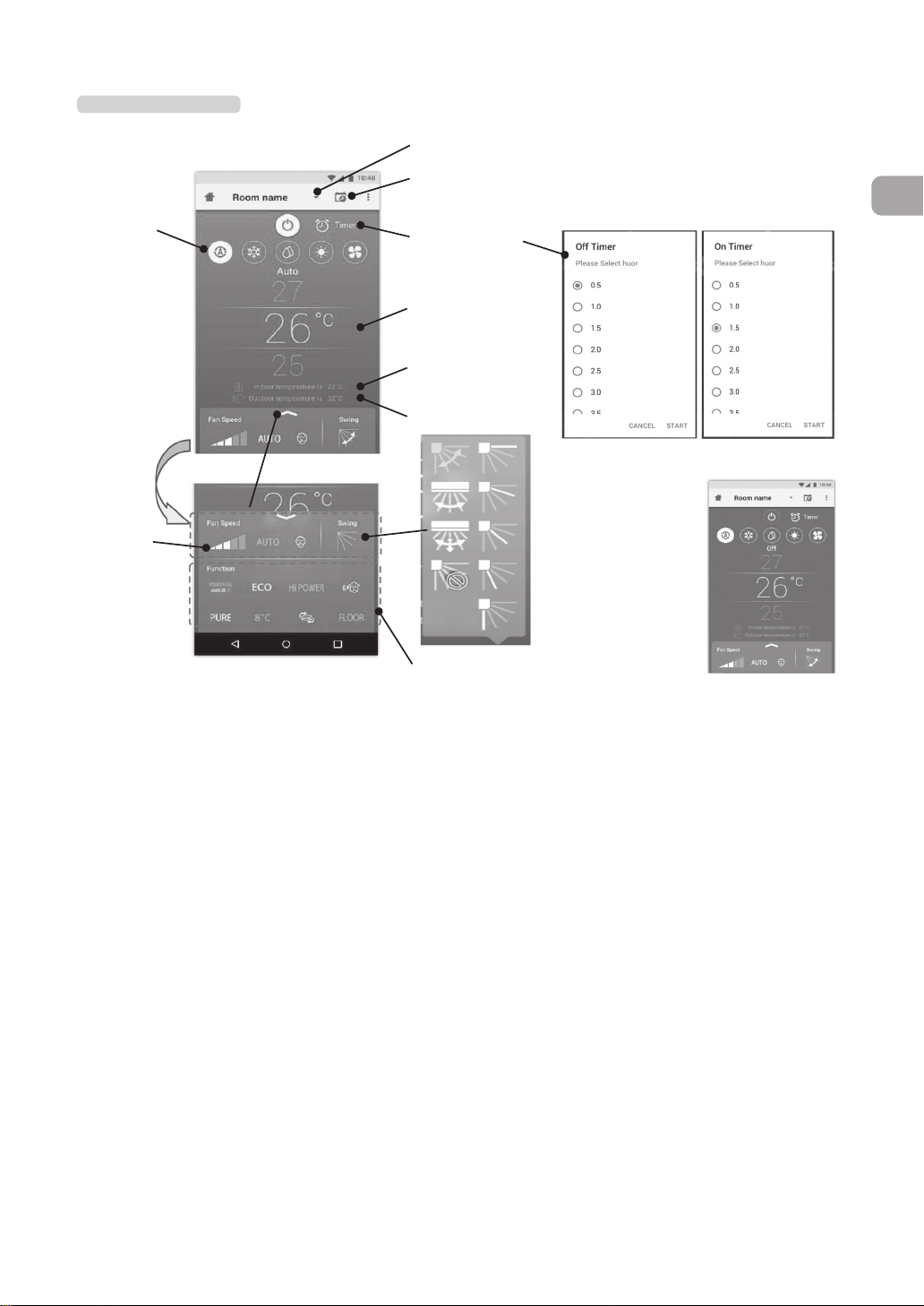

Tab for select AC
Weekly schedule
OFF-ON Timer set
OFF-ON timer set 0.5-12hrs.
ON timer set from
Off mode only
Off mode
Mode select
Temperature set
Indoor temperature
Outdoor temperature
Fan speed set
Special feature
Louver set
Setting in operation mode.
EN
01_OM_1129850204_EN.indd 1401_OM_1129850204_EN.indd 14 8/1/2564 BE 15:388/1/2564 BE 15:38

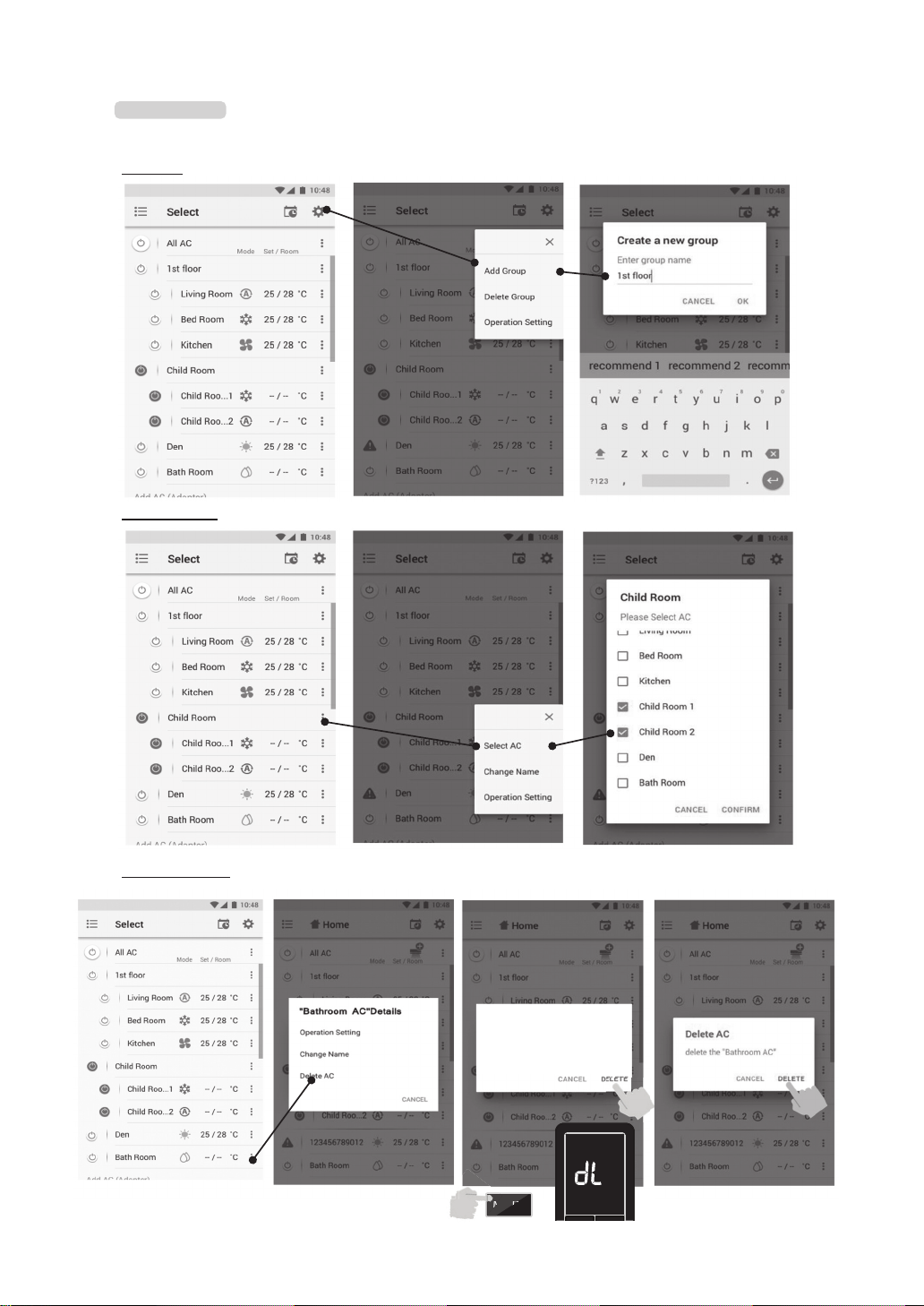

Add AC in group
Delete AC in group
Maximum 3 groups
1 Group maximum = 10 units.
Add group
Group operation.
MODE
MOD
M
Please make sure Factory Reset is
performed before deleting AC from mobile
application.
(See owner manual ʺPress and hold MODE
button on remote control for 5 second and
active dL functionʺ)
01_OM_1129850204_EN.indd 1501_OM_1129850204_EN.indd 15 8/1/2564 BE 15:388/1/2564 BE 15:38

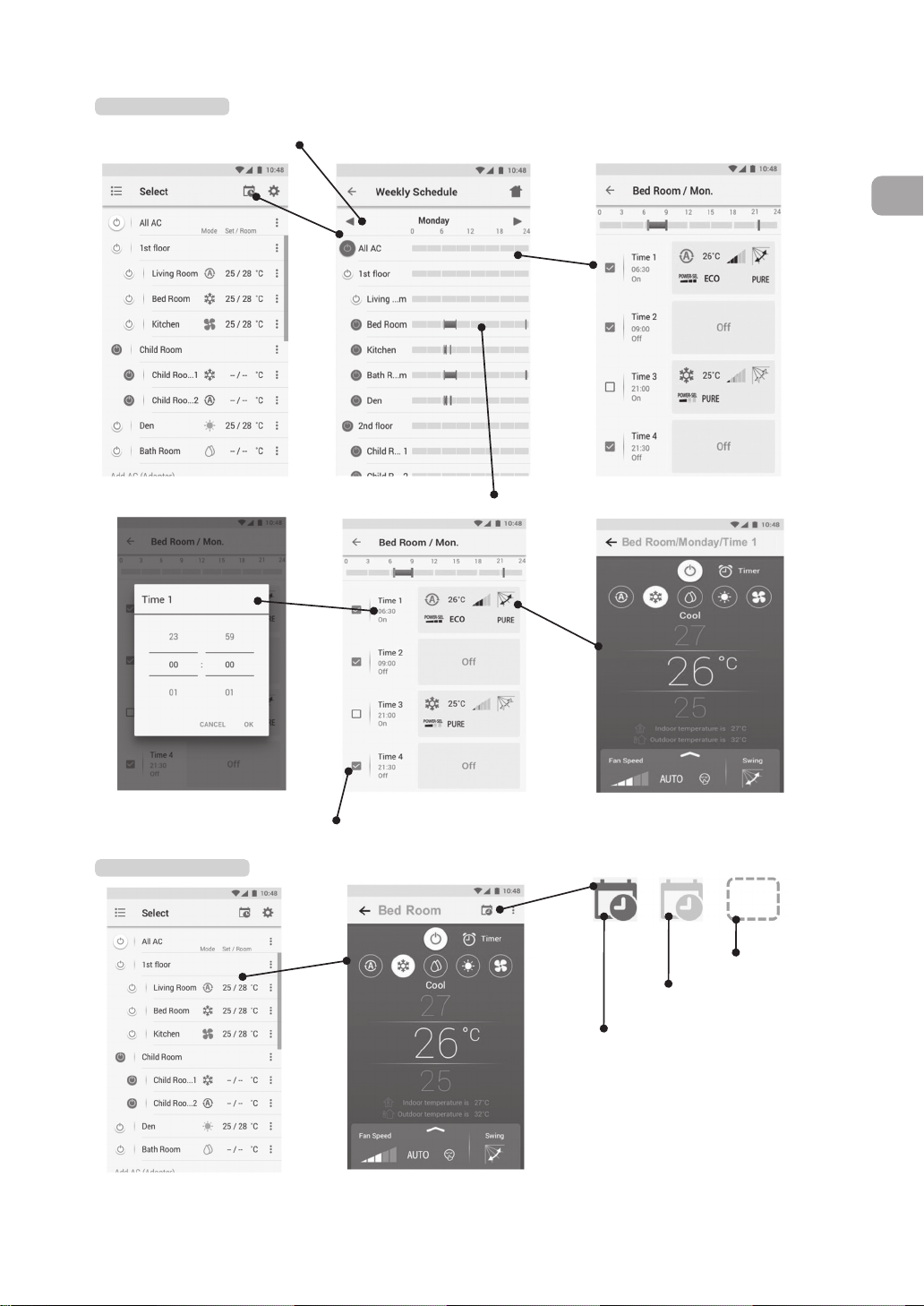

Time select Mode select
Select program for active by tick at select box
Weekly schedule
set and active
Weekly schedule
set but not active
Weekly schedule
not set
Weekly schedule set for each unit
Day select Monday - Sunday
Weekly schedule of all AC unit Weekly schedule of all AC unit
Weekly schedule set.
Weekly schedule cancel.
EN
01_OM_1129850204_EN.indd 1601_OM_1129850204_EN.indd 16 8/1/2564 BE 15:388/1/2564 BE 15:38

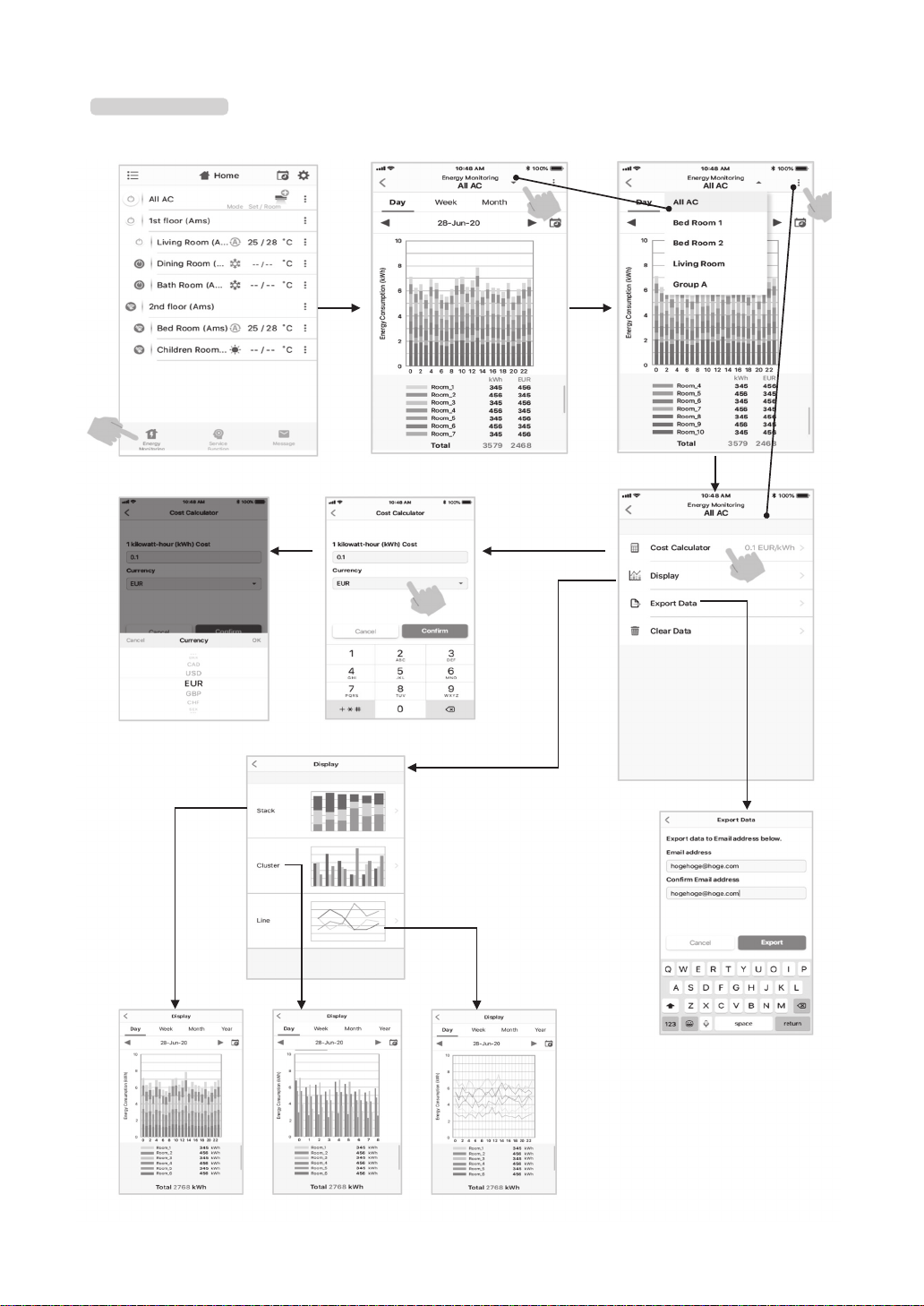

Select Room for Energy monitoring
1Select Energy monitoring 2Energy monitoring display
Set cost calculate and currency
Select Energy monitoring display
Export data and send by Email
Energy monitoring
●The power consumption displayed is just an estimate as it is calculated simply.
It may sometimes differ from the result measured by the power meter.
01_OM_1129850204_EN.indd 1701_OM_1129850204_EN.indd 17 8/1/2564 BE 15:388/1/2564 BE 15:38
