Carrier 40VCW327FQEE User manual

ENGLISH
Wired Controller
40VCW327FQEE User Manual
Turn to the experts

TABLE OF CONTENTS
WIRED CONTROL PANEL FUNCTIONS..........................................................................................1
Interface introduction.......................................................................................................................1
Key description................................................................................................................................2
Interface description........................................................................................................................3
INSTALLATION................................................................................................................................24
Turn to the experts
ENGLISH

WIRED CONTROL PANEL FUNCTIONS
Interface introduction
ENGLISH
1

Key description
Mode key in the main interface, return key in other interface.
Page Down.
Left/Right key,
Fan speed adjustment key in the main interface,
Left/Right swing angle adjustment key in the swing interface,
Left and right switch keys or value adjustment key in other interface.
Up/Down key,
Temp.adjustment key in the main interface,
Up/Down swing angle adjustment key in the swing interface,
Up / down switch key or value adjustment key in other interface.
Menu key in the main interface, set key in other interface.
Swing key in the main interface, OK key in other interface.
on/o󰀨 key.
2
Turn to the experts
ENGLISH

ENGLISH
lnitialization interface
Daytime screen saver
Night screen saver
Screen saver
3
Interface description

The main interface
1) Mode interface
Press the mode key to cycle in ve modes: auto, cool, dry,heat and fan.
Press the On/O󰀨 key to turn on/o󰀨.
AUTO COOL
DRY HEAT
FAN OFF
4
Turn to the experts
Interface description
ENGLISH

ENGLISH
2) Other display information
Clock display area, the format of the date can be changed
through the time function.
Temperature display area, set temperature can be adjusted
by the Up/Down key. If energy saving function is not set, the
range of set temperature is 60°F-86°F(16°C-30°C), or the
adjustment range will be limited.
If energy saving function is set, the default lowest temp.of
cooling /dry mode is 74°F(23°C), the default highest temp.
of heating mode is 78°F(26°C). The adjustment step is
1°F(0.5°C).
Press " ''key to switch to the ambient temperature
display interface to view the current ambient temperature
value.
The ambient temperature display can be turned on/off
through the display settings.
The state of wired controller, this area also can display “Sub".
"MAIN" means the wired controller is the main controller,
“Sub" means the wired controller only can control parts of
functions; ONLINE 16:The quantity of indoor units connected
to the wired controller.
Mode:Auto→Cool→Dry→Heat→Fan.
Fan speed,the cycle type of fan speed can be set through
basic setting.
Extra Function: When the extra function is enabled, the main
interface will display the corresponding icon.
5
Interface description

3) Ambient temperature display interface:
Press the Page Down key to cycle to the ambient temperature display interface. Press again to
return to the main interface.
4)Swing interface
Press the swing key on the main interface to enter the swing interface. There are three types:Up/
down swing,left/right swing, four-way cassette swing. The default information of swing type is
decided by the indoor unit.
Up/down swing Press Up/Down key to adjust the up and
down swing.
Left/right swing Press Left/Right key to adjust the left and
right swing.
Four-way cassette
swing
Press the Menu key to adjust the louver. The
louver ashes,then press the Up/Down key to
adjust angle of the louver.
6
Turn to the experts
Interface description
ENGLISH

ENGLISH
5) Menu interface
When in the main interface, press the menu key to enter the menu interface.
It contains: SCHEDULE, TIME, EXTRA, DISPLAY, ERROR, ECO, INSTALLATION.
Press the left and right keys to select the corresponding icon, and press the OK key to
enter the function.
①SCHEDULE
Schedule options include segmented timing and random timing. It can be selected
through display setting. The default is random timing.
The segmented timing will only e󰀨ective in cooling or heating mode. Time can be adjusted
in 24 hours. Temperature can be adjusted from 60°F(16°C) to 86°F(30°C), "OFF" can also
be set meaning power o󰀨. First, press the Up/Down key to select any scene, and then
press the Menu key to enter the site settings.
Segmented timing
7
Interface description

The left and right keys select the parameters, and the up and down keys adjust the
parameter values.
When the cursor is in the temperature regulation area, press the OK key to set it o󰀨.
After adjustment, press the return key to exit the settings.
When the display interface selects random timing. The Schedule will display the following
interface:
Press the Menu key to pop up the following interface
Random timing
8
Turn to the experts
Interface description
ENGLISH

ENGLISH
Press “ADD” to pop up the following interface.
The left and right keys are used to select the timing parameters, the up and down keys
are used to select the parameter values, and the OK key is used to save the settings.
When the user does not press OK to save, a window will pop up to indicate whether to
save.
9
Interface description

Note: When "yes" is selected for the parameter value of "repeat", the following weeks will
come into e󰀨ect.
After setting multiple Schedules,the display is as follows:
If the time on timer you are setting is in conict with the existing timer o󰀨,the interface will
prompt you to change the time. In the same way, the time of timer o󰀨 needs to be di󰀨erent
from timer on. In summary, if the later setting conicts with the previous, the prompting
interface will display.
The prompt interface includes the following interfaces:
10
Turn to the experts
Interface descriptionInterface description
ENGLISH

ENGLISH
When the user wants to delete the Schedule, select Delete or Delete All in the following
interface:
11

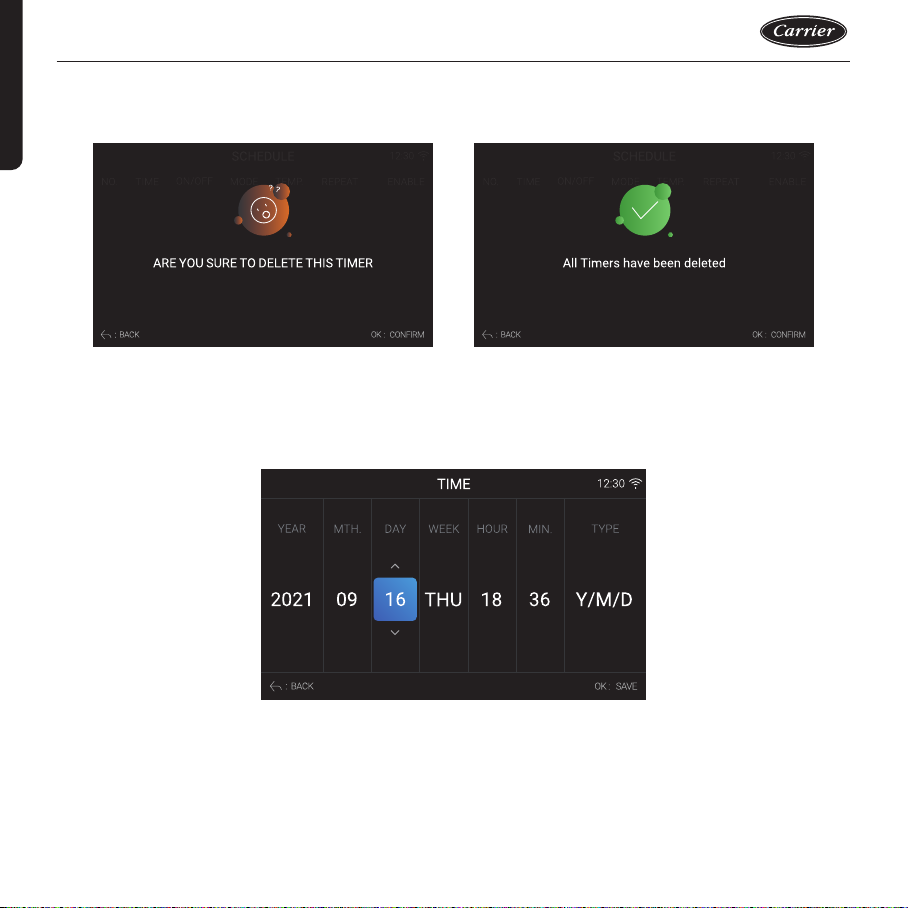

Interface description

Press the OK key to pop up.
The user presses the OK key to execute the corresponding deletion action.
②TIME
From the menu interface, enter the clock setting interface.
③EXTRA FUNCTION
In the menu interface,press the left/right keys to select extra function, and press the OK
key to enter the extra function interface.
Left/right key to switch parameters,up/down key to switch values, and OK key to save.
12
Interface description Turn to the experts
ENGLISH

ENGLISH
The left/right key select functions, and the up/down key switch function values. The
default information for each function is decided by indoor unit except child lock. Child lock
function is o󰀨 by default.
The corresponding function icon will display in the main interface when a function is set
in extra function. Some functions are not available for some models.These will be greyed
out. Turbo and Quiet function conict and can't both be on. Setting one will disable the
other. This is the same for health airow up and down.
When child lock is set to ON, the following window will pop up:
The user selects OK, the interface skips to the main display automatically.
The function also can be set or canceled by pressing the Left and Right keys together for
5S in the main interface.
13
Interface description

Quiet function.
Turbo function.
Ventilation function.
Health function.
Child lock function. Press the Left and Right keys at the same time in the main
interface for 5S to either set or cancel the function.
Forced Defrost function.
Water pump delay(reserved).
Self-Cleaning.
10°C Heating.
Electrical heating.
Low Temp. Dehumidication.
Health airow.
Health airow up.
Health airow down.
LED on panel.
Motion sensing.
14
Turn to the experts
Interface description
ENGLISH

Motion sensing follow.
Motion sensing evade.
Quiet(outdoor).
ENGLISH
Note: Each function is usually only applicable to some models.
Communication with central controller
(1) After the controller receives the central command from the central controller. It displays the icon
.
At this time,all the keys except the ON/OFF, fan speed, setting temperature are invalid.
(2) After the controller receives the lock command, it displays the icon . At this time, all keys are
invalid.
(3) In central or lock state, backlight is valid, press any keys to wake up screen.
Forced Cooling/Heating
(1) After controller is in cooling mode and is turned o󰀨, long press ON/OFF key for 10S to enter
forced cooling function. At this time, controller will be turned on, and “LL" ashes in the middle area
to indicate that the forced cooling function is turned on.
(2) After controller is in heating mode and is turned o󰀨, long press ON/OFF key for 10S to enter
forced heating function.At this time, controller will be turned on, and “HH”ashes in the middle area
to indicate that the forced heating function is turned on.
(3) All keys are invalid except ON/OFF key under forced cooling/heating mode.
(4) When the forced cooling/heating is set, press ON/OFF key to exit this function.
Wi-Fi ( Only valid for part of models,please do follow the corresponding indoor unit installation
manual's instruction.)
Keep pressing On/O󰀨 key for 10S to enter Wi-Fi conguration function, Wi-Fi icon will ash. Then,
the user can operate the mobile phone to congure.After the binding is successful, the wi icon will
still display.
Filter Cleaning
When lter cleaning icon is displayed, the icon will display in main interface. Press up and down
keys for 5S to cancel the display of icon.
15
Interface description

④DISPLAY Setting
AUTO-LOCK
There are ve screen saving time options. The time indicates how
long the screen light stays on after no operation. "Cancel" means
that the screen light will never go o󰀨.
SCREENSAVER It is divided into day screen saver and night screen saver.
BRIGHTNESS The function is used for controlling the light intensity.
LANGUAGE
Used to select a language.
Press the left/right key to select a language, then press OK to save
the settings, otherwise the original settings will be maintained.
TEMP. UNIT Celsius or Fahrenheit can be selected through this function.
SCHEDULE Segmented timing or Random timing can be set.
TEMP. DISPLAY
If the function is turned on, the ambient temperature display
interface will display the indoor temperature.Otherwise, the ambient
temperature display interface will not display indoor temperature.
16
Turn to the experts
Interface description
ENGLISH

ENGLISH
⑤ERROR
One current error code will display and up to thirty two past error codes will display for each unit.
Press the up and down keys to select historical error code, and press the Page Down key to select
units. Press the Left and Right keys together for 5S to clear away the error history information of the
current unit. Press Up and Down keys together for 5S to clear away the error history information of
all the units on line. The combination method is only valid in error interface.
⑥ECO
ECO function is default set to OFF. The default highest temperature is 78°F(26°C) in heating and
the default lowest temperature is 74°F(23°C) in cooling/dry mode. It is default set to no exceeding
of limit.
Press up/down key to select items, press Left/Right key to adjust the value.
After setting ECO function, the temp.adjustment will be limited.
If overrun is set, the temp. can be adjust out of ECO range in allowable time.
When the permitted time is set to 0, it means that the overrun cannot occur.
17
Interface description

⑦INSTALLATION
When the cursor is in the installation setting, press OK to pop up the password interface.
Up/down/left/right key to select the password value, press OK key to conrm, and press
Page Down key to delete wrong password.
The password is "841226".
If you enter the wrong password, you will be prompted.
Enter the password correctly to enter the installation setting interface.
18
