Carrier Cavius 9001 User manual

Commercial reference: 9001
Developed by CAVIUS
PLEASE READ THE USER GUIDE CARE-
FULLY BEFORE USE AND RETAIN FOR
FUTURE USE!
GENERAL DESCRIPTION
The Smart Remote is designed to alert with a
rapid ashing warning light when alarming and to
remotely control the CAVIUS Wireless Alarm Fam-
ily. The torch function can be used to nd escape
routes at night.
SAFETY INSTRUCTIONS
Batteries are to be handled with care and battery
powered devices should be kept out of reach of chil-
dren. Do not try to recharge or burn the batteries.
TECHNICAL INFORMATION
The Smart Remote can be used with the alarms from
the CAVIUS Wireless Alarm Family: Smoke, Heat,
Flood and Mains Power alarms. The maximum
number of alarms that can be interlinked with is 32.
The minimum range is 100m in open eld. RF condi-
tions also depend on the house layout and materials.
You should always test it after installation and after
changing batteries.
Diameter: 27mm. Length: 140mm.
The Smart Remote is powered by 3 replaceable AAA
batteries.
Complies to standards: RoHS, REACH, EN60065.
1. HOW TO CONNECT TO THE WIRELESS
ALARM FAMILY:
Open the battery compartment by pressing the
snap. Insert the batteries in the battery compart-
ment respecting polarities.
Slide the learn switch to the “Learn mode” posi-
tion. The Smart Remote will go into Learn mode.
All alarms that need to be connected to the
Smart Remote in the house should be put into
“Learn mode” by sliding the switch of each device
on the “Learn mode” position.
The ashlight will light up to indicate that “Learn
mode” has been selected.
Please note: Do not take out the batteries during
“Learn mode” as this will interrupt the learn process.
Press and hold the test button on an alarm, of
your own choice, until it beeps and the LED
flashes. This alarm will become the master and
will start sending out a specific house code to
the other alarms.
As the other alarms receive the specic house
code, they will also start ashing their red LED’s.
When the red LED light flashes on all alarms,
they are connected and MUST BE SWITCHED
OUT OF ‘LEARN MODE’ and installed.
Label the original “Learn” alarm in order to easily
add new CAVIUS Wireless Family alarms to the
system.
2. INSTALLATION:
The body of the Smart Remote has a built-in magnet,
so it can be installed on a metal plate mounted on
the wall, or on a fridge or other metal surfaces.
The accompanying metal plate can be installed by
the double sided tape or the enclosed screw set.
The end cap has a hole in which a lanyard can
be added so the remote can hang from a hook
etc.
3. TEST FUNCTION:
After installation, and at least once per quarter,
test all your alarms by pressing the test button on
the remote to ensure they are operating correctly
and are within range of each other.
It is recommended to check visually every week
if the LED ashes correctly on the alarm (every
48sec.).
Hold the red end button for two swipes of alarms
until the remote stops ashing, sounding and vi-
brating.
The remote is now transmitting a test signal to
your alarms. During the test, the Smart Remote will
ash and sound.
If the Smart Remote is receiving a test signal from
another device, it will also ash and sound to
indicate that it is part of the group. Indication can
be stopped by pressing the end button.
Please note: To ensure an optimal operation in nor-
mal conditions, test function sends out a reduced
power RF signal.
4. ALARM MODE:
When one of the connected alarms is going into
alarm and sending out the RF alarm signal, the
Smart Remote’s ashlight will start ashing rapidly
(stroboscope).
The Smart remote has a built in vibrator and
sounder which will follow the sound pattern of
the originating alarm. During the alarm, both the
sounder and vibrator will be activated.
The torch can be switched from stroboscopic ash-
ing to constant on by pressing the side button.
Please note: Flashlight will ash at 2 Hertz (2
times each second) to avoid photo sensitive
epilepsy to be triggered.
The CAVIUS Wireless Family has two different
alarm signals:
Alarm signal 1 (--- --- ---) is life threatening
alarms, like a smoke alarm.
Alarm signal 2 (- - -) is a non life threatening
alarm, like a ooding alarm:
Smoke alarm signal: --- --- ---
Heat alarm signal: --- --- ---
Flood alarm signal: - - -
Please note that only the originating alarm’s LED
will ash, so it can be identied.

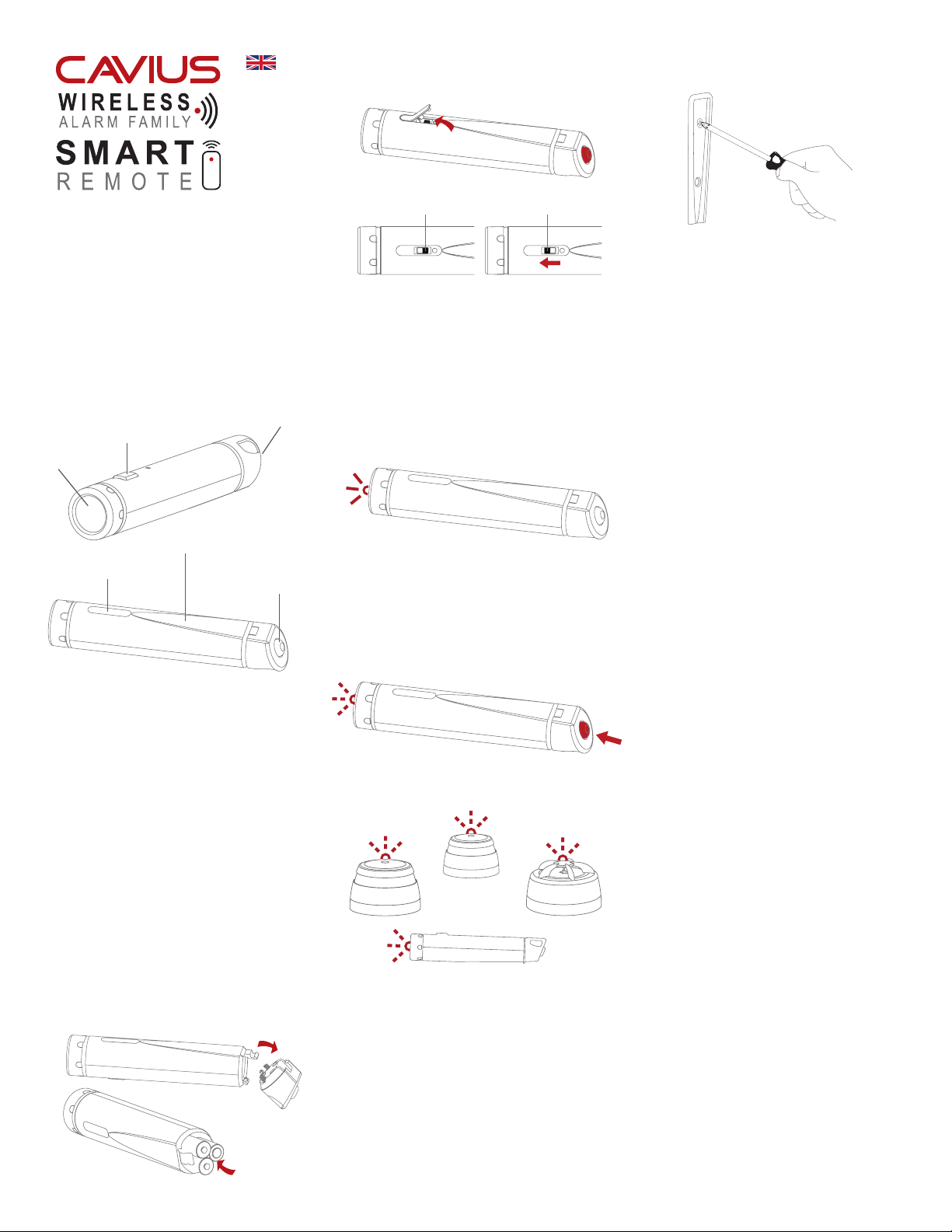

UK
End button for test/hush
Magnet holder
Learn mode switch
Flashlight
End cap for battery access
Side button for ashlight
Normal Mode Learn Mode

Full DoC to 2014/53/EU (RED) can be download-
ed at www.cavius.com
WARNING: All alarms should be assumed as due
to actual re and the dwelling should be evacuated
immediately.
WARNING: Batteries shall not be exposed to ex-
cessive heat such as shine, re, or the like. Note
the local country regulations regarding installation.
The CE mark afxed to the product conrms
compliance with all relevant European directives
along with the Radio Equipment Directive (RED)
2014/53/EU for all wireless family products.
All Rights reserved: CAVIUS Aps assumes no
responsibility for any errors, which may appear in
this manual. Furthermore, CAVIUS Aps reserves
the right to alter the hardware, software, and/or
specications detailed herein at any time without
notice, and CAVIUS Aps does not make any com-
mitment to update the information contained here-
in. All the trademarks listed herein are owned by their
respective owners. Copyright © CAVIUS Aps.
Developed by CAVIUS Aps, Jens Juuls Vej 28 K,
DK- 8260. Manufactured in P.R.C.
127747rev2
5. HOW TO HUSH AN ALARM USING THE
SMART REMOTE:
When the alarms from the Wireless Alarm Family
go into alarm, they can be hushed by a short press
on the end button of the Smart Remote.
• During the rst 30 seconds of an alarm: Press
the red end button once and the remote stops
sounding and vibrating, LED is still ashing. The
remote is now waiting to send out the hush signal
which will start automatically within 30 seconds.
• After 30 seconds of an alarm:
Press the red end button once and the remote
will send out a hush signal for 13 seconds.
If needed to hush several alarms, this can be
repeated as many times as necessary.
Please note: Due to coming legislation, the hush
signal is transmitted with reduced power (the re-
mote must be within short range from the silenced
alarm, which means you should be in the same
room as the alarm).
You can hush any of your alarms in the system,
as long as you are in in the same room and within
short range of the alarm.
You can go from room to room and hush the alarms
by short press till you nd the originating alarm (the
one that ash), then check the cause of alarm.
All the others devices will be silenced too.
If you hush an alarm other than the source of the
alarm, the remaining alarms will still sound.
6. FLASHLIGHT:
The ashlight can be activated by pressing the side
button. By pressing again you turn off the light.
Please note: The light will go out automatically af-
ter 5 minutes.
7. LOW BATTERY SIGNAL:
When the battery is starting its end of life, a short
beep will sound out every 48 seconds for 30 days.
Only the device affected by the low battery will
beep, no other connected devices will sound.
It is safe to change batteries in the Smart Re-
mote without going through the learn process
again – it will not forget the codes during the battery
change process.
8. BATTERIES REPLACEMENT:
You can access the 3 x AAA batteries by removing
the end cap.
Replace the batteries respecting polarities. Always
test the Smart Remote after battery replacement.
Caution: There is a risk of explosion if the batter-
ies are replaced by an incorrect type.
9. MAINTENANCE & TROUBLESHOOTING:
If the Smart Remote does not work when the test/
hush button is pushed, the probable cause is
faulty batteries which must be replaced. Please
refer to troubleshooting at www.cavius.com.
10. HOW THE SMART REMOTE IS BEHAVING:
When the remote is:
Receiving a signal from an alarm:
- vibrating, sounding and LED is ashing
Waiting to send a hush signal during the first 30
seconds of an alarm:
- LED is ashing
Sending a hush signal:
- quick vibration, sounding and LED is ashing
for 13 seconds
Receiving a test signal:
- quick vibration and LED is ashing
11. OTHER INFORMATION:
Disposal: For battery and product, please dispose
properly at the end of life. This is electronic waste
which should be recycled.
Complies to the Radio Equipment Directive
2014/53/EU.
Interlinked by RF: 868 MHz.
Maximum radio-frequency power transmitted: 20
dBm.
