Casanoov TANKER B250 User manual

TANKER B250
INSTRUCTION MANUAL / NOTICE DE MONTAGE / MONTAGEANLEITUNG / MANUAL DE MONTAJE / MANUAL DE MONTAGEM / MANUALE DI MONTAGGIO / MONTAGEHANDLEIDING / INSTRUKCJA MONTAŻU
EN FR DE ES PT IT NL PL FI SE DK
STI-000023
STW-000023
EN
FR
DE
ES
PT
IT
NL
PL
FI
SE
DK
The manual should be read prior to beginning installation and keep after
Le manuel doit être lu avant de commencer l’installation et conservé après
Das Handbuch sollte vor Beginn der Installation gelesen und nach der Installation aufbewahrt werden
El manual debe ser leído antes de comenzar la instalación y mantenerlo después
O manual deve ser lido antes do início da instalação e mantido após
Il manuale deve essere letto prima di iniziare l’installazione e conservato dopo
De handleiding moet voor het begin van de installatie worden gelezen en na de installatie worden bewaard
Instrukcję należy przeczytać przed rozpoczęciem instalacji i zachować ją po
Käsikirja on luettava ennen asennuksen aloittamista ja säilytettävä sen jälkeen.
Bruksanvisningen bör läsas innan installationen påbörjas och sparas efter
Manualen skal læses, inden installationen påbegyndes, og opbevares efter
!

EN
FR
DE
ES
PT
IT
NL
PL
FI
SE
DK
3
25
47
69
91
113
135
157
179
201
223
Manual translated from English version using automatic translator. In case of question please refer to English version.

EN
3
CAUTION
• This product must be installed by well-trained skilled personnel in compliance with the safety
regulations the field of residential and commercial swing gate opener devices.
Unqualified personnel may damage the instruments and cause harm to the public.
• Electric Power must be disconnected prior to installation, or performing any maintenance.
• Please read the manual carefully before installation. Incorrect installation or misuse of product
may cause seriously damage to users and property.
• If the electric cable is damaged or broken, it must be replaced by a whole and properly insulated
wires, to avoid electric shock or any hazardous environments.
• Keep the wireless transmitters out of children reach.
• Do not allow children or other individuals to stand by the path of the motor arms or the path
of the gates while in operation.
• Do not use the remote wireless transmitters when the gates are out of sight.
• Do not install the products in corrosive, inflammable, and/or explosive environments.
• Avoid installing the motor arm where the override manual release key is exposed to the public.
!

EN
4
x2 x1 x1 x4 x2
x2 x2 x2 x8 x2
x2 x4 x2 x4 x4
(Required) (Required) (Required) (Required) (Required)
(Required) (Required) (Required) (Recommended)
Tools Required
K L M N O
A B C D
F G H I J
E

EN
5
Serial Number

EN
6
Product overview
Technical specifications
Max single vent weight : 300 KG
Environment Temperature : -20°C ~ +50°C
Protection Class : IP55
Max gate open angle : 110 degree
Rated capacity : 1090 N
Maximum rated capacity : 1110 N
Dual Swing Gate automation’s Gross weight : 17KG
Motor voltage : 24VDC 60W
Input power : 220VAC±10%/110VAC±10%
Rotational speed : 300 RPM
Arm’s extended speed : 2.5 cm/s
Arm’s max travel : 300 mm
Continue running time : 5 minutes
Max single vent length : 2.5 meters

EN
7
Manual unlocking
Swing Gate automation Features & Options
Flash lamp
Control unit
Photocells
1
2
3
4
5
6
Swing gate motor
Central stop
Remote control
Open the gate manually: Use the manual control key to open or close the gate manually.

EN
8
Dx2
0x2
Jx1
Ix4
99 mm
59 mm
33 mm
17,5 mm
13 mm
139 mm
189 mm
83 mm
Drill 4 Holes of 8mm Diameter.
Insert the 4 Provided Bolts for
concrete or brick and Tighten
Properly (Do not over tighten as
you may strip the bolt out of the
concrete or the brick). Rref I x 4.
Place the Motor Connecting
Bracket and Tighten with the
Provided Screws. Ref. O x 2.
A
B
C
- When the gate is obstructed: The gate stops.
- Optional: The gate operator can be connected to a solar system, indicator light, photocell, back-up battery,
keypad and other access control devices.
- Speed control: The opening and closing speed of the gate can be adjusted.
- Soft start: The operator features a soft start function.
- Automatic closing: The operator has an automatic closing function with an adjustable closing time.
- Pedestrian mode: The gate can be opened in single or double leaf mode.
- Several remote transmitters: The controller can easily have several additional remote transmitters to control
gate opening.
- Back-up battery: A 24V DC back-up battery can be incorporated.
- Optional devices: 24V DC gate lock, photocells, keypad, push-button, large or small control box.
The operator can be configured to allow a default open condition or a default close condition depending on the
location of the hardware brackets provided.
General options and accessories
Construction Drill and Bolts

EN
9
CABLE MUST NOT BE INSTALLED ABOVE THE MOTOR ARM.
IT MAY PINCH AND STRIP THE CABLE AND CAUSES ELECTRIC SHOCK.
WARNING
Adjusting different angles of Rear Bracket Fixed Plate to fit different Installing condition.
WARNING
Fixing motor on bracket. Watch that the electric cable is in the proper position !
181.5mm
!
!
OK KO
WARNING

EN
10
Installation of Extended End Motor Arms to Gates
Before installation: extend the motor arm to its maximum size and then retract it
inwards by approximately 1 cm.
Make sure that the height of the post support is exactly the same as that of the gate
support.
If you do not ensure the level is exact, the motor arm will bend, resulting in failure. In
addition, the gate’s pushing or pulling force will be reduced, causing the motor to open
or close the gate with difficulty or not at all. Large differences in level will damage the
motor and the motor arm.
USE BUBBLE LEVEL
K
D
Extended arm - 1 cm
!

EN
11
Drill 2 holes 10.2 mm in diameter with a spacing of 68 to 77 mm between the 2 holes.
Place the bracket (K) over the drilled holes.
Attach the other end to the gate arm, and insert the locking pin (M) and lock washers (G).
Place the motor bracket (D) under the gate bracket (K) using the appropriate bolts (O) and tighten
them securely. Please note that the bolts used to secure the front bracket to the gate are not
supplied as the thickness of each gate is different.
A
B
D
C
Installation of Motor’s Arms to Gates

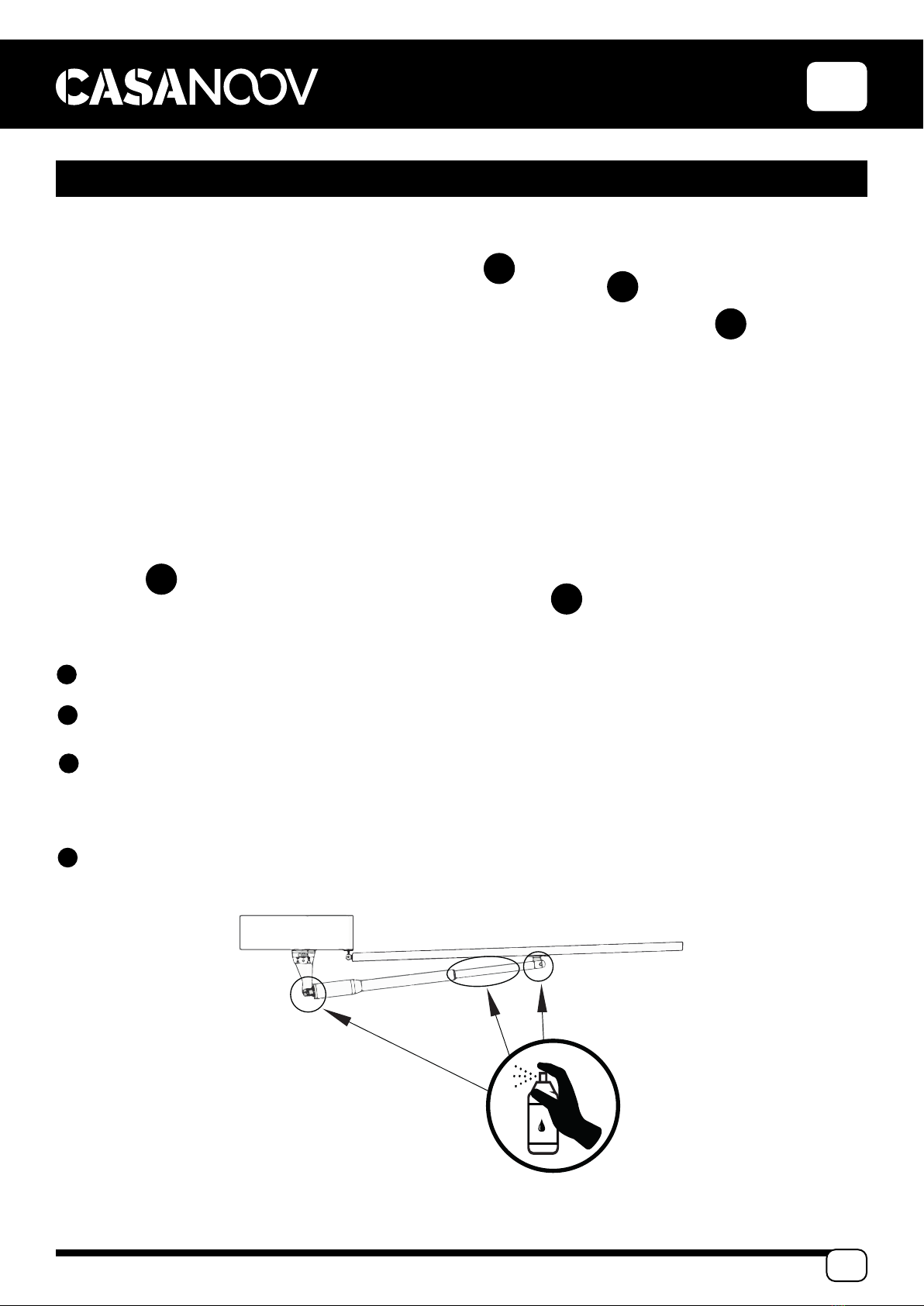

Lubrication : 1 - 2 times a year
Kx1 Dx1
Mx1
Gx1
Ox2

EN
12
INSTALLATION : OPENING INWARDS
The distance between the edge of the post and
the fixed hinge of the motor
The distance between the door hinge
and the centre line of the engine hinge
A
B
Opening Angle

EN
13
INSTALLATION : OPENING OUTWARDS
Opening
Angle
A
B
The distance between the edge of the post and
the fixed hinge of the motor
The distance between the door hinge
and the centre line of the engine hinge
Opening Angle

EN
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
23
24
25
26
27
28
29
SIDE terminal is used for connecting any external device that operates double gate.
COM terminal is COMMON used for connecting the “ground” of external devices.
SIDE terminal is used for connecting any external device that operates single gate.
Swipe Card terminal is used for connecting any external devices that will operate to
open the gate.
COM terminal is COMMON used for connecting the “ground” of external devices.
Infrared terminal is used for connecting photo electric sensor.
12V DC output is used for connecting photo electric sensor (Continuous output cur-
rent <=200mA).
24V battery output is used for connecting the back up battery +.
24V battery output is used for connecting the back up battery -.
24V DC output is used for connecting external device. (such as photo electric sensor,
max current output 1A).
GND is used for connecting the “ground” of external devices.
24V DC lamp output is used for connecting flash light +.
24V DC lamp output is used for connecting flash light -.
24V DC lock output—the NF terminal which used for connecting the electric lock.
COM is COMMON used for connecting the “ground” of lock.
24V DC lock output—the NA terminal which used for
connecting the magnetic lock.
24V DC alarm output.
24V DC alarm output.
Motor1 terminal is used for connecting the motor 1 installed
on the gate that opens later and close first. This terminal
connect 1st red wire (from your left hand side to right hand
side).
Motor2 Delay terminal is used for connecting the motor 2
installed on the gate that opens first and close later. This ter-
minal connect 1st blue wire ( from your left hand side to right
hand side). NOTE! If for single gate, the gate motor just can
connect the Motor2 Delay terminal.
AC24V input is used for connecting the transformer.
AC24V input is used for connecting the transformer.
Digital display is used for showing you the setting data.
INC+ is used for figure increase when setting the data.
FUN is used for recorde the data.
DEC- is used for figure decrease when setting the data.
Learning button is used for program/remove remote.
Control board wiring diagram
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
19
20
20 21
22
22
2324
25
26 27 28
29

EN
15
TURN OFF ELECTRICY BEFORE CONNECTING THE CONTROL BOARD
TO THE 230V AND TO ACCESSORIES.
!
123 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 2120 22
25 26
Please note that each external
accessory has its own wiring.
Please contact your retailer
for details of the appropriate
cabling.
External
accessory
Battery Battery
Electric
lock
Magnetic
lock
Photocell
Solar
Panel

EN
16
Red
Red
Blue
Blue

EN
17
Additional accessories

EN
18
Button «1» pressed to operate a single door
Press «2» to operate a double door
Programming a new remote control :
> First step:
Press the LEARN button on the control panel [29] for about 1 second, the LED will go out.
Press any button on the new remote control for about 2 seconds, the digital display will show the remote
control number while the LED indicator on the control panel will start flashing four times with a BEEP.
Note! After pressing the LEARN button, if you do not receive the new remote control signal within 5
seconds, the LED indicator will light up and you will be taken out of pairing mode.
To remove the remote control :
Press and hold the LEARN button for approximately 5 seconds. If you hear a beep and the LED indicator
lights up, you have successfully removed the remote control.
After power-up, the digital display checks itself from 00 to 99 with a BEEP. If the LED lights up and the
beep stops, the system is operating normally.
Basic operating mode :
Press and hold the [FUN] button until the digital display shows PO. This takes you to the menu setting.
You can adjust the [INC+] [DEC-] to increase or decrease the serial number or numerical value. Once the
data has been correctly set, press the [FUN] key to save the data. The beep indicates successful storage.
To move on to the next setting, press [INC+] or [DEC-] to select and confirm with [FUN] to enter the
menu number you want to set. For example, after saving the P0 value and pressing [FUN] to save it, the
digital display will still show the number P0, and if you want to go further to set P1, press [INC+], the
digital display will then show P1, then press [FUN] to enter the P1 setting.
When you have finished your settings, you can press the [LEARN] button to exit the menu setting.
Remote control
Setting of the control board

EN
19
MANUAL
SETTING
FUN RANGE


SETING


P0 Soft start time setting
start
0-6 s 2 s SOFT START
P1 Adjustment of the obstacle sensitivity of
motor 1 at low operating speed. 0-20Level 6th Level Ml LOW OVER
LOAD
P2 Adjustment of the obstacle sensitivity of
motor 1 at high speed. 0-20Level 10th Level M1 HI OVER
LOAD
P3 Adjustment of the obstacle sensitivity of
motor 2 at low speed. 6th Level 10th Level M2 LOW OVER
LOAD
P4 Motor 2 obstacle sensitivity
adjustment at high speed. 0-20Level 10th Level M2 HI OVER LOAD
P5 Adjustment of operating time at
speed.
0-33s 5s HI-SPEED
P6 Setting the automatic shutdown
of external devices
0-99s 10s CARD-CLOSE
AUTO CLOSE
P7 Setting the opening interval time
of the leaves
0-10s 0(close) OPEN DELAY
P8 Setting the closing interval time
interval
0-10s 0(close) CLOSE DELAY
P9 Setting the automatic closing 0-99s 0(close) AUTO CLOSE
PA Lamp/alarm output control setting
alarm
0
PC To choose single or double opening
opening
0-3 3
PD To select NC or NO operation of the
photocell in NC or NO
0-1 1(NC)
PE To select a single/double door
open
0-1 0(Double)
PO RESET 0-1 0(Double) RESET
Press [INC+] to increase the value by 1.
Press [DEC-] to decrease the value by 1.
Press [FUN] to save.

EN
20
Setting of the control board
Motor operation
1.To set the soft start time :
When the digital display shows P0, the actuator is in soft start time setting mode.
The option is adjustable from 0 to 6s (default 2s)
00: Soft start disabled.
2.To set the obstacle sensitivity level:
2a-- When the digital display shows P1, the actuator is in Motor 1 sensitivity setting mode at low
operating speed. Options range from level 0 to 20 (default 6).
The lower the value, the more sensitive the motor will be to obstacles.
2b-- When the digital display shows P2, the actuator is in high speed Motor 1 sensitivity setting mode.
Options range from level 0 to 20 (default 10).
The lower the value, the more sensitive the motor will be to obstacles.
2c-- When the digital display shows P3, the actuator is in low speed Motor 2 sensitivity setting mode.
Options range from level 0 to 20 (default 6).
The lower the value, the more sensitive the motor will be to obstacles.
2d-- When the digital display shows P4, the actuator is in high speed Motor 2 sensitivity setting mode.
Options range from level 0 to 20 (default 10).
The lower the value, the more sensitive the motor will be to obstacles.
3.To set the duration of high-speed operation :
When the digital display shows P5, the actuator is in high speed run time setting mode.
Options range from 0 to 33s (default 5s)
00: High speed disabled
4.To set the automatic close time for external devices:
When the digital display shows P6, the actuator is in the Auto Close Time setting mode for external
devices.
Options range from 0 to 99s (default 10s)
00: The gate will not close automatically.
- Start of cycle: Progressive speed (soft start)
- Middle of cycle: High speed
- End of cycle: Low speed
