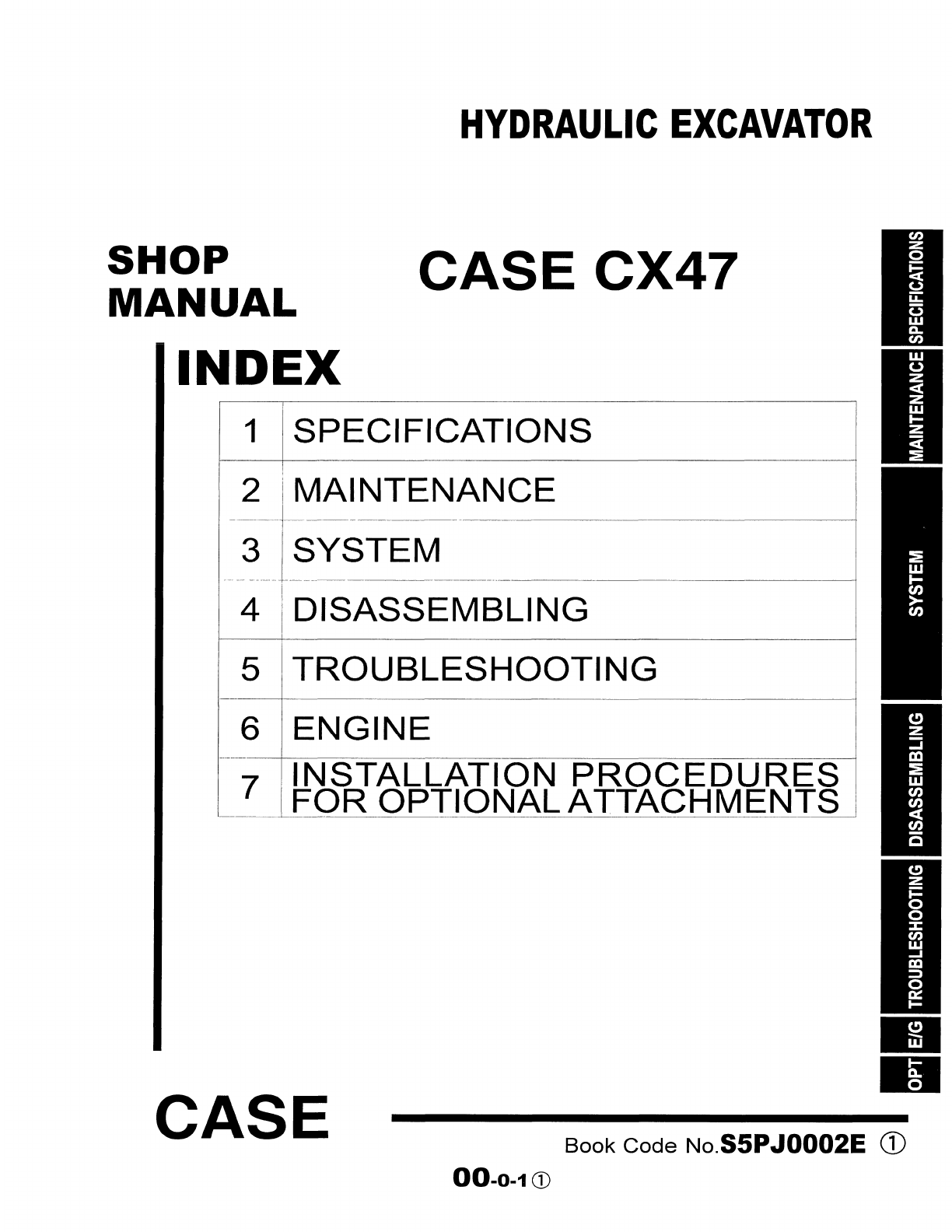

Case CX47 Install guide
HYDRAULICEXCAVATOR
SHOP
MANUAL CASE CX47
INDEX
1 SPECIFICATIONS
I
2 MAINTENANCE
3 SYSTEM
--- -- ------- f-
4 DISASSEMBLING
5 TROUBLESHOOTING
6 ENGINE
7 INSTALLATION PROCEDURES
FOR OPTIONAL ATTACHMENTS
-
Ill
CASE Book Code No.S5PJ0002E CD
00-0-1 CD
S5PJ0102E
2001-10
S5PJ0202E
2001-10
S5PJ0302E
2001-10
S5PJ1102E
2001-10
S5PJ1202E
2001-10
S5PJ1302E
2001-10
S5PJ2202E
2001-10
S5PJ2302E
2001-10
S5PJ2402E
2001-10
S5PJ3102E
2001-10
S5PJ3202E
2001-10
S5PJ3302E
2001-10
S5PJ3402E
2001-10
S5PJ4202E
2001-10
S5PJ4302E
2001-10
S5PJ4402E
2001-10
S5PJ5102E
2001-10
PJ02-00101
INDEX
Book Code No.
PH03-02001
PJ02-00101
00-1-1G)
CX47
Title
PRELIMINARY REMARKS

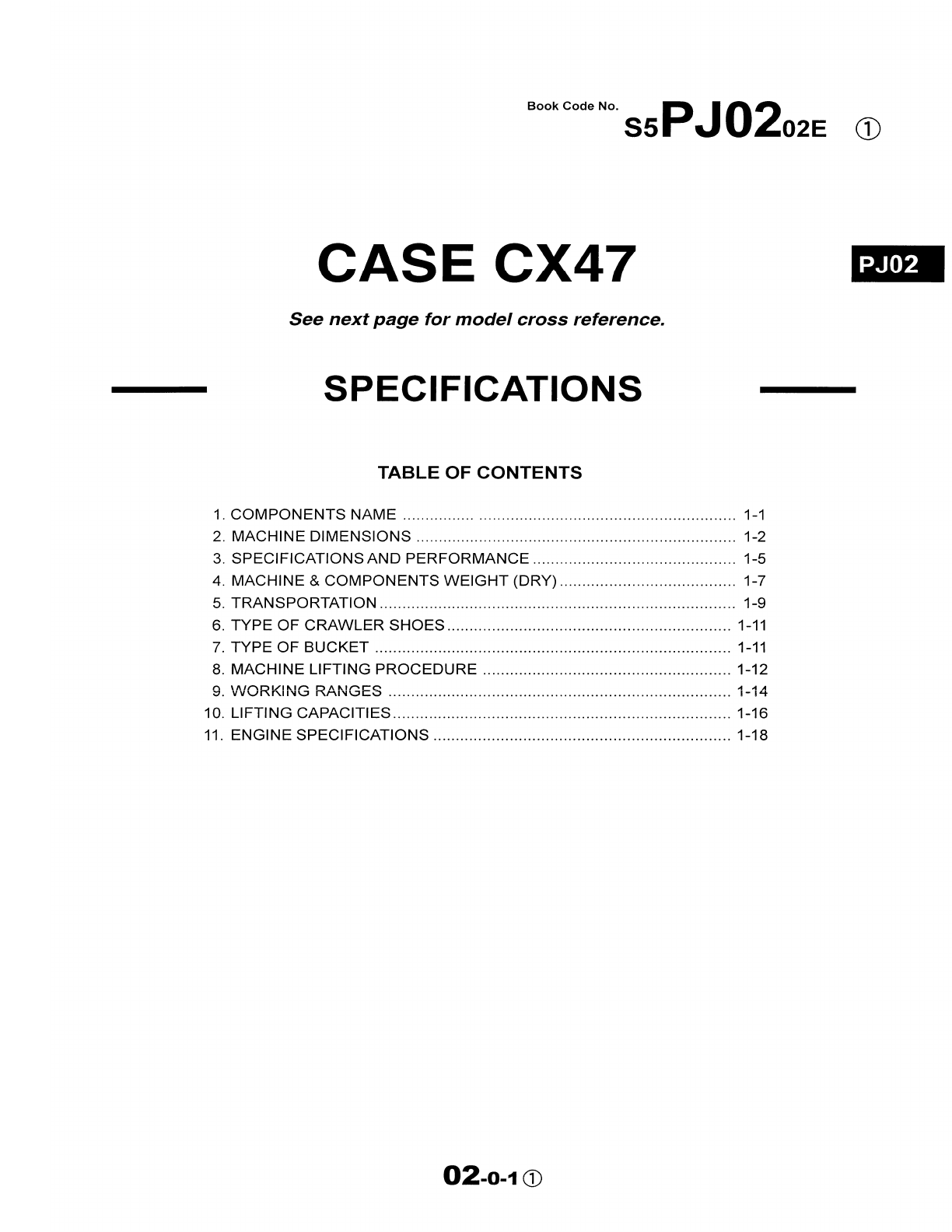

SPECIFICATIONS
ATTACHMENTDIMENSIONS
TOOLS
HYDRAULIC SYSTEM '
ELECTRICAL SYSTEM
WHOLE DISASSEMBLING ,
&
ASSEMBLING
ATTACHMENTS
ING
E
TRAVEL SYSTEM
HYDRAULIC SYSTEM
ELECTRICAL SYSTEM
ENGINE
ENGINE
APPLICABLEMACHINES
Index
No.
Find manuals at https://best-manuals.com
SAFETY PRECAUTIONS
1.1 GENERAL SAFETY INFORMATION
& WARNING &
Do Not operate or perform any maintenance on
this machine until all instructions found in the OP-
ERATION & MAINTENANCE MANUAL have been
thoroughly read and understood.
Improper operation or maintenance of this machine
may cause accidents and could result in serious
injury or death.
Always keep the manual in the operator's seat
pocket.
If it is missing or damaged, place an order with an
authorized CASE Distributor for a replacement.
If you have any questions, please consult an au-
thorized CASE Distributor.
1. Most accidents, which occur during operation, are
due to neglect of precautionary measures and
safety rules. Sufficient care should be taken to
avoid these accidents. Erroneous operation, lu-
brication or maintenance services are very dan-
gerous and may cause injury or death of person-
nel. Therefore all precautionary measures,
NOTES, DANGERS, WARNINGS and CAU-
TIONS contained in the manual and on the ma-
chine should be read and understood by all per-
sonnel before starting any work with or on the ma-
chine.
2. Operation, inspection, and maintenance should
be carefully carried out, and safety must be given
the first priority. Messages of safety are indicated
with marks. The safety information contained in
the manual is intended only to supplement safety
codes, insurance requirements, local laws, rules
and regulations.
3. Messages of safety appear in the manual and on
the machine :All messages of safety are identi-
fied by eighter word of "DANGER", "WARNING"
and "CAUTION".
a. DANGER- Indicates an imminently hazard-
ous situation which, if not avoided, will result in
death or serious injury and is represented as
follows:
& DANGER &
b. WARNING- Indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury and is represented as
follows:
'! WARNING ffi
c. CAUTION- Indicates a potentially hazardous
situation which, if not avoided, may result in mi-
nor or moderate injury. It may also be used to
alert against possible damage to the machine and
its components and is represented as follows:
4. It is very difficult to forecast every danger that may
occur during operation. However, safety can be
ensured by fully understanding proper operating
procedures for this machine according to meth-
ods recommended by CASE.
5. While operating the machine, be sure to perform
work with great care, so as not to damage the
machine, or allow accidents to occur.
6. Continue studying the manual until all Safety, Op-
eration and Maintenance procedures are com-
pletely understood by all persons working with the
machine.
1.2 SAFETY PRECAUTIONS
ffi WARNING ffi
The proper and safe lubrication and maintenance
for this machine, recommended by CASE, are out-
lined in the OPERATOR'S MANUAL for the ma-
chine.
Improper performance of lubrication or mainte-
nance procedures are dangerous and could result
in injury or death. Read and understand the
MANUAL before performing any lubrication or
maintenance.
The serviceman or mechanic may be unfamiliar with
many of the systems on this machine. This makes it
important to use caution when performing service
work. A knowledge of the system and or components
is important before the removal or disassembly of
any component.
Because of the size of some of the machine compo-
nents, the serviceman or mechanic should check the
weights noted in this manual. Use proper lifting pro-
cedures when removing any components. Weight of
components table is shown in the section ; SPECI-
FICATIONS.
00-1-2
Find manuals at https://best-manuals.com
SAFETY PRECAUTIONS
The following is a list of basic precautions that must
always be observed.
1. Read and understand all Warning plates and de-
cal on the machine before Operating, Maintaining
or Repairing this machine.
2. Always wear protective glasses and protective
shoes when working around machines. In par-
ticular, wear protective glasses when using ham-
mers, punches or drifts on any part of the ma-
chine or attachments. Use welders gloves, hood/
goggles, apron and the protective clothing appro-
priate to the welding job being performed. Do not
wear loose fitting or torn clothing. Remove all rings
from fingers, loose jewelry, confine long hair and
loose clothing before working on this machinery.
3. Disconnect the battery and hang a "Do Not Oper-
ate" tag in the Operators Compartment. Remove
ignition keys.
4. If possible, make all repairs with the machine
parked on a level, hard surface. Block the ma-
chine so it does not roll while working on or under
the machine. Hang a "Do Not Operate" tag in the
Operators Compartment.
5. Do not work on any machine that is supported
only by lift, jacks or a hoist. Always use blocks or
jack stands, capable of supporting the machine,
before performing any disassembly.
& WARNING &
Do not operate this machine unless you have read
and understand the instructions in the
OPERATOR'S MANUAL. Improper machine op-
eration is dangerous and could result in injury or
death.
6. Relieve all pressure in air, oil or water systems
before any lines, fittings or related items are dis-
connected or removed. Always make sure all
raised components are blocked correctly and be
alert for possible pressure when disconnecting any
device from a system that utilizes pressure.
7. Lower the bucket, dozer, or other attachments to
the ground before performing any work on the ma-
chine. If this cannot be done, make sure the
bucket, dozer, ripper or other attachment is
blocked correctly to prevent it from dropping un-
expectedly.
8. Use steps and grab handles when mounting or
dismounting a machine. Clean any mud or de-
bris from steps, walkways or work platforms be-
fore using. Always face to the machine when us-
ing steps, ladders and walkways. When it is not
possible to use the designed access system, pro-
vide ladders, scaffolds, or work platforms to per-
form safe repair operations.
9. To avoid back injury, use a hoist when lifting com-
ponents which weigh 20kg (45Ibs) or more. Make
sure all chains, hooks, slings, etc., are in good
condition and are the correct capacity. Be sure
hooks are positioned correctly. Lifting eyes are
not to be side loaded during a lifting operation.
10. Toavoid burns, be alert for hot parts on machines
which have just been stopped and hot fluids in
lines, tubes and compartments.
11. Be careful when removing cover plates. Gradu-
ally back off the last two capscrews or nuts lo-
cated at opposite ends of the cover or device and
carefully pry cover loose to relieve any spring or
other pressure, before removing the last two
capscrews or nuts completely.
12. Be careful when removing filler caps, breathers
and plugs on the machine. Hold a rag over the
cap or plug to prevent being sprayed or splashed
by liquids under pressure. The danger is even
greater if the machine has just been stopped
because fluids can be hot.
13.Always use the proper tools that are in good con-
dition and that are suited for the job at hand. Be
sure you understand how to use them before
performing any service work.
14. Reinstall all fasteners with the same part number.
Do not use a lesser quality fastener if replace-
ments are necessary.
15. Repairs which require welding should be per-
formed only with the benefit of the appropriate
reference information and by personnel ad-
equately trained and knowledgeable in welding
procedures. Determine type of metal being
welded and select correct welding procedure and
electrodes, rods or wire to provide a weld metal
strength equivalent at least to that of the parent
metal. Make sure to disconnect battery before
any welding procedures are attempted.
00-1-3
Find manuals at https://best-manuals.com
SAFETY PRECAUTIONS

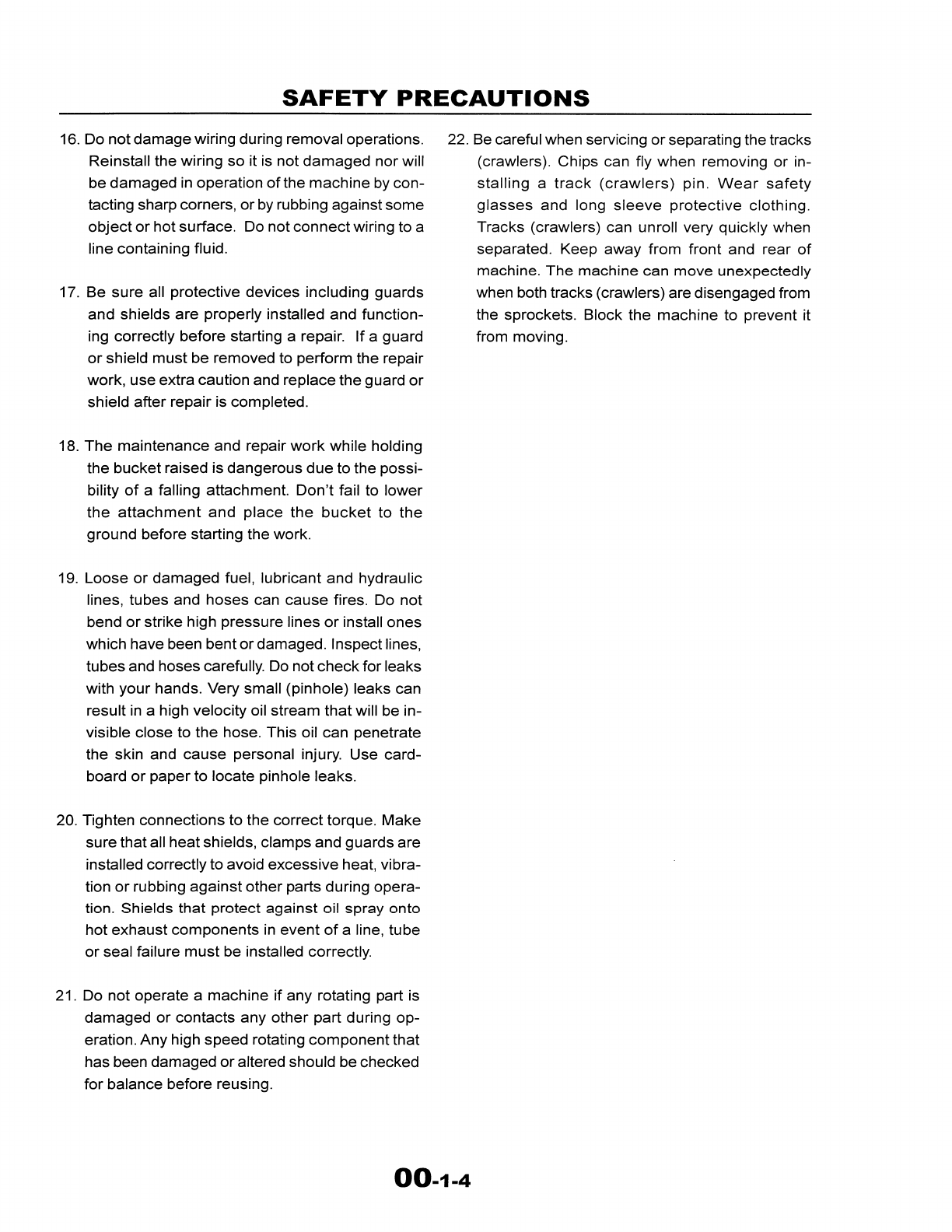

16. Do not damage wiring during removal operations.
Reinstall the wiring so it is not damaged nor will
be damaged in operation of the machine by con-
tacting sharp corners, or by rubbing against some
object or hot surface. Do not connect wiring to a
line containing fluid.
17. Be sure all protective devices including guards
and shields are properly installed and function-
ing correctly before starting a repair. If a guard
or shield must be removed to perform the repair
work, use extra caution and replace the guard or
shield after repair is completed.
18. The maintenance and repair work while holding
the bucket raised is dangerous due to the possi-
bility of a falling attachment. Don't fail to lower
the attachment and place the bucket to the
ground before starting the work.
19. Loose or damaged fuel, lubricant and hydraulic
lines, tubes and hoses can cause fires. Do not
bend or strike high pressure lines or install ones
which have been bent or damaged. Inspect lines,
tubes and hoses carefully. Do not check for leaks
with your hands. Very small (pinhole) leaks can
result in a high velocity oil stream that will be in-
visible close to the hose. This oil can penetrate
the skin and cause personal injury. Use card-
board or paper to locate pinhole leaks.
20. Tighten connections to the correct torque. Make
sure that all heat shields, clamps and guards are
installed correctly to avoid excessive heat, vibra-
tion or rubbing against other parts during opera-
tion. Shields that protect against oil spray onto
hot exhaust components in event of a line, tube
or seal failure must be installed correctly.
21. Do not operate a machine if any rotating part is
damaged or contacts any other part during op-
eration. Any high speed rotating component that
has been damaged or altered should be checked
for balance before reusing.
22. Be careful when servicing or separating the tracks
(crawlers). Chips can fly when removing or in-
stalling a track (crawlers) pin. Wear safety
glasses and long sleeve protective clothing.
Tracks (crawlers) can unroll very quickly when
separated. Keep away from front and rear of
machine. The machine can move unexpectedly
when both tracks (crawlers) are disengaged from
the sprockets. Block the machine to prevent it
from moving.
00-1-4
Find manuals at https://best-manuals.com
BookCodeNo. ssPJ0102ECD
mDI
CASE CX47

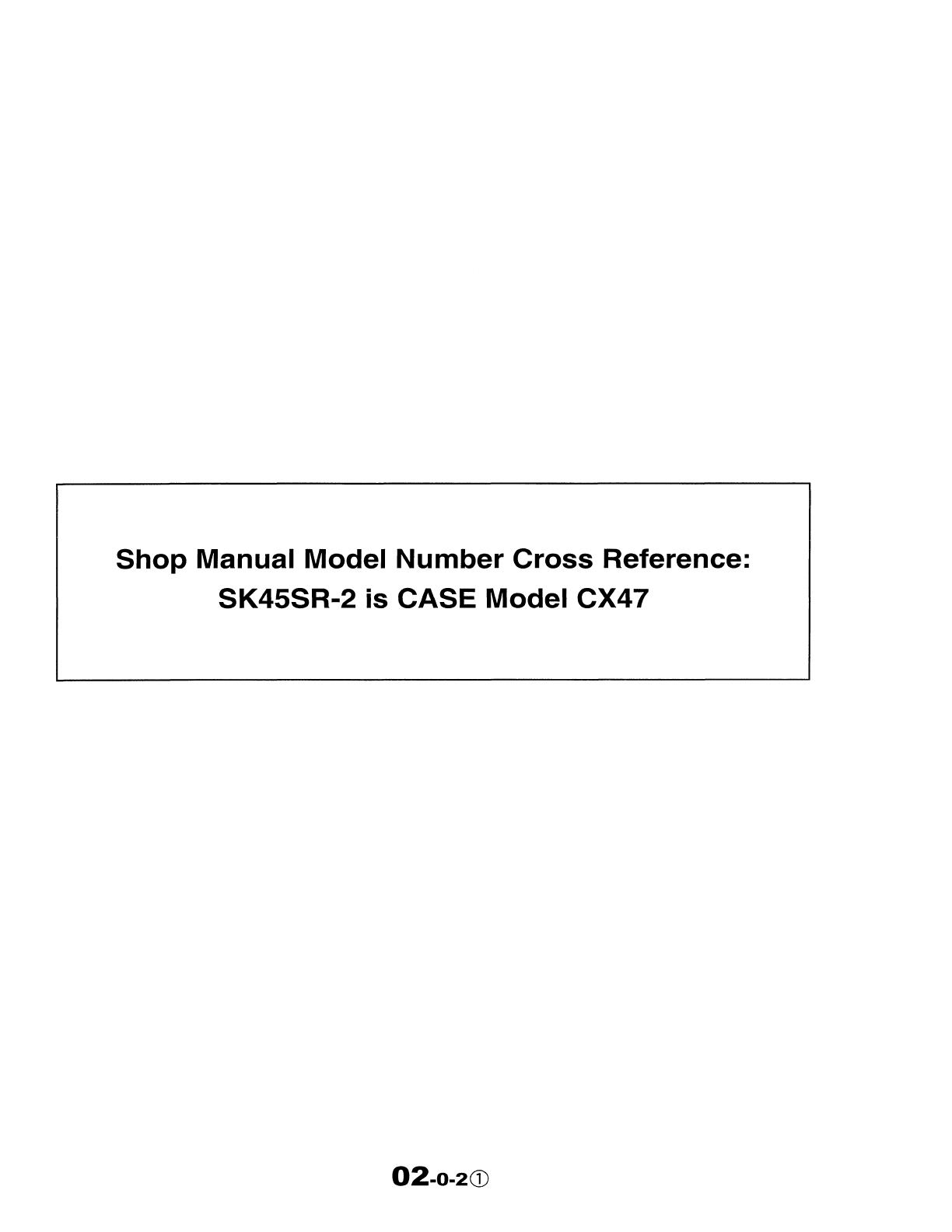

See next page for model cross reference.
PRELIMINARY REMARKS
TABLE OF CONTENTS
1. GENERAL PRECAUTIONS FOR REPAIRS ........................................... 1-1
2. ESCAPING PROCEDURE IN CASE OF EMERGENCY ........................ 1-4

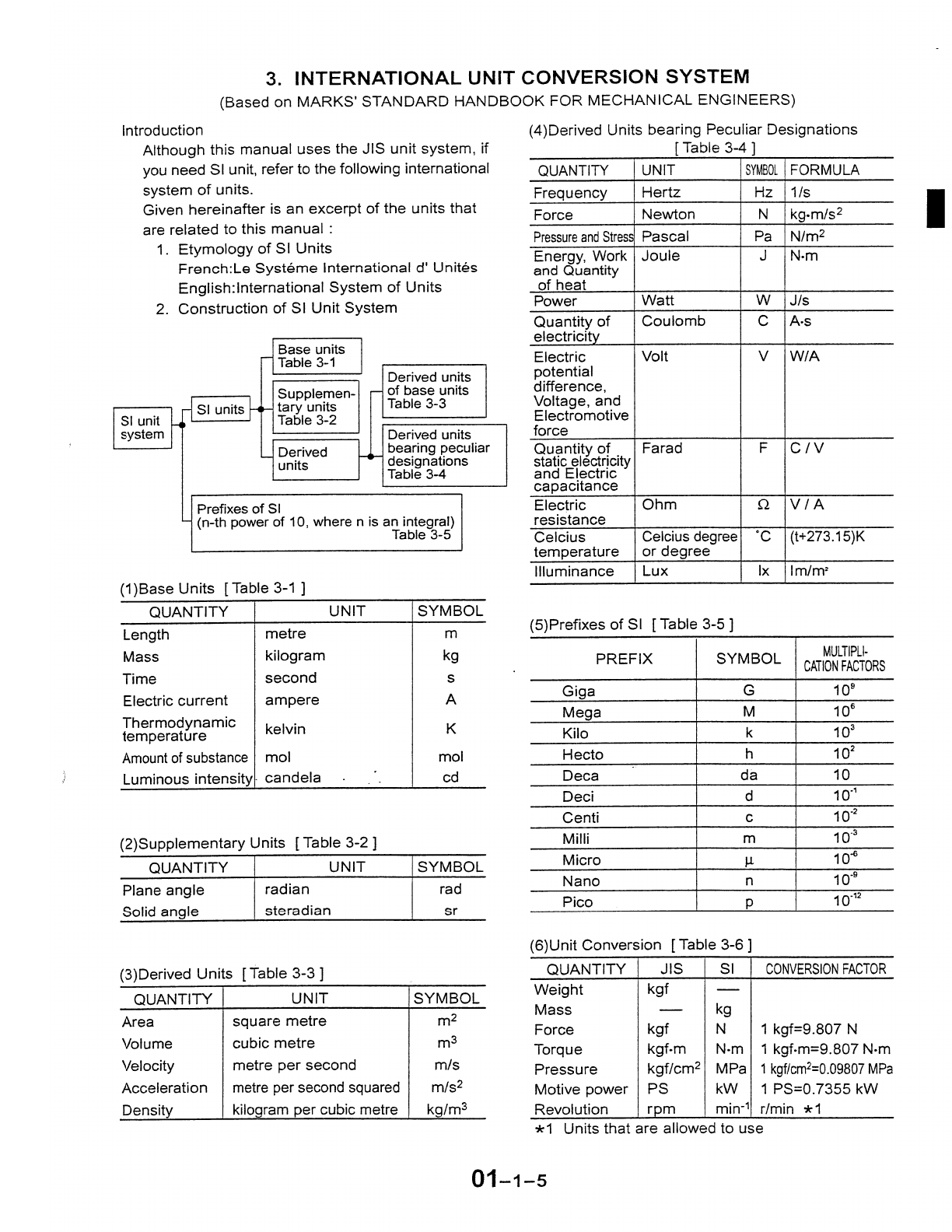

3. INTERNATIONAL UNIT CONVERSION SYSTEM ................................. 1-5
01-0-1 CD
Find manuals at https://best-manuals.com
1. GENERAL PRECAUTIONS FOR REPAIRS
w
Roi11dOper111or'sM11111111I
belorediumMl'llbl1ng
1.1 PREPARATION BEFORE
DISASSEMBLING
(1) Understanding operating procedure
Read OPERATION & MAINTENANCE MANUAL
carefully to understand the operating procedure.
(2) Cleaning machines
Remove soil, mud, and dust from the machine
before carrying it into the service shop to prevent
loss of work efficiency, damage of parts, and
difficulty in rust prevention and dust protection
while reassembling.
(3) Inspecting machines
Identify the parts to be disassembled before
starting work, determine the disassembling
procedure by yourself considering the workshop
situations etc., and request procurement of
necessary parts in advance.
(4) Recording
Record the following items for communication
and prevention of recurring malfunction.
1) Inspection date and place
2) Model name, applicable machine number, and
hour meter read
3) Trouble condition, location and cause.
4) Visible Oil leakage, water leakage and damage
5) Clogging of filters, oil level, oil quality, oil
contamination and loosening of connections
6) Result of consideration if any problem exists
based on the operation rate per month calculated
from hoL:Jrmeter indication after the last inspection
date.
(5) Arrangement and cleaning in service shop
1) Tools required for repair work.
2) Prepare space to place the disassembled parts.
3) Prepare oil containers for spilling oil etc.
A
WARNING
1.2 SAFETY IN DISASSEMBLING
AND ASSEMBLING
1) Wear appropriate clothes with long sleeves,
safety shoes, safety helmet and protective
glasses.
2) Suspend warning tag "DO NOT OPERATE" from
the doorknob or the operating lever, and have a
preliminary meeting before starting work.
3) Stop the engine before starting inspection and
maintenance to prevent the operator being
caught in machine.
4) Identify the location of a first-aid kit and a fire
extinguisher, and also where to make contact in
a state of emergency.
5) Choose a hard, level and safe place, and place
the attachment on the ground securely.
·6) Use a lifter such as a crane to remove heavy
parts (20 kg [45 lbs] or more) from the machine.
7) Use proper tools, and replace or repair defective
tools.
8) Support the machine and attachment with
supports or blocks if the work is performed in the
lifted condition.
1.3 DISASSEMBLING AND
ASSEMBLING HYDRAULIC
EQUIPMENT - _
(1) Removing hydraulic equipment
1) Before disconnecting pipes, release the hydraulic
pressure of the system, or open the return side
cover and take out the filter.
2) Carefully drain oil of the removed pipes into a
containers without spilling on the floor.
3) Apply plugs or caps on the pipe ends to avoid oil
spillage and dust intrusion.
4) Clean off the external surface of the equipment
before disassembling, and drain hydraulic and
gear oil before placing it on the workbench.
(2) Disassembling hydraulic equipment
1) Do not disassemble, reassemble or modify the
hydraulic equipment without the permission of
the manufacturer, who is not responsib!e for the
performance and function.of the product after
reassembling.
2) When disassembling and reassembling for
unavoidable reason, refer the work to qualified
personnel who have the specific knowledge or
completed the parts service training.
3) Provide matching marks to facilitate reassembling
work.
4) Before starting the work, read the manual of
disassembling procedure, if it is provided, and
decide whether the work can be performed by
yourself.
5) _Usethe special jig and tools without fail if they
are specified.
6) If it is hard to remove a part according to the
procedure, do not try it by force but investigate
the cause.
01-1-1
I
Find manuals at https://best-manuals.com

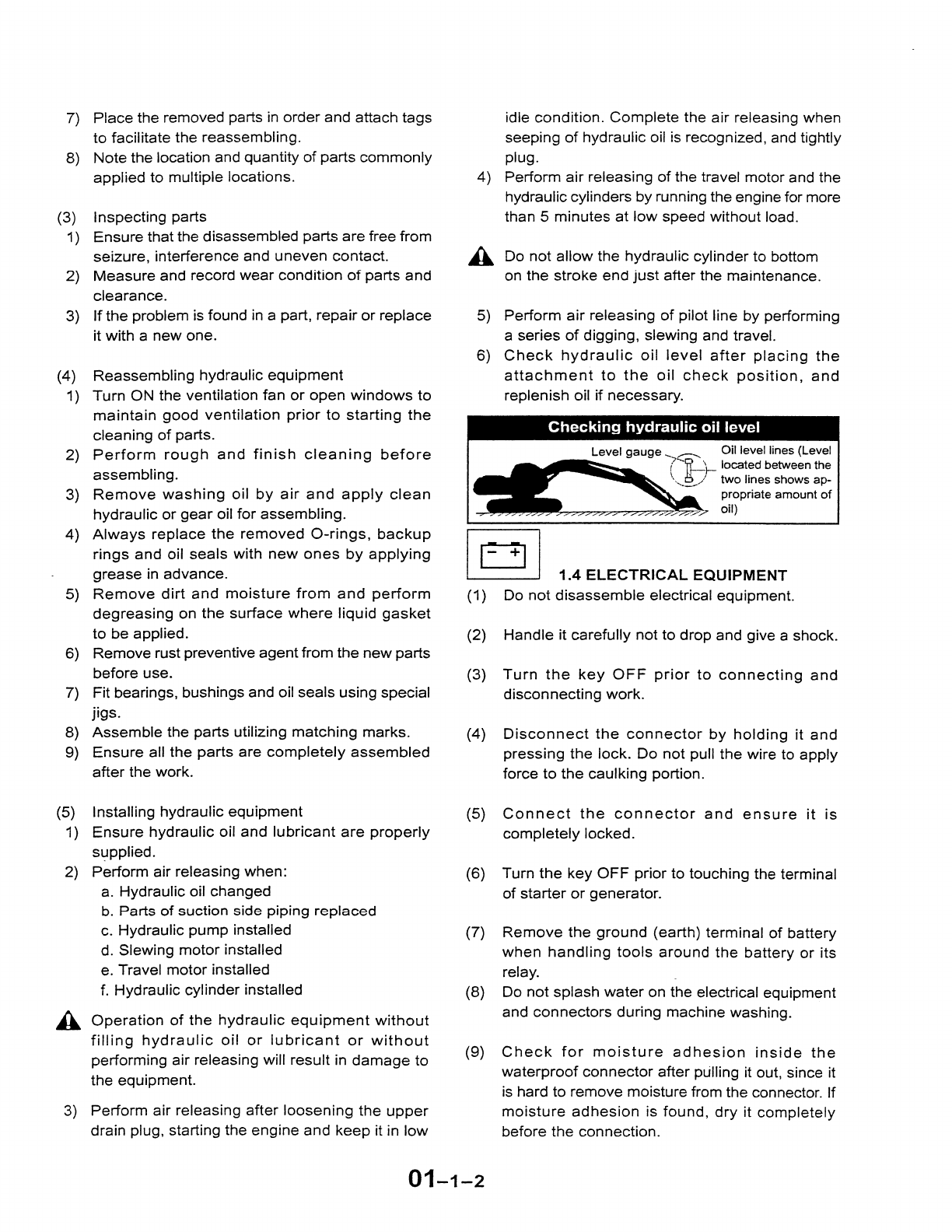

7) Place the removed parts in order and attach tags
to facilitate the reassembling.
8) Note the location and quantity of parts commonly
applied to multiple locations.
(3) Inspecting parts
1) Ensure that the disassembled parts are free from
seizure, interference and uneven contact.
2) Measure and record wear condition of parts and
clearance.
3) If the problem is found in a part, repair or replace
it with a new one.
(4) Reassembling hydraulic equipment
1) Turn ON the ventilation fan or open windows to
maintain good ventilation prior to starting the
cleaning of parts.
2) Perform rough and finish cleaning before
assembling.
3) Remove washing oil by air and apply clean
hydraulic or gear oil for assembling.
4) Always replace the removed O-rings, backup
rings and oil seals with new ones by applying
grease in advance.
5) Remove dirt and moisture from and perform
degreasing on the surface where liquid gasket
to be applied.
6) Remove rust preventive agent from the new parts
before use.
7) Fit bearings, bushings and oil seals using special
jigs.
8) Assemble the parts utilizing matching marks.
9) Ensure all the parts are completely assembled
after the work.
(5) Installing hydraulic equipment
1) Ensure hydraulic oil and lubricant are properly
supplied.
2) Perform air releasing when:
a. Hydraulic oil changed
b. Parts of suction side piping replaced
c. Hydraulic pump installed
d. Slewing motor installed
e. Travel motor installed
f. Hydraulic cylinder installed
A Operation of the hydraulic equipment without
filling hydraulic oil or lubricant or without
performing air releasing will result in damage to
the equipment.
3) Perform air releasing after loosening the upper
drain plug, starting the engine and keep it in low
idle condition. Complete the air releasing when
seeping of hydraulic oil is recognized, and tightly
plug.
4) Perform air releasing of the travel motor and the
hydraulic cylinders by running the engine for more
than 5 minutes at low speed without load.
A Do not allow the hydraulic cylinder to bottom
on the stroke end just after the maintenance.
5) Perform air releasing of pilot line by performing
a series of digging, slewing and travel.
6) Check hydraulic oil level after placing the
attachment to the oil check position, and
replenish oil if necessary.
Checking hydraulic oil level
1.4 ELECTRICAL EQUIPMENT
(1) Do not disassemble electrical equipment.
(2) Handle it carefully not to drop and give a shock.
(3) Turn the key OFF prior to connecting and
disconnecting work.
(4) Disconnect the connector by holding it and
pressing the lock. Do not pull the wire to apply
force to the caulking portion.
(5) Connect the connector and ensure it is
completely locked.
(6) Turn the key OFF prior to touching the terminal
of starter or generator.
(7) Remove the ground (earth} terminal of battery
when handling tools around the battery or its
relay.
(8) Do not splash water on the electrical equipment
and connectors during machine washing.
(9) Check for moisture adhesion inside the
waterproof connector after pulling it out, since it
is hard to remove moisture from the connector. If
moisture adhesion is found, dry it completely
before the connection.
01-1-2
Find manuals at https://best-manuals.com

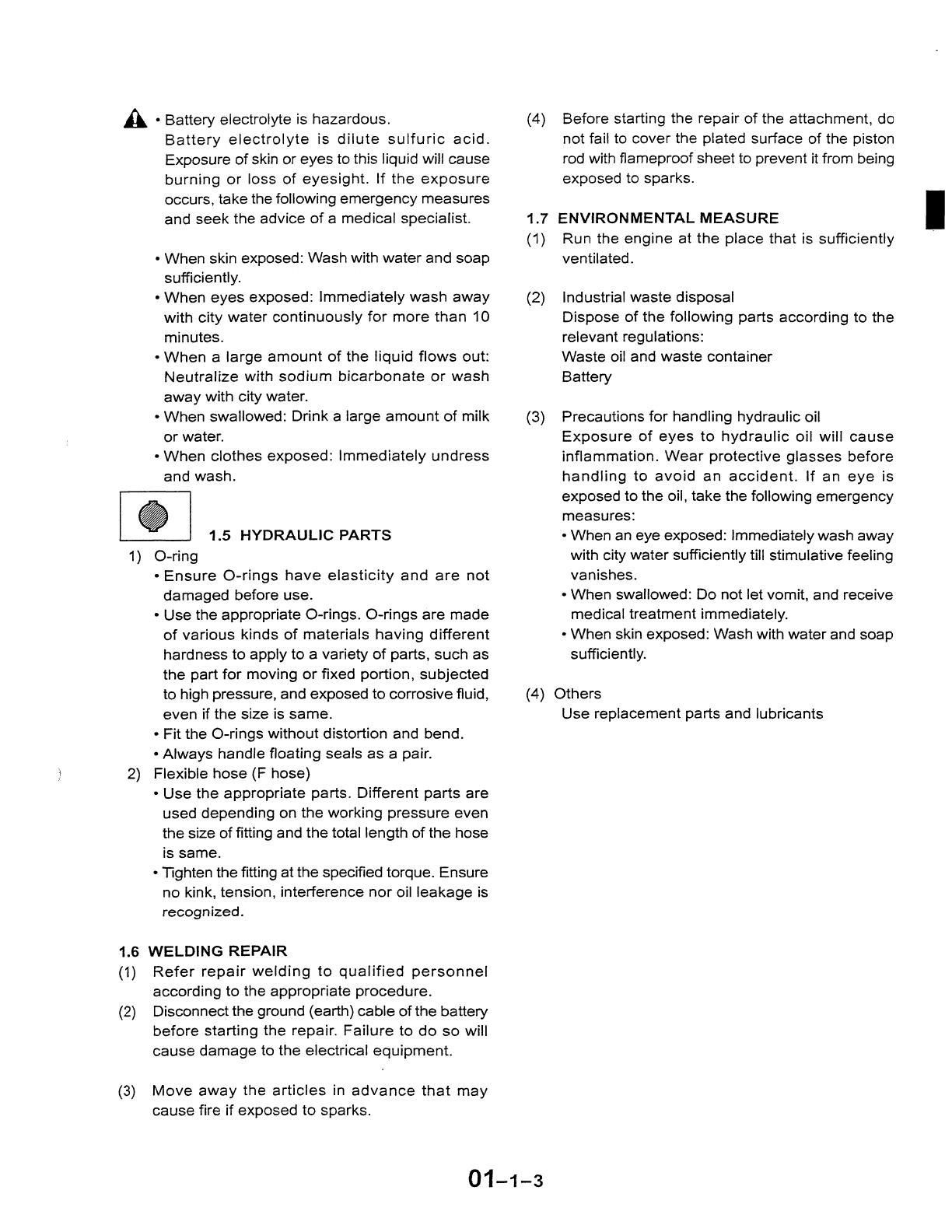

A •Battery electrolyte is hazardous.
Battery electrolyte is dilute sulfuric acid.
Exposure of skin or eyes to this liquid will cause
burning or loss of eyesight. If the exposure
occurs, take the following emergency measures
and seek the advice of a medical specialist.
• When skin exposed: Wash with water and soap
sufficiently.
• When eyes exposed: Immediately wash away
with city water continuously for more than 10
minutes.
• When a large amount of the liquid flows out:
Neutralize with sodium bicarbonate or wash
away with city water.
• When swallowed: Drink a large amount of milk
or water.
• When clothes exposed: Immediately undress
and wash.
1.5 HYDRAULIC PARTS
1) 0-ring
• Ensure 0-rings have elasticity and are not
damaged before use.
• Use the appropriate 0-rings. 0-rings are made
of various kinds of materials having different
hardness to apply to a variety of parts, such as
the part for moving or fixed portion, subjected
to high pressure, and exposed to corrosive fluid,
even if the size is same.
• Fit the 0-rings without distortion and bend.
• Always handle floating seals as a pair.
2) Flexible hose (F hose)
• Use the appropriate parts. Different parts are
used depending on the working pressure even
the size of fitting and the total length of the hose
is same.
• Tighten the fitting at the specified torque. Ensure
no kink, tension, interference nor oil leakage is
recognized.
1.6 WELDING REPAIR
(1) Refer repair welding to qualified personnel
according to the appropriate procedure.
(2) Disconnect the ground (earth) cable of the battery
before starting the repair. Failure to do so will
cause damage to the electrical equipment.
(3) Move away the articles in advance that may
cause fire if exposed to sparks.
(4) Before starting the repair of the attachment, do
not fail to cover the plated surface of the piston
rod with flameproof sheet to prevent it from being
exposed to sparks.
1.7 ENVIRONMENTAL MEASURE
(1) Run the engine at the place that is sufficiently
ventilated.
(2) Industrial waste disposal
Dispose of the following parts according to the
relevant regulations:
Waste oil and waste container
Battery
(3) Precautions for handling hydraulic oil
Exposure of eyes to hydraulic oil will cause
inflammation. Wear protective glasses before
handling to avoid an accident. If an eye is
exposed to the oil, take the following emergency
measures:
• When an eye exposed: Immediately wash away
with city water sufficiently till stimulative feeling
vanishes.
• When swallowed: Do not let vomit, and receive
medical treatment immediately.
• When skin exposed: Wash with water and soap
sufficiently.
(4) Others
Use replacement parts and lubricants
01-1-3
I
2. ESCAPING PROCEDURE IN CASE OF EMERGENCY
2.1 WHEN CAB DOOR DOES NOT OPEN ;(CAB
spec. only)
(1) Escape from the front window.
(2) Escape from skylight.
(3) When front window and skylight do not open ;
The life hammer is always reserved on the rear
left side of cab. Break the glass on the rear side
of cab, and escape from there.
• Break the window glass with care to protect
eyes, and don't fail to break the window on which
label "Emergency exit" is stuck.
(4) In addition, the life hammer is equipped with a
cutter on the lever side to cut the seat belt, ·etc.
2.2 WHEN MACHINE CAN NOT GO OUT FROM
THE SOFT GROUND BY ITSELF ;
1. If the machine should become stuck in soft
soil areas it may be necessary to tow the
machine. Attach a wire rope or chain, with the
capacity to pull the machine out, to the lower
frame towing eyes.
2. Attach other end to the vehicle used to pull the
machine. Operate the Machine's Travel Lever in
the proper direction while pulling with the other
vehicle.
LL WARNING LL
• While towing, do not enter between the machine
and towing vehicle.
• Do not apply a shock load onto the towing rope.
• Make sure to always use towing eyes (shackles)
or the towing.
• Keep the wire rope horizontally, and
perpendicularly to the crawler frame.
•Tow the machine slowly at low speed mode.
• For the towing of the machine body, provide pads
to be applied to the corner of crawler frame to
prevent the wire rope and crawler frame from any
damages.
I
FIG. 2-1 LIFE HAMMER AND "EMERGENCY EXIT"
LABEL
FIG. 2-2 TOW MACHINE PROPERLY
01-1-4
3. INTERNATIONAL UNIT CONVERSION SYSTEM
(Based on MARKS' STANDARD HANDBOOK FOR MECHANICAL ENGINEERS)
Introduction
Although this manual uses the JIS unit system, if
you need SI unit, refer to the following international
system of units.
Given hereinafter is an excerpt of the units that
are related to this manual :
1. Etymology of SI Units
French:Le Systeme International d' Unites
English:lnternational System of Units
2. Construction of SI Unit System
SI unit
system SI units
Base units
Table3-1
Supplemen-
tary units
Table3-2
Derived
units
Prefixesof SI
Derived units
of base units
Table3-3
Derivedunits
bearing peculiar
designations
Table
3-4
(n-th powerof
10,
where n is an integral)
Table3-5
(1)Base Units [ Table 3-1 ]
QUANTITY UNIT
Length metre
Mass kilogram
Time second
Electric current ampere
Thermodynamic kelvin
temperature
Amountofsubstance mol
Luminous intensity . candela
(2)Supplementary Units [ Table 3-2 ]
QUANTITY UNIT
Plane angle
Solid angle radian
steradian
(3)Derived Units [Table 3-3 ]
QUANTITY UNIT
Area
Volume
Velocity
Acceleration
Density
square metre
cubic metre
metre per second
metreper second squared
kilogram per cubic metre
SYMBOL
m
kg
s
A
K
mol
cd
SYMBOL
rad
sr
SYMBOL
m2
m3
m/s
m/s
2
kg/m
3
(4)Derived Units bearing Peculiar Designations
[Table 3-4]
QUANTITY UNIT SYMBOL
FORMULA
Frequency Hertz Hz 1/s
Force Newton N kg-m/s
2
Pressure
and
StresiPascal Pa N/m
2
Energy, Work Joule J N-m
and Quantity
of heat
Power Watt
w
J/s
Quantity of Coulomb C A-s
electricitv
Electric Volt V W/A
potential
difference,
Voltage, and
Electromotive
force
Quantity of Farad F C/V
static electricity
and Electric
capacitance
Electric Ohm
n
V/A
resistance
Celcius Celcius degree
·c
(t+273.15)K
temperature or degree
llluminance Lux Ix lm/m•
(5)Prefixes of SI [ Table 3-5]
PREFIX SYMBOL MULTIPLI-
CATIONFACTORS
Giga G 109
Mega
M
10
6
Kilo k 103
Hecto h 102
..
Deca da 10
Deci d 10·1
Centi
C
10·2
Milli m 10·3
Micro
µ
10~
Nano n 10-9
Pico p 10-12
(6)Unit Conversion [ Table 3-6]
QUANTITY JIS SI CONVERSIONFACTOR
Weight kgf
-
Mass -kg
Force kgf N 1 kgf=9.807 N
Torque kgf-m N-m 1 kgf-m=9.807 N-m
Pressure kgf/cm
2
MPa 1kgf/cm
2
=0.09807
MPa
Motive power PS kW 1 PS=0.7355 kW
Revolution rom min-
1
r/min *1
*1 Units that are allowed to use
01-1-5
I
(?)Unit conversion logarithmic chart
IFORCE I
10
I
I
1
jTORQUEj
'.10
I
I
1
IPRESSURE I
0.1
I I
I I
1
50 100
I I JI I I
r r I I rI
5 10
50 100
I II II I
r " ••1
5 10
1
I I I I I
1 r I r I
10
1 N=0.10197 kgf
500 1,000
I I I I I I I I
r r I rrrrI
50 100
1 kgf=9.807 N
1 N-m=O.102 kgf-m
I I I I I I .(
1 r I r 1 1 1 I
1 kgf-m=9.807 N-m
1 MPa=10.197 kgf/cm2
10
I I
I I r 1 1 1 I
100
1 kgf/cm 2=0.09807 MPa
01-1-6
5,000 10,000 20,000 N
I, I I I I , ·, I ·,
Ir ''''f r I
500 1,000 2,000 kgf
5,000 10,000 20,000 N-m
.·, I JI ,I I I
I I I I I., I I
500 1,000 2,000 kgf-m
100 MPa
I I I I I
I I I I I
1,000 kgf/cm2
BookCodeNo. ssPJ0202ECD
CASE CX47 llmll
See next page for model cross reference.
SPECIFICATIONS
TABLE OF CONTENTS
1. COMPONENTS NAME ......................................................................... 1-1
2. MACHINE DIMENSIONS ....................................................................... 1-2
3. SPECIFICATIONS AND PERFORMANCE ............................................. 1-5
4. MACHINE & COMPONENTS WEIGHT (DRY) ....................................... 1-7
5. TRANSPORTATION ............................................................................... 1-9
6. TYPE OF CRAWLER SHOES ............................................................... 1-11
7. TYPE OF BUCKET ............................................................................... 1-11
8. MACHINE LIFTING PROCEDURE ....................................................... 1-12
9. WORKING RANGES ............................................................................ 1-14
10. LIFTING CAPACITIES ........................................................................... 1-16
11. ENGINE SPECIFICATIONS .................................................................. 1-18
02-0-1G)
Shop Manual Model Number Cross Reference:
SK45SR-2 is CASE Model CX47
02-o-2G)
1. COMPONENTS NAME
ARM CYLINDER BOOM
ARM
BUCKET
CYLINDER
IDLER
LINK
BUCKET
LINK
BUCKET
BOOM
CYLINDER
LEFT OPERATING
LEVER
SAFETY LOCK LEVER
DOZER CYLINDER
) RUBBER CRAWLER SHOEIDLE
CONTROL VAL:
IDLERADJU
CANOPY
RIGHT OPERATING SWING CYLINDER
• LEVER DOZER OPERATING LEVER
FUEL TANK
HYDRAULIC TANK
THROTTLE
-?~ LEVER
DIATOR
IR
LEANER
UFFLER
UPPERROL
ENGINE
SLEWING MOTOR
BATTERY
HYDRAULIC PUMP
LOWER ROLLER
SLEWING RING
02-1-1
SWIVEL JOINT
TRAVEL MOTOR
I
■
SK40SR-2
A. CANOPY
B.CAB
r
Lt) ......
0)
ct.

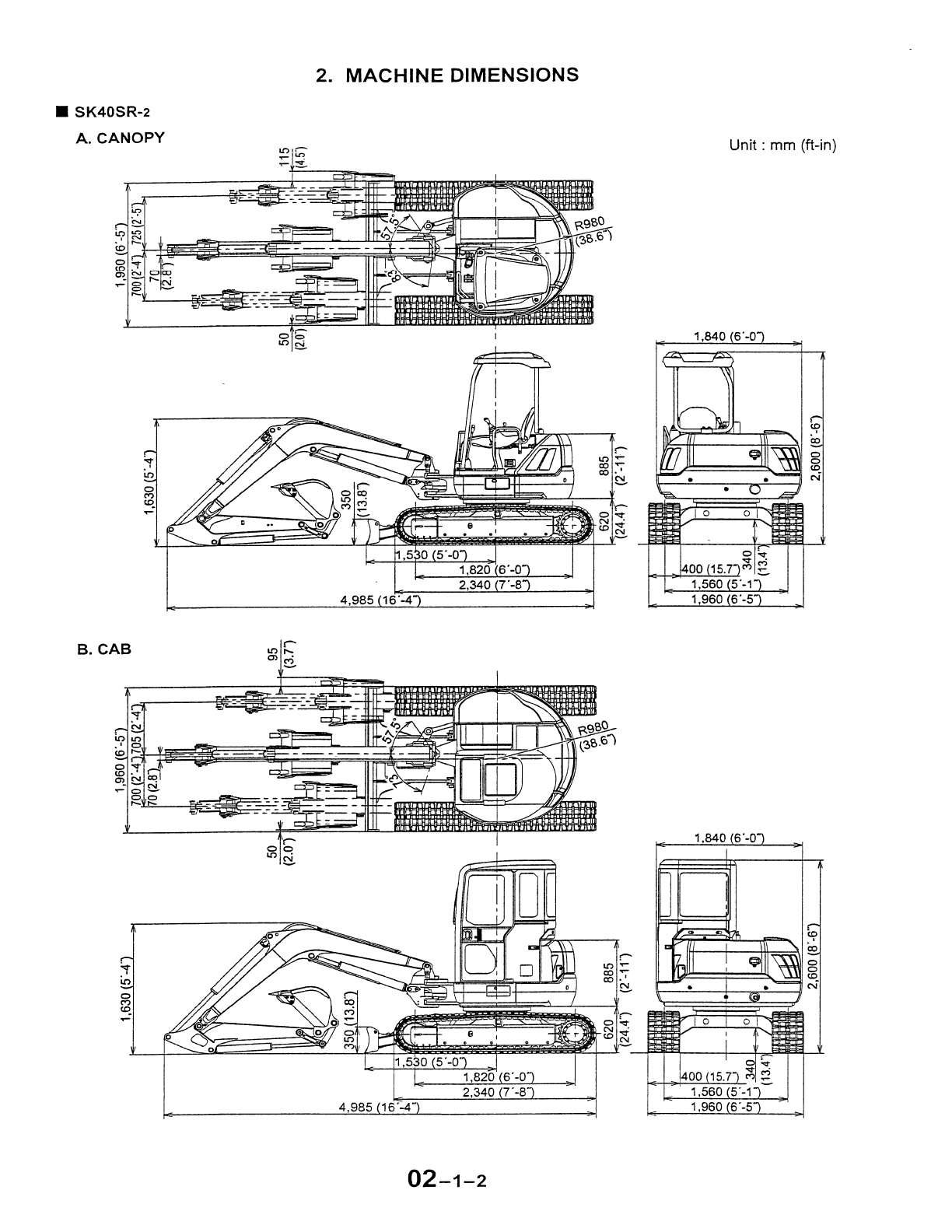

2. MACHINE DIMENSIONS
T-8
02-1-2
r
Lt) ....
c:o.....
c:o•'
~
Unit : mm (ft-in)
1,840 5·-0
1,840 s·-o
400 15.7
1,sso s·-1
1,960 s·-s
■
SK45SR-2
[ill
Model
A.CANOPY
"?
"'
LO .,,
.•
~
(0
g
:'i
r
O')
N 0CO
.,_:8 ,_~
~
B.CAB
qi
i.n
f5
,_
4,080 13'-5
5,300 1T-5
4,080 13·.5
5,300 1T-5
Unit : mm (ft-in)
I
1,840
e·-o
02-1-3
■
SK45SR-2 IKAI I Model
A. CANOPY
B.CAB
r-
LO 0
N,....:
4,080
4,080 13"-5
5,300 17"-5
Unit : mm (ft-in)
1,840 6"-0
(15.T) 1,s60 s·-1
1,960 6"-5
1,840 a·-o
02-1-4
Other Case Excavator manuals
