Case SDX30 Operating instructions

SDX30/SDX40
Single Disk No-Till Air Drill
Repair Manual
87605427
Issued May, 2007
Replaces 6-12432

REPAIR PARTS
i
REPAIR PART IDENTIFICATION - SDX30
The drillisidentifiedbytheuseofa ProductIdentification
Number Plate like the one shown.
The plate is located on the front bar of the machine. This
number should be provided when requesting parts or
service.

REPAIR PARTS
ii
REPAIR PART IDENTIFICATION - SDX40
The drill isidentified bythe use of aProduct Identification
Number Plate like the one shown.
The plate is located on the front bar of the machine. This
number should be provided when requesting parts or
service.

SDX30/SDX40
Single Disk No-Till Air Drill
SERVICE MANUAL
iii
TABLE OF CONTENTS
Pages listed are a table of contents for that section
Section-Title ........................... Page
1- SAFETY .............................. 1-1
Safety
Decal Locations
Reflector Decals, Slow Moving Vehicle Sign and
Transport Lighting
2- MECHANICAL SERVICE ................ 2-1
General Service Information
Specifications
Locking Openers / Subbar for Service
Replacing the Serial / PIN Plate
Grease Locations and General Maintenance
Storage
Welding Procedures
SDX30 Frame Brace Kit
Fold Linkages
Wheel Bolt Torque
Hub / Spindles / Wheels
3- HYDRAULIC SYSTEM SERVICE ........ 3-1
Hydraulics
Hydraulic Cylinder Seal Replacement
Hydraulic Cylinder Components
Wing Lift Hydraulic Schematics
Subbar Hydraulics
4- ELECTRICAL SYSTEM SERVICE ....... 4-1
Electrical System Service
Clutches and Work Switch
Connector Service Kit
5- OPENER SERVICE .................... 5-1
Troubleshooting Tables
Adjustments
Opener Service
6- AIR SYSTEM SERVICE ................. 6-1
Troubleshooting Table
Single Rank Operation
Setting the Fan Speed - Concord Air Systems
Hoses
Theory of Operation
To Determine Adequate Carrying Velocities
Air System Components - Concord Air System
Air System Components - ADX Air System
7- ENDMARKER SERVICE ................ 7-1
Endmarkers
SDX30 Endmarker
SDX30 Endmarker Adjustments
SDX40 Endmarker
SDX40 Endmarker Ajdustments
Endmarker Service
INDEX

iv
This Page is Left Blank

page 1-1
SECTION 1
SAFETY
CONTENTS OF THIS SECTION Page
SAFETY ............................................................ 1-3
GeneralSafetyPractices .............................................. 1-4
Servicing Safety Precautions ...........................................1-4
SafetyDuringOperation ..............................................1-5
AirandAirHoses ................................................... 1-8
HydraulicsandHydraulicLeaks........................................ 1-8
Shields............................................................1-9
Electrical .......................................................... 1-9
Tires ............................................................. 1-9
SafetyDuringTransport ............................................. 1-10
Safety Decals ......................................................1-10

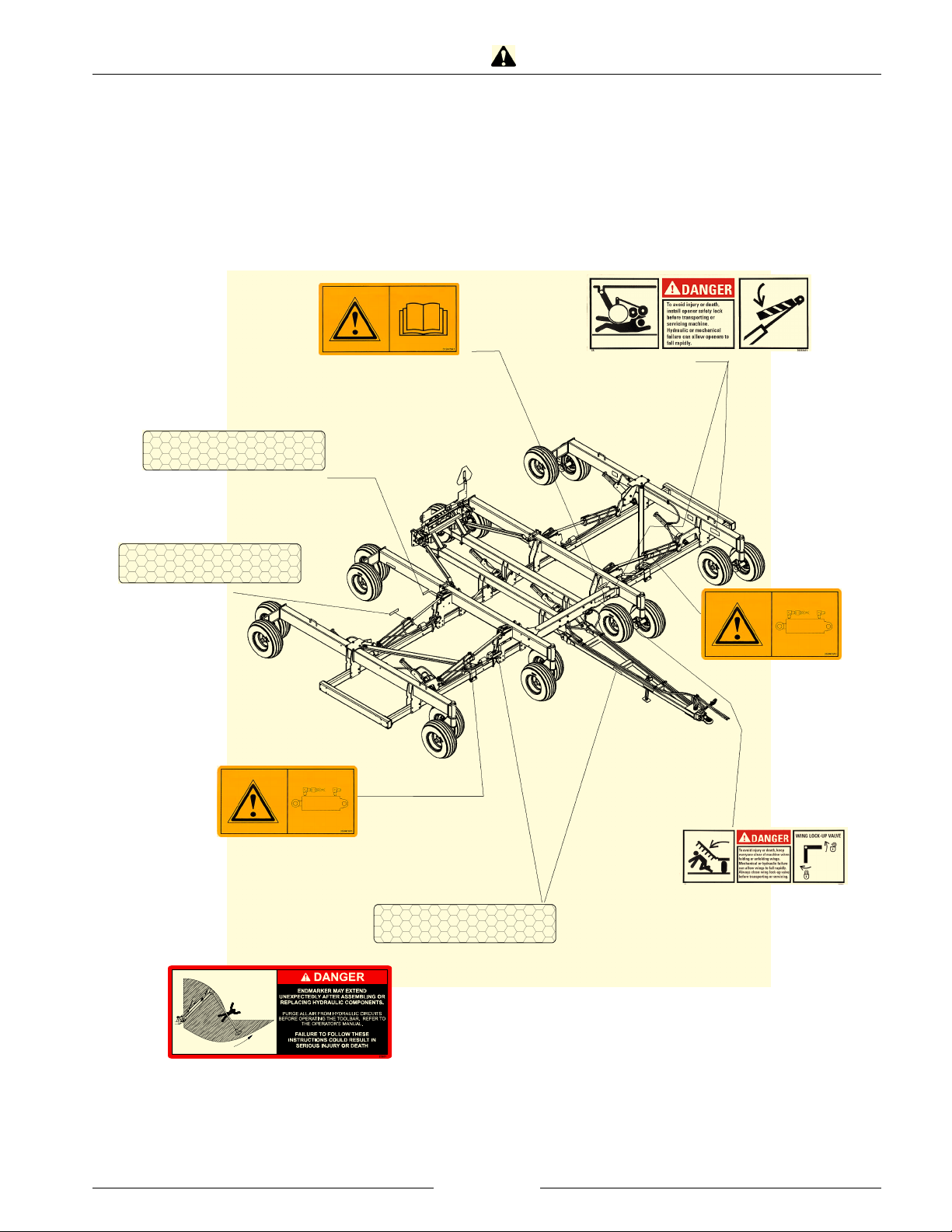

DECAL LOCATIONS ................................................1-11
SDX30 Safety Decal Locations ........................................1-11
SDX40 Safety Decal Locations ........................................1-12
REFLECTOR DECALS, SLOW MOVING VEHICLE SIGN AND TRANSPORT
LIGHTING .......................................................... 1-13
SDX30 1st Serial Range - to Serial Number BSN CKB0028188 ..............1-13
SDX30 2nd Serial Range - starting at Serial Number CBJ0007001 ............ 1-14
SDX40 Transport Lighting and Reflector Decals .......................... 1-16
Transport Lighting Wiring Schematic - for SDX30 Second Serial Number Range
andSDX40.......................................................1-18

SECTION 1 - SAFETY
page 1-2
This Page is Left Blank

SECTION 1 - SAFETY
page 1-3
DANGER!
WARNING!
CAUTION!
SAFETY SAFETY-ALERT SYMBOL
This symbol is used to denote possible danger and care should be taken to prevent bodily injury.
This symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
THIS SYMBOL APPEARS WITH TEXT READING “DANGER!”, “CAUTION!”, OR “WARNING!” THESE
WORDS INDICATE THREE LEVELS OF POSSIBLE HAZARDS, THAT ARE DESCRIBED BELOW.
THREE WORDS USED IN CONJUNCTION WITH THE SAFETY-ALERT SYMBOL:
Indicates an imminently hazardous situation that,
if not avoided, will result in death or serious injury.
The color associated with Danger is RED.
Indicates a potentially hazardous situation that, if
notavoided, couldresultindeathorseriousinjury.
The color associated with Warning is ORANGE.
Indicates a potentially hazardous situation that, if
not avoided, may result in minor or moderate
injury. The color associated with Caution is
YELLOW.

SECTION 1 - SAFETY
page 1-4
CAUTION!
GENERAL SAFETY PRACTICES
REVIEW this manual and operator’s manual before
servicing equipment.
NEVER allow anyone unfamiliar, untrained, or
complacent to operate the drill.
ALWAYS USE the jack supplied when unhooking the
drill.
NEVER transport the drill at speeds higher than 32 km/hr
(20 mph).
MAINTAIN YOUR DRILLin proper working condition.
Unauthorized modifications to the machine may impair
function and/or safety and affect machine life.
It is PREFERRED to transport the drill separately without
an air cart attached. However, this is not always practical.
If you are transporting the drill with a tow between aircart,
the air cart should be full. If you are transporting the drill
with a tow behind air cart, the air cart should be empty.
BE SURE the drill is securely fastened to a large farm
tractor or an air cart that is attached to a large farm tractor
before operating hydraulics.
USE EXTREME CARE when making adjustments.
KEEP CHILDREN AWAY from all farm equipment.
SERVICING SAFETY PRECAUTIONS
BLOCK the wheels to prevent movement when servicing. BE SURE the subbar cylinder locks are in place before
servicingoradjustingopenerassembliesorworkingonthe
drill.
The tractor engine should be stopped and the
wheels blocked to prevent any movement during
servicing.
Always be sure that the depth control safety lock
is in place when servicing the drill.
Always be sure the wings are in field position
before servicing the drill.
Escaping hydraulic fluid is a serious hazard.
Escapinghydraulicfluidthatisunderpressurecan
penetratetheskin,causingseriousinjury. Relieve
pressurebefore disconnectingthehydrauliclines.
Check/tighten all connections before applying
pressure.
Never use your hand to search for leaks. Use a
piece of cardboard or paper. If any fluid is
injected into the skin, seek immediate medical
attention. Gangrene may result if the wound is
not treated within a few hours. Check your
hydraulic fluid containers for warnings concerning
the hydraulic fluids you use.
DO NOT walk within the radius of raised drill
wings.
Failure to comply with these cautions may result
in serious injury or death.

SECTION 1 - SAFETY
page 1-5
097002S
098001M1
192169C
SAFETY DURING OPERATION
DO NOT ALLOW ANYONE ON THE DRILL while
operating the drill hydraulics.
NEVERdisconnectthetractorfromthedrillwhile thedrill
wings are raised.
KEEP CHILDREN AWAY from the drill during
operation.
NEVER STAND within the radius of the raised wings.
Hydraulic or mechanical failure may result in rapid or
uncontrolled falling of the wings.
OPERATE the wings onlyon level ground with the depth
control fully raised.
PARK ON LEVEL GROUND and block adequately.
AVOID moving machines.
DISENGAGE POWER AND SHUT DOWN the tractor
engine (remove the key from the tractor ignition), be
certain that all moving parts have stopped, and allpressure
in the system is relieved BEFORE cleaning, adjusting or
lubricating the drill.

SECTION 1 - SAFETY
page 1-6
098002M1
098003M1
097001S
098004M1
READ the operators manual thoroughly.
KEEP the service area clean.
DO NOT enter tight areas.
BE CERTAIN machine is tagged ‘out of order’ or work
area is supervised.
DO NOT work around rotating equipment. Loose
clothing,rings,watchbands,etc.,maygetcaughtandcause
serious injury.
BE CERTAIN all moving parts have stopped before
servicing.

SECTION 1 - SAFETY
page 1-7
0960039S
196150S
192078S
AVOID toxic vapors. Breath clean air.
DO NOT permit smoking.
WEAR protective clothing.

SECTION 1 - SAFETY
page 1-8
098005M1
098006M1
098007M1
000002C
AIR AND AIR HOSES
COMPRESSOR HOSES may move unexpectedly when
suddenly disconnected.
USE PROPER air nozzles. Do not use compressed air to
clean clothing or otherwise direct it toward yourself.
AVOID getting chemicals into eyes. Use eye protection.
HYDRAULICS AND HYDRAULIC LEAKS
AVOID high-pressure fluids.
ESCAPING HYDRAULIC FLUID IS A SERIOUS
HAZARD. Escapinghydraulic fluidthatisunder pressure
can penetrate the skin causing serious injury. Relieve
pressure before disconnecting the hydraulic lines.
Check/tightenallconnectionsBEFOREapplyingpressure.
BEWARE excessive hydraulic pressure. Explosive
structural failure can result.
BEWARE air locks in cylinders. Large cylinder
displacements can occur without hydraulic oil flow.

SECTION 1 - SAFETY
page 1-9
098008M1
098009M1
0960041S
SHIELDS
REPAIR damaged shields.
KEEP all shields in place.
BE EXTRA CAUTIOUS when repairing or servicing
without protective shields.
ELECTRICAL
REMOVE the ground wire to avoid arcing contacts.
REMOVE GROUND WIRE when welding.
TIRES
USE A CAGE IF POSSIBLE when setting tires on rims.
AVOID excessive air pressure.
DO NOT OVERINFLATE tires. NEVER lean over a tire
while inflating it.

SECTION 1 - SAFETY
page 1-10
SAFETY DURING TRANSPORT
CHECK with local authorities regarding transport on
public roads. Obey all applicable laws and regulations.
ONLY TOW at a safe speed [32 km/hr (20 mph)]. Use
caution when turning corners or meeting traffic.
BE SURE safety lighting is plugged in and that the red
taillight(s), amber flashers, and amber signal lights are all
working properly.
ALWAYS be certain that noone is behind or near the drill
before moving it.
BE SURE all safety transport locks are in place before
transporting the drill.
BE SURE the reflector decals are clearly visible from all
sides of the drill and the ‘Slow Moving Vehicle’ sign is at
the rear of the drill in clear view of overtaking traffic.
BE SURE the tractor weight is equal to or greater than the
total weight of the air cart and drill.
BE SURE all the wheel bolts are torqued to proper
specifications before transporting the drill.
WATCH for power poles and overhead power lines.
ALWAYS lock the tractor drawbar when transporting the
drill.
ALWAYS park the drill on level ground and block the
wheels before unhooking from the towing vehicle.
NEVER subject the drill to steep side grades while in
transport position.
ALWAYS use the hitch jack supplied with the drill when
unhooking from the tractor.
NEVER brake or decelerate during cornering.
ALWAYS enter corners slowly. SLOW the machine to
turning speed before entering a corner.
DO NOT decelerate while executing the turn.
SAFETY DECALS
KEEP SAFETY DECALS CLEAN. Wipe clean when
necessary.
CHECK that the safety decals are not obstructed by the
openers. If the decals are covered up, replace in a location
that is clear to view.
REPLACE missing or unreadable decals. New decals are
available from your dealer.
To replace decals:
1. Remove the old decal. Clean the area where the new
decal will be affixed.
2. Removethedecalbacking. Carefullyaffix thedecal to
the drill.
3. Work the air bubbles out from under the decal. Use a
clean piece of paper or the decal backing itself.

SECTION 1 - SAFETY
page 1-11
DECAL LOCATIONS
SDX30 SAFETY DECAL LOCATIONS
The following safety decals are affixed to the drill.
350401A1
350401A1
311864A1
311865A1
350336A1
311863A1
23251
Located on Endmarker Outer
Arm (not shown)
312479A1
350335A1

SECTION 1 - SAFETY
page 1-12
SDX40 SAFETY DECAL LOCATIONS
The following safety decals are affixed to the drill.
350401A1
350401A1
23251
Located on front of Endmarker
Mount (not shown)
350336A1
350336A1
312479A1
350335A1

SECTION 1 - SAFETY
page 1-13
Safety Lighting Assembly ma00d020
REFLECTOR DECALS, SLOW MOVING VEHICLE SIGN AND TRANSPORT LIGHTING
SDX30 1st SERIAL RANGE - to Serial Number BSN CKB0028188
REF DESCRIPTION REF DESCRIPTION
1 BRACKET LIGHT PLAIN 13 BOLT 5/16-18 X3/4 GR5 ZND CRG
2 LIGHT ASSY. WARNING 14 BRACKET SOCKET SMV SIGN / LAMP MOUNT
3 HARNESS LIGHTING SDX (Non-AFS Only) 15 NUT .313 UNC YZD NYL INS
HARNESS TILLAGE AFS RT SDX (AFS Only) 16 NUT M5 CLASS 5 ZND
HARNESS TILLAGE AFS FT SDX (AFS Only) 17 PLATE ASSY. SMV
4 BOLT .75 X 2.5 UNC GR5 YZD EMBLEM PLATE ASSY, SMV 2 BOLT HOLES
5 WASHER .813 ID 1.5 YZD SAE SCREW MCH .25-20X.5 PH PI YZD
6 NUT, LOCK .75 UNC GR C YZD NUT .25 UNC GR5 YZD
7 PLATE, LARGE BACKUP 18 TRAFFIC SIGNS PLATE - SMV
8 NUT, LOCK .5 UNC GR A YZD NYL LK 19 SUPPORT SMV SIGN
9 WASHER .531 X 1.062 X .095 20 DECAL SMV EMBLEM
10 BOLT .5 X 7.5 UNC GR5 YZD 21 BRACKET (AFS Only)
11 ANGLE TAILLIGHT SUPPORT PNT 22 BOLT .5 X 1.5 UNC GR5 YZD
12 LAMP STOP / TAIL & TURN
Drill Transport Lights, Reflector Decals and SMV Sign

SECTION 1 - SAFETY
page 1-14
SDX30 2nd SERIAL RANGE - starting at Serial Number CBJ0007001
REF DESCRIPTION REF DESCRIPTION
1 NUT .5 UNC GR2 YZD 17 REFLECTOR RED
2 WASHER, LOCK .5 YZD 18 REFLECTOR AMBER
3 LIGHT ASSY. TAIL/SIGNAL RED 19 REFLECTOR ORANGE
4 CONSOLE IMPLEMENT LIGHTNG
CONTROL 20 BRACKET SDX TRANSPORT LIGHT PTD
5 HARNESS LTG SDTOOL CONCORD 31' 21 BRACKET A/TRANSPORT
6 PLATE, LARGE BACKUP 22 BRACKET SOCKET SMV SIGN / LAMP
MOUNT
7 RIVET 1/4 X .500 23 NUT .5 UNF GR5 YZD
8 NUT, LOCK 1 UNC GR B YZD 24 BRACE /W BOLTING SDX-30 MAIN
9 NUT, LOCK .5 UNC GR A YZD NYL LK 25 BOLT .375 X 1 UNC GR5 YZD
10 NUT, LOCK .75 UNC GR C YZD 26 BOLT .5 X 7.5 UNC GR5 YZD
11 NUT .313 UNC YZD NYL INS 27 BOLT .75 X 2.5 UNC GR5 YZD
12 CONNECTOR CAB PLSTC RCP 2C 28 BOLT 1-8 X 2.50 GRADE 8 Z
13 DECAL SMV EMBLEM 29 BOLT 5/16-18 X3/4 GR5 ZND CRG
14 TRAFFIC SIGNS PLATE - SMV 30 WASHER, LOCK .5 YZD
15 SUPPORT SMV SIGN 31 WASHER .25 SAE YZD
16 PLATE ASSY. SMV 32 WASHER .406 ID .812 .065 YZD
EMBLEM PLATE ASSY, SMV 2 BOLT
HOLES 33 WASHER .531 X 1.062 X .095
SCREW MCH .25-20X.5 PH PI YZD 34 WASHER .813 ID 1.5 YZD SAE
NUT .25 UNC GR5 YZD 36 LIGHT ASSY. WARNING
Drill Transport Lights, Reflector Decals, and SMV Sign

SECTION 1 - SAFETY
page 1-15

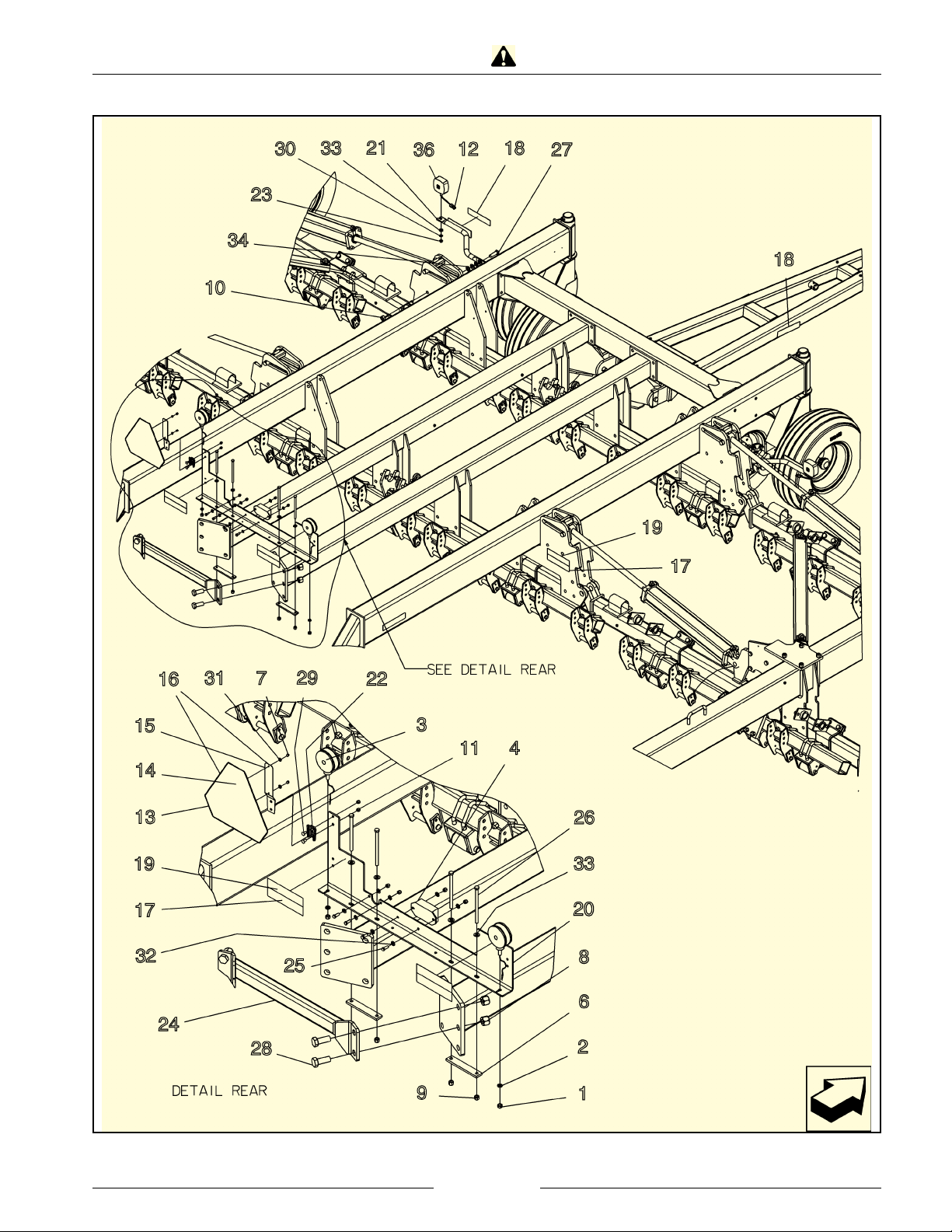

Transport Lighting Assembly 201063C
