Casio CE-7000 User manual

SERVICE MANUAL
ELECTRONIC CASH REGISTER
(without price)
CE-7000(EX-475B*,C*,D*)
FEB. 2000
Printer Model : M-U420-071

CONTENTS
CE-7000 Page
1. SPECIFICATIONS........................................................................................ 1
2. INITIALIZE (MAC) OPERATION.................................................................. 4
3. F-INIT (FMAC) OPERATION ....................................................................... 4
4. BLOCK DIAGRAM....................................................................................... 5
5. TO OPEN THE UPPER CASE ..................................................................... 7
6. CIRCUIT EXPLANATION ............................................................................ 9
6-1. Power supply circuit .................................................................................................. 9
6-2. Reset and power down circuit................................................................................. 10
6-3. CPU description........................................................................................................ 11
6-4. Momory chip selection circuit ................................................................................. 13
6-5. Flash ROM1 address circuit .................................................................................... 14
6-6. Flash ROM2 circuit ................................................................................................... 14
6-7. Flash Pack circuit (Memory Cassette RAC-9) ........................................................ 15
6-8. Memory map ............................................................................................................. 16
6-9. Printer drive circuit................................................................................................... 17
6-10. RS232C port COM1 circuit...................................................................................... 17
6-11. RS232C port COM2 and COM3 circuit ................................................................... 18
6-12. Keyboard selection switch ..................................................................................... 19
6-13. To mount optional circuit ....................................................................................... 19
1) Clerk key circuit........................................................................................................ 19
2) Multi-drawer circuit .................................................................................................. 21
3) Paper near end sensor circuit ................................................................................. 22
6-14. Display controller uPD78015FGC526-AB8 ............................................................ 23
6-15. Segment display driver uPD16312GB-3B4............................................................ 24
6-16. DC/DC convertor circuit.......................................................................................... 25
6-17. ARCNET circuit (IO-PB14) ...................................................................................... 25
7. DIAGNOSTIC OPERATION....................................................................... 31
7-1. To start the diagnostic program ............................................................................. 31
7-2. Check item ................................................................................................................ 31
7-3. Operation of each test.............................................................................................. 31
7-4. Switch status test ..................................................................................................... 32
7-5. Individual function test ............................................................................................ 33
7-6. To exit the diagnostic mode .................................................................................... 49
8. ERROR CODE LIST................................................................................... 50
9. IC DATA ..................................................................................................... 53
10. PCB LAYOUT ............................................................................................ 67
11. CIRCUIT DIAGRAM ................................................................................... 69
12. PARTS LIST............................................................................................... 92

- 1 -
• CPU Name uPD784215GC084-8EU
Number of control bit 8bit
Internal RAM 4 KBytes
• RAM1 and 2 Name HY628100ALLG-70
Capacity 128 K bytes
• Option RAM3 and 4 Name HM628512ALP-7
Capacity 512 Kbytes
• Flash ROM1 Name LH28F016SCT-L85
Capacity 2 M bytes
• Flash ROM2 Name LH28F004SCT-L85
Capacity 512 K bytes
• Display driver Name uPD78015FGC-526-AB8
• Printer Name M-U420-071
Print method Impact dot matrix printer
Paper cut Auto-paper cut
• Roll paper Type Fine-quality paper
Size Width 44.5 ±0.5 mm
Roll diam 83 mm or less
Thickness 75 ±15 µm
1. SPECIFICATIONS
1-1. Electrical specifications
120V 220V 230V 240V
• Power consumption In operation Max. 0.7 A 0.4A 0.4A 0.4A
Min. 0.3 A 0.2A 0.2A 0.2A
Power OFF 0.3 A 0.2A 0.2A 0.2A
• Memory protection Back-up battery VL3032/1F2
Back-up period 90 days (25 °C)
Battery life Replace the battery every 5 years.
Recharge time 48 hours
• Clock & Calendar Accuracy Within ±30 sec. per month (25 °C)
Auto calendar Effective until 2099 A.D.
1-2. Environmental specifications
• Operating temperature 0 °C ~ 40 °C
• Operating humidity 10 % ~ 90 %
• Storage temperature -25 °C ~ 65 °C
• Storage humidity 10 % ~ 95 %
• Vibration strength 1.5 G (The machine must be in the carton box)
1-3. Main components

- 2 -
1-4. Drawer List
DRAWER NAME Specification NOTE
• DL-2766 (M type) D-9BC-B84M-9* EUROPE, Saudi-Arabia, Other countries
• DL-2767 (M type) D-9BC-B84SM-9* UK, Germany
• DL-2417 (M type) D-9BC-B55S-9* USA
• DL-2517 (M type) D-9BC-B64S-9* Canada
• DL-3616 (L type) D-11BH-B65SS-9* USA, Canada
• DL-3617 (L type) D-11BH-B65-9* Saudi-Arabia
DEVICE NAME MODEL NOTE
• RAM CHIP RAM-610-10LL Capacity 4Mbits (512 Kbytes)
• Momry Cassette RAC-9 16Mbits (2 Mbytes) With write protection switch
• Wet cover WT-77
• Modem Sports star Recommend model : U.S.Robotics
56.4Kbps Com 1 port only
• P/C cable PRL-CB-2 Com 1 port only
• Handy scanner HHS-15 Com 2 port only
• Fixed scanner HS1250 Com 2 port only (PSC model)
• Laser scanner Quic Scan 6000 Com 2 port only (PSC model)
• Slip printer SP-1300 Connect to Com 2 or 3.
• Kitchen printer UP-350 Connect to Com 1,2 or 3.
• Kitchen printer UP-250 Connect to Com 1,2 or 3.
• Scale Model 6710 Com 3 only (NCI model)
1-5. Option List
It is possible to drive only one printer.
It is possible to drive until 2 printers.
It is possible to drive until 2 printers.

- 3 -
DEVICE NAME MODEL NOTE
• Slip printer cable PRT-CB-8C Connect Com 2 or 3. (Cable lngth 1.5m)
• External printer cable PRT-CB-8A Connect to Com 1,2 or 3. (Cable length 3 m)
• External printer cable PRT-CB-8B Connect to Com 1,2 or 3. (Cable length 5 m)
• Power unit PS-170 Epson model
for External printer
• Power cord AC-170 Epson model
for power unit
• Power-board JDC model
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according
to the manufacture’s instructions.
VORSICHT !
Explosionsgefahr bei unsachgemäßem Austausch der
Batterie.
Ersatz nur durch denselben oder einen vom
Hersteller empfohlenen gleichwertigen Typ.
Entsorgung gebrauchter Batterien nach
Angaben des Herstellers.
ADVARSEL !
Lithiumbatteri - Eksplosionsfare ved fejlagtig hándtering.
Udskiftning má kun ske med batteri
af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandØren.

2. INITIALIZE (MAC) OPERATION (CE-7000)
1. Plug the power cord into an AC outlet.
2. Set the mode switch to "OFF" position.
3. While pressing the Journal feed Button, turn the mode switch to "PGM" position.
4. Release the Journal feed button.
5. Input the MAC CODE 1. (11 digits)
6. Press "#2" key. (Wait until beep twice.)
7. Input the MAC CODE 2. (3 digits)
8. Press "#2" key. (Initialization receipt is issued.)
9. Initialize operation is executed.
MAC CODE 1 : D11 to D1 (11 digits)
Description Choice Program code
Print PGM mode password, when flag clear Yes = 0 D11 =
No = 4
Password in PGM3 to 7 mode Significant D10 to D7 =
number 4 digits
Messages and descriptions are written in Significant D6 =
English=0, French=1, Spanish=2, German=4 number
Model for Significant D5 =
USA or Canada=2, German=4, number
Other area (0.00) =1, Other area (0) = 3
Department No.(15 ,20, or 30) Fixed D3 D4 =
Use clerk switch or push switch = 0 Significant D2 = A + B
Use clerk lock Key or secrec code key = 1 number A
For scanning initialization pattern = 0 Significant
For check tracking initialization pattern = 2 number B
Use Euro only No = 0 D1 =
Yes = 1
MAC CODE 2 : D3 to D1 (3 digits)
Description Choice Program code
Inline baud rate 156Kbps = 0 D3 =
312Kbps = 1
Inline physical I.D. number (01 to 32) Significant D2 to D1 =
number 2 digits
3. F-INIT (FMAC) OPERATION
1. Plug the power cord into an AC outlet.
2. Set the mode switch to "OFF" position.
3. While pressing the Receipt feed button , turn the mode switch to "PGM" position.
4. Release the receipt feed button.
5. Press "#2" key.
Note : The location of "#2" key, see "HARD KEY CODE TABLE" on page 31.
— 4 —

- 5 -
4. BLOCK DIAGRAM
4-1. PCB CONNECTION

- 6 -
4-2. BLOCK DIAGRAM (CE-7000)
Address
Latch
Address bus A8 - A19
A0 -A7
Data bus D0 -D7
RAM1
HY628100A
LLG-70
(128 K bytes)
RAM3
(Option)
HM628512ALP-7
512 K bytes
(RAM-610)
CPU
uPD784215GC-084-8EU
Flash ROM 1
LH28F016SCT-L95
(2 M bytes)
Flash pack (Option)
Memory cassette RAC-9
Flash ROM 2
LH28F004SCT-L95
(512 K bytes)
Data buffer
I/O selector
Printer driver
Printer
M-U420-071
COM1
COM2
COM3 Driver
Driver
Display driver and Key control circuit
Main display
(Dot & segment) Customer
display
Keyboard
ARCNET
driver
IN-Line
Display controller
uPD78015FGC526-AB8
Main display
(Dot & segment)
Segment driver
uPD16312GB-3B4
RAM2
HY628100A
LLG-70
(128 K bytes)
RAM4
(Option)
HM628512ALP-7
512 K bytes
(RAM-610)
MAIN PCB E457-1 C

- 7 -
5. TO OPEN THE UPPER CASE
1. Open the printer cover. Then, remove the
ribbon cover from the machine.
2. Remove the 2 screws of the upper case.
3. Push the 3 dots marking point at the right
side of lower case. At the same time, slide
the upper case to the front side.
4. Open upper case from the left side.
Remove the 2 screws.
Open the printer cover.
Slide the upper case
to the front side.
Remove the ribbon cover.
Power switch cover
Press the 3 dots marking point.

- 8 -
6. To remove the Main PCB, release the 2 screws of point A and 2 locking supporters of point B
and the COM1 port outside screws.
Remove 2 screws for COM 1 port.
5. The each parts of the Main PCB are located as shown in the picture.
Battery
Flash ROM 1 (2 M bytes)
Main PCB
Flash pack connector
for Memory cassette
RAC-9
RAM 1 (128 K bytes)
Flash ROM 2 (512 K bytes)
RAM 4
(Option RAM-610)
RAM 3
(Option RAM-610)
COM 1 port
CPU
Buzzer
Printer cable
Display cable
Power supply connector
Reset Switch
Point A
Remove 2 screws.
Point B
Remove 2 screws.
7. Power supply unit cover is removed by 3 screws. And, the 3 Fuses are located as shown in the
picture.
Main PCB
Remove the 3 screws.
Then, remove the power supply cover.
Power transformer
Voltage selector
Normally, Do not change
the Voltage position.
Fuse F1
250V 1A
Fuse F2
250V 2A
Fuse F3
250V 400mA
Clerk key connector
Keyboard select switch
NOTE: RAM2 (128 K bytes) is located on
the back side of Main PCB.

- 9 -
6.CIRCUIT EXPLANATION
6-1. Power supply circuit
The power supply circuit provides the following voltage for the main circuit.
Output Pin No1----- VC1 (DC32.3V): To the VC line for the Display power.
Output Pin No.2---- VC2 (DC24V): To the Vp line for the printer power.
Output Pin No.3---- VLED (DC5.85V): To the Vcc,Vcc2 and Vdd for the logic circuit power.
Output Pin No.4---- GND: Signal GND.
The power switch SW1 is located at the right side of the lowercase.
After connected the power plug into AC outlet and turn on the SW1, the transformer T1 will
genarate the about AC33V to secondary side. Then, after rectifier circut, the VC1 (DC32.3V)
is supplied to the VC line for display power (for the drive of display tube. Not for LED model.)
The IC2 is the shunt regulator for the control of Q1 transistor. This circuit is genarate the
VC2 (DC24V) for the printer power. The IC1 is regulator for 5V power supply.
Power supply PCB E445-S1
Voltage selector
NOTE: Do not turn the
selector to avoid the voltage
selection mistake.
Power SW1 cover
Power switch SW1

- 10 -

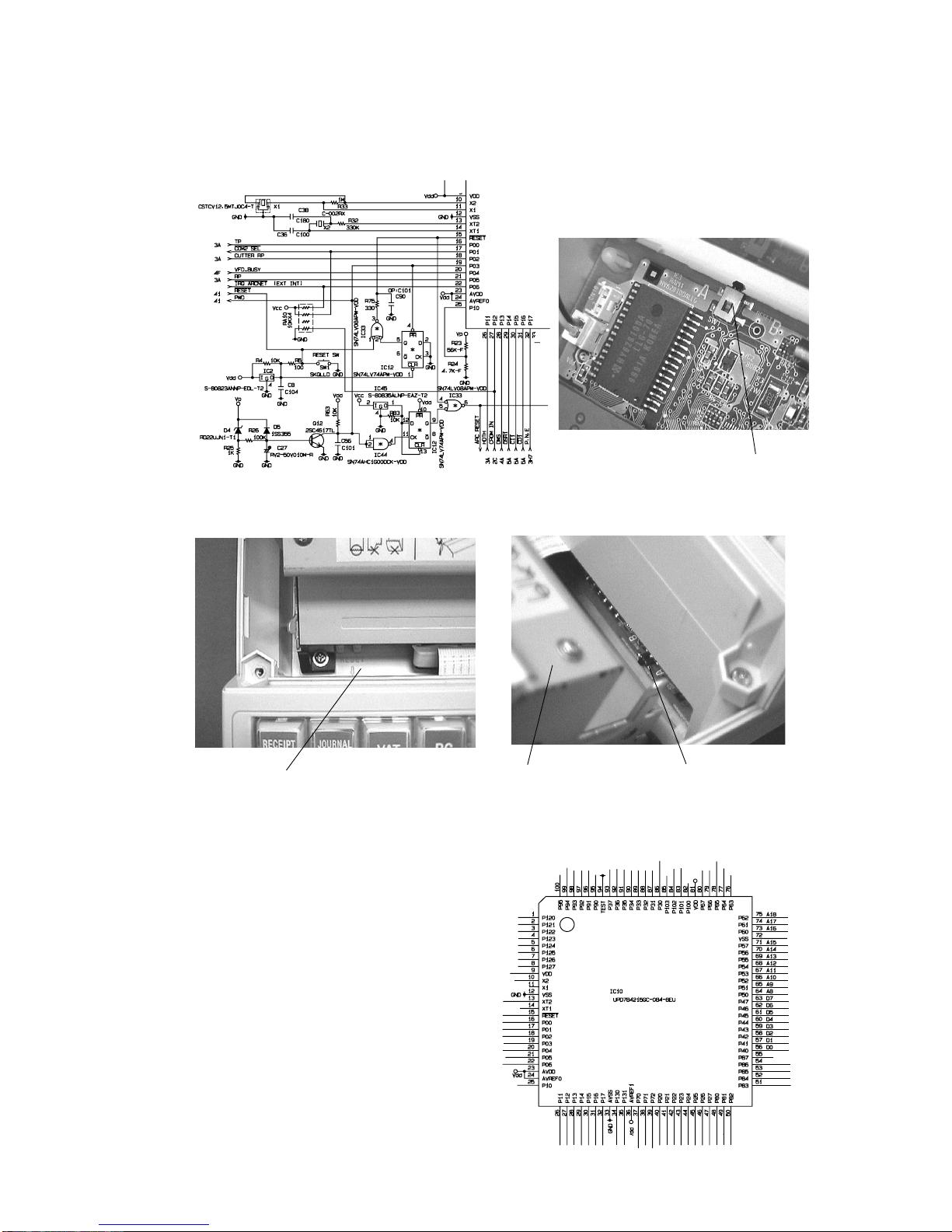

6-2. Reset and power down circuit
The rest and power down circuit are as following circuit. The reset switch is provided for the
hard reset to cleare the system error. Use this switch only when the FMAC or MAC are not
possible to perform.
Reset switch
The position of Reset switch
From top of view From rear of view
Reset switch
Printer
The mark of reset switch
6-3. CPU pin description(uPD784215GC-084-8EU)
The CPU pin descriptions are as follows:

- 11 -
CPU pin description(uPD784215GC-084-8EU)
Pin No. Signal Name Description In/Out
1 P120 HD1 HEAD PIN DRIVE HD1 Out
2 P121 HD2 HEAD PIN DRIVE HD2 Out
3 P122 HD3 HEAD PIN DRIVE HD3 Out
4 P123 HD4 HEAD PIN DRIVE HD4 Out
5 P124 HD5 HEAD PIN DRIVE HD5 Out
6 P125 HD6 HEAD PIN DRIVE HD6 Out
7 P126 HD7 HEAD PIN DRIVE HD7 Out
8 P127 HDGATE2 HEAD GATE2 Out
9 VDD VDD Power supply VDD +5V
10 X2 X2 Clock 12.5 MHz In
11 X1 X1 Clock 12.5 MHz In
12 VSS GND Power supply GND
13 XT2 XT2 Clock In
14 XT1 XT1 Clock In
15 RESET RESET Reset termial In
16 P00 TP Timing pulse from printer TP In
17 P01 COM2 SEL COM 2 selection Out
18 P02 CUTTER RP Auto-cutter reset pulse CUTTER RP In
19 P03 PWD Power down signal In
20 P04 VFD BUSY Display controller busy signal In
21 P05 RP Reset pulse from printer RP In
22 P06 IRQ ARCNET Interrupt rquest from ARCNET controller In
23 AVDD VDD Power supply VDD +5V
24 AVREF0 AVREF0 Connected to VDD +5V
25 P10 AVREF Vp voltage check terminal In
26 P11 HDTH Head thermistor input In
27 P12 CROM IN Flash ROM cassette in signal In
28 P13 DWS Drawer sensor input In
29 P14 DSR1 COM1 DSR signal In
30 P15 CI1 COM1 CI signal In
31 P16 CD1 COM1 CD signal In
32 P17 P.N.E. Paper near end sensor input In
33 AVSS GND Power supply GND
34 P130 LED SLATCH LED Latch signal Out
35 P131 LED CE LED chip enable signal Out
36 AVREF1 VDD Connected to VDD +5V
37 P70 RX2 COM2 and COM3 receive data In
38 P71 TX2 COM2 and COM3 transmit data Out
39 P72 RAM ENABLE RAM enable signal Out
40 P20 RX1 COM1 receive data In
41 P21 TX1 COM1 transmit data Out
42 P22 RTS1 COM1 RTS signal Out
43 P23 MOTOR Motor drive signal Out
44 P24 RTS2 COM2 RTS signal Out
45 P25 LED SIN LED data in signal In
46 P26 LED SOUT LED data out signal Out
47 P27 LED SCK LED SCK signal out Out
48 P80 RB0/CB0 Bank selection RB0/CB0 Out
49 P81 RB1 Bank selection RB1 Out
50 P82 RB2 Bank selection RB2 Out

- 12 -
Pin No. Signal Name Description In/Out
51 P83 RB3 Bank selection RB3 Out
52 P84 RB4/CB1 Bank selection RB4/CB1 Out
53 P85 FB0/CB2 Bank selection FB0/CB2 Out
54 P86 FB1 Bank selection FB1 Out
55 P87 FB2 Connected to GND
56 P40 D0 Data/address bus D0/A0 In/Out
57 P41 D1 Data/address bus D1/A1 In/Out
58 P42 D2 Data/address bus D2/A2 In/Out
59 P43 D3 Data/address bus D3/A3 In/Out
60 P44 D4 Data/address bus D4/A4 In/Out
61 P45 D5 Data/address bus D5/A5 In/Out
62 P46 D6 Data/address bus D6/A6 In/Out
63 P47 D7 Data/address bus D7/A7 In/Out
64 P50 A8 Address bus A8 Out
65 P51 A9 Address bus A9 Out
66 P52 A10 Address bus A10 Out
67 P53 A11 Address bus A11 Out
68 P54 A12 Address bus A12 Out
69 P55 A13 Address bus A13 Out
70 P56 A14 Address bus A14 Out
71 P57 A15 Address bus A15 Out
72 VSS GND Power supply GND
73 P60 A16 Address bus A16 Out
74 P61 A17 Address bus A17 Out
75 P62 A18 Address bus A18 Out
76 P63 A19 Address bus A19 Out
77 P64 RD Read signal Out
78 P65 WR Write signal Out
79 P66 WAIT Wait signal In
80 P67 ASTB Address strobe signal Out
81 VDD VDD Power supply VDD +5V
82 P100 BUZZER Buzzer output signal Out
83 P101 R.FEED Receipt paper feed signal Out
84 P102 J.FEED Journal paper feed signal Out
85 P103 STAMP Stamp signal Out
86 P30 HDGATE1 Head gate 1 signal Out
87 P31 FLASH RST Flash reset signal Out
88 P32 DTR1 COM1 DTR signal Out
89 P33 CTS1 COM1 CTS signal In
90 P34 DTR2 COM2 DTR signal Out
91 P35 HDPLS Head pulse signal In
92 P36 DW1 Drawer signal 1 Out
93 P37 DW2 Drawer signal 2 Out
94 TEST GND Connected to GND
95 P90 MODE SIN Mode switch data in signal In
96 P91 MODE SCK Mode switch SCK signal Out
97 P92 MODE SLOAD Mode switch data load signal Out
98 P93 KI SLOAD Key data load signal Out
99 P94 HD8 HEAD PIN DRIVE HD8 Out
100 P95 HD9 HEAD PIN DRIVE HD9 Out

- 13 -
RB1
RB2
RB3
RB4/CB1
FB1
RAM enable
ARC RESET
RAM1 CE
RAM4 CE
RAM2 CE
RAM3 CE
6-4. Memory chip selection circuit
The RAM chip select signals made by the following circuit.
There are 4 chip enable signal lines for RAM selection and 3 chip enable signal lines for
Flash ROM selection (including Memory cassette).
RAM1 CE is for
RAM 1 chip enable signal.
RAM1 selection
The RAM1 is selected by the RAM enable signal "H" and the 2CS signal " L" of output pin
No.13 . The 2SC signal becomes "L" when the CPU address is as follows:
A19 A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0
L L H L X X X X X X X X X X X X X X X X
2 X X X X
Therefore, the RAM1 CE will active when the CPU adress is from 20000H to 3FFFFH with
RAM enable signal "H".
Flash ROM1 selection
The Flash 1 CE will active by the IC25 output pin No.3. This is inverted signal of A19.
A19 A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0
H L L L X X X X X X X X X X X X X X X X
8 X X X X
Therefore, the Flash1 CE will active when the CPU adress is from 80000H to FFFFFH.
Also, the 3SC signal becomes "L" when the CPU address is as follows:
A19 A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0
L L H H X X X X X X X X X X X X X X X X
3 X X X X

- 14 -

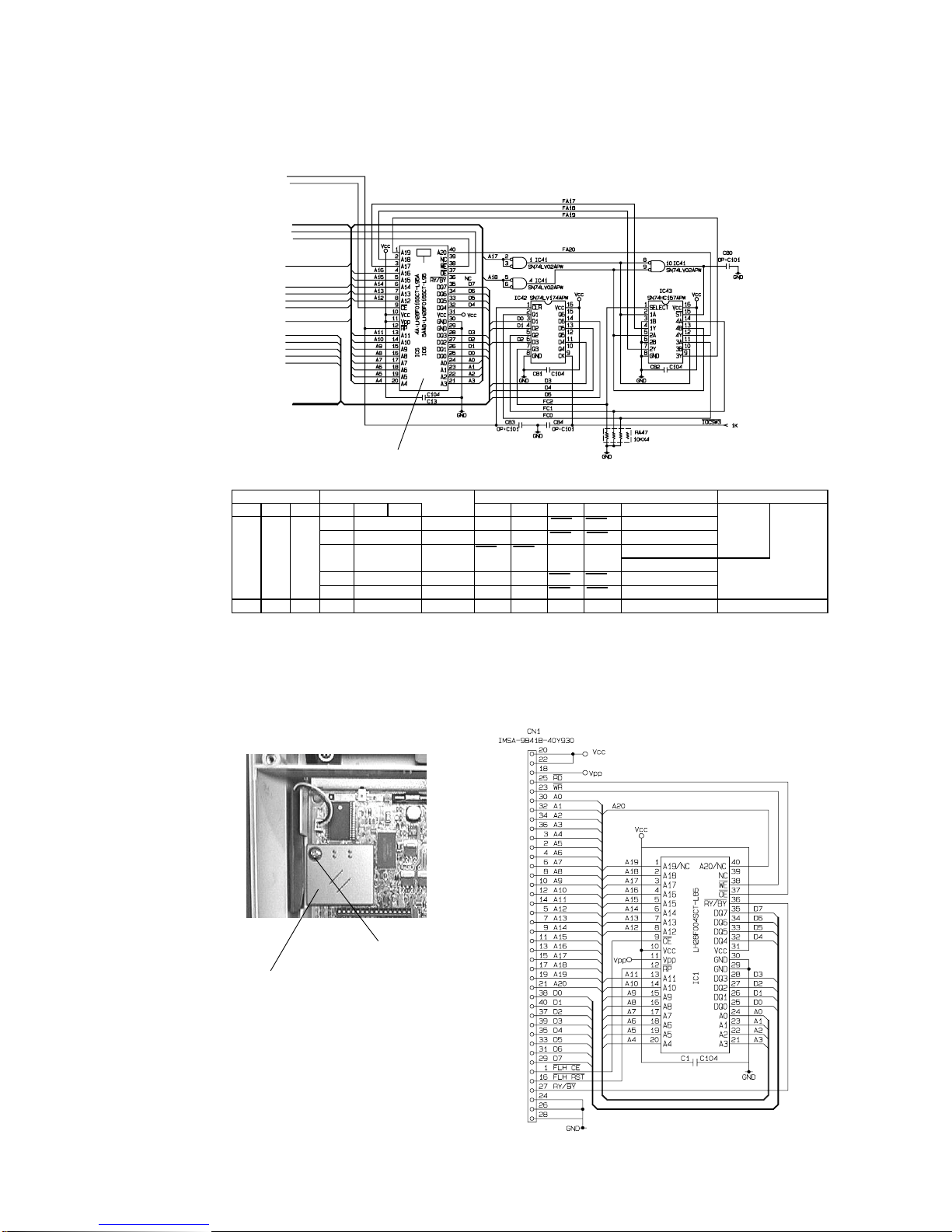

6-5. Flash ROM1 address circuit
The Flash ROM1 address signals FA17 to FA20 are made by the following circuit.
The Flash ROM1 (LH28F016SCT-L95, 16M bits) is used for the application program.
Flash ROM1 (16M bits)
CPU address BANK port Flash memory address NOTE
A19 A18 A17 FC2 FC1 FC0 BANK FA20 FA19 FA18 FA17 Memory block No. 8M bank 16M bank
H L L L L L 0 L L A18 A17 02 to 07
L H L L H 1 L H A18 A17 0A to 0F
H L H X X 2 A18 A17 L L 08,09
10,11,18,19
L H L 3 H L A18 A17 12 to 17
L H H 4 H H A18 A17 1A to 1F
H H H X X X Common LLLL00,01 Common
6-6. Flash ROM2 circuit
The Flash ROM2 is mounted to the small PCB E475-FLS. The PCB E475-FLS is
connected to connector CN10 of the Main PCB E475-1.
Flash ROM2 (512 K bytes)
PCB E475-FLS
Fixed by one screw

- 15 -
6-7. Flash Pack circuit (Memory Cassette RAC-9)
The Memory Cassette RAC-9 (2 M bytes) is possible to connect to the Flash Pack connector
CN17 of the Main PCB E475-1.
Flash Pack connector
[RAC-9 circuit diagram]

- 16 -
6-8. Memory map
The memory table is as follows:
Memory map
RAM enable 2CS 3CS 4CS 8CS CCS A18 A19 RAM BANK Flash BANK RAM1 RAM2 RAM3 RAM4 Flash1 Flash2 Flash pack
No. RB0 RB1 RB2 RB3 RB4 FB0 FB1 FB2 CS A16 CS CS2 A16 CS A16 A17 A18 CS A16 A17 A18 CS A18 CS A18 CS A18 A19 A20
H LHHHHLLCOMXXXXXXXXLLHHXHXXXHXXXHXHXHXXX
H HLHHHLLCOMXXXXXXXXLHHHXH XXXHXXXHXHXHXXX
H HHLHHHL 0L HL L XXXXHXLHLHXXXHXXXHXHXHXXX
1HHL L XXXXHXLHHHXXXHXXXHXHXHXXX
H HHLHHHL L L HL XXXXHXHHXHXXXHXXXHXHXHXXX
HL HL XXXXHXHHXHXXXHXXXHXHX HXXX
H HHLHHHL L HHL XXXXHXHHXHXXXHXXXHXHXHXXX
HHHLXXXXHXHHXHXXXHXXXHXHXHXXX
H HHLHHHL 2LLLHLXXXHXHHXLLLLHXXXHXHX HXXX
3HL L HL XXXHXHHXLHLLHXXXHXHXHXXX
4L HL HL XXXHXHHXLLHLHXXXHXHXHXXX
5HHL HL XXXHXHHXLHHLHXXXHXHXHXXX
6L L HHL XXXHXHHXLLLHHXXXHXHXHXXX
7HL HHL XXXHXHHXLHLHHXXXHXHXHXXX
8LHHHL XXXHXHHXLLHHHXXXHXHXHXXX
9HHHHLXXXHXHHXLHHHHXXXHXHXHXXX
10L L L HHXXXHXHHXHXXXLLLLHXHXHXXX
11HL L HHXXXHXHHXHXXXLHLLHXHXHXXX
12L HL HHXXXHXHHXHXXXLLHLHXHXHXXX
13HHL HHXXXHXHHXHXXXLHHLHXHXHXXX
14L L HHHXXXHXHHXHXXXLLLHHXHXHXXX
15HL HHHXXXHXHHXHXXXLHLHHXHXHXXX
16LHHHHXXXHXHHXHXXXL LHHHXH X HXXX
17HHHHHXXXHXHHXHXXXLHHHHXH X HXXX
L XXXXX XX XXXXXXXXHXHLXHXXXXXXXXXXXXXXX
X HHLHHHL HLLLXLHLHXHHXHXXXHXXXHXL L HXXX
HLLLXHHLHXHHXHXXXHXXXHXL HHXXX
X HHLHHHL LLLLLLLLHXHHXHXXXHXXXHXHXLLLL
HLLLLLLLHXHHXHXXXHXXXHXHX LHLL
LLLLHLLLHXHHXHXXXHXXXHXHX LLHL
HLLLHLLLHXHHXHXXXHXXXHXHXLHHL
LLLLLHLLHXHHXHXXXHXXXHXHXLLLH
HLLLLHLLHXHHXHXXXHXXXHXHXLHLH
LLLLHHLLHXHHXHXXXHXXXHXHXLLHH
HLLLHHLLHXHHXHXXXHXXXHXHXLHHH
X HHLHHHL XLLLXLXHHXHHXHXXXHXXXHXHXHXXX
XLLLXHXHHXHHXHXXXHXXXHXHXHXXX
X HHHLHLH XXXXXLXHHXHHXHXXXHXXXHXHXHXXX
XXXXXHXHHXHHXHXXXHXXXHXHX HXXX
H HHHL HLH XXXXXXXLHXHHXHXXXHXXXLA18HX HXXX
H HHHHL HH XXXXXXXXHXHHXHXXXHXXXLA18HX HXXX
00000h CPU internal memory
Mask ROM 128K
RAM 5K
0FFD0h External I/O Mapping 16bytes
0FFE0h
20000h RAM1 128 K bytes
RAM2 Oprion RAM3 Oprion RAM4
128 K bytes 512 K bytes 512 K bytes
40000h Bank0 Bank1 Bank2 Bank3 Bank4 Bank5 Bank6 Bank7 Bank8 Bank9 Bank10 Bank11 Bank12 Bank13 Bank14Bank15 Bank16 Bank17
RAM
Banked area
64 K bytes
Flash2 Flash2 Flash memory pack 2 M bytes Accelerator Expansion Memory area
Flash pack 512K bytes 512 K bytes Board
Expansion memory
256 K bytes Bank0 Bank1 Bank0 Bank1 Bank2 Bank3 Bank4 Bank5 Bank6 Bank7 Share CE
+ A16 to A19
80000h
Bank area
Flash 1 384 K bytes 16 M bit
(for
A0000h Application 8 M bit
program area) 4 M bit
2 M bytes Bank0 Bank1 Bank2 Bank3 Bank4
00,01 08,09 14,15 20,21 26,27 Block No.
(07,06) (0F,0E) (19,18) (17,16) (1F,1E) (Memory Block)
C0000h
02,03 10,11 16,17 22,23 28,29
(05,04) (0D,0C) (11,10) (15,14) (1D,1C)
E0000h 04,05 12,13 18,19 24,25 30,31
Common area (o3,02) (0B,0A) (09,08) (13,12) (1B,1A)
128 K bytes
Block
06,07
FFFFFh (00,01)

- 17 -
6-9. Printer drive circuit
The printer drive circuit is as follows:
IC5 (MTA001M-F4101) is the head pin driver IC. And, the Transistors Q6,Q7 and Q8 are the
motor drive circuit. The IC1 (TA8429H) is the auto paper cut driver circuit.

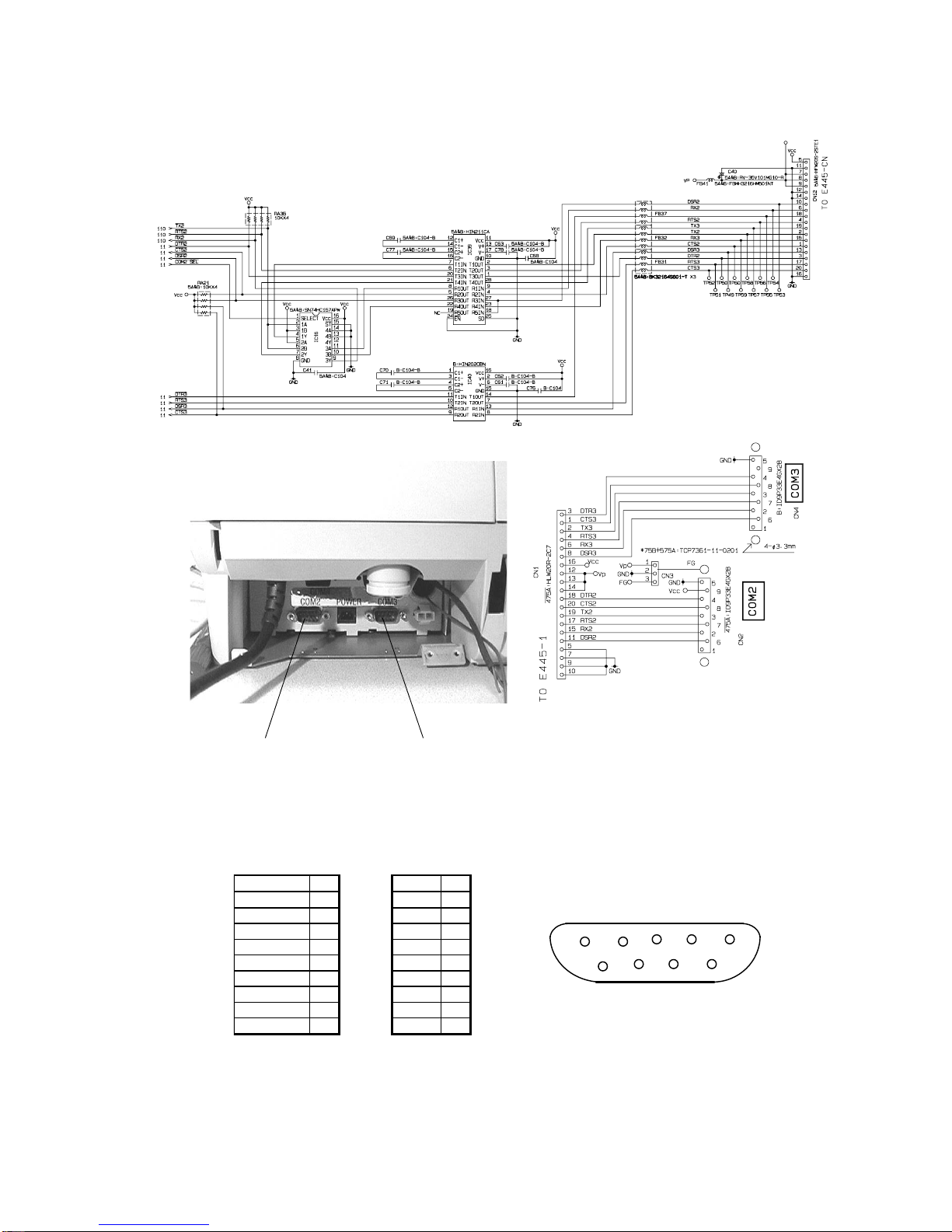

6-10. RS232C port COM1 circuit
The COM1 circuit is as follows:
The COM1 port pin location is as shown below:
Signal Pin
CD 1
RxD 2
TxD 3
DTR 4
GND 5
DSR 6
RTS 7
CTS 8
CI 9
1 2 3 4 5
678 9

- 18 -
6-11. RS232C port COM2 and COM3 circuit
The circuits of COM2 and COM3 are as follows:
TP48
The COM2, and COM3 port pin locations are as shown below:
COM2 COM3
Signal Pin Signal Pin
NC 1 NC 1
RxD 2 RxD 2
TxD 3 TxD 3
DTR 4 DTR 4
GND 5 GND 5
DSR 6 DSR 6
RTS 7 RTS 7
CTS 8 CTS 8
VCC(+5V) 9 NC 9
1 2
3
4
5
6
7
8
9
COM2 port COM3 port
