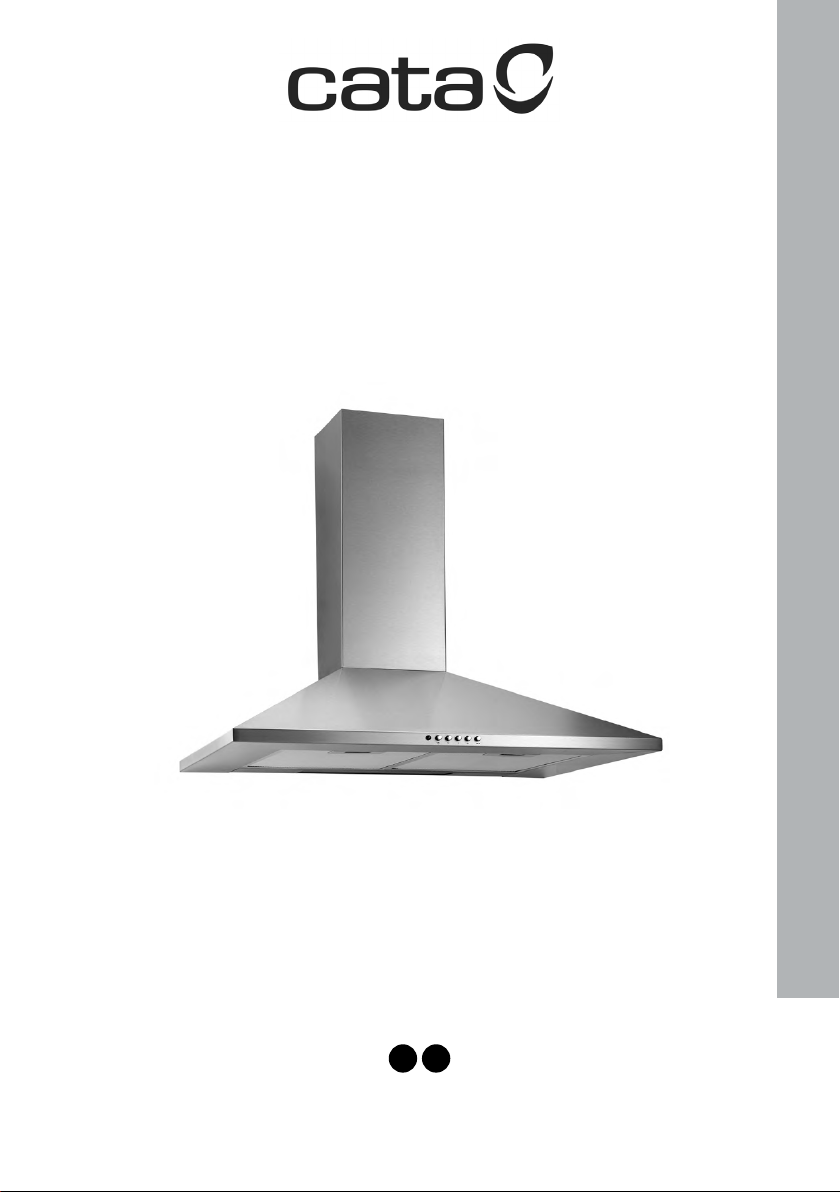

Cata CHIM60SS User manual

60900305 CHIM60_70_90SS IM v1b
GB IE
CHIM60/ 70/ 90SS
Chimney Hood

[01] x 1
[04] x 1
[05]
600mm x 2
[02] x 2 [03] x 1
1 : 1 [09] x 6
(3.9 x 32mm)
[10] x 4
(3.4 x 10mm)
[08] x 6
[06] x 1

GB IE Cooker Hood 04
FR Hotte Aspirante 20
Installation 22
CHIM60/ 70/ 90SS
3

4
Let's
get started...
Getting started... 05
Before you start 06
Safety 08
In more detail... 10
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Technical and legal information
Guarantee
CE Declaration of conformity
11
11
12
15
16
16
19
21
Appendix
22
Installation
GB IE

5
Getting
Started...
Getting started...
GB IE
Before you start 06
Safety 08

Before you start
Before you start
To avoid the risks that are always present when you use
an electrical appliance it is important that this appliance is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards. Please keep this
instruction booklet for future reference and pass it on to any
future owners. After unpacking the appliance please check
that it is not damaged. If in doubt, do not use the appliance
but contact Customer Services on 0844 800 1128 (UK),
01 4475261 (Ireland) and 01 56 48 02 60 (France).
Check the package and make sure you have all of the parts
listed.
Decide on the appropriate location for your product.
or handling to prevent personal injury or damage to the
product.
ordering replacement parts.
If you sell the appliance, give it away, or leave it behind
when you move house, make sure you also pass on this
manual so that the new owner can become familiar with the
appliance and its safety warnings.
6
Getting started...
GB IE

Before you start
Tools required
Ø6mm
CARBFILT4 (UK & IE)
SELF ADHESIVE
ALUMINIUM TAPE
Ø125mm
VENT PACK 2 (UK & IE)
Accessories not supplied
Recirculation Extraction
CARBON FILTER ORDERING HOTLINE
0844 800 1128 (UK) 01 4475261 (IE) 7
Getting started...
GB IE

Safety
These instructions are for your safety. Please read through
them thoroughly prior to installation and retain them for
future reference.
This appliance complies with all current European safety legislation,
however, the Manufacturer must emphasise that this compliance does
not prevent the surfaces of the appliance from heating up during use and
remaining hot during its operation.
Accessible parts may become hot during use. Young children should be kept
away. Care should be taken to avoid touching the appliance (e.g hob, cooker).
The Manufacturer highly recommends that this appliance be kept out of the
reach of babies and small children.
Children should be supervised to ensure that they do not play with the
appliance.
This appliance is not intended for use by persons (including children) with
reduced physical sensory, or mental capabilities, or by those who lack
experience and knowledge, unless they have been given supervision and
instruction concerning the use of the appliance by a person responsible for
their safety.
Means for disconnection must be incorporated in the xed wiring in
accordance with the wiring rules. An all-pole disconnection switch having
a contact separation of at least 3 mm in all poles should be connected in
xed wiring.
Do not allow the electric cables to touch the hot parts of the appliance.
Make sure that the power cord is not caught under or in the appliance and
avoid damage to the power cable.
Do not install the appliance outdoors in a damp place or in an area which
may be prone to water leaks such as under or near a sink unit. In the event
of a water leak allow the machine to dry naturally.
Please dispose of the packing material carefully.
Do not use ammable sprays in close vicinity to the appliance.
• All installation work must be carried out by a
competent person or qualied electrician.
• This appliance must be installed correctly by a
suitably qualied person, strictly following the
manufacturer’s instructions.
8
Getting started...
GB IE

Safety
We also recommend that great care be taken during use and cleaning.
Read the cleaning and maintenance sections for this appliance carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated by means of external timer or
separated remote-control system.
The appliance is for domestic use only.
Warning: consult local regulations regarding fumes outlets.
Do not connect the hood to a fume, ventilation or hot air duct.
Conrm that room ventilation is appropriate with the local authorities.
Make sure the maximum air extraction ow rate for the appliances in the
room does not exceed 4 Pa (0.04 mbar).
The room must have adequate ventilation if an extractor hood is used
simultaneously with appliances that run on gas or other fuels.
The air must not be discharged into a ue that is used for exhausting fumes
from appliances burning gas or other fuels.
Regulations regarding air extraction must be complied with.
Warning: before connecting the hood: switch off the electricity supply and
check that the supplied voltage and frequency coincide with that indicated
on the appliance nameplate.
Warning: the hood may stop working during an electrostatic discharge (e.g.
lightning). This involves no risk of damage. Switch off the electricity supply to
the hood and reconnect after one minute.
To avoid the risk of re, clean the metal lter regularly and closely watch and
regulate pans containing hot oil.
Do not use the hood if it shows signs of damage or imperfection. Contact
customer services.
Flambe cooking must not be carried out underneath this appliance.
When installing the appliance, make sure that the following distances
between the top of cooker or hob and the lowest part of the cooker hood
must be observed:
> Gas hobs: 750mm
> Electric hobs: 650mm
The Manufacturer declines all liability for personal or material damage as a
result of misuse or incorrect installation of this appliance.
9
Getting started...
GB IE
WARNING: There is a fire risk if cleaning is not carried out
