Cata CHP60SS User manual

60900115_04 CHP60_70_90SS
Barcode 8422248600866 / 8422248600873 / 8422248600880
8422248605939
GB IE
CHP60/70/90SS
UBCHIM60WH
Chimney Hood

[01] x 1
[04] x 2
[05]
600mm x 2
900mm x 3
[02] x 2 [03] x 1
[06] x 1 [07] x 1
1 : 1 [09] x 6
(3.9 x 32mm)
[10] x 4
(3.4 x 10mm)
[08] x 6

GB IE Cooker Hood 04
FR Hotte Aspirante 20
Installation 22
CHP60/70/90SS
UBCHIM60WH
3

4
Let's
get started...
Getting started... 05
Before you start 06
Safety 08
In more detail... 10
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Technical and legal information
Guarantee
CE Declaration of conformity
11
11
12
15
16
16
19
21
Appendix 22
Installation
GB IE

5
Getting
Started...
Getting started...
GB IE
Before you start 06
Safety 08

Before you start
Before you start
To avoid the risks that are always present when you use
an electrical appliance it is important that this appliance is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards. Please keep this
instruction booklet for future reference and pass it on to any
future owners. After unpacking the appliance please check
that it is not damaged. If in doubt, do not use the appliance
but contact Customer Services on 0844 800 1128 (UK),
01 4475261 (Ireland) and 01 56 48 02 60 (France).
Check the package and make sure you have all of the parts
listed.
Decide on the appropriate location for your product.
or handling to prevent personal injury or damage to the
product.
ordering replacement parts.
If you sell the appliance, give it away, or leave it behind
when you move house, make sure you also pass on this
manual so that the new owner can become familiar with the
appliance and its safety warnings.
6
Getting started...
GB IE

Before you start
Tools required
Ø6mm
CARBFILT4 (UK & IE)
OR CARBFILT4CL (FR)
SELF ADHESIVE
ALUMINIUM TAPE
Ø125mm or Ø150mm
VENT PACK 2 (UK & IE)
Accessories not supplied
Recirculation Extraction
CARBON FILTER ORDERING HOTLINE
0844 800 1128 (UK) 01 4475261 (IE) 7
Getting started...
GB IE

Safety
These instructions are for your safety. Please read through
them thoroughly prior to installation and retain them for
future reference.
This appliance complies with all current European safety legislation,
however, the Manufacturer must emphasise that this compliance does
not prevent the surfaces of the appliance from heating up during use and
remaining hot during its operation.
Accessible parts may become hot during use. Young children should be kept
away. Care should be taken to avoid touching the appliance (e.g hob, cooker).
The Manufacturer highly recommends that this appliance be kept out of the
reach of babies and small children.
Children should be supervised to ensure that they do not play with the
appliance.
This appliance is not intended for use by persons (including children) with
reduced physical sensory, or mental capabilities, or by those who lack
experience and knowledge, unless they have been given supervision and
instruction concerning the use of the appliance by a person responsible for
their safety.
Means for disconnection must be incorporated in the xed wiring in
accordance with the wiring rules. An all-pole disconnection switch having
a contact separation of at least 3 mm in all poles should be connected in
xed wiring.
Do not allow the electric cables to touch the hot parts of the appliance.
Make sure that the power cord is not caught under or in the appliance and
avoid damage to the power cable.
Do not install the appliance outdoors in a damp place or in an area which
may be prone to water leaks such as under or near a sink unit. In the event
of a water leak allow the machine to dry naturally.
Please dispose of the packing material carefully.
Do not use ammable sprays in close vicinity to the appliance.
• All installation work must be carried out by a
competent person or qualied electrician.
• This appliance must be installed correctly by a
suitably qualied person, strictly following the
manufacturer’s instructions.
8
Getting started...
GB IE

Safety
We also recommend that great care be taken during use and cleaning.
Read the cleaning and maintenance sections for this appliance carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated by means of external timer or
separated remote-control system.
The appliance is for domestic use only.
Warning: consult local regulations regarding fumes outlets.
Do not connect the hood to a fume, ventilation or hot air duct.
Conrm that room ventilation is appropriate with the local authorities.
Make sure the maximum air extraction ow rate for the appliances in the
room does not exceed 4 Pa (0.04 mbar).
The room must have adequate ventilation if an extractor hood is used
simultaneously with appliances that run on gas or other fuels.
The air must not be discharged into a ue that is used for exhausting fumes
from appliances burning gas or other fuels.
Regulations regarding air extraction must be complied with.
Warning: before connecting the hood: switch off the electricity supply and
check that the supplied voltage and frequency coincide with that indicated
on the appliance nameplate.
Warning: the hood may stop working during an electrostatic discharge (e.g.
lightning). This involves no risk of damage. Switch off the electricity supply to
the hood and reconnect after one minute.
To avoid the risk of re, clean the metal lter regularly and closely watch and
regulate pans containing hot oil.
Do not use the hood if it shows signs of damage or imperfection. Contact
customer services.
Flambe cooking must not be carried out underneath this appliance.
When installing the appliance, make sure that the following distances
between the top of cooker or hob and the lowest part of the cooker hood
must be observed:
> Gas hobs: 750mm
> Electric hobs: 650mm
The Manufacturer declines all liability for personal or material damage as a
result of misuse or incorrect installation of this appliance.
WARNING: There is a fire risk if cleaning is not carried out
in accordance with the instructions
9
Getting started...
GB IE

10
In more detail...
In more
detail...
GB IE
Product functions 11
Operation 11
Care and maintenance 12
Troubleshooting 15
Recycling and disposal 16
Technical and legal information 16
Guarantee 19
CE Declaration of conformity 21

Product functions
This appliance extracts the air of the kitchen to remove the odours
and keep an optimum level of the air quality inside the room, it
also allows you to illuminate the cooking area.
Operation
•Switch on the appliance at the switched fused connection unit.
The appliance is ready for use.
Five-button panel
Lighting on and off.
Extractor fan off.
Extractor fan speed - button: speed 1
Extractor fan speed - button: speed 2
Extractor fan speed - button: speed 3
To obtain the best results from your cooker hood it is
recommended that you leave it switched on for 15 minutes after
Product Functions
Operation
11
In more detail...
GB IE

Care and maintenance
Care and maintenance
Warning: always switch off the electricity supply before carrying
out maintenance work on the hood. In the event of a fault, contact
customer services.
Bulb replacement
10’
The Bulb may be hot, leave it 10 minutes before replacement.
Turn to replace the Bulb.
fUSE
off
12
In more detail...
GB IE

Care and maintenance
Active charcoal lter replacement:
CLICK
CLICK
2 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED).
MODEL NUMBER CARBFILT4 (UK & IE)
13
In more detail...
GB IE

Care and maintenance

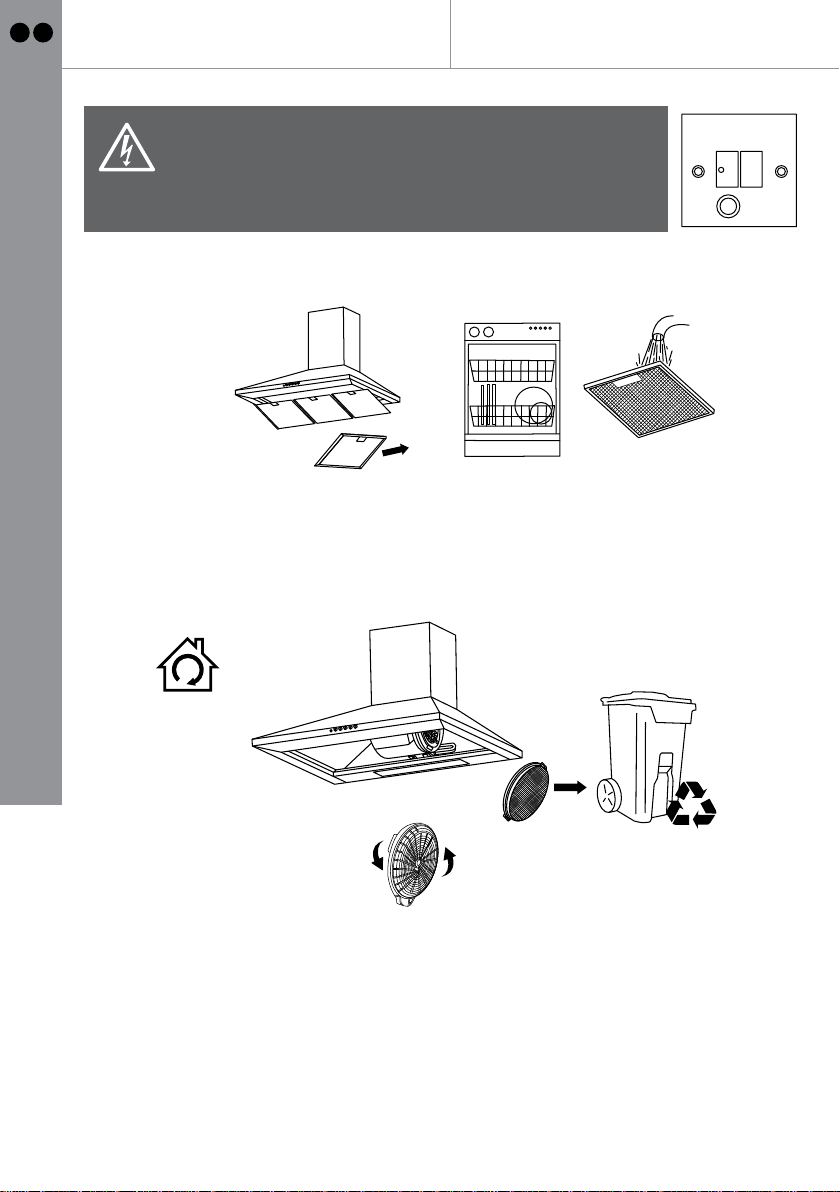

Metal lter maintenance:
Use non-corrosive, liquid detergent or a stainless steel cleaner.
1 MONTH
MAX.65˚C
Aluminium lters: to avoid res, clean thoroughly once a month or
whenever the display pilot light (if tted) indicates as such. To do
so, remove the lters, soak in hot water and mild detergent for an
hour. If using a dishwasher, position the lters vertically to improve
the cleaning process.
3 MONTHS
Active charcoal lters: replace every 3 months.
Important: increase the lter cleaning/replacement frequency
if the hood is used for more than 2 hours a day. Always use the
recommended lter.
fUSE
OFF
Warning
Always switch off the electricity supply before
performing maintenance work. In the event of a fault,
contact customer services.
14
In more detail...
GB IE

Troubleshooting
Troubleshooting
Fault Cause Solution
Excessive
Vibration TheAppliance is not hung properly on the brackets. Take down the appliance and check it is properly
xed.
The fan blade is damaged. Switch off the appliance.
Repair to be carried out by
qualied service personnel
only.
The fan motor is not xed
tightly.
Light on, but
motor does
not work.
The fan blade is jammed.
The motor is damaged.
Both light and
motor do not
work.
Light bulb blown. Replace with a bulb with
correct rating.
Power connection loose. Check power supply.
Suction
performance
reduced.
Speed may be too low. Select a higher speed.
Distance between the
cooker hood and the hob
is too great.
Readjust the distance to:
Gas hobs: 750mm
Electric hobs: 650mm
Aluminium grease lter is
dirty. Clean lters. (see care and maintenance)
Top vent might be
obstructed. (VHB60SS &
VH60W)
Clear any obstruction.
Optional vent kit might be
twisted. Ensure that the vent kit is tted to the manufacturers
instructions.
Works normally
but cooking
smells linger.
Charcoal lter not tted
in recirculation mode or
charcoal lter is full of
grease.
Fit charcoal lter if
recirculating or change
the lter. (see care and
maintenance)
15
In more detail...
GB IE

Recycling and disposal
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
The symbol on the product or its packaging indicates
that this product cannot be treated as normal
household waste. This product must be handed over to
an electric and electronic equipment collection point for
recycling.
On ensuring that this product is disposed of correctly, you will help
to avoid possible negative consequences for the environment
and public health, which could occur if this product is not handled
correctly. To receive more detailed information about recycling this
product, contact your local government, domestic waste disposal
services or the outlet where the product was bought.
Technical and legal information
The Manufacturer declines all liability for damage caused to
persons and objects due to incorrect or improper installation of the
appliance.
Power supply : 220-240V~ 50Hz
Power consumption – Fan : 95 W
Power consumption – Luminary : 2 x 7W Max
Power consumption – Total : 109 W
Protection class : II
Light bulb : Max. 7W (E-14)
16
In more detail...
GB IE
Technical and legal information

All installation work must be carried out by a
competent person or qualied electrician.
Before connecting the mains supply ensure that
the mains voltage corresponds to the voltage on
the rating plate inside the cooker hood.
Warning: THIS APPLIANCE MUST NOT
BE EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct
Connection
OFF
N(bleu)
L(brun)
N(bleu)
L(brun)
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3AMP FUSE
fUSE oN
EUR UK
Direct Connection
If the appliance is being connected directly to the mains an
omnipolar circuit-breaker must be installed with a minimum
opening of 3mm between contacts.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
The installer must ensure that the correct electrical connection has
been made and that it complies with wiring diagram.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorized
technicians only.
17
In more detail...
GB IE
Technical and legal information

Technical and legal information
Electrical Requirements
Any permanent electrical installation must comply with the latest
I.E.E. Regulations and local electricity company regulations. For
your own safety a qualied electrician or contractor who is on the
roll of the National Inspection Council for Electrical Installation
Contracting (NICEIC) should undertake the electrical installation.
Electrical Connection
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate inside
the cooker hood.
WARNING: THIS APPLIANCE MUST NOT BE EARTHED
The appliance is supplied with a 2-core mains cable and must be
connected to the electricity supply via a double pole switch having
a 3mm minimum contact gap on each connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4 is
recommended.
The fuse must be rated at 3 Amps.
The wires in the mains lead are coloured in accordance with the
following code:
Brown = L - Live
Blue = N - Neutral
The connection point must be placed in a position adjacent to the
appliance so as to be readily accessible for an engineer in the
event of a breakdown.
Disconnect the appliance from the mains supply before
carrying out any kind of maintenance or cleaning.
18
In more detail...
GB IE

Guarantee
19
In more detail...
GB IE
Manufacturer's Guarantee
This appliance is covered by afull manufacturer’s 24 month parts and
labour guarantee and covers all parts and labour costs associated with
the repair of the appliance in a domestic environment. We will repair any
defect that arises due tofaulty materials or workmanship and use genuine
manufacturers parts.
All claims must be supported with the original receipt or other reasonable
proof of purchase.
If, during the guarantee period, the appliance becomes irreparable as
agreed by the engineer approved by GAAthen we reserve the right, at our
discretion, to exchange the defective product with a replacement appliance
at GAA’s sole cost. If the same product is no longer available an alternative
will be offered with the same functions as the faulty item.
After an appliance has been repaired or replaced any remaining balance
of the GAAguarantee will be valid and any further call outs during this
prescribed period will be covered by GAAon the replacement appliance.
Should any person other than an authorized engineer modify or attempt to
repair the appliance then the warranty will be invalid.
The guarantee applies tothe UK mainland, Scotland, Ireland, ROI and
France but is not transferrable between EUcountries.
This guarantee is non-transferrable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not
diminish your legal rights.
Exclusions to the guarantee
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a result of failure to
store, assemble, install , use or care of the products in accordance with the
manufacturer’s instructions -GAA will not accept responsibility under this
guarantee if a product is damaged or becomes defective due to, misuse,
neglect, wilful or accidental damage or act of god.
Normal wear and tear.

20
In more detail...
GB IE Guarantee
Exclusions to the guarantee (continued)
Claims arising from non-domestic use or commercial environment.
If no fault is found then GAA reserves the right to charge for the call out at
the going rate of £55.00 plus VAT.
In the course of the service work carried out it may be necessary to
ppliance is
glued, grouted or tiled in such a manner that it cannot be removed, it is the
responsibility of the customer/installer to remove and reinstall the appliance
to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by GAALtd, 1301-1303 Lu Plaza,
2 Wing Yip St, Kwun Tong, Kowloon, Hong Kong.
Customer Service
To arrange an in guarantee service call, please contact customer services
on the following numbers.
UK and N.Ireland
T: 0844 8001128
E: [e-mail]
www.myspareparts.co.uk
Republic of Ireland (Eire)
T: 01 4475261
E: [e-mail]
