SAFETY
Dear Customer,
Thank you for buying our hood. Please read these instructions carefully for its
optimum installation, use and maintenance.
This appliance has been designed and manufactured exclusively for use at
home.
In order to ensure optimal installation, use and maintenance of the appliance,
we recommend that you read these instructions carefully.
Check the appliance before installing it. Do not use the hood if it is damaged or
faulty. If this is the case, please contact your distributor or installer.
Warning: You must comply with existing legislation on emission of fumes and
environmental ventilation. Do not connect the hood to another vent for smoke,
ventilation or hot air which is already being used by other appliances that are
fuelled by gas or another fuel.
For optimal and safe performance, the pressure in the room should not drop by
more than 4 Pa (0.04 mbar). For this purpose, sufficient permanent air inlets
should be provided to prevent the premises from being sealed.
If a kitchen extractor hood and appliances fuelled by gas or another fuel are
used simultaneously, there must be an appropriate ventilation system in the
room.
Connecting the hood to the grid
Warning: before connecting the hood: shut off the power supply and check that
the voltage and frequency supply matches that indicated on the rating plate of
the equipment.
If the appliance is equipped with a plug, connect the hood to a socket located in

EN
4
an accessible area which is compliant with existing standards.
If the appliance is not equipped with a plug, connect the appliance directly to
the power grid, protected by an omnipolar separating device which can be ac-
cessed to disconnect it, in accordance with local regulations.
If the power cable is damaged, it must be replaced by the manufacturer throu-
gh its post-sale service, or by similar, qualified personnel in order to prevent
danger.
Using the hood
Warning: during electrostatic discharge (e.g. a flash of lightning) the hood may
stop working. This does not involve risk of damage. Shut off the power supply
to the hood and re-connect it after one minute.
Children under the age of 8 years should be kept away from the appliance un-
less under permanent supervision.
This appliance can be used by children of 8 years and over and people with re-
duced physical, sensory or mental capacities or a lack of experience or knowle-
dge, if supervised by a person responsible for their safety or if they have been
given suitable instructions regarding the safe use of the appliance and they
understand the risks involved. Children should not play with the appliance. The
cleaning and maintenanceto be performed by the user should not be carried out
by unsupervised children.
To avoid the risk of fire, the metal filter should be cleaned regularly.
Containers with hot oil should be monitored continuously.
Do not set food alight under the hood.
Accessible parts may become hot when used with cooking appliances.
Legal information
The manufacturer:
- Declares that this appliance complieswith the essential requirements for low-
voltage electrical equipment, as set out in Directive 2014/35/EU, and electro-
magnetic compatibility, as set out in Directive 2014/30/EU.
- Shall not be held responsible for failure to follow the instructions given in this
manual or non-compliance with safety standards relating to the correct use of

EN
5
the equipment.
- Shall not be held responsible for any damage caused by the incorrect insta-
llation, use or maintenance of the appliance.
- Reserves the right to make any changes to the equipment or this manual
without giving prior notice.
Should you need technical assistance or additional information about our pro-
ducts, please contact your distributor or an official, authorised technical service.
ELECTRIC INSTALLATION
Make sure the maximum air extraction flow rate for the appliances in the room does not exceed
4 Pa (0.04 mbar).The room must have adequate ventilation if an extractor hood is used simul-
taneously with appliances that run on gas or other fuels. The evacuated air must be extracted
through ducts that are used for evacuating fumes from appliances that run on gas or other
fuels. Regulations regarding air extraction must be complied with.
This product in intended for HOUSEHOLD USE only.
Use a rigid PVC pipe with a min. Ø l20 mm to evacuate fumes outside.
The above restrictions do not apply to hoods with no fumes outlet to outside (recirculation
system with activated charcoal filter).
Warning: Failure to install the screws or fixing device in accordance with these instructions
may result in electrical hazards.
Installation and connection
- This appliance is only intended for domestic use.
- Please observe the special installation instructions.
- The appliance is fitted with a plug and must only be connected to a properly installed earthed
socket.
- The mains voltage must correspond to the voltage specified on the rating plate.
- The socket must be installed and connecting cable must only be replaced by a qualified
electrician.If the plug is no longer to accessible following installation,an all-pole disconnecting
device must be present on the installation side with a contact gap of at lease 3mm.
-Adapters,multi-way strips and extension leads must not be used. Overloading can result in a
risk of fire.
Warning: This is a Class I appliance and MUST be earthed.

EN
6
This appliance is supplied with a 3 core mains cable coloured as follows:
• Brown = L or Live
• Blue = N or Neutral
• Green and Yellow = E or Earth
USE A 3AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
KURUE
(Blue)
(Brown)
(Green/Yellow)
N
L
N
L
N
L
FUSE ON

EN
7
PRODUCT INSTALLATION
x2
[01] x 1
[06] x 4
[03] x 2[02] x 1
[04] x 1 [05] x 1
[08] x 8
(3 x 12mm)
[07] x 4
(6 x 40mm)
Not included
VENT PACK (Ø125mm)
3663602843146
[B] x 1[A] x 1
CARBFILT9
3663602843122

EN
8
Choose a type of installation:
SUCTION VERSION
(extraction to the outside)

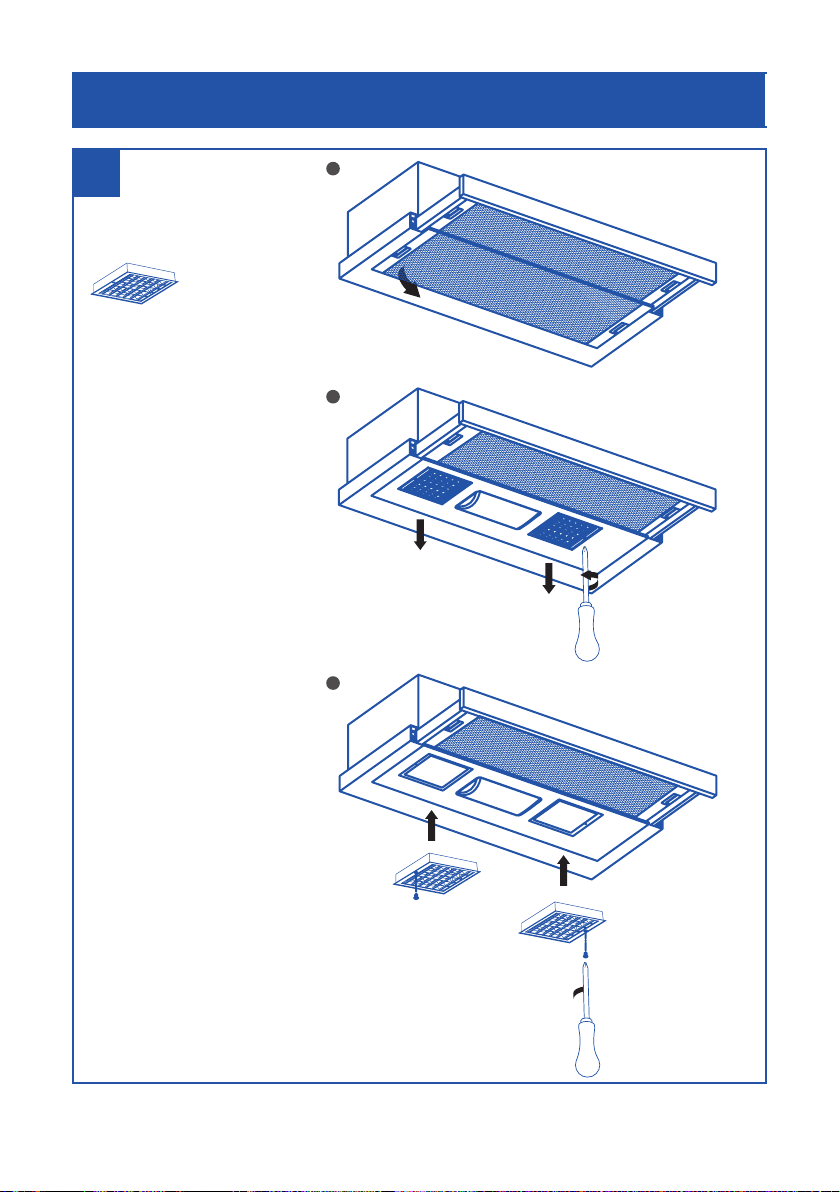

FILTERING VERSION
(no extraction to the outside)
SUCTION VERSION
If the hood is to be installed as a SUCTION hood, connect the plastic outlet piece supplied with
the hood (120mm diameter pipe for better performance and lower noise levels.
FILTERING VERSION (INTERNAL RE-CYCLING)
When there is no exhaust duct for venting out-door, you can use a carbon filter. The air is depu-
rate by the filter and put again in the surrounding.
The air is released in the room through a connecting pipe, which goes through the hanging
cupboard and us connected to the connecting ring supplied.
To use the appliance in this version, proceed as follows:
1. Open the grids
2. To proceed to change the charcoal filter, the screw has to be removed.
3. Reinstall the grids.
Install the hood in line with the instructions on the template.
For gas cooking appliances only: the minimum distance to the Hood must be at least 65 cm.

EN
9
A
A
[08]
[02]
[02] x 1
[08] x 8
(3 x 12mm)
≥ 650 mm
01
02

EN
10
[08]
[03]
[03] x 2
[08] x 8
(3 x 12mm)
[07] x4
[06] x4
A
B
280mm
460mm
453mm / 553mm
50mm
50mm
210mm
280mm
33mm
140mm
180mm
[07]
[06]
[B]
[B] x1
03
04

EN

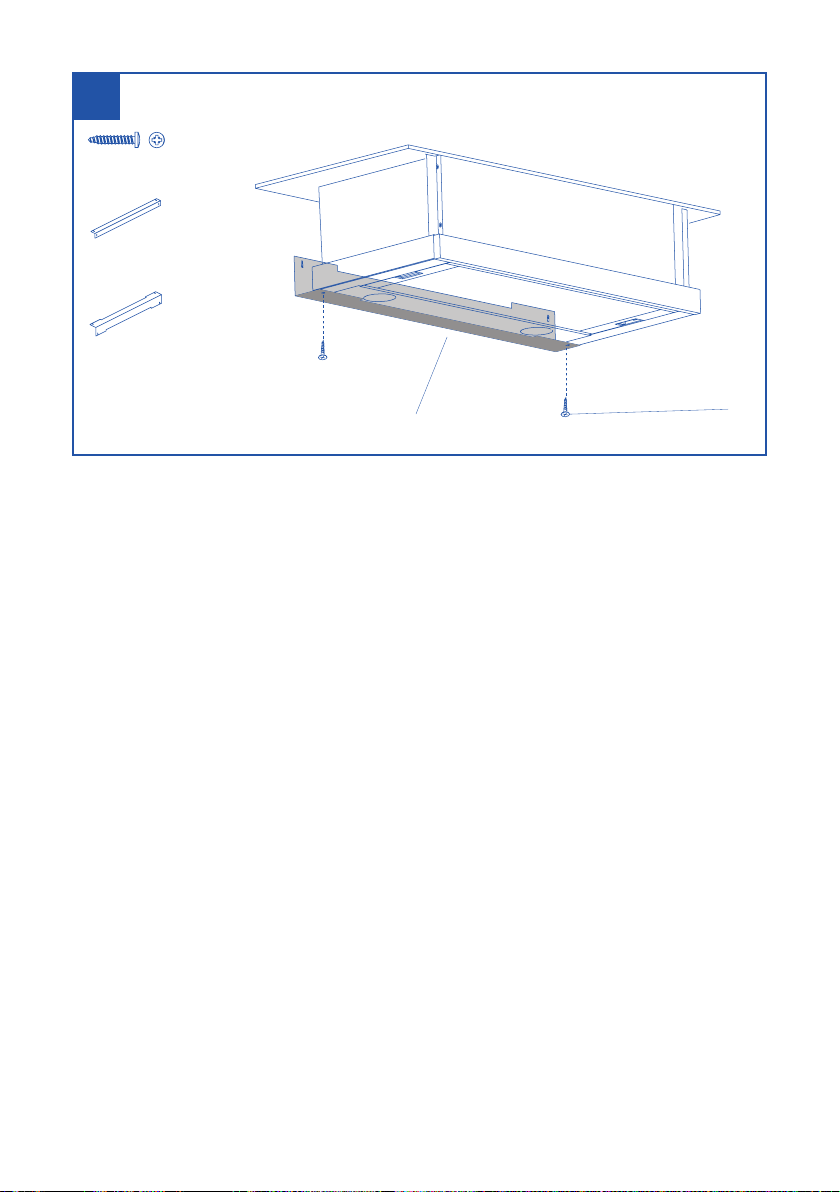

11
[04] x1
[05] x1
[08]
[04] or [05]
[08] x2
(3 x 12mm)
05

EN
12
SUCTION VERSION
(extraction to the outside)
VENT PACK
(Ø125mm)
06
07

EN
13
FILTERING VERSION
(no extraction to the outside)
1
2
3
CARBFILT9
06

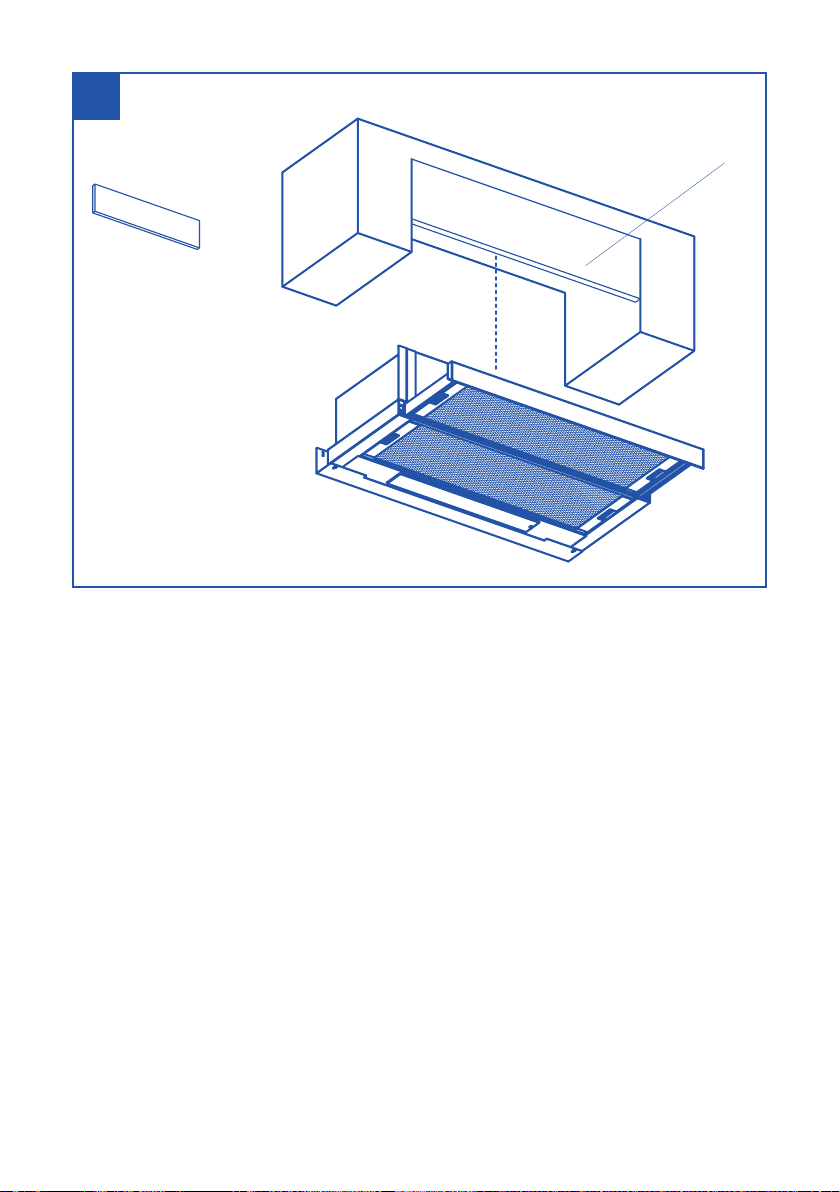

EN
14
[A]
[A] x1
07

EN
15
USE
The front panel has to be pulled its maximum extension so as to optimise the extraction capa-
city.
The three setting switch has the following functions:
0Stop
ILow Speed
II High Speed
Switch on the Lamps
Pull out the grill more than 50mm

EN
16

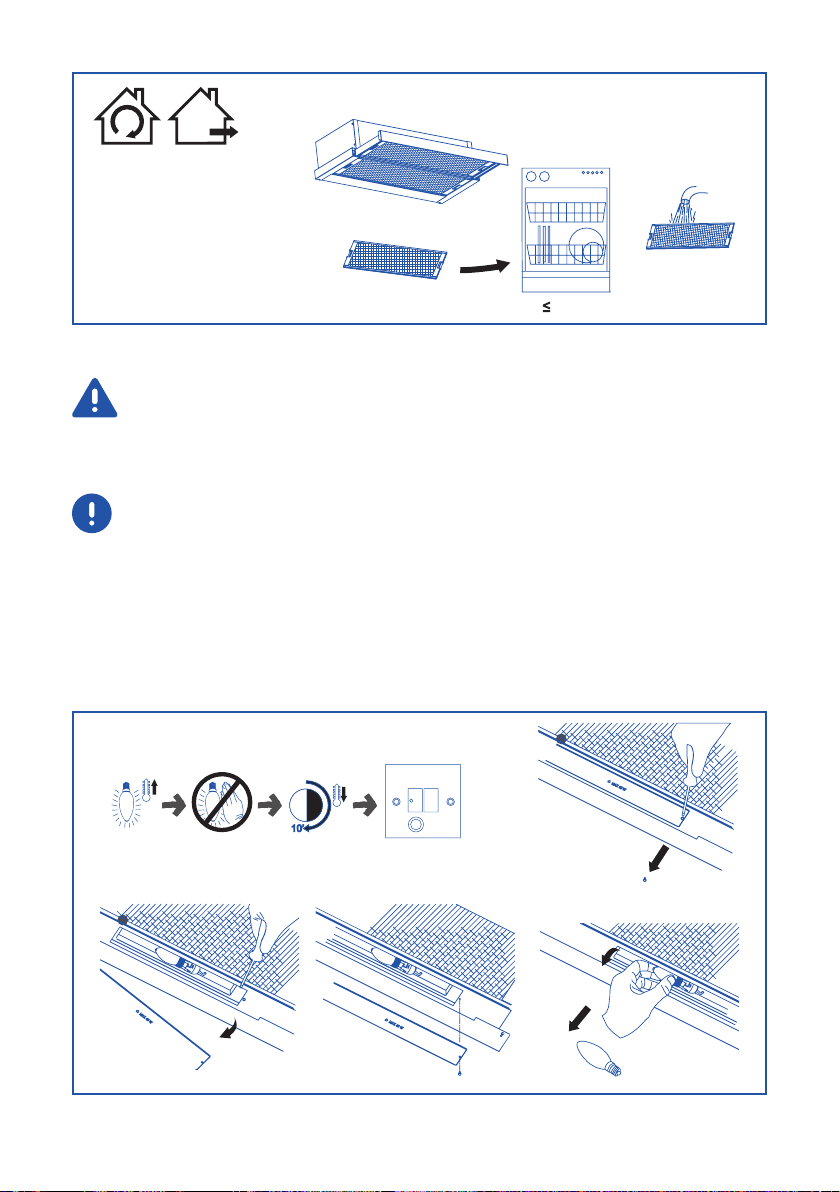

CARE & MAINTENANCE
Warning: always switch off the electricity supply before carrying out maintenance work on
the hood. In the event of a fault, contact an official distributor or authorised dealer.
Cleaning the outside: use liquid, non-corrosive detergent and avoid using abrasive cleaning
products and solvents.Do not use high-pressure or steam cleaning devices.
Important: increase the filter cleaning/replacement frequency if the hood is used for more
than 2 hours a day. Always use genuine filters from the manufacturer.
Carbon filter replacement
Activated charcoal filters: replace the every 3 months.
3 MONTHS
Carbon filter replacement
To avoid fires, clean thoroughly once a month or whenever the display pilot light indicates as
such. To do so, remove the filters and wash with hot water and detergent. If using a dishwasher
(metal parts may turn black without this affecting their functional capacity), load the filters
vertically to avoid solid residue from being deposited.

EN
17
65ºC
1 MONTHS
Lamp replacement
Warning: do not handle the bulbs until the electricity supply has been switched off and they
have cooled.
Important: use new bulbs according to that indicated on the hood nameplate.
If using LED lighting, do not look directly at the light.
Use bulbs with an aluminium reflector to replace halogen bulbs. Do not use dichroic bulbs - risk
of overheating.
For LED lamp replacements, please contact Technical Support or the distributor of the brand.
10’
FUSE
OFF
1
2
4

EN
18
FAQS
Problem Cause / Solution
The lamps do not work A change may be necessary, but first check that the
lamp is correctly positioned and that the contact is
correct. Remember that lamps are not covered by the
warranty. Disconnect the current hood before hand-
ling the lamps. Use lamps with the same properties
described on the nameplate.
It is advisable to use lamps supplied by the manufac-
turer of the hood.
The motor works, but it seems to
have requested performance or ex-
traction capacity
The selected speed is too low / Select a higher speed.
Check the Metallic Filter (grease filter). If it has not
been washed recently, it may be clogged with grea-
se or dirt. Disassemble and wash it in hot water and
detergent, and let it dry before reassembling again.
Ensure that the air outlet tube has not been obstruc-
ted.
The hood works, but the smell of the
food persists.
If you are using the hood in recirculation mode, the
Active Carbon Filter must be replaced.
The hood does not work Check that the hood is connected to power. Check
that the fuses or automatic have not jumped.
The hood still does not work If, after having checked the points mentioned above,
your problem has not yet been solved, contact the
technical service or your distributor.

EN
19
TECHNICAL DATA & ERP
Model TH 600 Duralum
Code 02017313
EAN Code 8422248080415
Product fiche according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Anual Energy consumption) (kWh/annum) 46,3
EEI class (Energy Efficiency Class) C
FDE (Fluid Dynamic Efficiency) 10,1
FDE class (Fluid Dynamic Efficiency Class) E
LE (Lighting Efficiency) (lux/W) 36
LE class (Lighting Efficiency Class) A
GFE (Grease Filtering Efficiency) 68
GFE Class (Grease Filtering Efficiency class) D
Air flow at minimum speed (m3/h) 150
Air flow at maximum speed (m3/h) 390
Air flow at intensive speed (TURBO) (m3/h) -
Sound Power Level at minimum speed (dB) 45
Sound Power Level at maximum speed (dB) 57
Sound Power Level at intensive speed (TURBO) (dB) -
Po (Power Consumption in off mode) (W) 0
Ps (Power Consumption in standby) (W) 0
Integration directive EU 66/2014
ƒ (Time Increase Factor) 1,6
EEI (Energy Efficiency Index) 81,1
QBEP (Flow Rate at Best Efficiency Point) (m3/h) 201,1
PBEP (Static Pressure Difference at Best Efficiency Point) (Pa) 125
WBEP (Electric Power Input at Best Efficiency Point) (W) 69
WL (Nominal Power Consumption of Lighting system) (W) 7
EMIDDLE (Average Illumination of Lighting system on Cooking surface) (lux) 252
Features
Maximum Power Consumption 100W
Electric Connection
Total Rush Power (W) 107W
Rated Voltage (V) 220-240
Network Frequency (Hz) 50
Electrical Insulation Class CLASS I

EN
20
GUARANTEE + WEEE
THE MANUFACTURER guarantees conformity of this product, which is designed solely and ex-
clusively for household use, for a period of two (2) years from the date of the invoice, receipt of
purchase or delivery note (in the case of distance selling) duly stating the acquired appliance.
This warranty includes both parts and labour, and the travel of the technical staff of the nearest
Official Service (except in the case of products which, due to their small size and mobility,
should be transported by the user to the Official Technical Service).
For the application of this warranty, the consumer should contact the distributor or the Custo-
mer Service of Cata Electrodomésticos (902 410 450 – [email protected]).
The Manufacturer may exercise its right of decisión to repair or replace the defective product
when the cost of one of the two options is considered to be disproportionate.
If repair or replacement is not posible or not appropriate, the consumer may choose a price
reduction or purchase cancellation (as specified in Articles 120 and following of RD 1/2007, and
Article 12 of Act 7/1996).
“EXCLUSION CLAUSES This warranty does not apply in the following cases:”
• Failure to follow instructions covered in the Instruction Manual.
• Misuse or normal wear and tear of the product (filters, bulbs, gaskets, rubber components,
paints, varnishes, etc.).
• Tampering thereof by unauthorized persons.
• Lack of cleaning or of regular maintenance of the product.
• Breakdowns or damage caused by the chemical or electrochemical effects of wáter or by
contact with inappropriate substances, outside of that stipulated in the Instruction Manual.
• Incidents resulting from physical breakage not attributable to a manufacturing defect (ca-
sings, glass, trim, plastics, filters, controls, etc.).
This warranty does not affect the consumer rights set forth in Royal Legislative Decree 1/2007
of 16 November.
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection point
for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment and
human health, which
could otherwise be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
