Caterlite CN515-A User manual

Model:
CN515-A
Vacuum pack
machine
Instruction manual
CN515-A_A5_v2_20210511.indb 1CN515-A_A5_v2_20210511.indb 1 2021/5/11 15:552021/5/11 15:55

2
AU Telephone Helpline: 1300225960
Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- Fire Precautions
- Wiring Regulations
- Building Regulations
• DO NOT immerse the appliance in water.
• The sealing bar becomes hot during use. DO NOT touch the
sealing bar during or immediately after operation.
• Do not turn Off at the plug to halt operation; always use the
Cancel button.
• Do not use the appliance for anything other than its intended
use.
• Only use bags recommended by the supplier/manufacturer
with the appliance.
• Always switch off and disconnect the power supply to the
appliance when not in use.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the
packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a
Caterlite agent or a recommended qualified technician in order
to avoid a hazard.
CN515-A_A5_v2_20210511.indb 2CN515-A_A5_v2_20210511.indb 2 2021/5/11 15:552021/5/11 15:55

3
AU
Telephone Helpline: 1300225960
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience or knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• Caterlite recommend that this appliance should be periodically
tested (at least annually) by a Competent Person. Testing
should include, but not be limited to: Visual Inspection,
Polarity Test, Insulation Continuity and Functional Test.
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your Caterlite product.
Pack Contents
The following is included:
• Caterlite Vacuum Pack Machine • Instruction manual
Caterlite prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your Caterlite dealer immediately.

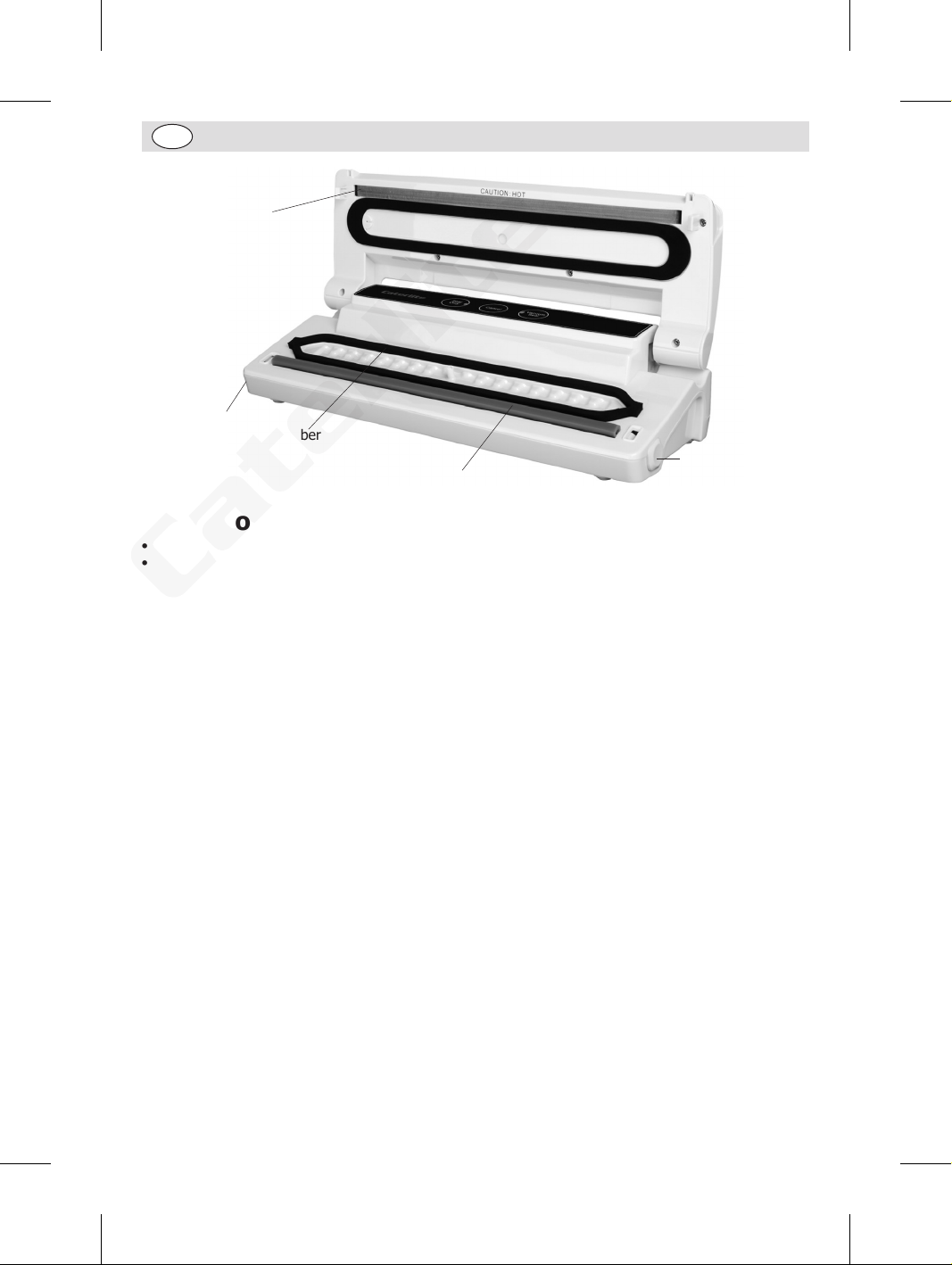

Location of Controls
Vacuum Seal button
Seal Only button
Cancel button
Lock
Lock
CN515-A_A5_v2_20210511.indb 3CN515-A_A5_v2_20210511.indb 3 2021/5/11 15:552021/5/11 15:55

4
AU Telephone Helpline: 1300225960
Lock
Sealing bar
Lock
Chamber ring
Sealing strip
Operation
• The Vacuum Sealer automatically comes on when plugged in.
• The Vacuum Sealer is now ready for use.
Vacuum Packing Food
1. Place the food in the bag and remove any excess liquid or food residue.
2. Allow minimum of 25-50mm of space at the top of bag to ensure a good seal.
3. Place the open end of the bag across the Sealing Strip, keeping opening within the chamber ring and
close lid, pressing down with thumbs until the locks on both sides engage.
4. Press “Vacuum Seal” button. Indicator light will turn red.
5. Vacuum pump will engage until required vacuum level is achieved. Machine will automatically go into
seal mode.
6. Seal Only indicator light will turn red as the machine starts to seal.
7. When sealing is complete red Seal Only light will go out . Press side lock buttons to release lid.
8. Remove bag and inspect bag and seal.
(Note: A good seal will look clear upon inspection. If the seal is spotty, incomplete, wrinkled, white
or milky, remove sealed portion and run vacuum and seal process again.)
9. To stop process, press “Cancel” button. Machine will stop.
Using the “Seal Only” Function
1. Place the open end of the bag across the Sealing Strip, keeping opening within the chamber ring and
close lid, pressing down with thumbs until the locks on both sides engage.
2. Press “Seal Only” button.
3. Indicator light will change to red as the machine starts to seal
4. When sealing is complete red Seal only light will go out . Press side lock buttons to release lid..
5. Remove bag and inspect bag and seal.
(Note: A good seal will look clear upon inspection. If the seal is spotty, incomplete, wrinkled, white
or milky, remove sealed portion and run vacuum and seal process again.)
CN515-A_A5_v2_20210511.indb 4CN515-A_A5_v2_20210511.indb 4 2021/5/11 15:552021/5/11 15:55

5
AU
Telephone Helpline: 1300225960
Cleaning, Care & Maintenance
Switch off and disconnect from the power supply before cleaning.
Always allow to cool before cleaning.
WARNING: Do not allow any water to spill into the appliance when cleaning.
• Use warm, soapy water and a damp cloth to clean the appliance.
• Dry thoroughly after cleaning.
• A Caterlite dealer or qualified technician should carry out repairs if required.
Troubleshooting
Fault Probable Cause Solution
The appliance is
not working
The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug or lead is damaged Call Caterlite agent or qualified Technician
Power supply Check power supply
Appliance does
not remove all
the air from the
bag
Open end of bag not completely
inserted
Open lid and reposition bag
Gaskets dirty Clean gaskets
Open end of bag is dirty Clean bag
Bag may be punctured Replace bag
Incorrect bags used Call Vacuum Pack machine supplier
Suction nozzle blocked Clear suction nozzle
Lid is not locked into position
correctly
Ensure lid is locked in position correctly
Bags are not
sealing correctly
Moisture in bag under the sealing
bar
Ensure inside of the bag is dry and free from
moisture where it is to be sealed
Incorrect bags used Call Vacuum Pack machine supplier
End of bag not placed above sealing
bar
Move end of bag over sealing bar
Technical Specifications
Model Voltage Power Current Vacuum Pressure
(approx.)
Dimensions
h x w x d mm
Weight
(kg)
CN515-A 220-240V
50Hz
110W 0.5A -0.75 Bar 87 x 357 x 148 1.4
CN515-A_A5_v2_20210511.indb 5CN515-A_A5_v2_20210511.indb 5 2021/5/11 15:552021/5/11 15:55

6
AU Telephone Helpline: 1300225960
Electrical Wiring
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The product must not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and environmentally safe
recycling process. For further information on how to dispose of this product correctly, contact the product
supplier, or the local authority responsible for waste disposal in your area.
Caterlite parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
Caterlite products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of Caterlite.
Every effort is made to ensure all details are correct at the time of going to press, however, Caterlite reserve the right to
change specifications without notice.
CN515-A_A5_v2_20210511.indb 6CN515-A_A5_v2_20210511.indb 6 2021/5/11 15:552021/5/11 15:55

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •
• Declaración de conformidad • Declaração de conformidade
Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp
• Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento
Model • Modèle • Modell • Modello
• Modelo • Malli
Vacuum Pack Machine
CN515 (-E & -A)
Application of Territory Legislation &
Council Directives(s)
Toepassing van Europese Richtlijn(en) •
Application de la/des directive(s) du
Conseil • Anwendbare EU-Richtlinie(n)
• Applicazione delle Direttive
• Aplicación de la(s) directiva(s) del
consejo • Aplicação de directiva(s) do
Conselho
Low Voltage Directive (LVD) - 2014/35/EU
Electrical Equipment (Safety) Regulations 2016
EN 60335-1:2012 +A11:2014
EN 60335-2-45:2002 +A1:2008 +A2:2012
EN 62233:2008
Electro-Magnetic Compatibility (EMC) Directive
2014/30/EU - recast of 2004/108/EC
Electromagnetic Compatibility Regulations 2016
(S.I. 2016/1091)
EN55014-1:2017
EN55014-2:2015
EN 61000-3-2: 2014
EN 61000-3-3: 2013
Restriction of Hazardous Substances Directive
(RoHS) 2015/863 amending Annex II to Directive
2011/65/EU
Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic
Equipment Regulations 2012 (S.I. 2012/3032)
Electrical Safety
IEC 60335-1:2010 +A1:2013
IEC 60335-2-45:2002 +A1:2008 +A2:2011
Electromagnetic Compatibility
EN55014-1:2017
EN55014-2:2015
EN 61000-3-2: 2014
EN 61000-3-3: 2013
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers
• Nome del produttore • Nombre del fabricante • Nome do fabricante
Caterlite
I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and
Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande Richtlijn(en) en
Standaard(en).
Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und Norm(en) entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y estándar(es) arriba
mencionadas.
Eu, o abaixo-assinado, declaro que o equipamento anteriormente especificado está em conformidade com a(s) anterior(es) Directiva(s) e
Norma(s)
Date • Data • Date • Datum • Data •
Fecha • Data
4th May 2021
Signature • Handtekening •
Signature • Unterschrift Firma •
Firma • Assinatura
Full Name • Volledige naam • Nom
et prénom • Vollständiger Name •
Nome completo • Nombre completo
• Nome por extenso
Ashley Hooper
Eoghan Donnellan
Josie Holt
Position • Functie • Fonction •
Position • Qualifica • Posición •
Função
Technical & Quality
Manager
Commercial
Manager/ Importer
Commercial Manager/ Responsible
Supplier
Producer Address • Adres fabrikant •
Adresse du producteur • Anschrift
des Herstellers • Indirizzo del
produttore • Dirección del fabricante
• Morada do fabricante
Fourth Way,
Avonmouth,
Bristol,
BS11 8TB
United Kingdom
42 North Point
Business Park
New Mallow Road
Cork
Ireland
15 Bagdally Road,
Campbelltown
NSW 2560
DocuSign Envelope ID: 8429D32A-FF24-4CF2-A2DC-30BBD59083FF
