CONTENTS
2 Congratulation
4 Catler recommends safety rst
5 Know your JE 8010 Juicer
7 Assembling your JE 8010 Juicer
11 Operating your JE 8010 Juicer
13 Disassembling your JE 8010 Juicer
17 Cleaning
19 Trouble shooting guide
20 Tips on juicing
R1 Recipes
CONTENTS

Congratulation
on your purchase of your new Juice Extractor JE 8010
CONGRATULATION
2

33
From its superbly crafted and ultra-quiet motor right through to the
commercially styled casing, your JE 8010 Die-cast juicer represents a
perfect balance of functionality, reliability and absolute style.
In developing this booklet our goal was to provide you with a starting
point from which you can explore the incredible versatility of your
new juicer. From beautifully fresh and healthy fruit and vegetable
recipes though to the guide for cleaning and maintenance, we hope
each page helps you gain many years of health and enjoyment.
We would just like to say thank you, congratulations and…
CONGRATULATION

4
CATLER RECOMMENDS SAFETY FIRST
We at Catler are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer foremost in mind.
In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTANT SAFEGUARDS FOR YOUR JE 8010 JUICER PROFESSIONAL AND FOR ALL ELECTRICAL APPLIANCES
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure
that they will not play with the appliance.
• Do not push produce into the feed chute
with your ngers. Always use the Food
Pusher provided.
• Do not touch the small sharp teeth and
blade in the centre of the Stainless Steel
Filter Basket.
• Do not touch the sharp blade in the Feed
Chute.
• Always make sure the JE 8010 Juicer is
properly and completely assembled before
connecting to power outlet and operating.
The unit will not turn ‘ON’unless properly
assembled.
• Always use the JE 8010 Juicer on a dry, level
surface.
• Always switch the JE 8010 Juicer o, then
switch o at the power outlet and then
unplug appliance – if appliance is to be
left unattended, – if not in use, – before
cleaning, – before attempting to move the
appliance, disassembling, assembling and
when storing the appliance.
• Do not juice stone fruit unless seed stone
has been removed.
• Regularly inspect the supply cord, plug, lter
basket and actual appliance for any damage.
If found damaged in anyway, immediately
cease use of the appliance and return the
entire appliance to the nearest Catler Service
Centre for examination, replacement or
repair.
• Carefully read all instructions before opera-
ting and save for future reference.
• Do not immerse power cord or motor base
in water or any other liquid. Do not use a
water jet to clean the power cord or motor
base.
• Do not leave the appliance unattended
when in use.
• Do not run the JE 8010 Juicer for more than
one minute at a time when juicing hard
fruits and vegetables at a rapid rate and with
rm pressure.
• Do not let the cord hang over the edge of
a table or counter, or touch hot surfaces or
become knotted.
• Do not place this appliance on or near a
hot gas or electric burner, or where it could
touch a heated oven.
• Any maintenance other than cleaning
should be performed at an authorised
Catler Service Centre.
• Do not use this appliance for other than its
intended use. Do not use in moving vehic-
les or boats. Do not use outdoors.
• The installation of a residual current
device (safety switch) is recommended to
provide additional safety protection when
using electrical appliances. It is advisable
that a safety switch with a rated residual
operating current not exceeding 30mA be
installed in the electrical circuit supplying
the appliance. See your electrician for
professional advice.
• Strictly follow cleaning and care instructi-
ons.
CATLER RECOMMENDS SAFETY FIRST
WARNING:
SUPER WIDE FEED CHUTE. DO NOT PLACE HANDS OR FOREIGN OBJECTS DOWN FEED
CHUTE. ALWAYS USE FOOD PUSHER PROVIDED.

KNOW YOUR JE 8010 JUICER

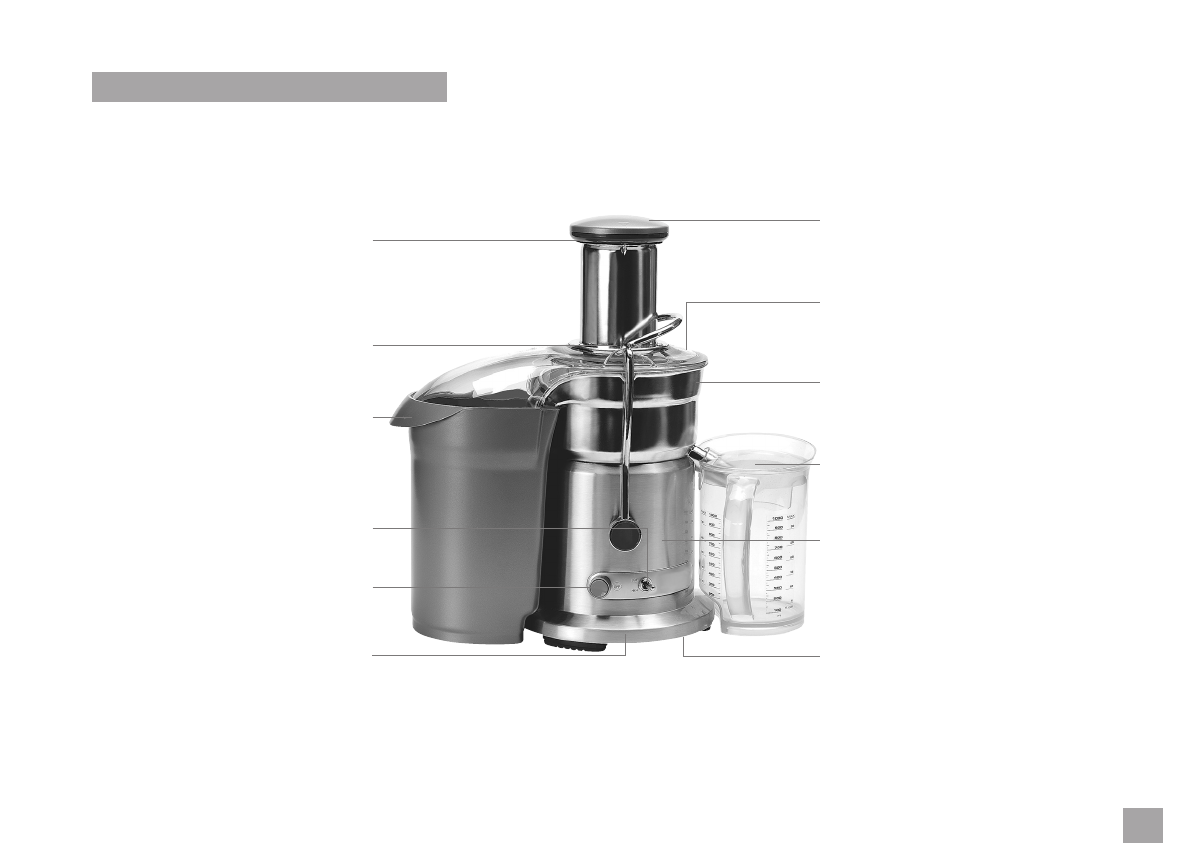

Patented* super wide feed chute
ts whole apples, carrots, tomatoes and
peeled oranges. Makes juicing fruit and
vegetables fast and easy
Safety locking arm
– Juicer will not operate without juicer
cover in place and safety locking arm in
place in the vertical operating position
Large pulp container with
integrated handle
(dishwasher safe)
Two speed electronic control
Low speed for juicing soft fruits with high
water content such as watermelon. High
speed for juicing hard fruit and vegetables
“OFF” button
Overload protection button
safeguard against overheating
(not shown in picture)
Food pusher
for pushing whole fruit and vegetables
down the patented wide feed chute.
Juicer cover
(dishwasher safe)
Stainless steel micro mesh
lter basket
(dishwasher safe)
Dishwasher safe 1 litre juice jug
with integrated handle for left or
right handed use
55
KNOW YOUR JE 8010 JUICER
High performance motor
Cord
wraps around feet and clips into
position under base
(not shown in picture)
* Patent pending

6
Built in froth separator
Frother attachment ensures juice froth is
separated from juice when poured into
a glass (if preferred).

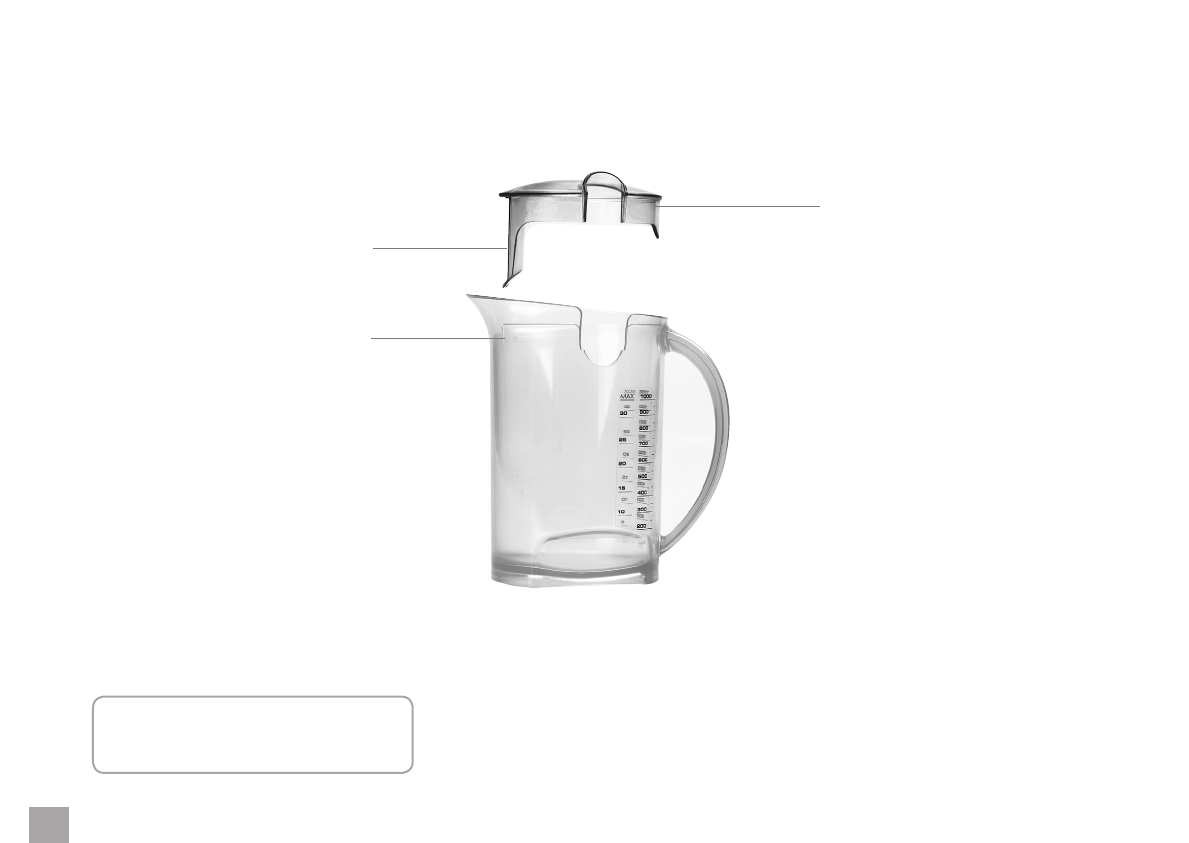

1 Litre dishwasher safe juice jug
Juice jug lid
allows juicer to operate with the lid on,
therefore eliminating any splatter during
operation. Place lid onto juice jug to
store juice in refrigerator
KNOW YOUR JE 8010 JUICER
NOTE:
To have froth in the juice jug simply remove
the lid before juicing.

77
ASSEMBLING YOUR JE 8010 JUICER
STEP 1.

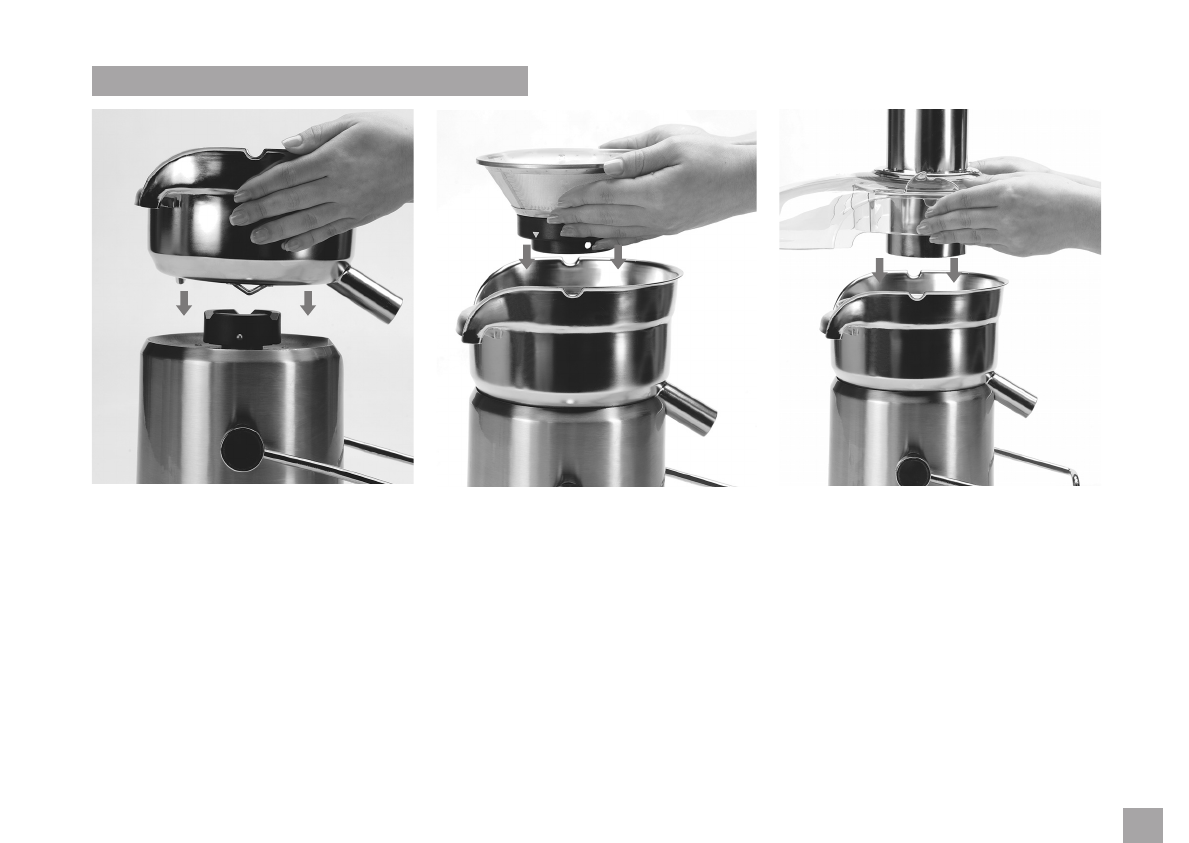

Place Filter Bowl Surround on top of the Motor
Base.
STEP 2.
Align the arrows on the Stainless Steel Filter
Basket with the arrows on the Motor Drive
coupling and push down until it clicks into
place. Ensure the Stainless Steel Filter Basket is
tted securely inside the Filter Bowl Surround
and onto the Motor Base.
STEP 3.
Place the Juicer Cover over the Filter Bowl
Surround, positioning the Juicer Cover over
the Stainless Steel Filter Basket and lower into
position.
ASSEMBLING YOUR JE 8010 JUICER

8ASSEMBLING YOUR JE 8010 JUICER
STEP 4.

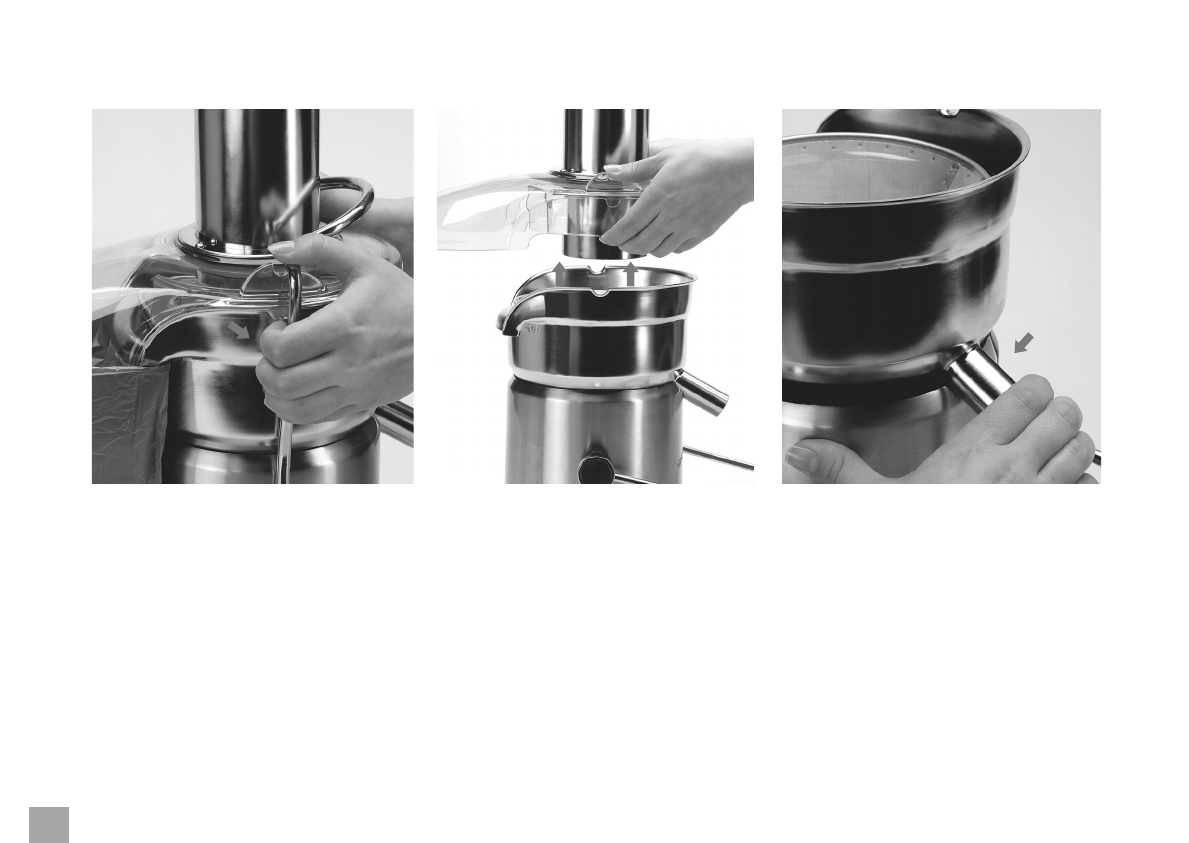

Raise the Safety Locking Arm up and lock into
the two grooves on either side of the Juicer
Cover. The Safety Locking Arm should now be in
a vertical position and locked into place on top
of the Juicer Cover.
STEP 5.
Slide the Food Pusher down the Feed Chute by
aligning the groove in the Food Pusher with the
small protrusion on the inside of the top of the
Feed Chute.
STEP 5.1.
Continue to slide the Food Pusher down the
Feed Chute.

99
STEP 6.

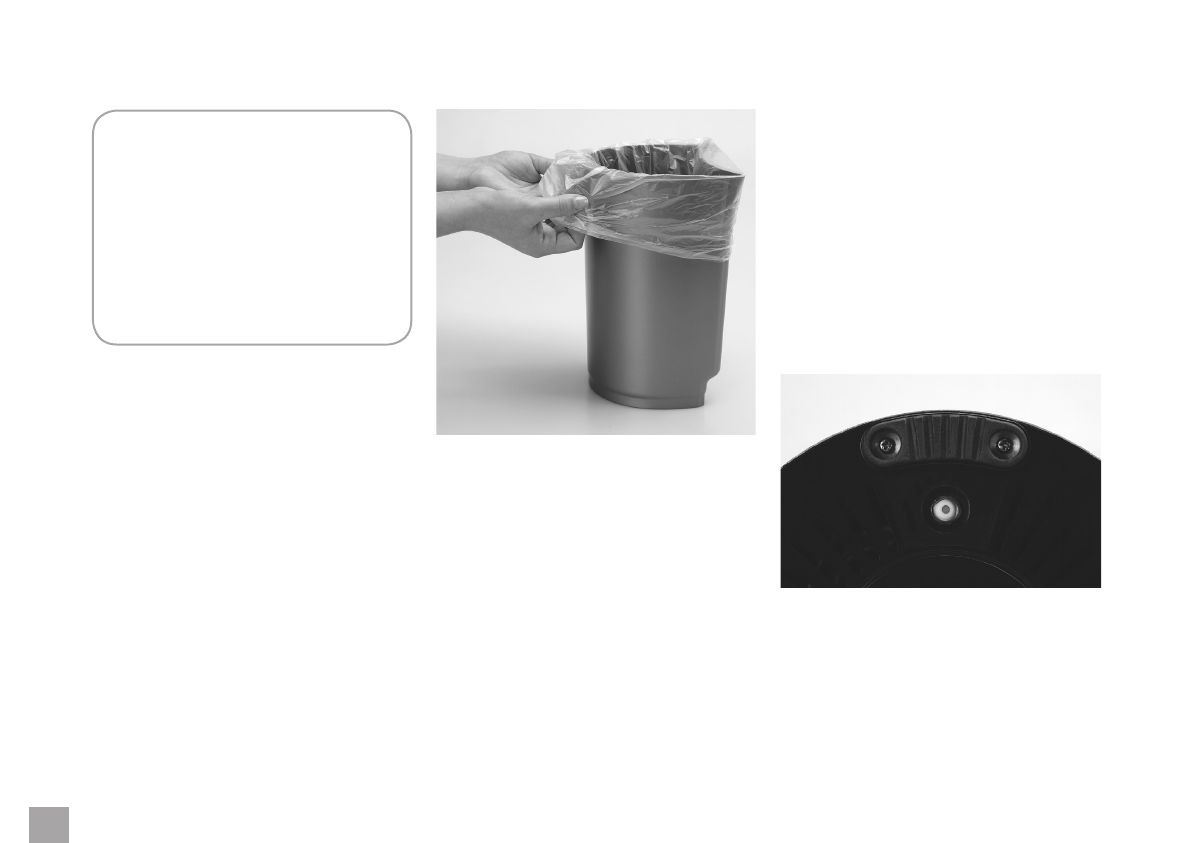

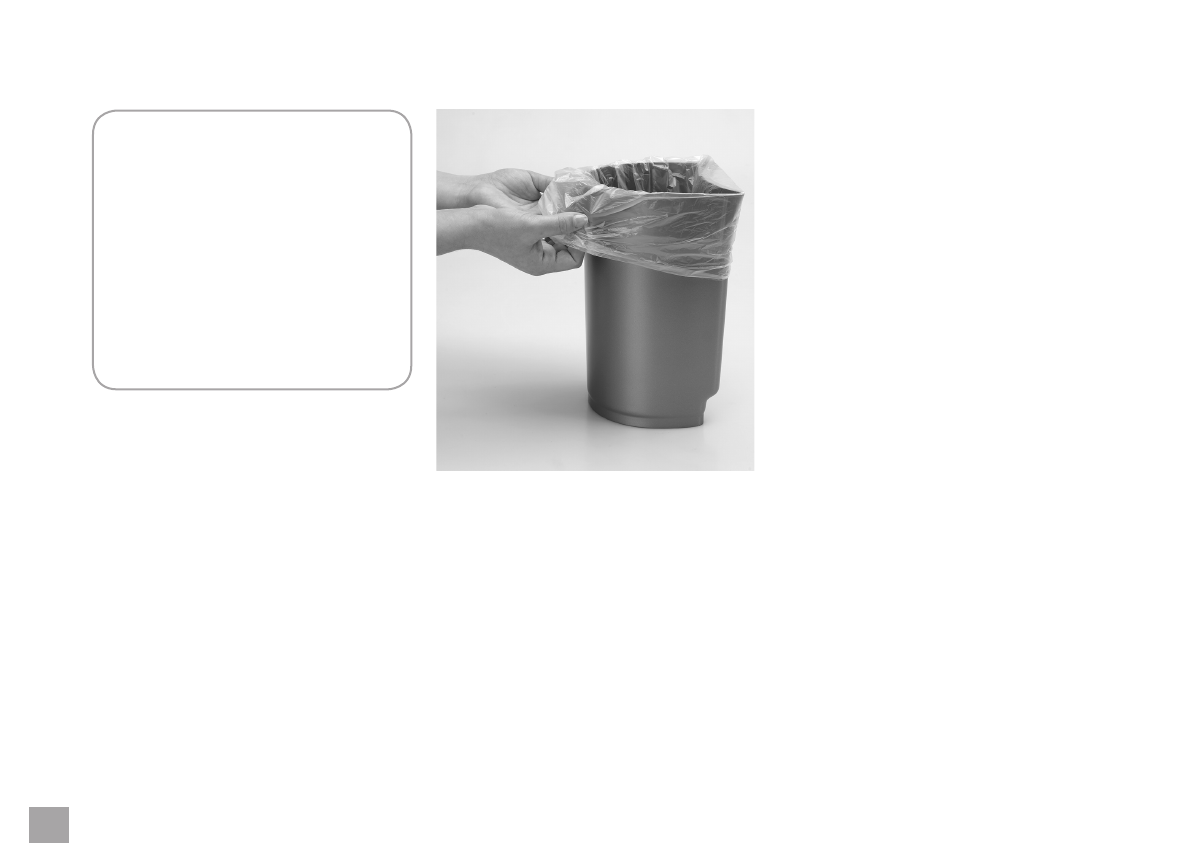

Place the Pulp Container into position by tilting
slightly.
Hint:
To minimise washing up we suggest you place a
plastic freezer bag (or plastic grocery bag) into
the Pulp Container to collect the pulp.
STEP 7.
Place the Juice Jug provided under the spout on
the right hand side of the JE 8010 Commercial
Juicer. The lid can be placed on to avoid any
splatter.
ASSEMBLING YOUR JE 8010 JUICER
NOTE:
A glass could also be used to collect the juice.

Operating

OPERATING YOUR JE 8010 JUICER
STEP 1.
Wash your selection of fruit and vegetables
ready for juicing.
NOTE:
Most fruit and vegetables such as apples,
carrots and cucumbers will not need to be
cut to size as these will t into the feed chute
whole. When juicing carrots place the tip of
the carrot into the feed chute last.
STEP 2.
Ensure the JE 8010 Juicer is correctly assembled.
Ensure the Stainless Steel Filter is thoroughly
cleaned before each use (refer to cleaning on
pages 17-18). Ensure you place the Juice Jug (or
glass) under spout before commencing juicing.
STEP 3.
Plug the power cord into a 230/240V power
outlet and then turn the power‘ON’. Push the
Two Speed switch either up for low speed or
down for high speed depending on the type
of fruit or vegetable being juiced and the unit
will automatically start. Use the speed selector
table as a guide for juicing dierent fruit and
vegetables.
STEP 4.
With the motor running, place food into the
Feed Chute. Using the Food Pusher, gently
guide food down the Feed Chute. To extract
the maximum amount of juice, always push the
Food Pusher down slowly.
STEP 5.
Juice will ow into the Juice Jug and the
separated pulp will accumulate in the Pulp
Container.
1111
OPERATING YOUR JE 8010 JUICER
WARNING:
NEVER USE FINGERS TO PUSH FOOD DOWN THE FEED CHUTE OR TO CLEAR THE FEED
CHUTE. ALWAYS USE THE FOOD PUSHER PROVIDED.
SPEED SELECTOR TABLE
APPLES HIGH
APRICOTS LOW
BEETROOT HIGH
BLUEBERRIES LOW
BROCCOLI LOW
BRUSSELS SPROUTS HIGH
CABBAGE LOW
CARROTS HIGH
CAULIFLOWER LOW
CELERY HIGH
CUCUMBER LOW
FENNEL HIGH
GRAPES (SEEDLESS) LOW
KIWI FRUIT LOW
MANGOES LOW
MELONS LOW
NECTARINES (STONE REMOVED) LOW
ORANGES (PEELED) HIGH OR LOW
PEACHES (STONE REMOVED) LOW
PEARS HIGH FOR HARD
OR LOW FOR SOFT
PINEAPPLE HIGH
PLUMS (STONE REMOVED) LOW
RASPBERRIES LOW
TOMATOES LOW
WATERMELON LOW

12 OPERATING YOUR JE 8010 JUICER
NOTE:
The Pulp Container can be emptied
during juicing by turning the JE
8010 Juicer “OFF”and then carefully
removing the Pulp Container.
(Replace empty Pulp Container before
continuing to juice).
Do not allow the Pulp Container to
overll as this may prevent correct
operation or damage the unit.
Hint:
To minimise washing up place a freezer bag (or
plastic grocery bag) into the Pulp Container to
collect the pulp.
OVERLOAD PROTECTION BUTTON
The Catler JE 8010 Juicer is tted with a safety
device which safeguards against overheating
with excessive loads. If this occurs, the JE 8010
Juicer will automatically activate the overload
protection button and the unit will switch itself
o.
If this occurs turn the power OFF at the power
outlet and allow the unit to cool. Then press
the Overload Protection Button found on the
bottom of the Motor Base. The safety device will
then be reset and the JE 8010 Juicer is ready for
use again.
PRESS TO RESET
O
V
E
R
L
O
A
D
P
R
O
T
E
C
T
I
O
N

1313
DISASSEMBLING YOUR JE 8010 JUICER
STEP 1.
Push the“OFF”button on JE 8010 Juicer
Professional and then switch OFF at the power
outlet and unplug.
STEP 2.
Remove the pulp container by holding the
handle and pivoting the bottom of the Pulp
Container away from the juicer.
STEP 3.
Place both hands on either side of the Locking
Arm and pull back and lift over the grooves on
either side of the Juicer Cover.
DISASSEMBLING YOUR JE 8010 JUICER

14 DISASSEMBLING YOUR JE 8010 JUICER
STEP 4.
Move the Locking Arm down.
STEP 5.
Lift the Juicer Cover o the JE 8010 Juicer.
STEP 6.
To remove Stainless Steel Filter Basket, hold
base of juicer and turn Filter Bowl Surround by
the Juice Spout.

1515
DISASSEMBLING YOUR JE 8010 JUICER
STEP 7.
Lift o the Filter Bowl Surround with the
Stainless Steel Filter Basket still in place.
STEP 8.
To remove the Stainless Steel Filter Basket,
turn the Filter Bowl Surround upside down
and carefully remove the Filter Basket. (It is
recommended to remove the Filter Basket over
the sink).
WARNING:
THE STAINLESS STEEL FILTER BASKET
CONTAINS A TITANIUM REINFORCED
CUTTING DISC WITH SUPER SHARP
BLADES AND TEETH. DO NOT TOUCH
TEETH AND BLADE WHEN HANDLING THE
FILTER BASKET.
CAUTION:
ULTRASHARP TITANIUM
REINFORCED CUTTING DISC AND
TEETH

Cleaning

CARE AND CLEANING
• Always ensure that the JE 8010 Juicer is
switched o and that the power is switched
o at the power outlet. Then remove the
plug from the power outlet before cleaning,
disassembling or assembling and storing
the appliance.
• Follow these instructions to clean all sur-
faces of parts that come into contact with
food during normal use.
• For easy cleaning – immediately after each
use rinse removable parts under running
water (to remove wet pulp). Allow parts to
air dry.
• After disassembling the unit (see pages
13-15) all removable parts may be washed
in hot soapy water.
• The JE 8010 Juicer Cover, Filter Bowl Sur-
round, Pulp Container, Stainless Steel Filter
Basket and 1 Litre Juice Jug are dishwasher
safe, (Top Shelf only).
• Wipe the Motor Base with a damp cloth.
• For consistent juicing results always ensure
that the Stainless Steel Filter Basket is tho-
roughly cleaned using the supplied nylon
brush. Using the nylon washing brush,
hold the Stainless Steel Filter Basket under
running water and brush from the inside
of the basket, hold it up towards a light to
ensure the ne mesh holes are not blocked.
If the holes are blocked soak the Stainless
Steel Filter Basket in hot water with 10%
lemon juice to loosen the blocked holes.
Alternatively wash the Stainless Steel Filter
Basket in the dishwasher.
• Do not soak the Stainless Steel Filter Basket
in bleach.
• Always treat the Stainless Steel Filter Basket
with care as it can be easily damaged.
• Discolouration of the plastic may occur with
strongly coloured fruit and vegetables. To
help prevent this, wash parts immediately
after use.
• If discolouration does occur, the plastic
parts can be soaked in 10% lemon juice and
water or they can be cleaned with a non
abrasive cleaner.
1717
CARE AND CLEANING
WARNING:
THE CENTRE OF THE FILTER BASKET AND FEED CHUTE CONTAIN A TITANIUM REINFORCED CUTTING DISC WITH SUPER SHARP TEETH AND
BLADES TO PROCESS FRUIT AND VEGETABLES DURING THE JUICING FUNCTION. DO NOT TOUCH TEETH AND BLADES WHEN HANDLING
THE FILTER BASKET OR FEED CHUTE.

18
Hint:
To minimise washing up place a freezer bag
(or plastic grocery bag) into the Pulp Container
to collect the pulp. When juicing is completed
simply remove the bag containing the pulp and
place the bag into a bin. (Refer page R16 for
“Ideas on Using the Pulp”).

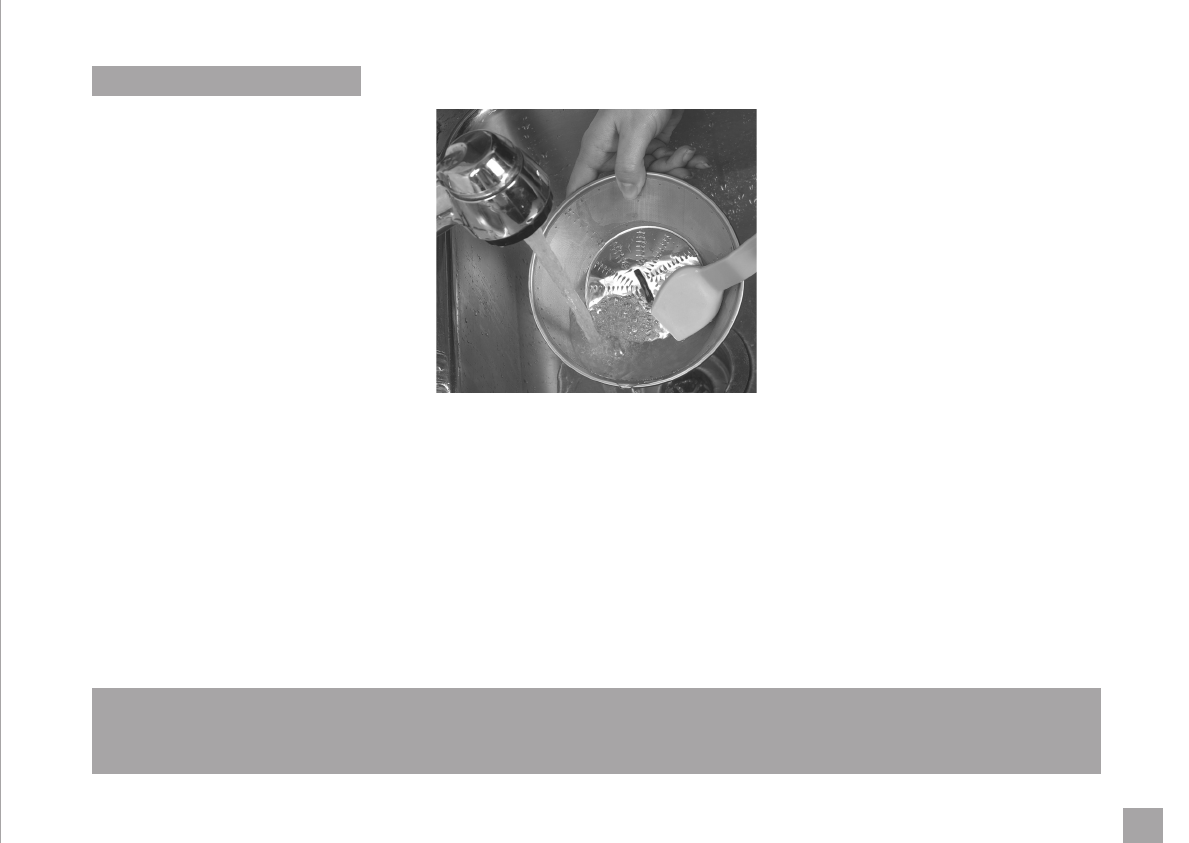

CARE AND CLEANING
NOTE:
To assist with cleaning soak the Stainless
Steel Filter Basket in hot soapy water for
approximately 10 minutes immediately
after juicing is completed. If pulp is
left to dry on the lter it may clog the
ne pores of the lter mesh thereby
lessening the eectiveness of the Juicer.
For your convenience a nylon cleaning
brush has been included with your
JE 8010 Juicer.
