Catler JE 8011 User manual

JUICE
EXTRACTOR
JE 8011
Instructions
for use

JUICE EXTRACTORJUICE EXTRACTOR

33
CONTENTS
4 Congratulation
6 Catler Recommends Safety First
7 Know Your JE 8011 Juicer
9 Assembling Your JE 8011 Juicer
16 Operating Your JE 8011 Juicer
19 Disassembling Your JE 8011 Juicer
26 Care and Cleaning
28 Trouble Shooting Guide
30 Tips on Juicing
32 Tips on Using The Puree Extractor
R1 Recipe Instructions
CONTENTS
JUICE EXTRACTOR

Congratulations
on the purchase of your new Juice Extractor JE 8011.
CONGRATULATIONS
4

55
From its superbly crafted and ultra-quiet motor right through to the
commercially styled casing, your JE 8011 Juicer represents a perfect
balance of functionality, reliability and absolute style.
In developing this booklet our goal was to provide you with a starting
point from which you can explore the incredible versatility of your
new juicer. From beautifully fresh and healthy fruit and vegetable
recipes, coulis, fruit purees and dips through to the guide for cleaning
and maintenance, we hope each page helps you gain many years of
health and enjoyment.
Enjoy!
CONGRATULATIONS

6
CATLER RECOMMENDS SAFETY FIRST
We at Catler are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer foremost in mind.
In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTANT SAFEGUARDS FOR YOUR CATLER JE 8011 JUICER
• This appliance is not intended for use by persons
(including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of
the appliance by a person responsible for their
safety.
• Children should be supervised to ensure that
they will not play with the appliance.
• Fully unwind the cord before use.
• Remove and safely discard any packaging mate-
rials and promotional labels before using the
appliance for the first time.
• To protect against electric shock, do not immerse
cord, plug or motor base in water or any other
liquid.
• Do not allow the cord to hang over the edge of
a table or counter, touch hot surfaces or become
knotted.
• It is recommended to regularly inspect the ap-
pliance. Do not use the appliance if the power
supply cord, plug , stainless steel micro mesh filter
juice disc, puree disc or appliance becomes dam-
aged in any way. Return the entire appliance to
the nearest authorised Catler Service Centre for
examination and/or repair.
• Any maintenance other than cleaning should be
performed at an authorised Catler Service Centre.
• Do not use this appliance for anything other than
its intended use. Do not use in moving vehicles or
boats. Do not use outdoors.
• The installation of a residual current device (safe-
ty switch) is recommended to provide additional
safety protection when using electrical appliances.
• When using Puree Disc and insert, always use
the speed 1.
• To eliminate a choking hazard for young children,
remove and safely discard the protective cover
fitted to the power plug of this appliance.
• Do not push produce into the feed chute with your
fingers. Always use the Food Pusher provided.
• Do not touch the small sharp teeth and blade in
the centre of the Juice disc.
• Do not touch the blade in the Feed Chute.
• Always make sure the JE 8011 Juicer is properly
and completely assembled before connecting to
power outlet and operating.The unit will not turn
‘on’unless properly assembled.
• Always use the JE 8011 Juicer on a dry, level sur-
face.
• Always switch the JE 8011 Juicer off, then switch
off at the power outlet and then unplug appli-
ance – if appliance is to be left unattended – if not
in use – before cleaning, – before attempting to
move the appliance, disassembling, assembling
and when storing the appliance.
• Do not juice stone fruit unless seed stone has
been removed.
• When using Puree Disc and insert, always remove
seeds, core and skin from fruit before processing
(seeds of passionfruit, berries and kiwi fruit are
acceptable).
• Carefully read all instructions before operating
and save for future reference.
• Do not immerse power cord or motor base in wa-
ter or any other liquid. Do not use a water jet to
clean the power cord or motor base.
• Do not leave the appliance unattended when not
in use.
• Do not run the JE 8011 Juicer for more than one
minute at a time when juicing hard fruit or veg-
etables, at a rapid rate and with firm pressure.
• Do not let the cord hang over the edge of a table
or counter, or touch hot surfaces or become knot-
ted.
• Do not place this appliance on or near a hot gas
or electric burner, or where it could touch a heat-
ed oven.
• Any maintenance other than cleaning should be
performed at an authorized Catler service centre.
• Do not use this appliance for anything other than
its intended use. Do not use in moving vehicles or
boats. Do not use outdoors.
• The installation of a residual current device (safe-
ty switch) is recommended to provide additional
safety protection when using electrical applianc-
es. It is advisable that a safety switch with a rated
residual operating current not exceeding 30 mA
be installed in the electrical circuit supplying the
appliance. See your electrician for professional
advice.
• Strictly follow cleaning and care instructions.
• Do not run ice or hard fruit/vegetables such as
raw beetroot and carrots through the juicer when
using the puree extractor.
WARNING:
SUPER WIDE FEED CHUTE. DO NOT PLACE
HANDS OR FOREIGN OBJECTS DOWN FEED
CHUTE, ALWAYS USE FOOD PUSHER PRO
VIDED.
CATLER RECOMMENDS SAFETY FIRST

KNOW YOUR JE 8011 JUICER
77
KNOW YOUR JE 8011 JUICER
Safety locking arm
Juicer will not operate without juicer
cover in place and safety locking
arm in place in the vertical operating
position.
Super wide feed chute
Fits whole apples, carrots, tomatoes
and peeled oranges. Makes juicing
fruit and vegetables fast and easy.
Large pulp container with
integrated handle
(Dishwasher safe)

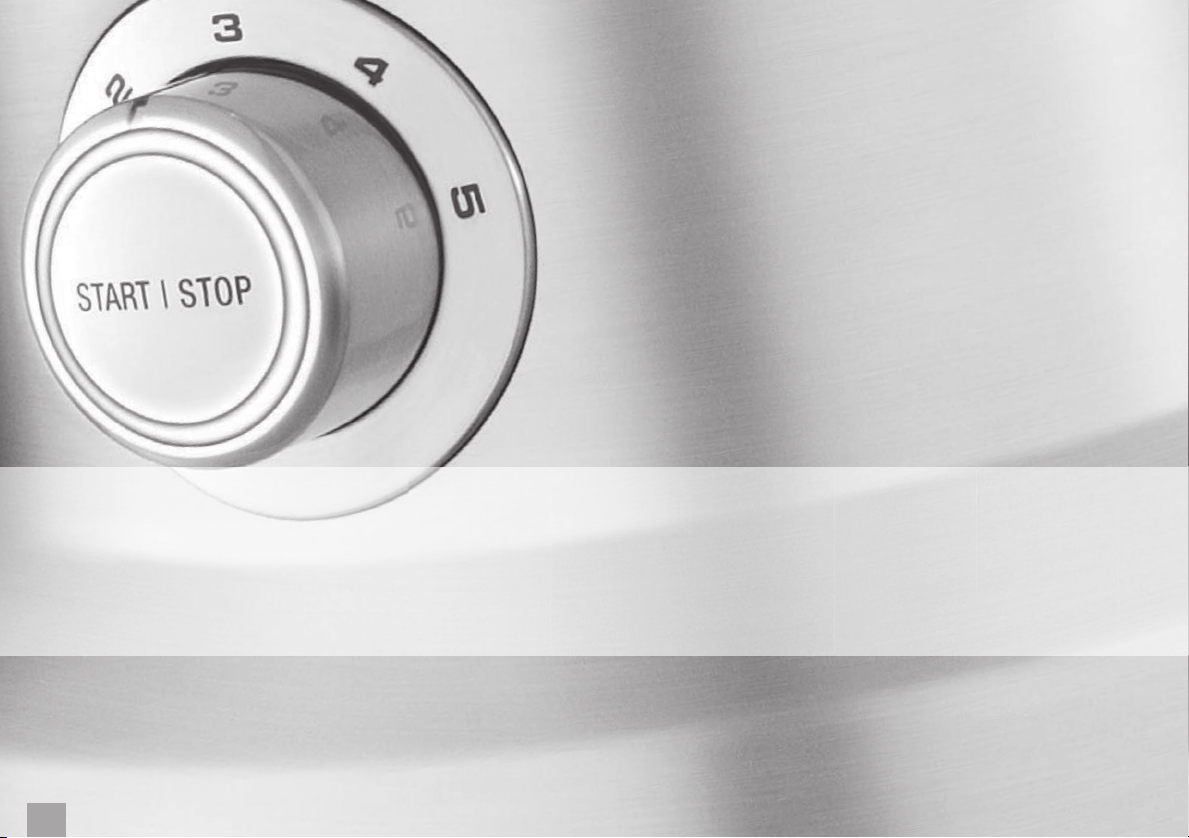

Five speed electronic control
Low speed when using Puree
Extractor or for juicing soft fruits
with high water content such as
watermelon. High speed for juicing
hard fruit and vegetables.
“START | STOP” button
Overload protection button
To safeguard against overheating (not
shown in picture).
Food pusher
For pushing whole fruit and vegetables
down the wide feed chute.
Juicer cover
(Dishwasher safe)
Stainless Steel Filter Surround
(Dishwasher safe)
Stainless steel micro mesh filter juice
disc
(Dishwasher safe)
Dishwasher safe 1.2 litre juice jug
With integrated handle for left or right
handed use.
High performance motor
Motor Base
Contains the motor and supports the
Stainless Steel Filter Surround.
Cord
Exits at rear of juicer and wraps around
feet (not shown in picture).

8KNOW YOUR JE 8011 JUICER
NOTE:
To retain froth in the juice jug simply re-
move the lid before pouring the juice.
Juice jug lid
Allows juicer to operate with the lid on,
therefore eliminating any splatter during
operation. Place lid onto juice jug to store juice
in refrigerator.
Built in froth separator
Frother attachment ensures juice froth is
separated from juice when poured into a glass
(if preferred).
Puree Extractor
(for soft fruits and vegetables)
Puree Insert
For processing softer fruits such as bananas,
mangoes and strawberries Integrated handle
for left and right handed use.
Puree Disc
For processing softer fruits such as bananas,
mangoes and strawberries.

99
ASSEMBLING YOUR JE 8011 JUICER
STEP 1
Place the Filter Bowl Surround on the top of the
Motor Base.
STEP 2
Align the arrows on the Juice Disc with the ar-
rows on the Motor Drive Coupling and push
down until it clicks into place. Ensure the Juice
Disc is fitted securely inside the Filter Bowl Sur-
round and onto the Motor Base.
STEP 3
Place the Juicer Cover over the Filter Bowl Sur-
round, positioning the Juicer Cover over the
stainless steel filter disc and lower into position.
ASSEMBLING YOUR JE 8011 JUICER
Before first use
Before using your Catler JE 8011 Juicer for the first time, remove and safely discard any packaging material and promotional labels. Ensure the appliance
is switched off at the power outlet and the power cord is unplugged.
Wash the Filter Surround, Juice Disc, Puree Disc, Puree Insert, Juicer Cover, Food Pusher, Juice Jug, Juice Jug Lid and Pulp Container in warm soapy water
with a soft cloth or nylon brush. Rinse and dry thoroughly.
FOR USE WITH JUICE EXTRACTOR
Place the motor base on a flat dry surface such as a bench top. Ensure that the motor base is switched“OFF”at the control panel, then switch the appliance
“OFF”at the power outlet and unplug the cord.
 
 
 

10 ASSEMBLING YOUR JE 8011 JUICER
STEP 5 & 6
Slide the food pusher down the feed chute by aligning the groove in the food pusher with the small
protrusion on the inside of the top of the feed chute.



STEP 4
Raise the safety locking arm up and lock into the
two grooves on either side of the juicer cover.
The safety locking arm should now be in a ver-
tical position and locked into place on top of the
juicer cover.

1111
STEP 7
Place the Pulp Container into position by tilting
slightly.
HINT:
To minimize washing up we suggest that you
place a plastic freezer bag (or plastic grocery
bag) into the pulp container to collect the pulp.
STEP 8
Place the juice jug provided under the spout on
the right hand side of the Juice Extractor. The lid
can be placed on to avoid any splatter.
NOTE:
A glass could also be used to collect the
juice.
ASSEMBLING YOUR JE 8011 JUICER
NOTE:
The Pulp Container can be emptied dur-
ing juicing by turning the JE 8011 Juicer
“OFF” and then carefully removing the
Pulp Container. (Replace empty Pulp
Container before continuing to juice.)
Do not allow the Pulp Container to overfill as
this may prevent correct operation or damage
the unit.

12 ASSEMBLING YOUR JE 8011 JUICER
PREPARATION OF FRUIT AND VEGETABLES FOR JUICE EXTRACTOR
• If using fruits with hard or inedible skins
such as mangoes, guava, melons or pineap-
ple, always peel before juicing.
• Citrus fruit can be juiced if peeled first.
• All fruits with pits, hard seeds or stones such
as nectarines, peaches, mangoes, apricots,
plums and cherries must be pitted before
juicing.
• A small amount of lemon juice can be added
to apple juice to inhibit browning.
HINT:
Your JE 8011 Juicer makes invigorating, frothy
orange juice. Simply peel the oranges and juice.
(It is best to refrigerate oranges before juicing.)
JUICE EXTRACTOR
SPEED
(using
juicing disc)
Apples 5
Apricots (stone removed) 2
Beetroot (cleaned, trimmed) 5
Blueberries 1
Broccoli 4
Brussel sprouts (trimmed) 5
Cabbage 4
Carrots (cleaned) 5
Cauliflower 4
Celery 5
Cucumber, peeled 2
Cucumber, soft skinned 4
Fennel 5
Grapes (seedless) 1
JUICE EXTRACTOR
SPEED
(using
juicing disc)
Kiwi fruit (peeled) 2
Mangoes
(peeled, stone removed) 2
Melons (peeled) 1
Nectarines
(stone removed) 2
Oranges (peeled) 3
Peaches (stone removed) 2
Pears soft (stalks removed) 5
Pears soft (stalks removed) 2
Pineapple (peeled) 5
Plums (stone removed) 2
Raspberries 1
Tomatoes 1
Watermelon (peeled) 1

1313
ASSEMBLING YOUR JE 8011 JUICER
FOR USE WITH PUREE EXTRACTOR
Place the motor base on a flat dry surface such as a bench top. Ensure that the motor base is switched “OFF” at the control panel, then switch the appliance
“OFF” at the power outlet and unplug the cord.
STEP 1
Place the Filter Bowl Surround on the top of the
Motor Base.
STEP 2
Place the Puree Disc into the Filter Bowl Sur-
round and onto the Motor Drive Coupling Push
down until it clicks into place. Ensure the Puree
Disc is fitted securely inside the Filter Bowl Sur-
round and onto the Motor Base.
NOTE:
Never use Puree Disc without Puree
Insert. They must always be used to-
gether.
STEP 3
Place the Puree Insert into the Filter Bowl Sur-
round, making sure the warning label on the
handle is facing upwards.

14
STEP 4
Place the Juicer Cover over the Puree Insert and
Filter Bowl Surround and lower into position.
STEP 5
Raise the safety locking arm up and lock into the
two grooves on either side of the juicer cover.
The safety locking arm should now be in a ver-
tical position and locked into place on top of the
juicer cover.
STEP 6
Slide the food pusher down the feed chute by
aligning the groove in the food pusher with the
small protrusion on the inside of the top of the
feed chute.
ASSEMBLING YOUR JE 8011 JUICER

1515
ASSEMBLING YOUR JE 8011 JUICER
PREPARATION OF FRUIT AND VEGETABLES FOR PUREE EXTRACTOR
• Only soft fruits should be used with the Pu-
ree Extractor.
• When using fruits with hard inedible skins,
such as mangoes, pineapple or kiwi fruit, al-
ways peel before juicing.
• When using fruits with a hard core such as
pineapple, always remove this before juic-
ing.
• All fruits with pits, hard seeds or stones such
as nectarines, peaches, mangoes and apri-
cots must be pitted or deseeded before juic-
ing.
• Passionfruit pulp, peeled kiwi fruit and ber-
ries can be processed without removing
seeds.
PUREE EXTRACTOR SPEED
Apricots (stone removed) 1
Bananas (peeled) 1
Kiwi fruit (peeled) 1
Mangoes (peeled, stone removed) 1
Melons (peeled) 1
Peaches (stone removed) 1
Pears soft (stalks removed) 1
Pineapple (peeled and cored) 1
Raspberries 1
Strawberries (stalks removed) 1
Tomatoes (cored and quartered) 1
Watermelon
(peeled, seeds removed)
1
NOTE:
When using the Puree Extractor only use
Speed 1. Always ensure motor is run-
ning before adding fruit and/or vegeta-
bles to feed tube.

Operating

OPERATING YOUR JE 8011 JUICER
STEP 1
Wash your selection of fruit and/or vegetables
ready for juicing. Prepare fruits according to
charts above.
STEP 2
Based on the type of fruit or vegetable you are
juicing/pureeing select either the Juice Extractor
or the Puree Extractor.
WARNING:
DO NOT PUT HARD FRUIT AND VEGETABLES
IE. CARROTS, APPLES, FRESH BEETROOT,
ETC. OR ICE THROUGH JUICER WHEN USING
PUREE EXTRACTOR. THIS COULD DAMAGE
PARTS OF THE UNIT.
STEP 3
Ensure the JE 8011 Juicer is correctly assembled
– see previous instructions. Ensure the Juice
Extractor or Puree Extractor is thoroughly
cleaned before each use (refer to cleaning on
pages 26–27). Ensure you place the Juice Jug (or
glass) under spout before commencing juicing.
STEP 4
Plug the power cord into a 230/240V power
outlet and then turn the power on at the outlet.
The light surrounding the “START | STOP” button
will illuminate.
NOTE:
The light will be illuminated for 2 mi-
nutes before fading into sleep mode.
The light will come back on by activat-
ing any of the controls.
STEP 5
Use the speed selector table as a guide for juicing
different fruit and vegetables. Push the “START |
STOP” button and the unit will automatically
start.
STEP 6
With the motor running, place food into the
Feed chute Using the Food Pusher, gently guide
food down the Feed Chute. Do not exert excess
pressure. To extract the maximum amount of
juice, always push the Food Pusher down slowly.
STEP 7 – USING THE JUICE EXTRACTOR
As fruits and vegetables are processed juice will
flow into the juice jug and the separated pulp
will accumulate in the Pulp Container.
The Pulp Container can be emptied during
juicing by turning Juicer “OFF” at the control
panel and then carefully removing the Pulp
Container. Replace the empty Pulp Container
into position before continuing to juice.
NOTE:
Do not allow the Pulp Container to over
fill as this may affect the operation of
appliance.
1717
OPERATING YOUR JE 8011 JUICER
WITH JUICE EXTRACTOR OR PUREE EXTRACTOR

18 OPERATING YOUR JE 8011 JUICER
STEP 8 – USING THE PUREE EXTRACTOR
When using the Puree Extractor puree will flow
into the juice jug.There will be no pulp extracted
into Pulp Container.
NOTE 1:
SELF-RESET OVERHEATING
PROTECTION
The JE 8011 Juicer also fitted with a self-
resetting safety device which safeguards
against overheating on the motor with
excessive loads. If overheating occurs,
the juicer will automatically activate the
overheating protection device and the
motor will switch itself off. If this occurs,
the light surrounding the“START | STOP”
button will flash red. When the over-
heating protection is activated, unplug
the juicer from power outlet for at least
15 minutes to allow the unit to cool.
Then plug juicer into the power outlet
and use as normal.
NOTE 2:
ELECTRONIC PROTECTION
The JE 8011 Juicer will automatically
stop operating if the motor is stalled.
This is an electronic safety feature. Ei-
ther too much food is being processed
at one time or the pieces are not small
enough.Try trimming food, cutting food
into smaller pieces of even size and/or
processing a smaller amount per batch.
If this occurs, the light surrounding the
“START | STOP” button will flash red.
To continue juicing, turn the power
“OFF”at the power outlet, clear the feed
chute, finally turn the appliance back on
by pressing the “START | STOP” button
to “ON”.
NOTE 3:
OVERLOAD PROTECTION BUTTON
The JE 8011 Juicer is fitted with a safety
device which safeguards against over-
loading with excessive loads. If this oc-
curs, juicer will automatically activate
the overload protection button and the
unit will switch itself off.
If this occurs turn the power“OFF”at the
power outlet and allow the unit to cool.
Then press the Overload Protection But-
ton found on the bottom of the Motor
Base.The safety device will then be reset
and the JE 8011 Juicer is ready for use
again.

1919
DISASSEMBLING YOUR JE 8011 JUICER
STEP 1
Push the “START | STOP” button on the control
panel of the JE 8011 Juicer to turn off. Then
switch the appliance “OFF” at the power outlet
and unplug the cord.
STEP 2
Remove the Pulp Container by holding the
handle and pivoting the bottom of the Pulp
Container away from the juicer.
STEP 3
Place both hands on either side of the Locking
Arm and pull back and lift over the grooves on
either side of the Juicer Cover.
DISASSEMBLING YOUR JE 8011 JUICER
JUICE EXTRACTOR



20 DISASSEMBLING YOUR JE 8011 JUICER
STEP 4
Move the Locking Arm down.
STEP 5
Lift the Juicer Cover off the JE 8011 Juicer.
STEP 6
To remove Stainless Steel Filter bowl surround,
hold base of juicer and turn filter bowl surround
by the Juice Spout.


 
