CATSKILL 15218 User manual

Assembly Instructions
Model 15218
Deep Drawer Island
GENERAL:
1. You have purchased model 15218.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call
M-F at 607-652-7321 from 7:30 am - 4:30 pm Eastern and we’ll send you the prepaid part via UPS
usually that same day! You may also email us: [email protected].
3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is
easy if you read and follow the instructions step by step. See our website for instructions and assembly
videos: www.catskillcraftsmen.com.
4. The only tools needed are a hammer, medium and small Phillips head screwdrivers and a pencil.
A power screwdriver will speed assembly, but is not required.
5. Glides are sometimes pre-packed with screws. These are not used.
6. Instructions (left/right, top/bottom) are given as you face an assembled unit.

Parts List Model 15218
Left Side Panel (1)
P/N LFT/SP/HDL-15218/63037
Back Panel (1)
P/N BP-15218
Glide Support (2)
P/N GLDSUP-15218
Top Drawer Front (1)
P/N DF-15218
Top Left Drawer Side (1)
P/N Top DS-15218/L
Top Right Drawer Side (1)
P/N Top DS-15218/R
Bottom Shelf (1)
P/N BS-15218
Top & Bottom Front Braces (2)
P/N B34 1/4 / 2 1/2 /BOT-15218
Table Top (1)
P/N TT-15218
Drop Leaf (1)
P/N DL-15218
Top Drawer Back (1)
P/N DBK-15218
Top Drawer Bottom (1)
P/N TDB-15218
Right Side Panel (1)
P/N RGHT/SP/HDL-15218/63037
Middle Shelf (1)
P/N MS-15218
Door (1)
P/N Dr-15218
Lower Left Drawer Side (2)
P/N Low DS-15218/L
Lower Right Drawer Side (2)
P/N Low DS-15218/R Middle Drawer Front (1)
P/N Mid DF-15218
Bottom Drawer Front (1)
P/N Bot DF-15218
Lower Drawer Bottom (2)
P/N LBS-15218
Center Divider (1)
P/N DIV-15218
Left Side View
Lower Drawer Back (2)
P/N Low DBK-15218
Not used on this model

1 3/4” Phillips Flat Head Bolt (8)
1 1/4” Phillips Flat Head #8 Screw (20)
1” Truss Head Machine Screw (6)
5/8” Phillips Flat Head #8 Screw (20)
3/4” Long 3/16” DIA. Steel Pin (8)
1” Long 3/16” DIA. Steel Pin (8)
1 1/2” Long 3/16” DIA. Steel Pin (2)
Hinge (2)
Caster Socket (4)
5/8 Wooden Disk (8)
Nickel Handle (5)
Towel Bar Post (4)
Wheel
Casters (2)
Locking Wheel
Casters (2)
Magnet Plate (1)
Magnet (1)
3/16” Flat Washer (13)
10-24 Hex Nut (8)
5/8” Phillips Flat Head #7 Screw (4)
Bundled and labeled separately.
Bastion Set Screw (10)
Bastion Post (10)
Bastion Barrel Nut (10)
Drawer Glide (1 Set )
Drawer
Cabinet
P/N Drop Leaf Support (2)
Polished Nickel Towel Bar (2)
Full Extention
Drawer Glide (2 Sets)
1/2” Truss Head M4x10 screw (4)
3/8” Phillips Pan Head #8 Screw (20)
5/8” Phillips Flat Head #6 Screw (12)

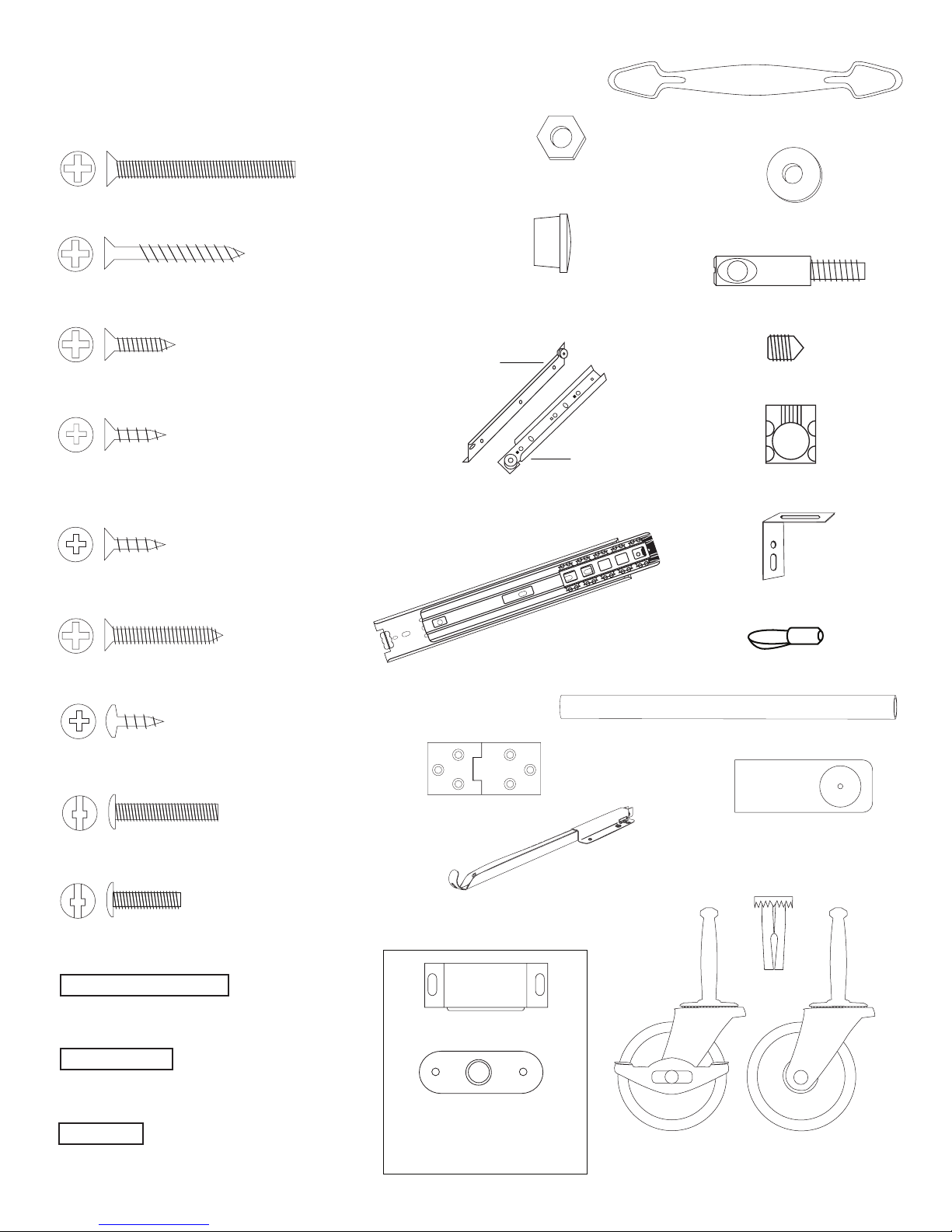

Hardware List Model 15218
To ease assembly, sort and count the hardware before getting started.
Bundled with screws used
for attaching to cart.
1” Phillips Flat Head #8 Screw (4)
(used to attach
towel bars)
(Cabinet Assembly)
(Drawer Backs
Table Top Sticks)
(Attaches Hinges
Drop Leaf Supports)
(Top Drawer Glides That
Attach to Table Top Sticks)
(Used to Attach L Brackets / Top
Drawer Glides to the Drawer Sides)
(Full Extention Glide Screws)
(Attaches Handles
to Door / Top Drawer)
(Attaches Handles
to Large Drawers)
(Door Pin)
(Shelf Pin)
(Brace Pin)
Metal Middle Shelf Pin (2)
L-Bracket (4)

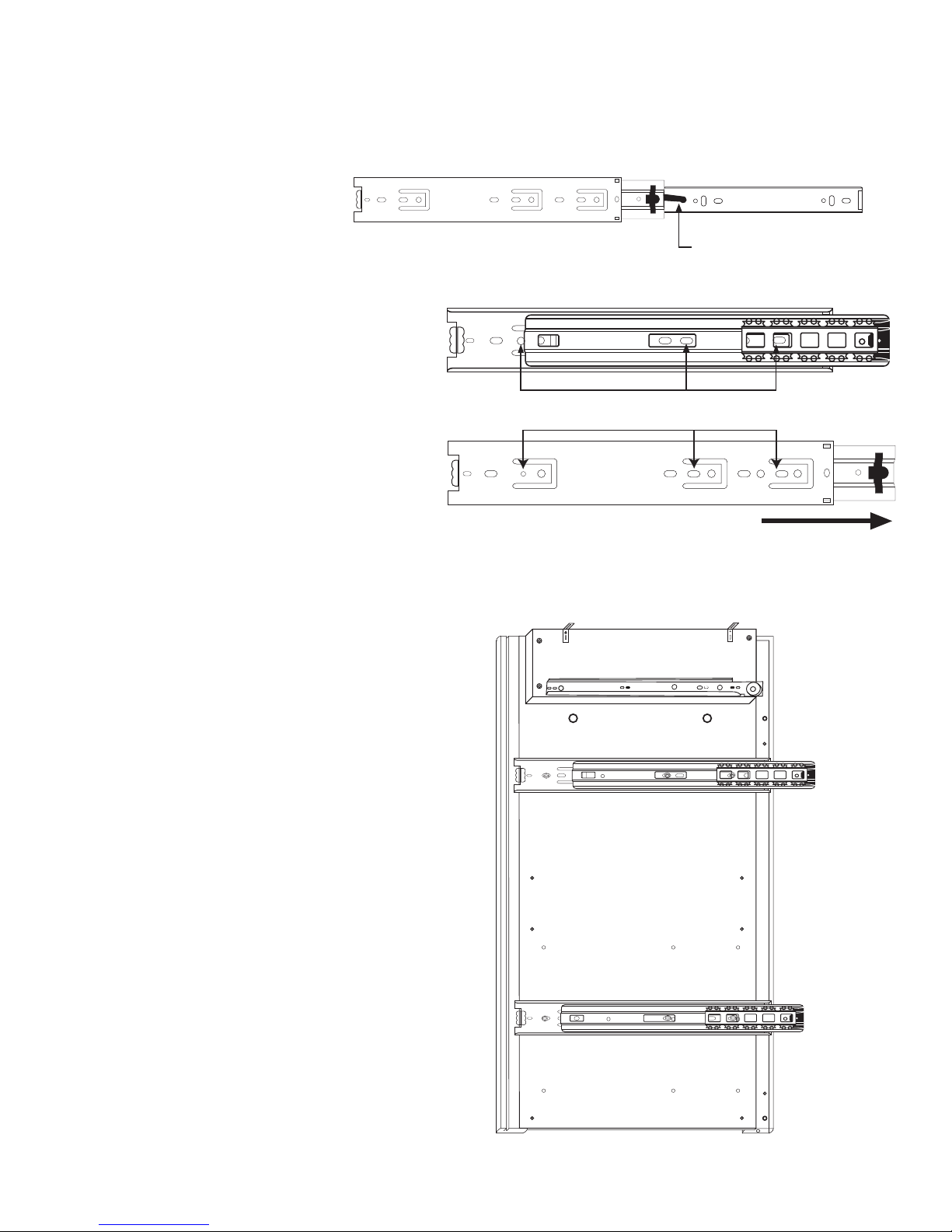

STEP 1A -
Important - Please Read These Instructions Carefully!
Push this lever down, then
slide the inner glide section
out of the glide assembly.
FRONT OF CART
Face of
Glide
Backside
of Glide
Use these three (3) holes to attach the glide to the side panel.
This edge will attach to back panel in the next step.
TOP
Front
Attach Glides to Side
Panels
1. Remove the drawer side
section of the glide by pushing
the black lever down and
sliding the steel inner glide
section all the way out of the
glide assembly. Set this inner
section aside as it will be used
later on the lower drawer
sides.
2. Next, identify the holes to be
used for attaching each glide
to the side panel. IMPORTANT
as shown below, the full
extention glides are only
attached to the right side panel
and to the center divider as
shown in Step 6.
Attach glides using 3/8” #6 pan
head screws. In step 9 you will
loosen these screws to slide
the glides ush with the back
panel once it is attached.

STEP 1B
IMPORTANT - There is a right and a left side panel. Lay them out as shown below. Pay close
attention to the glides so that they are properly positioned when attaching to the side panels. Review
Step 1A for specic instructions on the full extention glides.
Attach L Brackets with 5/8” #6 screws. Use the small round hole, not the slot.
PLEASE NOTE - Some pieces are interchangeable with other units we manufacture, and thus some
pilot holes may not be used. It is important to note the proper holes required for assembly in each step.
TOPTOP
5/8” #7 Screw
1 1/4” #8 Screw
5/8” #6 Screw
8 Used
in this step
1-1/4” Phillips Flat Head #8 Screw
4 Used
in this step
5/8” Phillips Flat Head #7 Screw
3/8” #8 Pan Head
Screw
3/8” #8 Pan Head
Screw
6 Used
in this step
3/8” Phillips Pan Head #8 Screw
Left Side PanelRight Side Panel
4 Used
in this step
5/8” Phillips Flat Head #6 Screw
Leg Slot
When attached, this
edge will be flush
behind the leg slot.
This Set of Holes Not Used
This Set of Holes Not Used

Step 1
1. The Bastion fastening system consists of a steel post (threaded on one end with a
hole through the shaft on the other end); a Barrel Nut (cylindrical barrel-shaped with
threaded open end & holes through the sides); and a Set Screw (Phillips slot on one end,
pointed on the other)
2. To attach Posts: A) Dip threads of Post in vegetable oil. B) Align threaded end of Post
with hole in wood, tap on slotted end with hard hammer until threads enter, then tighten
down using a flat head screw driver or the provided allen wrench (See the Illus. Bas. 3 for
alternate seating methods). DO NOT TRY TO HAMMER THE POST ALL THE WAY IN AS
IT WILL STRIP THE POST HOLE. C) When solid shaft of Post hits wood, back out
approximately ½ turn until the hole in the posts is properly aligned as per step by step
directions. For example: the holes in the posts on the inside of the drawer front will be
parallel with the long length of the drawer front when properly seated.
3. A) Place a Barrel Nut into the nut access hole, so that the threads in the nut face out.
The small notches on either side of the nut opening, indicate the location of the holes
through the sides of the nut. B) Insert the posts through the end of the braces (or drawer
sides); through the holes in the sides of the nut. When properly aligned, you will see the
Illustration Bas. 1
Step 2
Illustration Bas. 2 Illustration Bas. 3

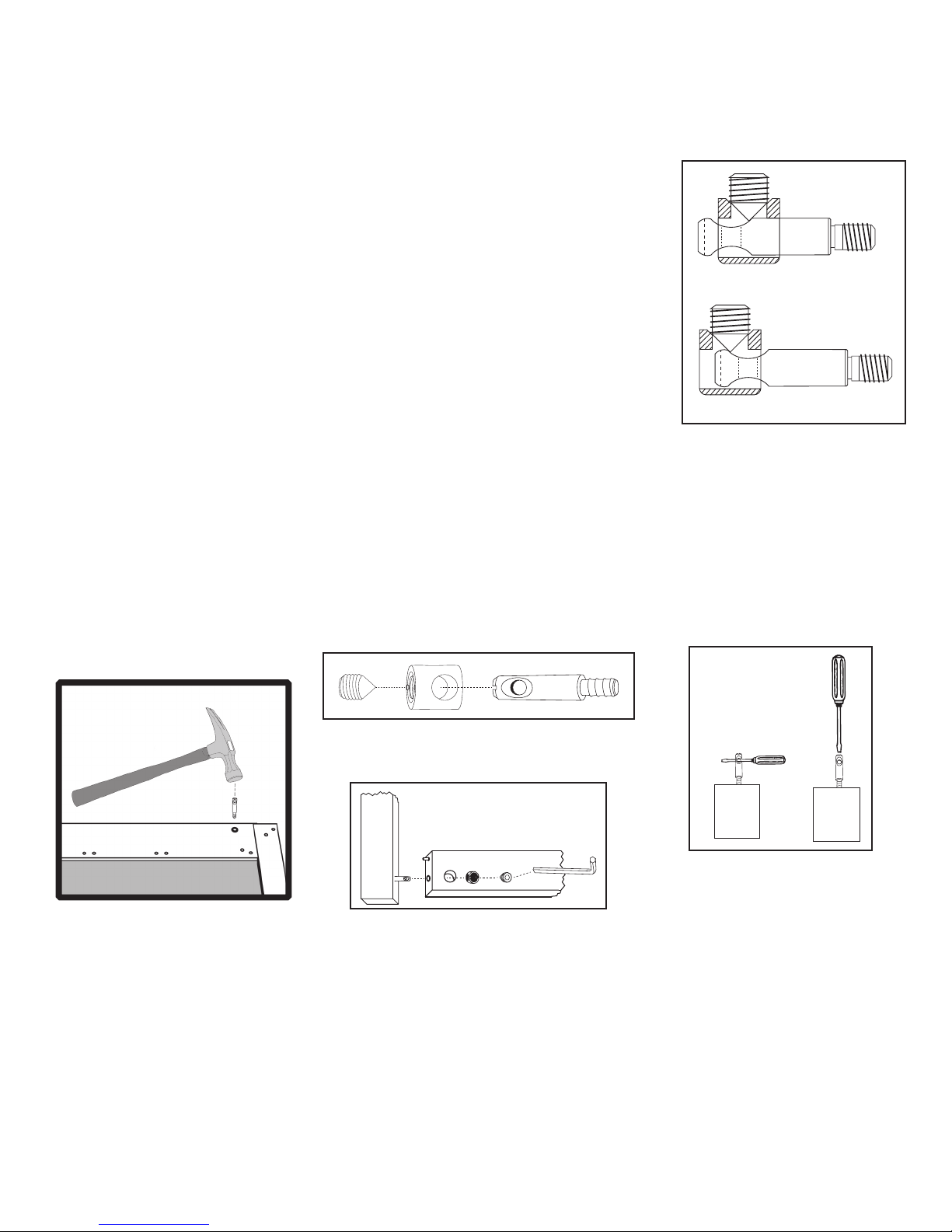

TIPS ON HOW THE BASTION FASTENING SYSTEM WORKS
See video on our website!
If you have any questions regarding assembly or missing or damaged
parts, call our customer support number:
607-652-7321 or 888-732-7321.
Customer Support Hours are 8am-5pm Mon. - Fri. Eastern Time zone.
Allen Wrench Provided
WRONG!
Post needs to be screwed deeper.
RIGHT!
hole in the post inside the barrel nut. Post hole should be slightly off-center toward the wood.
4. Insert the Set Screw into the threaded end of the nut and tighten down. The tip of the Set Screw will seek the center of
the hole in the Post as it is tightened down, forcing the Nut toward the main shaft of the Post. This is what tightens the
wooden parts together. Set screws should thread easily – DON’T CROSS THREAD! If Set Screw doesn’t thread easily,
check position of the hole in Post.
5. If the wooden parts are not tight against each other, the Post needs to be screwed a half turn at a time until wood joints
are tight.
ALTERNATIVE
METHODS FOR
SEATING POSTS

STEP 2
A. Attach the Top Drawer Back to the Drawer Sides with four 1 1/4” #8 screws. There are left and right
sides. Make sure the slots that run the length of the Sides are aligned with the slot in the Drawer Back
to accept the Drawer Bottom.
B. Slide in Drawer Bottom, best side up, to inside of drawer.
C. Take the 2 bastion posts, align the threaded end of the posts with the post holes located near the
ends of the inside of the Drawer Front. Tighten posts down until the solid shaft of the posts hits the
wood. Back post out one full turn until the hole/screwdriver slot in end of post is parallel and in direct
line with the long edges of the Drawer Front.
D. Insert the barrel nuts into the nut access holes on the inside of the Drawer Sides with the threaded
ends of the nuts facing out. Take the Drawer Front and carefully insert the posts into the ends of
the Drawer Sides, through the sides of the nuts until seated. Push nut snug up against the wood in
the nut access hole toward the inside of Drawer Front. Hole should be slightly off-center toward the
Drawer Front. Insert the set screw and tighten down. The ends of the sides should be tight against the
inside Drawer Front.
E. Attach the drawer handles with 1” Truss head machine screws.
F. Attach the drawer glides (left and right) to the Drawer Sides using two 5/8” #6 screws per side
(packaged seperately). Wheels go toward Drawer Back and are up. The end with no wheels should
touch the Drawer Front.
1
2
3
4
BASTION ASSEMBLY INSTRUCTIONS
DO NOT USE POWER SCREW DRIVER FOR THIS STEP.
USE HAND SCREW DRIVER ONLY.
1. Screw Bastion post into drawer front. Screw until all threads are hidden, then back
out a full turn such that the hole in the post will face left to right.
2. Place the barrel nut into the side brace hole.
3. Slide the side brace onto the post such that the post also slides into the barrel nut.
4. Screw the set screw into place, tightening such that the side brace and drawer
front pull together tightly.
4 Used
in this step
1-1/4” Phillips Flat Head #8 Screw
4 Used
in this step
5/8” Phillips Flat Head #5 Screw
1-1/4” #8 Screw
5/8” #5 Screw
1” Truss Head Machine Screw
4 Used
in this step
1” Truss Head Machine Screw
Use flat washers if necessary to tighten
4 Used
in this step
3/16” Flat Washer

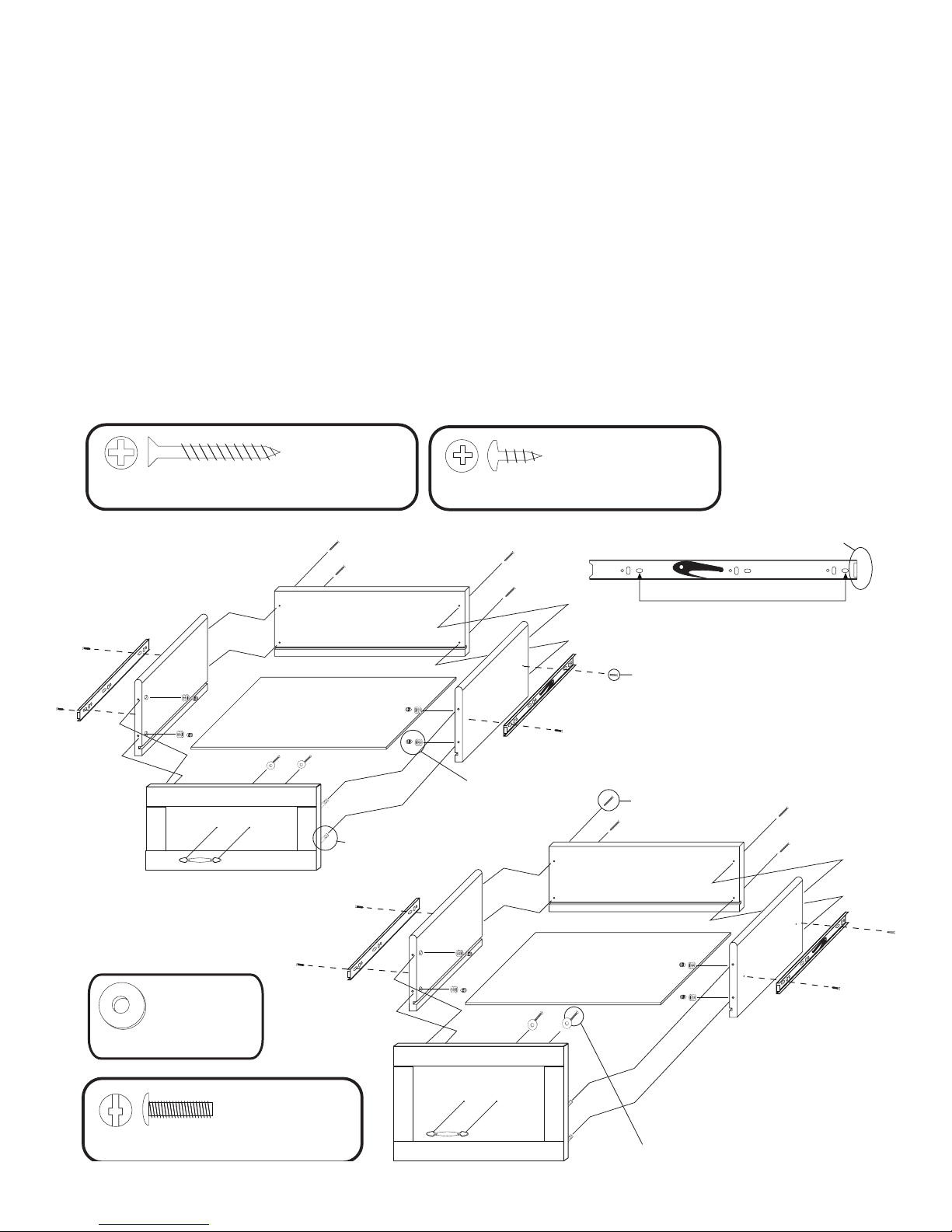

STEP 3
Perform a similar drawer assembly as Step 2 for the lower drawers.
A. Using 1-1/4” #8 screws, attach the drawer back to the drawer sides as shown below.
B. Slide the drawer bottom into the slots.
C. Insert Bastion Posts into the drawer front and tighten into position.
D. Insert Barrel Nuts into the holes on the drawer sides, and slide the drawer front into place.
Tighten with the set screws. Use hand screwdriver or hex wrench.
E. Attach the full extention glides to the drawer sides. See step 1B to locate the correct part of the
glide for this step.
F. Using 1/2” Truss head screws with two washers each, attach the handle to the drawer front.
FOR TIPS ON HOW THE BASTION SYSTEM WORKS SEE LAST PAGE!
This end goes flush against
the drawer front.
Use these holes to attach to
the drawer side.
1-1/4” #8 Screw
1/2” Truss Head M4x10 Screw
3/8” #8 Pan Head
Screw
8 Used
in this step
1-1/4” Phillips Flat Head #8 Screw
1/2” Truss Head M4x10 Screw
4 Used
in this step
8 Used
in this step
3/8” Phillips Pan Head #8 Screw
Barrel Nut &
Set Screw
Bastion Post
Note: On one side the black lever is up and
on the other side the lever is down.
4 Used
in this step
3/16” Flat Washer

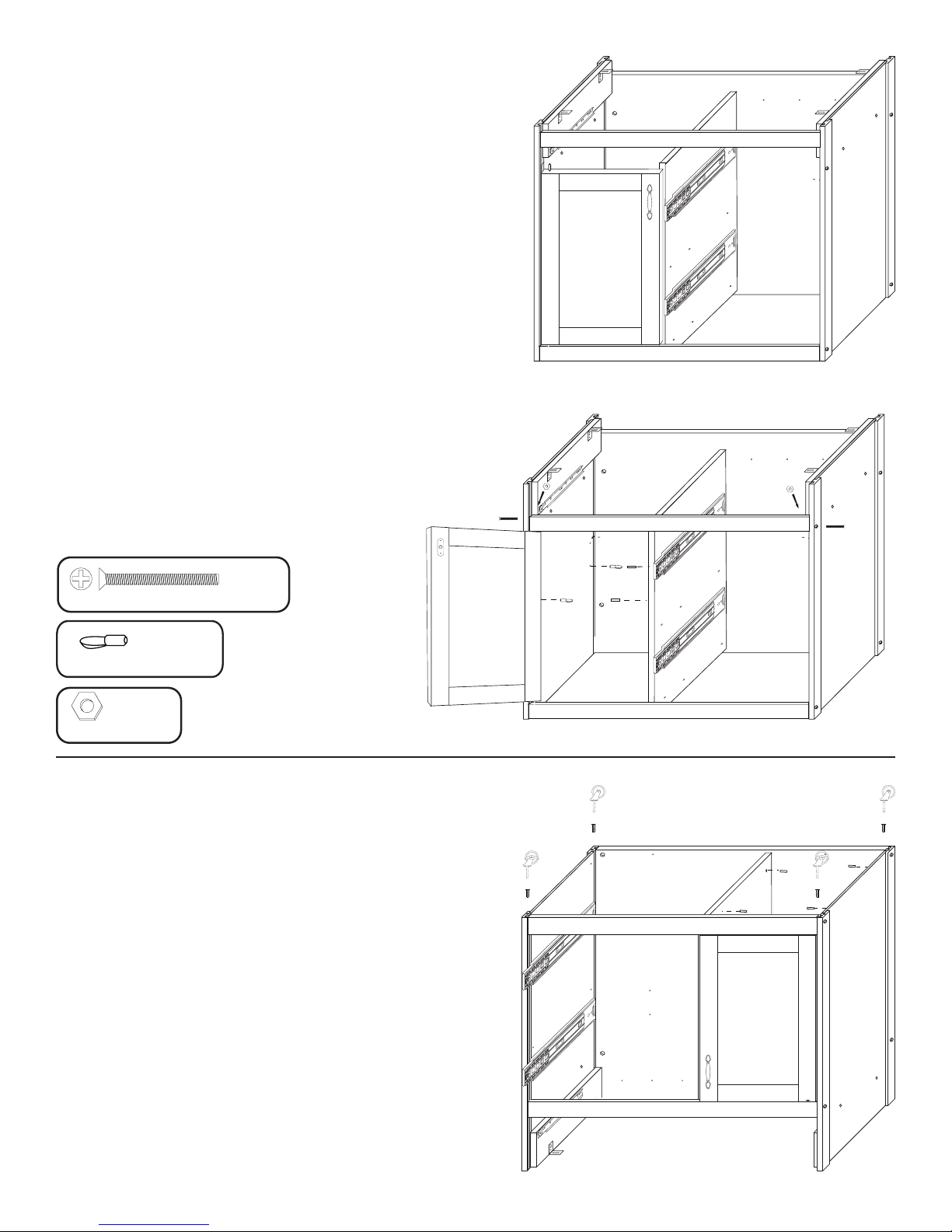

STEP 4
A. Tap/insert ONE 1 1/2” pin into each end of the door. DON’T OVERDRIVE PINS! Pins should stick
up about 1/2” when seated. Ok if loose.
B. Attach the magnet plate (may be stuck to magnet in the hardware pack!) with a 1/2” #4 screw to
the top of the door. Bumps go toward the wood, and the plate should be vertical.
C. Attach door handle with 1” truss head machine screws. Use washers if necessary to tighten.
1” Truss Head Machine Screw
2 Used
in this step
2 Used
in this step
1 1/2” Long 3/16” DIA. Steel Pin
* Use flat washers to tighten handle if necessary.
STEP 5
A. Take the 2 front braces and tap/insert one 3/4” steel pin into each end of both braces until seated.
About 3/8” will stick out when seated. OK if loose.
4 Used
in this step
3/4” Long 3/16” DIA. Steel Pin

STEP 6
A. Tap/insert 3/4” pin into each long edge of the center divider. DON’T OVERDRIVE PINS! Pins
should stick up about 1/4” when seated. Ok if loose.
B. Attach the magnet with 1/2” #4 screws to the top of the door.
C. Attach full extention glides to the center divider as shown. Note that the glides should slide out
towards the same edge with the attached magnet.
D. Tap 1” steel pins into the left side of the center divider to be used as shelf supports in a later step.
4 Used
in this step
The finished
edge faces the
front of the cart
6 Used
in this step
3/8” Phillips Pan Head #6 Screw
3/4” Long 3/16” DIA. Steel Pin
3/4” Pin
Left Side View Right Side View
4 Used
in this step
1” Long 3/16” DIA. Steel Pin
1” Pin
Not Used
This side forms the right
inside of the door cavity.
This side is the left inside
of the door cavity.
Note: Look ahead to Step 8
Glides should be
flush to front.

STEP 7
A. Lay Back Panel at on a smooth surface with holes up.
B. Attach Side Panels with 1 3/4” machine screws (bolts) and hex nuts. After inserting bolts(s) thru the
holes in the Side Panels, thru the holes in the long edges of the Back Panel, place a hex nut on the
tip of your nger, align nut with bolt and tighten.
C. Look ahead to step 8 which shows side panels attached to back panel.
STEP 8
A. Upright the unit. Place the
center divider pins into the holes
int he back panel.
B. Take the Bottom Front Brace
and insert the pin in the right
end of the brace into the slot in
the top of the right front leg and
slide down as in the illustration.
The pin in the left end of the
brace will be outside the slot at
this time. Loosely secure the
right side of the brace with 1 3/4
in. machine screw/nut. Align the
bottom pin in the divider with
the hole (closest to the left side)
on the inside of the bottom front
brace. Spread the left side panel
until the pin in the left end of the
brace can enter the slot
and secure brace with
1 3/4 in. machine screw/nut.
Tighten right side bolt/nut.
10-24 Hex Nut
4 Used
in this step
1 3/4” Phillips Flat Head Bolt
4 Used
in this step
Not used if present Not used if present
ILLUSTRATION 9A
ILLUSTRATION 9B
2 Used
in this step
1 3/4” Phillips Flat Head Bolt
10-24 Hex Nut
2 Used
in this step
2 Used
in this step
Metal Middle Shelf Pin
2 Used
in this step
1 3/4” Phillips Flat Head Bolt
10-24 Hex Nut
2 Used
in this step
2 Used
in this step
Metal Middle Shelf Pin

STEP 9
A. Fit a washer onto the bottom door pin and slide
the pin into the bottom front brace.
B. Loosely secure the left side of the Top Front
Brace with a 1 3/4” machine screw/nut after
inserting the top door pin into the hole in the
bottom edge of the brace. With the right side of
the brace/pin still outside the opposite leg slot,
insert the top pin in the divider into the hole on the
inside face of the brace. Secure right side of brace
by spreading the (top) right side and inserting the
brace pin into the slot. Secure brace with 1 3/4”
machine screw/nut.
C. Tap two Metal Shelf Pins into Side Panel as in
illustration 9B. These will hold the shelves.
IMPORTANT! - To guarantee proper positioning,
loosen the screws holding in the full extension
drawer glides, and shift the glides back against
the back panel. Retighten the screws.
2 Used
in this step
1 3/4” Phillips Flat Head Bolt
10-24 Hex Nut
2 Used
in this step
2 Used
in this step
Metal Middle Shelf Pin
ILLUSTRATION 9A
ILLUSTRATION 9B
2 Used
in this step
1 3/4” Phillips Flat Head Bolt
10-24 Hex Nut
2 Used
in this step
2 Used
in this step
Metal Middle Shelf Pin
2 Used
in this step
1 3/4” Phillips Flat Head Bolt
10-24 Hex Nut
2 Used
in this step
2 Used
in this step
Metal Middle Shelf Pin
STEP 10
Invert unit, or lay the unit on its back to insert the
wheels. Have a friend help with this step as the unit
can be heavy and awkward to move.
A. Insert and tap caster sockets with hammer until
the teeth grab the wood. DON’T POUND SOCKET
FLAT OR CASTER SHAFT WILL NOT ENTER.
B. Insert casters and seat by pushing straight
downward with heel of your hand, or tap into place
with a hammer. Don’t be afraid to give them a good
downward whack on the solid metal part of the
caster!
C. Locking wheels usually go on front.

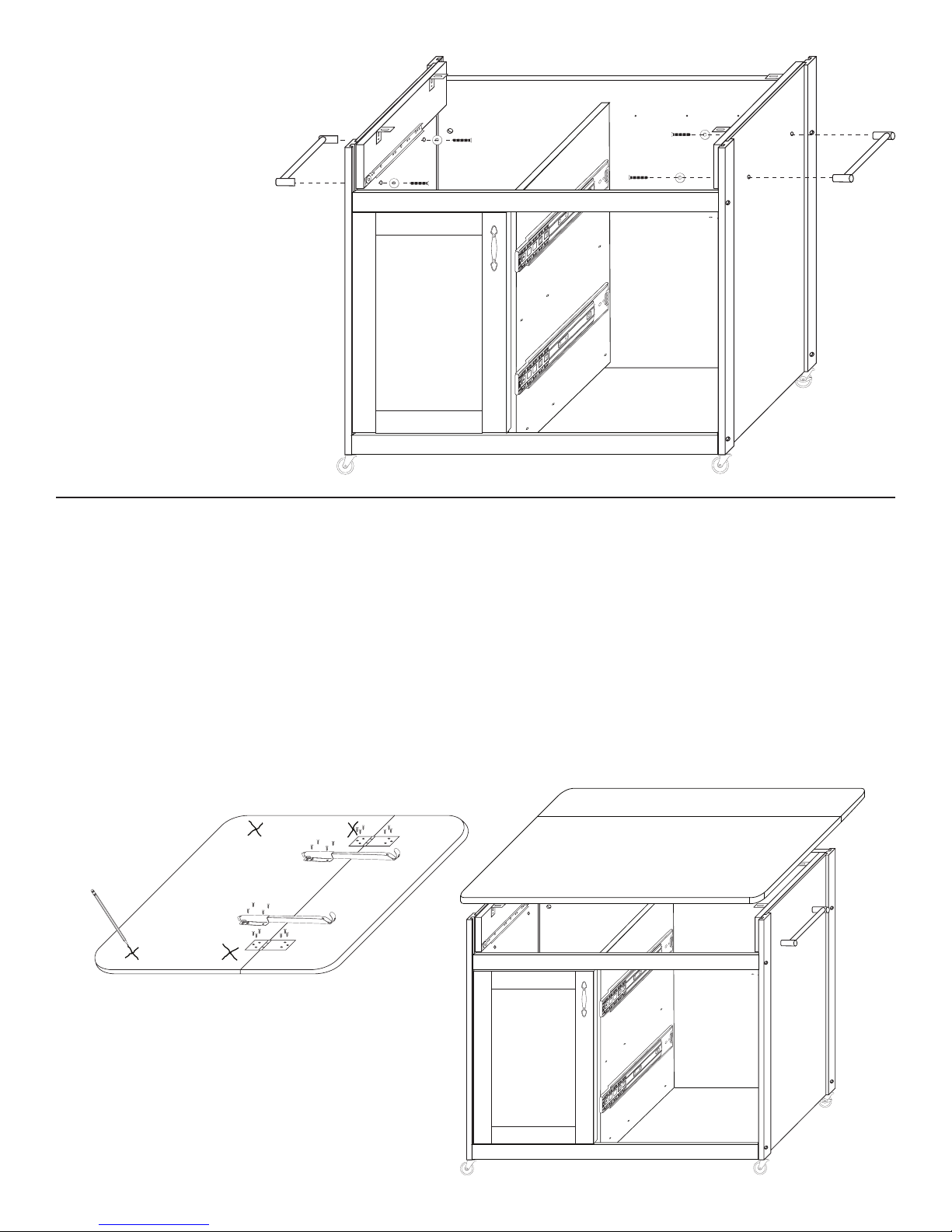

STEP 11
A. Upright unit.
B. Attach Towel Bars
to the Side Panels with
1” #8 screws from
inside each Side Panel.
Place a washer over the
screws.
STEP 12
A. Assemble top by placing the top and the drop leaf upside down on a smooth at surface. Install
hinges using 5/8 #8 screws. The longer part of the hinge goes on the drop leaf with the short part on
the cart top. Fasten the drop leaf supports using 5/8 #8 screws. Attach Drop Leaf Supports with 5/8
inch #8 screws. See illustration 12A.
B. Make a large ( X ) mark over each of the 4 pilot holes in the bottom. Make marks about 1/2-1” long.
These marks will help you align the cabinet with the pilot holes in the bottom of the Top.
C. Place the Cart Top on the cabinet. Open the outside doors. Maneuver the Cart Top so that the (X)
marks/pilot holes in the bottom of the Top align with the slots in the “L” brackets. Secure top to “L”
brackets with 5/8” #6 screws.
ILLUSTRATION 12B
ILLUSTRATION 12A
Note: If you have problems using this method,
get help and invert the table top on a smooth at
surface. Invert the cabinet onto the table top and
align pilot holes with L Bracket and secure using
5/8” #6 screws.

STEP 13
Slide the lower drawers into
place. In initially seating the
glides the drawer will stop about
2/3 of the way in when the glides
hit the plastic tabs. At this point
just shove the drawer in with a
little force. Once the glides are
properly seated, the drawers
should pull out and slide in with
ease.
STEP 14
A. Tilt the bottom shelf and set
down onto the pins.
B. Fit the middle shelf into the
cart and rest it on the pins.
Edge banding should face out.

STEP 15
A. Slide the top drawer into the front of the cart.
B. Retighten all 1 3/4 in. machine screws and nuts. Tap in the 5/8 wooden plugs into the holes on the
legs.
C. Illustration 15B shows completed 1521.
ILLUSTRATION 15A
ILLUSTRATION 15B

For continued beauty and long life of your
Catskill Craftsmen cart, we recommend
Catskill Craftsmen’s Butcher Block Oil.
Our Butcher Block Oil is available direct-
ly from Catskill Craftsmen’s factory. For
one eight ounce (8 . oz.) bottle, which
is sufcient for two applications, simply
send $6.95 along with the completed
coupon to the address below. Visit us
online at www.catskillcraftsmen.com to
browse our assortment of butcher block
care products. Visa and Mastercard are
accepted online.
Catskill Craftsmen, Inc.
15 West End Ave.
Stamford, NY 12167-1296
BUTCHER BLOCK OIL COUPON
Please send me______# of bottle(s) of the
Catskill Craftsmen Butcher Block Oil at $6.95
per bottle. My check or money order is
enclosed for a total of $____________.
Item code: 15218
Name _______________________________
Address _____________________________
City ________________________________
State ___________ Zip ________________
Please make checks payable to Catskill Craftsmen
Inc. 15 West End Ave., Stamford, NY 12167-1296
