cecotec CECOFRY RAIN PACK User manual

Manual de instrucciones
Instruction manual
Manuel d’instructions
Bedienungsanleitung
Manuale di istruzioni
Manual de instruções
Handleiding
Instrukcja obsługi
Návod k použití
CECOFRY RAIN PACK
Freidora de aire /Air fryer
03305_CECOFRY RAIN PACK.indd 103305_CECOFRY RAIN PACK.indd 1 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
51
ENGLISH
1. PARTS AND COMPONENTS
Fig. 1
1. Control panel
2. Main body
3. Display
4. Basket
5. Handle
6. Oil tank
7. Air outlet
8. Power cable
9. Silicone brush
10. Silicone spatula
11. Silicone mat
12. Silicone mould

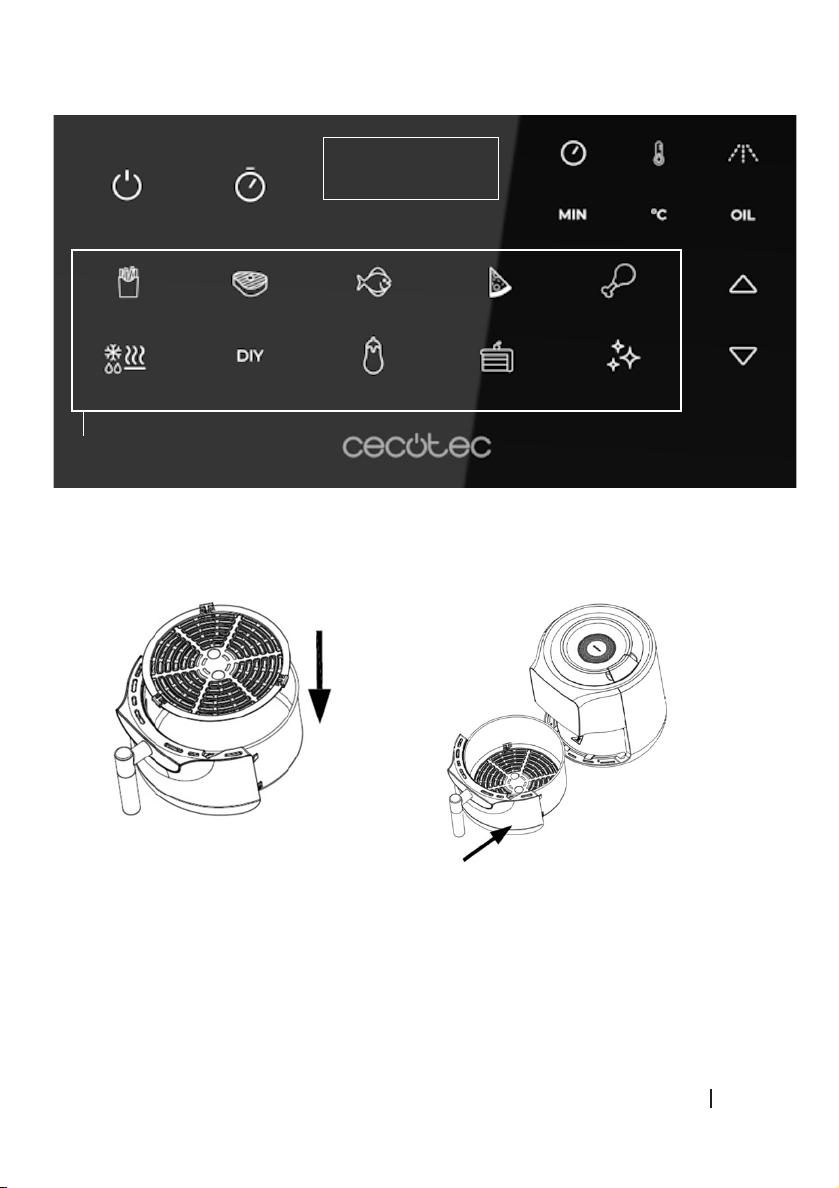

Control panel. Fig. 2
1. Menus
2. Temperature touch icon
3. Timer touch icon
4. Timer knob
5. Oil level touch icon
6. Power/Start/Pause button
7. Increase touch icon
8. Display
9. Decrease touch icon
Note:
The graphics in this manual are schematic representations and may not exactly match the
appliance.
2. BEFORE USE
- This appliance is packaged in a way as to protect it during transport. Take the device out
of its box and remove all packaging materials. You can keep the original box and other
packaging elements in a safe place. This will help you prevent damage to the device when
transporting it in the future. In case the original packaging is disposed of, make sure all
packaging materials are recycled accordingly.
03305_CECOFRY RAIN PACK.indd 5103305_CECOFRY RAIN PACK.indd 51 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
52
ENGLISH
- Make sure all parts and components are included and in good conditions. If there is any
piece missing or in bad conditions, contact the ocial Cecotec Technical Support Service
immediately.
- Clean the basket, basket grille, heating element protective grille and oil tank thoroughly
with hot water, detergent and a non-abrasive sponge.
- Clean the inside and outside of the appliance with a soft damp cloth. Do not ll the
appliance with oil or other liquids.
- Place the metal grille into the appliance until it clicks into place as shown in gure 8.
Protective metal grille

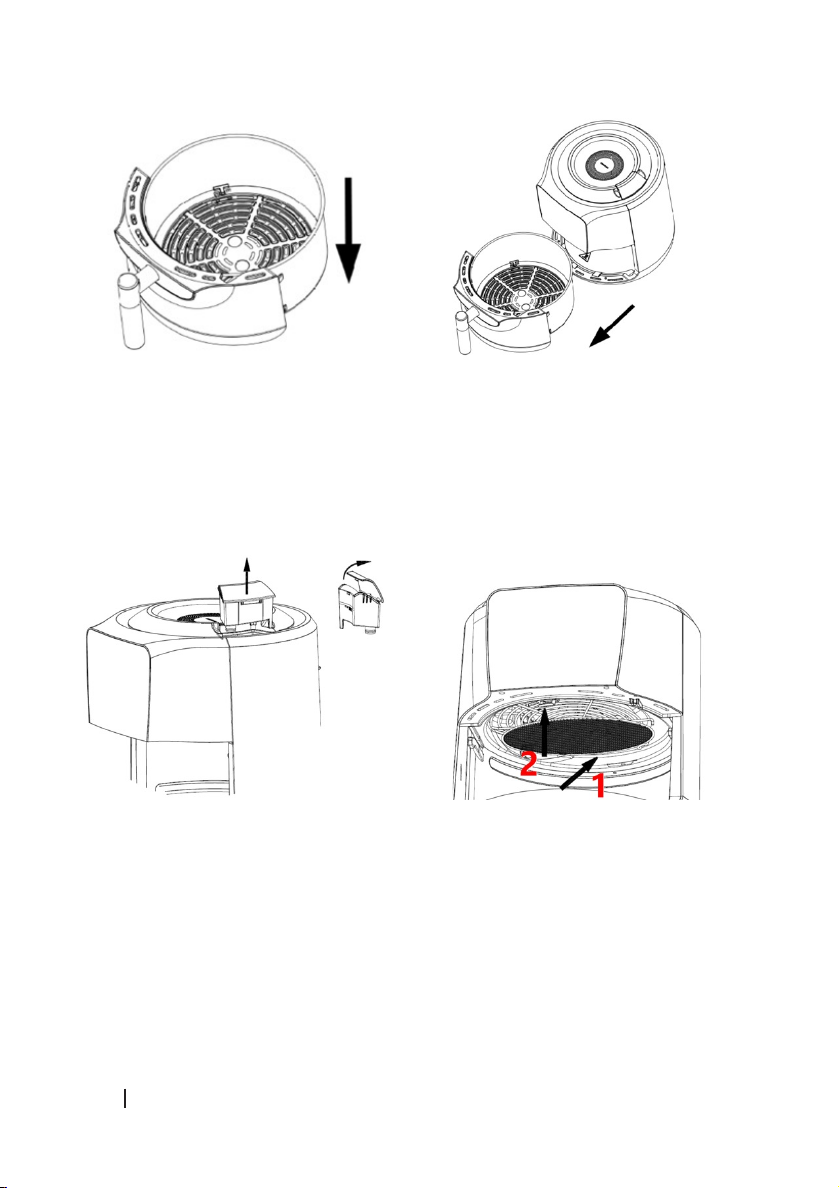

Installation. Fig. 8
The protective metal grille is located at the top of the inside of the air fryer. This grille
protects the heating element. Due to the use of oil spray this part is removable for cleaning.
The protective metal grille features
- A exible ange that can be pressed to facilitate the exit or entry of the grille.
- A xed ange to support the grille before tting it against the exible ange.
- Two lateral supports to guide the grille.
To attach or remove the grille
To attach the grille to its bracket you rst need to insert the grille into the xed ange and be
guided by the two side brackets, once this step is done, you have to press the grille against
the exible ange to x the grille completely.
Cleaning
- The grille should be cleaned after each use to prevent oil build-up on the grille.
- To clean the grille, use hot water, a non-abrasive detergent and a non-abrasive sponge.
- Make sure that the fryer is completely cool before cleaning.
3. OPERATION
Preparation
1. Always place the appliance on an horizontal, at and stable surface. Do not place the
appliance on hot surfaces such as induction hobs.
2. Do not place the appliance on a dry, stable, and heat-resistant surface.
3. Place the basket rack in the basket itself as shown in gure 3.
4. Make sure that the oil tank is tted to the appliance and that it is full. If the oil tank is not
inserted correctly or is empty, the appliance will emit an acoustic alert and the message
“Add Oil” will appear on the control panel display every time the device is to spray oil. The
appliance will not spray oil on the food if there is not enough oil in the tank or if the tank
03305_CECOFRY RAIN PACK.indd 5203305_CECOFRY RAIN PACK.indd 52 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
53
ENGLISH
is empty and will continue the process until the end of the programme. To add oil, remove
the oil tank as shown in the gure. 7, open the tank cover and ll the tank to the MAX
mark.
5. do not use the basket or grille with oil or any other liquid.
6. Do not place any objects on top of the appliance, as this will interrupt the airow and
aect the cooking result.
7. You will hear a loud noise caused by the internal pump during the rst use: this is normal
and does not indicate a malfunction.
Air fryer
1. Connect the power cable to an earthed plug socket.
2. Remove the basket from the air fryer. Fig. 6
3. Make sure that the protective grille is securely in place Fig. 8
4. Put the basket back in the air fryer. Carefully align the guides of the basket and the fryer
body and insert it. Fig. 4
Note: you should use the fryer with the grille placed inside the basket to promote air ow
and obtain better results.
5. Determine the time, temperature and oil level for the preparation according to each food,
or select a default programme (see the “Settings” section of the “Operation” section).
6. Before starting each programme, the device will warm up to improve the preparation
results. The device will show a rectangle loading. This warm-up can take a few minutes.
7. Place the food in the basket (Fig. 5).
8. Some ingredients must be stirred halfway through the cooking process. To stir, pull the
basket out of the appliance using the handle and remove the food using a wooden or
plastic kitchen utensil. Then slide the basket back into the air fryer.
9. When you hear the timer signal, the set preparation time has elapsed. Remove the basket
from the appliance and place it on a heat-resistant surface. Be careful when removing
the basket as it can give o heat and steam.
Note: You can also stop the appliance manually. to do so, touch the power/start/pause
touch icon. if you want to cancel the programme, press and hold the power button.
10. Make sure the food is cooked. If the food isn’t cooked enough, slide the basket drawer
back into the air fryer and add a few more minutes to the timer. If this happens when the
programme has nished, the programme will resume preheating, but this will take no
more than a few seconds after the warning, simply remove and reinsert the basket to
start the cooking process.
Warning:
- Do not touch the basket during operation or immediately after use to avoid burns. Hold
the basket only by the handle.
- Never use metal utensils as these can damage the surface.
- do not turn the basket upside down so that the excess oil accumulated in the bottom of
03305_CECOFRY RAIN PACK.indd 5303305_CECOFRY RAIN PACK.indd 53 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
54
ENGLISH
the basket does not spill over the ingredients. The ingredients, basket, and the fryer itself
will be hot. Depending on the type of ingredients cooked, steam may escape from the
basket drawer.
Operation
1. The power/start/pause touch icon will remain on after the fryer has been started.
2. If you press the power/start/pause touch icon, you will hear an acoustic signal and the
display will show “---”. The menu icons will light up.
3. Select the desired menu and make sure that the oil tank is full and properly installed.
4. If you wish to delay the start of cooking, select a menu and modify the desired values by
pressing the timer icon and selecting the time you wish to delay cooking, then press the
power/start/pause icon to start the process. The time can be set from 0.5 to 24 hours
using the increase and decrease icons.
5. You can adjust the cooking time from 1 to 60 minutes in one-minute intervals by clicking
on the time icon and changing the time using the increase and decrease icons. The time
can be adjusted during cooking.
6. You can adjust the temperature from 70 to 200°C in 5°C intervals by clicking on the
temperature icon and changing the temperature using the increase and decrease icons.
Temperature can be adjusted during cooking.
7. You can adjust the oil spray level from 0 to 7 in increments of 1 by clicking on the oil level
icon and changing the level using the increase and decrease icons. The oil level can be
adjusted during cooking.
8. Press the power/start/pause touch icon to start the device. The heating element
switches on and o during a complete cycle several times, this is completely normal in
order to keep the temperature of the basket constant.
9. The control panel display will show a rectangle loading to indicate that the fryer is
preheating. This warm-up may take a few minutes if the device is completely cool. When
the fryer has nished preheating, the display will show “Add Food” and a warning signal
will sound.
10. After hearing the warning signal and seeing the corresponding message on the display,
remove the basket and place the ingredients in the basket (the display will show
“PAUSE”).
11. After adding the ingredients, place the basket back into the fryer and the fryer will
automatically start the cooking process.
12. When cooking is complete, the display will show “End” for 15 seconds and three beeps will
sound.
13. Press and hold the power/start/pause touch icon to access the menu selection interface.
03305_CECOFRY RAIN PACK.indd 5403305_CECOFRY RAIN PACK.indd 54 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
55
ENGLISH
Once inside, press and hold the power touch icon again to turn the fryer o.
14. The fryer will enter “Stand-By” mode after 5 minutes without selecting any option.
Menus
The following table shows the temperatures and times of the menus:
Min-max
Amount
(g)
Temp
(ºC)
Time
(min.)
Oil level Shake
Chips 200 - 600 200 20 6 YES
Steak Surface* 180 10 4 -
Fish Surface* 180 8 6 -
Pizza Surface* 180 8 0 NO
Chicken wings /
drumsticks
Surface* 200 25 4 NO
Muns / CupCake Surface* 170 10 0 NO
DIY (Manual) Surface* 200 20 4 -
Defrost / Keep
warm**
Surface* 70/80 25/10 0 -
Cleaning indicator
light
Surface* 70 20 0 -
Vegetables 100-400 170 10 4 YES
Note:
*For foods with the recommended amount of surface area, do not ll more than the surface
of the basket for best results, if you ll more than the recommended amount, the food
underneath will not cook properly.
** Within the Defrost / Keep warm programme you can select one option or the other by
clicking again on the default programme icon.
As ingredients dier in origin, size, shape, and brand, we cannot guarantee the best setting
for the ingredients that you are using. If necessary, change the times and/or temperature
values to adjust the cooking to the type of ingredient.
Briey removing the basket during the frying process does not aect the cooking.
03305_CECOFRY RAIN PACK.indd 5503305_CECOFRY RAIN PACK.indd 55 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
56
ENGLISH
Tips
- Smaller ingredients require a shorter preparation time than larger ones.
- A larger quantity of ingredients only requires a slightly longer preparation time, and a
smaller quantity of ingredients only requires a slightly shorter preparation time.
- Shaking smaller food midway through the cooking process optimises the end result and
prevents uneven cooking.
- Do not cook excessively fatty foods in the air fryer (e.g. sausages).
- Oven-ready snacks can also be cooked in the air fryer.
- The optimal amount for preparing crispy fries is 500 grams.
- Pre-made dough requires a shorter preparation time. Pre-made dough requires a shorter
preparation time than home-made dough.
- Place a baking pan or baking dish in the air-fryer’s basket if you want to bake a cake or
quiche or if you want to fry fragile or stued foods.
- You can also use the device to reheat food. To reheat food, set the temperature to 150°C
for 10 minutes.
Oil level
This device has a new technology capable of spraying oil into the basket during operation. For
this purpose, the device switches o the heating element and the fan and sprays the oil after
5 seconds, then resumes normal operation after a few seconds. The tank has a total capacity
of 30 mL of oil.
The operation of the programme is set by ranges, each spraying level has two ranges:
- Range 1: starts from minute 20 to minute 12, counting down. During this range, spraying is
performed every 4 minutes or every 2 minutes, depending on the selected oil level.
- Range 2: starts from minute 12 until the end of the process. During this range, spraying is
performed every 4 minutes or every minute, depending on the selected oil level.
- In each range the duration of spraying is dierent.
The following table shows the spraying ranges, the number of total sprays and the amount of
oil used in each programme.
Oil level Time
(min)
Range 1
(20-12 min)
Range 2
(11-0 min)
Number of
sprays
Total amount
of oil used
(ml)
0 20 - - - -
1 20 Spraying every
4 min
Spraying every
2 min
83
2 20 Spraying every
4 min
Spraying every
2 min
8 6
03305_CECOFRY RAIN PACK.indd 5603305_CECOFRY RAIN PACK.indd 56 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
57
ENGLISH
320 Spraying every
4 min
Spraying every
2 min
89
4 20 Spraying every
2 min
Spraying every
minute
15 12
5 20 Spraying every
2 min
Spraying every
minute
15 18
6 20 Spraying every
2 min
Spraying every
minute
15 23
7 20 Spraying every
2 min
Spraying every
minute
15 27
Note:
- The data shown in the table are measured for a 20-minute cycle.
- The data obtained have been calculated with Virgin Olive Oil and at an ambient
temperature of 25ºC. If you get dierent results it may be due to the use of dierent types
of oils and their dierent densities.
- Do not use oils and fats that are solid at room temperature. Note that very low
temperatures can solidify the oil. Clean the tank and internal oil tubes after each use.
- If you change the cooking time to more than 20 minutes, the device will spray every 2
minutes for all levels with the amount of oil per spray corresponding to each level.
- If you decrease the program time to 15 minutes, the air fryer will perform the rst full
range and 3 more minutes of the next full range
Programme DIY: MANUAL.
The DIY or manual program is a special program that allows you to spray oil whenever you
want. To do this, select this program and oil level 0. Oil levels can be used with this program
and you can spray manually.
5. CLEANING AND MAINTENANCE
Cleaning
- Clean the appliance after every use.
- The protective grille, the basket and the basket grille have a non-stick coating. Do not use
metal utensils or abrasive products to clean them, as this may damage their non-stick
surface.
1. Unplug the appliance and allow it to cool down before cleaning.
Tip:
Remove the basket to let the appliance cool down more quickly.
2. Clean the inside and outside of the appliance with a damp cloth.
03305_CECOFRY RAIN PACK.indd 5703305_CECOFRY RAIN PACK.indd 57 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
58
ENGLISH
Tips:
- We recommend the use of liquid degreaser for food use to remove any remaining dirt.
- If the basket and grille are very dirty, soak them in hot water and cleaning solution for 10
minutes.
1. Clean the inside of the appliance with hot water and a non-abrasive sponge, taking care
not to damage the resistance.
2. Clean the spray nozzle with hot water and a non-abrasive sponge.
3. Remove the protection grille and clean the grease with hot water, detergent and a
non-abrasive sponge.
4. To clean the tank and internal oil tubes, you can enter the DIY mode and at oil level 0
you can press the DIY button until the tank and internal tubes are empty, the device will
indicate that there is no more oil left by means of the “Add Oil” notice.
Storage
1. The power cable can be stored inside the appliance.
2. Make sure all components are clean and dry.
3. Be sure to clean the sprayer and the removable protective grille.
6. TROUBLESHOOTING
Problem Possible causes Possible solutions
E1 Temperature sensor
not working
Contact the ocial Cecotec Technical
Support Service.
E2 Temperature sensor
not working
Contact the ocial Cecotec Technical
Support Service.
The air fryer does not
work
The appliance is not
plugged in.
Connect the power cable to an earthed
plug socket.
Cooked foods are raw. The food is too big. Put smaller batches of food in the basket.
Smaller batches are cooked more evenly.
The temperature used
is too low.
Select a higher temperature (see the
“Operation” section).
The preparation time
is too short.
Select a longer time (see the “Operation”
section).
03305_CECOFRY RAIN PACK.indd 5803305_CECOFRY RAIN PACK.indd 58 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
59
ENGLISH
The ingredients are
cooked unevenly in the
air fryer.
Some types of food
need to be shaken
during the cooking
process.
Ingredients that lie on top of or across
each other (e.g. chips) need to be shaken
halfway through the preparation time.
See the ‘Operation’ section.
The ingredients are not
crunchy.
Increase temperature Increase the cooking temperature to
generate greater dehydration in the
supercial layer of the same and obtain
more crunch.
Increase the oil level Turn up the oil level for crispier results.
The basket does not
slide into the appliance
properly.
There are too many
ingredients in the
basket.
Do not ll the basket beyond the max.
indication.
The basket is not
placed correctly.
Push the basket following the guides
down into the air fryer until you hear a
click.
White smoke comes
out of the appliance.
You are preparing
greasy ingredients.
When you use fatty ingredients, a large
amount of oil seeps into the basket. The
oil produces white smoke and the basket
may become hotter than normal. This
does not aect the appliance or the result.
The basket contains
grease from previous
uses
The white smoke is due to the fat heating
up in the basket. Make sure you clean the
device properly after each use.
Fresh chips are fried
unevenly.
You did not use the
right potato type.
Use fresh potatoes of the baking and
frying varieties and make sure they hold
rm during frying.
You did not rinse the
potato sticks properly
before you fried them.
Rinse the potato sticks properly to
remove the starch.
Fresh chips are not
crispy.
The right kind of
potato is not being
used.
Be sure to dry the potatoes before
starting the process.
Cut the potato sticks on smaller pieces for
crispier results.
Turn up the oil level for crispier results.
03305_CECOFRY RAIN PACK.indd 5903305_CECOFRY RAIN PACK.indd 59 30/6/23 12:3530/6/23 12:35

CECOFRY RAIN PACK
60
ENGLISH
7. TECHNICAL SPECIFICATIONS
Product reference: 03305
Product: Cecofry Rain Pack Air fryer
Power: 1550 W
Voltage: 220 - 240 V
Frequency: 50/60 Hz
Oil tank capacity 30 ml
The power consumption in “standby” mode is 0.4 W using the guidelines of the EN 50564:2011
standard and the European regulations 1275/2008/EC and 801/2013/EC. To do this, the
device is connected to the electrical network without performing any function. The switch/
controller of the appliance was set to the Standby position.
Technical specications may change without prior notice to improve product quality.
Made in China | Designed in Spain
8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES
This symbol indicates that, according to the applicable regulations, the
product and/or battery must be disposed of separately from household
waste. When this product reaches the end of its shelf life, you should dispose
of the cells/batteries/accumulators and take them to a collection point
designated by the local authorities.
Consumers must contact their local authorities or retailer for information concerning the
correct disposal of old appliances and/or their batteries.
Compliance with the above guidelines will help protecting the environment.
9. TECHNICAL SUPPORT AND WARRANTY
Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at
the time of delivery of the product under the terms, conditions, and deadlines established by
the applicable regulations.
It is recommended that repairs are carried out by qualied personnel.
If at any moment you detect any problem with your product or have any doubt, do not
hesitate to contact the ocial Cecotec Technical Support Service at [phone].
03305_CECOFRY RAIN PACK.indd 6003305_CECOFRY RAIN PACK.indd 60 30/6/23 12:3530/6/23 12:35

138
CECOFRY RAIN PACK
Fig. / Img. / Rys. / Obr. 1
1
2
3
4
5
67
8
9 10 11 12
03305_CECOFRY RAIN PACK.indd 13803305_CECOFRY RAIN PACK.indd 138 30/6/23 12:3630/6/23 12:36

139
CECOFRY RAIN PACK
Fig. / Img. / Rys. / Obr. 2
Fig. / Img. / Rys. / Obr. 3
Fig. / Img. / Rys. / Obr. 4
8
4
6
9
7
5
2
3
1
03305_CECOFRY RAIN PACK.indd 13903305_CECOFRY RAIN PACK.indd 139 30/6/23 12:3630/6/23 12:36

140
CECOFRY RAIN PACK
Fig. / Img. / Rys. / Obr. 5 Fig. / Img. / Rys. / Obr. 6
Fig. / Img. / Rys. / Obr. 7 Fig. / Img. / Rys. / Obr. 8
03305_CECOFRY RAIN PACK.indd 14003305_CECOFRY RAIN PACK.indd 140 30/6/23 12:3630/6/23 12:36
