CEECO SSC-303-D User manual

SSC-303-D(303DS)-ADI2.01-650-541-ISSUE4.0
SERVICE MANUAL
FOR
MODEL SSC-303-D
(FORMERLY 303-DS)
STAINLESS STEEL
AUTOMATIC DIALING TELEPHONE
EQUIPPED WITH ADI2.01 FIMWARE
Serving the Telephone Industry Since 1930
Communication Equipment 1580 NW 65th Avenue
& Engineering Company Plantation, FL 33313
Voice: 954-587-5430
Fax: [phone]
Sold by:
http://www.TWAcomm.com
Toll Free: [phone]

ISSUE 4.0
IMPORTANT INFORMATION
FOR
CUSTOMER
Please fill in before you continue.
The following information is necessary when calling CEECO for assistance.
MODEL NUMBER MODEL SSC-303-D EQUIPPED WITH ADI2.01
FIRMWARE.
SERIAL NUMBER
DATE MANUFACTURED
LOCATION INSTALLED
For us to better serve you, please have this information available when calling for
technical support.
CEECO
Communication Equipment and Engineering
Company
1580 NW 65th Avenue
Plantation, FL 33313
[phone] Voice
[phone] Fax
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
2

ISSUE 4.0
TABLE OF CONTENTS
SECTION PAGE
1.0 INTRODUCTION................................................................................................... 4
2.0 GENERAL DESCRIPTION.................................................................................. 4
3.0 PROGRAMMING .................................................................................................. 5
PROGRAMMING CONTINUED…..................................................................... 6
4.0 TESTING/OPERATION ....................................................................................... 7
5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT .................................... 7
6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ..................... 8
7.0 SPECIFICATIONS................................................................................................. 9
8.0 FCC NOTICE........................................................................................................ 10
9.0 PARTS LIST ......................................................................................................... 11
10.0 REPAIR AND RETURN INFORMATION....................................................... 12
11.0 WARRANTY POLICY ........................................................................................ 13
12.0 DIAGRAM............................................................................................................. 14
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
3

ISSUE 4.0
1.0 INTRODUCTION
The practices in this manual provide installation and maintenance information for
the Model SSC-303-D Stainless Steel Automatic Dialing Telephone.
The information in this manual is subject to change without notification.
For information not included in this manual, please call or write:
CEECO
Customer Service
1580 NW 65th Avenue
Plantation, FL 33313
[phone]
[phone] FAX
2.0 GENERAL DESCRIPTION
2.1 The CEECO Model SSC-303-D Automatic Dialing Charge-A-Call
Telephone is a microprocessor-based, coinless telephone, housed in a
rugged stainless steel case.
2.2 The telephone is designed to deter fraud from hand held tone dialers,
hookswitch dialing and other fraudulent attempts. When the handset is
lifted one or two separate telephone numbers (depending on user
programming) of up to twenty-five digits may be automatically dialed.
The transmitter is muted during periods of dial tone to deter fraud.
Attempts to “hookswitch-dial” will cause the microprocessor to go "on
hook" until the attempt has ended. It will then seize the line and dial any
programmed number(s).
2.3 The serving Telephone Company must class mark the incoming line for
"COLLECT CALLS ONLY" for proper operator recognition. Incoming
calls are not allowed.
2.4 Programming is accomplished via an internally mounted DTMF keypad.
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
4

ISSUE 4.0
3.0 PROGRAMMING
3.1 Remove the backplate from the telephone and connect the telephone
modular cord to a DTMF test set or a working telephone line.
3.2 Looking at the rear of the phone, connect the programming keypad to
the white connector, which is hanging freely inside the phone. This
connector attaches to seven different colored wires and has a similar end,
which is already connected to the Printed Circuit Board.

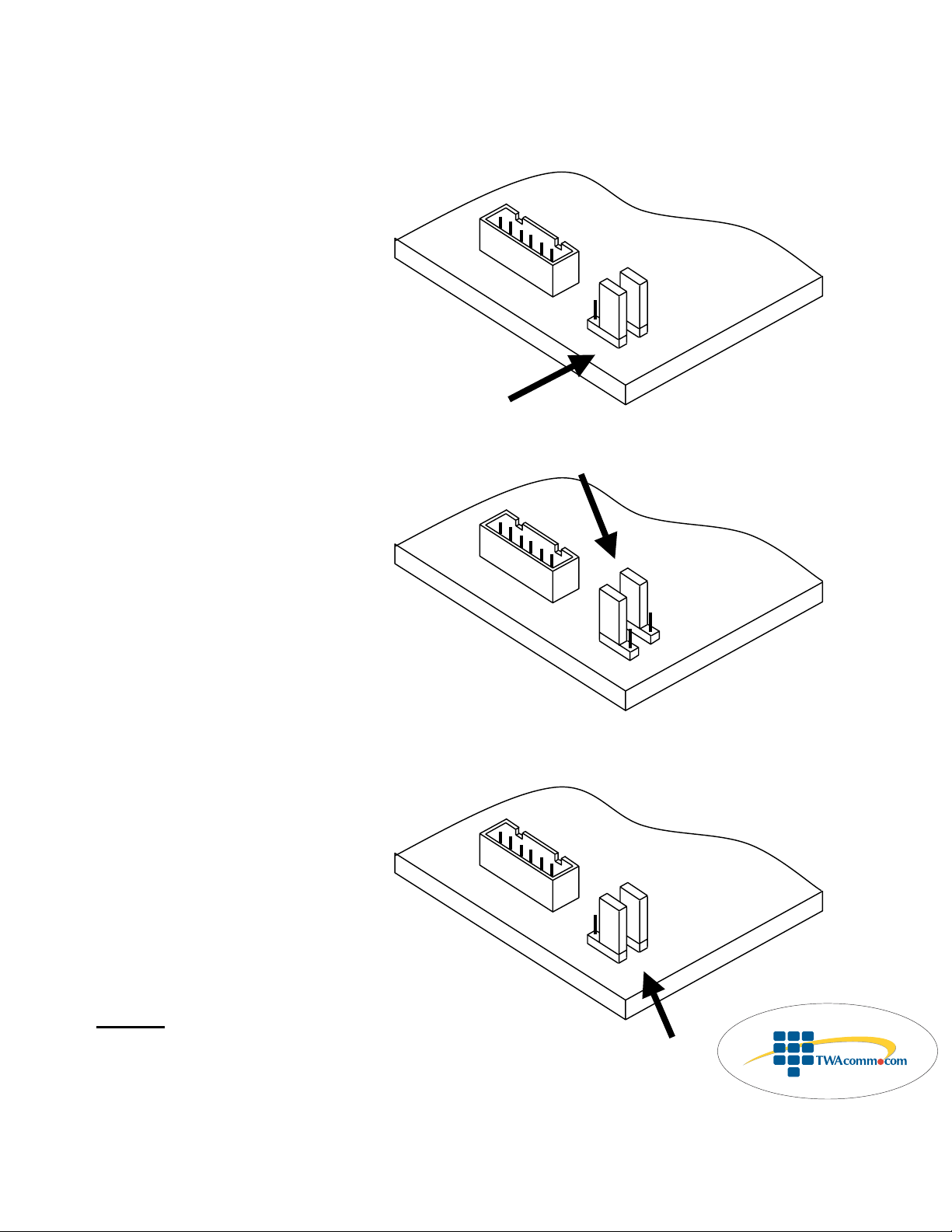

3.3 Locate the two plastic mini-jumpers on the corner of the Printed Circuit
Board and move them to the "ON" position, as depicted on the last page
of this manual. Lift the handset and wait for dial tone.
3.4 Utilizing the programming keypad, enter #97on the keypad. This will
clear all field programmable memory.
NOTE: During programming it is essential to press the keys deliberately
and slowly. Missed or partial tones will result in improper programming.
3.5 If the phone must automatically dial a number, when the handset is
lifted, enter # 1 9 on the programming keypad, followed by the desired
number of up to twenty-five (25) digits in length. Once programmed, this
number will always dial, when the handset is lifted.
EXAMPLE: Entering #1918005551212 on the programming keypad will
cause the phone to automatically dial the number 1-800-555-1212, when
the handset is lifted.
• Be sure to record your number in the Location #19 Table below for
future reference.
LOCATION #19 TABLE:
__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
3.6 If the phone must automatically dial a second number, when the handset
Is lifted, enter # 2 0 on the programming keypad, followed by the desired
number of up to twenty-five (25) digits in length. In order for the phone
to dial the number stored in the #20 programming location, you must
select a “1” for Digit 1, under the #00 programming location (refer to next
section-3.7). You must also make selections for Digits 2 and 3
accordingly. Location #19 must be used in order to use Location #20.
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
5

ISSUE 4.0
PROGRAMMING CONTINUED…
EXAMPLE: Entering #2019545875430 on the programming keypad will
cause the phone to automatically dial the number 1-954-587-5430, when
the handset is lifted.
• Be sure to record your number in the Location #20 Table below for
future reference.
LOCATION #20 TABLE:
__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
SCENARIO: Location #19 might be programmed to dial “9” for an
outside line. Location #20 might be programmed to dial 1-800-555-1212,
after the outside line is established. The programming sequence would be
#199#2018005551212, which is entered on the programming keypad.
3.7 Enter # 0 0 on the keypad. This accesses the telephone options
programming location. Now enter three digits, which you will select
from the options below, to customize the phone for the particular
installation.
Digit 1
0 Do not dial the number in location #20.
1 Dial the number in location #20.
Digit 2
0 Wait for dial tone before dialing the number in location #20.
1 Wait for 1-9 seconds (depending on digit 3 below) before dialing
number in location #20.
Digit 3
1-9 Number of seconds to wait before dialing number in location #20.
• Be sure to record your selections in the OPTIONS TABLE below for
future reference:
OPTIONS TABLE: # 0 0 __ __ __
3.8 Programming is now completed. Hang up the phone and return the two
plastic mini-jumpers to the “OFF” position as depicted on the last page
of this manual. The phone is now ready for Testing/Operation.
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
6

ISSUE 4.0
4.0 TESTING/OPERATION
4.1 With the phone connected to a working phone line or a DTMF test set, lift
the handset. The telephone will wait for dial tone. When dial tone is
detected any number programmed as the first auto dial number (memory
location #19) will be dialed. The handset transmitter should be muted
(off) until dialing is complete. If the intended number does not dial out,
repeat sections 3.3, 3.5, and 3.8 only. If this does not solve the problem,
refer to section 10.2 please.
4.2 If there is a second number to auto dial (memory location #20), the phone
will either wait for the return of dial tone or wait the appropriate time
(depending on the programming selected under Location #00 Digit 2) and
dial that second number. Remember that Digit 1, under Location #00
must be set to “1” for Location #20 to be enabled. If the second number
does not dial out, repeat sections 3.3, 3.5, 3.6, 3.7 and 3.8. If this does not
solve the problem, please refer to section 10.2.
4.3 Normal phone operation should follow. Have the called party hang up.
Wait for the central office equipment to time out and return dial tone.
Shortly after dial tone is received, three tones should be heard. The phone
will open the line and remain in this condition until the handset is placed
on hook. The handset transmitter and receiver will be disabled during this
period.
4.4 Attempt to "hookswitch dial" by tapping quickly on the hookswitch. The
telephone should hang up, seize the telephone line and dial the
programmed auto dial number(s), when dial tone is received again.
5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT
DTMF Test Set
Volt/Ohm Meter
1/4" Nut Driver
5/16" Nut Driver
Flat Blade Screw Driver
Security Tool 301-037
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
7

ISSUE 4.0
6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS
6.1 Using a 301-037 security tool (sold separately), loosen (do not remove)
the locking screw and remove the security screws on either side of the
telephone. The security tool is for a standard 5/32" button head screw
generally used on the framework of the phone booths.
6.2 Separate the cover assembly from the backplate assembly. The backplate
assembly may be installed on any standard backboard or coin phone
enclosure.
6.3 Run the inside station wire through the backplate assembly and terminate
on to the RJ11C terminal block on the backplate.
6.4 The use of a gas tube station protector is recommended. The station
ground should not exceed 50 ohms.
6.5 Install the instruction card, instruction card window and instruction card
frame using the eight retaining nuts provided. A 5/16 inch nut driver is
required.
6.6 Plug the modular line cord from the cover assembly into the RJ11C
terminal block. Dress the line cable away from the locking screw and
install the cover assembly by hanging it on the four hook shaped supports.
6.7 Secure the cover assembly by tightening the security screws on either side
of the case and the locking screw on the front of the case.
*****WARNING*****
A. Never install telephone wiring during a lightning storm.
B. Never install telephone jacks in wet locations unless the jack
is specifically designed for wet locations.
C. Never touch uninsulated telephone wires or terminals
unless the telephone line has been disconnected at the
network interface.
D. Use caution when installing or modifying telephone lines.
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
8

ISSUE 4.0
7.0 SPECIFICATIONS
INPUT POWER: C.O. Line Powered
LOOP CURRENT: 23ma. Min. 80ma. Max.
IMPEDANCE: 600 Ohms
SIGNALING: DTMF, 70ms Tone, 50ms Spacing
OUTPUT: -4.0 to -6.0dbm
HEARING AID
COMPATIBLE: Meets EIA Standards
ENVIRONMENTAL: Temperature 0C to 50C
Humidity 20%-90% Non-condensating
PROGRAMMING: Via DTMF Keypad
TELEPHONE PANEL: Stainless Steel, 14 gauge
DIMENSIONS: 7 1/2" Wide x 21" High x 6 1/2" Deep
(Handset on hook)
MOUNTING: Standard Coinless Public Telephone
footprint
MEMORY RETENTION: Lithium Battery – Long Life
WEIGHT: Approximately 17 Pounds
FCC REGISTRATION: BW-88T7-13823-TE-T
UL LISTED NO.: 6OF5
RINGER EQUIVALENCY: 0.7A
TYPE JACK: RJ11C
PROGRAM VERSION: ADI 2.01
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
9

ISSUE 4.0
8.0 FCC NOTICE
8.1 FCC REGISTRATION AND REPAIR INFORMATION
Your new telephone has been registered with the Federal Communication
Commission (FCC) in accordance with Part 68 of its rules. The FCC
requires that you be advised of certain requirements involving the use of
this telephone.
8.2 CONNECTION AND USE WITH THE NATIONWIDE TELEPHONE
NETWORK.
The FCC requires that you connect this telephone to the Nationwide
Telephone Network through a registered jack provided by the Telephone
Company in your area. This jack is a modular outlet, which you can order
from your local telephone company.
8.3 NOTIFICATION TO THE TELEPHONE COMPANY
Before connecting this telephone, the FCC requires that you notify your
local telephone company business office. The number is in the front of
your phone book.
Tell them:
The "line" to which you will connect the telephone (that is, your phone
number), the telephone's FCC registration number and ringer equivalence
number. These numbers are listed in section 7.0
The FCC further requires that you notify your local telephone company
when permanently disconnecting this telephone.
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
1
0

ISSUE 4.0
9.0 PARTS LIST
QUANTITY PART NUMBER DESCRIPTION
1 301-221 MODEL 301-DS COVER
1 301-051 MODEL 301 BACKPLATE
1 301-052 RUBBER GROMMET
1 301-054 MODULAR CONNECTOR-RJ11C
1 301-018 MODULAR LINE CORD
1 301-039 NUMBER WINDOW
1 301-040 NUMBER CARD
1 301-588 HOOKSWITCH CRADLE
1 301-581 TONGUE & BRACKET ASSY.
2 301-570 MICROSWITCH ASSY.
1 705-110 CONNECTORIZED KEYPAD
1 700-008 KEYPAD CABLE
1 301-030 INSTRUCTION CARD KIT
1 301-009 NETWORK
1 301-004 HANDSET, ARMORED CORD
1 301-012 OUTER COVER LOCK SCREW
1 308-015 HANDSET SWIVEL
1 650-541 MCRK-2 PCB ASSEMBLY
ACCESSORIES:
1 301-037 SECURITY TOOL
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
11

ISSUE 4.0
10.0 REPAIR AND RETURN INFORMATION
10.1 WARRANTY REPAIR
Any device returned requiring warranty service, repair or credit must be
accompanied with a "Return Material Authorization" (RMA) Form. It
must include: return shipping instructions, original purchase order number
and special marking instruction. A description of the trouble observed
must be attached to the defective unit. This information must be inside the
original shipping container.
10.2 DIRECT ALL INQUIRES TO:
CEECO
Repair Department
1580 NW 65th Avenue
Plantation, FL 33313
[phone]
10.3 NON-WARRANTY REPAIR
CEECO will repair equipment out of warranty for a set charge plus parts.
The customer must pay the shipping costs both directions.
10.4 RETURN FOR CREDIT
Material may be returned for credit only with prior approval. Material
authorized for return is subject to a 15% restocking charge based on the
manufacturer’s list price. Return RMA must be requested no later than 60
days after original shipment.
10.5 EXCHANGE POLICY
If a replacement unit is required it will be shipped in the most expedient
manner consistent with the urgency of the situation. Please contact
"customer service" for instructions regarding exchange of modules or
printed circuit boards.
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
12

ISSUE 4.0
11.0 WARRANTY POLICY
11.1 GENERAL
CEECO products are guaranteed to be free of defects in material and
workmanship for a period of 12 months from the date of original
shipment, if properly installed and maintained. This warranty is limited to
the value of material only.
CEECO will repair or replace any unit during this period if found to be
defective for reasons other than abuse and improper use or improper
installation. It is the buyer’s responsibility to return the defective unit to
the factory. CEECO will then repair or replace any defective parts and
return them to the buyer free of charge.
11.2 PRINTED CIRCUIT BOARDS
Printed circuit boards should not be field repaired. If a unit is found to be
faulty, replace it with another unit and return the faulty unit to CEECO for
repair. Modifications by anyone other than CEECO will void the
warranty.
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
13

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
14
12.0 DIAGRAM
Locate the mini jumpers
on the corner of the PCB.
O
N
OF
F
O
N
OF
F
O
N
OF
F
Move the mini jumpers to the
ON position BEFORE going
off-hook.
NOTE:
Do not leave the mini jumpers in the ON position;
this will decrease battery life.
When programming is
completed, move the mini
j
umpers to the OFF
p
osition.
Sold by:
http://www.TWAcomm.com
Toll Free: [phone]
