CEECO SSC-501-F User manual

SSC-501-F OR BLC-501-F-SPK1.07UNVLr1-ISSUE4.0
SERVICE MANUAL
FOR
MODEL SSC-501-F
OR
MODEL BLC-501-F
STAINLESS STEEL HANDS FREE
CHARGE-A-CALL TELEPHONE
EQUIPPED WITH SPK1.07UNVLr1 FIRMWARE
Serving the Telephone Industry Since 1930
Communication Equipment 519 W South Park Street
& Engineering Company Okeechobee, FL 34972
Voice: 863-357-0798
Fax: [phone]

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
2
IMPORTANT INFORMATION
FOR
CUSTOMER
Please fill in before you continue.
The following information is necessary when calling CEECO for assistance.
MODEL NUMBER MODEL SSC-501-F OR BLC-501-F,
EQUIPPED WITH SPK1.07UNVLr1
FIRMWARE.
SERIAL NUMBER
DATE MANUFACTURED
LOCATION INSTALLED
For us to better serve you, please have this information available when calling for
technical support.
CEECO
Communication Equipment & Engineering Company
519 W South Park Street
Okeechobee, FL 34972
863-357-0798- telephone
863-357-0006- facsimile
[email protected]
www.ceeco.net

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
3
TABLE OF CONTENTS
SECTION PAGE
1.0 INTRODUCTION................................................................................................. 4
2.0 GENERAL............................................................................................................. 4
3.0 PROGRAMMING ................................................................................................ 5
PROGRAMMING CONTINUED…................................................................... 6
PROGRAMMING CONTINUED…................................................................... 7
PROGRAMMING CONTINUED…................................................................... 8
4.0 SPEED DIAL/ALLOWED CALL TABLES...................................................... 9
PROGRAMMING TABLES CONTINUED…................................................ 10
5.0 OPERATION ...................................................................................................... 11
6.0 RECOMMENDED TOOLS AND TEST EQUIPMENT ................................ 11
7.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ................. 12
8.0 OVER-VOLTAGE PROTECTION DIAGRAM............................................. 13
9.0 TESTING............................................................................................................. 13
10.0 SPECIFICATIONS............................................................................................. 14
11.0 PARTS LIST ....................................................................................................... 15
13.0 REPAIR AND RETURN INFORMATION..................................................... 17
14.0 WARRANTY POLICY ...................................................................................... 18

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
4
1.0 INTRODUCTION
The practices in this manual provide installation and maintenance information for
the CEECO Model SSC-501-F OR BLC-501-F Telephone, equipped with
SPK1.07 UNVLr1 firmware.
The information in this manual is subject to change without notification.
For information not included in this manual, please call or write:
CEECO
Customer Service
519 W South Park Street
Okeechobee, FL 34972
863-357-0798- telephone
863-357-0006- facsimile
[email protected]
www.ceeco.net
2.0 GENERAL
2.1 The CEECO hands free telephone is a sturdy, vandal resistant, Stainless
Steel Panel Speakerphone. Instead of a hookswitch and handset, the
telephone has a Press to start/Press to stop button for initiation and
termination of phone calls. Manual volume control is also provided inside
the telephone.
2.2 The microphone is muted during periods of dial tone eliminating the use
of hand held dialers.
2.3 Incoming calls may be allowed or blocked depending on the
programming.
2.4 Programming is accomplished via the DTMF keypad.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
5
3.0 PROGRAMMING
NOTE: It is recommended that you ground yourself to prevent ESD
damage to the PCB(s).
3.1 Connect the phone to a working telephone line or a DTMF test set before
programming.
3.2 Move the mini-jumpers (located on the CEECO-SPK Printed Circuit
Board) to the “ON” position, as depicted on the last page of this manual.
3.3 Press the CALL button and wait for dial tone before programming any
digits.
3.4 Each location is accessed by dialing the "#" sign and a two digit code. The
valid program locations are: #00, #30-#69 (speed dial locations), and #70-
#89 (allowed call locations). The previous contents of the location are
automatically erased when the location code is accessed.
NOTE:Once the “#" (pound) key has been entered you may get an
operator recording or a fast busy, please disregard and continue
programming.
3.5 To clear all user programmable memory, with the phone on hook (no dial
tone) and the mini-jumpers in the "ON" position, press the CALL button
located on the front of the phone and dial #97.
3.6 Location "00" is the phone option location. It is comprised of ten digits,
all of which must be filled to render the phone functional. By entering 0
or 1 into each of the 10 digits (digits 4 and 10 allow choices of 1-9 to be
entered), the phone is customized to a particular installation. Be sure to
record your entries in the option table for future reference.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
6
PROGRAMMING CONTINUED…
LOCATION #00:(OPTION TABLE)
#00 0 0 0 1 0 0 5
__ __ __ __ __ __ __ __ __ __
Digit 1:
0 Call restrictions are in effect.
1 No call restrictions.
Digit 2:
0No incoming calls allowed.
1Incoming calls allowed.
Digit 3:
0 Always 0 for this model.
Digit 4:
0 No Conversation Time-Out. For Call Button
1-9 Minutes Conversation Time-Out.
Digit 5:
0Always 0 for this model.
Digit 6:
0 Always 0 for this model.
Digit 7:
1Always 1 for this model.
Digit 8:
0 Always 0 for this model.
Digit 9:
0 Always 0 for this model.
Digit 10:
0 No Wink Detect
l-9 Length of the Wink (l = 50ms incremental to 450ms – entering a 5 is
recommended)

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
7
PROGRAMMING CONTINUED…
EXAMPLE:
DIAL #00 0106001005
Phone will be set as follows:
DIGIT 1 .. CALL RESTRICTIONS IN EFFECT
DIGIT 2 .. INCOMING CALLS ALLOWED
DIGIT 3 .. ALWAYS 0
DIGIT 4 .. 6 MINUTE TIME OUT
DIGIT 5 .. ALWAYS 0
DIGIT 6 .. ALWAYS 0
DIGIT 7 .. ALWAYS 1
DIGIT 8 .. ALWAYS 0
DIGIT 9 .. ALWAYS 0
DIGIT 10 . 250ms WINK
LOCATION #30 - #69: (SPEED DIAL TABLE)
If speed dialing is desired, enter the desired numbers in any of these 40 locations.
The numbers can range from 1 to 11 digits. Programming is accomplished by
dialing the Location followed by the desired number. All of these locations may
be programmed in a continuous string. Be sure to record your entries in the speed
dial table for future reference.
EXAMPLE:
Enter #3018005551212 in the programming sequence. When in normal
operating mode, the user dials #30 and the phone will Speed Dial 1 800
555 1212.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
8
PROGRAMMING CONTINUED…
LOCATION #70 - #89: (CALL RESTRICTIONS OR “ALLOWED”
NUMBERS)
If the phone is intended to restrict certain calling patterns, then it must be
programmed to tell it specifically which calls to allow. Enter the allowed
numbers in any of these 20 locations. The numbers can range from 1 to 11 digits.
Programming is accomplished by entering the Location followed by the allowed
call or call pattern. All of these locations may be programmed in a continuous
string. Be sure to record your entries in the allowed call table for future reference.
EXAMPLE:
NOTE: The * (Asterisk) symbol is defined as a wildcard. A wildcard allows any
digit (0-9) to be emitted from the keypad.
#70 0-***-***-**** Allows all 0 minus and 0 plus calls.
#71 1-555-1212 Allows 1-555-1212 information calls.
#72 911 Allows 911 emergency calls.
#73 1-800-***-**** Allows 1-800 calls.
3.7 When programming is finished, return the mini-jumpers to the "OFF"
position. Then hang up the phone (“on hook” condition), by pressing the
black "CALL " button. The phone is now ready for use.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
9
4.0 SPEED DIAL/ALLOWED CALL TABLES
4.1 SPEED DIAL TABLE
LOCATION NUMBER LOCATION NUMBER
#30 _ - _ _ _ - _ _ _ - _ _ _ _ #50 _ - _ _ _ - _ _ _ - _ _ _ _
#31 _ - _ _ _ - _ _ _ - _ _ _ _ #51 _ - _ _ _ - _ _ _ - _ _ _ _
#32 _ - _ _ _ - _ _ _ - _ _ _ _ #52 _ - _ _ _ - _ _ _ - _ _ _ _
#33 _ - _ _ _ - _ _ _ - _ _ _ _ #53 _ - _ _ _ - _ _ _ - _ _ _ _
#34 _ - _ _ _ - _ _ _ - _ _ _ _ #54 _ - _ _ _ - _ _ _ - _ _ _ _
#35 _ - _ _ _ - _ _ _ - _ _ _ _ #55 _ - _ _ _ - _ _ _ - _ _ _ _
#36 _ - _ _ _ - _ _ _ - _ _ _ _ #56 _ - _ _ _ - _ _ _ - _ _ _ _
#37 _ - _ _ _ - _ _ _ - _ _ _ _ #57 _ - _ _ _ - _ _ _ - _ _ _ _
#38 _ - _ _ _ - _ _ _ - _ _ _ _ #58 _ - _ _ _ - _ _ _ - _ _ _ _
#39 _ - _ _ _ - _ _ _ - _ _ _ _ #59 _ - _ _ _ - _ _ _ - _ _ _ _
#40 _ - _ _ _ - _ _ _ - _ _ _ _ #60 _ - _ _ _ - _ _ _ - _ _ _ _
#41 _ - _ _ _ - _ _ _ - _ _ _ _ #61 _ - _ _ _ - _ _ _ - _ _ _ _
#42 _ - _ _ _ - _ _ _ - _ _ _ _ #62 _ - _ _ _ - _ _ _ - _ _ _ _
#43 _ - _ _ _ - _ _ _ - _ _ _ _ #63 _ - _ _ _ - _ _ _ - _ _ _ _
#44 _ - _ _ _ - _ _ _ - _ _ _ _ #64 _ - _ _ _ - _ _ _ - _ _ _ _
#45 _ - _ _ _ - _ _ _ - _ _ _ _ #65 _ - _ _ _ - _ _ _ - _ _ _ _
#46 _ - _ _ _ - _ _ _ - _ _ _ _ #66 _ - _ _ _ - _ _ _ - _ _ _ _
#47 _ - _ _ _ - _ _ _ - _ _ _ _ #67 _ - _ _ _ - _ _ _ - _ _ _ _
#48 _ - _ _ _ - _ _ _ - _ _ _ _ #68 _ - _ _ _ - _ _ _ - _ _ _ _
#49 _ - _ _ _ - _ _ _ - _ _ _ _ #69 _ - _ _ _ - _ _ _ - _ _ _ _

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
10
PROGRAMMING TABLES CONTINUED…
4.2 ALLOWED CALL TABLE
LOCATION NUMBER LOCATION NUMBER
#70 _ - _ _ _ - _ _ _ - _ _ _ _ #80 _ - _ _ _ - _ _ _ - _ _ _ _
#71 _ - _ _ _ - _ _ _ - _ _ _ _ #81 _ - _ _ _ - _ _ _ - _ _ _ _
#72 _ - _ _ _ - _ _ _ - _ _ _ _ #82 _ - _ _ _ - _ _ _ - _ _ _ _
#73 _ - _ _ _ - _ _ _ - _ _ _ _ #83 _ - _ _ _ - _ _ _ - _ _ _ _
#74 _ - _ _ _ - _ _ _ - _ _ _ _ #84 _ - _ _ _ - _ _ _ - _ _ _ _
#75 _ - _ _ _ - _ _ _ - _ _ _ _ #85 _ - _ _ _ - _ _ _ - _ _ _ _
#76 _ - _ _ _ - _ _ _ - _ _ _ _ #86 _ - _ _ _ - _ _ _ - _ _ _ _
#77 _ - _ _ _ - _ _ _ - _ _ _ _ #87 _ - _ _ _ - _ _ _ - _ _ _ _
#78 _ - _ _ _ - _ _ _ - _ _ _ _ #88 _ - _ _ _ - _ _ _ - _ _ _ _
#79 _ - _ _ _ - _ _ _ - _ _ _ _ #89 _ - _ _ _ - _ _ _ - _ _ _ _
EXAMPLE:
#70 0 - * * * - * * * - * * * * #73 1 - 4 11 - _ _ _ - _ _ _ _
Allows all 0 minus and 0 plus Allows 1411 information calls.
phone calls.
#71 9 - 1 1 _ - _ _ _ - _ _ _ _ #74 0 - 8 0 0 - * * * - * * * *
Allows 911 emergency calls. Allows 0-800 calls if set in
the option table
#72 1 - 8 0 0 - * * * - * * * * #75 _ - _ _ _ - _ _ _ - _ _ _ _
Allows 1-800 calls if set in option table.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
11
5.0 OPERATION
5.1 To make a call, press the black "CALL" button located on the front of the
phone. When dial tone is received, the transmitter is muted and the phone
waits for numbers to be dialed.
5.2 After the call is complete, press the "CALL" button again to terminate the
call. If user does not press the "CALL" button when he or she is finished
using the phone, then the phone will hang-up after detecting a WINK
(momentary open) or when the timer times-out, if it was so programmed.
NOTE: In some cases, a local PBX does not automatically send a wink
back as a Central Office would. Some of these PBXs can be
programmed to do so. It would be necessary to contact the
manufacturer of the PBX.
5.3 If digit 1 of Location #00 is "0", then call restrictions are in effect. The
numbers that may be dialed are restricted to the numbers entered into
Location #70-#89. If the number dialed is not in the Location #70-#89,
then the phone gives three tones and drops the line.
If digit 1 of Location #00 is "1", then there are no
restrictions and any number may be dialed.
6.0 RECOMMENDED TOOLS AND TEST EQUIPMENT
DTMF Test Set
Volt/Ohm Meter
3/8" Nut Driver
5/16" Nut Driver
Flat Blade Screw Driver
Security Tool, CEECO Part Number 301-064

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
12
7.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS
7.1 Using a 301-064 security tool (sold separately) to remove the four locking
screws.
7.2 The security tool is for a standard 5/32" button head screw generally used
on the framework of the phone booths.
7.3 Separate the cover assembly from the Housing.
7.4 Run the inside station wire through the Housing and terminate on to the
RJ11C modular jack on the housing, as depicted on the following page.
This CEECO-provided modular jack must be used, as it contains required
over-voltage protection.
7.5 The use of a gas tube or carbon station protector is recommended. The
station ground should not exceed 50 ohms.
7.6 Plug the modular line cord from the PC board into the RJ11C terminal
block.
7.7 Dress the line cord away from the locking screws and seat the faceplate
into the enclosure.
7.8 Secure the cover assembly by tightening the security screw.
*****WARNING*****
A. Never install telephone wiring during a lightning storm.
B. Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
C. Never touch uninsultated telephone wires or terminals unless
the telephone line has been disconnected at the network
interface.
D. Use caution when installing or modifying telephone lines.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
13

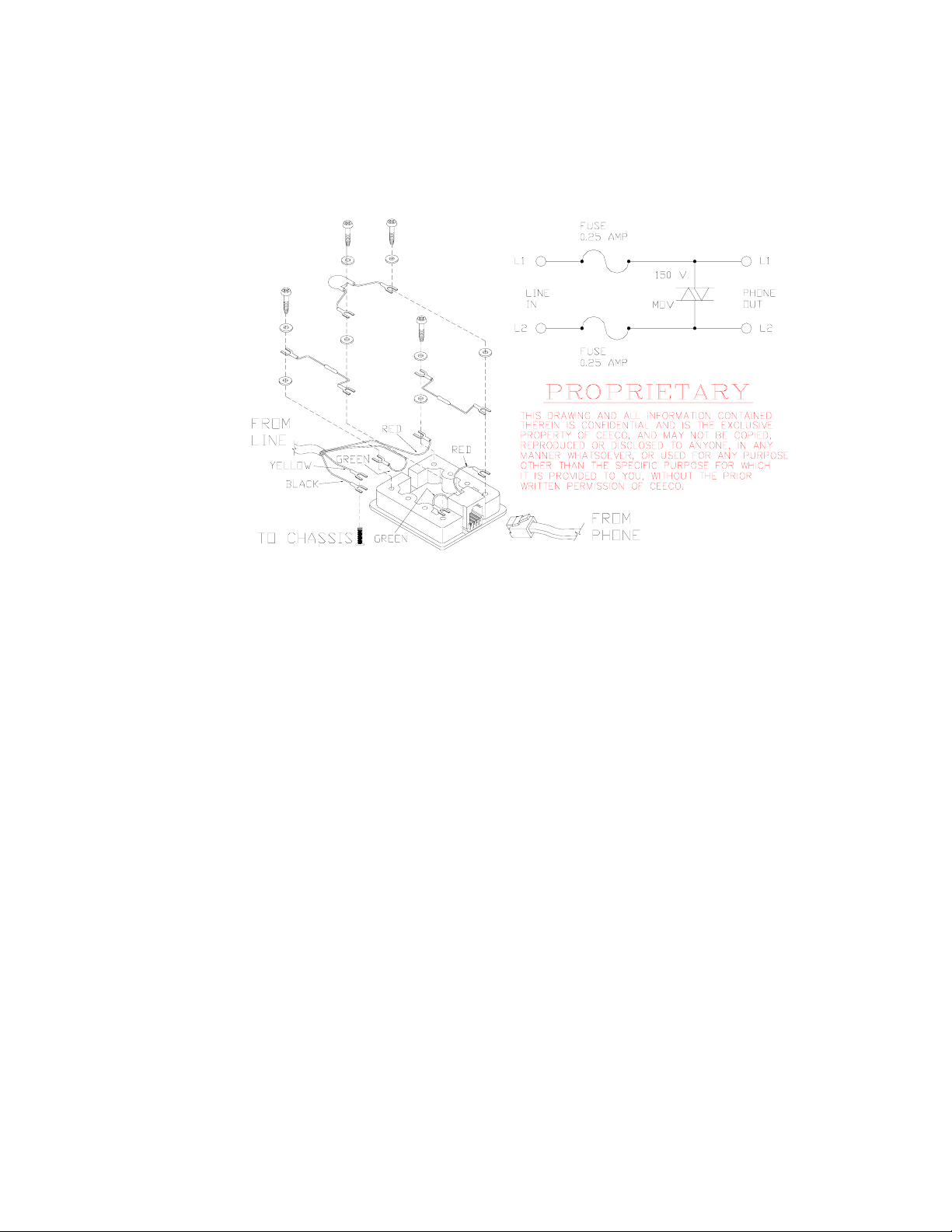

8.0 OVER-VOLTAGE PROTECTION DIAGRAM
9.0 TESTING
Action: Connect the phone to a working phone line.
Press the black "CALL" button.
Reaction: Dial tone.
Action: Dial a number.
Reaction: The called party answers.
A normal speakerphone conversation is allowed.
Action: Finish the conversation.
Press the "CALL" button, or wait until time-out occurs
(if programmed as such).
Reaction: The call is terminated.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
14
10.0 SPECIFICATIONS
INPUT POWER: C.O. Line powered
LOOP CURRENT: 30mA minimum 80mA Maximum
IMPEDANCE: 600 ohms
SIGNALING: DTMF
OUTPUT: -2.0dbm to -0dbm
ENVIRONMENTAL: Temperature 0oC to 50oC
Humidity 20%-90%
TELEPHONE PANEL: Stainless Steel (14ga)
DIMENSIONS: 7 1/2" Wide x 21" High x 4 1/8" Deep
MOUNTING: Standard Coinless Public telephone foot
print
WEIGHT: 15 lb.
RINGER EQUIVALENCY: 0.4A
TYPE JACK: RJ11C
UL LISTED NO.: 6OF5

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
15
11.0 PARTS LIST
QUANTITY PART NUMBER DESCRIPTION
1 301-030 INSTRUCTION CARD KIT
1 301-012 OUTER COVER LOCKING SCREW
1 301-018 MODULAR LINE CORD
1 SSC-501-F (or) STAINLESS STEEL OUTER COVER
BLC-501-F BLUE POWDER COAT STEEL COVER
1 301-039 NUMBER WINDOW
1 301-040 NUMBER CARD
1 301-051 BACK PLATE
1 301-052 RUBBER GROMMET
1 301-054 MODULAR CONNECTOR (RJ11C)
1 391-017 KEYPAD CABLE
1 600-SPK CIRCUIT BOARD WITH MICROPHONE
1 14123 SPEAKER
1 705-110 CONNECTORIZED KEYPAD
1 951-001 MOMENTARY PANEL SWITCH
2 321-016 SECURITY SCREW
ACCESSORIES
1 301-064 Security Tool

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
16
12.0 FCC NOTICE
12.1 FCC REGISTRATION AND REPAIR INFORMATION
Your new telephone has been registered with the Federal Communication
Commission (FCC) in accordance with Part 68 of its rules. The FCC
requires that you be advised of certain requirements involving the use of
this telephone.
12.2 CONNECTION WITH THE NATIONWIDE TELEPHONE
NETWORK
The FCC requires that you connect this telephone to the Nationwide
Telephone Network through a registered jack provided by the Telephone
Company in your area. This jack is a modular outlet, which you can order
from your local telephone company.
12.3 NOTIFICATION TO THE TELEPHONE COMPANY
Before connecting this telephone, the FCC requires that you notify your
local telephone company business office. The number is in the front of
your phone book.
Tell them:
The "line" to which you will connect the telephone (that is, your phone
number) and the telephone's FCC registration number and ringer
equivalence number. These numbers are listed in Section 11.00.
The FCC further requires that you notify your local telephone company
when permanently disconnecting this telephone.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
17
13.0 REPAIR AND RETURN INFORMATION
13.1 WARRANTY REPAIR
Any device returned requiring warranty service; repair or credit must be
accompanied with a "Return Material Authorization" (RMA) FORM. It must
include return shipping instructions, original purchase order number and special
marking instruction. A description of the trouble observed must be attached to the
defective unit. This information must be inside the shipping container.
13.2 DIRECT ALL INQUIRES TO:
CEECO
Repair Department
863-357-0798- telephone
863-357-0006- facsimile
[email protected]
www.ceeco.net
13.3 NON-WARRANTY REPAIR
CEECO will repair equipment out of warranty for a set charge plus parts.
The customer must pay the shipping costs both directions.
13.4 RETURN FOR CREDIT
Material may be returned for credit only with prior approval. Material
authorized for return is subject to a 20% restocking charge based on the
manufacturer’s list price Return RMA must be requested no later than 30
days after original shipment.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
18
14.0 WARRANTY POLICY
14.1 GENERAL
CEECO products are guaranteed to be free of defects in material and
workmanship for a period of 365 days from the date of original purchase.
CEECO's obligation under this warranty is limited to repair or
replacement of any part found to be defective by CEECO. Under no
circumstances shall CEECO be liable for loss, damage, cost of repair or
consequential damages of any kind, which have been caused by neglect,
abuse, act of God or improper operation of equipment. This warranty is
limited to the value of material only.
14.2 PRINTED CIRCUIT BOARDS
Printed circuit boards should not be repaired in the field. If a unit is found
to be faulty, replace it with another unit and return the faulty unit to
CEECO for repair. Modifications by any one other than CEECO will void
the warranty.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
19
15.0 DIAGRAM
When programming is
completed, move the mini
j
umpers to the OFF
p
osition.
NOTE:
Do not leave the mini jumpers in the ON position,
this will decrease battery life.
Move the mini jumpers to
the ON position BEFORE
going off-hook.
Locate the mini jumpers
on the corner of the PCB.
ON
OF
F
ON
OF
F
ON
OF
F

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
20
