Challenger 660B User manual

© AGCO Corporation, 2008 All rights reserved.
Part Number 79032966 A Rev. (English)
Printed in U.S.A.
August 2008
Challenger®
660B / 670B
Rotary Combine
SERVICE MANUAL
79032966 A Rev.
CONTENTS
GENERAL INFORMATION ....................................................................................................................................01
SPECIFICATIONS..................................................................................................................................................02
ENGINE WORKSHOP MANUAL ........................................................................................................................03A
ENGINE - DRIVES, COOLING AND FUEL.........................................................................................................03B
MATERIAL HANDLING..........................................................................................................................................04
MATERIAL DISCHARGE.......................................................................................................................................05
REAR AXLE ...........................................................................................................................................................06
THRESHING AND SEPARATING..........................................................................................................................07
FRONT AXLE......................................................................................................................................................................08
HYDRAULICS.....................................................................................................................................................................09
ELECTRICAL......................................................................................................................................................................10
ELECTRONICS...................................................................................................................................................................11
CAB AND HVAC.................................................................................................................................................................12
GRAIN HEADER.................................................................................................................................................................13
CORN HEADER..................................................................................................................................................................14
RESERVED.........................................................................................................................................................................15

79032966 A Rev. 01-i
Contents
Challenger®
660B / 670B
Rotary Combine
SERVICE MANUAL
79032966 A Rev.
01 - General Information
Contents
SAFETY
Safety Alert Symbol ....................................................................................................................................... 01-1
Signal Words ................................................................................................................................................. 01-1
Shields and Latches ...................................................................................................................................... 01-7
Header Lift Cylinder Stop ............................................................................................................................... 01-8

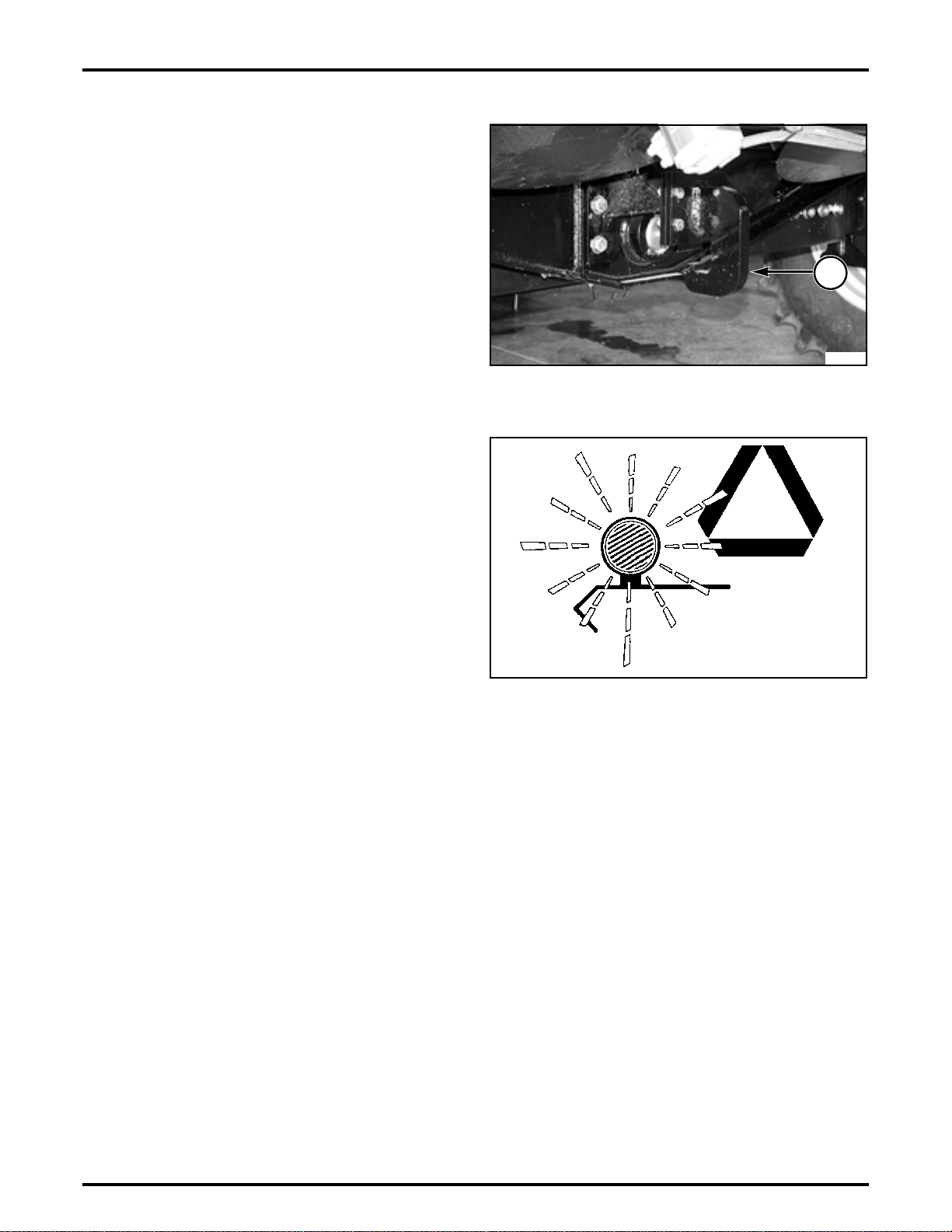

Rear Hook ...................................................................................................................................................... 01-9
Travel On Public Roads ................................................................................................................................. 01-9
GENERAL INFORMATION

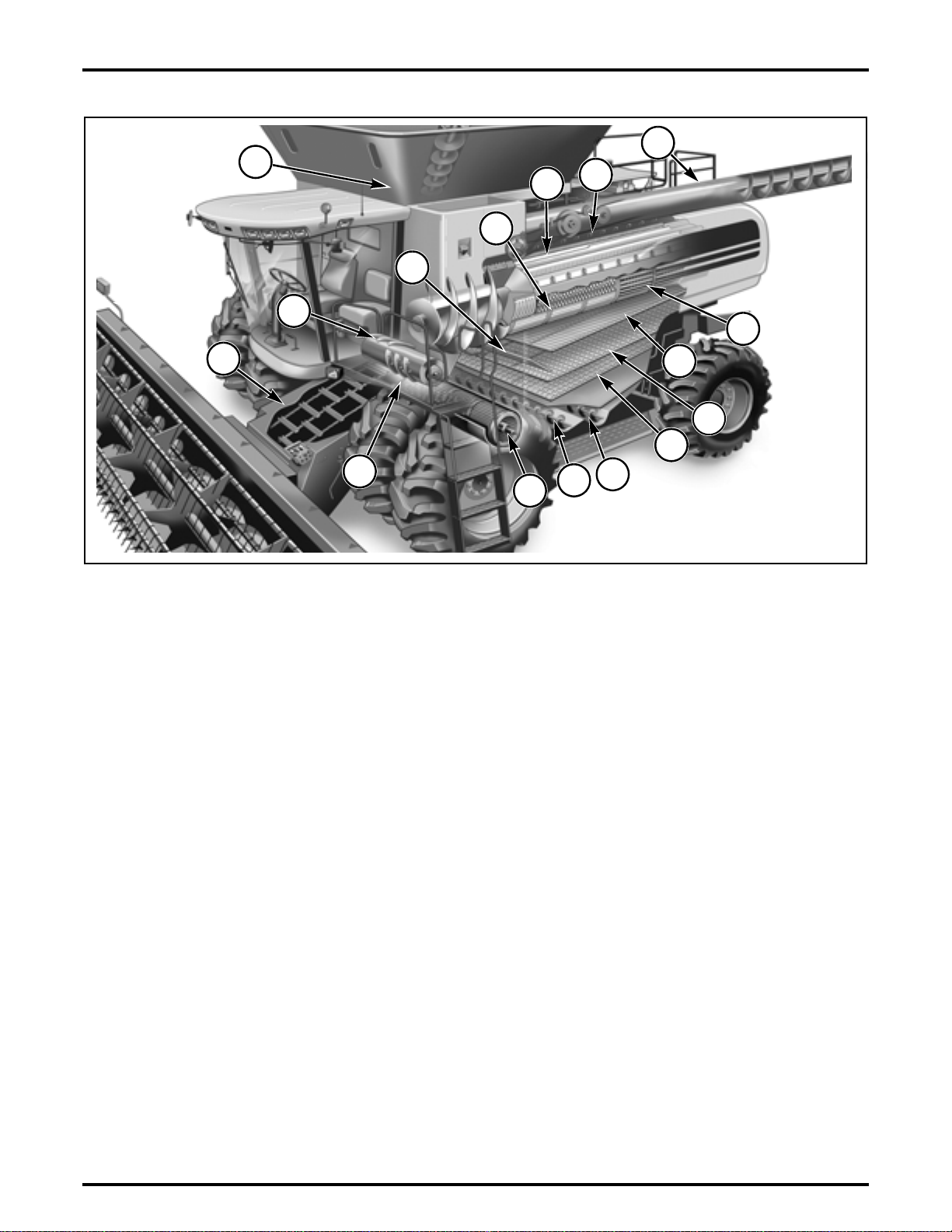

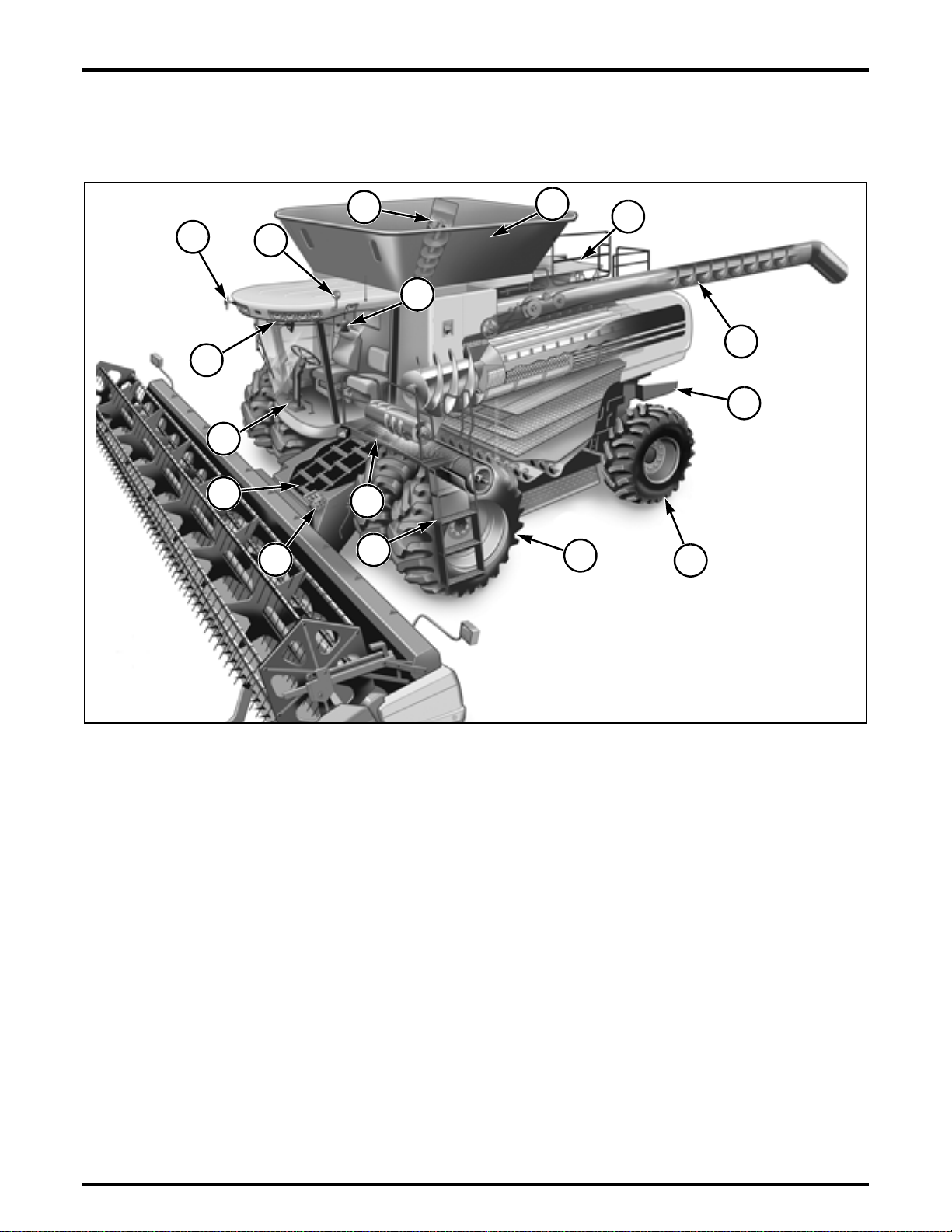

Machine Main Components ......................................................................................................................... 01-11
How A Combine Works ................................................................................................................................ 01-12
Cutting and Feeding .............................................................................................................................. 01-12
Threshing and Separating ..................................................................................................................... 01-12
Cleaning ................................................................................................................................................ 01-13
Combine Identification ................................................................................................................................. 01-14

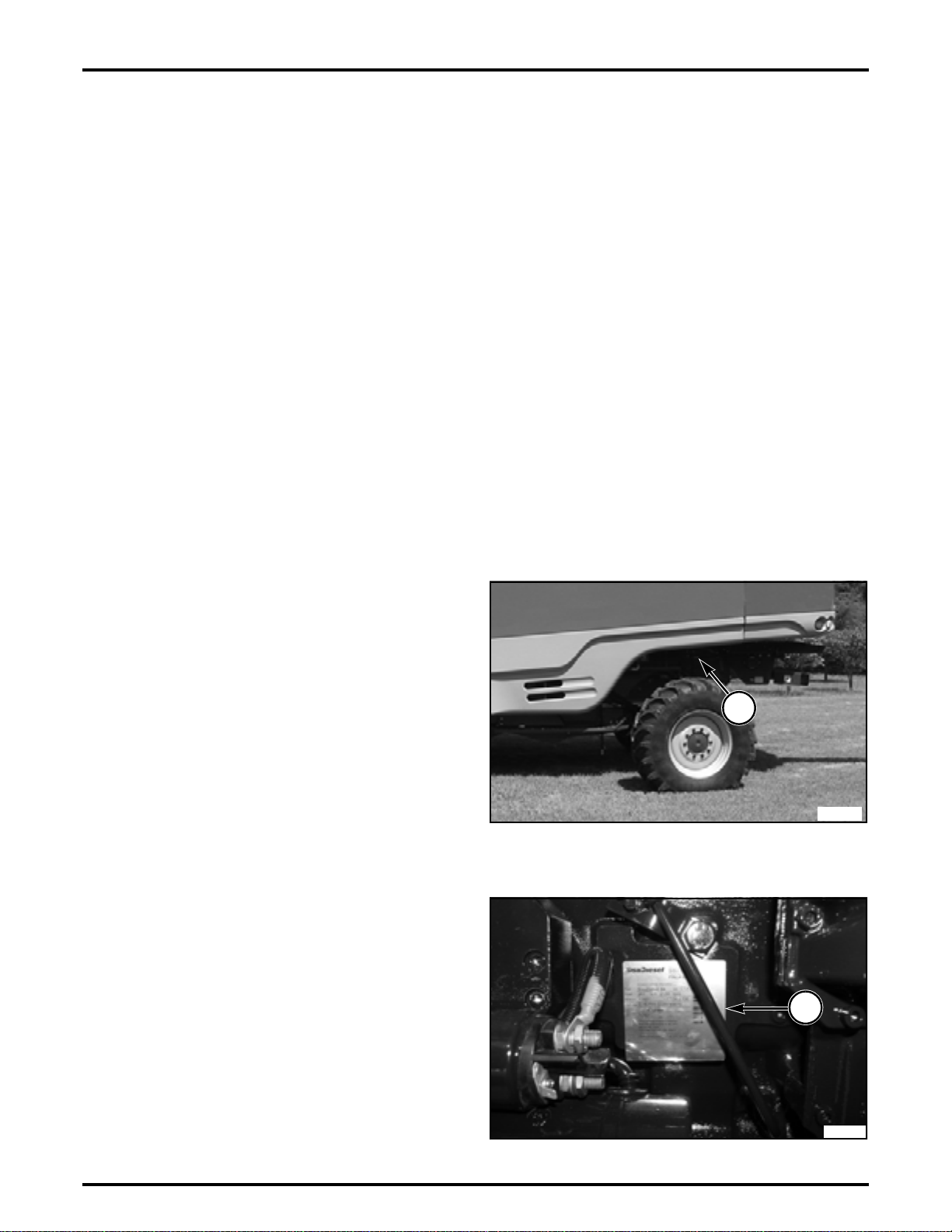

Machine Serial Number ......................................................................................................................... 01-14
Engine Serial Number ........................................................................................................................... 01-14
Fuel Injection Pump Dataplate .............................................................................................................. 01-15
ECM Dataplate ...................................................................................................................................... 01-15
Transmission Serial Number ................................................................................................................. 01-15
Final Drive Serial Number ..................................................................................................................... 01-16
Headers ....................................................................................................................................................... 01-16
Lubrication and Maintenance ....................................................................................................................... 01-17
Lubricants .................................................................................................................................................... 01-17
Service Procedures ..................................................................................................................................... 01-17
Service Periods ............................................................................................................................................ 01-17
Lubrication and Maintenance ....................................................................................................................... 01-18
Lubrication Details ....................................................................................................................................... 01-24
Front of Combine ................................................................................................................................... 01-26
Left-hand Side ....................................................................................................................................... 01-28
Right-hand Side ..................................................................................................................................... 01-30
Rear Axle ............................................................................................................................................... 01-32
Auto Lube .................................................................................................................................................... 01-33
Auto Lube Intervals ............................................................................................................................... 01-34
Auto Lube Diagnosis ............................................................................................................................. 01-36
Engine .......................................................................................................................................................... 01-37
Type of Engine Oil ................................................................................................................................. 01-37
Viscosity ................................................................................................................................................ 01-37
Oil Additives .......................................................................................................................................... 01-37
Checking Oil Level ................................................................................................................................ 01-38
Changing Engine Oil and Filters ............................................................................................................ 01-38
Rotor Gearbox ............................................................................................................................................. 01-40
Transmission ............................................................................................................................................... 01-40
Checking and Changing Lubricant ........................................................................................................ 01-40
Find manuals at https://best-manuals.com

01-ii 79032966ARev.
Contents
Brakes .......................................................................................................................................................... 01-41
Master Cylinder Oil Reservoir ............................................................................................................... 01-41
Bleeding Brake System ......................................................................................................................... 01-41
Final Drive .................................................................................................................................................... 01-42
Tires and Wheels ......................................................................................................................................... 01-43
Tire Pressure ......................................................................................................................................... 01-43
Dual Tires .............................................................................................................................................. 01-43
Maintenance of Tires ............................................................................................................................. 01-43
Removing Wheel from Combine ........................................................................................................... 01-44
Wheel Installation .................................................................................................................................. 01-45
Tire Dimensions .................................................................................................................................... 01-46
Drive Belts ................................................................................................................................................... 01-47
Banded Drive Belt ................................................................................................................................. 01-47
Maintenance of Belts ............................................................................................................................. 01-48
Belt Changing Guides ........................................................................................................................... 01-49
Belt Sheave Alignment .......................................................................................................................... 01-51
Belt Run In Procedure ........................................................................................................................... 01-51
Belt Troubleshooting ............................................................................................................................. 01-52
Belt Problem and Wear Guide ............................................................................................................... 01-52
Roller Chains ............................................................................................................................................... 01-66
Inspection of Drive Chains and Sprockets ............................................................................................ 01-66
Drive Chain Adjustment and Tightening ................................................................................................ 01-67
Drive Chain Sprocket and Idler Alignment ............................................................................................ 01-68
Drive Chain Elongation and Sprocket Wear .......................................................................................... 01-69
Normal Tooth Wear ............................................................................................................................... 01-70
Not Normal Tooth Wear ........................................................................................................................ 01-70
Worn Chain on New Sprockets ............................................................................................................. 01-70
Drive Chain Service Tips ....................................................................................................................... 01-71
Chain Replacement ............................................................................................................................... 01-72
Cleaning and Lubricating Chains .......................................................................................................... 01-73
Drive Chain Lubrication ......................................................................................................................... 01-74
Drive Chain Lubricants .......................................................................................................................... 01-74
Good Drive Chain Lubrication ............................................................................................................... 01-75
Roller Chain Drive Troubleshooting Guide ............................................................................................ 01-76
Speed of Components ................................................................................................................................. 01-79
Drives Listing and Specifications ........................................................................................................... 01-80
Drives Speeds And Specifications ............................................................................................................... 01-82
Engine Platform ........................................................................................................................................... 01-85
Engine Platform Ladder ......................................................................................................................... 01-85
Engine Compartment ............................................................................................................................ 01-86
Fuel System ................................................................................................................................................. 01-87
Fuel Handling ........................................................................................................................................ 01-87
Fuel Vent Breather ................................................................................................................................ 01-87
Fuel Filter/Water Separator ................................................................................................................... 01-88
Bleeding the Fuel System ..................................................................................................................... 01-89
Engine Cooling System ............................................................................................................................... 01-89
Coolant System Monitoring ................................................................................................................... 01-89
Monitor Warnings .................................................................................................................................. 01-89
Anti-Freeze Type ................................................................................................................................... 01-89
Coolant Change Period ......................................................................................................................... 01-89
Engine Cooling System Coolant ............................................................................................................ 01-90
Checking Coolant Level ........................................................................................................................ 01-90
Radiator ................................................................................................................................................. 01-90
Thermostat ............................................................................................................................................ 01-91
Draining System .................................................................................................................................... 01-91
Filling System ........................................................................................................................................ 01-91
Engine Air Cleaner ....................................................................................................................................... 01-92
Outer Filter Element .............................................................................................................................. 01-92
Inner Filter Element ............................................................................................................................... 01-93
Hydraulics .................................................................................................................................................... 01-94
Checking Oil Level ................................................................................................................................ 01-94
Hydraulic Oil Filter ................................................................................................................................. 01-94
Changing Hydraulic Oil .......................................................................................................................... 01-95
Find manuals at https://best-manuals.com

79032966 A Rev. 01-iii
Contents
Removing Air From Hydraulic System .................................................................................................. 01-98
Hydraulic Pump ..................................................................................................................................... 01-99
Steering Priority Valve ........................................................................................................................... 01-99
Main Hydraulic Control Valve .............................................................................................................. 01-100
Unloader Auger Engagement Valve .................................................................................................... 01-101
Pump Drive Disconnect Valve ............................................................................................................. 01-101
Accumulator ........................................................................................................................................ 01-102
Hydrostatic Drives - A66 ...................................................................................................................... 01-103
Hydrostatic Drives - A76 ...................................................................................................................... 01-104
Hydraulic Oil Cooler ............................................................................................................................ 01-105
Rotor Speed Control ............................................................................................................................ 01-105
Air Conditioning System ............................................................................................................................ 01-106
Compressor ......................................................................................................................................... 01-106
Condenser ........................................................................................................................................... 01-107
Receiver-Drier ..................................................................................................................................... 01-107
Cab Filters ................................................................................................................................................. 01-107
Cab Filter - Primary ............................................................................................................................. 01-107
Cab Filter - Secondary ........................................................................................................................ 01-108
Recirculation Filter ............................................................................................................................... 01-108
Air Filter Cleaning Procedure .............................................................................................................. 01-108
Windshield Washer Reservoir ................................................................................................................... 01-109
Cleaning Windshield .................................................................................................................................. 01-109
Storage Preparation .................................................................................................................................. 01-110
Combine .............................................................................................................................................. 01-110
Engine ................................................................................................................................................. 01-110
Preparation For Use After Storage ............................................................................................................ 01-110
Combine .............................................................................................................................................. 01-110
Engine ................................................................................................................................................. 01-110
Torque Charts ............................................................................................................................................ 01-111
Standard Torque Specifications .......................................................................................................... 01-111
Metric Capscrew Markings and Torque Values ................................................................................... 01-112
Metric Conversions .................................................................................................................................... 01-113
Fractions, Decimals, and Millimeters Conversion Chart ............................................................................ 01-114
Decimal Equivalents of 8ths, 16ths, 32nds, and 64ths .............................................................................. 01-117
Decimal Equivalents Of Letter Size Drills .................................................................................................. 01-118
Decimal Equivalents of Number Size Drills ............................................................................................... 01-119
Tap Drill Sizes - S.A.E. & Metric ................................................................................................................ 01-120
American Standard Pipe Thread and Tap Drill Sizes ................................................................................ 01-123
Electrical Formulas .................................................................................................................................... 01-123
Amperes (Current Flow) ...................................................................................................................... 01-123
Volts (Electromotive Force) ................................................................................................................. 01-123
Ohms (Resistance) .............................................................................................................................. 01-123
Watts ................................................................................................................................................... 01-123
Horsepower ......................................................................................................................................... 01-123
Belt Speed Calculation Formulas .............................................................................................................. 01-124
Geometrical Formulas ............................................................................................................................... 01-124
Circumference of a Circle .................................................................................................................... 01-124
Area of a Circle .................................................................................................................................... 01-124
Volume of a Cylinder ........................................................................................................................... 01-124
Volume of a Sphere ............................................................................................................................. 01-124
Area of a Triangle ................................................................................................................................ 01-124
Metric to Imperial and Imperial to Metric Conversion Factors ................................................................... 01-124
Measures of Temperature ................................................................................................................... 01-124
Measures of Power ............................................................................................................................. 01-124
Measures of Pressure ......................................................................................................................... 01-125
Measures of Length ............................................................................................................................. 01-125
Measures of Area ................................................................................................................................ 01-125
Measures of Volume (Dry) .................................................................................................................. 01-126
Measures of Volume (Liquid) .............................................................................................................. 01-127
Measures of Mass (Weight) ................................................................................................................ 01-127
Measures of Effort (Torque) ................................................................................................................ 01-128
Reference Tables ................................................................................................................................ 01-128
Find manuals at https://best-manuals.com

01-iv 79032966ARev.
Contents
INDEX ........................................................................................................................................................... 01-131
Find manuals at https://best-manuals.com

79032966 A Rev. 01-1
Safety
SAFETY
SAFETY ALERT SYMBOL
FIG. 1: This is the safety alert symbol. This symbol
stands for ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED! Look for this symbol, both in this
manual and on safety decals on the combine. This
symbol will direct you to information that includes your
personal safety and the personal safety of others.
SIGNAL WORDS
FIG. 2: The words DANGER, WARNING, or CAUTION
are used with the safety alert symbol. Learn to know
these safety alert symbols, and follow the given
recommendations, precautions, and safe procedures.
mDANGER: Indicates an immediate
hazardous situation that, if not avoided, will
result in DEATH OR VERY SERIOUS
INJURY.
mWARNING: Indicates a potentially
hazardous situation that, if not avoided, can
result in DEATH OR SERIOUS INJURY.
mCAUTION: Indicates a potentially
hazardous situation that, if not avoided, can
result in a MINOR INJURY.
Replace any DANGER, WARNING, CAUTION, or
instruction decal that can not be read or is missing. The
location and part number of these decals is shown later in
this section of the manual.
IMPORTANT: The word IMPORTANT is used to show
special instructions or procedures which, if not
followed can result in damage to, or destruction
of the machine, process, or the surroundings.
NOTE: The word NOTE is used to indicate points of
special interest for more efficient and easier
repair or operation.
FIG. 1 Saf
FIG. 2 Wc1957
Find manuals at https://best-manuals.com

Safety
01-2 79032966ARev.
FIG. 3: Read and understand this manual and the
manual for all attachments before operating the combine.
Learn how to operate the combine and how to use the
controls properly.
Do not operate the combine without instruction and
training.
For your personal safety and the personal safety of
others, follow all safety precautions and instructions found
in the manual and on decals fastened to the combine and
the attachments.
Personal injury or death can result if these precautions
are not followed.
FIG. 4: Be prepared for an emergency. Always carry one
or more suitable fire extinguishers - ABC rating, dry
chemical, 2.2 kg (5 lb). Check fire extinguishers regularly
to make sure extinguishers are properly charged and in
operating condition.
Mounting a fire extinguisher near the cab and a fire
extinguisher near the engine compartment is a
recommendation.
To reduce the risk of fire, frequently remove crop material
from the combine and engine platform and check for
components becoming too hot.
Keep a first aid kit close for treatment of minor cuts and
scratches.
FIG. 5: Wear close fitting clothing and personal
protection equipment correct for operating or doing
lubrication and maintenance on the combine. Tie up long
hair to prevent the hair from becoming entangled in the
moving parts.
mWARNING: An operator must not use
alcohol or drugs which can affect alertness
or coordination. An operator taking
prescription or over the counter drugs
needs medical advice on whether or not the
operator can properly operate machines.
FIG. 3 S-1123
FIG. 4 S-1131
FIG. 5 S-1127A
Find manuals at https://best-manuals.com

79032966 A Rev. 01-3
Safety
FIG. 6: Face the ladder and use the handrails when
getting on or off the combine.
FIG. 7: Never operate the engine in a closed building
unless exhaust is vented outside.
FIG. 8: Make sure that all shields, guards, and access
doors are in location and properly closed before starting
the engine.
Start the engine from the operator seat only. Be sure that
the transmission is in neutral and the header, separator,
and unloader clutches are disengaged.
Be sure that every person is clear of the combine before
starting the engine.
FIG. 9: Always wear the seat belt when the combine is
moving. If another person is riding in the instructor seat
that person must wear the seat belt. Seat belts must be
worn fitted snugly around the hips and not twisted.
FIG. 6 Wc1940
FIG. 7 Wc1949
FIG. 8 Wc1955
FIG. 9 Wc1953a
Find manuals at https://best-manuals.com

Safety
01-4 79032966ARev.
FIG. 10: Never permit any person to be on any part of
the combine or the attachments except in the operator
seat or the instructor seat when the engine is running.
Do not get on or off the combine while the combine is
moving.
FIG. 11: Prevent contact with electrical power lines.
Always put the grain tank unloader tube in the transport
position and lower radio antenna before moving the
combine near electrical wires. Contact with electrical
power lines can cause electrical shock, very serious
injury, or death.
FIG. 12: Use extra caution and reduce speed when
operating on hill sides, near ditches or embankments
especially with a full grain tank to prevent an over turn of
the combine. Travel speed must be such that the machine
has complete control and stability at all times. Shift to a
lower gear before going down a steep hill.
FIG. 13: Always turn off the engine, shift the
transmission to neutral, set parking brake, and remove
the start key before leaving the operator seat or before
permitting a person to inspect, clean, lubricate, adjust, or
repair any part of the combine or the attachments. Unless
specifically given instruction different in this manual.
Never leave the operator seat as long as the engine is
operating.
FIG. 10 Wc1945
FIG. 11 Wc1937
FIG. 12 Wc1937a
FIG. 13 Wc1958
Find manuals at https://best-manuals.com

79032966 A Rev. 01-5
Safety
FIG. 14: Never work under the header or feeder house,
unless the stop is properly engaged on the header lift
cylinder, the engine is stopped, the parking brake is set,
and the start key is removed from the start switch.
FIG. 15: Fluid under high pressure can be almost
invisible but can go into the skin causing serious injury.
See a doctor immediately if you sustain an injury from
escaping fluids. Fluid injected into the skin must be
surgically removed within a few hours or gangrene can
result.
FIG. 16: Use a piece of cardboard or wood to search for
possible leaks. Never use your hands.
Relieve pressure from the hydraulic and fuel injection
systems by lowering raised equipment, shutting off
accumulator valve, and turning off the engine before
loosening any part of the systems. Tighten all
connections securely before applying pressure.
FIG. 17: The surfaces in and around the engine
compartment will be hot if the engine has been running,
even for a short time.
Always permit parts that contain hot fluid to cool before
handling or disconnecting.
FIG. 14 Wc1954
FIG. 15 Wc1938
FIG. 16 D-5842a
FIG. 17 Wc1947
Find manuals at https://best-manuals.com

Safety
01-6 79032966ARev.
FIG. 18: Do not remove radiator cap if engine is hot.
Only remove the cap when the cap is cool enough to
touch with bare hands. Loosen cap slowly to first notch to
relieve pressure, then remove cap.
FIG. 19: Remove any spilled oil, antifreeze, or fuel
immediately from operator ladder and platform and other
access areas.
Keep all access areas clean and free of obstructions.
FIG. 20: Never permit any flame cutting, welding, or arc
welding to be done on or near the sound proofing
upholstery used in the cab. This material is flame resistant
to normal exposure to cigarettes or other smoking
material. But will ignite and sustain combustion when
exposed to the heat of gas or electrical welding. The build
up of chaff and crop debris in the engine compartment, on
the engine, and near moving parts is a fire hazard. Check
and clean these areas frequently.
FIG. 21: Always stop the combine engine before fueling.
Do not smoke while fueling.
FIG. 18 Wc1951
FIG. 19 Wc1939
FIG. 20 Wc1946
FIG. 21 Wc1959

79032966 A Rev. 01-7
Safety
FIG. 22: Electrical storage batteries give off highly
flammable hydrogen gas. Keep smoking material, open
flame, or electrical sparks away from the battery. Do not
lay tools or other conductive materials on the battery.
Be careful when connecting booster cables to combine
batteries. Electrical component damage or battery
explosion can result if booster cables are not installed
correctly.
Do not charge a frozen battery as the battery can
explode. Warm battery to 16 degree C (60 degree F).
FIG. 23: Fluid in electrical storage batteries contains
sulfuric acid. Avoid all contact of fluid with eyes, skin, or
clothing. If contact does occur, flush off immediately with
large amounts of water.
mWARNING: In order to provide a better
view, certain photographs and illustrations
in this manual may show an assembly with
the shield removed. Do not operate
combine unless all shields are in place.
Replace shields immediately upon
completion of inspection, repairs, cleaning
or adjustments and before operation begins
or resumes.
SHIELDS AND LATCHES
FIG. 24: To operate the shield latches, twist the latch
handle (1) counter-clockwise and pull out on the shield.
The left-hand shield latch is located in the middle of the
lower section of the left-hand shield.
FIG. 25: The right-hand side of the combine has three
shields.
The front right-hand shield latch (1) is located in the
middle of the lower section of the right-hand shield (2).
The middle right-hand shield latch (3) is located in the
front section of the right-hand, middle shield (4).
FIG. 22 WC1950
FIG. 23 Wc1948
FIG. 24
1
P108333
FIG. 25
4
2
3
1
P107224

Safety
01-8 79032966ARev.
FIG. 26: The engine platform ladder shield latch (1) is
located in the rear section of the shield (2).
HEADER LIFT CYLINDER STOP
A header lift cylinder stop is provided on the left-hand
header lift hydraulic cylinder.
FIG. 27: Header lift cylinder stop (1) in the disengaged
position.
FIG. 28: Header lift cylinder stop (1) in the engaged
position.
Properly engage the header lift cylinder stop as shown
before going under the header or feeder house for any
reason.
To engage the header lift cylinder stop:
1. Raise the feeder house until the cylinder rod is fully
extended to allow engagement of the header lift
cylinder stop.
2. Release the hook and lower the header lift cylinder
stop onto the cylinder rod.
3. Lower feeder house until the header lift cylinder stop
contacts the end of the cylinder.
FIG. 26
2
1
P107227
FIG. 27
1
N516689
FIG. 28
1
N516587

79032966 A Rev. 01-9
Safety
REAR HOOK
FIG. 29: The rear hook (1) is located in the center of the
combine on the rear axle.
Use the rear hook (1) as a point on the combine to fasten
a suitable chain to aid in pulling the combine out of the
mud when the combine is stuck and not able to drive out.
• Do not go past the breaking strength of the chain.
• Do not use ropes or tow straps.
• Do not use the hook to pull a trailer.
• Do not use the hook to transport the combine on the
road.
mWARNING: Do not use a rope or strap to
pull the combine out of the mud. Energy
stored in these devices can cause serious
personal injury if the device should break.
TRAVEL ON PUBLIC ROADS
FIG. 30: Consult your local law enforcement agency for
local regulations regarding movement of farm equipment
on public roads.
Use headlights, flashing warning lights, taillights and turn
signals, day and night, unless prohibited by local law.
Make sure lights, reflectors and SMV emblem are
installed, in good condition and wiped clean.
Lock brake pedals together with the locking strap so that
both front wheel brakes will be applied simultaneously.
Be aware of other traffic on the road. Keep well over to
your own side of the road and pull over, whenever
possible, to let faster traffic pass.
Adjust travel speed to maintain control at all times. Never
allow combine to coast down hills.
FIG. 29
1
K512094
FIG. 30
S-1025

Safety
01-10 79032966ARev.
NOTES

79032966 A Rev. 01-11
General Information
GENERAL INFORMATION
MACHINE MAIN COMPONENTS
Some of the main components of the combine are as
follows:
1. Feeder
2. Operator Cab
3. Roof Lamps
4. Rear View Mirrors
5. Beacon Lamp
6. Grain Tank Loading Auger
7. Grain Tank
8. Engine Compartment
9. Grain Tank Unloading Auger
10. Straw Chopper
11. Steering Axle
12. Drive Axle
13. Operator Platform Ladder
14. Operator Platform
15. Single Point Header Connection
FIG. 31
D-9839
2
4
4
5
3
1
13
7
9
14
8
12 11
10
6
15

01-12 79032966ARev.
General Information
HOW A COMBINE WORKS
FIG. 32: Four functions are done in the overall
harvesting operation of a combine. These are:
• Cutting and Feeding
• Threshing
• Separating
• Cleaning
Cutting and Feeding
The crop is gathered by a header which is supported by a
feeder housing.
The grain header uses a reel to direct the crop into the
header auger after the crop is cut by the knife and the
header auger conveys the crop into the feeder (1).
When a pickup header is used, the crop, already cut and
laying in a swath, is lifted by a pickup and fed to the
header auger where the retractable fingers move the crop
into the feeder.
The feeder elevator transports the crop to the front of the
accelerator beater (2) which moves the crop to the rotor
inlet area and the rotor (3). The feed beater also guides
rocks and other foreign objects into the stone trap (16)
located forward and below the beater.
Threshing and Separating
The rotor does four functions as the crop moves in rotary
motion from front to rear:
• Intake
• Threshing
• Separating
• Discharge
The auger flighting in the intake area starts the crop on a
spiral route around the rotor and moves the crop to the
threshing area.
Threshing and initial separation are done in the threshing
zone as a result of relationship between the rotating
cylinder bars and the stationary open grate concave (4).
Contact with the helical guide vanes (5) causes the
material to move rearward and in a circular route, letting
the material pass over the concave several times.
Remaining separation occurs in the separating section.
Centrifugal force carries the grain and chaff through the
grate (6) while the straw moves rearward in the rotor
cage. Again, the spiral motion of the crop lets the crop
pass over the separating grates several times.
Cylinder bars on the rotating rotor hold the crop against
the grates until the crop reaches the end. Paddles then
bat the material into a discharge chute where the crop is
moved to a straw spreader, chopper, or discharged
directly to the ground.
FIG. 32
1
913
16 12
14
2
3
4
5
6
15
7
10
11
8
D-9839

79032966 A Rev. 01-13
General Information
Grain, chaff, and unthreshed heads which penetrated the
separator grates are carried to the cleaning shoe by the
separator return pan (7).
Cleaning
The material is moved from the front of the separator
return pan onto a short cascade pan (8) which in turn
moves the mixture across a fingered comb and into the
front of the chaffer sieve.
The cleaning fan (9) provides air to keep the chaff in
suspension during the cleaning process in the shoe.
The air blast passing through the reciprocating adjustable
chaffer (10) separates and blows the chaff out of the
combine. The grain and tailings drop through to the
cleaning sieve.
The adjustable cleaning sieve (11) does the final
cleaning. The clean grain falls through the sieve into the
clean grain auger trough. The tailings, chaff and other
material continue to the end of the sieve and into the
return auger trough (12) for reprocessing.
The grain elevator paddle chain conveys the clean grain
from the clean grain auger (13) to the grain tank filling
auger and into the grain tank (14). The return elevator
carries the tailings back to the rotor intake for threshing
and processing.
The grain in the grain tank is unloaded into a truck or
trailer through the unloading auger (15).

General Information
01-14 79032966ARev.
COMBINE IDENTIFICATION
Your combine is identified by serial numbers which are
important if you require service or repair parts.
Record the serial numbers from the serial plate on your
combine in the spaces provided for easy reference.
Machine Model Number: ________________________
Machine Serial Number: _________________________
Engine Serial Number: __________________________
Transmission Serial Number: _____________________
Final Drive Serial Number: _______________________
Date of Delivery: _______________________________
Dealer Name and Address:
____________________________________________
____________________________________________
____________________________________________
Dealer Telephone Number: _______________________
Dealer Fax Number: ____________________________
NOTE: References to left-hand and right-hand, used in
this manual, refer to position when seated in
operator seat and facing forward
Machine Serial Number
FIG. 33: The machine serial number plate is located on
the combine left-hand side frame at the rear corner.
Engine Serial Number
FIG. 34: The engine serial number is located on the
engine serial number plate (1). The serial number plate is
located on the left rear of the engine block near the
starter.
FIG. 33
1
L831833a
FIG. 34 M818414
1

79032966 A Rev. 01-15
General Information
Fuel Injection Pump Dataplate
FIG. 35: The fuel injection pump dataplate (1) is located
on the back of the injection pump.
ECM Dataplate
FIG. 36: The Electronic Control Module (ECM) dataplate
(1) shows important information about the ECM and how
the ECM is programmed. The dataplate is located on the
ECM right of the ECM connectors under a protective
cover.
The following information is found on the ECM dataplate:
• ECM part number (PN)
• ECM serial number (SN)
• ECM date code (DC)
• Engine serial number (ESN)
• ECM code showing the software number that
indicates how the ECM is programmed.
Transmission Serial Number
FIG. 37: The transmission serial number is stamped on
the serial number plate that is fastened to the left hand
side of the transmission housing at location (1).
FIG. 35 M818422
1
FIG. 36
1
M818437a
FIG. 37
1
H802004
