Charge Amps Dawn
Installation
Manual

2
English
Table of content
1 Safety 5
2 Technical data 6
3 Product Overview 9
3.1 Package contents 10
3.2 Charge Amps Installation Kit 12
4 Before installation 13
4.1 Recommended tools 13
4.2 Materials provided by installer 13
4.3 Mounting requirements 14
4.4 Electric requirements 15
4.4.1 Short circuit safety - internal MCB installation 16
4.4.2 Short circuit safety - external MCB installation 16
4.4.3 Residual current safety 16
4.5 Internet access 17
4.5.1 Wi-Fi connection 17
4.5.2 LTE connection 18
5 Installation 19
5.1 Mounting 19
5.2 Connection 21
5.2.1 Cable connection 21
5.2.2 Bottom cable entry 22
5.2.3 Top cable entry 24
5.2.4 Back side cable entry 27
5.3 Reassemble 30

3
English
6 Configuration 32
6.1 Create a Charge Amps Partner Account 32
6.2 Configure via Charge Amps Installer App 33
6.3 Configure via Installation Wizard 34
6.4 Cloud connectivity 35
7 Dismounting 36

4
English
Neglecting to follow and carry out the directions, instructions and safety precautions in this Installation
Manual implies that any warranty provisions will be cancelled and that Charge Amps AB can reject any
and all claims for compensation in connection with any injuries/damage or incidents – direct or indirect
– that are a result of such negligence.
Charge Amps AB does not give any warranties as to the accuracy or completeness of this document
and shall have no liability for the consequences of using such information. Charge Amps AB reserves
the right to make changes to information published in this document without notice.
Visit www.chargeamps.com for the latest document releases.
© Copyright Charge Amps AB. All rights reserved. Copying, amending and translating are strictly
forbidden without prior written approval from Charge Amps AB.
Respect the environment! Must not be discarded with household
waste! This product contains electrical or electronic components.
Leave the product for separate collection and proper treatment at
a designated location e.g. the local authority’s recycling station.
Approved in accordance with the relevant EU directives and UK legislation.

5
English
1 Safety
WARNING: Read all instructions before installation!
• The product must only be installed by a qualified electrician in
accordance with the Installation Manual.
• Make sure to switch the power off at the main switch before
installation or service.
• For this product, automatic reclosing of protective devices are
not allowed.
• Improper use and negligence to follow the instructions of this
Installation Manual may create a risk of personal injury.
• National installation requirements and restrictions apply.
• Only use this product for charging compatible electric vehicles.
• Inspect the product for visible damage before use.
• Never attempt to repair or use the product if it is damaged.
• Make sure that the product is in good condition and that all
cables are properly seated before use.
• Do not immerse the product in water, subject it to physical
abuse or insert foreign objects in any part of the product.
• Never attempt to disassemble the product in any way other
then what is described in the Installation Manual.
• Make sure no flammable, explosive, corrosive or combustible
materials, chemicals, or fumes are nearby the mounting
position.
• Make sure that all terminal screws are securely fastened before
reattaching the charger unit.
• To avoid muscle strain or back injury, use lifting aids and proper
lifting techniques.

6
English
2 Technical data
Charging mode Mode 3
EV power supply identifier
Metering MID certified active electrical energy
meter
Socket Type 2, 22 kW
Rated voltage (Un)230/400 V
Rated insulation voltage (Ui)250/400 V
Rated impulse withstand voltage
(Uimp)
4 kV
Rated frequency (fn)50 Hz
Rated current (In)32 A
Rated diversity factor (RDF) 1 (can be lowered if used together with
a load balancing functionality)
Rated peak withstand current (Ipk)3 kA, 20 kAs
Rated short-time withstand current
(Icw)
192 A for 2 s
Residual current safety Built in RCD Type-B complying with
IEC 60947-2. AC: 30mA, DC: 6mA
Short circuit safety External MCB is required
Protection against electric shock Class I
Types of earthing system TN, TT, IT
Overvoltage category III
Pollution degree 3
Electromagnetic compatibility Environment B

7
English
Operating temperature -35°C to +45°C
Altitude 0 m to 2000 m
IP code IP44
IK code IK10
Mechanical resistance High
Dimensions (W x D x H) 250 x 145 x 380 mm
Weight 3.5 kg
Characteristics of power supply and
output
AC EV supply equipment connected
to AC supply network, permanently
connected
External design and method of
mounting
Enclosed wall-mounted surface type:
- Surface mounted on walls
- Stationary ground and floor mounted
installation with accessory Charge
Amps Pole Mount
Type of construction Fixed parts
Intended use and location type By ordinary persons, indoor and
outdoor installation with non-
restricted access
Incoming cable dimensions 13 – 25 mm
Terminal block cable dimensions Installing from top or bottom: 16 mm
Installing from back: 10 mm
RFID Type: ISO/IEC 14443 Typ A 13.56 MHz
Mifare
Range: 13.553 – 13.567 MHz
Max output: 24 dBm
Bluetooth Type: Class 2
Version: v4.2
Range: 2400 – 2500 MHz
Max output: 4 dBm

8
English
Wi-Fi Type: 802.11 b/g/n
Range: 2400 – 2500 MHz
Max output: 17.5/14/12.5 dBm@802.11
b/g/n
Cellular networks communication Type: LTE-M, eMTC*
Supported LTE-M bands: B2, B3, B4,
B8, B12, and B20.
Range: 699 – 960 / 1710 – 2155 MHz
Max output: 35 dBm@GSM, 28 dBm@
LTE
SIM card: built-in
*Support for additional cellular standards will be available through OTA updates in
later releases.

9
English
3 Product Overview
G
H
F
E
D
C
B
A
I
A Back plate
B MID display
C RFID reader
D RFID light
E Front cover
F EV socket
G Socket lights
H EV socket lid
I Front cover lock screw

10
English

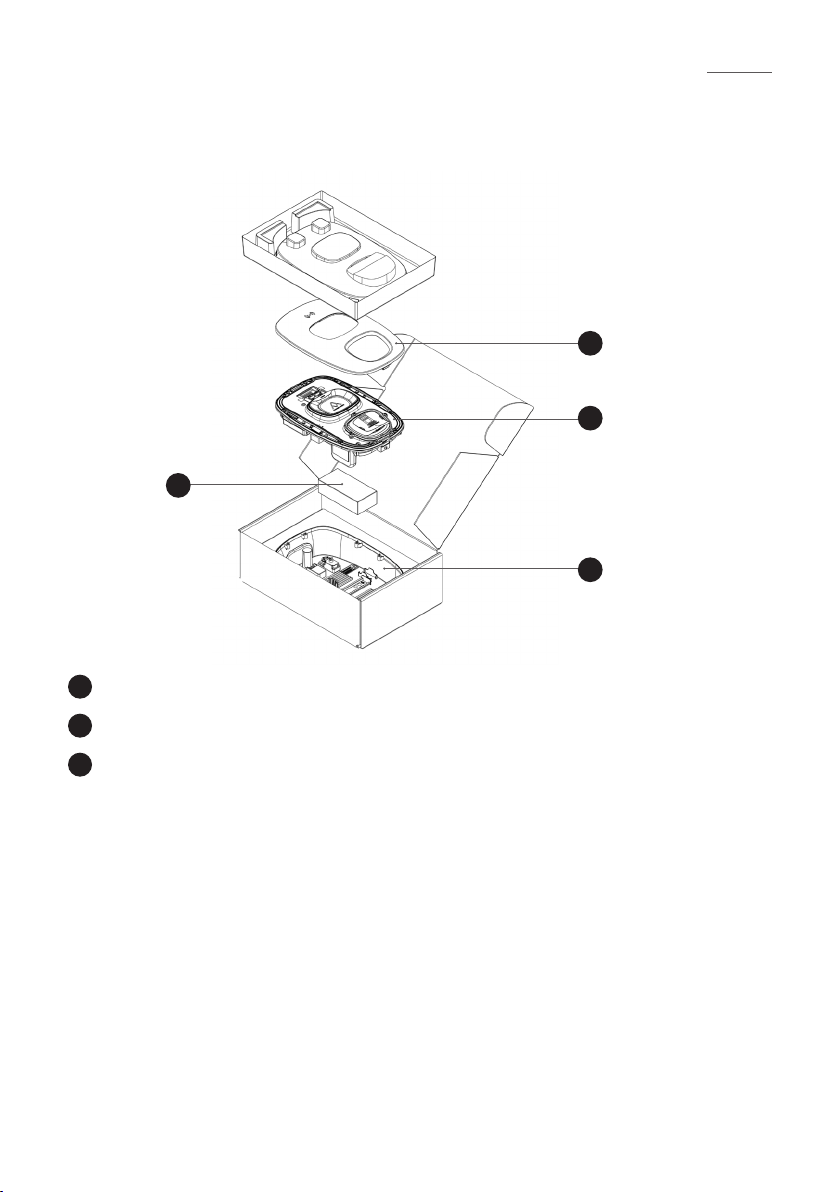

3.1 Package contents
1 Front cover
2 Charging unit
3 Back plate
1
4
2
3

11
English

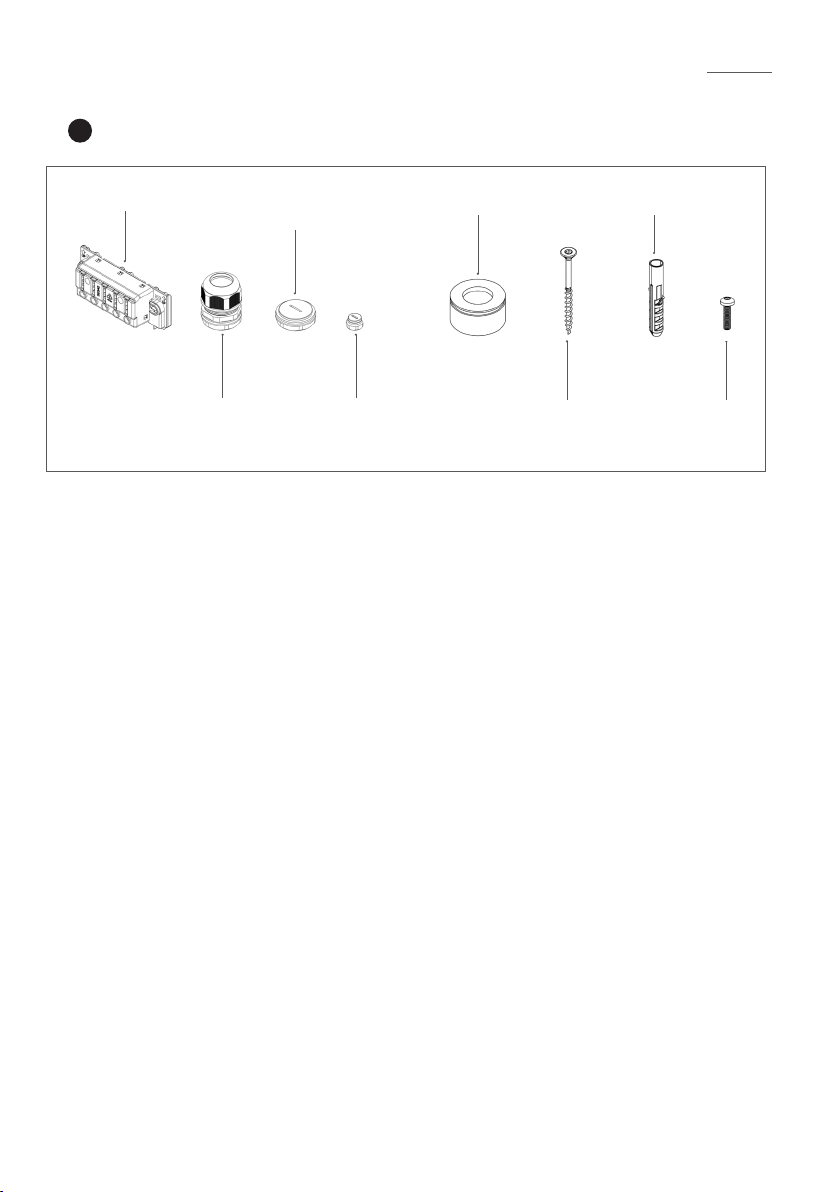

4 Accessories:
Additional contents:
• 1 x RFID tag
• Quick Guide User
• Welcome letter
1x Connection
block
2x Cable
gland
2x M32
Plugs
2x M12
Plugs
2x M32 Insert
Only
4x Mounting
screws
4x Plugs
10x M4
screws

12
English
3.2 Charge Amps Installation Kit
In installations where the MCB is placed inside of Charge Amps
Dawn, a specific terminal block and MCB must be used.
The terminal block and MCB can be purchased as a set in the
Charge Amps Installation Kit, or bought separately. The
specifications for the terminal block and MCB are stated below
and any deviation from these specifications is strongly adviced
against.
N.B: The Charge Amps Installation Kit is sold separately and is
not included in the Package contents for Charge Amps Dawn.
1 x Terminal block 1 x MCB
Weidmüller:
WPD 2X25/2X16
1XGN/3XGY/1XBL
Article nr:
1562140000
ABB:
S203-C32
Article nr:
2CDS253001R0324

13
English
4 Before installation
4.1 Recommended tools
• Screwdriver Torx T20 + T25
• Screwdriver PH (or flat)
• Step drill (∅12 mm for LAN cable and ∅32 mm for power cable)
(N.B. Top cable entry holes only)
• Drill
• Multimeter
• Laser/spirit level
• Wire stripper for cabling
• Mobile phone, tablet or computer
• Wi-Fi analyzer app to ensure sufficient Wi-Fi strength at the
installation location
• LTE Network analyzer app
4.2 Materials provided by installer
• 4 x M5 x 30 mm or longer flat head stainless screws type A2
or A4 with associated washers type A2 or A4 with a maximum
outer diameter of 20 mm and plugs (if required) suitable for
mounting of Charge Amps Dawn
• Installation cable, according to the charging capability of the
product.

14
English

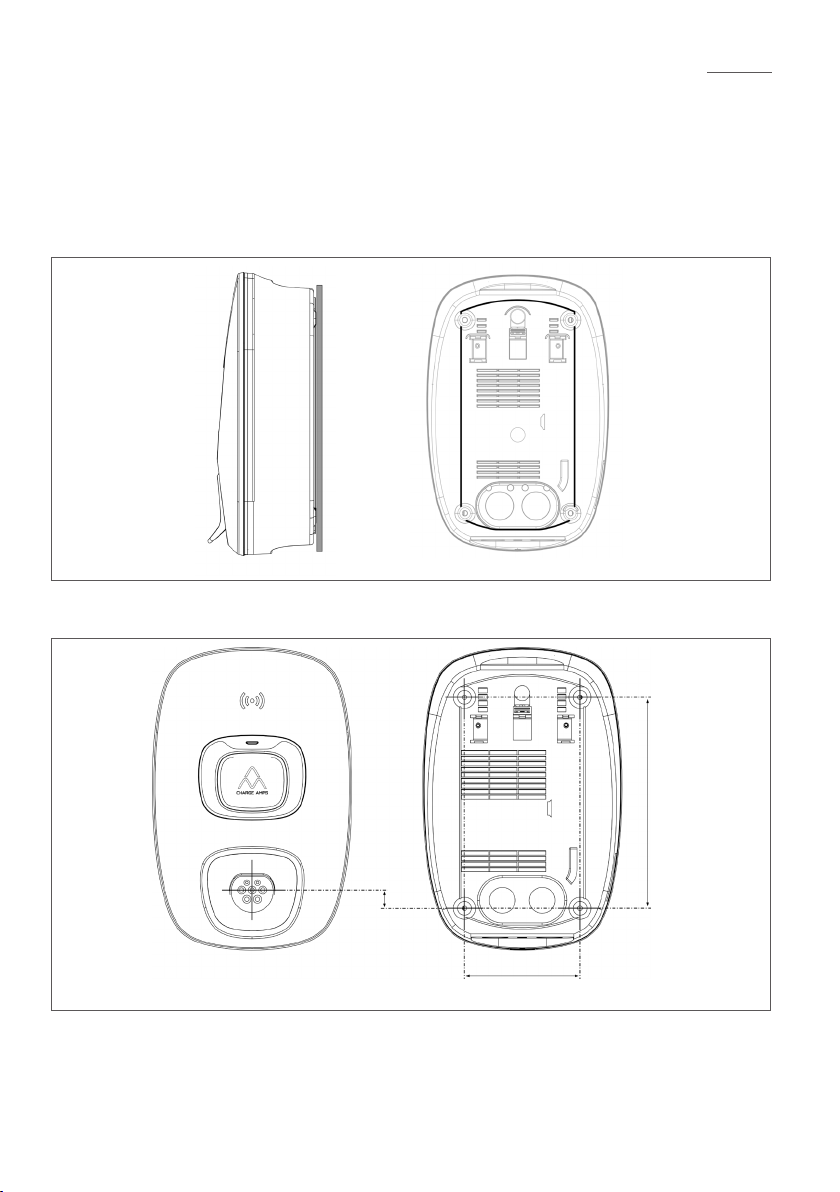

4.3 Mounting requirements
• If possible, do not mount the Charge Amps Dawn in direct
sunlight.
• Make sure the wall can support a weight of 3.5 kg and the
tractive force from the inserted cabling.
• Do not install Charge Amps Dawn in confined spaces.
• Use screws and plugs (if required) suitable for the wall material.
• Charge Amps Dawn must be mounted upright.
• Recommended mounting height 900 – 1450 mm, measured
from the ground to the bottom of Charge Amps Dawn.

15
English
4.4 Electric requirements
N.B. Local regulations might add additional requirements for
the electrical installation.
• Charge Amps Dawn must be earthed through permanent
electrical installation.
• Only insert the electrical cable through the specified cable
entry.
• If installing one Charge Amps Dawn, follow instructions for
Single installation.
• If daisy chaining several Charge Amps Dawn, follow instructions
for Daisy chain installaion.

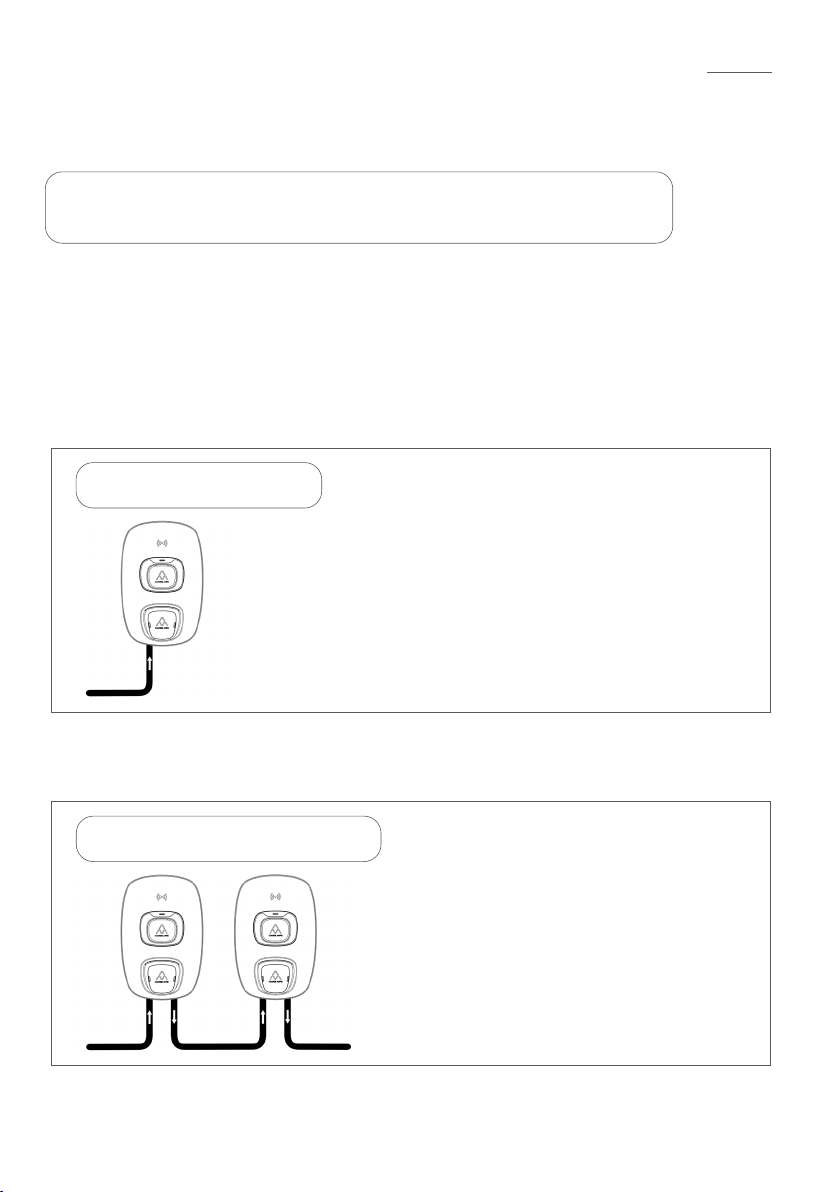

Single installation
Daisy chain installation

16
English
4.4.1 Short circuit safety - internal MCB installation
When an MCB is installed internally, inside of Charge Amps Dawn,
an MCB with following specifications is required:
• ABB: S203-C32
Article nr: 2CDS253001R0324
This MCB can be purchased as a part included in the Charge
Amps Installation Kit (described in chapter 3.2), or bought
separately.
Instructions for how to reset the MCB when it is placed inside of
Charge Amps Dawn can be found in Charge Amps Dawn User
Manual.
4.4.2 Short circuit safety - external MCB installation
When an MCB is installed externally, outside of Charge Amps
Dawn, an MCB with following specifications is required:
• Up to 32 A MCB, curve B or C, with Energy Class 3.
4.4.3 Residual current safety
Charge Amps Dawn has a built-in RCD functionality:
• Built-in RCD Type-B complying with IEC 60947-2.
AC: 30mA, DC: 6mA.
Instructions for how to test and reset the built-in RCD can be
found in Charge Amps Dawn User Manual.

17
English
4.5 Internet access
N.B. If Wi-Fi is configured, it will be prioritized over LTE.
Both Wi-Fi connection and LTE connection is available for Charge
Amps Dawn. Charge Amps Dawn IEEE 802.1b/g/n Wi-Fi has a
maximal speed of ~65 Mbps during ideal conditions and Charge
Amps LTE-M CAT-M1 eMTC support up to ~500 kbps.
4.5.1 Wi-Fi connection
Wi-Fi connection is available and the placement of Charge Amps
Dawn is key to solid Wi-Fi connectivity. Before installing Charge
Amps Dawn:
• Give the network a pre-test with a Wi-Fi analyzer app to
measure the network strength. Sufficient network strength
should be -65 dBm
• Small adjustments of the location may have significant effect on
the signal.
• If you can’t find a good location for Charge Amps Dawn, you
might need to use a Wi-Fi extender to extend the range.

18
English
4.5.2 LTE connection
LTE-M, i.e. enhanced machine-type communication (eMTC) low
power wide area (LPWA), connection is available and requires
public land mobile network (PLMN) coverage with reliable signal
strength. The first time the Charge Amps Dawn attach to the
PLMN it will require some additional time (up to ten minutes) due
to the LTE network attachment procedure. After this, the Charge
Amps Dawn will attach and connect to the network based on
cached PLMN information. Before installing Charge Amps Dawn:
• Give the network a pre-test with a LTE Network analyzer app,
to measure the LTE signal strength. Sufficient network strength
should be better than -108 dBm.
• If you can’t find a good location for Charge Amps Dawn, you
might need to use Wi-Fi with a fixed Internet access line.

19
English
5 Installation
5.1 Mounting
N.B. Make sure to place front cover and charging unit in a
place where they will not be damaged.
1. Unpack Charge Amps Dawn. Make sure that Charge Amps
Dawn is in good condition and that all cables are properly
seated.

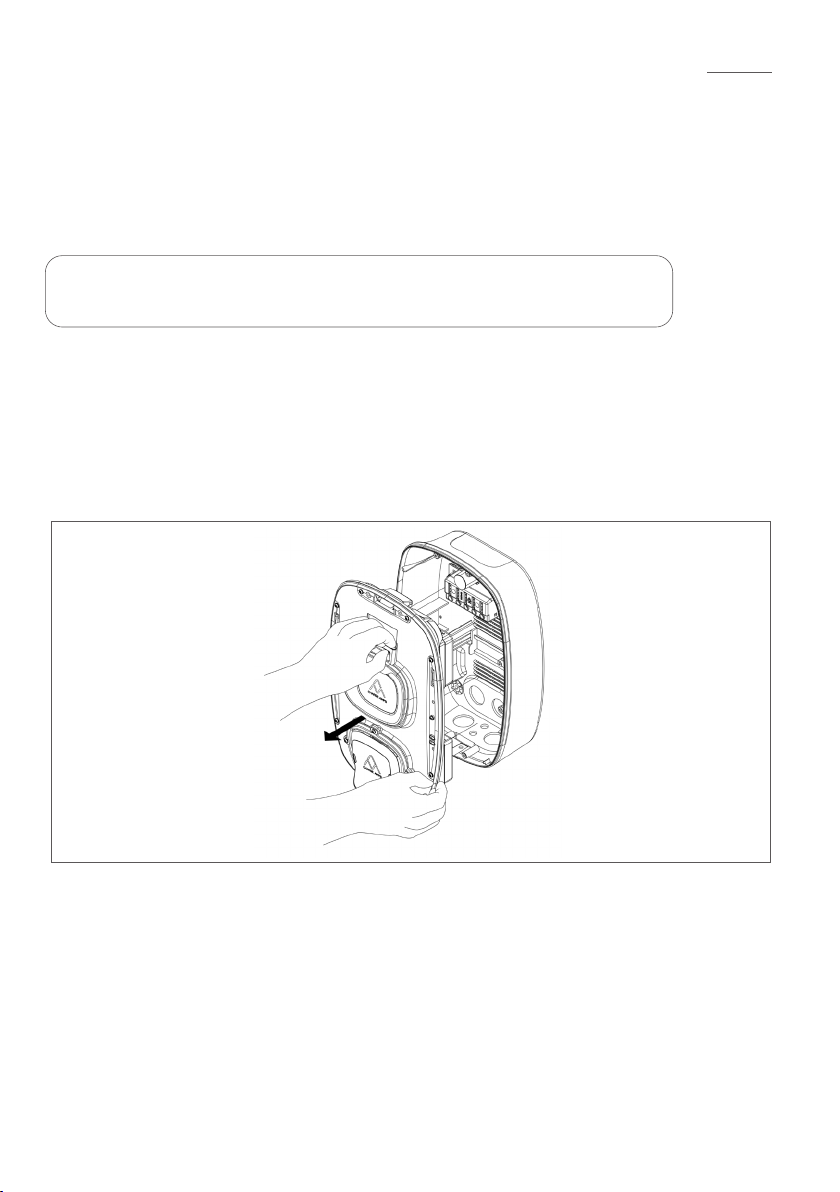

2. Remove the charging unit. Secure from dropping the charger
unit by holding a hand under the charger while pulling the tab.

20
English
3. Make sure the mounting surface is flat. Max. deviation for the
four mounting holes is 3 mm. No other part of the surface
should be in contact with the charger. The surface must also
cover the area within the rim on the back side of the Charge
Amps Dawn.
4. Mark the mounting holes on the wall.
5. Mount the Back plate to the wall.
[mm]
Not to scale.
265
145
18
