Quick Reference Guide

Intimidator™ Spot Duo QRG EN
2
About This
Guide
The Intimidator™ Spot Duo Quick Reference Guide (QRG) has basic product
information such as mounting, menu options, and DMX values. Download
the User Manual from www.chauvetlighting.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to
change without notice.
Safety Notes
These Safety Notes include important safety information about installation,
use, and maintenance.
•This product is not intended for permanent installation.
•ONLY connect this product to a grounded and protected circuit.
•Always disconnect from power before cleaning or replacing the fuse.
•DO NOT look at the light source when the product is on.
•Make sure the power cord is not crimped or damaged.
•Never disconnect this product from power by pulling on the cord.
•When mounting this product overhead, use a safety cable.
•DO NOT allow flammable materials close to the unit while operating.
•DO NOT touch this product when it is operating because it may be hot.
•The voltage of the outlet to which you are connecting this product must
be within the range stated on the decal or rear panel of the product.
•This product is for indoor use only! (IP20) To prevent risk of fire or
shock, do not expose this product to rain or moisture.
•Always mount this product in a location with adequate ventilation, at
least 20 in (50 cm) from adjacent surfaces.
•Be sure that no ventilation slots on the unit’s housing are blocked.
•Never connect this product to a dimmer or rheostat.
•Replace the fuse with one of the same type and rating.
•ONLY use the hanging/mounting bracket or base to carry this product.
•The maximum ambient temperature is 104° F (40° C). Do not operate
this product at higher temperatures.
•In the event of a serious operating problem, stop using immediately.
•DO NOT open this product. It contains no user-serviceable parts.
Contact
Outside the U.S., United Kingdom, or Ireland, contact your distributor to
request support or return a product. Visit www.chauvetlighting.com
for
contact information.

EN Intimidator™ Spot Duo QRG
3
What Is
Included
•Intimidator™ Spot Duo
•Hanging Bracket with
Mounting Hardware
•Power Cord
•Warranty Card
•Quick Reference Guide
To Begin
Unpack your Intimidator™ Spot Duo
and make sure you have received all parts
in good condition. If the box or contents appear damaged, notify the carrier
immediately, not CHAUVET®.
Description
The Intimidator™ Spot Duo has two Intimidator™ moving heads pre-mounted
on a single bar. Control options include automated programs, Sound-
Active
modes, and DMX. Pan and tilt functions are available for each moving head.
Lighting options include separate color and gobo wheels. There are 16 built-
in
Master/Slave programs.
Overview
Back Panel View
Power In
Fuse Holder
Digital Display
DMX In
DMX Out
Front Panel View
Power Out
Safety Loop
Tripod Adjustment Knob
Cooling Fan
Microphone
Moving
Yokes
Focusing
Lenses

Intimidator™ Spot Duo QRG EN
4
AC Power
This product has an auto-ranging power supply that can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
Power Linking
You can link up to 9 Intimidator™ Spot Duo products at 120 VAC and 17 units
at 230 VAC.
Fuse
Replacement
1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace
with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.
Mounting
Before mounting this product, read the Safety Notes.
Mounting
Diagram
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<UP>
Navigates upwards through the menu list and increases the
numeric value when in a function
<DOWN>
Navigates downwards through the menu list and decreases
the numeric value when in a function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
Tripod Insertion
Hanging Bracket
Rubber Feet

EN Intimidator™ Spot Duo QRG
5
Menu Options
Main Level
Programming Levels
Description
DMX Address
d001–d512
Sets the DMX starting address
Automatic
A-01–A-16
Automatic mode
Sound-Active
Srun
Sound-Active mode
Slave
Son1
Slave operating mode 1
Son2
Slave operating mode 2
Sound Sensitivity
S-01–S-99
Sound sensitivity control
Master Auto
M--4
Master built-in 4-head program
M--2
Master built-in 2-head program
Pan 1
PA1
Normal pan operation for head 1
rPA1
Reverse pan operation for head 1
Pan 2
PA2
Normal pan operation for head 2
rPA2
Reverse pan operation for head 2
Tilt 1
til
Normal tilt operation for head 1
rtil
Reverse tilt operation for head 1
Tilt 2
ti2
Normal tilt operation for head 2
rti2
Reverse tilt operation for head 2
Display
dis
Normal display
rdis
Inverted display
Channel Mode
20CH
20-channel DMX personality
17CH
17-channel DMX personality
10CH
10-channel DMX personality
Pan Range
PA36
360° pan range
PA18
180° pan range
Tilt Range
ti27
270° tilt range
ti18
180° tilt range
ti 9
90° tilt range
Temperature Display
t--1 (1txx)
Displays LED temperature for head 1
t--2 (2txx)
Displays LED temperature for head 2
Reset
rESt
Resets product
Load
LoAd
Loads factory defaults
DMX Linking
The Intimidator™ Spot Duo can work with a DMX controller when linked
by DMX serial connections. Instructions for connecting and configuring this
product for DMX operation are in the User Manual. If you are not familiar
with DMX, download the DMX Primer from www.chauvetlighting.com.
Starting
Address
To ensure full access to all channels in each DMX mode, the highest
recommended DMX address is 493.
Master/Slave
Connection
The Intimidator™ Spot Duo uses
the DMX data connection for its
Master/Slave mode. Instructions for connecting and configuring this product
for Master/Slave operation are in the User Manual.

Intimidator™ Spot Duo QRG EN
6
Master Auto
Programs
The Master Auto built-in programs control the actions of two Intimidator™
Spot Duo units linked together by DMX data connection. A single
Intimidator™ Spot Duo (the “master”) controls the actions of another
Intimidator™ Spot Duo (the “slave”). Configure the Master Auto programs in
conjunction with the Slave modes as follows:
Master Auto
4-
Head
Program
The Master Auto 4-Head program allows all 4 heads of two linked Intimidator™
Spot Duo units to operate in unison. The master unit will be set to operate in the
M--4 program, while the slave unit will be set to operate in either
Son1 or Son2
mode.
Configure the units as indicated below.
Master unit:
1. Press <MENU>repeatedly until M--2or M--4shows on the display.
2. Press <UP> or <DOWN> to select M--4.
3. Press <ENTER>.
Slave unit:
1. Press <MENU>repeatedly until Son1 or Son2 shows on the display.
2. Press <UP> or <DOWN> to select Son1 or Son2.
•Select Son1 for 100% synchronized actions.
•Select Son2 for a delayed show with all 4 heads in the same direction.
3. Press <ENTER>.
Master Auto
2-
Head
Program
The Master Auto 2-Head program allows a single Intimidator™ Spot Duo to
control the actions of another Intimidator™ Spot Duo. The master unit will be set
to operate in the M--
2 program, while the slave unit will be set to operate in either
Son1 or Son2 mode.
Configure the units as indicated below.
Master unit:
1. Press <MENU>repeatedly until M--2or M--4shows on the display.
2. Press <UP> or <DOWN> to select M--2.
3. Press <ENTER>.
Slave unit:
1. Press <MENU>repeatedly until Son1 or Son2 shows on the display.
2. Press <UP> or <DOWN> to select Son1 or Son2.
•Select Son1 for 100% synchronized actions.
•Select Son2 for the same show with both units, but the actions of the
slave are in the opposite direction of the actions of the master.
3. Press <ENTER>.

EN Intimidator™ Spot Duo QRG
7
DMX Values
20-CH
Channel Function Value Percent/Setting
1
Pan 1
000 ó255
Pan 0–360° for head 1
2
Fine Pan 1
000 ó255
Fine panning control for head 1
3
Tilt 1
000 ó255
Tilt 0–270° for head 1
4
Fine Tilt 1
000 ó255
Fine tilting control for head 1
5
Pan 2
000 ó255
Pan 0–360° for head 2
6
Fine Pan 2
000 ó255
Fine panning control for head 2
7
Tilt 2
000 ó255
Tilt 0–270° for head 2
8
Fine Tilt 2
000 ó255
Fine tilting control for head 2
9
Speed
000 ó255
Pan/Tilt speed (fast to slow)
10 Color Wheel 1
(Head 1)
000 ó015
White
016 ó031
Orange
032 ó047
Light Blue
048 ó063
Red
064 ó079
Green
080 ó095
Pink
096 ó111
Yellow
112 ó127
Blue
128 ó191
Rainbow effect with increasing speed
192 ó255
Reverse rainbow effect with increasing speed
11 Color Wheel 2
(Head 2)
000 ó015
White
016 ó031
Orange
032 ó047
Light Blue
048 ó063
Red
064 ó079
Green
080 ó095
Pink
096 ó111
Yellow
112 ó127
Blue
128 ó191
Rainbow effect with increasing speed
192 ó255
Reverse rainbow effect with increasing speed

Intimidator™ Spot Duo QRG EN
8

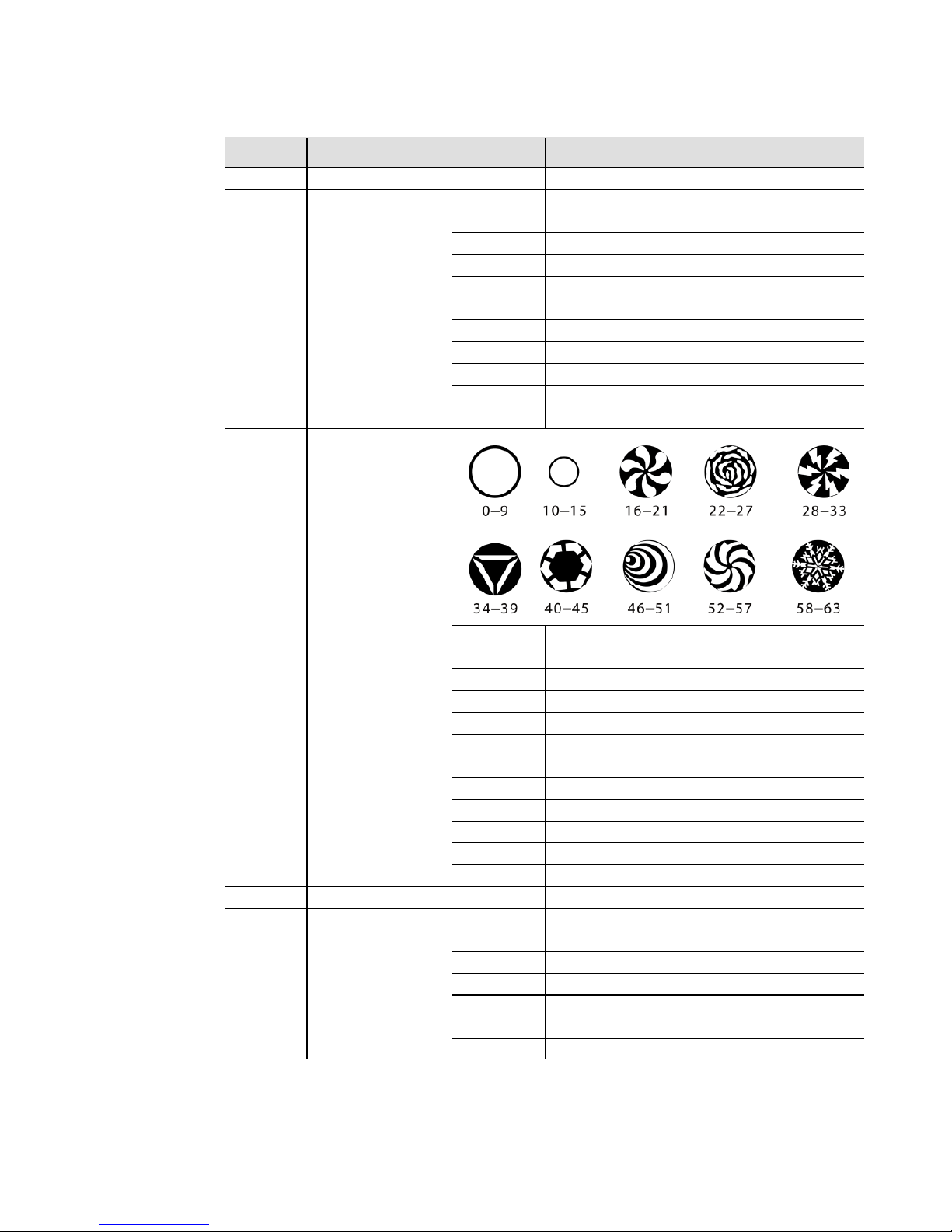

DMX Values (cont.)
20-CH
(cont.)
Channel Function Value
Percent/Setting
12 Gobo Wheel 1
(Head 1)
064 ó069
Gobo 9 shake with increasing speed
070 ó075
Gobo 8 shake with increasing speed
076 ó081
Gobo 7 shake with increasing speed
082 ó087
Gobo 6 shake with increasing speed
088 ó093
Gobo 5 shake with increasing speed
094 ó099
Gobo 4 shake with increasing speed
100 ó105
Gobo 3 shake with increasing speed
106 ó111
Gobo 2 shake with increasing speed
112 ó117
Gobo 1 shake with increasing speed
118 ó127
White
128 ó191
Rainbow effect with increasing speed
192 ó255
Reverse rainbow effect with increasing speed
13 Gobo Wheel 2
(Head 2)
064 ó069
Gobo 9 shake with increasing speed
070 ó075
Gobo 8 shake with increasing speed
076 ó081
Gobo 7 shake with increasing speed
082 ó087
Gobo 6 shake with increasing speed
088 ó093
Gobo 5 shake with increasing speed
094 ó099
Gobo 4 shake with increasing speed
100 ó105
Gobo 3 shake with increasing speed
106 ó111
Gobo 2 shake with increasing speed
112 ó117
Gobo 1 shake with increasing speed
118 ó127
White
128 ó191
Rainbow effect with increasing speed
192 ó255
Reverse rainbow effect with increasing speed
14
Dimmer 1
000 ó255
Dimmer for head 1 (0–100%)
15
Dimmer 2
000 ó255
Dimmer for head 2 (0–100%)

EN Intimidator™ Spot Duo QRG
9
DMX Values (cont.)
20-CH
(cont.)
Channel Function Value Percent/Setting
16 Shutter 1
(Head 1)
000 ó003
Light off
004 ó007
Light on
008 ó076
Shutter with increasing speed
077 ó145
Pulse strobe
146 ó215
Random strobe
216 ó255
Light on
17 Shutter 2
(Head 2)
000 ó003
Light off
004 ó007
Light on
008 ó076
Shutter with increasing speed
077 ó145
Pulse strobe
146 ó215
Random strobe
216 ó255
Light on
18 Control Functions
000 ó009
No function
010 ó014
Pan/Tilt blackout
015 ó019
Color blackout
020 ó024
Gobo blackout
025 ó029
Pan/Tilt/Color blackout
030 ó034
Pan/Tilt/Gobo blackout
035 ó039
Color/Gobo blackout
040 ó044
Pan/Tilt/Color/Gobo blackout
045 ó049
No function
050 ó054
First two heads setting
055 ó059
Latter two heads setting
060 ó064
Cancel four heads
065 ó069
No function
070 ó074
Reset
075 ó079
No function
080 ó084
Reverse pan/tilt for both heads
085 ó089
Reverse pan for head 1
090 ó094
Reverse pan for head 2
095 ó099
Reverse tilt for head 1
100 ó104
Reverse tilt for head 2
105 ó109
Cancel reverse pan for head 1
110 ó114
Cancel reverse pan for head 2
115 ó119
Cancel reverse tilt for head 1
120 ó124
Cancel reverse tilt for head 2
125 ó129
Cancel reverse pan/tilt for both heads
130 ó135
No function
136 ó175
Color chase 1 with increasing speed
176 ó215
Color chase 2 with increasing speed
216 ó255
Color chase 3 with increasing speed

Intimidator™ Spot Duo QRG EN
10
DMX Values (cont.)
20-CH
(cont.)
Channel Function Value
Percent/Setting
19 Movement Macros
000 ó007
No function
008 ó022
Movement macro 1
023 ó037
Movement macro 2
038 ó052
Movement macro 3
053 ó067
Movement macro 4
068 ó082
Movement macro 5
083 ó097
Movement macro 6
098 ó112
Movement macro 7
113 ó127
Movement macro 8
128 ó142
Movement macro 9
143 ó157
Movement macro 10
158 ó172
Movement macro 11
173 ó187
Movement macro 12
188 ó202
Movement macro 13
203 ó217
Movement macro 14
218 ó232
Movement macro 15
233 ó247
Movement macro 16
248 ó255
Sound-Active program
20
Movement Macro
Speed
000 ó255 Fast to slow

EN Intimidator™ Spot Duo QRG
11
DMX Values (cont.)
17-CH
Channel Function Value Percent/Setting
1
Pan 1
000 ó255
Pan 0–360° for head 1
2
Fine Pan 1
000 ó255
Fine panning control for head 1
3
Tilt 1
000 ó255
Tilt 0–270° for head 1
4
Fine Tilt 1
000 ó255
Fine tilting control for head 1
5
Pan 2
000 ó255
Pan 0–360° for head 2
6
Fine Pan 2
000 ó255
Fine panning control for head 2
7
Tilt 2
000 ó255
Tilt 0–270° for head 2
8
Fine Tilt 2
000 ó255
Fine tilting control for head 2
9
Speed
000 ó255
Pan/Tilt speed (fast to slow)
10 Color Wheel
(Both Heads)
000 ó015
White
016 ó031
Orange
032 ó047
Light Blue
048 ó063
Red
064 ó079
Green
080 ó095
Pink
096 ó111
Yellow
112 ó127
Blue
128 ó191
Rainbow effect with increasing speed
192 ó255
Reverse rainbow effect with increasing speed
11 Gobo Wheel
(Both Heads)
064 ó069
Gobo 9 shake with increasing speed
070 ó075
Gobo 8 shake with increasing speed
076 ó081
Gobo 7 shake with increasing speed
082 ó087
Gobo 6 shake with increasing speed
088 ó093
Gobo 5 shake with increasing speed
094 ó099
Gobo 4 shake with increasing speed
100 ó105
Gobo 3 shake with increasing speed
106 ó111
Gobo 2 shake with increasing speed
112 ó117
Gobo 1 shake with increasing speed
118 ó127
White
128 ó191
Rainbow effect with increasing speed
192 ó255
Reverse rainbow effect with increasing speed

Intimidator™ Spot Duo QRG EN
12
DMX Values (cont.)
17-CH
(cont.)
Channel Function Value
Percent/Setting
12
Dimmer 1
000 ó255
Dimmer for head 1 (0–100%)
13
Dimmer 2
000 ó255
Dimmer for head 2 (0–100%)
14 Shutter
(Both Heads)
000 ó003
Light off
004 ó007
Light on
008 ó076
Shutter with increasing speed
077 ó145
Pulse strobe
146 ó215
Random strobe
216 ó255
Light on
15 Control Functions
000 ó009
No function
010 ó014
Pan/Tilt blackout
015 ó019
Color blackout
020 ó024
Gobo blackout
025 ó029
Pan/Tilt/Color blackout
030 ó034
Pan/Tilt/Gobo blackout
035 ó039
Color/Gobo blackout
040 ó044
Pan/Tilt/Color/Gobo blackout
045 ó049
No function
050 ó054
First two heads setting
055 ó059
Latter two heads setting
060 ó064
Cancel four heads
065 ó069
No function
070 ó074
Reset
075 ó079
No function
080 ó084
Reverse pan/tilt for both heads
085 ó089
Reverse pan for head 1
090 ó094
Reverse pan for head 2
095 ó099
Reverse tilt for head 1
100 ó104
Reverse tilt for head 2
105 ó109
Cancel reverse pan for head 1
110 ó114
Cancel reverse pan for head 2
115 ó119
Cancel reverse tilt for head 1
120 ó124
Cancel reverse tilt for head 2
125 ó129
Cancel reverse pan/tilt for both heads
130 ó135
No function
136 ó175
Color chase 1 with increasing speed
176 ó215
Color chase 2 with increasing speed
216 ó255
Color chase 3 with increasing speed

EN Intimidator™ Spot Duo QRG
13
DMX Values (cont.)
17-CH
(cont.)
Channel Function Value Percent/Setting
16 Movement Macros
000 ó007
No function
008 ó022
Movement macro 1
023 ó037
Movement macro 2
038 ó052
Movement macro 3
053 ó067
Movement macro 4
068 ó082
Movement macro 5
083 ó097
Movement macro 6
098 ó112
Movement macro 7
113 ó127
Movement macro 8
128 ó142
Movement macro 9
143 ó157
Movement macro 10
158 ó172
Movement macro 11
173 ó187
Movement macro 12
188 ó202
Movement macro 13
203 ó217
Movement macro 14
218 ó232
Movement macro 15
233 ó247
Movement macro 16
248 ó255
Sound-Active program
17
Movement Macro
Speed
000 ó255 Fast to slow

Intimidator™ Spot Duo QRG EN
14
DMX Values (cont.)
10-CH
Channel Function Value
Percent/Setting
1
Pan
000 ó255
Pan 0–360° for both heads
2
Tilt
000 ó255
Tilt 0–270° for both heads
3 Color Wheel
(Both Heads)
000 ó015
White
016 ó031
Orange
032 ó047
Light Blue
048 ó063
Red
064 ó079
Green
080 ó095
Pink
096 ó111
Yellow
112 ó127
Blue
128 ó191
Rainbow effect with increasing speed
192 ó255
Reverse rainbow effect with increasing speed
4 Gobo Wheel
(Both Heads)
064 ó069
Gobo 9 shake with increasing speed
070 ó075
Gobo 8 shake with increasing speed
076 ó081
Gobo 7 shake with increasing speed
082 ó087
Gobo 6 shake with increasing speed
088 ó093
Gobo 5 shake with increasing speed
094 ó099
Gobo 4 shake with increasing speed
100 ó105
Gobo 3 shake with increasing speed
106 ó111
Gobo 2 shake with increasing speed
112 ó117
Gobo 1 shake with increasing speed
118 ó127
White
128 ó191
Rainbow effect with increasing speed
192 ó255
Reverse rainbow effect with increasing speed
5
Dimmer 1
000 ó255
Dimmer for head 1 (0–100%)
6
Dimmer 2
000 ó255
Dimmer for head 2 (0–100%)
7 Shutter
(Both Heads)
000 ó003
Light off
004 ó007
Light on
008 ó076
Shutter with increasing speed
077 ó145
Pulse strobe
146 ó215
Random strobe
216 ó255
Light on

EN Intimidator™ Spot Duo QRG
15
DMX Values (cont.)
10-CH
(cont.)
Channel
Function
Channel
Percent/Settings
8 Control Functions
000 ó009
No function
010 ó014
Pan/Tilt blackout
015 ó019
Color blackout
020 ó024
Gobo blackout
025 ó029
Pan/Tilt/Color blackout
030 ó034
Pan/Tilt/Gobo blackout
035 ó039
Color/Gobo blackout
040 ó044
Pan/Tilt/Color/Gobo blackout
045 ó049
No function
050 ó054
First two heads setting
055 ó059
Latter two heads setting
060 ó064
Cancel four heads
065 ó069
No function
070 ó074
Reset
075 ó079
No function
080 ó084
Reverse pan/tilt for both heads
085 ó089
Reverse pan for head 1
090 ó094
Reverse pan for head 2
095 ó099
Reverse tilt for head 1
100 ó104
Reverse tilt for head 2
105 ó109
Cancel reverse pan for head 1
110 ó114
Cancel reverse pan for head 2
115 ó119
Cancel reverse tilt for head 1
120 ó124
Cancel reverse tilt for head 2
125 ó129
Cancel reverse pan/tilt for both heads
130 ó135
No function
136 ó175
Color chase 1 with increasing speed
176 ó215
Color chase 2 with increasing speed
216 ó255
Color chase 3 with increasing speed

Intimidator™ Spot Duo QRG EN
16
DMX Values (cont.)
10-CH
(cont.)
Channel
Function
Channel
Percent/Settings
9 Movement Macros
000 ó007
No function
008 ó022
Movement macro 1
023 ó037
Movement macro 2
038 ó052
Movement macro 3
053 ó067
Movement macro 4
068 ó082
Movement macro 5
083 ó097
Movement macro 6
098 ó112
Movement macro 7
113 ó127
Movement macro 8
128 ó142
Movement macro 9
143 ó157
Movement macro 10
158 ó172
Movement macro 11
173 ó187
Movement macro 12
188 ó202
Movement macro 13
203 ó217
Movement macro 14
218 ó232
Movement macro 15
233 ó247
Movement macro 16
248 ó255
Sound-Active program
10
Movement Macro
Speed
000 ó255 Fast to slow

ES Intimidator™ Spot Duo GRR
17
Acerca de Esta
Guía
La Guía de Referencia Rápida (GRR) del Intimidator™ Spot Duo contiene
información básica sobre el producto, como montaje, opciones de menú y
valores DMX. Descargue el manual de usuario de www.chauvetlighting.com
para una información más detallada.
Exención de
Responsabilidad
La información y especificaciones contenidas en esta GRR están sujetas a
cambio sin previo aviso.
Notas de
Seguridad
Estas notas de seguridad incluyen información de seguridad importante sobre el
montaje, uso y mantenimiento.
•Este producto no está cocebido para una instalación permanente.
•Conecte este producto SOLO a un circuito con toma de tierra y
protegido.
•Desconecte siempre de la alimentación antes de la limpieza o
sustitución del fusible.
•NO mire a la fuente de luz cuando el producto esté encendido.
•Asegúrese de que el cable de alimentación no está retorcido ni
estropeado.
•Nunca desconecte este producto del cable de alimentación agarrando o
tirando del cable.
•Cuando monte este producto en alto, use un cable de seguridad.
•NO permita la presencia de materiales inflamables cerca de la unidad
cuando esté en funcionamiento.
•NO toque este producto cuando esté en funcionamiento, pues podría
estar caliente.
•La tensión del enchufe al que conecte este producto ha de estar en el
rango establecido en el grabado o en el panel posterior de producto.
•¡Este producto es para uso en interiores solamente! (IP20) Para evitar
riesgos de incendio o descarga, no exponga este producto a la lluvia o
la humedad.
•Monte siempre este producto en una ubicación con ventilación
adecuada, al menos a 20'' (50 cm) de superficies adyacentes.
•Asegúrese de que ninguna ranura de ventilación en la carcasa de la
unidad queda bloqueada.
•Nunca conecte este producto a un atenuador o reostato.
•Sustituya el fusible con uno del mismo tipo y categoría.
•Use SOLAMENTE los soportes de colgar/montar o base para mover
este producto.
•La máxima temperatura ambiente es de 104º F (40º C). No haga
funcionar este producto a temperaturas más altas.
•En caso de un problema grave de funcionamiento, deje de usarlo
inmediatamente.
•NO abra este producto. No contiene piezas reparables por el usuario.

Intimidator™ Spot Duo GRR ES
18
Contacto
Fuera de EE.UU, Reino Unido o Irlanda, póngase en contacto con su
distribuidor para solicitar asistencia o devolver el producto.
Visite
www.chauvetlighting.com para información de contacto.
Qué va
Incluido
•Intimidator™ Spot Duo
•Soporte para colgar con material
de montaje
•Cable de alimentación
•Tarjeta de garantía
•Guía de Referencia Rápida
Para Empezar
Desembale su Intimidator™ Spot Duo y asegúrese de que ha recibido todas las
partes en buen estado. Si la caja o los componentes parecen dañados,
notifíqueselo al transportista inmediatamente, no a CHAUVET®.
Descripción
El Intimidator™ Spot Duo tiene dos cabezas móviles Intimidator™ pre-
montadas en una sola barra. Las opciones de control incluyen programas
automáticos, modos activados por sonido y DMX. Las funciones de
desplazamiento lateral e inclinación están disponibles para cada cabeza
móvil. Las opciones de iluminación incluyen r
uedas de color y gobo
independientes. Hay 16 programas integrados Maestro/Esclavo.
Vista General
Vista Panel Posterior
Entrada
alimentación
Portafusibles
Pantalla digital
Entrada
DMX
Salida
DMX
Vista Panel Frontal
Salida
alimentación
Anilla de
seguridad
Mando de ajuste del trípode
Ventilador
Micrófono
Lentes de
enfoque
Yugos
móviles

ES Intimidator™ Spot Duo GRR
19
Corriente
Alterna
Este producto tiene una fuente de alimentación con detección automática
que puede
funcionar con un rango de tensión de entrada de 100~240 VCA,
50/60 Hz.
Alimentación en
Cadena
Puede enlazar hasta 9 productos Intimidator™ Spot Duo a 120 VCA, y 17
unidades a 230 VCA.
Sustitución del
Fusible
1. Desconecte el producto de la alimentación.
2.
Con ayuda de un destornillador de cabeza plana, afloje el portafusibles y
extráigalo directamente.
3. Quite el fusible fundido del portafusibles y sustituya el fusible con otro
del mismo tipo y categoría.
4. Vuelva a insertar el portafusibles y conecte de nuevo la alimentación.
Montaje
Antes de montar este producto, lea las Notas de seguridad.
Diagrama
de Montaje
Descripción del
Panel de Control
Botón
Función
<MENU>
Sale del menú o función actual
<UP>
Navega hacia arriba por la lista de menú y aumenta el
valor numérico cuando está en una función
<DOWN>
Navega hacia abajo por la lista de menú y disminuye el
valor numérico cuando está en una función
<ENTER>
Habilita el menú actualmente en pantalla o configura el
valor seleccionado actualmente dentro de la función
seleccionada
Inserción del trípode
Soporte de montaje
Pies de goma

Intimidator™ Spot Duo GRR ES
20
Opciones de Menú
Nivel Principal
Niveles de Programación
Descripción
Dirección DMX
d001–d512
Configura la dirección inicial DMX
Automático
A-01–A-16
Modo Automático
Activo por Sonido
SrUn
Modo activo por sonido
Esclavo
Son1
Modo 1 de funcionamiento Esclavo
Son2
Modo 2 de funcionamiento Esclavo
Sensibilidad al Sonido
S-01–S-99
Control de sensibilidad al sonido
Programas Maestro
M--4
Programa Maestro integrado de 4 cabezas.
M--2
Programa Maestro integrado de 2 cabezas.
Desplazamiento
Lateral 1
PA1
Funcionamiento desplazamiento lateral normal
para cabeza 1
rPA1
Funcionamiento desplazamiento lateral inverso
para cabeza 1
Desplazamiento
Lateral 2
PA2
Funcionamiento desplazamiento lateral normal
para cabeza 2
rPA2
Funcionamiento desplazamiento lateral inverso
para cabeza 2
Inclinación 1
tiL
Funcionamiento inclinación normal para cabeza 1
rtil
Funcionamiento inclinación inversa para cabeza 1
Inclinación 2
ti2
Funcionamiento inclinación normal para cabeza 2
rti2
Funcionamiento inclinación inversa para cabeza 2
Pantalla
dis
Pantalla Normal
rdis
Pantalla invertida
Modo de Canales
20CH
Personalidad DMX de 20 canales
17CH
Personalidad DMX de 17 canales
10CH
Personalidad DMX de 10 canales
Rango de
Desplazamiento
Lateral
PA36
Rango de desplazamiento lateral de 360º
PA18 Rango de desplazamiento lateral de 180º
Rango de Inclinación
ti27
Rango de inclinación de 270º
ti18
Rango de inclinación de 180º
ti 9
Rango de inclinación de 90º
Pantalla de
Temperatura
t--1 (1txx)
Muestra por pantalla temperatura de la cabeza 1
t--2 (2txx)
Muestra por pantalla temperatura de la cabeza 2
Reinicio
rESt
Reinicia el producto
Cargar
LoAd
Carga los valores por defecto de fábrica
