Chauvet Rogue R1 wash User manual

Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL

Rogue™ R1 Wash QRG EN
2
About This Guide
The Rogue™ R1 Wash Quick Reference Guide (QRG) has basic product
information such as connection, mounting, menu options, and DMX values.
Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
•DO NOT open this product. It contains no user-serviceable parts.
•To eliminate unnecessary wear and improve its lifespan, during periods of
non-use completely disconnect the product from power via breaker or by
unplugging it.
•CAUTION: When transferring product from extreme temperature
environments, (e.g. cold truck to warm humid ballroom) condensation may
form on the internal electronics of the product. To avoid causing a failure,
allow product to fully acclimate to the surrounding.
•DO NOT look at the light source when the product is on.
•CAUTION: This product’s housing may be hot when lights are operating.
•Mount this product in a location with adequate ventilation, at least
20 in (50 cm) from adjacent surfaces.
•DO NOT leave any flammable material within 50 cm of this product while
operating or connected to power.
•CAUTION: When transferring product from extreme temperature
environments, (e.g. cold truck to warm humid ballroom) condensation may
form on the internal electronics of the product. To avoid causing a failure,
allow product to fully acclimate to the surrounding environment before
connecting it to power.
•USE a safety cable when mounting this product overhead.
•DO NOT operate this product outdoors or in any location where dust,
excessive heat, water, or humidity may affect it. (IP20)
•DO NOT operate this product if the housing, lenses, or cables appear
damaged.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•
ONLY use the hanging/mounting bracket or the handles to carry this product.
Do not carry by the moving head.
•In the event of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate this
product at higher temperatures.
Contact
•From outside the U.S., UK, Ireland, Mexico, or Benelux contact the distributor
of record to request support or return a product.
•From inside the U.S., UK, Ireland, Mexico, or Benelux use the information in
Contact Us at the end of this QRG.
What Is
Included
•Rogue™ R1 Wash
•Neutrik® powerCON® power cord
•Warranty Card
•Omega bracket with mounting
hardware
•
Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input voltage
range of 100–240 VAC, 50/60 Hz.
To eliminate unnecessary wear and improve its lifespan, during periods of
non-
use completely disconnect the product from power via breaker or by
unplugging it.

Rogue™ R1 Wash QRG EN
3
Power Linking
You can link up to 10 Rogue™ R1 Wash products at 120 V, 18 products at 208 V,
or 21 products
at 230 V. Never exceed this number. Power linking cords can be
purchased separately.
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Replacing The Fuse
1. Disconnect this product from power.
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The Rogue™ R1 Wash will work with a DMX controller using
a 3- or 5-
pin DMX serial connection. A DMX Primer is available from
www.chauvetprofessional.com.
DMX Connection
The Rogue™ R1 Wash uses a 3- or 5-pin DMX data connection for its DMX
personalities: 14CH, 15CH, 19CH, and 21CH
. See the User Manual for
information about connecting and configuring the product for DMX operation.
Mounting
Before mounting this product, read the Safety Notes. Use at least one
mounting point per product. Make sure the mounting clamps
(such as TRUSST® clamps from Chauvet) are capable of supporting the weight
of the product. For our Chauvet line of mounting clamps, g
o to
www.trusst.com/productcategory/accessories-clamps/.

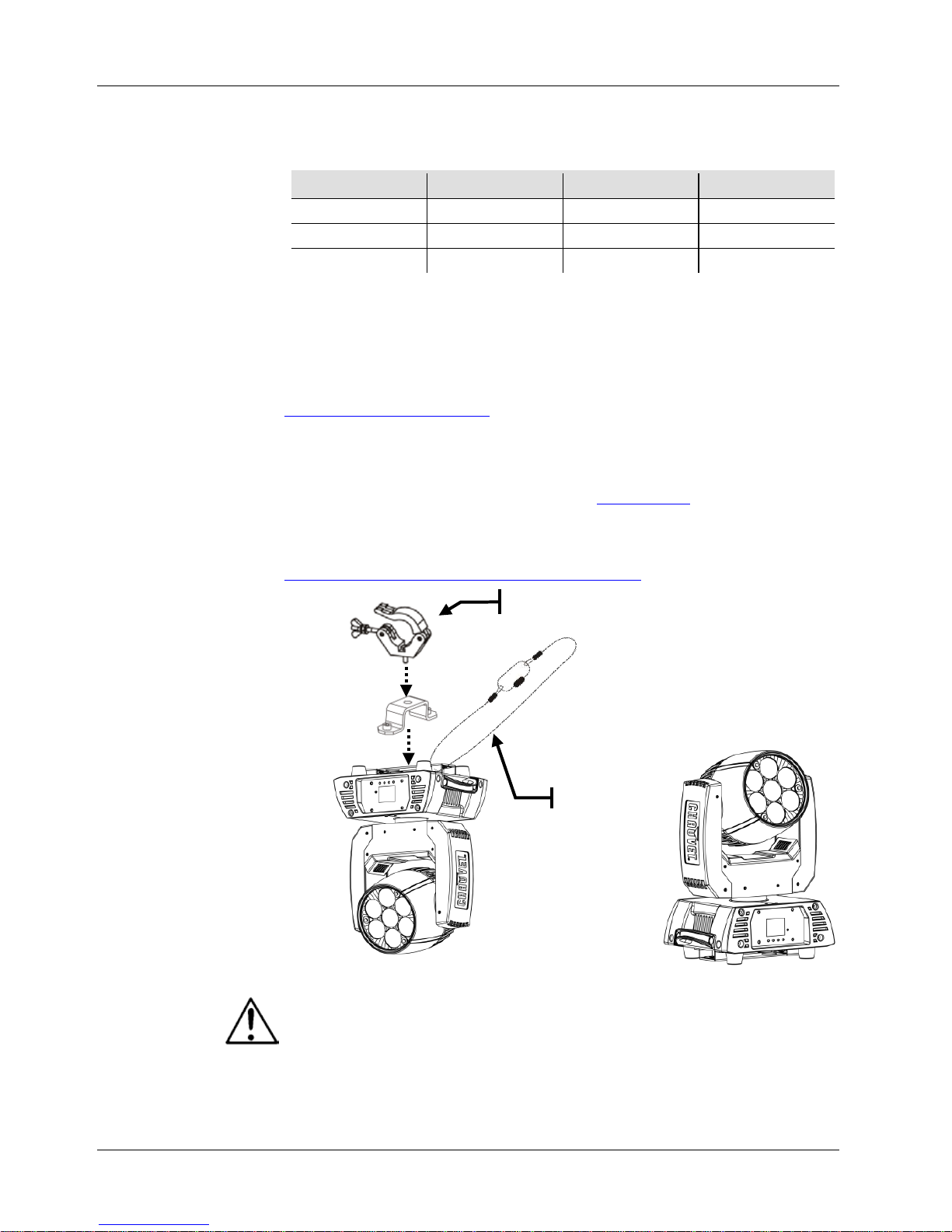

Product
Mounting
Diagram
When using only one mounting clamp, be sure to use a clamp with a captive
bolt to prevent accidental loosening.
Overhead Mounting
Floor Mounting
Mounting Clamp
Safety Cable

Rogue™ R1 Wash QRG EN
4
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
<UP>
Navigates upwards through the menu list or increases the
numeric value when in a function
<DOWN>
Navigates downwards through the menu list or decreases
the numeric value when in a function
Menu Map
Main Level
Programming Levels
Description
Address
001–512
Sets the DMX starting address
Run Mode
DMX
14CH
Selects the DMX mode
15CH
19CH
21CH
Auto Test
Runs the product’s test sequence
Manual Test
Pan
000–255 Allows manual control of all settings from
the control panel
Tilt
Dimmer
Shutter
Red
Green
Blue
White
Zoom
Setup
Pan Reverse
OFF
Reverse pan operation
ON
Normal pan operation
Tilt Reverse
OFF
Reverse tilt operation
ON
Normal tilt operation
Pan Angle
540
Selects the 540° pan angle range
360
Selects the 360° pan angle range
180
Selects the 180° pan angle range
Tilt Angle
230
Selects the 230° tilt angle range
180
Selects the 180° tilt angle range
90
Selects the 90° tilt angle range
Fans
Auto
Selects the fan’s operation mode
ECO
Full
Display
OFF
Determines whether or not the backlight of
the display will stay on after last command
button pressed
ON

Rogue™ R1 Wash QRG EN
5
Menu Map (Cont.)
Main Level
Programming Levels
Description
Setup
(Cont.)
Screen Rev
OFF
Rotates control screen view 180°
ON
Normal control screen view
Dimmer Curve
Linear
Liner dimmer
Square
Square curve dimmer
I Squa
Reverse square curve dimmer
SCurve
S curve dimmer
Dimmer Speed
Smooth
Slow (
Smooth
) or fast (
Fast
) dimmer
curves
Fast
Color
calibration
Off
Max. output when RGBW DMX channels
are at full
On
Factory calibrated color temperature when
RGBW DMX channels are at full
Custom
RED
100–255
Manual calibration of color temperature
when RGBW DMX channels are at full
GREEN
BLUE
Reset
Function
Pan/Tilt
NO
Resets pan/tilt functions to the home
position
YES
Zoom
NO
Resets all Zoom functions to the home
position
YES
All
NO
Resets all functions to the home position
YES
Factory Set Reverts the product back to the original
factory settings
Sys Info
Ver:
Displays the software version
Running Mode:
Displays the current running mode
Dmx Address:
Displays the current DMX address
Temperature:
Displays the product’s temperature in
Celsius
Fixture Time
Displays the product’s total time running

Rogue™ R1 Wash QRG EN
6
DMX Values
21CH
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
Fine control (16-bit)
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
Fine control (16-bit)
5
Pan/Tilt Speed
000ó255
0–100%
6
Dimmer
000ó255
0–100%
7
Fine Dimmer
000ó255
Fine control (16-bit)
8 Shutter
000ó019
020ó024
025ó064
065ó069
070ó084
085ó089
090ó104
105ó109
110ó124
125ó129
130ó144
145ó149
150ó164
165ó169
170ó184
185ó189
190ó204
205ó209
210ó224
225ó229
230ó244
245
ó
255
Closed
Open
Fast to slow
Open
Fast on/ramp off
Open
Ramp off/fast on
Open
Random
Open
Random fast on/ramp off
Open
Random slow on/fast off
Open
Pulse
Open
Random pulse
Open
Fade on/off
Open
Pulse
Open
9
Red
000ó255
0–100%
10
Fine Red
000ó255
Fine control (16-bit)
11
Green
000ó255
0–100%
12
Fine Green
000ó255
Fine control (16-bit)
13
Blue
000ó255
0–100%
14
Fine Blue
000ó255
Fine control (16-bit)
15
White
000ó255
0–100%
16
Fine White
000ó255
Fine control (16-bit)

Rogue™ R1 Wash QRG EN
7
DMX Values (Cont.)
21CH
(Cont.)
Channel
Function
Value
Percent/Setting
17 Color
000ó004
005ó009
010ó014
015ó019
020ó024
025ó029
030ó034
035ó039
040ó044
045ó049
050ó054
055ó059
060ó064
065ó069
070ó074
075ó079
080ó084
085ó089
090ó094
095ó099
100ó104
105ó109
110ó114
115ó119
120ó124
125ó129
130ó134
135ó139
140ó144
145ó149
150ó154
155ó159
160ó164
165ó169
170ó174
175ó179
180ó201
202ó207
208ó229
230ó234
235ó249
250ó255
Open
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
Color 14
Color 15
Color 16
Color 17
Color 18
Color 19
Color 20
Color 21
Color 22
Color 23
Color 24
Color 25
Color 26
Color 27
Color 28
Color 29
Color 30
Color 31
Color 32
Color 33
Color 34
Closed
Clockwise color scroll, fast to slow
Stop on current color
Counter-clockwise color scroll, fast to slow
Closed
Color scroll
Closed
18
Zoom
000ó255
0–100%

Rogue™ R1 Wash QRG EN
8
DMX Values (Cont.)
21CH
(Cont.)
Channel
Function
Value
Percent/Setting
19 Movement Macros
000ó007
008ó023
024ó039
040ó055
056ó071
072ó087
088ó103
104ó119
120ó135
136ó151
152ó167
168ó183
184ó199
200ó215
216ó231
232ó247
248ó255
No function
Effect 1
Effect 2
Effect 3
Effect 4
Effect 5
Effect 6
Effect 7
Effect 8
Effect 9
Effect 10
Effect 11
Effect 12
Effect 13
Effect 14
Effect 15
Effect 16
20
Movement Macro
Speed
000ó255
0–100%
21 Control
000ó009
010ó014
015ó019
020ó024
025ó029
030ó034
035ó039
040ó044
045ó049
050ó054
055ó059
060ó064
065ó069
070ó074
075ó079
080ó084
085ó089
090ó094
095ó099
100ó104
105ó109
110ó114
115ó119
120ó124
125ó129
130ó134
135ó139
140ó144
145ó255
No function
Blackout during pan/tilt (5 s activation delay)
No function
No function
No function
No function
No function
No function
No function
Pan reset (5 s activation delay)
Tilt reset (5 s activation delay)
Zoom reset (5 s activation delay)
No function
All reset (5 s activation delay)
No function
Pan/Tilt movement
reverse (5 s activation delay)
Pan movement reverse (5 s activation delay)
Tilt movement reverse (5 s activation delay)
Disable Pan movement
reverse (5 s activation delay)
Disable Tilt movement
reverse (5 s activation delay)
Disable Pan/Tilt movement
reverse (5 s activation delay)
No function
No function
Economy fan (5 s activation delay)
Full fan (5 s activation delay)
Auto fan (5 s activation delay)
Fast dimmer curve (5 s activation delay)
Smooth dimmer curve (5 s activation delay)
No function

Rogue™ R1 Wash QRG EN
9
DMX Values (Cont.)
19CH
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
Fine control (16-bit)
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
Fine control (16-bit)
5
Pan/Tilt Speed
000ó255
0–100%
6
Dimmer
000ó255
0–100%
7
Fine Dimmer
000ó255
Fine control (16-bit)
8 Shutter
000ó019
020ó024
025ó064
065ó069
070ó084
085ó089
090ó104
105ó109
110ó124
125ó129
130ó144
145ó149
150ó164
165ó169
170ó184
185ó189
190ó204
205ó209
210ó224
225ó229
230ó244
245
ó
255
Closed
Open
Fast to slow
Open
Fast on/ramp off
Open
Ramp off/fast on
Open
Random
Open
Random fast on/ramp off
Open
Random slow on/fast off
Open
Pulse
Open
Random pulse
Open
Fade on/off
Open
Pulse
Open
9
Red
000ó255
0–100%
10
Fine Red
000ó255
Fine control (16-bit)
11
Green
000ó255
0–100%
12
Fine Green
000ó255
Fine control (16-bit)
13
Blue
000ó255
0–100%
14
Fine Blue
000ó255
Fine control (16-bit)
15
White
000ó255
0–100%
16
Fine White
000ó255
Fine control (16-bit)

Rogue™ R1 Wash QRG EN
10
DMX Values (Cont.)
19CH
(Cont.)
Channel
Function
Value
Percent/Setting
17 Color
000ó004
005ó009
010ó014
015ó019
020ó024
025ó029
030ó034
035ó039
040ó044
045ó049
050ó054
055ó059
060ó064
065ó069
070ó074
075ó079
080ó084
085ó089
090ó094
095ó099
100ó104
105ó109
110ó114
115ó119
120ó124
125ó129
130ó134
135ó139
140ó144
145ó149
150ó154
155ó159
160ó164
165ó169
170ó174
175ó179
180ó201
202ó207
208ó229
230ó234
235ó249
250ó255
Open
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
Color 14
Color 15
Color 16
Color 17
Color 18
Color 19
Color 20
Color 21
Color 22
Color 23
Color 24
Color 25
Color 26
Color 27
Color 28
Color 29
Color 30
Color 31
Color 32
Color 33
Color 34
Closed
Clockwise color scroll, fast to slow
Stop on current color
Counter-clockwise color scroll, fast to slow
Closed
Color scroll
Closed
18
Zoom
000ó255
0–100%
