Chinavision CVYF-8426 User manual

\
Tablet PC
User Man ual
I
lrl
w
I

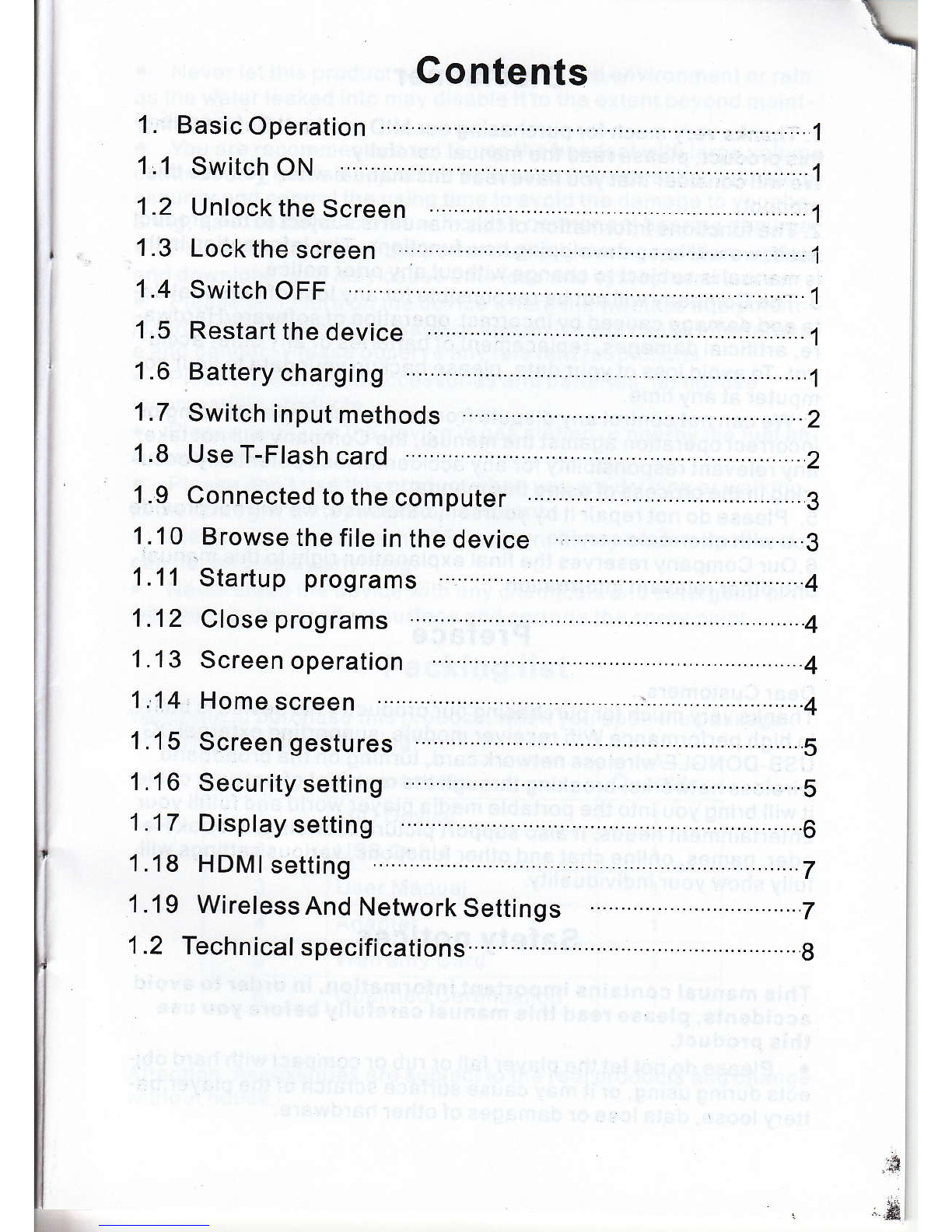

Gontents
1. Basic Operation
1,1 Switch ON
1.2 Unlock the Screen
1.3 Lockthescreen
1.4 Switch OFF
7
----. .. . 1
1
1
'''''''''''''''I
1
1
. ...---- .. ..1
. ....-----.2
1 .5 Restart the device
1.6 Battery charging
1.7 Switch input methods
1.8 Use T-Flash card ...... .. ..............
1.9 Connected to the computer ....
1 .10 Browse the file in the device
1 .11 Startup programs ...
1 .12 Close programs . .. ..
'l .13 Screen operation
1.14 Home screen
1 .15 Screen gestures .. . .. .
-2
3
3
-4
. .--4
. . .. .---4
1 .16 Security setting ..
1 .17 Display setting
1. 18 HDMI setting . . ..
1 .19 Wireless And Network Settings .. ... ....... . 7
1.2 Technical specifications...... ................. . . g
f
t!

-

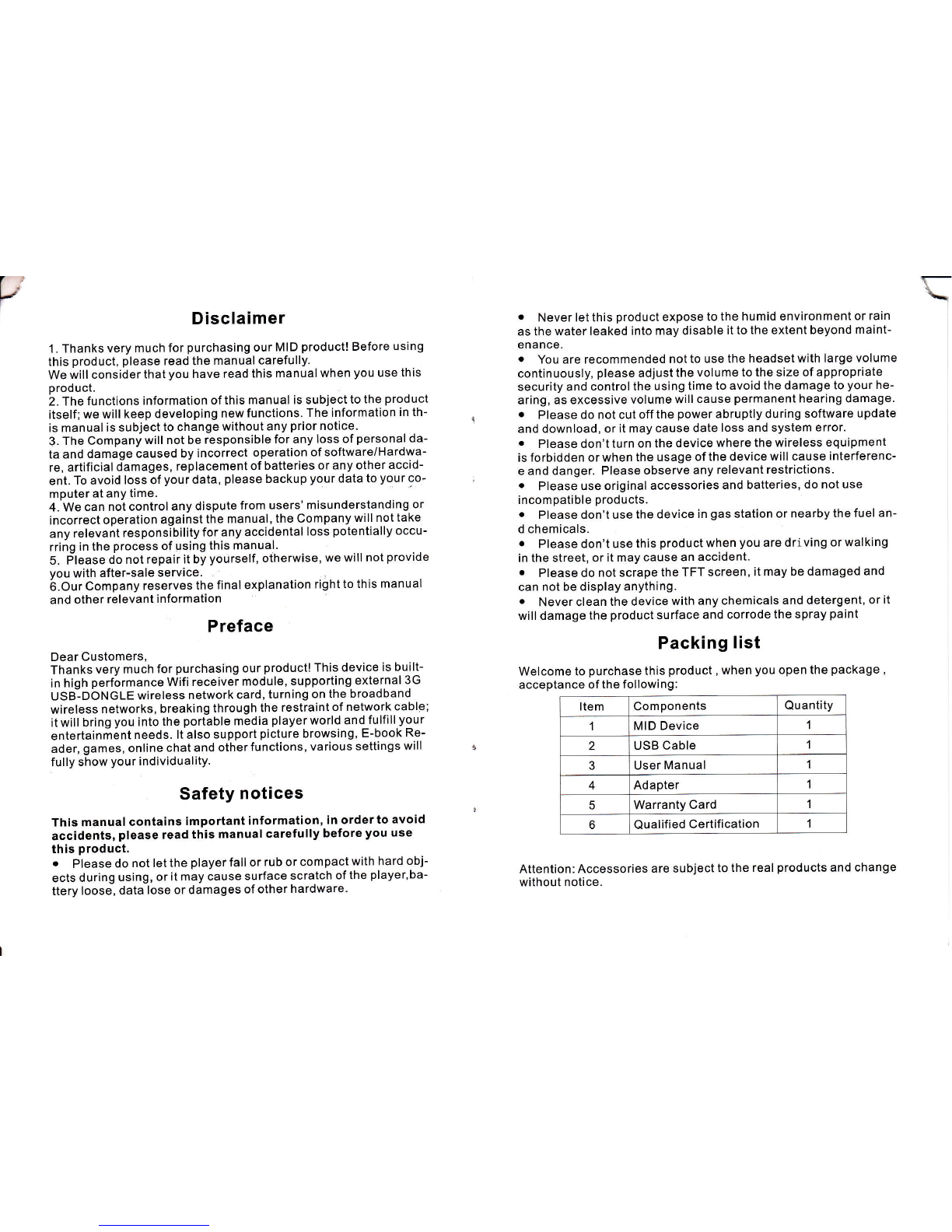

VDisclaimer
1. Thanks very much for purchasing our MID product! Before using
this product, please read the manual carefully.
We will consider that you have read this manual when you use this
prod u ct.
2. The functions information of this manual is subject to the product
itself; we will keep developing new functions. The information in th-
is manual is subject to change without any prior notice.
3. The Company will not be responsible for any loss of personal da-
ta and damage caused by incorrect operation ofsoftware/Hardwa-
re, artificial damages, replacement of batteries or any other accid-
ent. To avoid loss of your data, please backup your data to your co-
mputer at any time.
4. We can not control any dispute from users' misunderstanding or
incorrect operation against the manual, the Company will not take
any relevant responsibility for any accidental loss potentially occu-
rring in the process of uqing this manual.
5. Flease do not repair it by yourself, otherwise, we will not provide
you with after-sale service.
6.Our Company reserves the final explanation right to this manual
and other relevant information
Preface
Dear Customers,
Thanks very much for purchasing our product! This device is built-
in high performance Wifi receiver module, supporting external 3G
USB--DONGLE wireless network card, turning on the broadband
wireless networks, breaking through the restraint of network cable;
it will bring you into the portable media player world and fulfill your
entertainment needs. lt also support picture browsing, E-book Re-
ader, games, online chat and other functions, various settings will
fully show your individuality.
SafetY notices
This manual contains important information, in order to avoid
accidents, please read this manual carefully before you use
this product.
. Please do not let the player fall or rub or compact with hard obj-
ects during using, or it may cause surface scratch ofthe player,ba-
ttery loose, data lose or damages of other hardware.
o Never let this product expose to the humid environment or rain
as the water leaked into may disable it to the extent beyond maint-
enance.
o You are recommended not to u se the headset with large volu me
continuously, please adjust the volume to the size of appropriate
security and control the using time to avoid the damage to your he-
aring, as excessive volume will cause permanent hearing damage.
. Please do not cut off the power abruptly during software update
and download, or it may cause date loss and system error.
. Please don't turn on the device where the wireless equipment
is forbidden or when the usage of the device will cause interferenc-
e and danger. Please observe any relevant restrictions.
o Please use original accessories and batteries, do not use
incompatible products.
o Please don't use the device in gas station or nearby the fuel an-
d chemicals.
. Please don't use this product when you are driving or walking
in the street, or it may cause an accident.
. Pl ease do not scrape the TFT screen, it may be damaged and
can not be display anything.
. Never clean the device with any chemicals and detergent, or it
will damage the product surface and corrode the spray paint
Packing list
Welcome to purchase this product , when you open the package ,
acceptance of the following:
Item Components Quantity
1MID Device
2USB Cable
3User Manual 1
4Adapter 1
5Warranty Card 1
6Qualified Certification 1
Attention: Accessories are subject to the real products and change
without notice.

\-
1. Basic Operation
1.1 Switch ON
When the device is in the OFF mode, press and hold "Power" key
for 3 seconds to enter the Android startup progress bar, then you
can enter to the system desktop.
1.2 Unlock the screen
Please press and drag thefl icon to the[, then the LCD will unl-
ocked automatically.
1.3 Lock the screen
When the device is in the ON mode, press the "POWER'key short-
ly, the system will lock the screen and enter the save power mode.
Then the screen is OFF but the system will still operation.
1. 4 Switch OFF
When the device is in the ON mode, press and hold the "POWER'
key for 3 seconds, the screen will display the power off interface,
choose the power off item to confirm, the system will shut automat-
ically.
1.5 Restart the device
Press the 'RESET' key shortly to restart the M I D device.
1.6 Battery charging
I nsert the micro port of the battery adaptor into 220V AC slot on the
device, and connect the other side with the power socket. Then,yo-
u can charge the device.
[Note] This device is not recommended to use USB interface to ch-
arge, please must use the special poweradapterforcharging.Yo-
u should charge the batteryforat leastS-12 hours to make sure
the battery is fully charged at the first time. On charge the Power
indicatinq lamp of ttp device is in high Iight blue color, the desktop
icon of th-e batiery! keep rolling wtiichinows it isit is connected
to the device.
1.7 Switch input methods
The device support handwriting, number, letter, pinyin etc.
switching follow:
CIick any text input area of the working program interface, it will
popping input keyboard interface, as shown below:
PressE, then itwill popping "lnput Method" switch
interface.Select the input method you want here.
[Noted] After newly rnstall input method, you should
"Settings>Language & input>KEYBOARD & INPUT METHODS",
then you can use.
1.8 Use T-Flash card
. lnsertT-FLASH card
lnsert the T-Flash card into the slot in direction of the device's
bottom shell until you hear a sound of click.
. Browse files in the memory card
ln this MID device , you can view and use the needed files in
catologue of "MENU">"File manager"> "SD Card".
. Remove T-Flash card
Close allopen files from the T-Flash, then enter into "MENU">"SE-
TTINGS">"TF card and & device storage", click "Unmount SD card"
,System will prompt that TF card was removed safely. Tap with your
fingertips to the pop-up T-Flash Card
lNotel
1 . Do not insert the T-FLASH card by force, this card can only be
applied in one direction.
2. Do not remove the TF card before Unmounted it, or the card may
be damaged-
3. lf the memory card is write-protected, data will not be formatted
and written, please remove the write protection before such opera-
tions

-4. Major brands memory card is recommended to avoid the card is
not compatible to this device.
1.9 Connected to the computer
One end of the USB line connect to the computer, the other end
connect the MID device, select "Settings>Developer options>USB
debugging", the device will connect with computer, and you can
copy files to the device.
L10 Browse the file in the device
Click " Files Manager" fl , You ian see the fites in the device
1. 11 Startup programs
Click all the application icon you want to start and it can switch on.
1. 12 Close programs
Press the icon !continuously or the "ESC" key, the device will clo-
se the active program. You can also use the corresponding functio-
n in the management currently running applications to close the
program.
1. 13 Screen operation
. Zoom in and zoom out: ln applications which supportzoom
gestures, such as photo , lE browser, mail and map elc. you can
zoom in or out the screen contents by opening or closing your two
fi ngers.
o Rolling: ln applications which support rolling gestures, such as
photo , lE browser, mail and map etc. you can scroll the screen
contents by sliding yourfingers on the screen. lfyou want to stop
the rolling screen, you just need to touch it-
1. 14 Home screen
. Switch home screen
ln the home state, you can change the home interface by sliding
your fingers on the screen quickly.
. Custom Home Screen
Press the blank area on the home screen interface for a few secon-
ds, it will appear "Choose wallpaper from" menu, then you can set
the home screen.
o Move application icons in screen
Press the icons of applications you need to move for several seco-
nds, it will enter into the moving model (the icon of application will
be turn big), then drag the icon to desired positlon directly.
j
I
)

. Move application icons screen to screen
Press the icons of applications you need to move for several seco-
nds, and you can drag the icon to the left side or right side.
o Delete applications
Press the icon of application you need to remove for several seco-
nds, drag the icon 16 "x" (when the icon was turn big, the bottom of
screen will appear "x", then you can delete the application.
1. 15 Screen gestures
. Click
When you need to input by the on-screen keyboard, you just need
to select applications or press the button on the screen, then click
the items.
. Press
When you want to start the available options of a project(such as
web page link), you only need to press the project.
. Slide
Sliding on the interface with your fingers to make vertical or horizo
ntal dragging action.
o Drag
Before you start dragging, you must press the items with your fing-
ers, and can not let fingers leave the screen before dragging to the
desired position.
. Rotation
Changing the screen orientation by rotating the device laterally.
1.16 Security setting
You can set the unlock pattern, each time you open or wake your
MID device, you must draw pattern to unlock the screen. ln
"Settings > Security > Screen lock", it support many unlock ways
lf use the "pattern", as below:
1. You must ensure the four-point connection when you draw the
unlock pattern.
2. Click "Continue" and draw again to confirm it
3. Cilck "confirm" to complete unlock pattern designing.
4. Each time you open or waking your MID device, you must draw
pattern to unlock the screen.
1. 17 Display setting
Click "Settings > Display", you can set the brightness/ wallpaper/
Auto rotate screen/ sleep/ font size of the screen.

\-

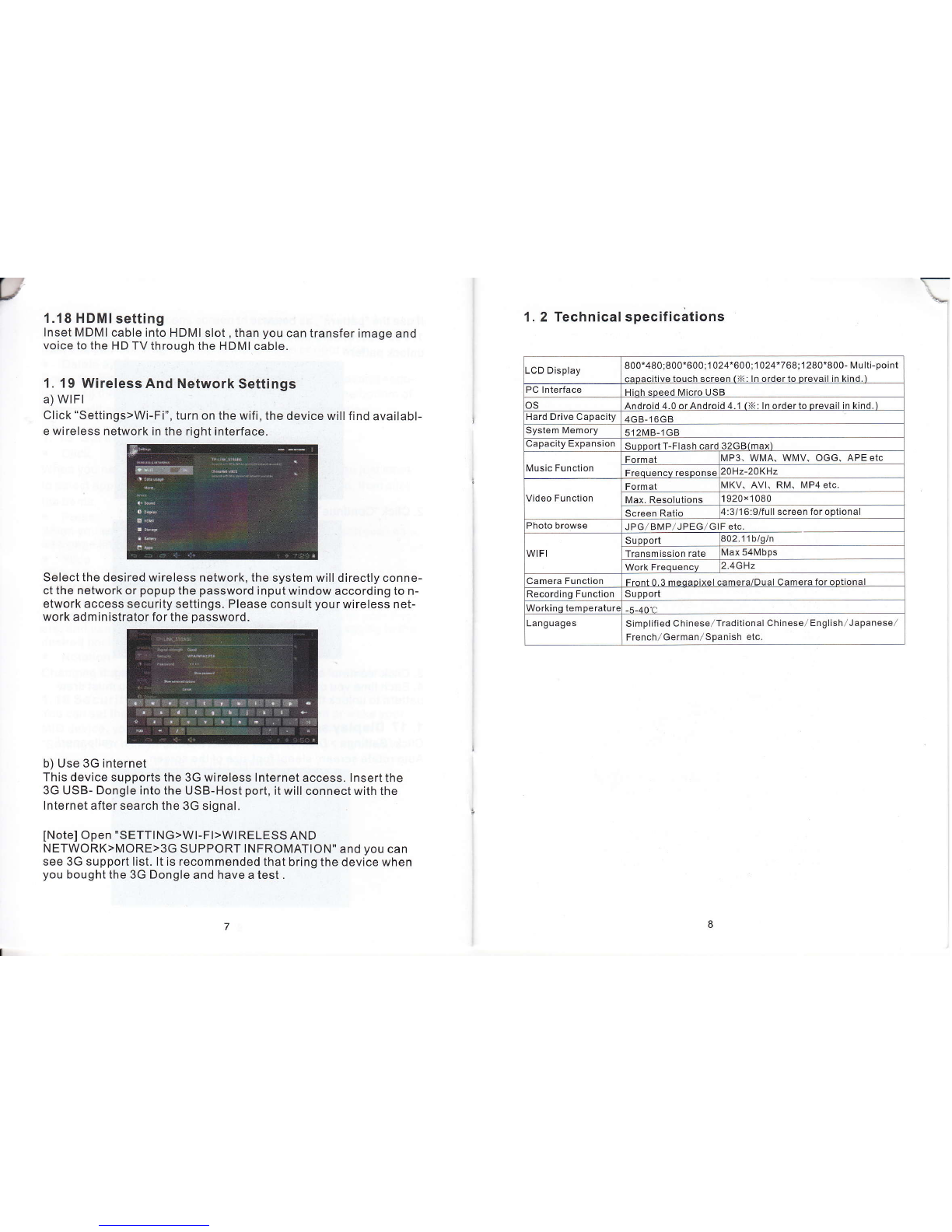

l.lSHDMlsetting
lnset MDMI cable into HDMI slot , than you can transfer image and
voice to the HD TV through the HDMI cable.
1. 19 Wireless And Network Settings
a) WlFl
Click "Settings>Wi-Fi", turn on the wifi, the device willfind availabl-
e wireless network in the right interface.
Select the desired wireless network, the system will directly conne-
ct the network or popup the password input window according to n-
etwork access security settings" Please consult your wireless net-
work administrator for the password.
b) Use 3G internet
This device supports the 3G wireless lnternet access. lnsert the
3G USB- Dongle into the USB-Host port, it will connect with the
lnternet after search the 3G signal.
lNotel Open "SETTlNG>Wl-Fl>WIRELESS AND
NETWORK>MORE>3c SUPPORT INFROMATION" and you can
see 3G support list. lt is recommended that bring the device when
you bought the 3G Dongle and have a test .
1. 2 Technical specifications
CD Display 800"480;800.600; 1 024- 600 t1 024. 7 68:1 280.800- Multi-poini
.,ha.ifivc tnrnh s.rpcn rN ln ordcrtn nrevril in kind \
rC lnterface Android4 oorAndroi.i4 1 /X: lnordertoorevailinkind )
Hard Drive Caoacitv 4GR-16G8
System Memory 51 2MB-1 GB
";apacrty Expansron Srrnoort T-Flash card 32GBfmax)
lvlusic Function F!/P3, WMA. WMV, OGG, APEetc
Freouencv resoonst loqz-2OKHz
y'ideo Function \rKV, AVl, RM, MP4etc.
Max. Resolutions 1920x1080
Screen Ratio l:3/1 6:g/full screen for optional
,hoto browse JPG/BMP/JPEG/GlF etc
A/lFt s,,nnnrt 802.1'1b/q/n Transmission rate /ax 54Mbps
4GHz
lamera Function
lecordinq Function SuDport
a ng uages Simplified Chinese/Traditional Chinese/English/Japanese/
French/German/Spanish etc.
