Chungho Iguassu ICE 500 User manual

✽Read instruction manual thoroughly before using product.
✽Product appearance, specification, etc. is subject to change without
prior notice for enhancing its performance.
✽Design and color may differ from cover model.
User's Manual
ChungHo Nais Hot and Cold Water
Purifier with Ice

2
GGrreeeettiinnggss
TTaabblleeooffCCoonntteennttss
We greatly appreciate your purchase of the ChungHo Nais Hot, Cold and Ice
Purification System, IGUASSU ICE 500.
IGUASSU ICE 500 is a superior water cooler producing clean, pure ice and water
through the combination of our water purifier with an integrated ice maker.
Enjoy ice and water produced by ChungHo Nais Hot, Cold and Ice Purification System,
the IGUASSU ICE 500.
IGUASSU ICE 500 is designed and manufactured according to standard specification,
and is produced with a 95% quality assurance on all integrated components. The sys-
tem is tested thoroughly under strict quality guidelines including temperature, mois-
ture, shock, dust, vibration, etc.
We are sure that IGUASSU ICE 500's subjection to these various production processes
will provide the utmost customer satisfaction in both quality and excellence.
Before installing or using this product, by all means read this instruction man-
ual in detail and after doing so, please save it for future reference.
1. Product Features 3~4
2. Safety Precautions 5~7
3. System Component Identification 8
4. Installation Precautions 9~10
5. Installation Method 11
6. Usage 12~18
6-1. Display and System Function Settings 12
6-2. Operation and Water Dispensing Selection 12
6-3. Customer Warning Sensor 13
6-4. Function Settings and Releasing Methods 13~14
6-5. Ice and Water Dispensing Method 15
6-6. Draining the System for Relocation/Installation 15
6-7. Understanding the Ice Making Process and Operation 16
7. Cautions during Use 17
8. Filters and Replacement 18
9. Product Specifications 19
10. Flow Diagram and Power consumption 20
11. Wait a minute! Check this before requesting A/S. 21~22
12. Memo 23

3
11..PPrroodduuccttFFeeaattuurreess
1
2
3
4
5
6
7
8
9
10
Water Purification System Providing an Integrated Ice Making Function
Iguassu Ice 500 is an innovative hybrid of a reverse osmosis water purification system and an ice-maker
which is utilizing the freezing point method. It is designed not only for a user convenience, but also for a
system efficiency which is intended to obtain cold water as a result of making ice.
(Patent application: No.2005-99663, 2005-365293, 200510127096.9, 11/342,117)
24 Hour Natural Water Circulation System (N.W.P.W.)
This function of ChungHo purification systems is designed to allow water to continuously flow for 24
hours within the water purifier by adopting a natural circulation method. This mode, entitle N.W.P.W.
applies the natural weight of water pressure in order to supply clean and fresh water at all times.
(Patent: No.105585)
Pure Ice Production Utilizing the Freezing Point Method
The Freezing Point Method produces only the purest ice by supplying purified water to the ice making
unit. The freezing point principle states that the purest water freezes at 32OF(0OC)while non-pure water
will freeze at a temperature below that.
Energy Saving Function
IGUASSU ICE 500 delivers purified water to the ice making unit in order to make pure ice while simultane-
ously sending cold water to cold water tank. This allows the system to maintain a constant cold water
temperature, thus inherently preventing water waste and helping to conserve energy.
Automatic Ice Dispenser
An integrated motor of IGUASSU ICE 500 enables users to easily dispense ice by pressing the ice dispenser
touch sensor button.
Touch Sensor Application
Unlike traditional button applications, IGUASSU ICE 500 has a built-in touch sensor buttons.
The easy-to-use sensor application is designed for effortless and enjoyable drinking water with ice.
Infrared Water Level Detection Sensor
With improved detection accuracy, as compared to existing mechanical detection types, the Infrared OLC
Sensor applies an electronic water level sensor that was developed for stable water level detection. The
signal is connected to a controller in order to automatically adjust purified water levels.
(Patent: No.426182)
Lock Function (Ice Cube / Hot Water Locking Function + Hot Water Automatic Selection /
Release Function)
Setting the Ice Cube / Hot water locking function using Lock / Hot touch sensor button prevents Ice
Cube and Hot Water from being dispensed from the unit.
Continuous Water Dispenser Function
This function enables users to dispense water continuously by setting CONST ON/OFF button. This is
very convenient for users to dispense ambient or cold water without having to press and hold the water
dispensing button. (This function is not available for hot water.)
Product Inspection through USB Port
This product is equipped with a USB port in the front of the unit to connect a diagnostic testing device to
obtain accurate reading of malfunction and active state of operation to troubleshoot problems.

4
11..PPrroodduuccttFFeeaattuurreess
11
12
13
14
15
16
17
18
19
20
21
System Display Functions and Safety Reinforcement
The safety features of the product have been enhanced in order to prevent various problems from occurring.
The system will inform the user(s) of abnormal occurrences through a flashing display LED and by automati-
cally stopping the ice making function, cold water function, and water purification function when an abnor-
mality in the system is detected.
Power Saving Function
Selecting the power saving function during hot water operation activates the light detection sensor which
functions in accordance with the levels of light around the water purifier. Activating the power saving func-
tion greatly reduces power consumption at night.
Automatic Water Dispensing
The system enables users to obtain ambient, cold, hot water and ice. Another new development, in IGUASSU
ICE 500, is the automatic selection of cold water. Since cold water has the most frequent usage, cold water
is selected by the system default. In addition, IGUASSU ICE 500 has reset function that the system is auto-
matically returned to cold water mode shortly after using either hot or ambient water.
Separate Water Delivery from a Single Spout
Ambient water, cold water, and hot water come out from a single spout, but independent water hoses are
applied so that ambient water, cold water, and hot water are not mixed, improving overall satisfaction in
preferred temperature from the first drink.
Beep Function
This provides customers a convenient reminder that a system setting has been changed as sounded via beep-
ing (ding~, dingdong~, etc.) and as applied via system touch sensors.
Noise Prevention
This reduces system operating noise by applying a dual noise prevention material, utilizing a shock mitigation
structure found at ice storage house, etc.
Wire Condenser(Natural Convection)
Using natural convection, the system wire condensers are rated to reduce noise and thus provide further
convenience for the user.
Convenience in Use
Function operations are designed as simple as possible in order to maximize convenience.
Beautiful Design
IGUASSU ICE 500 truly displays sophistication and beauty. This harmonizing design and newly refined look
can create a modern look for any location.
Adoption of New Coolant
IGUASSU ICE 500 has adopted an eco friendly cooling system in the new R-134a, a coolant that will not add
to the problems of ozone layer destruction and global warming.
USB Device Charge Function
USB port can be used to charge electronic devices such as mobile phones, PDAs, MP3 players, digital cameras,
and other devices that have 5V USB connections.
●Must be USB compatible. May require other connection adaptors.
●Please check with your electronic manufacturer before connecting any electronic device to USB Port. May
cause damage to your electronic device if not used properly and/or connected to an electronic device
that is not compatible.
●Any charges must not be exceeded 30 minutes.

5
22..SSaaffeettyyPPrreeccaauuttiioonnss
●When the power cord has been damaged, exchange
the power cord in order to prevent danger such as
electric shock, etc.
(Do not use damaged or loose wall outlets. Electric
shock or fire may occur.)
●Do not touch the power plug with wet hands.
(Electric shock may occur.)
●Do not use multiple electrical
appliances in one power out-
let simultaneously.
(This can cause a fire due to
over heating in wall
outlet.)
●Insert the power plug in a sta-
ble position in order to avoid
swinging.
(Unstable connection may
cause fire.)
●Do not bend the power cord
excessively or put heavy
objects over the power cord.
(There is danger of electric
shock or fire.)
●If the product is damaged or
malfunctioning, do not disas-
semble, repair, or remodel it
on your own.
●Do not put candles, lit ciga-
rettes, etc. on the product.
●Do not install the product
near a heating appliance.
(There is danger of fire.)
●Do not put a bowl containing
water, chemicals, small metals,
etc. on the product.
(If these materials enter the
inside of product, there is
danger of electric shock or
fire.)
Associated with the possibility for serious injury or death.
Warning
Cautions are divided into 2 categories: ''WWaarrnniinnggss''and ''PPrreeccaauuttiioonnss..''

6
22..SSaaffeettyyPPrreeccaauuttiioonnss
●To avoid burns from hot
water, always use containers
such as a cup during hot
water dispensing.
●Before cleaning the inside of
product, always unplug the
power plug.
(There is danger of electric
shock or fire.)
●When dispensing ice, place a
container close to the ice dis-
pensing hole, touch the ICE
touch sensor button, and
attempt to keep ice from being
scattered on the floor.
(Take care in order not to
allow containers such as cups,
etc. to be inserted into the
inside of ice dispensing hole.)
●Do not put foreign materials
into the ice dispensing hole or
block the dispensing hole.
(This can cause system
malfunction.)
●After transporting the product,
do not supply the power for
at least 30 minutes to stabilize
the product.
●Do not attempt to operate the
product if installed at over a
15°incline.
(This can be the cause of
malfunction or unwanted
troubles.)
●Do not tilt the product over
45°during transportation.
(Severe inclination can
cause reduced performance.)
●Do not install the product in a
sloped or unstable position.
(This can cause reduced perfor-
mance, system damaging, or
overall troubles.)
●Do not install the product in a
place where the surrounding
temperature may drop below
32OF.(0OC)
Use in order to avoid injury, property damage, and reduced product performance.
Caution

7
22..SSaaffeettyyPPrreeccaauuttiioonnss
●Do not remove the power
cord by pulling it out of the
wall. Always remove it by
grasping the power plug.
(Damage to the power cord
can cause danger of electric
shock or fire.)
●This product is for AC
110V/60Hz, 220V/50Hz,
240V/50Hz, and 220V/60Hz
only. After installation, arrange
the power cord so that it will
not be stepped on or stepped
over.
●If there is dust, water or etc
on the power plug, wipe it off
well.
(There is danger of electric
shock or fire.)
●Do not put any covering on
the rear and side of the prod-
uct. Blocking ventilation holes
may raise inside temperatures
and cause system malfunction
or even system stoppage.
●Fix hoses so that the brine water or the water discharged from the drainage hose may not splash into
surrounding areas.
●Do not install the product in
or around largely damp areas,
at a place near flammable
materials, or at a place
exposed to rain or snow.
(There is danger of electric
shock or fire.)
󱅁 Symptoms under normal operations 󱅁
1. During use of product, a murmuring water-flow sound, a rattling ice dropping sound, etc.
may occur during cold water production process or ice production process.
2. Opaque ice may occasionally be dispensed, but there is no abnormality in product perfor-
mance or ice quality.
3. TDSs (Total Dissolved Solids) found in ambient water, cold water, and ice may vary from one
another. (This is a result of the freezing point method.)
4. After the system power source is interrupted and then again restarted, irregular ice cube sizes
may temporarily occur.

8

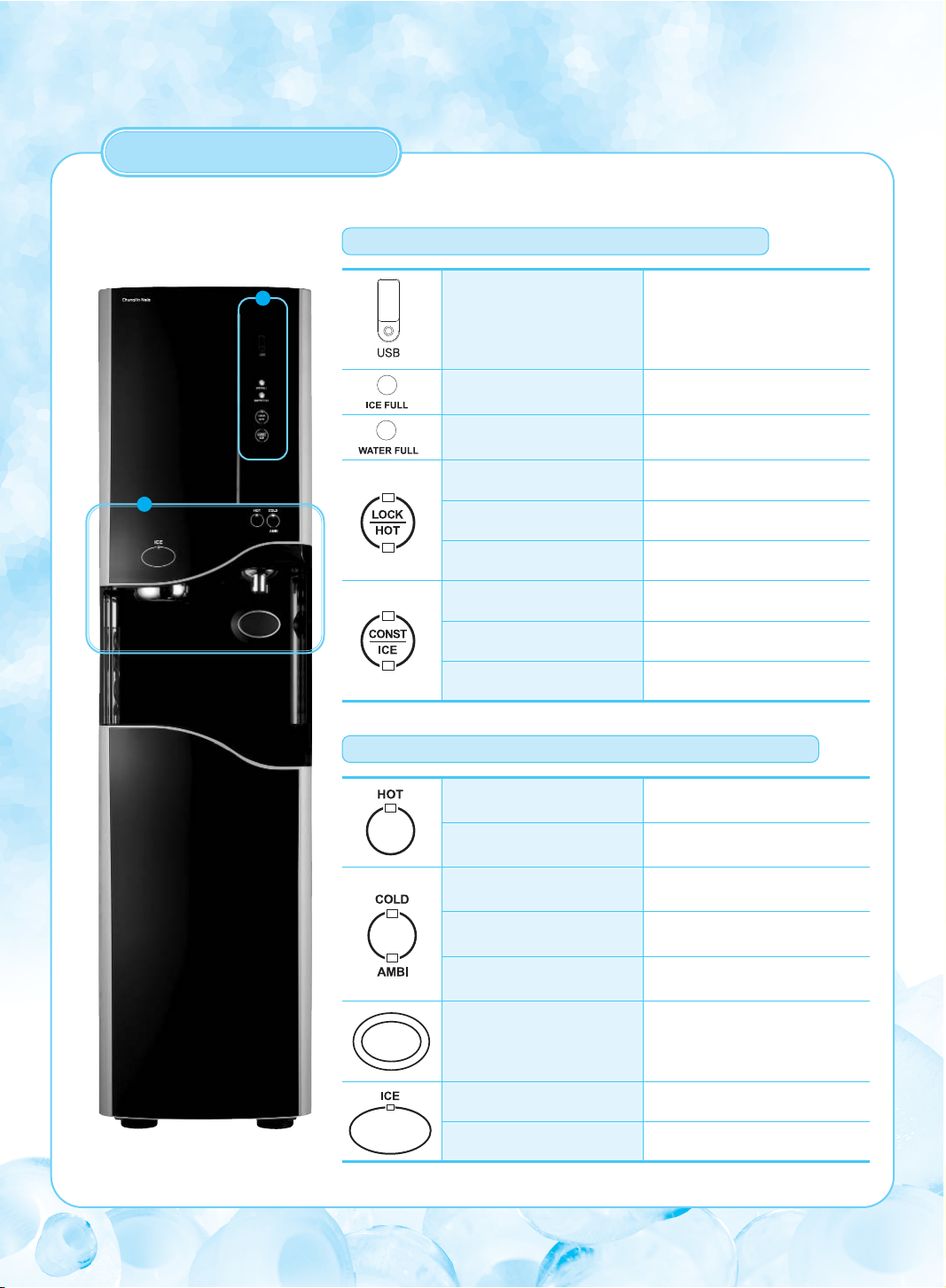

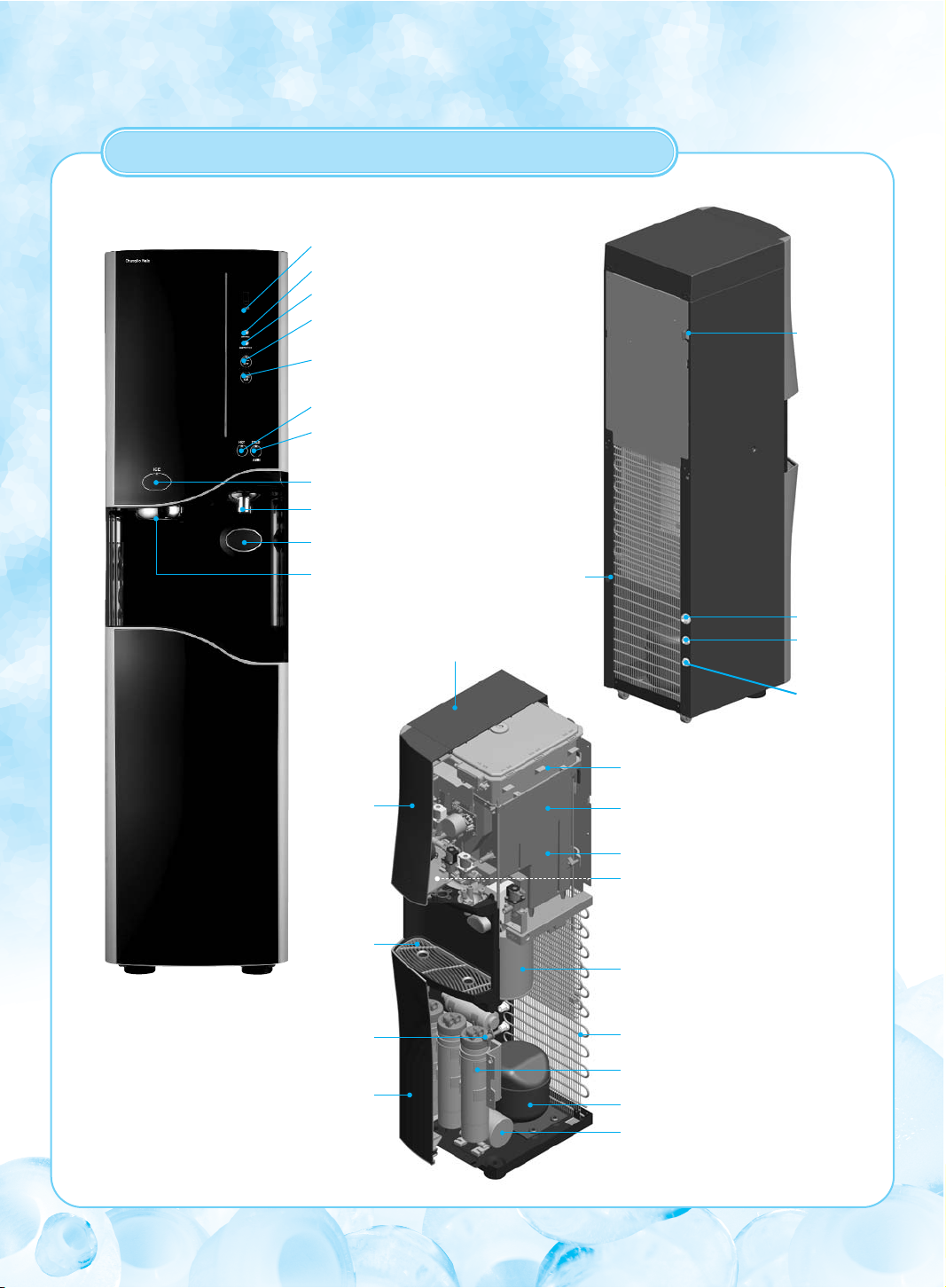

33..SSyysstteemmCCoommppoonneennttIIddeennttiiffiiccaattiioonn
Drainage
Power cord
Ice dispensing touch sensor button
Full ice display
Full water display
USB Port
Hot water dispensing touch button
Cold water/
Ambient water dispensing touch sensor button
Water dispensing button
Ice dispensing hole
Water dispensing spout
Drain switch
Removed
water
(brine)
Source
water
Top Cover
Upper cover Ice making unit
Waterspout
Lower cover
Flushing Valve Wire condenser
Compressor
Water purification filters
Pressurizing pump
Ambient water tank
Cold water tank
Ice storage house
Hot water tank
Continuous water dispensing function /
Ice-making function touch Button
Water Lock Hot water operation touch sensor
button

9
44..IInnssttaallllaattiioonnPPrreeccaauuttiioonnss
Do not install the product at the following places.
•Near fire •Near flammable material •Wet place
•A place exposed to rain and snow •A place exposed to direct sunlight
•Near chemicals(volatile material, organic solvent, etc.) •Dark place
•A place below 32OF(0OC) or a place with the possibility of dropping below 32OF(0OC).
※When the product is installed in a dark place while the power saving function is
selected, hot water may not operate even during daytime due to lack of light.
(Please install it in a brighter location.)
1
When transporting the product, do not tilt it over 45°.
※Severe tilting can cause reduced performance.
2
Install the product at a place where the surface is flat, and after installation,
always adjust the level of the product using a level gauge.
※Tilting of the product can reduce water purification performance and ice making
capability.
3
Leave approximately 8 in(20cm). between the wall, sides and rear surfaces of the prod-
uct so that ventilation may be smoothly performed for safe operation.
※This can be cause reduced performance.
4
Do not install any heat radiating products near rear of the product.
5
Use the following water quality range.
•Water pressure : 7~120psi(0.5~8.4kgf/cm2)•Water temperature : 39~100
OF
(4~38
OC
)
•pH : 5~10 •Hardness : 300ppm or less •Evaporated remains : 500ppm or less
•Water quality : Biologically safe water quality
※When using another water quality than the above, discuss with our company.
※If you do not use water quality within the above range without prior discussion
with our company, the product can be excluded from the stated warranty period.
6
Do not connect hot water over 100
OF
(38
OC
) to this product.
※This can be the cause of trouble and decline in ice making performance.
7

10
44..IInnssttaallllaattiioonnPPrreeccaauuttiioonnss
Raising the brine water and drained water over 1 ft(30cm). above the installation
surface, or connecting them over 9.84 ft(3M). away from the water purifier can
hinder a smooth drainage process. In order to install the product in a location
where the brine water and drained water line are located a distance of over 9.84
ft(3M). from each, the user needs to install a separate drainage pump.
10
A bad wall outlet or plug may cause an electric shock or fire, so please do not use
them.
11
When installing another product(water purifier, dish washer, etc.) at the same
location with the same water source, prepare an independent drain line for each
product.
12
Adjust the hose so that the water discharged from the drainage hose may not
splash into the product's surroundings.
※Brine water, or the water coming out through drainage lines, can easily be used
towards other water related needs, such as in bathroom cleaning, house cleaning,
laundering, washing, etc. in order to prevent waste of water.
However, never use the brine water for drinking or cooking.
9
Drain the product by first removing the bottom front cover of the product and then draining both hot and cold
residual tanks completely. This is done by opening the drainage valves located in the middle of the product. Then
drain the remaining cold water completely by pressing the water dispenser button with the product tilted forward.
Then draw all the ice out by touching the ICE(ice dispenser) touch sensor button. When transporting the product in
an inclined position, try to tilt the product backwards at all times.
※When moving the product in an inclined position with water not completely drained, the water inside the tank
may come out while moving the product. This may damage the product and surroundings.
Precautions during a Transfer Installation
When connecting tubing hose, ensure that the tubing hose is not be bent
or pressed down by heavy objects, etc.
※If tubing hose is blocked, water does not flow smoothly and can cause problems.
8

11
55..IInnssttaallllaattiioonnMMeetthhoodd
Connect tubing hoses into the removed water(brine) and drained water connec-
tion part on the rear side of product and then connect tubing hose into the
drainage hole in sink, bathroom, or etc.
※Install the removed water(brine) line and drained water line separately.
If drainage does not function properly due to improper installation, then water
may flow back toward waterspout and cause an overflow.
4
Adjust the tubing hose so that the discharged water(brine) and tap water
discharged from the drainage hose may not splash into surrounding areas.
5
Open the tap water valve supplied into each household, and place the water
source adaptor to the open position.
6
For stabilization of the cooling system and for safe use of the product, insert the
power plug into an AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz
power outlet after 30 minutes since the product has installed.
※This product is for AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz only.
8
Check whether water is supplied into the inside of product and whether there is
any leakage in or around the tubing connections.
9
Check to see if water is leaking at any connection part.
7
Use after water has flowed into the storage tanks.
10
Install the product on a level surface. (Product level can be changed by adjusting
the legs on the bottom of the product. Please confirm that the product is level.)
1
Close off the water supply valve as supplied to each household. Then temporari-
ly remove the connector part as provided from your given water source.
Then connect the main water line adaptor.
※If the sealing O-ring at the connection piece is removed or damaged, it can
lead to leakage.
2
Connect a tubing hose into water source adaptor and then attach to the water
inlet on the rear side of product.
3
●Our company's technician will perform the installation. You, as the customer should check if the
product was properly installed.

12
66..UUssaaggee
6-1. Display and System Function Settings(A)
6-2. Operation and Water Dispensing Selection(B)
USB port
ICE FULL
WATER FULL
LOCK/HOT
HOT water operation LED
HOT Water Lock LED
USB connection can be used to
connect diagnostic testing device
or to charge USB compatible
electronic devices. (Note: Do not
charge more than 30 minutes.)
Lights up when ice storage is full.
(Yellow green)
Lights up when ambient water tank
is full. (Yellow green)
Used when setting/releasing the
hot water & lock function.
Lights up when setting hot water
operation. (Red)
CONST./ICE
Continuous water LED
Used when setting/releasing the
continuous water dispensing & Ice-making.
Lights up when setting the continuous
water dispensing function. (Red)
ICE LED Lights up when setting Ice-making
function. (Red)
Lights up when setting the hot
water locking function. (Red)
HOT
(Hot water selection)
HOT LED
(Hot water selection LED)
COLD/AMBI
COLD LED
(Cold water selection LED )
Used to dispense hot water.
Displays that hot water dispense
is set. (Red)
Used to dispense cold/ambient
water.
Displays that cold water dispense is set. (Blue)
※When no water is in cold water tank, cold water
dispense selection LED is not turned on
AMBI LED
(Ambient water selection LED)
Water Dispensing Button
ICE
(Ice dispenser)
ICE LED
(Ice dispense LED)
Displays that ambient water
dispense is set. (Yellow Green)
Used to dispense water after selecting the
desired water temperature among ambi-
ent water, cold water, and hot water.
Used to dispense ice.
Lights up when dispensing ice. (Red)
A
B

13
66..UUssaaggee
Division
6-3. Customer Warning Sensor
BEEP Remarks/occurrence
※A beep sound following operation of the IGUASSU ICE 500
6-4. Function Settings and Releasing Methods
(1) Lock Function ( Ice / Hot water locking function) Setting
①Touch LOCK/HOT Touch Button softly for over 3 seconds.
②Lock lamp (Red) is turned on and the lock function is set.
(setting sound : Ding~ding~ding~)
③A hot water operation,
hot water dispensing selection and the ice dispensing
function do not work
after the lock function is set.
※LOCK function helps to prevent spout of ice cube and burns by
hot water.
(2) Lock Function Releasing
①Touch LOCK/HOT Touch Button softly for over 3 seconds.
②Lock lamp (Red) is turned off and the lock function is released.
(releasing sound : Ding~ding~ding~)
③
A hot water operation, hot water dispensing selection and the ice function work when the
setting of Lock Function is released.
(3) Ice-making function setting
①Touch CONST button for over 10 seconds.
※As pressing the button, continuous water dispenser function is automatically set after
2seconds and Ice making function setting operates in 10 seconds. Continuous water
dispenser function automatically is released after 5 seconds.
②ICE LED (Red) is turned on as the ice making function is set. (Setting sound: Ding~ding~ding~)
A
Ding dong dang~
Ding~
Ding~ding~ding~
Ding~
Dong~
Ding dong~
Ding dong~Ding dong~
Ding~ding~ding~ding~
Ding~ding~ding~ding~ding~
one time
one time
one time
one time
one time
one time
one time
One second interval
one time
11
2
3
4
5
6
7
8
9
Power ON
Touch Button
Lock setting ON/OFF, Ice making setting ON/OFF
Water Dispensing Start
Water Dispensing Ending
Con. Water Dispensing Start
Con. Water Dispensing Ending
Drain/Water level Sensor Error
Beep sound Setting/Releasing

14
66..UUssaaggee
(4) Ice Making function release
①Touch CONST button for over 10 seconds.
②Ice Lamp (Red) is turned off and the ice making function is released
(Setting sound: Ding~ding~ding~)
※When it is released, remained ice is dispensed until the ice storage house is being
emptied. But ice-making function is disabled.
※As pressing the button, continuous water dispenser function is automatically set after
2 seconds and a setting of Ice making function is released over 10 seconds.
Continuous water dispenser function automatically is released after 5 seconds.
(5) Hot water operation setting
If hot water operation display LED (Red) is turned off, hot water system operates by
touching LOCK/HOT button and Hot (hot water selection) button simultaneously for
over 2 seconds.
※Hot water system is operated by a detection sensor, which automatically detects the
temperature inside of the hot water tank.
(6) Hot water operation release
If the hot water operation display LED is turned on, then the hot water system stops by
touching LOCK/HOT button and Hot (hot water selection) button simultaneously
for over 2 seconds.
※Hot water operation/release function operates when LOCK function is enabled.
(7) Continuous water dispenser function
①This function is for dispensing ambient/cold water continuously. Touch CONST/ICE
button for 2 seconds, then LED (Red) is turned on. (When the function is set, ambient
water is selected by default.)
②Touch COLD/AMBI button and press Water dispenser button, then continuous water
dispenser function is set as sounding "Ding-dong"(While dispensing water continuously,
Water dispenser Button LED is turned off.)
※
If continuous water dispensing is undone for 10 seconds, the function is automatically released.
※Continuous hot water dispenser is unattainable.
(8) Continuous water dispenser function release
While dispensing ambient/cold water continuously, the function is released by touching
either COLD (cold water selection) or AMBI (ambient water selection) as sounding
"Ding-Dong" (As continuous water dispenser function releases, LED is turned off.)
(9) Disabling Beep Sound
①Press CONST/ICE and HOT (hot water selection) buttons at the same time over
3seconds.
②
When it is released HOT/LOCK and CONST/ICE LED are blinking 5 times by one second
interval with keep sound " Ding~ding~ding~ding~ding~"
(10) Enabling Beep Sound
①While the beep sound function is disabled, press CONT/ICE and HOT (hot water selec-
tion) buttons at the same time over 3seconds.
②When it is reset HOT/LOCK and CONST/ICE LED
are blinking 5 times by one second
interval
with keep sound " Ding~ding~ding~ding~ding~"

15
66..UUssaaggee
① Turn on the drain switch located on the back of the product. Power must be
on for this function to operate.
(Note: When drain switch is turned ON, water
purification and ice making are disabled.)
②Dispense all ice by pressing the Ice dispensing button.
③Remove the Lower panel by pressing down and pulling the cover outward.
(Note: May need to remove two screws on the bottom of the Lower
Cover.)
④Unscrew both valves (cold and hot/ambient). (See diagram to the right)
⑤After dispensing all water and ice from the product, make sure that all
valves are closed and the Lower panel replaced.
※
During transport, if the product needs to be tilted, make sure that the product
is tilted backwards, no more than 45 degrees.
6-6. Draining the System for Relocation/Installation
(1) Ice Dispensing Mode
If ICE(ice dispense) touch sensor button is pressed, the door of the ice
storage house is opened and ice comes out from the dispensing hole.
(2) Hot Water Dispensing Mode
If HOT(hot water selection) touch sensor button is selected and the
water dispensing button is pressed, hot water comes out.
※Please be careful to avoid burns and use cups during hot water dispensing.
※If hot water operation LED is turned off, hot water is not dispensed,
because the heater does not work.
(3) Cold water Dispensing Mode
If COLD(cold water selection) touch sensor button is selected and water
dispensing button is pressed, cold water comes out.
※After early power ON water full LED is lighted up, cold water dispensing
selection is available.
(4) Ambient Water Dispensing Mode
If AMBI(ambient water selection) touch sensor button is selected and water
dispensing button is pressed, ambient water comes out.
※If hot water or ambient water is selected and it is not used for a given time
period(Ambient : 10 second, Hot water 5 second) the system will automatically
switch into cold water dispense mode. (Default function)
※There is not a separate setting and release method for the use of ambient
water/cold water/ice making operation. They operate automatically as
designated by the program when the power is supplied.
6-5. Ice and Water Dispensing Method
B
It enables to dispense Ice and Hot water when the Lock function is released.
※If Lock function (of Ice and Hot water dispensing) is set, Ice dispensing and Hot water selection touch button
do not function. Please use it after releasing the Lock function.
Flushing Valve

16
66..UUssaaggee
6-7. Understanding the Ice Making Process and Operation
①If power is supplied to the product by inserting the power plug, then ice making automatically operates
without any manual setting.
②If the level of purified water goes above proper operating levels, then all the ice created from the evaporator
will be discharged by deicing action.
③In order to produce cold water, the compressor and circulation pump must operate properly.
(The cold water production process automatically operates according to designated programming.)
•Cold water operation : Water temperature in the cold water tank is automatically checked by the cold
water temperature sensor, and if it drops below the set temperature, then the
cold water operation will automatically stop.
④If cold water production is operating properly, the ice making system will produce the ice according to the
water supply, Ice making, deicing action.
•Water supply action : To supply about .25G(1ℓ) of cold water every 50 seconds into ice making tray in order
to make ice.
•Ice making action : To make ice by supplying cold refrigerant onto the ice tray as it is filled with water.
•Deicing action : To separate the ice which was made in the ice tray by supplying hot
refrigerant onto the tray.
⑤When the ice storage is full, the ice detection sensor will automatically stop the process.
⑥Cold temperature control is applied to prevent ice cubes from melting by periodically sending cold air into ice
storage.
⑦If ice in the storage is not used for long periods of time, it may melt, and during ice dispensing, small ice cubes
can come out.
※TDS(Total Dissolved Solids) of ice may increase according to the environment in which the ice is created.
The ice making system of the IGUASSU ICE automatically operates according to designed program settings
after applying power to the product.
•Even at times ice making function is disabled, dispensing cold water operates as normal.
•The lower the surrounding temperatures, the shorter the ice making process will take and
the higher the surrounding temperatures, the longer the ice making process will do.
•Do not install or use the product in temperatures below 32℉(0℃) or above 104℉(40℃).

17
77..CCaauuttiioonnssdduurriinnggUUssee
(1) This product is for AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz only.
Please connect to the proper power source.
(2) Do not connect multiple eclectic appliances into the same outlet.
(3) Never move the product while in operation. (This can cause unwanted problems.)
(4)
Do not touch the radiator plate on the rear side of product. It is hot while the product is in
operation.
(5) Avoid the use of chemicals around the product (volatile material, inorganic solvent, etc.)
and do not place chemicals near the product.
(6) Do not put away foreign substance into the water gutter. (It can cause reduced perfor-
mance and malfunction of the product if is it clogged.)
(7) Water storage tank can be contaminated with microbe from outside, cleaning
procedure is as below. (Open drain valve →Drain water completely →Open the lid of
storage tank →Brush up with soft cloth)
(8) After cleaning, assemble the parts in a reverse way.
(9) Plug out the power prior to cleaning inside and do not apply the water to the product
directly.
(10) If the product does not respond to the touch sensor buttons, check if the lock function
is set, and if the problem still occurs, broaden the contact area of which the touch sen-
sor button is pressed.
(11)
When dispensing ice, please avoid using a glass cup. (Glass cups can be broken by abrupt
temperature change or as the ice cube strikes the glass.)
(12)
You can always reuse quality ice by placing the ice in a separate storage vessel and storing
it in the refrigerator/freezer.
(13) Even though ice is not dispensed upon pressing the ICE (Ice Dispenser) button, do not
shake or hit the product.
(14) Occasionally, ice will not come out smoothly because it gets stuck in the dispensing
hole. In this case, remove ice in the ice dispensing hole using a finger or a tool.
(15) Occasionally, ice will not come out smoothly because it can be stuck to each other if
you do not use ice for many hours. In such a case, please touch ICE (Ice Dispenser)
button twice or three times for 2~3 seconds.
(16) When the product is no use for long periods of time.
- Pull the power cord out after closing off the water supply.
- Do not touch the power plug with wet hands.
(17)
Do not use wireless tools such as two-way radios within 3.28ft (1m) radius of the product.
(If using the product 3.28ft (1M) close to wireless machinery and tools, may cause
malfunction.)

18
88..FFiilltteerrssaannddRReeppllaacceemmeenntt
Filter kind Exchange time
Sediment filter About 6 months
Pre-carbon filter 12 months
Membrane filter 24 months
Post-carbon filter 18 months
※Filter exchange time is not included within the standard
warranty period. The ideal filter exchange time is based on
the use of 5.28G(20ℓ) per day.
※Exchange time of filters can differ depending on location,
water quality, tap water temperature, quantity of water
used, and seasons(summer, winter).
※
You can only expect to drink clean water by exchanging fil-
ters according to the recommended filter exchange schedule.
8-1. Filter Functions
8-2. Filter Exchange Time
Sediment filter
The Sediment filter removes particles and pollutants that are over 5㎛from the
water. This helps to extend the life of the membrane filter.
Pre-carbon filter
The Pre-Carbon filter, made from high temperature processed carbon, collects
chlorine, THMs and organic chemical contaminant through an absorption process.
This protects the membrane and helps it function properly.
Membrane filter
The Membrane filter removes dissolved pollutants(with a molecular weight over
200, such as heavy metals, bacteria and chemical contaminant) via micro-filtration
through a semi-permeable membrane(0.0001㎛pore.)
Post-carbon filter
The Post-Carbon filter removes dissolved gases and odors to ensure a natural tast-
ing water.

1 9
99..PPrroodduuccttSSppeecciiffiiccaattiioonn
Product name
Model name
Rated voltage
External dimension
Monthly consumed power quantity
Weather class
Rated consumed power
Hot water
Cold water / Ice making
Consumed
power
Ambient water
Hot water/Cold water
Ice
Surrounding temperature
Required time
Daily ice making quantity
(60Hz/50Hz)
Daily maximum ice making
quantity
(60Hz/50Hz)
Ice size
Storage
house
Ice making
capability
(This can
differ
depending
on
surrounding
tempera-
ture.)
IGUASSU ICE 500
CHP-5110S
AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz
295W X 384D X 1170H(mm)
500W(hot water+ice making)
500W
105W
1.58G(6.0ℓ)
.39G/.55G(1.5ℓ/2.1ℓ)
2.6lbs.(1.2kg)
43.5kWh/month
N class(90℉±1℉(32℃±1℃))
10g±1gX12ea/one time ice making
(1ea cold water tank submerging)
WIRE CONDENSER TYPE(natural convection)
THERMISTOR
Bimetal(automatic return)
Bimetal(manual return)
Overheating prevention system,
water level detecting system
Capacitance sensor
R-134a(85g±1g)
78.2 lbs.(35.5kg)
2.5m
IPX1
68℉(20℃)86℉(30℃)
13minutes±1minute/
one time ice making
17minutes±1minute/
one time ice making
17 lbs(8kg)/day(60Hz) 13 lbs(6kg)/day(60Hz)
17 lbs(8kg)/day (60Hz)
(when surrounding temperature is 68℉(20℃)
Heat radiation type
Cold water temperature regulation
Hot water temperature regulation
Overheating prevention system
Safety system
Cold water tank water level adjustment
Refrigerant/Refrigerant weight
Product weight
Power cord
IP class

20
1100..FFlloowwDDiiaaggrraammaannddPPoowweerrCCoonnssuummppttiioonn
10-1. Flow Diagram
※Reference. 1) The above information is tested under a real-using environmental condition.(Standard : A family of four)
-Non-operation Condition: The ice making, cold and hot are stand-by mode.
-Real-using environmental condition(1 person 3 meals per day)
: Iced water Cold water(150cc) + Ice cube 8pcs(100g) 3 times, Coffee & Tea Hot water(150cc) 2 times
2) Deviation (±10%) may occur.
10-2. Power Consumption
Setting
ICE : ON
Ice making/Cold/Hot
43.5 kWh/month
Ice making/Cold
24.5 kWh/month
Cold/Hot
33.5 kWh/month
Cold
14.5 kWh/month
Operation Power Consumption/
month(±10%)
ICE : OFF
