Chungho Iguassu Tiny 900 User manual

Rev,No.00
2F. KOMOS B/D, 10, DODANG-DONG, WONMI-GU, BUCHEON-SI,GYEONGGI-DO, KOREA (P.O.BOX: 420-800)
TEL: [phone] / FAX: [phone] / E-MAIL: [email protected] / http://eng.chungho.co.kr

CHP - 5321D
▶Design and color may differ from the picture.
▶Unit appearance, specification, etc. are subject to change without
prior notice if necessary for improving unit performance.
▶The rated voltage of this unit is AC 230V/50Hz only.
http://eng.chungho.co.kr
User's Manual

We greatly appreciate your purchase of the ice-making water purifier, "IGUASSU TINY 900”.
IGUASSU TINY 900 is combined by water purifier and ice making machine.
The unit is manufactured according to standard specification, and produced with a reliability test on
all integrated components. The system is tested thoroughly on strict quality guidelines including
temperature, moisture, shock, dust, vibration, drop, etc. We are sure that these various production
processes will provide the utmost customer satisfaction in both quality and excellence.
Before installing or using the unit, read this user's manual thoroughly and keep it for your future reference.
Greetings
Table of Contents
1. Unit features 3 ~ 4
2. Safety precautions 5 ~ 7
3. Installation cautions 8
4. Installation method 9
5. Usage 10 ~ 16
5-1. Display and function setting 10
5-2. Function setting and releasing 11 ~ 12

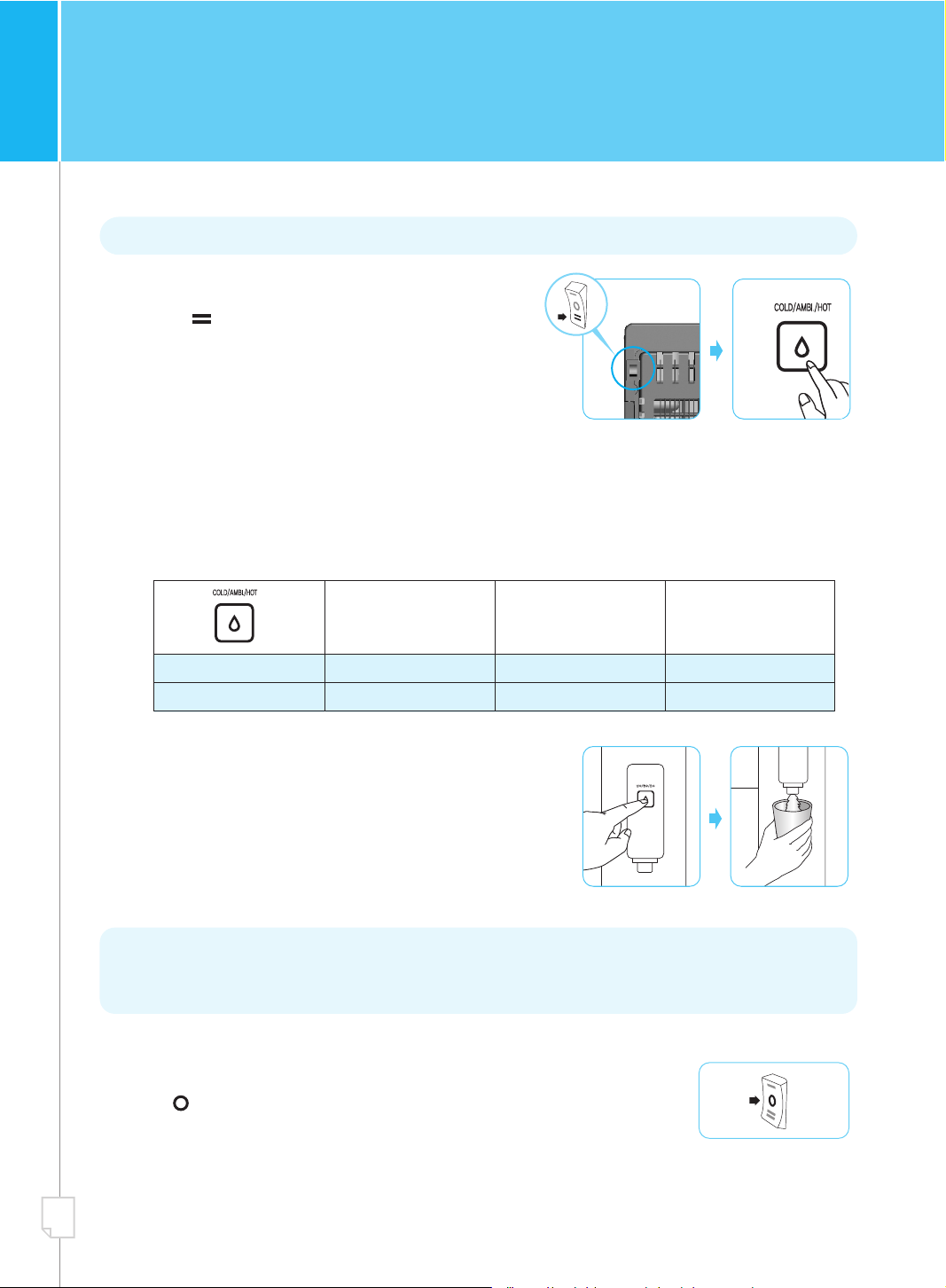

5-3. Ice and water dispensing method 13 ~ 14
5-4. ACS smart cleaning function 15

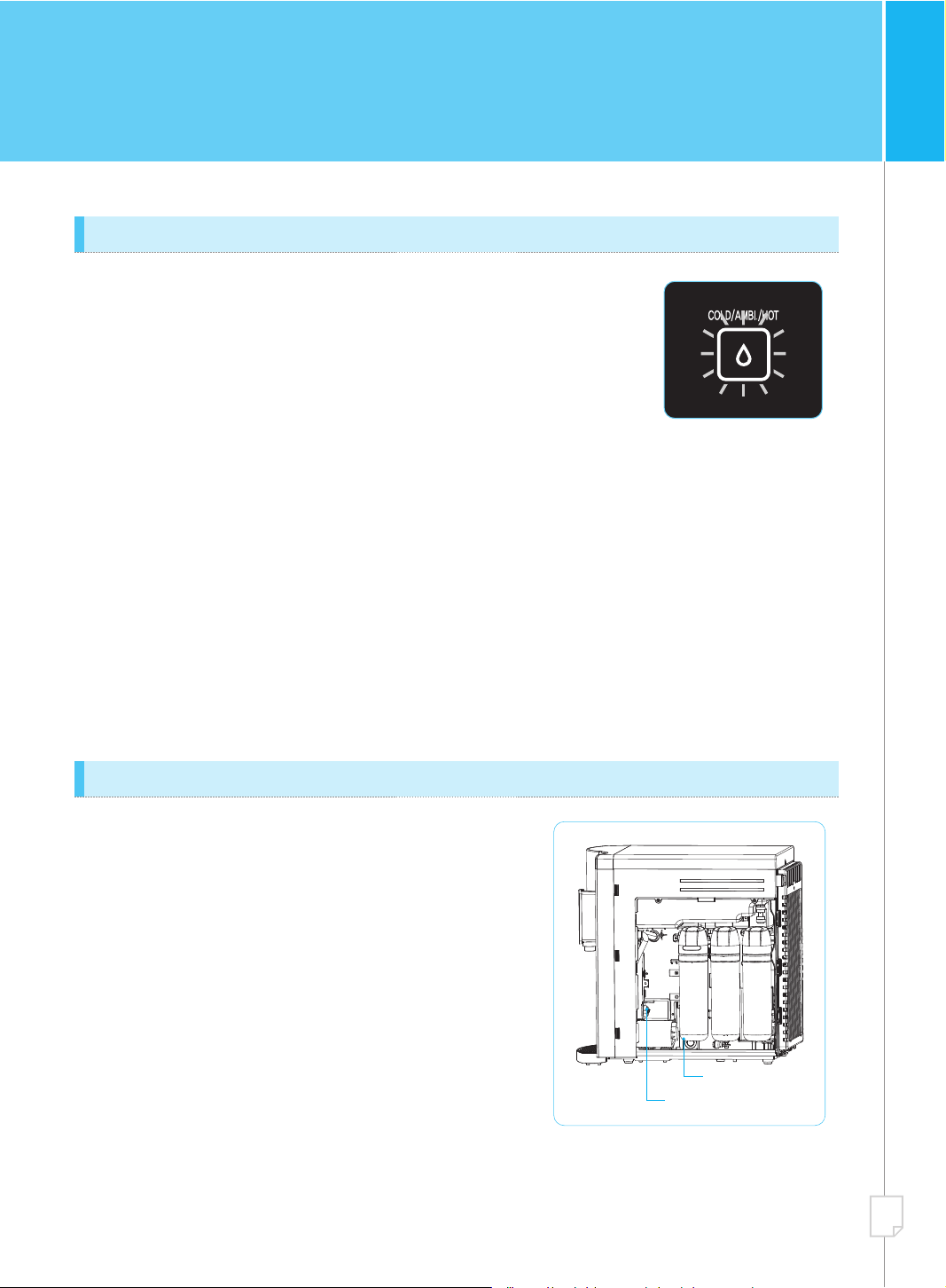

5-5. Draining method for relocation · installation 15

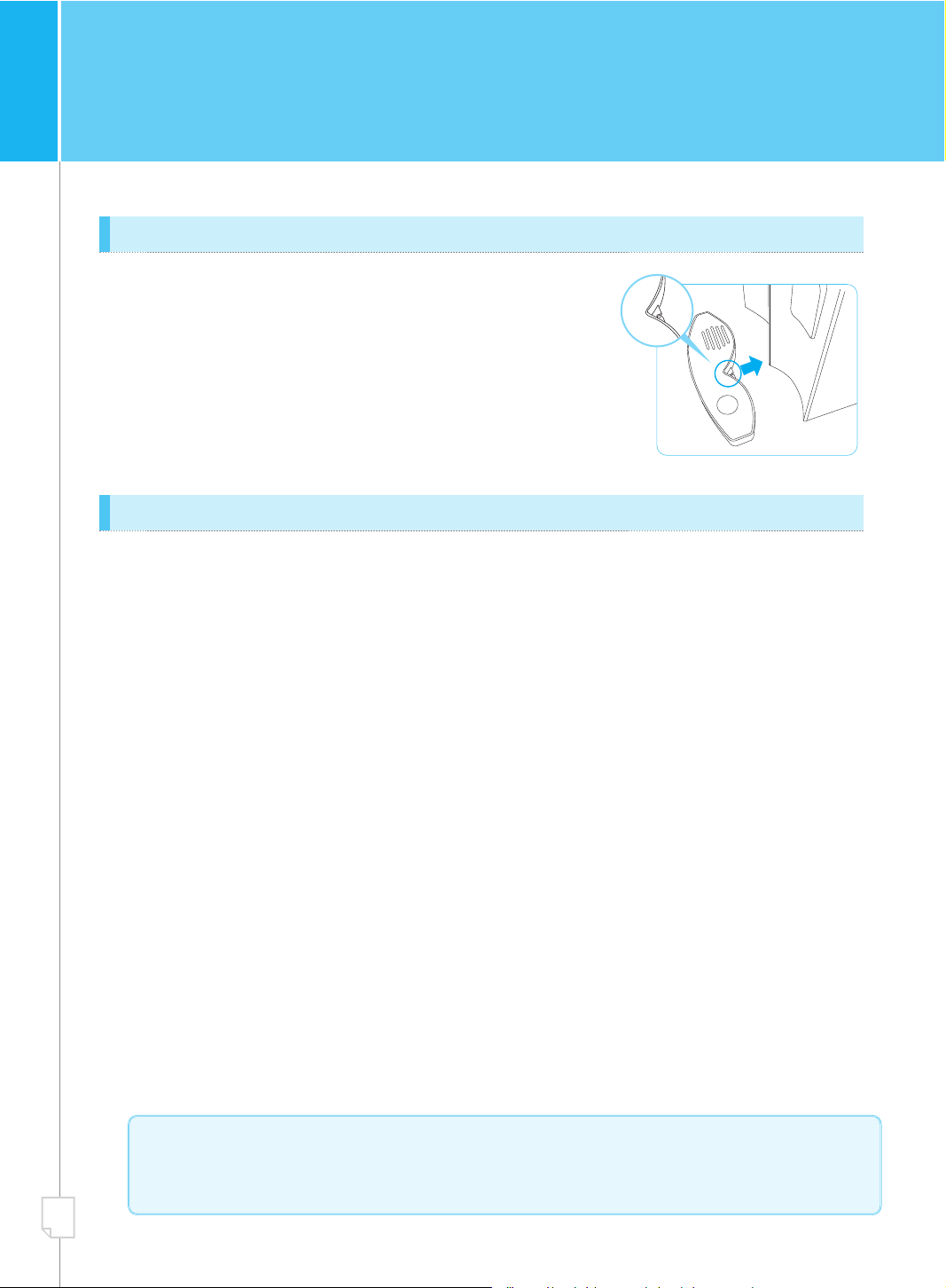

5-6. How to install water tray 16
5-7. Understanding the ice making process and operation 16
6. Cautions during use 17
7. Cleaning 18 ~ 20

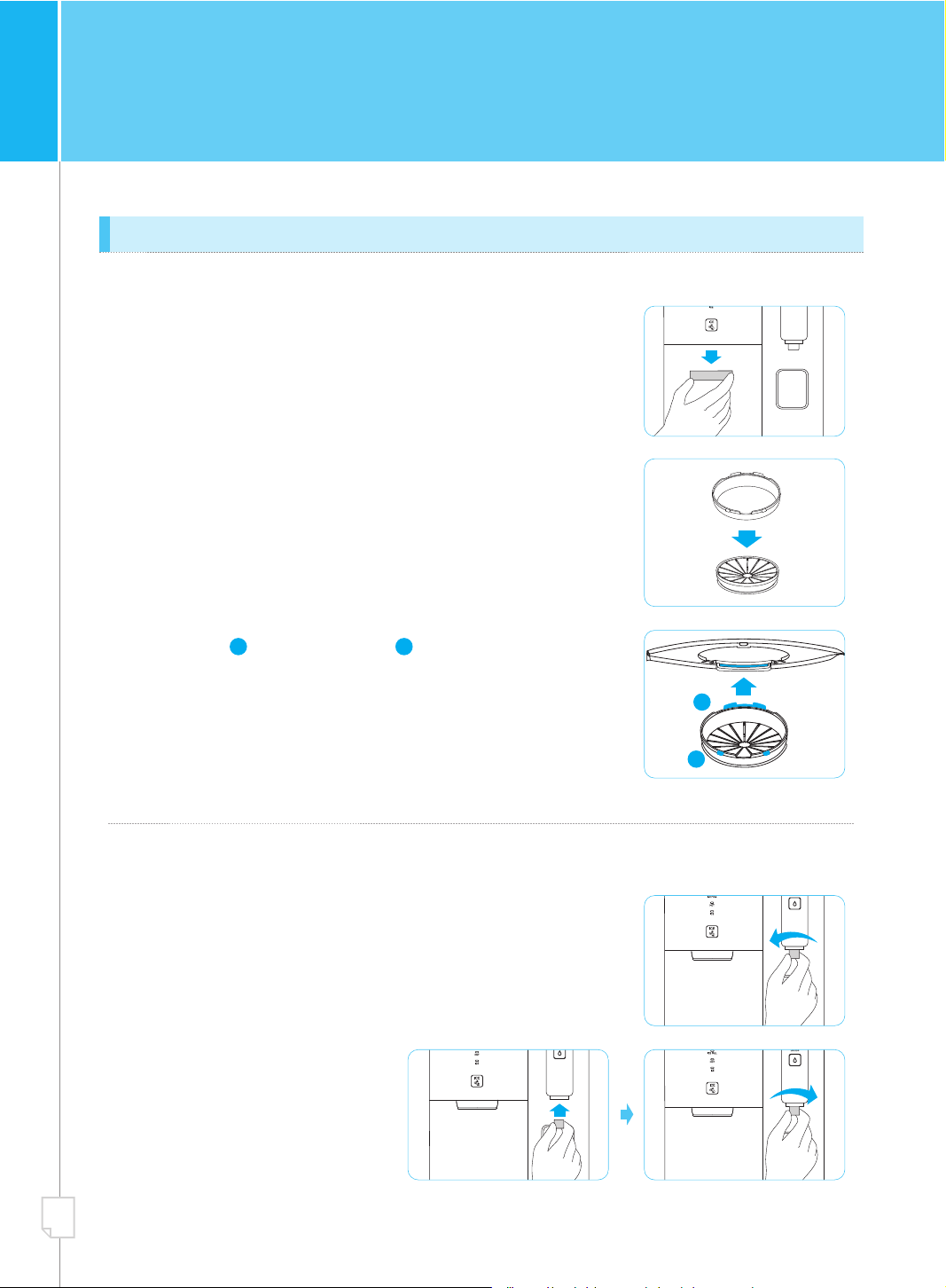

7-1. How to clean up ice dispensing hole and water dispensing spout 18
7-2. How to clean up the water tank 19 ~ 20
8. Sanitary Maintenance 21
9. Filters 22
10. How to replace filters 23
11. Specification 24
12. Flow diagram 25
13. Recommended spare parts 25
14. Troubleshooting 26
15. Memo 27

03
1. Unit features
Compact size (width: 29cm)
Compact-sized ice making water purifier can be installed freely where you want as effectively
utilizing the space. It is more convenient for you to get crystal-clear ice on your sink or table.
Tulip-shaped crystal-clear ice with three temperature water
This unit is a new water purifier that makes the tulip-shaped crystal-clear ice by advanced ice
making technology. Three temperature water (Hot, Cold and Ambient) is served.
Extended water dispensing space.
It is convenient to take water by any shape of bottle as big as 1.5L bottle as height of water
dispensing space is more than 25cm.
Water purification system providing an integrated ice making function
IGUASSU TINY 900 is an innovative hybrid of a reverse osmosis water purification system with
an ice maker which is utilizing the freezing point depression method. It is designed not only
for a user convenience, but also for a system efficiency which is intended to obtain cold water
as a result of making ice.
(Patent application: No.2005-99663, 2005-365293, 200510127096.9, 11/342,117)
Pure ice by freezing point depression method.
It produces only pure ice by freezing point depression method, which supplies purified water
to ice making unit. This method allows the pure water to freeze at 32 °F(0 °C) while non-pure
water freeze at below that making ice.
ACS smart cleaning function
This makes users not to worry about contamination by bacteria as it empties the ambient water
and cold tank automatically every 4 days in fixed time and fill the clean water which is sterilized
by UV sterilizer.
Dual heating system
Hot water is made by instant heating method and hot tank heating method and users can eas-
ily select the method by their preference. It enhances energy efficiency.
Easy replacement of filters
It is convenient to replace filters as they could be detached by just lifting them.
Energy saving type
Cold water is made while making ice simultaneously. This allows the system to maintain a constant
cold water temperature and prevent water from wasting and help to conserve energy.
Touch sensor application
Unlike ordinary button applications, IGUASSU TINY 900 has built-in touch sensor buttons.
The easy-to-use sensor application is designed for effortless and enjoyable drinking water with ice.
One-touch drainage function system
It is more convenient that it can empty ambient and cold water within 11 minutes by pressing
the button once.
1
2
3
4
5
6
7
8
9
10
11

04
1. Unit features
Water Level Detection Sensor
Differed from ordinary float level sensor, the capacitive sensor is used for improving water level
detection accuracy without a float. Capacitive sensor stably detects water level in more reliable
and safer way. The signal from the sensor is sent to a controller in order to automatically adjust
purified water level.
Constant Water Dispensing Function
It enables users to take ambient or cold water constantly by setting constant water function and press-
ing water dispensing button up to 0.5L.
Operation by sensor and Micom
Hot water temp. sensor/room temp. sensor / ice making sensor/ ice full sensor are built in the
machine. Ice making, deicing, and cold water making are operated automatically by Micom and
maintain it at an optimized operation environment.
Enhanced water leak prevention
Water leakage stop valve installed on the base panel stops source water inlet immediately to prevent
any damage from water leak.
Noise Prevention
This reduces system operating noise by applying a dual noise prevention material, utilizing a shock
mitigation structure found at ice storage house.
Display of abnormal occurrence and reinforced safety function
The safety features of the unit have been enhanced in order to prevent various problems from occurring.
The system will inform the user(s) of abnormal occurrences through a flashing display LED and by
auto matically stopping the ice making function, water purification function when an abnormality in the
system is detected.
Automatic Water Dispensing
This system function is convenient to the user as it enables ambient water, cold water and hot
water to serve by pressing a button slightly.
Operation Beep Sound
This provides users with sound effects (Ding, Dingdong~ etc) which indicate operation setting upon
pressing button by changing its sound.
Default function
Water selection is programmed to return to cold water selection which is most frequented water
temperature even after ambient water is selected. (Ambient water: 10 seconds later)
11
12
13
14
15
16
17
18
19

●
Keep the cord out of
heavy traffic areas.
(This can lead overheating
to outlet.)
●
Be aware that the total
current of multiple outlet
must exceed 10A and use
the single power supply.
●
Do not bend the power
cord excessively or put
heavy objects over the
power cord.
(An electric shock or fire
may occur.)
●
Insert the power plug in a
stable position properly in
order to avoid swinging.
(Unstable connection may
cause a fire.)
●
If the unit is damaged or
malfunctioning, do not
disassemble, repair, or
remodel it on your own.
●
Do not install the unit
around largely damp areas,
a place near flammable
materials, or a place
exposed to rain or snow.
(An electric shock or fire
may occur.)
●
Do not put candles, lit
cigarettes, etc. on the
unit and do not install
the unit near a heating
appliance.
(There is a danger of a fire.)
●
Do not put a bowl contain-
ing water, chemicals, small
metals, etc. on the unit.
(If these materials drop into
the inside of the unit,
this may cause an electric
shock or fire.)
Cautions are divided into 2 categories: 'Danger' and 'Caution.'
05
2. Safety precautions
Associated with the possibility for serious injury or death.
Danger
●

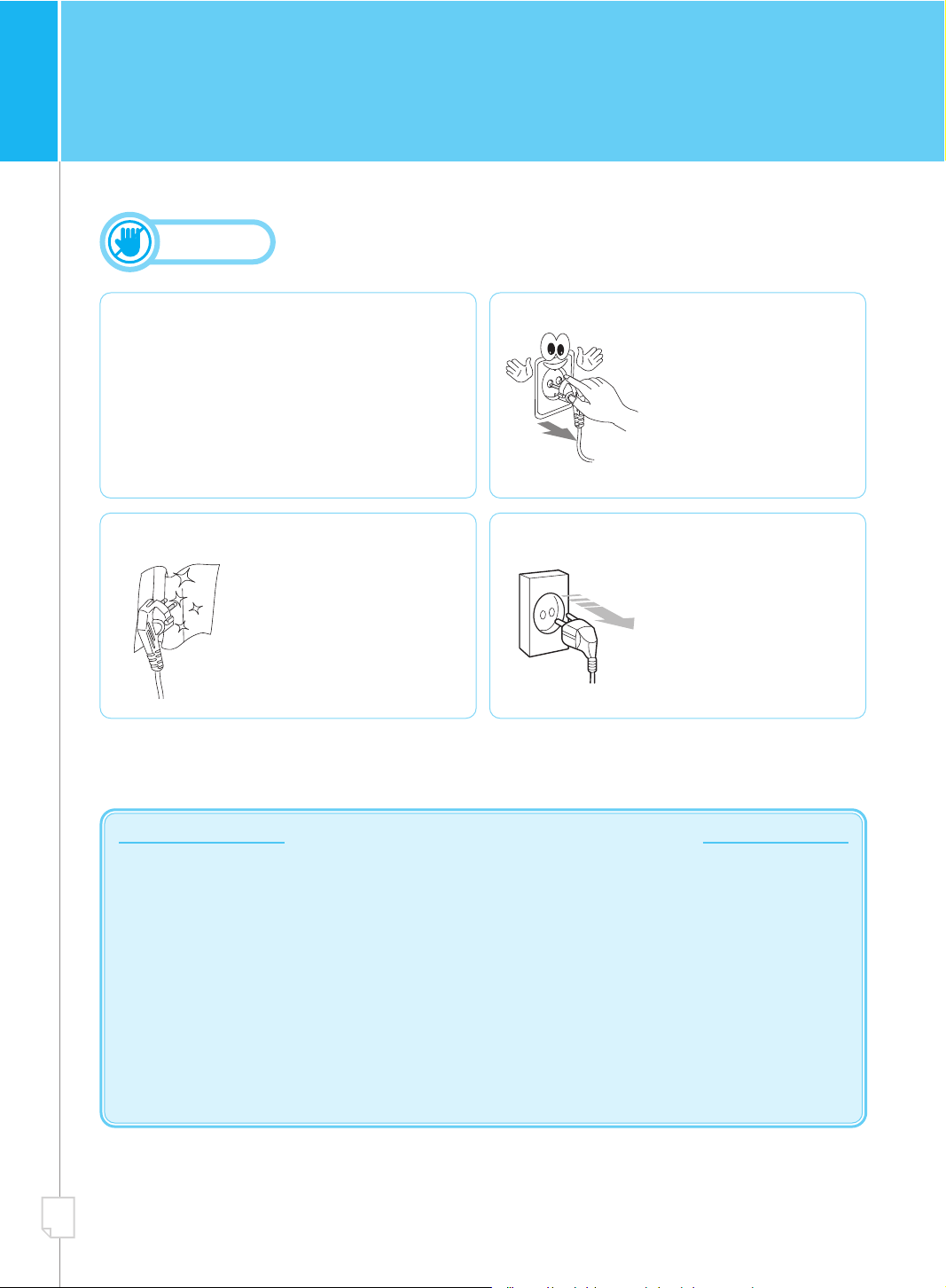

When the power cord has been damaged,
exchange the power cord in order to prevent
danger such as an electric shock, etc.
(Do not use damaged or loose wall outlets.
An electric shock or fire may occur.)
●
Do not touch the power plug with wet hands.
(An electric shock may occur.)

●
To disconnect the unit, be
sure to pull by the plug
and not the cord.
(Damage to the power cord
can cause an electric shock.)
●
Refer to the voltage on the front page.
●
If there is dust, water or etc
on the power plug pin, wipe
it off well.
(There is a danger of an
electric shock or fire.)
●
Leave the unit unplugged,
before cleaning the inside
of the unit.
(An electric shock or fire
may occur.)
06
2. Safety precautions
Associated with the possibility for serious injury or death.
Danger
󱅁Symptoms under normal operations 󱅁
1. During use of the unit, a murmuring water-flow sound, a clattering ice dropping sound, etc. may occur
during cold water production process or ice production process.
2. Opaque ice can occasionally be dispensed, but there is no abnormality in unit performance or ice quality.
3. TDSs (Total Dissolved Solids) checked in ambient water, cold water, and ice may vary from one another.
(This is a result of the freezing point depression method.)
4. When power source is interrupted and then restarted again, irregular ice may temporarily be served.

●

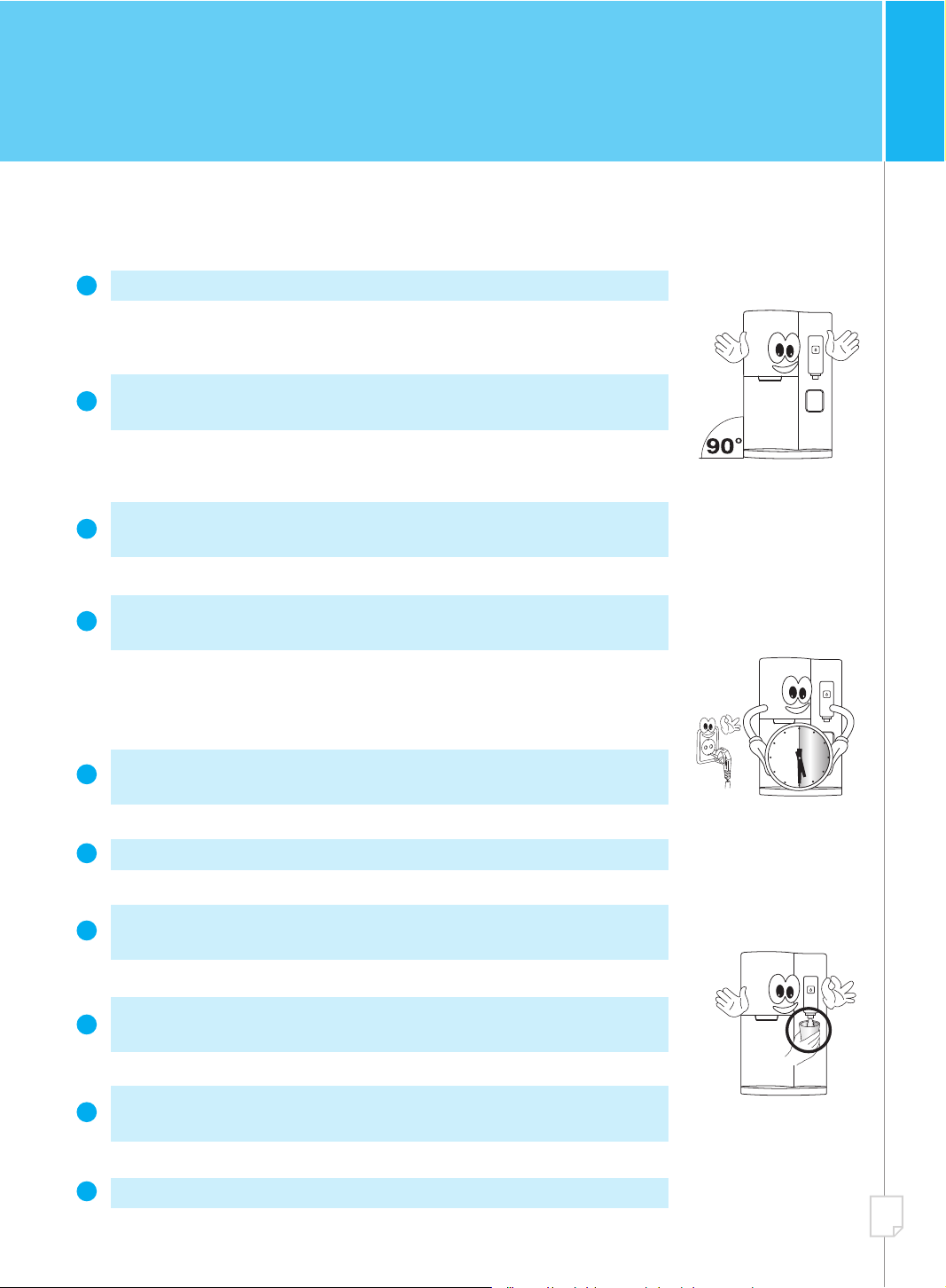

Keep tubes fixed properly so as not to splash
around area with water from brine tube.
●
When taking ice, avoid using a
glass
cup and avoid taking ice
with cup filled with beverage,
coffee etc.
(A glass cup can be broken by
abrupt temperature change or
the ice strike. Beverage and
coffee
can splash into ice dis-
pensing hole, it can cause mold.)
●
When taking ice, place a container
close to the ice dispensing hole
not to drop ice on the floor.
(Be careful in order not to allow
containers such as cups, etc. to
be inserted into the inside of
ice dispensing hole.)
●
Do not put foreign materials
into the ice dispensing hole
or block the dispensing hole.
(This can cause a malfunction.)
●
After transporting the
unit, do not supply
the power for at least
30 minutes to stabilize
the unit.
●Do not operate the unit
on sloping surface.
(This can cause a malfunction
and trouble.)
●Do not tilt the unit over
45° during transportation.
(Severe inclination can cause
a performance degradation.)
●Do not install the unit in a
sloped or unstable position.
( This can cause a performance
degradation, system damage
or overall trouble.)
●
Do not install the unit in a
place where the tempera-
ture may drop below 32 °F
(0 °C).
Associated with the possibility of injury, property damage and performance degradation.
Caution
07
●
To avoid burns from hot
water, use containers such
as a cup during hot water
dispensing.
●
Do not put any covering on
the rear and side of the unit.
(Blocking ventilation holes
may raise inside tempera-
tures and cause system
malfunction or even system
stoppage.)

08
3. Installation cautions
When transporting the unit, do not tilt it over 45 ° .
※ Severe tilting can cause a performance degradation.
Keep the unit approximately 8" (20 cm) away from the wall for proper ventilation.
Use the following water quality range.
•Water pressure : 7 ~ 100psi (0.5 ~ 7 kgf/㎠) •Water hardness : 300 ppm or less
•Water temperature :
39 ~ 100
OF
(4~38
OC
) •pH : 5.8 ~ 8.5
•Evaporated residue : 500 ppm or less •
Water quality : Biologically safe water
※ When using the water out of range, discuss it with the company.
If not, the unit can be excluded from the stated warranty.
Do not connect hot water over 100 ° F(38 ° C) to this unit.
※ This can cause trouble and performance degradation.
When connecting tube, ensure that the tube is not bent or pressed down by heavy objects, etc.
※ If tube is bent or pressed, water does not flow well and can cause problems.
When installing more than one unit(water purifier, shower softener, etc.) source water and brine tube
need to be independent for one another.
Adjust the tubes so that brine water may not splash around area.
※ Brine water can easily be used for other purposes, such as bathroom cleaning, house cleaning,
laundering, washing, etc. Never use the drainage water for drinking or cooking.
Do not install the unit at the following places.
•Near fire or heater •Near flammable material •In front of cooling-heating device
•A place exposed to rain and snow •A place exposed to direct sunlight •Wet place
•Near chemicals (volatile material, organic solvent, etc.)
•
A place below 32 °F (0
OC
) or a place with the possibility of dropping below 32 °F (0
OC
).
• A place above 104 °F (40
OC
) or a place with the possibility of climbing above 104 °F (40
OC
).
Install the unit at a place where the surface is flat. After installation, always adjust the level of the
unit using a level gauge.
Unit is recommended to install on the sink or table where is at least 80 cm above from the floor.
※ Tilting (more than 3 ° ) can cause an overflow.
Do not place any electric heater near the rear of the unit.
1
2
3
4
5
6
7
8
9
10
The highest point of installed brine tube must be less than 12"(30 cm) away from the flat floor.
Total length of brine tube must be less than 118"(3 m). Otherwise, water is not drained well.
11

09
4. Installation method
●
Service engineer install the unit. You should check if the unit is properly installed.
1
2
3
10
6
8
9
4
7
5
Connect tube to brine hole on the back of the unit. And then, place tube to drain
hole such as sink, toilet etc.
※ Brine water can easily be used for other purposes, such as bathroom
cleaning, house cleaning, laundering, washing, etc.
※ Never use the drainage water for drinking or cooking.
Empty the water in the tank when "WATER FULL" lights on.
Turn on water supply valve connected to the house and position the adapter
(Source water valve) "OPEN".
Do not plug in the power for 30 minutes in order to stabilize the cooling system
and safe use of unit.
Check if water is supplied into the unit properly and there are any leakages on
every connection.
Check every connection part for leaks.
After 1 hour has passed from supplying the power, check if water is coming out
by pressing the water dispensing button.
Install horizontally.
Shut off water supply valve and separate the connector part of tap water in order to
connect an adapter(Source water valve). Then, connect the adapter (Source water valve).
※ If a sealing rubber(packing) is missing or the thread of a screw is damaged,
it may occur water leakage.
※ The unit is recommended to install on the sink or table above 80 cm from
the floor.
Connect the adapter (Source water valve) and a water inlet on the rear of the
unit with a tube.

WATER FULL
LED
ICE FULL LED
HOT LED
ICE DISPENSING
BUTTON
ICE MAKING
LED
10
5. Usage
5-1. Display and function setting
Lights up when water tank is full. (Blue)
Lights up when ice storage is full. (Blue)
Lights up when ice making
operation is set. (Blue)
Used to take ice.
COLD/AMBI./
HOT SELEC-
TION BUTTON
Used to select cold, ambient or hot water
COLD/AMBI.
/HOT LED
WATER
DISPENSING
BUTTON
Used to take water into a container such as
a cup after selecting the desired water
selection among ambient, cold or hot.
HOT TANK
HEATING/OFF
/INSTANT
HEATING
SELECTION
SWITCH
ON
OFF
ICE MAKING
SWITCH
ON/OFF
Press the switch up and middle and down
when users want to select the HOT TANK
HEATING/OFF/INSTANT HEATING
Press the switch up and down when users
want to select the ICE MAKING ON/OFF
AA B
AA
B
※Hot tank heating method : Hot water is always served.
※Instant heating method : Hot water is made in short time when it is in need.
Used to take cold or ambient or hot water.
(COLD : Blue, AMBI. : Green, HOT : Red)
Lights up when "HOT" is set.
(Hot tank heating : Red, Instant heating : Green)

11
•Ice-making function setting
①Put ice making switch ON attached on the rear.
②"ICE" LED on the front is lighting.
•Ice-making function releasing
① Put ice making switch OFF attached on the rear.
※ When it is released, ice-making function will be disabled.
However, ice is served until the ice storage is emptied.
•Hot tank heating function setting
① Press heating selection switch attached on the rear.
②"HOT" LED(Red) on the front is lighting.
•Instant heating function setting
① Press heating selection switch attached on the rear.
②"HOT" LED(Green) on the front is lighting.
•Hot tank heating / Instant heating function releasing
① Press heating selection switch attached on the rear.
②"HOT" LED on the front is OFF.
5-2. Function setting and releasing
•Constant water function setting
① Pressing "COLD/AMBI./HOT SELECTION BUTTON" for 2 seconds to take
ambient or cold water constantly. (Setting sound : Dingdong-). Constant ambi-
ent water is set.
②
During setting of constant water function, as "COLD/AMBI./HOT SELECTION
BUTTON" is pressed, cold water or ambient water is set in turn.
(Default : Ambient water)
③ After selecting the cold water or ambient water, press "WATER DISPENSING
BUTTON". (Releasing sound : Ding-Dong-). Desired water is served as LED(Blue
or Green) is blinking.
※
Constant water is set, no water is taken, the function is released after 10 sec-
onds automatically.
※
The set water amount and actually taken water amount can be different.
※
Water is constantly served as much as about 0.5 L for 20 seconds(Cold) and
16 seconds(Ambient).
2
seconds
ICE MAKING
SWITCH ON/OFF
HOT TANK
HEATING/OFF/INSTANT
HEATING SELECTION
SWITCH

12
5. Usage
•Beep function re-setting
① Press “COLD/AMBI./HOT SELECTION BUTTON” for 10 seconds to set beep
function.
② "WATER FULL / ICE FULL /HOT/ ICE" LED blinks 5 times.
(Re-setting sound : Ding- Ding-)
•Beep function releasing
① Press “COLD/AMBI./HOT SELECTION BUTTON” for 10 seconds to release beep
function.
② "WATER FULL / ICE FULL/HOT/ ICE" LED blinks 5 times.
(Releasing sound : Ding- Ding-)
10
seconds
10
seconds
•Constant water function releasing
During constant water dispensing, one of the buttons
between "COLD/AMBI./HOT" and "WATER DISPENSING
BUTTON" is pressed, the function is released.
(Releasing sound : Dingdong-Dingdong)
"COLD/AMBI./HOT" LED is off.
or

13
•Ice dispensing mode
If "ICE" (Ice selection) touch button is selected and "ICE DISPENS-
ING BUTTON" is pressed, ice is served.
•Cold water dispensing mode
If "COLD"(Cold water selection) touch button is selected and
"WATER DISPENSING BUTTON" is pressed, cold water is served.
•Ambient water dispensing mode
If "AMBI."(Ambient water selection) touch button is selected and
"WATER DISPENSING BUTTON" is pressed, ambient water is served.
※
If ambient water is selected and it is not used for 10 seconds
the system will automatically switch into cold water dispensing
mode which is most frequented. (Default function)
※
There is no separate setting and releasing method for the
use of ambient water and cold water. They operate automati-
cally as designated by the program when the power is supplied.
•Hot tank heating water dispensing mode
① Press heating selection switch attached on the rear.
② If "HOT"(Hot water selection) touch button is selected and "WATER DISPENSING BUTTON" is pressed,
hot water is served.
5-3. Ice and water dispensing method

14
5. Usage
•Instant heating water dispensing mode
① Press heating selection switch attached on the rear.
② Touch "COLD/AMBI./HOT SELECTION BUTTON" twice.
※ "COLD/AMBI./HOT" LED(Yellow) blinks.
※ 2.5 minutes are taken until completion of instant heating.
※ Dispensing the hot water is available after completion of
instant heating for 10 mins.
④ If "HOT"(Hot water selection) touch button is selected by
touching "COLD/AMBI./HOT SELECTION BUTTON" and
"WATER DISPENSING BUTTON" is pressed, hot water is
served.
•Hot water function releasing
Press heating selection switch attached on the rear.
③
"COLD/AMBI./HOT" LED is changed in accordance with instant heating process as below.
Yellow
→ Orange → Red
※ When instant heaing function is completed, "COLD/AMBI./HOT" LED blinks(Red) with beep sound.
※ Hot water dispensing mode is available for 10 seconds.
※Hot water is served when instant heating process is completed.
※ When taking hot water constantly, temperature of water can be below 50 ℃. Then, hot water is not served
automatically.
※ When hot water stops dispensing, instant heating starts off automatically.
Instant heating Level
Yellow Orange Red
Level 1 Completion of instant heating
Hot water temperature Under 60
℃
Level 2
60 ~ 85 ℃ More than 85 ℃
Twice

15
①Turn the drain switch ON after detaching the filter cover on
the right side of unit.
②Drain is set as beep sound (Ding~Ding~) rings out.
③Cold water and ambient water are automatically drained for 11
minutes. Connect drain hose to HOT/AMBI. drain valve to
drain hot water and ambient water.
※
Avoid burns from hot water.
※
Water can be drained through water dispensing spout at the
same time.
④Remove ice by pressing "ICE DISPENSING BUTTON".
5-5. Draining method for relocation · installation
It is the smart cleaning function that prevents contamination by automatically
cleaning the tank every 4 days, when frequency of use is low. ACS cleaning
function which has UV sterilizer as option provides users with always clean and
safe water as any chemical and electrolysis equipment is not used.
•It operates same time every 4 days, as it is set the standard time which is 12
hours later after connection of power.
e.g.) When the power is connected at 2 P.M, it is operated at 2 A.M every 4 days.
If users want to change the operation time, turn off the power at desired
time and turn on.
① "COLD/AMBI./HOT" LED (White) blinks around 11 minutes and users can-
not use the unit at this time.
② Use the unit when the ACS operation is finished and cold/ambient water
tanks are filled again. (Around 40 minutes until water full. )
5-4. ACS smart cleaning function
Drain switch
HOT/AMBI. drain valve

16
5. Usage
5-7. Understanding the ice making process and operation
① When the water level in the ambient water tank reaches to specific level, it starts to remove all the remaining ice on
the evaporator. This action is done when power is newly supplied to the unit.
② The compressor and ice making pump operate in order to make cold water.
(The cold water production process automatically operates according to designated programming.)
• Cold water operation: Cold water is made by process of spraying water to evaporator.
Water temperature in the cold water tank is automatically detected by the sensor, and if it
drops below the set temperature, then the cold water operation will automatically stop.
③ If cold water production is done, ice making get started in accordance with the process of Ice forming and Ice
harvesting action.
• Ice forming action: Spray cold water to the evaporator for given time.
• Ice harvesting action: Supply heat to the evaporator to remove ice from the evaporator.
④ When the ice storage is full, the ice level sensor automatically sends the signal of stopping ice making process.
⑤ If ice in the storage is not used for long periods of time, it may melt, and small pieces of ice can be served during ice
dispensing.
※ TDS(Total Dissolved Solid) of ice may increase slightly according to the environment in which the ice is made.
• The lower room temperature is, the shorter the ice making process will take and the higher room
temperature is, the longer the ice making process will do.
• Do not install or use the unit in temperatures below 32℉(0 ℃ ) or above 104℉(40 ℃ ).
●
Ice making system of the unit starts and operates to make ice automatically according to
program set after power is ON.
Push the center of water tray until "clattering" sound.
5-6. How to install water tray

17
6. Cautions during use
Refer to the voltage on the front page. Connect to the proper power source.
Keep the cord out of heavy traffic areas. (This can lead overheating to outlet.)
Never move the unit while in operation. (It can cause a malfunction.)
Do not touch the wire condenser on the rear side of unit. It is hot while the unit is in operation.
Avoid the use of chemicals around the unit(volatile material, organic solvent, etc.) and do not place chemicals near
the unit.
Water storage tank can be contaminated with microbe from outside. Cleaning is recommended once a month.
Cleaning procedure is as below.
(Open drain valve →Drain water completely →Open the lid of the storage tank →Brush up with soft cloth →
Assemble the parts in a reverse way.)
Make sure that lid of water tank is closed perfectly.
(Improper alignment may allow pollutants and other insects to enter the water tank.)
If the unit does not respond to the touch buttons, broaden the contact area where the touch button is pressed.
When taking ice, avoid using a glass cup and using container with coffee or beverage.
(A glass cup can be broken by abrupt temperature change or the ice strike. And coffee and beverage etc can make
dispensing hole contaminated.)
When ice dispensing hole is splashed with foreign substance such as coffee, beverage etc, clean up immediately.
Cleaning is recommended once a week.
The detachable cap on ice dispensing deco is recommended to clean up once a week.
You can always reuse quality ice by placing the ice in a separate storage vessel and storing it in the refrigerator/freezer.
Even though ice is not served upon pressing the "ICE" touch button, do not shake or hit the unit.
(It may cause malfunction. Use the ice after it is produced in ice storage.)
Ice may not be served when some pieces of ice get stuck at dispensing hole.
(Remove ice with an object such as a stick which is insulated.)
If you do not use ice for many hours, ice may not be served well because ice may cling to each other.
In such case, touch "ICE" touch button twice or three times for 2~3 seconds.
In case the unit is not used for long period time (More than 4days), shut off the adapter(Source water valve) and pull
out the power plug. Do not touch the power plug with wet hands. (Fire or electric shock may occur.)
If the unit is used again, drain the water inside completely and drain the newly purified water again and use it.
In case of abnormal sound, smell and smoke occurs, contact our distributor.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

18
7. Cleaning
7-1. How to clean up ice dispensing hole and water dispensing spout
•Ice dispensing spout
①Push the ice dispensing spout backward and pull it out to the
bottom.
•Water dispensing spout
①Turn faucet deco to the left to disconnect it from the body
.
②Separate cap from ice dispensing deco and clean them.
③ Put the cap back into ice dispensing deco.
④After making fit in the hole, insert by pressing backward as
lifting it upward.
②After cleaning, put it back by turning
to the right.
1
1
2
2

19
①Shut off the source water valve and detach the
cover after loosening the fixed screw on the
right side of the unit.
③ Connect drain hose to HOT/AMBI. drain
valve to drain hot and ambient water.
Empty ice storage tank by pressing
"ICE DISPENSING BUTTON".
② Turn the drain switch ON after lifting the filter.
※Cold water and ambient water are automatically
drained for 11 minutes.
④Detach the ambient water tank cover, after loosening the fixed screw on the back of the unit. Clean up the
water tank and wash with soft cloth or dry cleaner. And then assemble in a reverse way.
7-2. How to clean up the water tank
< How to clean up ambient water tank >
