Cima PLUS Operating and maintenance instructions

OPERATION AND
MAINTENANCE INSTRUCTIONS
R
PLUS
atomizzatori e impolveratori
R
S.p.A.
27040 Montù Beccaria - Loc. Molino Quaroni - (PV) - ITALIA
Tel. [phone] r.a. - Fax [phone]
http://www.cima.it
Babsbfhngkdlkdm,skhgfhdgdddgdg
sfdmkhkygulhdgdgdgdgdgdddj
tfykfygvjyl,,j,.ffgddddgdgdgt
Babsbfhngkdlkdm,sk
sfdmkhkygulhj
tfykfygvjyl,,j,.ffgdddt
Babsbfhngkdlkdm,sk
sfdmkhkygulhj
tfykfygvjyl,,j,.ffgdddt
Babsbfhngkdlkdm,sk
Babsbfhngkdlkdm,sk
Babsbfhngkdlkdm,sk

Milano
Pavia
Voghera
Piacenza
Zavattarello
A1
A7 GE
A21
TO
A21
BS
A21
A21
A1
BO
A4
TO
A21
BS
A21
BS
A8
VA
A4
TS
Casteggio
A7
Montù Beccaria
R
S.S. 9 Via Emilia
S.S.35 dei Giovi
S.S.35
S.S. 10
S.S. 9
S.S. 10
Stradella
S.P. Stradella - Zavattarello
Where we are
Dear Customer, thank you very much!
We want to congratulate with you, for having
chosen a
®
sprayer.
Your choice shows the wisdom of the well-informed
Purchaser, aware of the fact, that the required
features of quality, technique and reliability must
be satisfied at the right price!
Our continuous engagement in R&D and in testing
our machines allows us to realize products able to
offer the best performances, a high reliability and
a great easiness of use at the same time !
Our first goal, is to get our Customers happy for
having met us!
4HEh3PAREPARTSCATALOGUEvOFTHISSPRAYERSPRAYHEADIS
AVAILABLEINTHEhRESTRICTEDAREAvONWEBSITEWWWCIMAIT
)NORDERTOACCEDEUSE
5SERNAMEsprayer
0ASSWORD .(

CIMAS.p.A.-27040MontùBeccaria-Loc.MolinoQuaroni-(PV)-ITALIA
Tel.[phone]r.a.-Fax[phone]
http://www.cima.it
OPERATION AND
MAINTENANCE INSTRUCTIONS
Mounted Sprayers
Plus
Model: ...................................................
Serial Number: ......................................
(Pubblication N°LUM-PLUS-07-EN)
©CIMAS.P.A.-2000-2008 PRIVATEPROPERTY.
ANYREPRODUCTION,EVENIFPARTIAL,ISFORBIDDENIFNOTPREVENTIVELYAUTHORIZED IN WRITING BY THE
CIMAS.P.A.COMPANY.
Plus 42 - 45 - 50 - 55
09-2008
74
Atomizzatori - Impolveratori
Warranty Certificate
Warranty conditions
1. Warranty
The goods sold are covered by a general warranty that ensures the good quality of the materials, solid construction
and regular operation for twelve months from the date of delivery.
During the warranty period, C.I.M.A. S.p.A. pledges to replace, free of charge, the parts which, in his unquestionable
judgement, are considered defective, provided that the flaws and defects cannot be attributed to poor use or
maintenance of the product or an unreasonable, inappropriate and unsuitable use of such product with respect to the
technical instructions supplied by C.I.M.A. S.p.A. The products which have been modified, repaired, assembled or
tampered with by a third party, consumption materials and the parts subject to wear and tear are excluded from the
warranty. The replacements will be made free CIMA S.p.A. works and the buyer will be responsible for all shipping
andreturn expenses. The buyerwillbe responsible forthecostsof thelabourneeded to replacetheparts considered
defective. The resolution of the contract and any compensation for damage cannot be claimed by the buyer except
for serious faults to be proven by said buyer. The warranty will no longer be extended to the buyer if he does not
respect the agreed upon payment procedures and terms.
2. Reporting defects in goods
The claims for flaws or defects in the goods shall be submitted within eight days from when such goods are received
or from when hidden defects are discovered, in writing, by means of a registered letter.
No claim can be made , nor as an exception, in a court of law if the goods , for which the claim is submitted, have
not been regularly paid.
Anyclaimconcerningasingledeliveryofgoodswillnotexoneratethebuyerfromhisobligationtopick-uptheremaining
quantity of goods within the limit of the order.
3. To pass safety information
Thebuyerisresponsibletowardsthefinaluserforthesafetyinformationshownonthesaledocumentation,concerning
use limit, performances and product features.
4. Validità ed accettazione
The guarantee is valid if the CERTIFICATE OF GUARANTEE is sent, to C.I.M.A. S.p.A., with every part of it filled
in, within 30 days from the date of purchase (referring to the date of the postmark).
Informative according to the D. L. n. 196 of the 2003 (“Code in matter of protection of the
personal data”)
Dear customer,
according to art. 13 of the D.Lgs. 196/03 “Unique Text on Privacy” (referred to as ‘Law’ here below) we would like to
inform you about the following:
1) the personal data given to C.I.M.A. S.p.A. when filling in the “Warranty Certificate” will be processed respecting
the above mentioned regulations and the rules of privacy stated there in;
2) according to art.4, paragraph 1, lett. a) of the Law, the handling of personal data signifies “whatever operation or
set of operations carried out (even without the aid of electronic instruments) regarding the collection, recording,
organization, conservation, research, handling, modification, selection, extracting of details, comparison of, use of,
connecting to, blockage, passing on, distributing, cancellation and destruction of data, even if not recorded in a data
bank”;
Thehandlingofthepersonaldatagiveniscarriedoutbyautomatizedandnonautomatizedinstruments,withcontrolled
access and as specified by clause B of the Law;
3) the data are processed to an institutional end, in connection with or useful to the activities of C.I.M.A. S.p.A. for
filing, processing and management;
4)thedataarecollectedandrecordedsothataccessisonlyallowedtoauthorizedpersonsandtheymaybeprocessed
exclusively by C.I.M.A. S.p.A. to the above mentioned end;
5) the collected data may only be given to a third party exclusively in connection with accounting imposed by fiscal
law and in the case of demands from the judicial authority.
Inadditionweinformyouthatanyinterestedpartymayexercisehisrightsmentionedin art.7oftheLaw;intheexercise
of such rights the interested party may delegate or give a proxy, in writing, to persons or associations. The authority
to carry out this processing is C.I.M.A. S.p.A., represented in person by a lawyer.
The data processing is done by instruments fit to guarantee the safety and privacy as specified in clause B of the
Law.

09-2008
Plus 42 - 45 - 50 - 55
Atomizzatori - Impolveratori
Warranty Certificate
C
CERTIFICATE OF WARRANTY
Last name, Name or
NAMEOFTHEFIRM ..........................................................................................................
ADDRESS..........................................................................................................................
Place................................................................... PROVINCE ............. ZIP ...................
e.mail (*) ....................................... telephone (*) ............................................................
Date of purchase ........................................INVOICEN. ................................................
MACHINEMOD. ............................MATRICULATIONN. ................................................
SPRAYHEADMOD....................................
Dealer’s stamp (compulsory)
Consent for the personal data processing– PROTECTION OF THE PRIVACY .
Iauthorizeyou,accordingtotheD.Lgs.196/03“Consolidated TextaboutthePrivacy”totheprocessing
of my personal data in observance of the law above mentioned, for the indicated purposes, and so
that they can be communication to the subjects for the declared purposes.
Date.................................... Signature..................................................
(*) NOTCOMPULSORYDATA
PRIVACY
The warranty will not be considered valid if this coupon, with every part of it filled in, is not mailed to
the following address: C.I.M.A. S.p.A. - 27040 Montù Beccaria, Loc. Molino Quaroni - (PV) - Italy), or
sent by fax to the following number: +39.0385.246637, within 30 days from the date of purchase.
CUT ALONG THE DOTTED LINE

09-2008
Plus 42 - 45 - 50 - 55
III
LISTING OF VALID PAGES
This publication consists of 74 pages, subdivided as follows:
N°OFPAGE REVISION BASE
da I a VI 07 September 2008
da 1 a 68 07 September 2008
ADDITIONAL RECORDS AND VARIANTS
REVISION DESCRIPTION
00 First edition, June 2000
01 Second edition, November 2000
02 Revision, December 2001
03 Third edition, January 2002
04 Revision, April 2003
05 Revision, May 2004
06 Revision, March 2005
07 Revision, September 2008
08
Plus 42 - 45 - 50 - 55
09-2008
72
Atomizzatori - Impolveratori
Warranty Certificate
Warranty conditions
1. Warranty
The goods sold are covered by a general warranty that ensures the good quality of the materials, solid construction
and regular operation for twelve months from the date of delivery.
During the warranty period, C.I.M.A. S.p.A. pledges to replace, free of charge, the parts which, in his unquestionable
judgement, are considered defective, provided that the flaws and defects cannot be attributed to poor use or
maintenance of the product or an unreasonable, inappropriate and unsuitable use of such product with respect to the
technical instructions supplied by C.I.M.A. S.p.A. The products which have been modified, repaired, assembled or
tampered with by a third party, consumption materials and the parts subject to wear and tear are excluded from the
warranty. The replacements will be made free CIMA S.p.A. works and the buyer will be responsible for all shipping
andreturn expenses. The buyerwillbe responsible forthecostsof thelabourneeded to replacetheparts considered
defective. The resolution of the contract and any compensation for damage cannot be claimed by the buyer except
for serious faults to be proven by said buyer. The warranty will no longer be extended to the buyer if he does not
respect the agreed upon payment procedures and terms.
2. Reporting defects in goods
The claims for flaws or defects in the goods shall be submitted within eight days from when such goods are received
or from when hidden defects are discovered, in writing, by means of a registered letter.
No claim can be made , nor as an exception, in a court of law if the goods , for which the claim is submitted, have
not been regularly paid.
Anyclaimconcerningasingledeliveryofgoodswillnotexoneratethebuyerfromhisobligationtopick-uptheremaining
quantity of goods within the limit of the order.
3. To pass safety information
Thebuyerisresponsibletowardsthefinaluserforthesafetyinformationshownonthesaledocumentation,concerning
use limit, performances and product features.
4. Validità ed accettazione
The guarantee is valid if the CERTIFICATE OF GUARANTEE is sent, to C.I.M.A. S.p.A., with every part of it filled
in, within 30 days from the date of purchase (referring to the date of the postmark).
Informative according to the D. L. n. 196 of the 2003 (“Code in matter of protection of the
personal data”)
Dear customer,
according to art. 13 of the D.Lgs. 196/03 “Unique Text on Privacy” (referred to as ‘Law’ here below) we would like to
inform you about the following:
1) the personal data given to C.I.M.A. S.p.A. when filling in the “Warranty Certificate” will be processed respecting
the above mentioned regulations and the rules of privacy stated there in;
2) according to art.4, paragraph 1, lett. a) of the Law, the handling of personal data signifies “whatever operation or
set of operations carried out (even without the aid of electronic instruments) regarding the collection, recording,
organization, conservation, research, handling, modification, selection, extracting of details, comparison of, use of,
connecting to, blockage, passing on, distributing, cancellation and destruction of data, even if not recorded in a data
bank”;
Thehandlingofthepersonaldatagiveniscarriedoutbyautomatizedandnonautomatizedinstruments,withcontrolled
access and as specified by clause B of the Law;
3) the data are processed to an institutional end, in connection with or useful to the activities of C.I.M.A. S.p.A. for
filing, processing and management;
4)thedataarecollectedandrecordedsothataccessisonlyallowedtoauthorizedpersonsandtheymaybeprocessed
exclusively by C.I.M.A. S.p.A. to the above mentioned end;
5) the collected data may only be given to a third party exclusively in connection with accounting imposed by fiscal
law and in the case of demands from the judicial authority.
Inadditionweinformyouthatanyinterestedpartymayexercisehisrightsmentionedin art.7oftheLaw;intheexercise
of such rights the interested party may delegate or give a proxy, in writing, to persons or associations. The authority
to carry out this processing is C.I.M.A. S.p.A., represented in person by a lawyer.
The data processing is done by instruments fit to guarantee the safety and privacy as specified in clause B of the
Law.

Plus 42 - 45 - 50 - 55
09-2008
IV
GENERAL INDEX
1 FOREWORD ............................................................................................................................ 1
1.1 PUBLICATIONIDENTIFICATION ............................................................................................... 1
1.2 ATTACHEDPUBLICATIONS .................................................................................................... 1
1.3 PURPOSEOFPUBLICATION ................................................................................................... 1
1.4 REFERENCETOREGULATIONS ............................................................................................. 1
1.5 USINGTHEMANUAL .............................................................................................................. 1
1.6 UPDATES ................................................................................................................................2
2 GLOSSARY ............................................................................................................................ 3
2.1 TERMINOLOGY ....................................................................................................................... 3
2.2 ABBREVIATIONS .................................................................................................................... 3

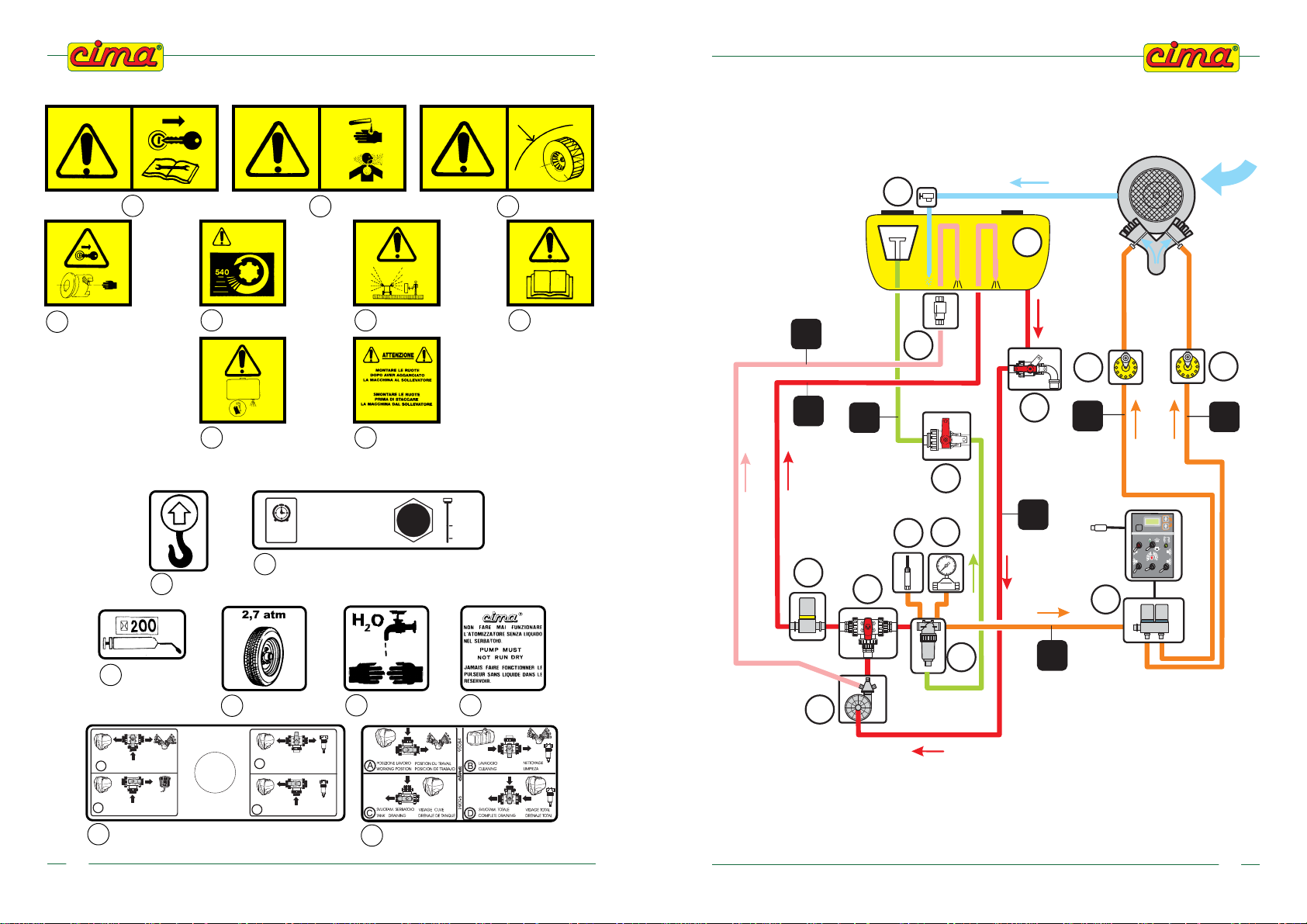

2.3 DECALS .................................................................................................................................. 3
3 GENERALINFORMATION ..................................................................................................... 7
3.1 MACHINEIDENTIFICATION ...................................................................................................... 7
3.2 TECHNICALASSISTANCE ...................................................................................................... 7
3.3 SAFETYNOTICES ................................................................................................................... 7
3.4 SAFETYSYSTEMS................................................................................................................. 8
3.5 HANDLINGOFAGRO-CHEMICALS ........................................................................................ 9
3.5.1 Storage ................................................................................................................................... 9
3.5.2 Specific equipment ................................................................................................................. 9
3.5.3 Disposal of empty containers and agro-chemical residues .................................................. 9
3.5.4 Personal means of protection .............................................................................................. 10
4 MACHINESTRUCTURALANALYSIS ................................................................................. 11
4.1 FRAME................................................................................................................................... 12
4.2 FANSERVOAMPLIFIER........................................................................................................ 13
4.3 HYDRAULICCIRCUITCOMPONENTS ................................................................................... 14
4.4 TECHNICALDATA ................................................................................................................ 26
4.4.1 Sprayers dimensions and weights ...................................................................................... 26
4.4.2 CentrifugalPumpCD32 ......................................................................................................... 26
5 COUPLINGMODALITIES .................................................................................................... 27
5.1 HITCHINGTOTHETRACTOR ................................................................................................ 27
5.2 MOUNTINGOFTHETRANSMISSIONSHAFT........................................................................ 28
5.3 INSTALLATIONOFREMOTECONTROLS............................................................................. 29
5.3.1 Manual 2-tap distributor - P9 ................................................................................................ 29
09-2008
Plus 42 - 45 - 50 - 55
Atomizzatori - Impolveratori
Warranty Certificate
Copy for the owner (to be kept in the manual “Instructions for the use and maintenance)
CERTIFICATE OF WARRANTY
Last name, Name or
NAMEOFTHEFIRM ..........................................................................................................
ADDRESS..........................................................................................................................
Place................................................................... PROVINCE ............. ZIP ...................
e.mail (*) ....................................... telephone (*) ............................................................
Date of purchase ........................................INVOICEN. ................................................
MACHINEMOD. ............................MATRICULATIONN. ................................................
SPRAYHEADMOD....................................
Dealer’s stamp (compulsory)
Consent for the personal data processing– PROTECTION OF THE PRIVACY .
Iauthorizeyou,accordingtotheD.Lgs.196/03“Consolidated TextaboutthePrivacy”totheprocessing
of my personal data in observance of the law above mentioned, for the indicated purposes, and so
that they can be communication to the subjects for the declared purposes.
Date.................................... Signature..................................................
(*) NOTCOMPULSORYDATA
PRIVACY

09-2008
Plus 42 - 45 - 50 - 55
V
5.3.2 Electrical control panel - E10 ................................................................................................ 29
5.3.3. E.P.A.Control unit ................................................................................................................. 30
6 DISTRIBUTIONDEVICES ..................................................................................................... 31
6.1 POSITIONINGOFFANCASING............................................................................................. 32
6.2 ELBOWFITTINGSOFDISTRIBUTIONDEVICES .................................................................... 32
7 ACCESSORIES ..................................................................................................................... 33
7.1 FILLERPIPE ........................................................................................................................... 33
7.2 PAIROFWHEELS ................................................................................................................. 33
7.3 SWIVELLINGDEVICE ............................................................................................................ 34
7.4 E.P.A.KitDELIVERYPROPORTIONALADVANCEMENT ...................................................... 35
8 FILLING ................................................................................................................................36
8.1 FOREWORD–USEOFTHEFANDISENGAGEMENT............................................................ 36
8.1.a Disengagement of the fan .................................................................................................... 36
8.1.b Fan engagement to perform the treatment........................................................................... 37
8.2 FILLINGTHROUGHPOURINGFROMTHETOP ..................................................................... 37
8.3 FILLINGWITHTHESPECIFICPIPE ......................................................................................... 38
9 AGITATION .......................................................................................................................... 41
10 OPERATINGPROCEDURES ................................................................................................. 41
10.1 PRELIMINARYOPERATIONSTOTREATMENT ..................................................................... 41
10.2 PREPARATORYOPERATIONSTOTREATMENT .................................................................. 42
10.3 THETREATMENT .................................................................................................................. 43
10.4 PROCEDURETOWASHTHEHYDRAULICCIRCUIT(HEAD-PUMP) ..................................... 44
10.5 ENDOFTREATMENT-STORAGE ........................................................................................ 45
10.5.1 Daily....................................................................................................................................... 45
10.5.2 End of seasonal cycle .......................................................................................................... 46
11 TANKANDHYDRAULICCIRCUITDRAINING .................................................................... 47
12 LIFTINGANDTRANSPORT ................................................................................................. 48
13 MAINTENANCEOPERATIONS ............................................................................................ 49
13.1 LUBRICATION........................................................................................................................ 49
13.2 FANSHAFTSUPPORTOILLEVELCHECK........................................................................... 50
13.3 FANSHAFTSUPPORTOILREPLACEMENT ......................................................................... 50
13.4 CLEANINGOFFILTER’SCARTRIDGE ................................................................................... 51
13.5 PURGINGOFRESIDUESFROMFILTER ................................................................................ 51
Plus 42 - 45 - 50 - 55
09-2008
NOTES
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................

Plus 42 - 45 - 50 - 55
09-2008
VI
13.6 CLEANINGOFTHEFAN........................................................................................................ 52
13.7 FANBELTTENSIONER.......................................................................................................... 52
13.8 PUMPBELTTENSIONER ........................................................................................................ 53
13.9 TANKREMOVALORREPLACEMENT .................................................................................. 53
13.10 TABLEOFMAINTENANCEOPERATIONS............................................................................. 55
14 FAULTSFINDING ................................................................................................................. 56
15 REPAIRSALLOWED ............................................................................................................ 59
15.1 REPLACEMENTOFPUMPCONTROLBELT .......................................................................... 59
15.2 REPLACEMENTOFELECTRICALPANEL’SFUSES .............................................................. 60
15.3 PRESSUREGAUGEREPLACEMENT ..................................................................................... 60
16 INTEGRATIVEDIAGRAMS .................................................................................................. 61
16.1 HYDRO-PNEUMATICDIAGRAM ............................................................................................ 61
16.2 WIRINGDIAGRAM ................................................................................................................. 65
17 NOISELEVEL ....................................................................................................................... 66
18 ATTACHMENT : DECLARATION OF COMPLIANCE......................................................... 67
19 WARRANTY.......................................................................................................................... 68
09-2008
Plus 42 - 45 - 50 - 55
NOTES
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................
..............................................................................................................................................................

09-2008
Plus 42 - 45 - 50 - 55
1
1 FOREWORD 1
1.1 - PUBLICATION IDENTIFICATION
The“OPERATIONANDMAINTENANCEINSTRUCTIONS”manualisanintegrativepartofthesprayers.
It is identified by a Publication No. located on the frontispiece, and through which the document can
be identified, traced and/or subsequently referred to.
The information elements contained herein are updated as at the date of publication. C.I.M.A. S.p.A.
reserves the right to modify its machines without notice, with the purpose of applying technical
enhancements, and it declines all responsibility for possible omissions from the publication.All righ
reserved. No parts of this book may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying, recording, or by any information storage and retrieval system,
without premission in writing by C.I.M.A. S.p.A.
1.2 - ATTACHED PUBLICATIONS
— Spare parts catalogue;
— Distribution devices, “Operation and maintenance instruction”
— Distribution devices, “Spare parts catalogue”
— “Low Volume - Instructions for sprayer adjustment”
1.3 - PURPOSE OF PUBLICATION
All indications contained in this manual are aimed at the user of the sprayer.
Thedurationofthemachineanditsoperation,theoperator’ssafetyandthe respectfortheenvironment
are dependent upon scrupulous observance of the stated norms.
Before making use of the sprayer, the user must read, understand and abide by all regulations listed
in this manual.
1.4 - REFERENCE TO REGULATIONS
This manual was set out conforming to the regulations contained in following documents:
— Attachment "I" to Directive 98/37/CE and subsequent modifications (letters “b”, “c” of point 1.1.2
and point 1.7.4);
— UNI EN 907 - 1998 and to all the documents in it quoted.
1.5 - USING THE MANUAL
Read every part of this manual, paying attention to the WARNING and DANGER indications both on
the text and on the machine or on components.
All operations suggested by the manual will have to be followed with the utmost care and only after
having understood the negative consequences of improper usage.
Plus 42 - 45 - 50 - 55
09-2008
68
19 WARRANTY 19
THEOWNERAND/ORTHEOPERATOROFTHESPRAYERARENOTPERMITTEDTOMODIFY
THESTRUCTUREORTHESPECIFICOPERATIONOFTHESPRAYERITSELF.ANYREPAI-
RINGINTERVENTIONHASTOBECARRIEDOUTEITHERATTHEDEALERS’ORATTHE
C.I.M.A. S.p.A. AUTHORIZED WORKSHOPS, OTHERWISE ANY KIND OF WARRANTY
IMMEDIATELYCEASESANDC.I.M.A.S.p.A.ISCLEAREDOFANYCONSEQUENTAND/OR
IMPLIEDRESPONSIBILITY.
18.1 - Warranty
The goods sold are covered by a general warranty that ensures the good quality of the materials, solid
construction and regular operation for twelve months from the date of delivery.
During the warranty period, C.I.M.A. S.p.A. pledges to replace, free of charge, the parts which, in his
unquestionable judgement, are considered defective, provided that the flaws and defects cannot be
attributed to poor use or maintenance of the product or an unreasonable, inappropriate and unsuitable
use of such product with respect to the technical instructions supplied by C.I.M.A. S.p.A.
The products which have been modified, repaired, assembled or tampered with by a third party,
consumption materials and the parts subject to wear and tear are excluded from the warranty.
ThereplacementswillbemadefreeCIMAS.p.A.worksandthebuyerwillberesponsibleforallshipping
and return expenses.
The buyer will be responsible for the costs of the labour needed to replace the parts considered
defective. The resolution of the contract and any compensation for damage cannot be claimed by the
buyer except for serious faults to be proven by said buyer.
The warranty will no longer be extended to the buyer if he does not respect the agreed upon payment
procedures and terms.
19.2 - Reporting defects in goods
Theclaimsforflawsordefectsinthegoodsshallbesubmittedwithineightdaysfromwhensuchgoods
are received or from when hidden defects are discovered, in writing, by means of a registered letter.
Noclaimcanbemade,norasanexception,inacourtoflawifthegoods,forwhichtheclaimissubmitted,
have not been regularly paid.
Anyclaimconcerningasingledeliveryofgoodswillnotexoneratethebuyerfromhisobligationtopick-
up the remaining quantity of goods within the limit of the order.
19.3 - To pass safety information
The buyer is responsible towards the final user for the safety information shown on the sale
documentation, concerning use limit, performances and product features.
19. 4 - Validity and acceptance
Theguaranteeisvalidif theCERTIFICATEOFGUARANTEE issent,toC.I.M.A.S.p.A., witheverypart
of it filled in, within 30 days from the date of purchase (referring to the date of the postmark).

Plus 42 - 45 - 50 - 55
09-2008
2
The following “symbols “ are used within the text in order to highlight and visually identify the
importance of the various types of information:
Indicates important additional information
Non observance can result in permanent damage to the sprayer.
Highlights possibly dangerous situations to people.
The manual, with relevant attachments and possible integrating issues, must be kept with the utmost
careand mustalways becomplete, integerand legiblein everypart. Shouldit bemislaid itis imperative
to immediately request a duplicate from C.I.M.A. S.p.A. Should the decals originally applied on the
machine be mislaid, damaged or become incomprehensible, they should be
promptly replaced.
For every type of distribution device (Head) delivered with the sprayer, a specific user and
maintenancemanualisattached.Alltheheadmanualsmustalwaysaccompanytheoneofthemachine.
- The manual must always be kept for the sprayer’s whole operational life.
- Any modification received must be permanently inserted in this publication.
- The manual must be ceded with the sprayer should this be sold.
1.6 - UPDATES
Possible updates that C.I.M.A. S.p.A. will provide the owner of the sprayer will be accompanied by
instructions to insert in this publication.
Should the machine be sold, the owner must inform the new purchaser that he should notify C.I.M.A
S.p.A. of his address in order to receive possible future integrating issues and/or updates.
09-2008
Plus 42 - 45 - 50 - 55
67
FF
FF
FAA
AA
AC-SIMILEC-SIMILE
C-SIMILEC-SIMILE
C-SIMILE
00102
18 ATTACHMENT:DECLARATIONOFCOMPLIANCE 18

09-2008
Plus 42 - 45 - 50 - 55
3
2 GLOSSARY 2
2.1- TERMINOLOGY
The terms FRONT, REAR, RIGHT and LEFT utilised in this publication refer to the sprayer as seen by
anoperatorfrombehindtheoperativeunitalongthedrivelineandfacingit:the rear part ofthemachine
is that closest to the operator, and is where the distribution device (Head) is mounted - and the front
part is the one that gets attached to the tractor.
2.2 - ABBREVIATIONS
cm.....................................................................................................................................centimetres
g..................................................................................................................................................grams
h.................................................................................................................................................... hour
ha............................................................................................................................................. hectare
ha/h .......................................................................................................................... hectare per hour
l..................................................................................................................................................... litres
l/h................................................................................................................................... litres per hour
l/min........................................................................................................................... litres per minute
kg ............................................................................................................................................kilogram
kg/cm2..................................................................... kilograms per square centimeter (atmosphere)
km..........................................................................................................................................kilometre
km/h .................................................................................................................... kilometres per hour
Lm...............................................................................................................................width in metres
m.................................................................................................................................................metre
Mesh .................................................................................................... N° of meshes per linear inch
Micron ................................................................................................................. 1/1000 of millimetre
mm...................................................................................................................................... millimetres
PTO.............................................................................................................................. power take-off
RPM ............................................................................................................................ revs per minute
s..............................................................................................................................................seconds
2.3 - DECALS
The safety and use/maintenance decals are applied to the machine are described in the following paragraph.
Every decal is marked with its part number, in case it needs to be replaced.
Safety
1 - 95001 - STOPTHEENGINEANDREMOVETHEKEYFROMTHETRACTOR’SCONTROLPANEL
BEFORECARRYINGOUTALLMAINTENANCEORREPAIROPERATIONS
-Positioned on the right-hand side of the tank in the forward part of the machine.
2 - 95004 - DANGEROFCONTAMINATIONBYCONTACTORPOISONOUSPRODUCTSINHALA-
TION
- Positioned above the tank, on the left-hand side, next to the filler spout.
Plus 42 - 45 - 50 - 55
09-2008
66
Sprayer model Aerial noise emitted
L qA- dB(A)
Plus 42 89,0 +- 0,2
Plus 45 92,4 +- 0,2
Plus 50 99,4 +- 0,2
Plus 55 95.4 +- 0,2
Plus 55S 95,4 +- 0,2
Plus 55E 95,4 +- 0,2
UMAPT013
17 NOISE LEVEL 17

Plus 42 - 45 - 50 - 55
09-2008
4
3 - 95005 - DANGER,PARTSINMOTION.BEFOREREMOVINGPROTECTIONGUARDS,STOP
THETRACTOR,REMOVETHEKEYFROMTHETRACTOR’SCONTROLPANELAND
ENSURE THAT ALL MOVING PARTS HAVE STOPPED
- Positioned on the fan casing next to the outflow vent.
4 - 95015 - BEFOREUTILISINGTHERELEASEDEVICE,STOPTHETRACTOR,REMOVETHEKEY
FROM THE TRACTOR’S CONTROL PANEL AND ENSURE THAT THE FAN HAS
STOPPED
- Positioned in the forward part of the machine, on the mobile protection cover of the
access to the release device.
5 -95010 - MAXIMUM OPERATING SPEED OF THE DRIVE OUTLET (PTO): 540 RPM
- Positioned on the forward part of the machine, on the lower part of the tank and close
to the drive outlet.
6 - 95007 - DANGEROFSPRAYS:KEEPATASAFEDISTANCE
- Positioned on the upper part of the fan casing.
7 - 95006 - WARNING:CONSULTTHEUSERANDMAINTENANCEMANUALBEFOREUSINGOR
INTERVENINGONTHEMACHINE
Positioned on the right hand side of the tank, in the forward part of the machine.
8 - 95009 - DANGER:GLOVESMUSTBEUSEDTOEMPTYTHETANK
- Positioned on the right hand side and lower part of the tank, near the discharge lever
tap.
9 - 95012 - DANGER:MOUNT THEWHEELSAFTERHAVINGHITCHEDTHE MACHINETOTHE
HOISTERANDDISMANTLETHEMBEFOREUNHITCHINGTHEMACHINEFROMTHE
HOISTER
- Positioned on the right hand side and lower part of the tank.
Use and maintenance
10 - 95059 - HOOKINGPOINTFORTHELIFTINGOFTHEMACHINE
-Positioned on the frame, above the fan’s casing.
11 - 95079 - CHECKTHEOILLEVELEVERY8HOURS:FANSHAFTBEARINGS
- Positioned on the chassis, over the fan casing.
12 - 95054 - GREASEEVERY200HOURS:FANTIGHTENERSUPPORTANDFREEWHEEL
- Positioned on the chassis, in the low, rear side, on the left.
- Positioned in the front section, on the tank, in a low position near the Power Takeoff.
13 - 95081 - INDICATIONOFTHEWHEELSOPERATINGPRESSURE(ACCESSORY)
- Positioned on the wheel (accessory).
14 - 95057 - HANDWASHINGTANKTAP
- Positioned on the right-hand side of the tank, next to the tap.
15 - 95065 - WARNING:NEVEROPERATETHESPRAYERWITHOUTLIQUIDINTHETANK
- Positioned on the forward part of the tank, above the gauge.
16 - 95058 - INDICATION ON THE OPERATION OF THE 3-WAY TAP (P5)
- Positioned on the 3-way tap.
17 - 95084 - INDICATION ONTHEOPERATIONOFTHERINSINGTAP(P16)
- Positioned on the right side, under the tank (For models on which it is forseen)
09-2008
Plus 42 - 45 - 50 - 55
65
00001
Marrone
F1
Valve 1 Valve 2
12 V
GRN
Black 1.5
Red 1.5
10A
1
Switch
2
Switch
DL1
11
22
M M
Bianco
Giallo
Arancio
+-
Nero 1.5
Red 1.5
Pressure
regulator
12
M
Nero
Rosso
F2 10A
P
GRN
HL1
Red
Green
Pressure
transducer
16.2- WIRING DIAGRAM
(for versions where it is foreseen)

09-2008
Plus 42 - 45 - 50 - 55
5
350
300
250
200
150
100
50
Positioning of the safety, use and maintenance decals
00298
00184
6
16
15
12
7
1
4
OPTIONAL
00130
00011
8
3
6
00675
17*
14
12
10
9*
NOTE: The numbers with the asterisk (*)
indicate the adhesives relevant
either to optional components or
to accessories to be applied ONLY
on the models and versions on
which this is foreseen.
11
10 11
2
5
13*
Plus 42 - 45 - 50 - 55
09-2008
64
E.P.A. Versions with unit-washing tank
P15
P4
P6
P7
BP
T1
T5
P11 P11
T4
T5
P14
P12
P1
T6
P17
P16
E9
T9
T2
m.
AUT
AUT
MAN
MAN
ON
ON
CLR
CLR
OFF
0LHA
CONFIG 2
E5
P3
P8
E8
AIR
FLOW
DELIVERYDELIVERY
FAN
PNEUMATIC
AGITATION
PIPE
PLUNGER
TAP
MAIN
TANK
DRAIN
HEAD
DELIVERY
PIPE
HYDRAULIC
AGITATION
PIPE
PRESSURE
ELECTRO
REGULATOR
PUMP
3-WAY
TAP
DELIVERY
FILTER
ELECTRICAL
DISTRIBUTOR
Wire W2
Wire W1
E.P.A.
CONTROL
UNIT
00976
PRESSURE
GAUGE
DELIVERYTO
THEDISTRIBUTION
DEVICES
ROTATINGDISC
REGULATORS
DELIVERY
PIPE
LEVERTAPFOR
EXCLUSIONOF
ADDITIONAL
HYDRAULIC
AGITATION
SPRAY-LINE
RINSINGTAP
MIXER
PIPE
MIXERTAP
ONE-WAYVALVE
(NON-RETURN)

Plus 42 - 45 - 50 - 55
09-2008
6
* Safety decals
* Use and maintenance decals
1 95001
00042
2 95004 3 95005
00043
00044
4 95015 5 95010 6 95007 7 95006
8 95009 9 95012
00045 00046 00047 00048
00049
00050
11 95079
12 95054
14 95057 15 95065
10 95059
00062
00065
00069
00067
A
POSIZIONE LAVORO
WORK POSITION
POSITION DU TRAVAIL
POSICION DE TRABAJO
MANUTENZIONE FILTRO
FILTER MAINTENANCE
COMPLAINTE DU FILTRE
MANTENIM. DEL FILTRO
COLLEGAMENTO / SCOLLEGAMENTO TUBO RIEMP .
CONNECTION / DISCONNECTION FILLING PIPE
CONNEXION / DECONNEXION TUYAU DE REMPL
.
CONEXION / DESCONEXION TUBO DE CARGA
C
MISCELAZIONE POLVERI
POWDER M IXING
MEZCLA DE LOS POLVOS
MELANGE DE LA POUDRE
BD
95058
16 95058
13 95081
00962
OIL MAX
MIN
8h
CONTROLLARE
CHECK
CONTRÔLER
CONTROLAR
95079
00282
00684
00676
17 95084
09-2008
Plus 42 - 45 - 50 - 55
63
E9
P2
P4
P6
P1
P7
BP
T9
T2
T1
T5
P11 P11
T4
T5
P14
P8
P12
T6
m.
AUT
AUT
MAN
MAN
ON
ON
CLR
CLR
OFF
0LHA
CONFIG 2
E8
E5
E.P.A. Versions
AIR
FLOW
DELIVERY
DELIVERY
FAN
PNEUMATIC
AGITATION
PIPE
PLUNGER
TAP
MAIN
TANK
DRAIN
HEAD
SUCTION
PIPE
HYDRAULIC
AGITATION
PIPE
PRESSURE
ELECTRO
REGULATOR
PUMP
3-WAY
TAP
DELIVERY
FILTER
ELECTRICAL
DISTRIBUTOR
Wire W2
Wire W1
E.P.A.
CONTROL
UNIT
00976
MIXING
PRESSURE
GAUGE
ONE-WAYVALVE
(NON-RETURN)
DELIVERYTO
THEDISTRIBUTION
DEVICES
ROTATINGDISC
REGULATORS
DELIVERY
PIPE
PRESSURE
TRANSDUCER

09-2008
Plus 42 - 45 - 50 - 55
7
3 GENERAL INFORMATION 3
3.1 - MACHINE IDENTIFICATION
3.2 - TECHNICAL ASSISTANCE
C.I.M.A. S.p.A. is at the complete disposal of customers for any type of intervention. The names and
addresses of its service network, both in Italy and in foreign countries, can be requested from:
C.I.M.A. S.p.A. - 27040 Montù Beccaria - Loc. Molino Quaroni (PV) - ITALIA
tel. [phone] - fax [phone]
from abroad tel. [phone] - fax [phone]
e.mail [email protected]
3.3 - SAFETY NOTICES
All the preparation, use, maintenance, moving and transporting operations must be carried out only
afterhaving acquireda perfectknowledge of theregulations containedin thispublication and theability
to appropriately interpret the symbols of the decals applied to the machine.
IT IS FORBIDDEN TO UTILISE THE SPRAYER FOR PURPOSES OTHER THAN FOR ITS
INTENDEDUSE,SINCEITWASMANUFACTUREDONLYFORSPRAYINGAGRICULTURAL
CROPS WITH ANTI-PARASITIC PRODUCTS.
It is necessary to scrupulously abide by the following general norms:
— always stop the tractor’s engine before carrying out any operation on the sprayer;
— check that the weight and power of the tractor are compatible with the sprayer to be used;
— before utilisation, check the correct tightening and securing of the machine’s various components,
paying particular attention to the safety protections and to the moving parts;
— only utilise protected cardan shafts provided with CE conformity certification.
Carry out the assembly only if the drive outlets of both tractor and sprayer are equipped with the
protection counter-guard;
— check that the cardan shaft is blocked by the appropriate anti-rotation chains;
00128
00070 Identification nameplate
Plus 42 - 45 - 50 - 55
09-2008
62
Sprayers equipped with spray-line rinsing tank
P9
E10*
P15
P4
P6
P5
P7
E9*
BP
T2 T1
®
ON
Remote Control
Remote Control
HO
2
HO
2
ON
OFF OFF
T5
P11 P11
T4
T5
P14
P8
P12
P1
T6
P17
P3
T9
P16
AIR
FLOW
DELIVERY
DELIVERY
FAN
PNEUMATIC
AGITATION
PIPE
PLUNGER
TAP
MAIN
TANK
DRAIN
HEAD
SUCTION
PIPE
HYDRAULIC
AGITATION
PIPE
PRESSURE
REGULATOR
PUMP
3-WAY
TAP
DELIVERY
FILTER
MANUAL
DISTRIBUTOR
ELECTRICAL
DISTRIBUTOR
Wire W2
Wire W1
ELECTRICAL
CONTROL
PANEL MAIN CONNECTOR
00693
* for version where it is foreseen
MIXER
TAP
PRESSURE
GAUGE
ONE-WAYVALVE
(NON-RETURN)
DELIVERYTO
THEDISTRIBUTION
DEVICES
ROTATINGDISC
REGULATORS
MANDATA
TESTATE
MIXER
PIPE
LEVERTAPFOR
EXCLUSIONOF
ADDITIONAL
HYDRAULIC
AGITATION
RINSING
TANKTAP

Plus 42 - 45 - 50 - 55
09-2008
8
350
300
250
200
150
100
50
— keep people and animals away from the machine before starting it up;
— don’t wear articles of clothing that might get caught in moving parts;
— keep to a low speed while negotiating bumps or crossing ditches.
- All maintenance and repair operations must be carried out only after having
rinsed the tank and flushed the system.
- Before operating within the tank it is necessary to wash it thoroughly with clean water.
- It is forbidden to perform welding operations if ammonium salts were previously
used.
- It is forbidden to use the machine within a potentially explosive environment.
-The application of paints and/or solvents, the washing of closed environments
and machinery as well as the utilisation of the air flow for purposes other than
those expressly concerning the spraying of agro-chemicals is not permitted.
- It is forbidden to enter the tank.
3.4 - SAFETY SYSTEMS
All machine moving parts are suitably protected by guards and highlighted through the use of warning
decals.
- It is forbidden to use the machine with these guards removed.
- Before removing the protection, stop the tractor’s engine and remove the key
from the control panel.
The pictures illustrate the machine’s guarded parts:
THEOWNERAND/ORTHEOPERATOROFTHESPRAYERARENOTPERMITTEDTOMODIFY
THESTRUCTUREORTHESPECIFICOPERATIONOFTHESPRAYERITSELF.ANYREPAIRING
INTERVENTIONHASTOBECARRIEDOUTEITHERATTHEDEALERS’ORATTHEC.I.M.A.
S.p.A.AUTHORIZEDWORKSHOPS,OTHERWISEANYKINDOFWARRANTYIMMEDIATELY
CEASES AND C.I.M.A. S.p.A. IS CLEARED OF ANY CONSEQUENT AND/OR IMPLIED
RESPONSIBILITY.
REMOVABLEPROTECTIONCOVER
FOR THE FAN
SWITCHING-OFF DEVICE
FAN
PROTECTION
GRILL
00130 00131
09-2008
Plus 42 - 45 - 50 - 55
61
P9
E10*
P2
P4
P6
P5
P7
E9*
BP
T9 T2 T1
®
ON
Remote Control
Remote Control
HO
2
HO
2
ON
OFF
OFF
OFF
T5
P11 P11
T4
T5
P14
P8
P12
P1
T6
AIR
FLOW
DELIVERY
DELIVERY
FAN
PNEUMATIC
AGITATION
PIPE
PLUNGER
TAP
MAIN
TANK
DRAIN
HEAD
SUCTION
PIPE
HYDRAULIC
AGITATION
PIPE
PRESSURE
REGULATOR
PUMP
3-WAY
TAP
DELIVERY
FILTER
MANUAL
DISTRIBUTOR
ELECTRICAL
DISTRIBUTOR
WireW2
WireW1
ELECTRICAL
CONTROL
PANEL MAIN CONNECTOR
00692
16 INTEGRATIVE DIAGRAMS 16
16.1 - HYDRO-PNEUMATIC DIAGRAM
* for versions where it is foreseen
MIXING
PRESSURE
GAUGE
ONE-WAYVALVE
(NON-RETURN)
DELIVERYTO
THEDISTRIBUTION
DEVICES
ROTATINGDISC
REGULATORS
DELIVERY
PIPE

09-2008
Plus 42 - 45 - 50 - 55
9
3.5 - HANDLING OF AGRO-CHEMICALS
The operator could become contaminated due to accidental spray, contact or inhalation of products
or crop-spraying mixtures.
The environment could become polluted by mixture over-spills, puncturing of containers, uncon-
trolled storage of used and unwashed containers or spillage into waterworks.
In order to avoid these risks the preparation and filling operations must be carried out in suitably
appointed and adequately equipped sites.
3.5.1 - Storage
Fixed / stationary: the site used must be well ventilated and secured by lockable doors in order to
prevent even accidental access by children or unauthorised persons.
Mobile: the carrier equipment must be properly locked and kept under conditions whereby access
by children or unauthorised persons can be prevented during the absence of the operator. All full or
partially utilised containers must be secured against tipping, falling or breakage during transportation.
Both types of storage must:
— have a suitable container for the storing of empty packaging materials should a specific storage
area not be available;
— have a clean water supply readily available for washing, by means of a specific container or
through connection to the waterworks system;
— have the use of fire extinguishers, should flammable products and substances be stored.
- All packages, whether whole or partially utilised, must be stored in their original
packing and with the warning instructions clearly displayed and legible.
- The storage indications must always be scrupulously adhered to, as well as their
utilisation and possible disposal as suggested on the product’s original
packaging.
3.5.2 - Specific equipment
The site at which the preparation and filling out will take place must provide for:
— all the equipment necessary to the precise measuring of both the water quantity and the dose of
product to be mixed in the tank at every filling;
— all the equipment and means useful to the preparation of the mixture and for the cleaning of the
operator in case of contamination;
— all tools necessary to facilitate the direct introduction of the agro-chemicals in the tank;
— the allocation of clothing and specific equipment in order to avoid contamination by contact or
inhalation during the whole operative phase of the intervention;
— theavailability of proper equipment able to stopthe uncontrolled spilling and flowing of themixture;
— a retaining valve on the feed pipe when the filling of the tank takes place directly from the
waterworks system.
3.5.3 - Disposal of empty containers and agro-chemicals residues
Agro-chemicals are classified as “special” waste and their disposal must take place separately from
“urban” wastes.
Plus 42 - 45 - 50 - 55
09-2008
60
00101
ELECTRICAL
CONTROL
PANEL
FUSE
15.2. - REPLACEMENT OF ELECTRICAL PANEL’S FUSES
15.3. - PRESSURE GAUGE REPLACEMENT
Stop the motor and remove the starting key from the tractor control panel.
1. Unscrew and decouple the pipe-holder (3) from the connection of the pressure gauge (1).
2. Unscrew the ring nut (2) and remove the pressure gauge (1).
3. Replace the faulty pressure gauge (1).
4. Mount the new pressure gauge, by carrying out in reverse order the steps mentioned for its
removal.
Stop the engine and remove
the ignition key from the
tractor’s control panel.
1. Replace the faulty fuse and screw back the
cover.
· Fuse: 10 A, delayed.
ANYOTHERINTERVENTIONHASTOBE
CARRIEDOUTATAC.I.M.A.CUSTOM-
ERS’SERVICINGCENTER.
350
300
250
200
150
100
50
50 Pl
2000
00309
1
3
2
®
+
-
ONON
OFFOFF
Spin Remote Control
HO
2
Press.
Pump
ANY OTHER INTERVENTION HAS TO BE CARRIED OUT AT A C.I.M.A. CUSTOMERS’
SERVICINGCENTER.

Plus 42 - 45 - 50 - 55
09-2008
10
Empty packaging and contaminated containers to be done away with cannot be
dispersed, burned or buried.
The washing water for the cisterns and the tools utilised for the preparation of
mixtures cannot be emptied on the ground, spilled into the sewage system or in
waterways and rivers.
The disposal of special wastes is regulated by specific norms. In order to perform this operation it is
necessary to obtain the relevant information from the Local Offices specifically appointed to rule on
this subject. The non compliance with these regulations can cause considerable damage to persons
and animals as well as polluting the environment.
3.5.4 - Personal means of protection
The toxicity of agro-chemicals forces persons working with them to wear adequate protective clothing
and accessories in order to avoid risks of contamination by contact or inhalation.
In each of the following work stages:
— filling of tanks and adding of the agro-chemical,
— dusting and spraying,
— adjusting of the sprayer,
— emptying and cleaning of the tank,
— replacement of the agro-chemical,
— maintenance interventions,
it is necessary to wear personal protection clothing and accessories.
The following must be worn:
— Polyethylene or polyvinyl gloves.
— Full, waterproof cotton overalls, in order to
guarantee transpiration, fitted with polypro-
pylene side flaps.
In commerce, one-time ‘tyvek’ overalls are
available which, after use (see picture), must
be disposed of according to the modalities
applicable to toxic waste.
— A protective half-mask in polychloroprene
rubber with 1 or 2 filters. Filters for gases and
organic fumes, of European A1-class va-
pours, are envisaged and these can be
combined with anti-dust models of P1 Euro-
pean class, for harmful mists and powders,
orP2,forharmfulandtoxicmistsandpowders.
The filters must be replaced:
-when the smell/taste of agro-chemicals can be detected, and that of active A1-
class carbons;
-when difficulty in breathing is experienced for the anti-dust filters of class P1 and
P2.
In any case it is necessary to make use of all personal means of protection as
suggested by the manufacturers.
00073
09-2008
Plus 42 - 45 - 50 - 55
59
15 REPAIRS ALLOWED 15
THEOWNERAND/ORTHEOPERATOROFTHESPRAYERARENOTPERMITTEDTOMODIFY
THESTRUCTUREORTHESPECIFICOPERATIONOFTHESPRAYERITSELF.ANYREPAIR-
ING INTERVENTION HAS TO BE CARRIED OUT EITHER AT THE DEALERS’ OR AT THE
C.I.M.A. S.p.A. AUTHORIZED WORKSHOPS, OTHERWISE ANY KIND OF WARRANTY
IMMEDIATELYCEASESANDC.I.M.A.S.p.A.ISCLEAREDOFANYCONSEQUENTAND/OR
IMPLIEDRESPONSIBILITY.
15.1 - REPLACEMENT OF PUMP CONTROL BELT
Stop the engine and remove the key from the tractor’s control panel.
1. Remove the steel-plate guard located on the frame behind the pump, unscrewing the two securing
screws.
2. Completely unscrew the tightener spring adjusting screw: the pump support plate will so freely turn.
3. Unscrew the fixing screw and turn the mobile protection cover to approach the tunnel of the
disengagement.
4. Insert the pump control belt into the tunnel of fan disengagement. Feed the front part below the
disengagement area and the rear area above, until it enters the upper pulley groove beyond the
disengagement portion.
5. Insert the belt in the pump’s pulley groove.
6. Reinstate the spring of the belt-tensioner according to the suggested tensioning conditions.
7. Re-assemble the steel-plate protection guards.
Carefully tighten the screws that were undone during the belt replacement.
1
3
2
4
00091
GUARD SECURING
SCREW
00308
STEEL-PLATE
GUARD
00038
00014
TRAPEZOID
BELT
PUMP
BELT-TENSIONER
00100
ADJUSTING
SCREW
LOWER
PULLEY
UPPER
PULLEY

09-2008
Plus 42 - 45 - 50 - 55
11
4 MACHINE’S STRUCTURAL ANALYSIS 4
The pictures indicate the position of the main components of the sprayer.
PUMP
LEVER TAP FOR
DUST PRODUCTS
MIXING
00299
DELIVERY
FILTER
CENTRIFUGAL
FAN
TANK
DISTRIBUTION
DEVICE
(HEAD)
JOINING
ELBOW
ROTATING DISC
REGULATOR
MAIN FILLER (BP)
FRAME
HEAD
PROTECTION
RING
00677
00184
ELECTRICAL
DISTRIBUTOR
(for the models
where it is
foreseen)
RINSING
TANK
(for the models
where it is
foreseen)
3-WAY TAP
LEVER TAP FOR
EXCLUSION OF
ADDITIONAL
HYDRAULIC
AGITATION
(for the models
where it is
foreseen)
Plus 42 - 45 - 50 - 55
09-2008
58
3b.CAUSE: Power cable W1 of the electrical panel interrupted or oxidized connectors of the electric
distributor (E7)
REMEDY: Connect and possibly replace the defective components correctly.
4. CAUSE: Defective electrical connections.
REMEDY: Address a C.I.M.A. point of “Sale and Service”.
5. CAUSE: Pump defective (only in case total delivery missing).
REMEDY: Address a C.I.M.A. point of “Sale and Service”.
6. CAUSE: Broken pump belt.
REMEDY:Replace the belt (See Paragraph 15.1).
THECAUSES ANDREMEDIESFORTHE FAULTSCONCERNINGTHEDELIVERY OFTHE
SPRAYINGBYONEORMOREDIFFUSERSAREINDICATEDINTHEUSEANDMAINTENANCE
MANUALOFEACHSPRAYHEAD.
K.FAULT: Anomalous consumption of oil of the fan support.
1. CAUSE: Oil drain plug not adequately closed.
REMEDY: Check, reposition and adequately close then handle the filling up of the oil
level.
2. CAUSE: Damaged flexible oil waste pipe or damaged pipe fixing clamp.
REMEDY: Check, adequately then handle the filling up of the oil level. Replace the
damaged parts: rivolgersi al punto “Vendita - Assistenza” C.I.M.A.
3. CAUSE: Drawings from the support mechanical seals.
REMEDY: Address a C.I.M.A. point of “Sale and Service”.
L. FAULT:Noisiness (ticking) coming from the upper part of the mechanical drive at low
runnings, above all when slowing down.
2. CAUSE: Consumption of the damping elements of the fan release.
REMEDY: Eventually have it replaced; address a C.I.M.A. point of “Sale and Service”.
M. FAULT: Noisiness (ticking) coming from the lower part of the mechanical drive at low
runnings, above all when slowing down.
1. CAUSE: Lack of grease in the multiplier free wheel.
REMEDY: Grease the free wheel.

Plus 42 - 45 - 50 - 55
09-2008
12
350
300
250
200
150
100
50
50 Plus
2000
2000
4.1 - FRAME
Frames of series Plus 42 and 45 can be coupled to category “1” three-point linkage.
The plugs diameter is 22 mm. The diameter of the third-point plug is 19 mm.
In order to limit the shifting of the centre of gravity and to implement a functional
coupling, ALL frames allow for the double positioning of plugs
Frames of series Plus 50, 55, 55S and 55E can be coupled to category “2” three-point linkage.
The plugs diameter is 28.5 mm. The diameter of the third-point plug is 25 mm.
— The tank-securing bracket is mounted by means of 2 screws on the front, below the 3rd point. (see
Paragraph 13.9).
— A tie-rod through the tank’s upper tunnel connects the front part of the frame to the rear. This must
be dismantled should the tank be removed and it must be repositioned after having re-assembled
the tank.
This operation is carried out from the front, below the 3rd point connection, by means of a spanner
supplied with the machine.
— In the forward part, below the 3rd point connection, the removable protection cover of the fan
release device is secured by means of a screw.
Arearbumperisprovidedtoprotectthesprayhead.Thismustbemountedinthemosteffectiveposition,
according to the operating conditions and in keeping with the type of heads utilised.
A chain with hooks, fixed to the front part of the frame, allows the support of the transmission joint
when the machine is coupled to the tractor.
All frames are pre-set with axles for the application, on request, of a pair of wheels (see Paragraph
7.2).
HAND WASHING TANK
(incorporated with the tank)
LEVEL
INDICATOR
GAUGE
PLUNGER
TAP
POWER
TAKE-OFF
(PTO)
00133
SECONDARY
FILLER (BS)
CONNECTION
TIE ROD
TANK
DRAINAGE
TAP
MAIN FILLER (BP)
HAND WASHING
TANKTAP
PRESSURE
REGULATOR
MANUAL
DISTRIBUTOR
®
+
-
ONON
OFFOFF
SpinRemoteControl
HO
2
Press.
Pump
ELECTRICAL
DISTRIBUTOR
CONTROL UNIT
(for the models
where it is
foreseen)
Versions
WITH
rinsing tank
Versions
WITHOUT
rinsing tank
09-2008
Plus 42 - 45 - 50 - 55
57
4. CAUSE: Lack of seal of the O-Ring gasket of the pump suction connection (cone).
REMEDY:check the correct assembling and the efficiency of the O-Ring gasket, if
necessary replace the gasket.
E.FAULT: Vibrations of fan unit.
1. CAUSE: Dirty fan.
REMEDY: Wash. (It is advisable to refer a C.I.M.A. point of “Sale and Service”.
2. CAUSE: The tractor and of the atomizer PTOs are not lined up or their position determines the
overcoming of the maximum work angle of the drive cardan shaft.
REMEDY: Raise or lower the sprayer in order to realign PTO so that cardan shaft
functions correctly (see Paragraph 5.2.1).
F. FAULT: Anomalous and continuous noisiness together with vibrations of the fan group.
1. CAUSE: Breaking of the fan shaft bearings.
REMEDY: Address a C.I.M.A. point of “Sale and Service”.
2. CAUSE: Interference fan - case.
REMEDY: Address a C.I.M.A. point of “Sale and Service”.
G. FAULT: Intermittent operation of the whole distribution device
1. CAUSE: Lackofsealofthehydrauliccircuitthatgoesfromthetank(T1)suctionpipestothemanual
distributor (P9) or to the electrovalves (E9)
REMEDY:Carefully inspect all the points at which suction of air can take place, including
as well those at which no liquid seepage is detected. Check the proper tightening of ring
nuts, fittings and clamps. Check the efficiency of the sealers and the integrity of the
piping. Reinstate the efficiency and replace parts that might have been found to be
defective.
H. FAULT: Intermittent spraying only on the one side of the distribution device
1. CAUSE: Faulty sealing of the hydraulic circuit going from the manual (P9) or electrical (E9)
distributor to the distribution point involved.
REMEDY:As per point G.1.
I. FAULT: No spraying action delivered: totally.
1. CAUSE: Clogging up of the grill/filter on the pump, of the pump suction inside the tank or suction
pipes of pump clogged up with deposits of hardened plant protection product.
REMEDY: Clean.
J. FAULT: No spraying action delivered: totally or only on the one side of the distribution
device
1. CAUSE: Manualdistributor(P9) tapsdirtyorclogged,orpumpsuction piping cloggedbyhardened
product deposits.
REMEDY: Clean.
1b.CAUSE: Electrical distributor (E9) taps blocked by incrustations in the closed position.
REMEDY: Remove the cover, act on the opening/closing control rod.
Clean the distributor.
2. CAUSE Fuses of the electrical control panel (E10)
REMEDY: Replace the fuses.
