KMDA-3921/3920/3610 is an embedded industrial Box Computer of JHCTECH, with aluminum chassis.
It powered by the Gen. 6th Intel® Skylake-S/Gen. 7th Intel® Kabylake-S CPU. It supports 2-Ch DDR4
2133/2400MHz memory, up to 32GB. It features multiple PCI or PCIe expansion slots, which can fulfill
extensive requirements in various projects.
KMDA-3921/3920/3610 offers 1*HDMI, 1*DP, 1*VGA, 3 displays, 2*GbE LANs, 7*USB (1 inside for
dongle), 4*COM, 8-bit DIO, 1*F-Mini PCIe with SIM slot, which supports 4G LTE/Wifi/BT. 1*mSATA,
1*M.2 2242 B-Key, 2*2.5” SATA HDD/SSD are used for storage, support raid0,1. It supports various
optional expansion slots, including PCIe×16, PCIe×4, PCIeX1, PCI. So, users can conveniently select
expansion boards based on their requirements. Besides, DC 12~24V wide power input. It is widely used
for Industrial Automation, Intelligent Transportation (ITS), and Machine Vision.
1.2 Features
Key Features
⚫Universal aluminum chassis, SGCC frame
⚫Intel® Skylake-S/Kabylake-S Celeron/Core I3/I5/I7 CPU
⚫2*260-pin SODIMM, DDR4 2133/2400MHz, up to 32GB
⚫1*F-mini PCIe with SIM slot, support 4G LTE and Wifi/BT
⚫Expansion
KMDA-3921 Series: 1*PCIe X16, 1*PCIeX1,2*PCI or 2*PCI or 2*PCIeX8, 1*PCIeX4
KMDA-3920 Series: 1*PCIe X4, 1*PCIe X16
⚫2*2.5” SATA HDD/SSD bay, 1*mSATA, 1*M.2 2242 B-Key for storage
⚫1*DP, 1*HDMI, 1*VGA, 3 displays
⚫Realtek ALC662VD controller, 1*LINE OUT, 1*MIC
⚫1*Intel I211AT, 1*Intel I219LM, supports Intel vPro technology
⚫8-bit DIO(KMDA-3921/3920), 8+16-bit DIO(3610), 4*USB3.0, 3*USB2.0(1 inside), 4*COM
⚫Support TPM 2.0
⚫Clear CMOS switch is on the front panel, easy to clear CMOS data
⚫AT/ATX power-on mode selection switch is on the front panel, easy to set power-on mode

User’s Manual
3
⚫DC 12~24V, CPU temperature show in LED
1.3 Specifications
1.3.1 General
CPU: Intel®Skylake-S/Kabylake-S Celeron/Core I3/I5/I7 CPU
System Memory: 2*DDR4 2133/2400MHz SODIMM, Up to 32GB
Watchdog Timer: 255-level interval timer, setup by software
Serial Ports: 2* RS232/422/485 DB9 male, 2*RS232 DB9 male
USB: 4*USB 3.0 Type A ports(front), 2*USB2.0 Type A ports(front), 1*USB 2.0 Type A port (inside)
DIO:
-KMDA-3921/3920: 8-bit DIO, 10-Pin Phoenix terminal
-KMDA-3610: 8-bit DIO, 10-Pin Phoenix terminal+16-bit DIO, DB25 Female
I-Port: optional 1*LPT、USB2.0、DIO or 1*Mini PCIe module interface(KMDA-3921/3920)
Expansion Interface:
1*Full size Mini PCIe (PCIeX1+USB) with SIM slot
PCI/PCIe slots:
KMDA-3921 Series: 1*PCIe X16, 1*PCIeX1, 2*PCI
KMDA-3920 Series: 1*PCIe X16, 1*PCIe X4
KMDA-3610 Series: none
Storage:1* mSATA, 1*M.2 2242 B-Key
2*2.5” SATA HDD/SSD bay, support Raid0,1(In Intel Q170)
1.3.2 Display
Chipset: Gen. 9th Intel® HD Graphics
Display Memory: Shared system memory
Resolution: HDMI 3840x2160@30Hz; DP 4096x2160@60Hz, VGA 1920x1200@60Hz
1.3.3 Ethernet
Chipset: 1*Intel®I211AT Ethernet controllers, 1* Intel® I219LM Ethernet controller
Speed: 10/100/1000 Mbps Integrated
Interface: 2*RJ45

User’s Manual
4
1.3.4 Audio
Chipset: Realtek ALC662VD controller
Interface: 1*Audio out, 1*MIC, 3.5mm phone jack
1.3.5 Power Consumption
Input Voltage: DC 12~24V Input
Power Consumption: TDP 19V/3.62A (I7-6700T CPU, 4GB RAM, 1TB HDD)
Power Adapter: AC to DC 19V/6.32A, 120W（when not installing GPU card）
AC to DC 24V/9.17A, 220W（when installing GPU card）
1.4 Environmental Specifications
Operating temperature:
-20 ~ 65°C (SSD, Airflow)
-10 ~ 50°C (HDD, Airflow)
Relative humidity: 10~90% @ 40°C (non-condensing)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Vibration loading during operation:
With SSD: 5.0 Grms, random, 5 ~ 500 Hz
With HDD:1.0 Grms, random, 5 ~ 500 Hz
Shock during operation:
With SSD: 50g, peak acceleration (11 ms duration)
With HDD:20g peak acceleration (11 ms duration)
EMC: CE, FCC Class B
1.5 3921/3920/3610 Series Specifications
Model.
KMDA-3921
KMDA-3920
KMDA-3610
CPU
Intel®Skylake-S/Kabylake-
S Celeron/Core I3/I5/I7
CPU
Intel® Skylake-S/Kabylake-
S Celeron/Core I3/I5/I7
CPU
Intel®Skylake-S/Kabylake-
S Celeron/Core I3/I5/I7
CPU
Chipset
Intel®H110/Q170
Intel® H110/Q170
Intel®H110/Q170

User’s Manual
5
SODIMM
2
2
2
Storage
2*SATA3
2*SATA3
2*SATA3
LAN
2
2
2
USB
4*USB3.0 3*USB2.0
4*USB3.0 3*USB2.0
4*USB3.0 3*USB2.0
COM
4
4
4
DIO
8-bit
8-bit
8-bit+16-bit
Display
1*HDMI, 1*DP, 1*VGA
1*HDMI, 1*DP, 1*VGA
1*HDMI, 1*DP, 1*VGA
PS/2
Keyboard & Mouse
Keyboard & Mouse
Keyboard & Mouse
Audio
1*Line Out, 1*MIC
1*Line Out, 1*MIC
1*Line Out, 1*MIC
I-port
Optional LPT,
2*USB2.0,16-bit DIO
Optional LPT,
2*USB2.0,16-bit DIO
16-bit DIO (default)
Expansion
1*mini-PCIe,
1*M.2 2242 B-Key
1*PCIeX16+1*PCIeX1
2*PCI
1*mini-PCIe
1*M.2 2242 B-Key
1*PCIeX16+1*PCIeX4
Or 2*PCI
1*mini-PCIe
1*M.2 2242 B-Key
1.6 Mechanical Specifications
The KMDA-3921/3920/3610 new industrial design Box computer of JHCTECH, consists of a JHC
SBC(STX-I951), a sub-card (ECD-9050), and an expansion card ECX-241 or ECI-242 or ECI-245.
The specific combination is as follows：
Model No.
KMDA-3921
KMDA-3920
KMDA-3610
AXM-I951
✓
✓
✓
ECD-9050
✓
✓
✓
ECX-241

✓


User’s Manual
6
ECX-242
✓


ECI-245

✓

(Note: ECX-241 and ECI-245 are 2 alternatives in KMDA-3920)

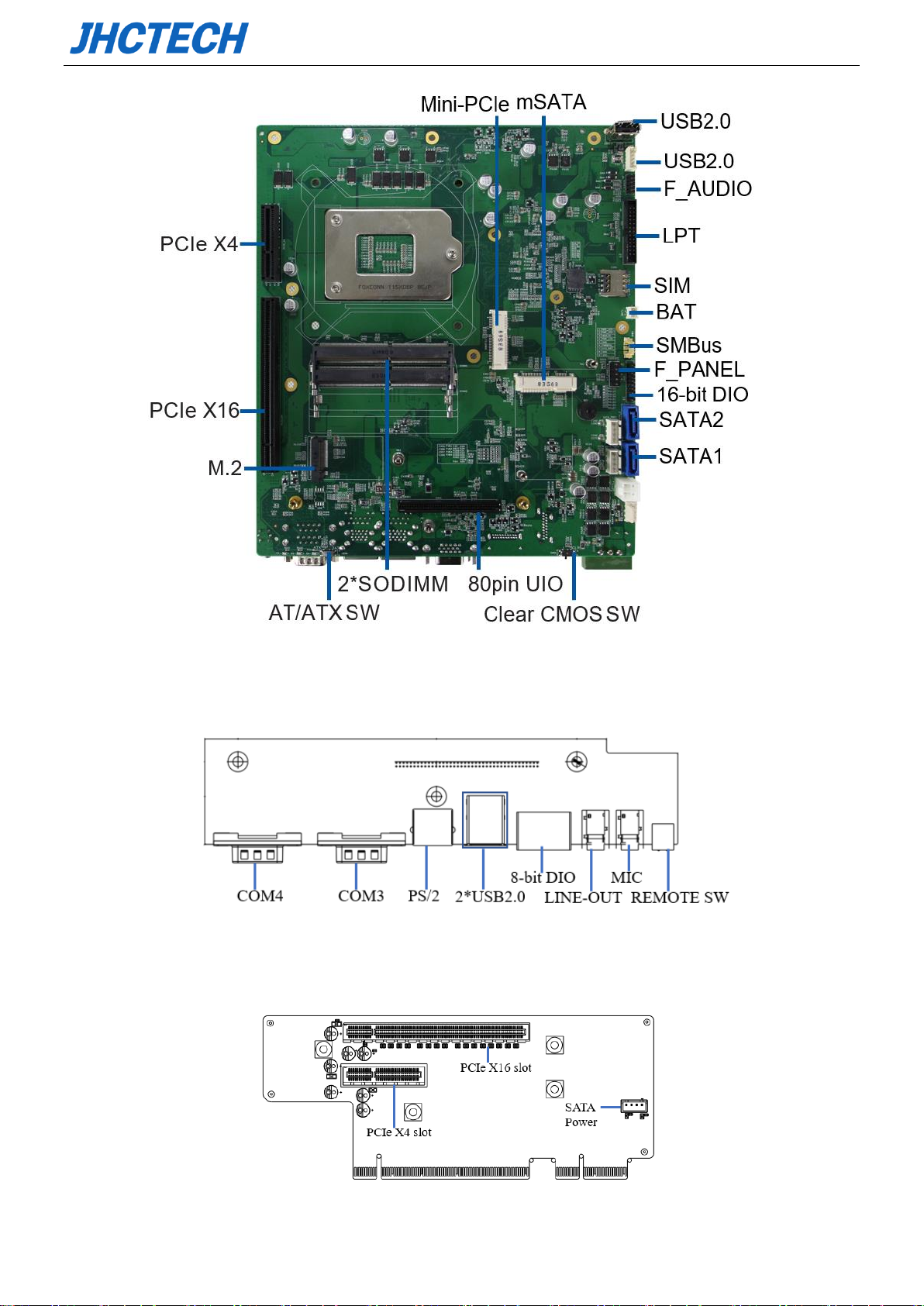

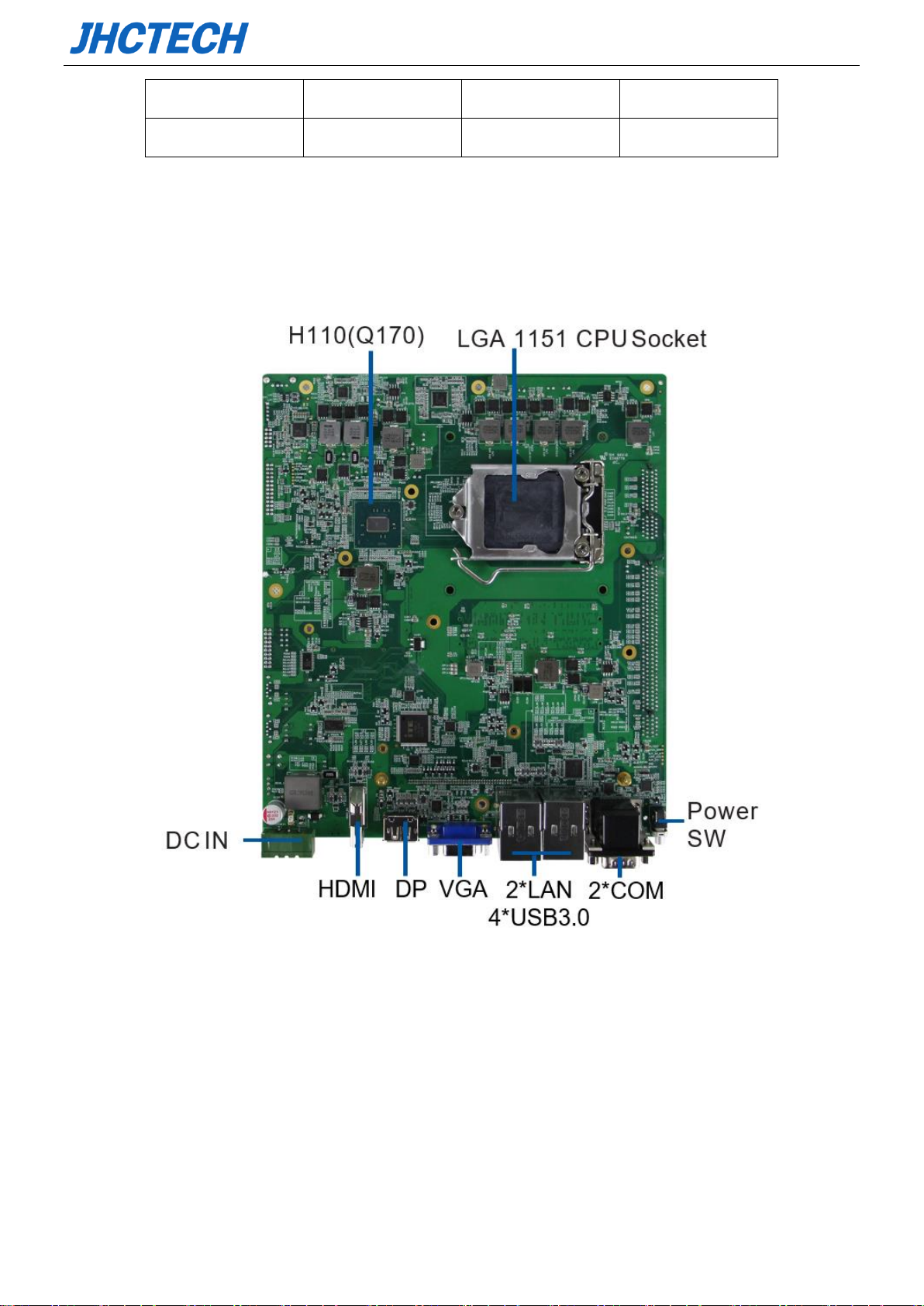

Main Board Front (AXM-I951)
Figure 1.1
Main Board Rear (AXM-I951)

User’s Manual
7
Figure 1.2
Sub-card (ECD-9050)
Figure 1.3
Riser card (ECX-241)
Figure 1.4

User’s Manual
8
Riser card (ECX-242)
Figure 1.5
Riser card (ECI-245)
Figure 1.6

User’s Manual
9

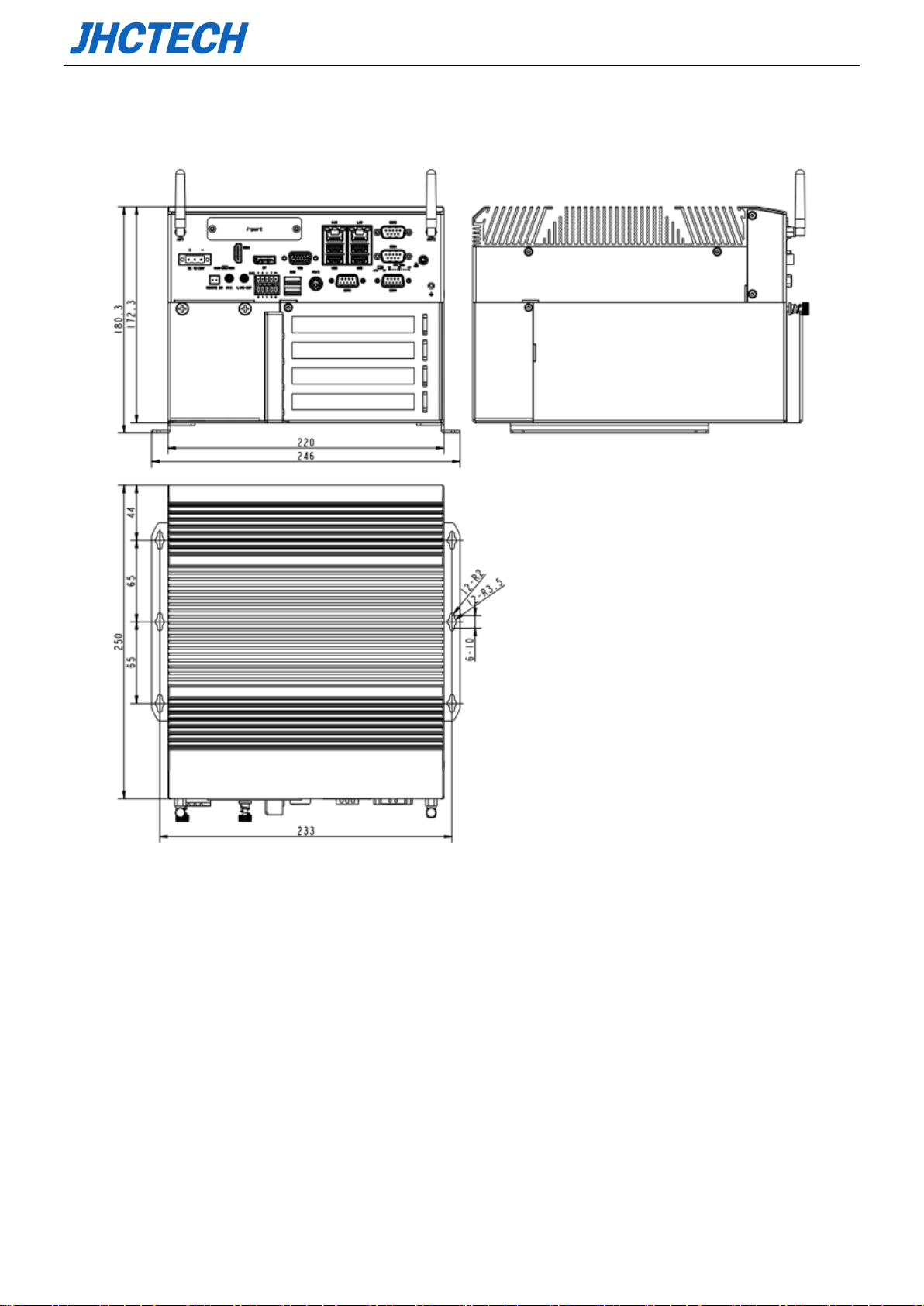

KMDA-3921 Dimension: Unit: mm
Figure 1.7

User’s Manual
10
KMDA-3920 Dimension: Unit: mm
Figure 1.8

User’s Manual
11

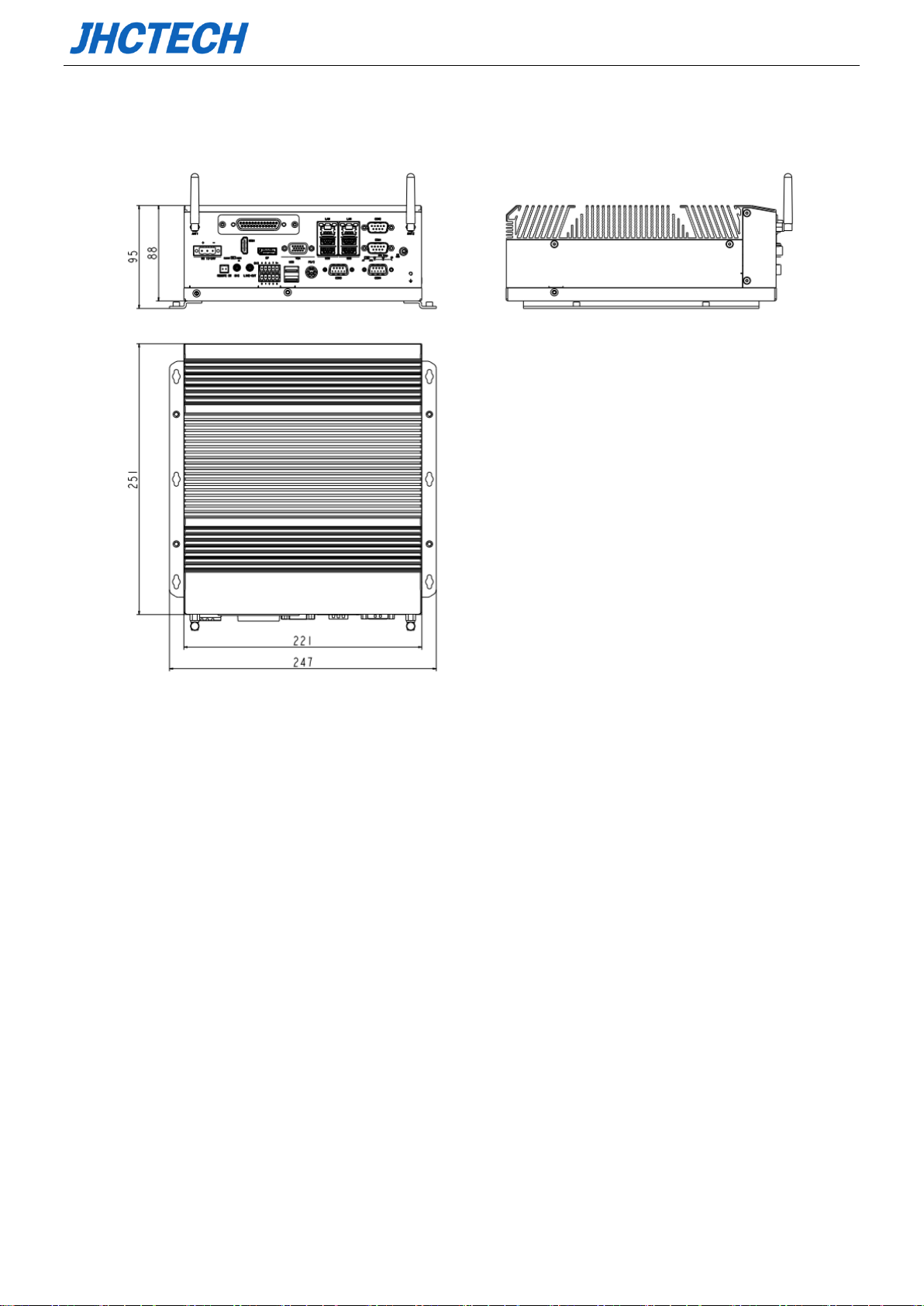

KMDA-3610 Dimension: Unit: mm
Figure 1.9

User’s Manual
12
Hardware Installation
CHAPTER
2
